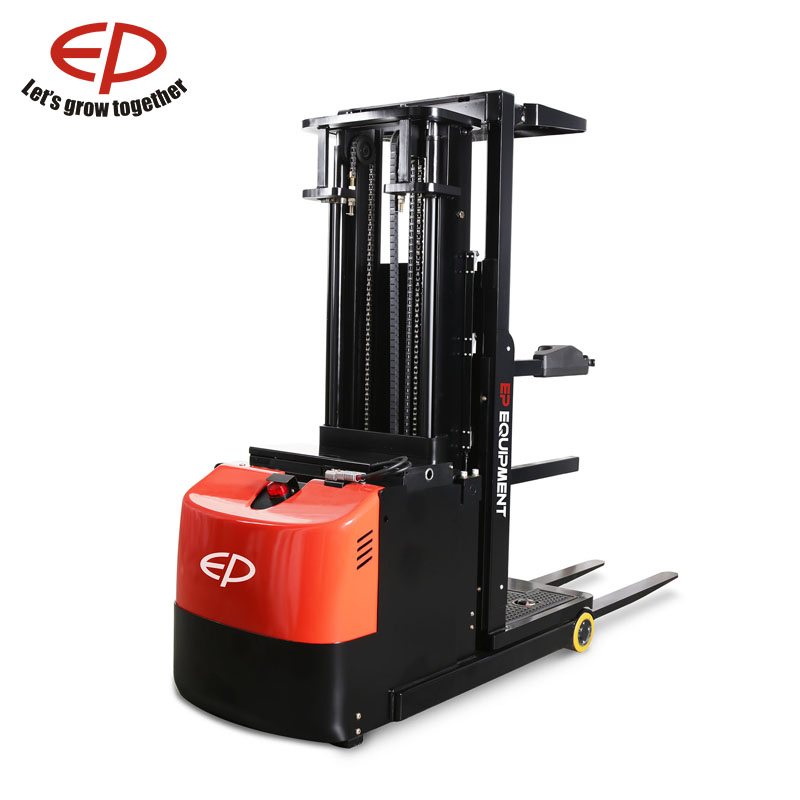

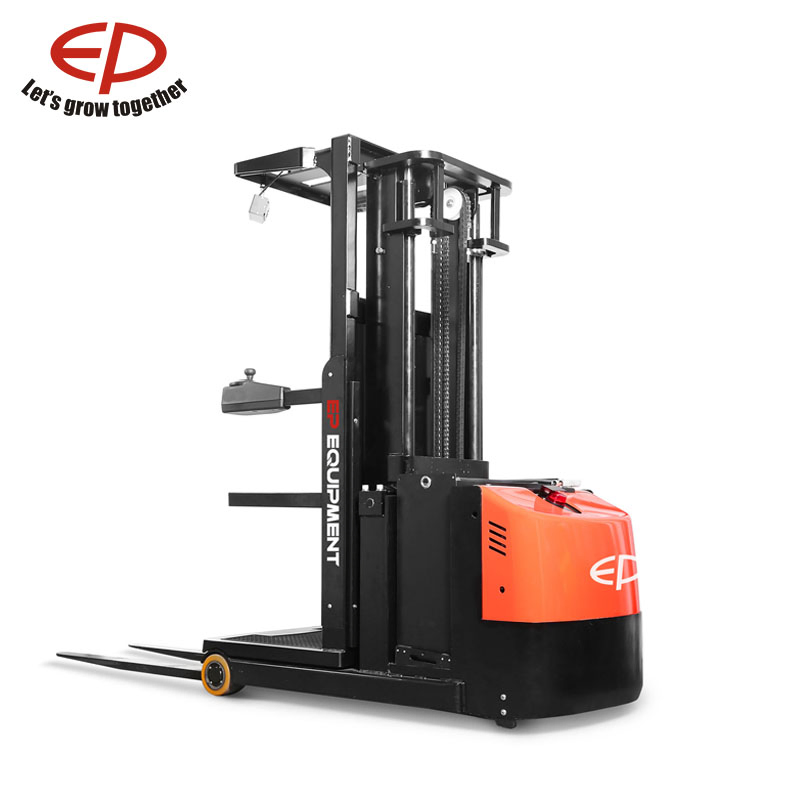

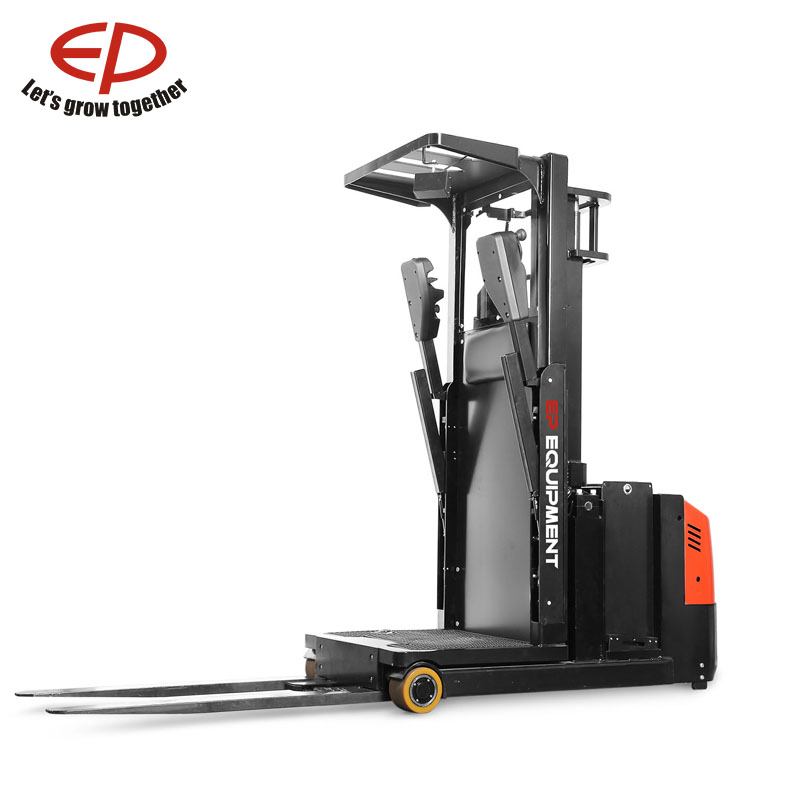

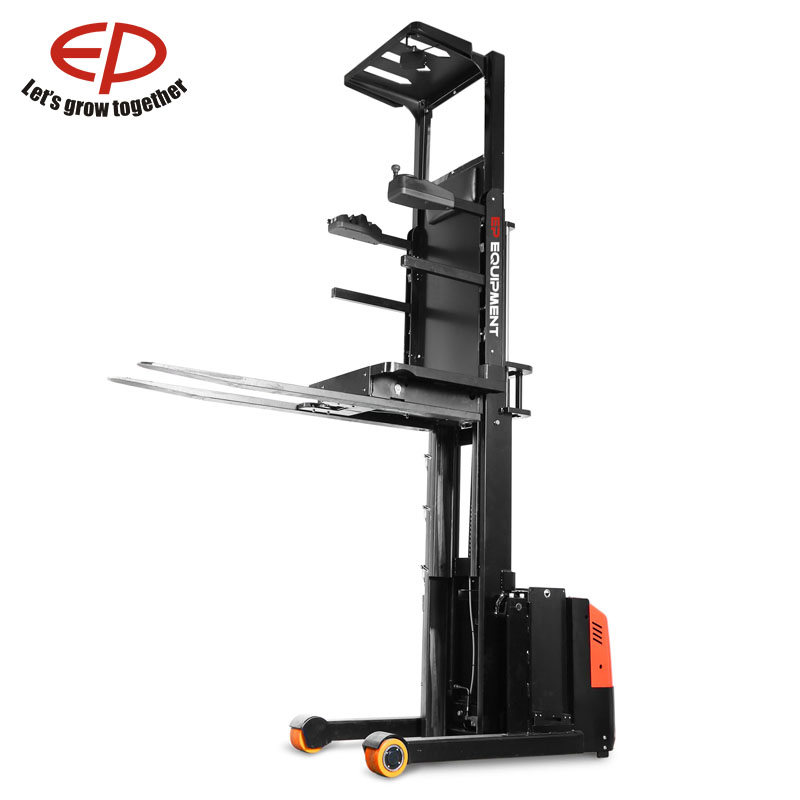

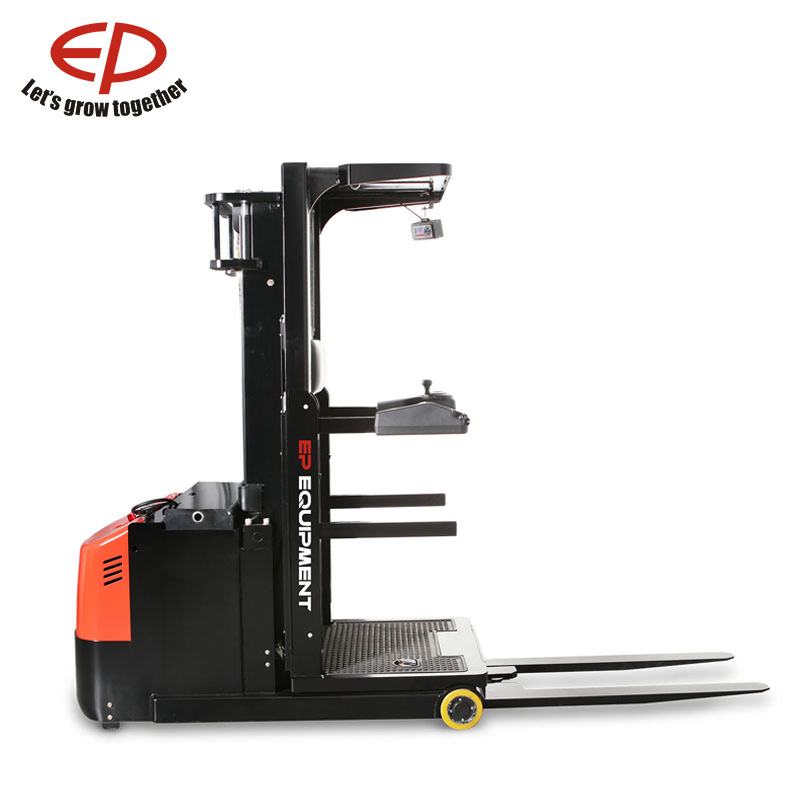

1.0 Ton Electric Order Picker with AC Power Order Picking Truck

Customization:	Available
Cab Location:	Not Adjustable
Type:	Order Picker

Send Inquiry

Product Description

Basic Info.

Model NO.

JX2-4

Power

DC Motor

Load Capacity

700kg

Fuel

Electric

Load center

600mm

Lift height

3200mm-3600mm

Condition

New

Self Weight

1900kg

Fork Length

1070mm

Battery Voltage

360ah/24V

Certification

Ce/ISO9001

Turning Radius

1600mm

Product Description

Distinguishing Mark
1.2	Model designation			JX2-4(3200)	JX2-4(3600)
1.3	Drive unit			Electric	Electric
1.5	Rated capacity	Q	kg	1000	1000
1.6	Load center distance	c	mm	600	600
Weight
2.1	Service weight (include battery)		kg	1900	1965

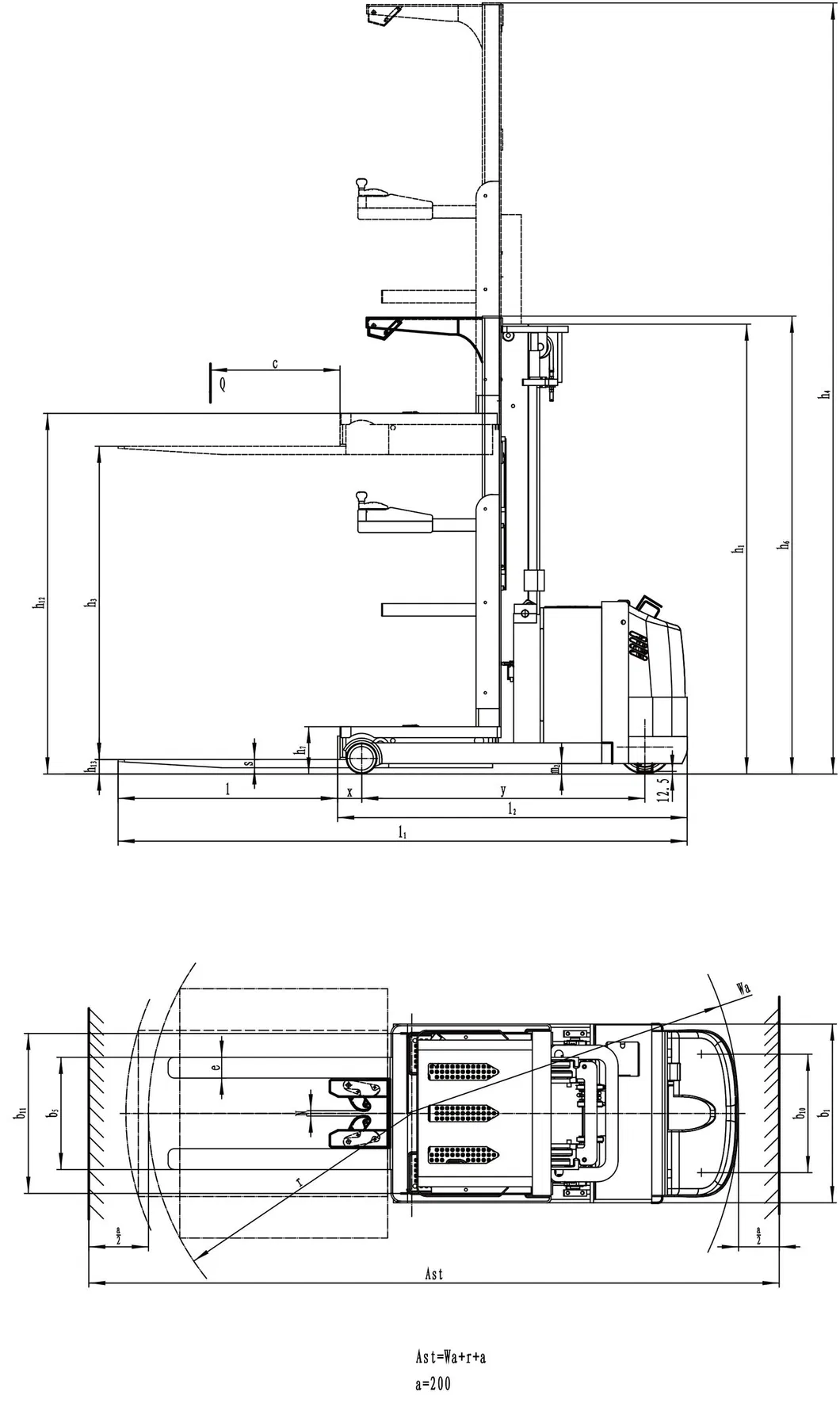

Dimensions
4.4	Lift height	h3	mm	3137	3597
4.19	Overall length	l1	mm	2750	2750
4.21	Overall width	b1/ b2	mm	860	860
4.35	Turning radius	Wa	mm	1600	1600
Performance Data
5.1	Travel speed, laden/unladen		km/h	8	8
5.2	Lifting speed, laden/unladen		m/s	0.13/0.16	0.13/0.16
Electric-engine
6.4	Battery voltage/nominal capacity		V/Ah	24/360	24/360

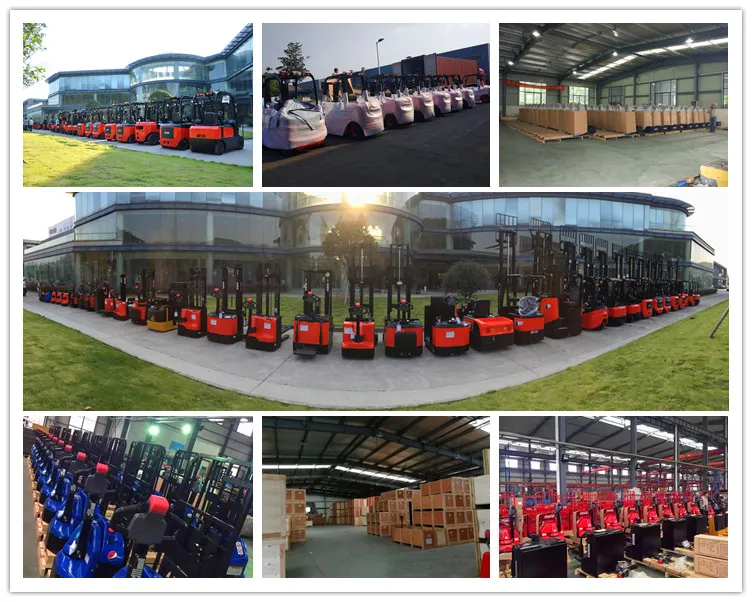

Packaging & Service

Frequently Asked Questions

Q1: What is the maximum lift height of this electric order picker? The JX2-4 model offers a lift height ranging from 3200mm to 3600mm depending on the specific configuration.

Q2: What is the load capacity of the JX2-4? The rated load capacity for this model is 700kg, while certain technical specifications support up to 1000kg rated capacity.

Q3: What type of motor and steering system does it use? This unit is powered by a high-efficiency DC motor and features an electric steering system for smooth operation.

Q4: What are the battery requirements for this equipment? It utilizes a 24V/360Ah battery, ensuring reliable power for professional order picking tasks.

Q5: Is this order picker suitable for narrow aisles? Yes, with a compact overall width of 860mm and a turning radius of only 1600mm, it is designed for efficient movement in narrow spaces.

Q6: What certifications does the product hold? The product is fully certified under CE and ISO9001 standards, ensuring international quality and safety compliance.
