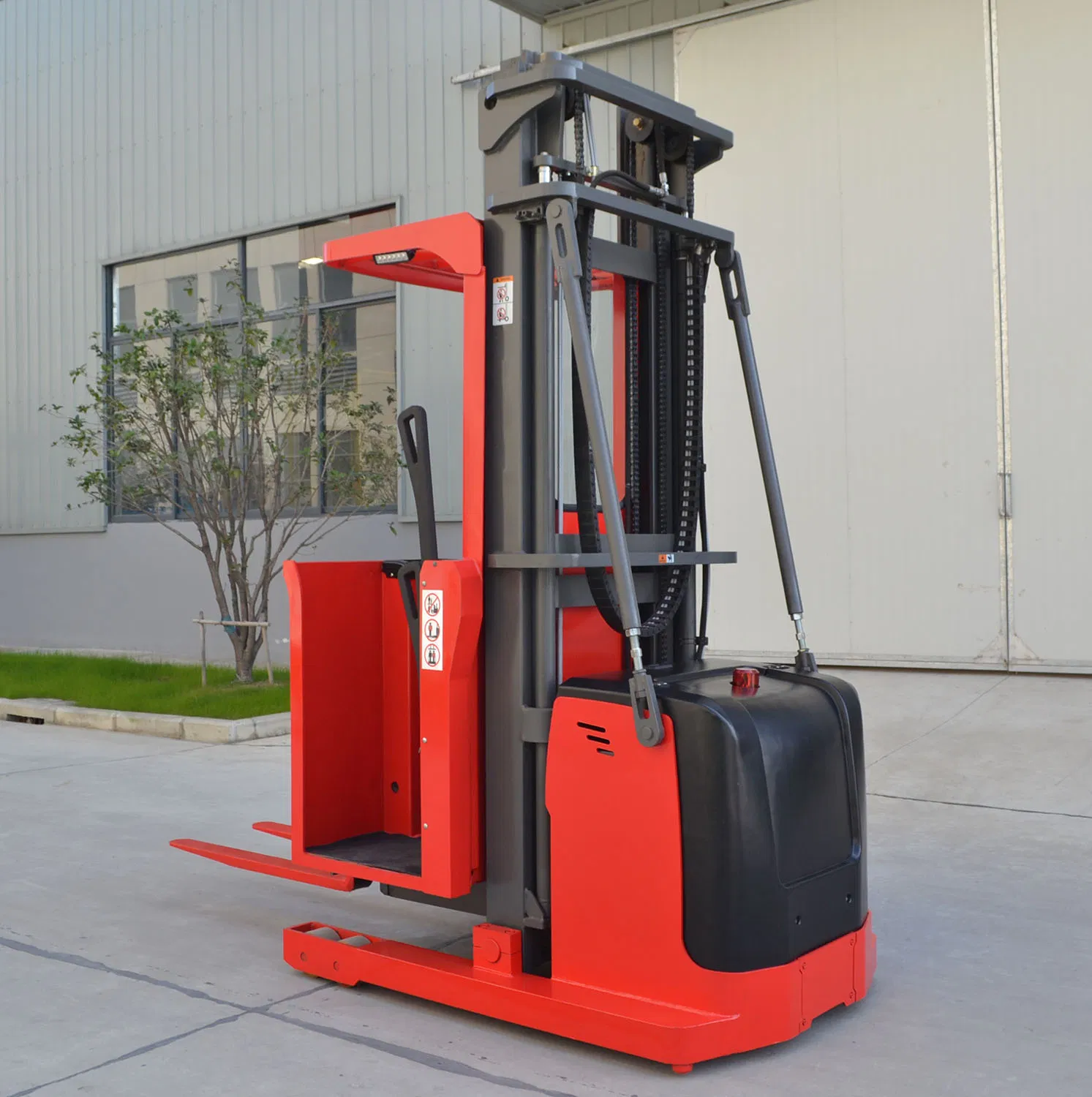

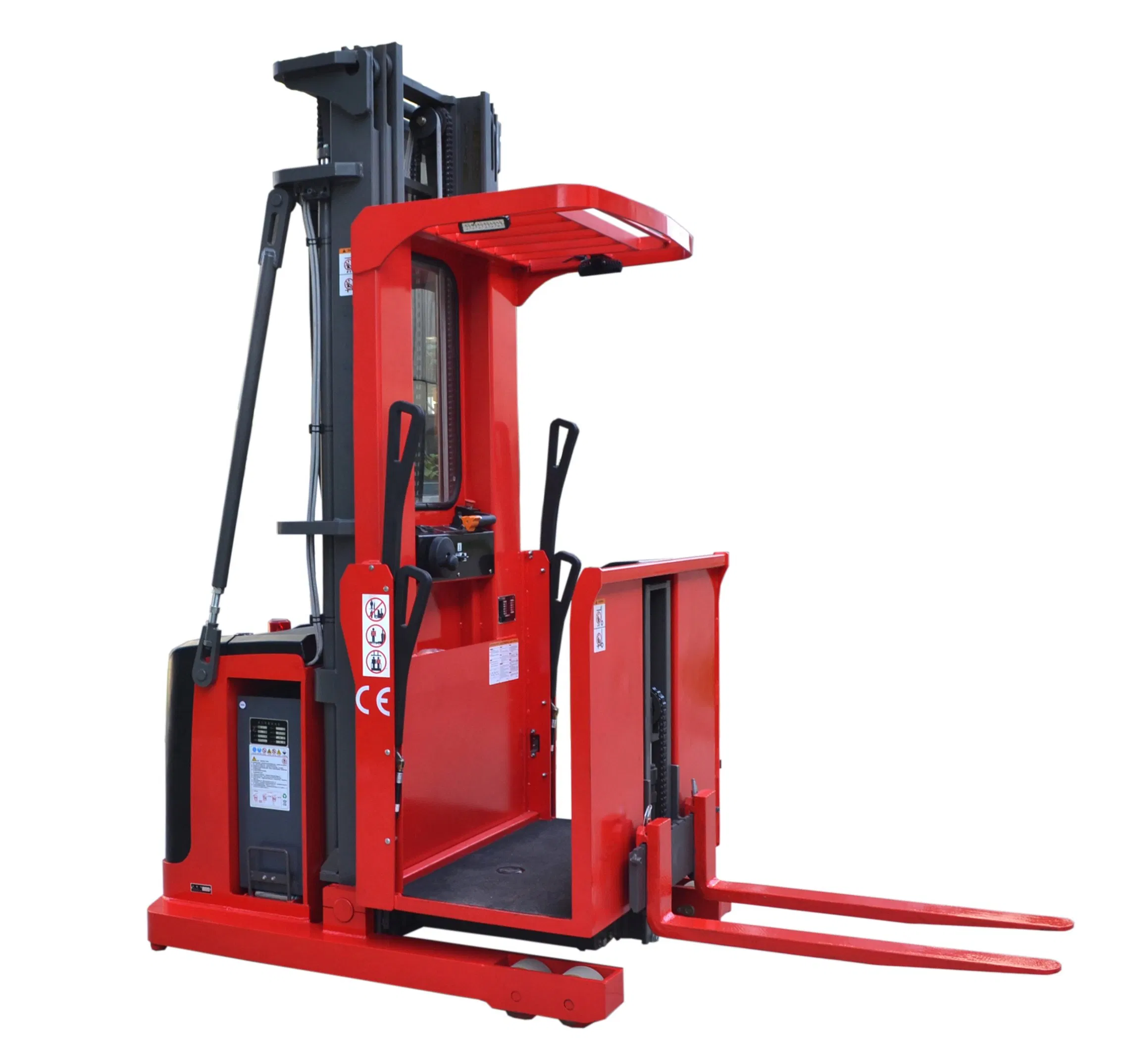

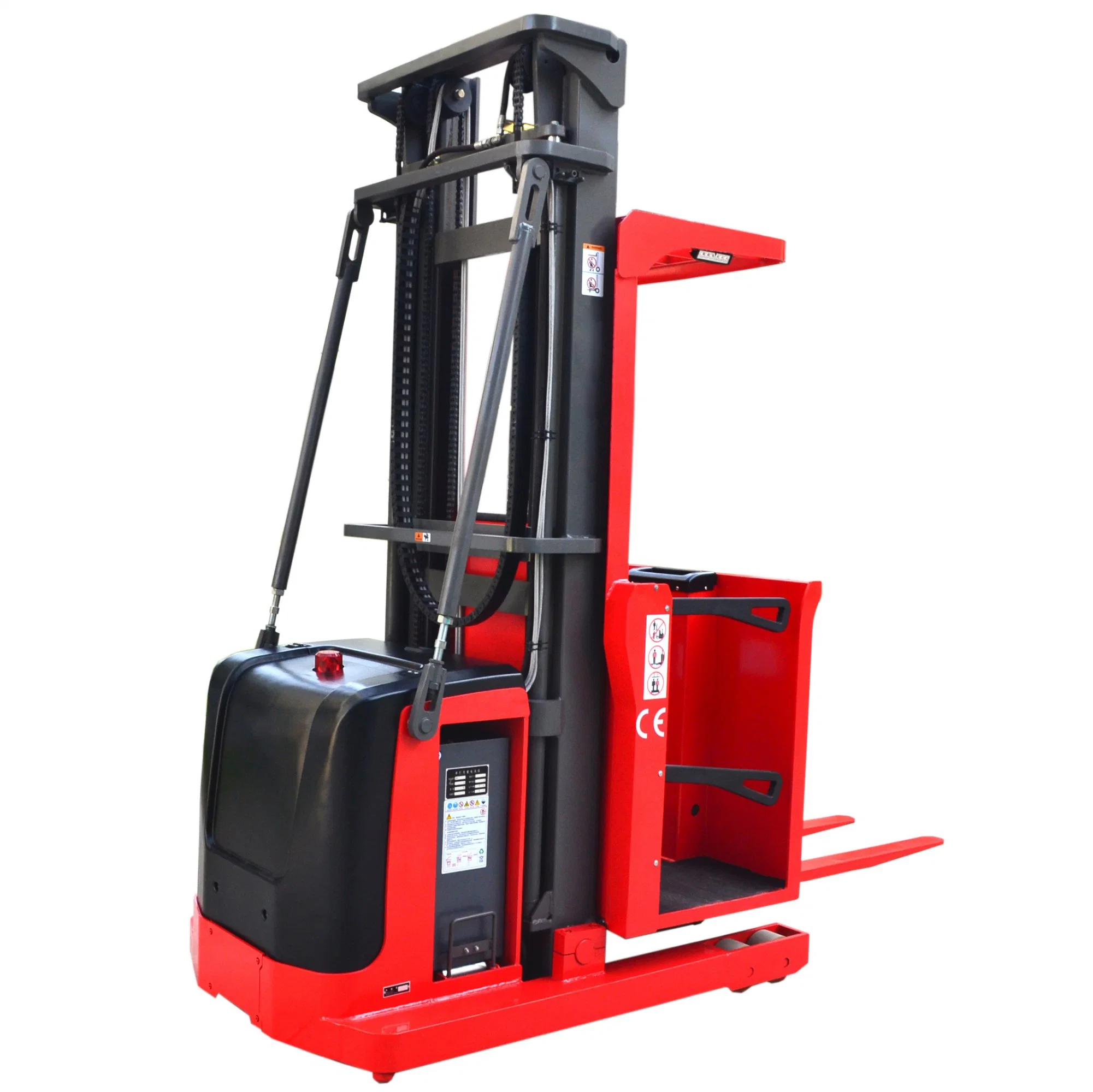

1000kg 4.5m Full Electric Order Picker with Adjustable Lifting Platform Orderpicker Truck in Very Narrow Aisle

1 / 5

1000kg 4.5m Full Electric Order Picker with Adjustable Lifting Platform Orderpicker Truck in Very Narrow Aisle

Customization:	Available
Power Type:	Battery
Service Weight:	2340kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

THA10

Max. Lift Height

4500mm

Min. Lift Height

3000mm

for Dimension

930*100*35mm

Turning Radius

1440mm

Brake Type

Electromagnetic

Steering Type

Hydraulic

Battery Capacity

24V/480ah

Tyre Type

Slid PU

HS Code

842710900

Production Capacity

800

1000kg High-level Electric Order Picker

🔵

Loaded Capacity: 1000kg. Optional lift height: 3000-4500mm.

🔵

Environment-Friendly: Low noise and non-pollution electricity energy adopted ensure an eco-friendly operation.

🔵

Reliability: American imported CURTIS controller provides quick reaction and strong acceleration/deceleration control for a longer service life.

🔵

EPS Technology: Electric steering system makes operation more convenient and effortless.

🔵

AC Driving Motor: Brushless AC motor ensures 30% energy saving and lower maintenance costs.

🔵

Mast Buffer Function: Lowers noise from impact at junction points during lifting; includes anti-fracture chain.

🔵

Safety Protection: Equipped with personnel safety protection rope to ensure operator security.

🔵

Quality Assurance: Strict inspection system; ISO9001-2008 and CE approved.

Technical Specifications

Parameter	Value
Model	THA10-30
Load capacity	1000 Kg
Max. lifting height	3000 mm
Wheel type	Polyurethane
Fork size (LxW)	920*100 mm
Overall length	2565 mm
Overall width	1080 mm
Total weight (with battery)	~1870 Kg
Battery	24V / 480Ah
Driving motor	1.1 Kw (AC)
Lifting motor	3 Kw

High Mast Parameters

Mast Type	Full Free	Lifting Height	Lowered Height	Capacity @ Max Height
Duplex	NO	3500mm	2350mm	1000kg
Duplex	NO	4000mm	2600mm	800kg
Duplex	NO	4500mm	2850mm	600kg

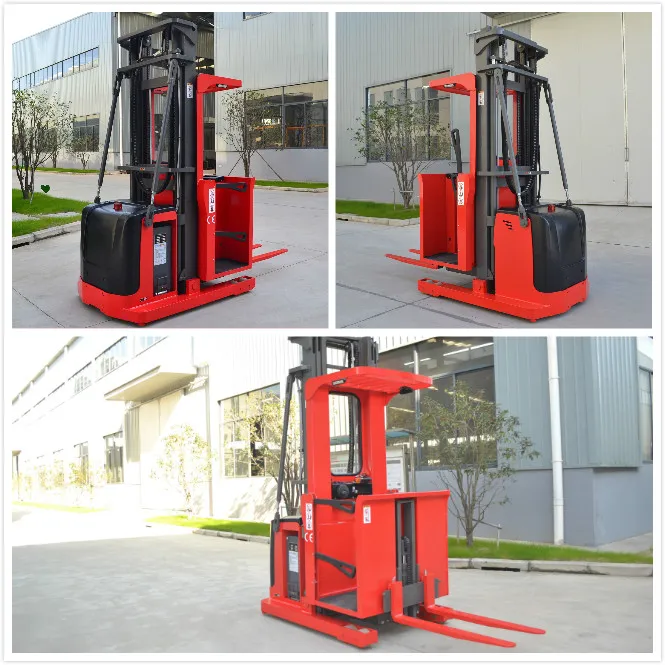

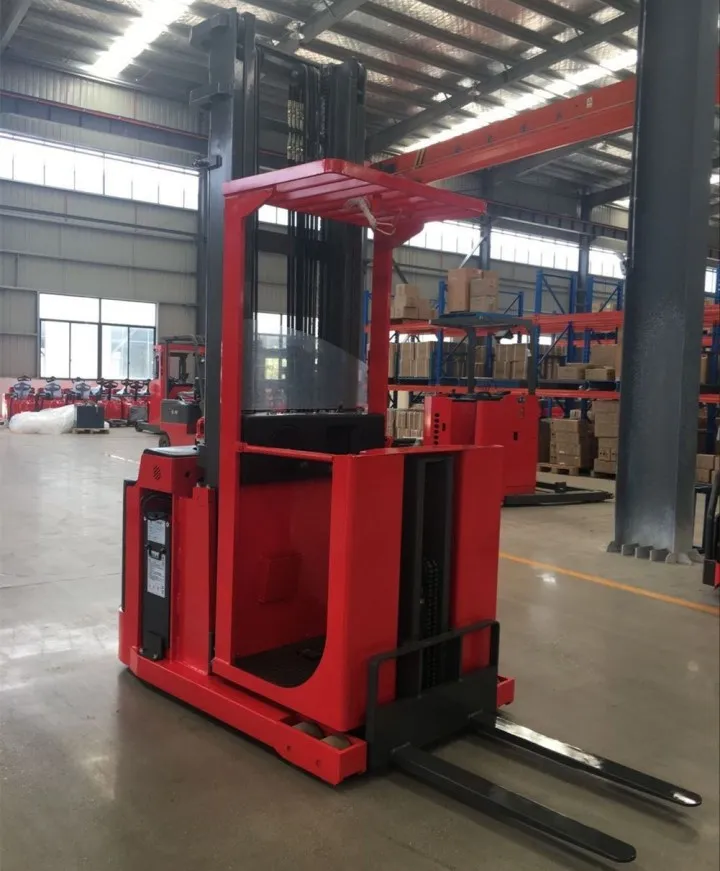

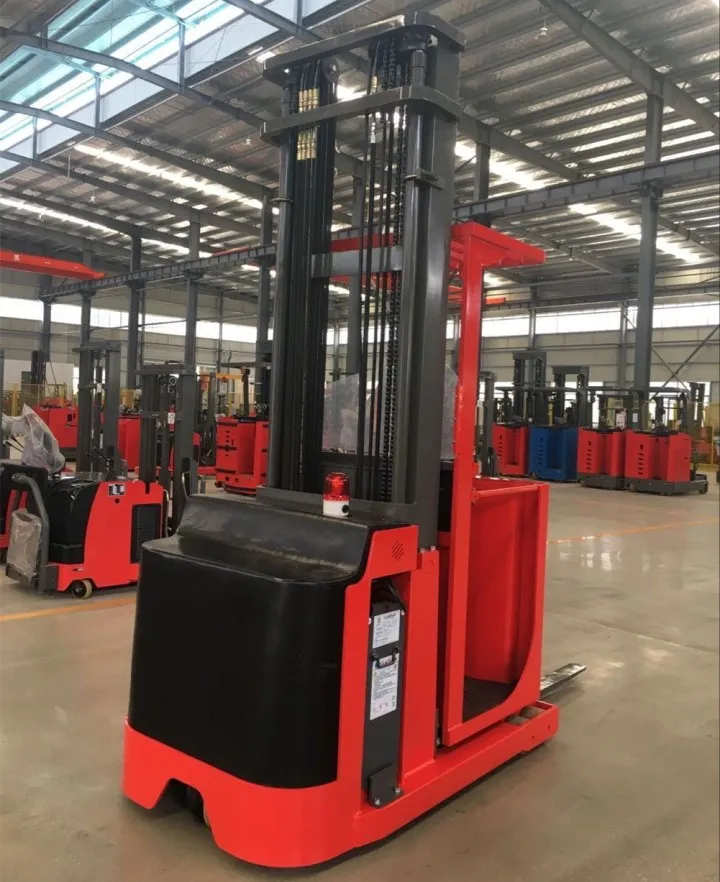

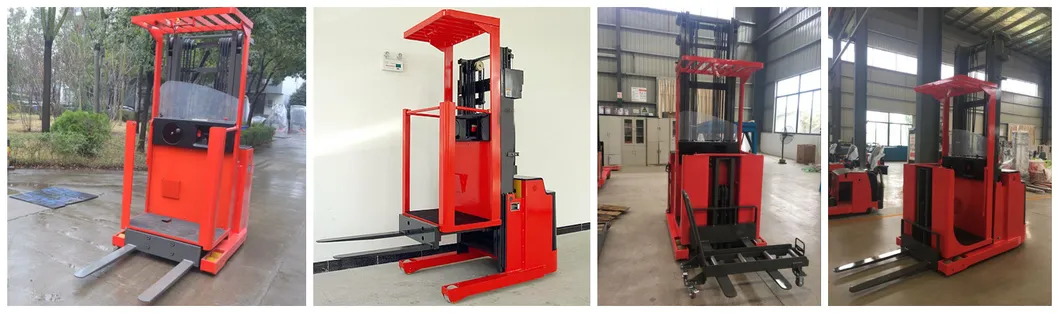

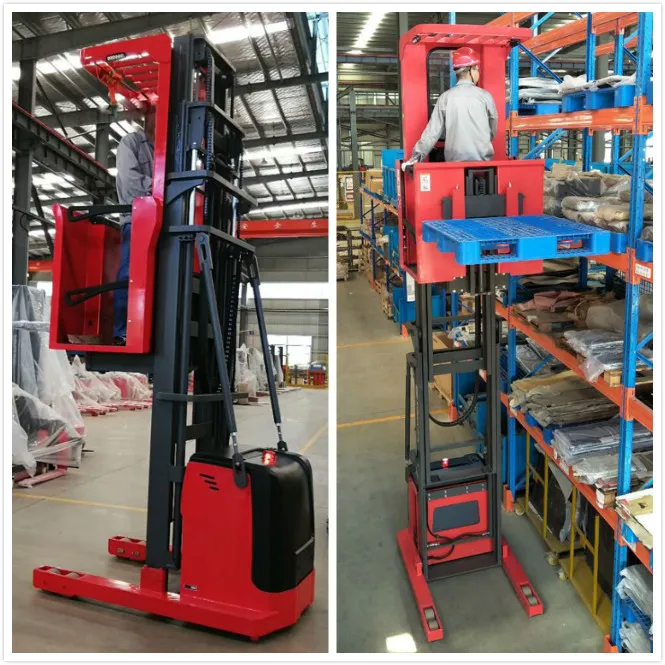

Product Details & Visuals

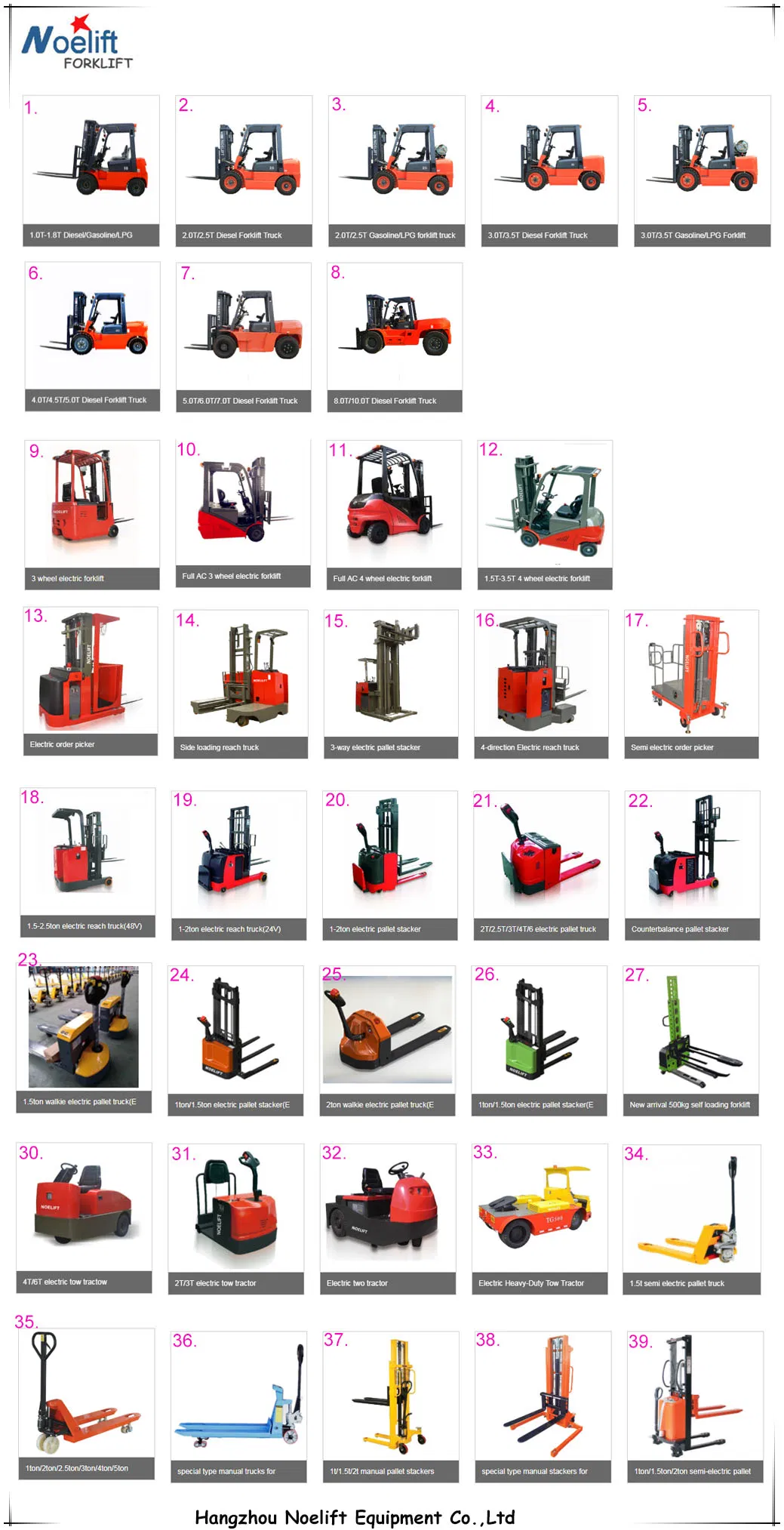

Equipment Catalog

⚡ 1-12 tons diesel forklift truck & 1-3.5 tons gasoline/lpg forklift truck
⚡ 1-5 tons electric forklift truck, 3-6m
⚡ 1-2.5 tons electric reach truck, 1.6-12.5m
⚡ 1-2 tons electric pallet stacker, 1.6-5.5m
⚡ 1-8 tons electric pallet truck
⚡ 0.3/1.0t electric order picker, 1.6-5.0m
⚡ Very narrow aisle forklift truck, 3-12.5m
⚡ Customized design models available

Our Services

✅ One-stop solution service.

✅ Customized-service all accepted.

✅ Timely customer service.

✅ Warranty: 12 months.

Frequently Asked Questions

Q1: What is the maximum load capacity of the THA10 order picker? A: The THA10 electric order picker has a rated load capacity of 1000kg.

Q2: What lifting heights are available for this model? A: We offer optional lifting heights ranging from 3000mm to 4500mm to suit different warehouse requirements.

Q3: What are the benefits of the AC driving motor? A: The brushless AC driving motor ensures approximately 30% energy savings and significantly reduces maintenance costs compared to DC motors.

Q4: Does the equipment include safety features for the operator? A: Yes, it is equipped with a personnel safety protection rope, a mast buffer function to reduce impact noise, and an anti-fracture chain.

Q5: Is the steering system easy to operate? A: Yes, the unit adopts EPS (Electric Steering System) technology, which makes maneuvering in narrow aisles much more convenient and effortless.

Q6: What is the warranty period for this electric order picker? A: The product comes with a standard 12-month warranty as part of our professional service commitment.
