Man Pushing around Aluminum Aerial Work Platform
This versatile aerial work platform range includes single mast, double mast, triple mast, quadruple mast, and six masts (four plus two) configurations. It features non-marking tires and an anodized aluminum mast, allowing it to be easily pushed to designated sites. The compact, light-weighted main body ensures it is safe, reliable, and aesthetically pleasing.

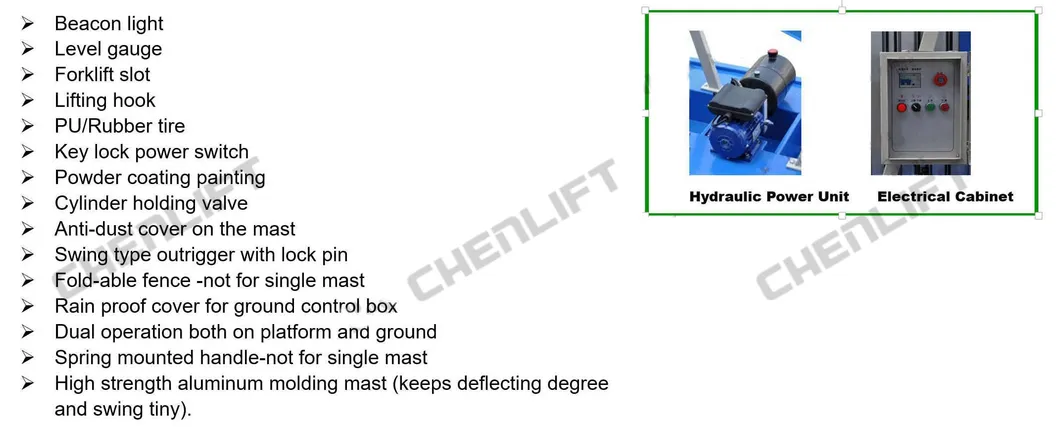

Operated by a strong telescopic cylinder, control panels are conveniently located both on the lift platform and at ground level. Power options include standard AC (110V or 220V), DC chargeable battery (12V or 24V), or combined AC & DC versions.
Ideal for installation and maintenance in narrow spaces such as:
| Model NO. | Working Height(m) | Capacity(Kg) | Platform Size(m) | Power(Kw) | Weight(Kg) |
|---|---|---|---|---|---|
| GTWY6-100 | 8 | 130 | 0.60x0.55 | 0.75 | 260 |
| GTWY8-100 | 10 | 130 | 0.60x0.55 | 0.75 | 300 |
| GTWY9-100 | 11 | 130 | 0.60x0.55 | 0.75 | 326 |
| GTWY10-100 | 12 | 130 | 0.60x0.55 | 0.75 | 400 |
| Model NO. | Working Height(m) | Capacity(Kg) | Platform Size(m) | Power(Kw) | Weight(Kg) |
|---|---|---|---|---|---|
| GTWY6-200 | 8 | 200 | 1.18x0.62 | 1.1 | 380 |
| GTWY8-200 | 10 | 200 | 1.18x0.62 | 1.1 | 480 |
| GTWY12-200 | 14 | 200 | 1.48x0.62 | 1.1 | 650 |
A: Our aluminum aerial work platforms offer a wide range of heights, reaching up to a maximum working height of 24 meters with the six-mast configuration.
A: You can choose between AC power (110V/220V), DC battery power (12V/24V), or a combined AC & DC version for maximum flexibility.
A: Yes, the compact design and light-weighted aluminum construction allow these lifts to easily pass through regular doors and fit into standard elevators.
A: Depending on the model and mast type, the loading capacity ranges from 130kg for single mast models up to 300kg for triple and quadruple mast models.
A: Yes, all units are equipped with an Auxiliary Lowering system that allows the platform to be lowered safely in the event of a power outage.
A: The anodized aluminum mast provides a high strength-to-weight ratio, ensuring stability while keeping the overall machine light enough for manual pushing.
