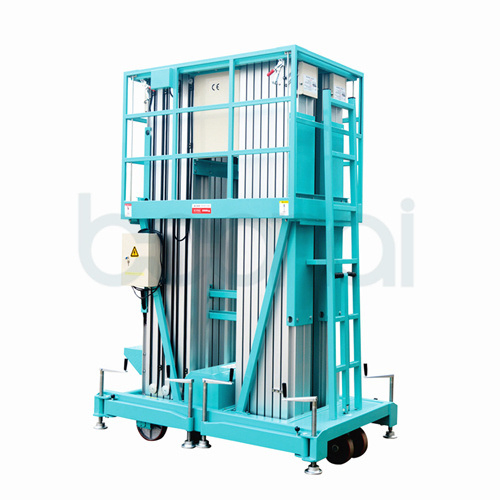

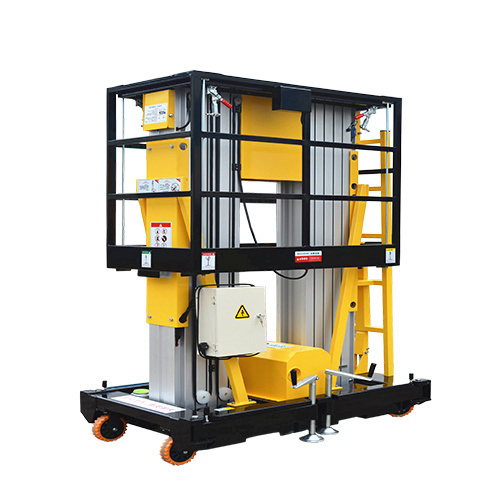

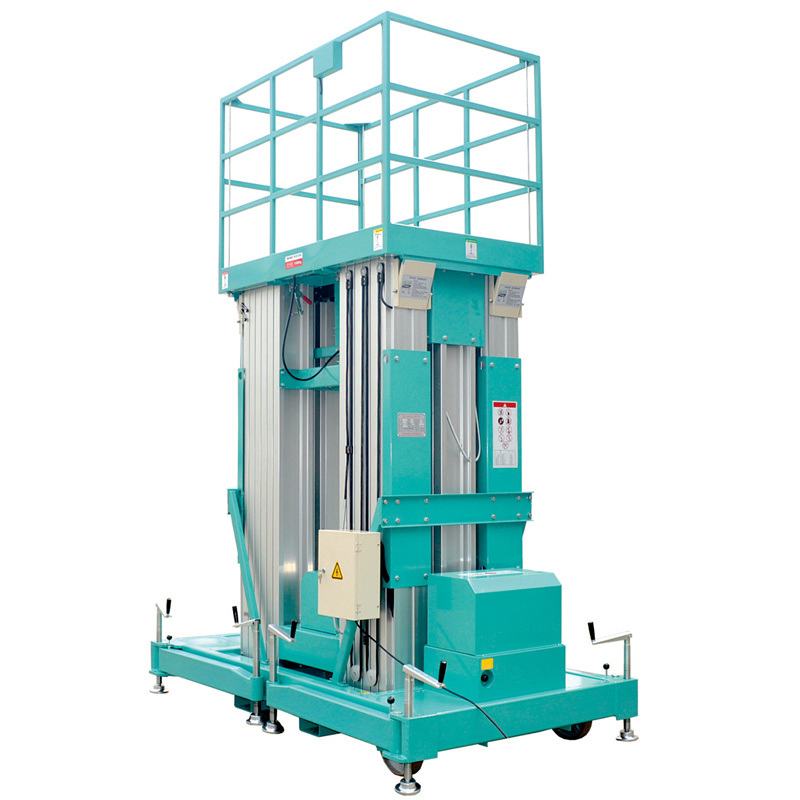

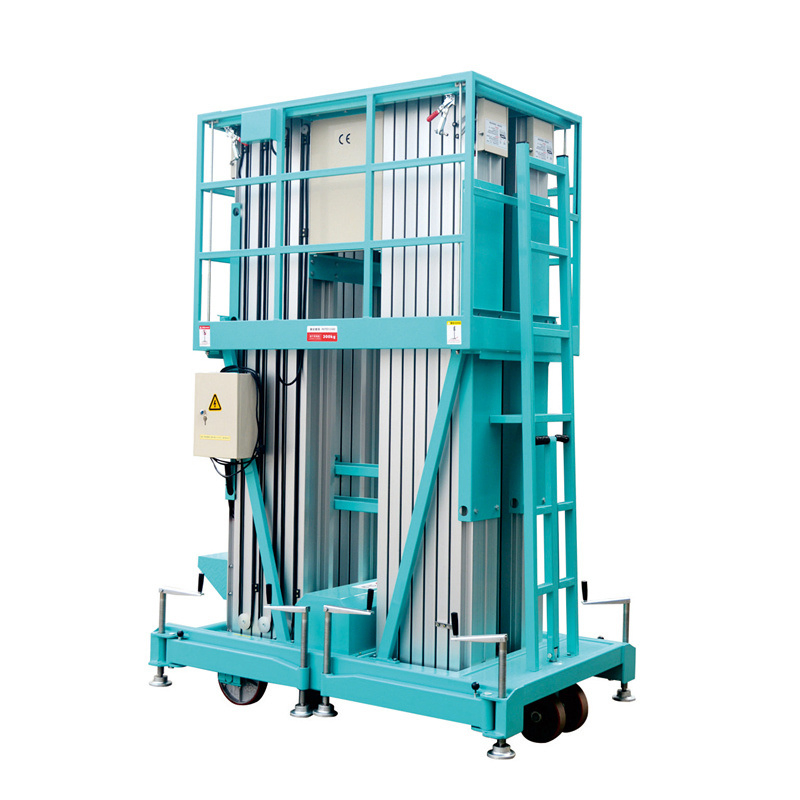

10m Platform Height Triple Masts Mobile Aluminum Aerial Work Platform

1 / 5

10m Platform Height Triple Masts Mobile Aluminum Aerial Work Platform

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Lift Chain

Send Inquiry

Product Description

Basic Specifications

Model NO.GTWY10-300

Carrying CapacityMiddle-Level

MovesSelf-propelled

Driven TypeHydraulic

Running ModeMoving

CertificationCE, ISO 9001

Max Platform Height10m

Max Working Height11.7m

MaterialAluminium Alloy

Warranty12 Months

HS Code8428909090

FeatureExplosion-Proof, Insulating

Aluminum Mast Aerial Work Platform

■ Application Areas

Designed for single passenger operation.
Ideal for aerial installation and maintenance in hotels, grand halls, and sport stadiums.
Perfect for large factories, workshops, warehouses, and granaries.
Suitable for transport hubs: bus/railway stations and airports.
Applicable for gas stations and aerial pipeline maintenance.

■ Key Features

Small footprint and lightweight design for easy movement.
Excellent access to limited or narrow passageways.
Convenient up-and-down system for single-person operation.
Highly efficient and secure alternative to traditional ladders or riggers.

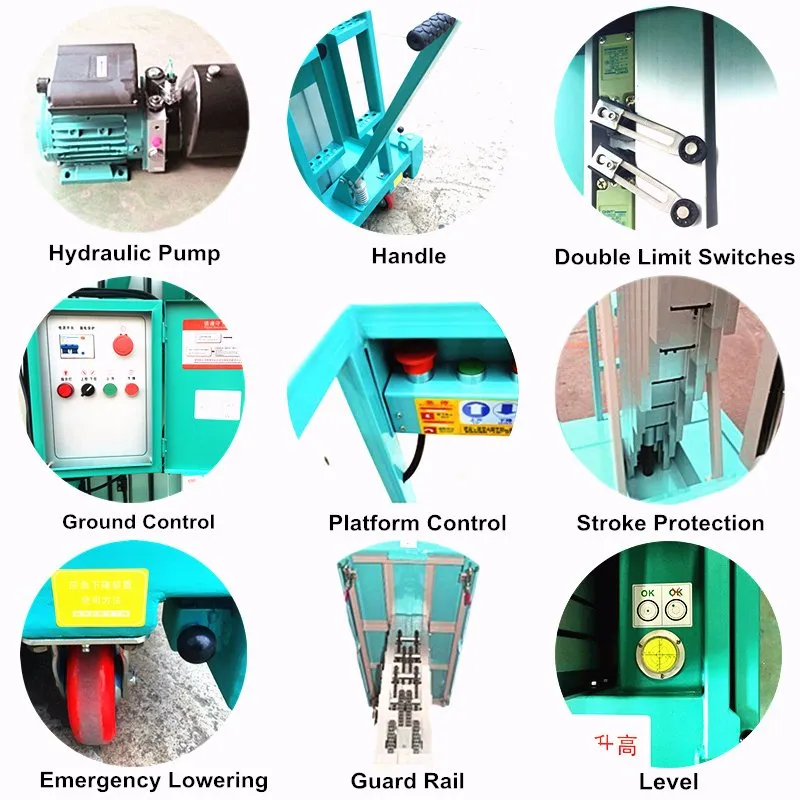

■ Standard Configuration & Safety

Power Supply: Single phase AC (AC220V).
Driving Unit: Hydraulic pump unit with low noise.
Leveling: Adjustable outriggers with screws and leveling indicator.
Safety Controls: Electric limit switch and emergency lowering system.
Protection: Stroke protection block built in hydraulic cylinder and antiskid staircase.

Technical Parameters

Model	Max Platform Height (m)	Max Working Height (m)	Rated Load (kg)	Platform Size (m)	Lifting Motor		Weight (kg)	Overall LWH (m)
Model	Max Platform Height (m)	Max Working Height (m)	Rated Load (kg)	Platform Size (m)	AC (VAC/kw)	DC (VDC/kw)	Weight (kg)	Overall LWH (m)
GTWY6-100	6	7.7	150	0.6*0.55	220/0.75	24/0.8	260	1.320.801.65
GTWY8-100	8	9.7	125	0.6*0.55	220/0.75	24/0.8	300	1.320.801.98
GTWY9-100	9	10.7	125	0.6*0.55	24/0.8	326	1.380.851.98	1.76*1.83
GTWY10-100	10	11.7	125	0.6*0.55	220/0.75	24/0.8	350	1.420.852.10

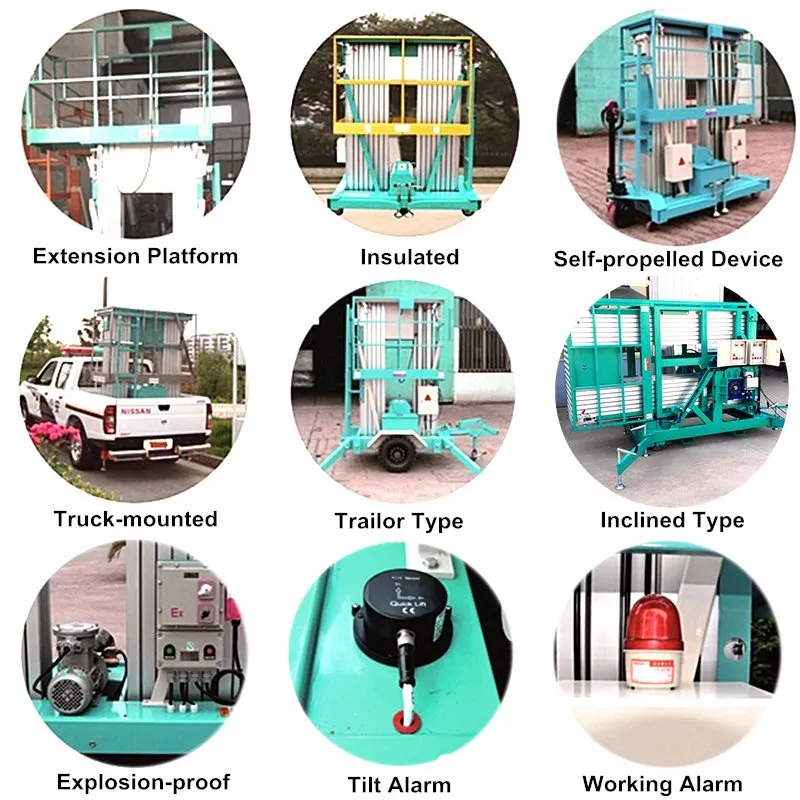

■ Optional Configuration

Battery DC with charger for outdoor operation.
Electric moving device for long-distance travel.
Explosion-proof electrical system and Insulated platform.
Safety Alarms: Overload alarm, Tilt alarm, and Working alarm.

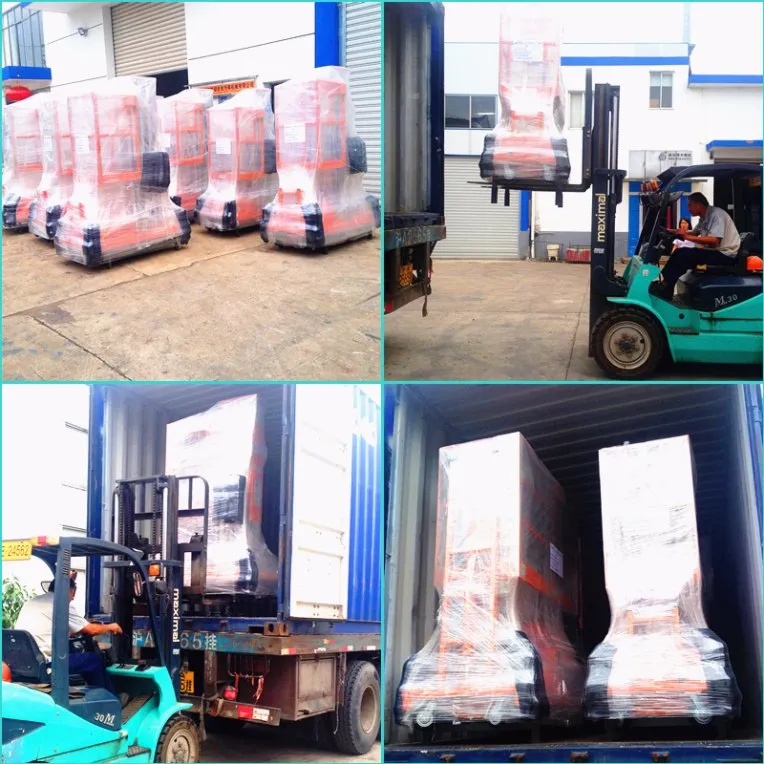

Quality Assurance & Packing

Frequently Asked Questions

What is the maximum working height of the GTWY10-300?

The maximum platform height is 10 meters, providing a total working height of approximately 11.7 meters.

Is the platform suitable for outdoor use?

Yes, we offer an optional DC battery power supply with a charger, making it suitable for outdoor operations where AC power is not available.

What safety features are included?

Standard safety features include an emergency lowering system, leveling indicator, electric limit switches, and an antiskid staircase.

What is the warranty period for this equipment?

We provide a one-year (12 months) warranty for the whole machine, excluding man-made faults. During this time, parts are sent free of charge for non-human factor problems.

Can one person operate this machine?

Yes, the up-and-down control system is designed for convenient single-person operation from either the ground or the platform.

What material is the mast made of?

The mast is constructed from high-strength Aluminium Alloy, which ensures the machine is lightweight yet durable and stable.
