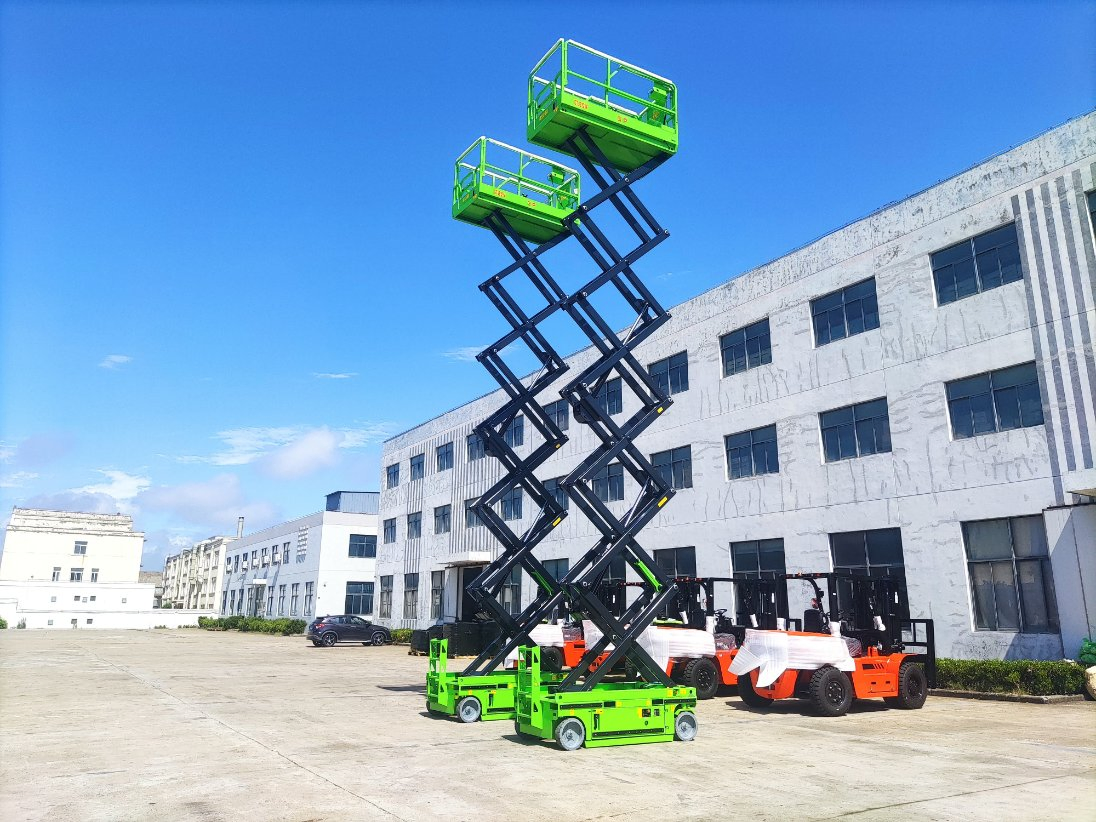

12m Heavy-Duty Electric Scissor Lift Platform 350kg Max Load Non-Marking Tires for Indoor Use CE & ANSI Certified

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years

Product Description

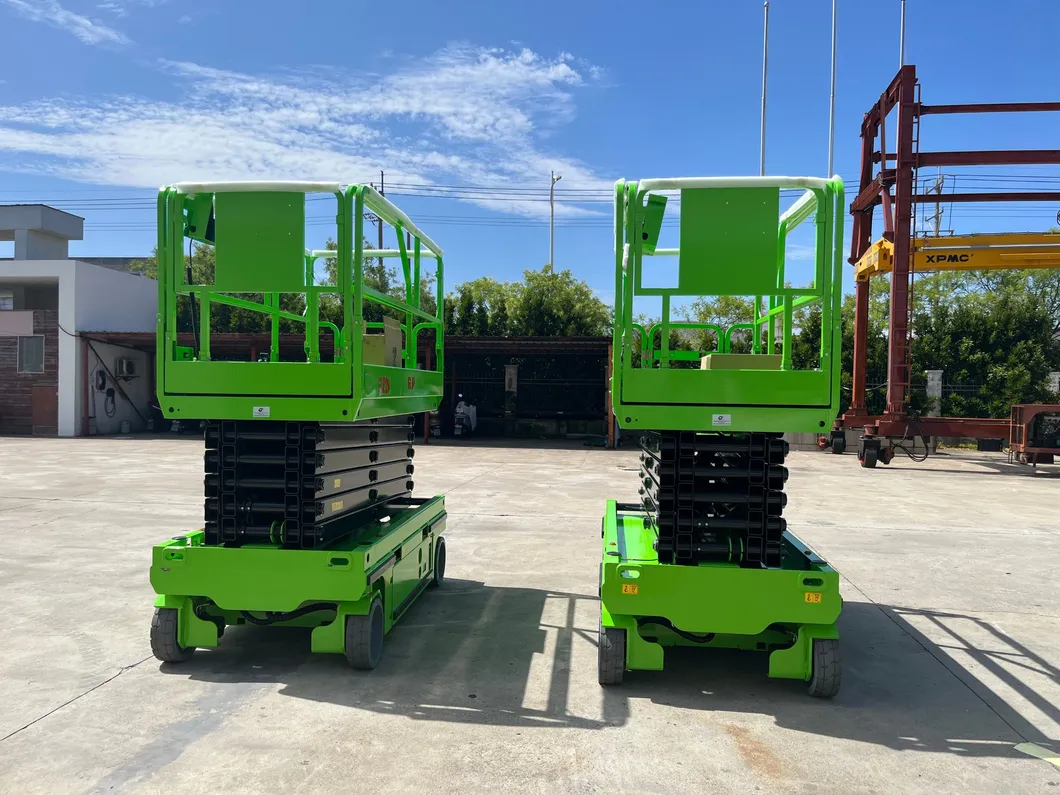

Scissor Lift Platform View 1

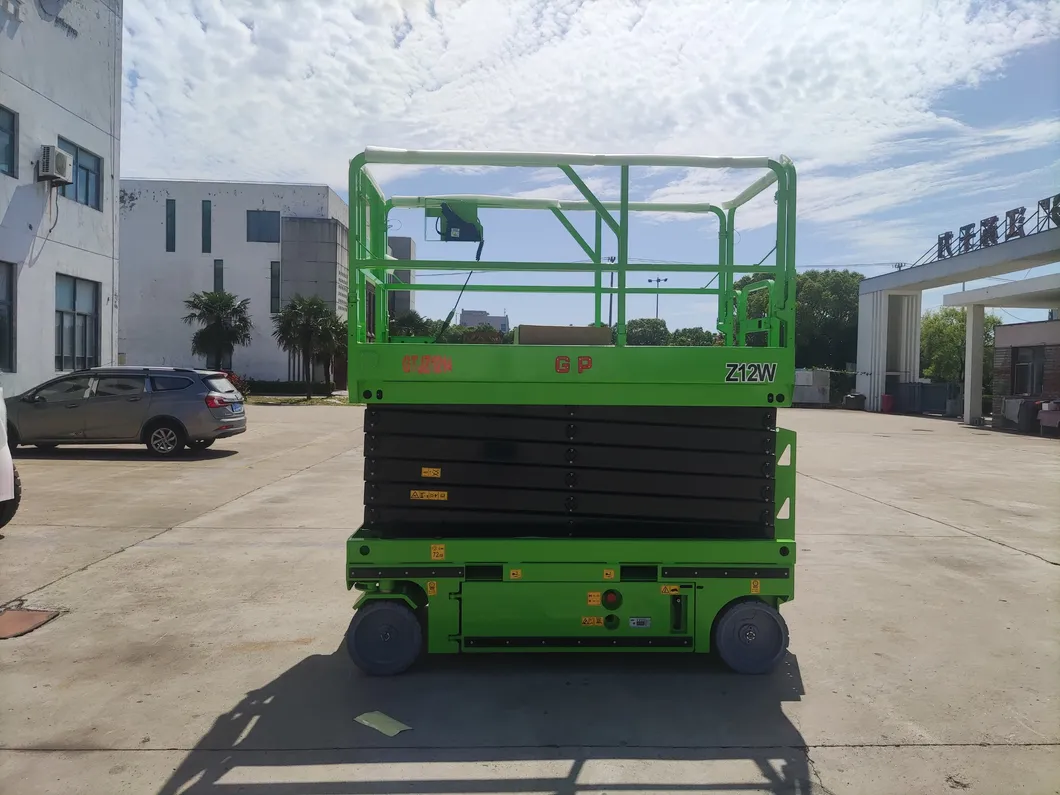

Scissor Lift Platform View 2

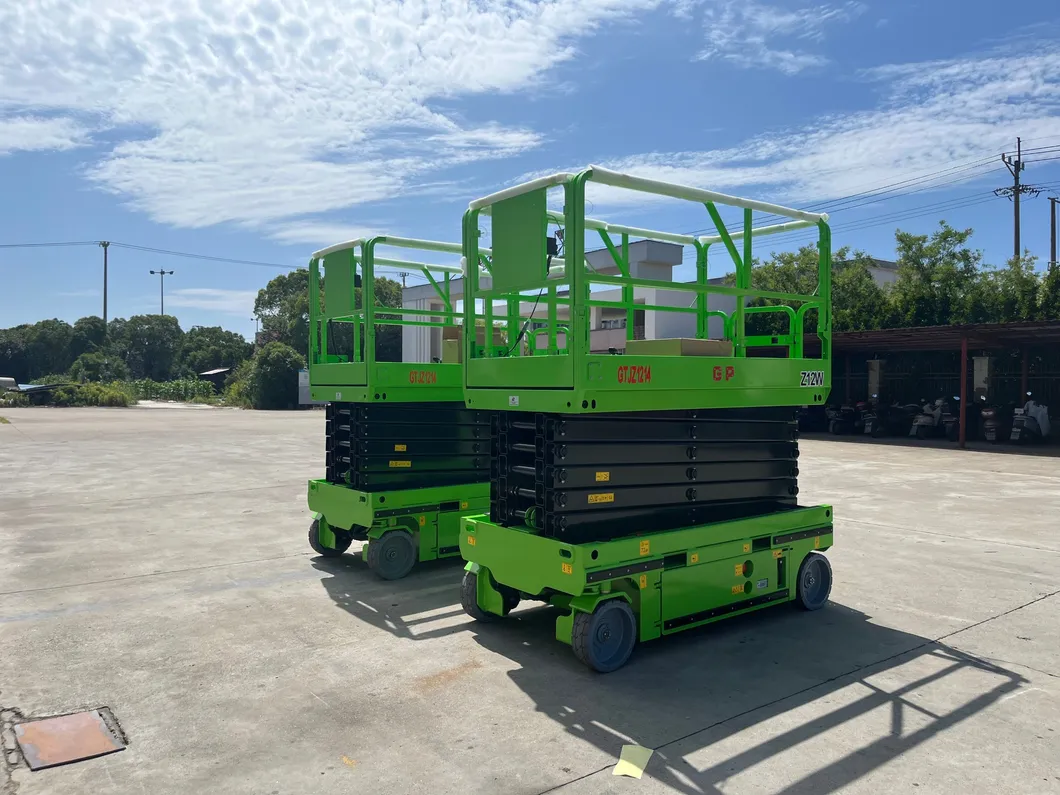

Scissor Lift Platform View 3

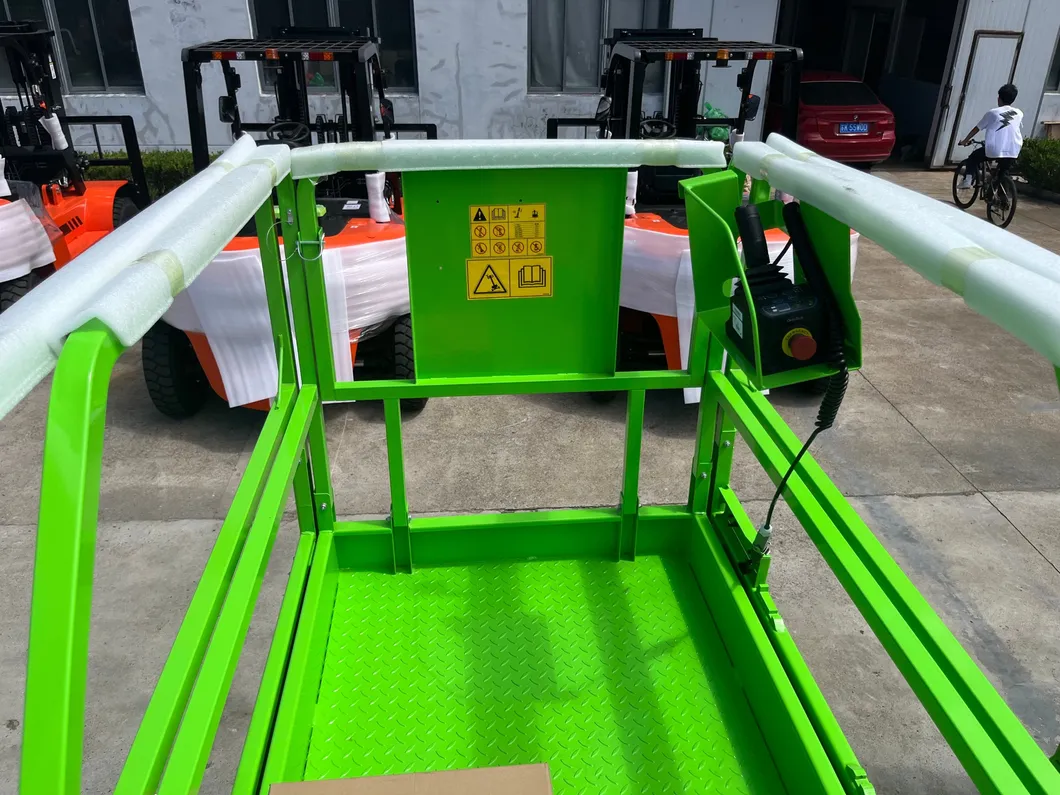

Scissor Lift Platform View 4
Scissor Lift Platform View 5
Scissor Lift Platform View 6
📋 Basic Information
Model NO. GTJZ1214
Application Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism Scissor Lift
Carrying Capacity Light Level (230kg)
Driven Type AC
Feature Explosion-Proof, Insulating
Certification CE, ISO 9001
Drive Speed-Stowed 3.5km/H
Tires Φ381×127mm Solid Non-Marking
Production Capacity 50000 Per Year
📦 Packaging & Delivery
Package Size 285.00cm * 131.00cm * 260.00cm
Package Gross Weight 3570.000kg
🌟 Product Advantages & Characteristics
International leading forklift system technology.
Humanized design based on human engineering principles.
High-quality imported seals, bearings, and electrical components for reliability.
Internal combustion models utilize Euro III emission standards for environmental protection.
Battery-powered models feature advanced electronic control for maximum stability.
Strict adherence to ISO9000 and CE standards for production quality.
Professional after-sales support with timely spare parts supply.
⚙️ Product Parameters
Parameter Item Specification Details
Max. Working Height13.8m
Max. Platform Height11.8m

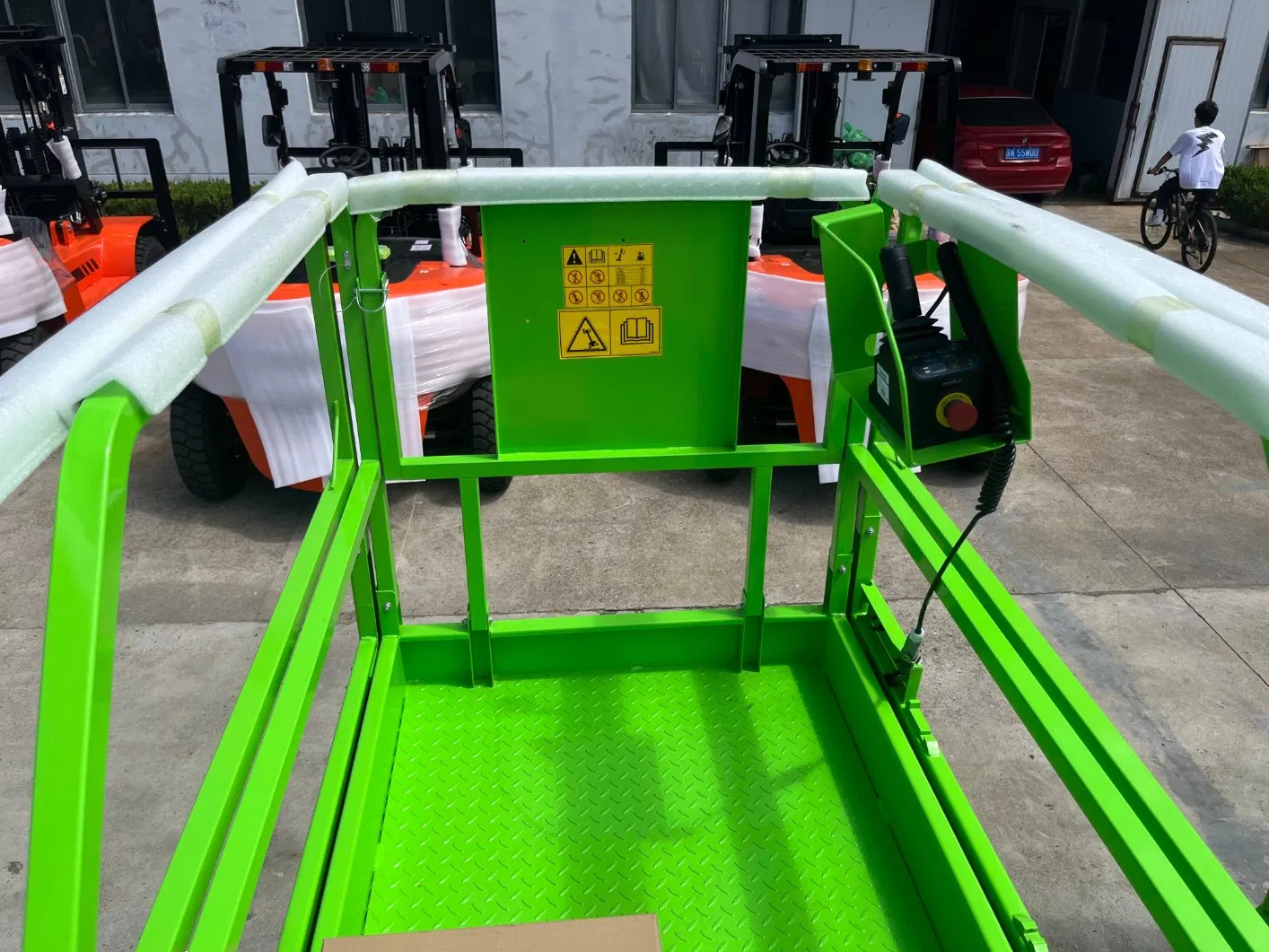

Platform Dimensions (L*W*H)2300*1150*1100mm
Length-stowed2.8m
Width-stowed1.59m
Height-stowed2.75m
Height-stowed (folding guardrails)2.1m
Slide-out Extension Deck0.9m
Weight3650kg
Max. Lift Capacity320kg
Max. Platform Occupancy2 Persons
High Driving Speed3.5km/h
Gradeability-stowed30%
Battery8×6V/203Ah
Charger30A
📷 Detailed Photos
Detailed View 1
Detailed View 2
Detailed View 3
Detailed View 4
Detailed View 5
Detailed View 6
Frequently Asked Questions
What is the maximum working height of this scissor lift?
The GTJZ1214 model offers a maximum working height of 13.8 meters, with a platform height reaching up to 11.8 meters.
Is this equipment certified for international use?
Yes, the product is fully CE and ISO 9001 certified, meeting rigorous safety and quality standards for global operation.
Can the platform be extended for more reach?
Yes, it features a slide-out platform extension deck with a length of 0.9 meters to provide additional workspace at height.
What kind of tires are used on this lift?
The lift is equipped with Φ381×127mm solid non-marking tires, making it ideal for indoor warehouse or workshop floors.
What are the safety features of this scissor lift?
This model includes explosion-proof and insulating features, along with stable electronic controls and high-quality imported components to ensure safe operation.
How many people can the platform accommodate?
The platform is designed to safely accommodate a maximum of 2 people simultaneously, with a lift capacity of up to 320kg.
