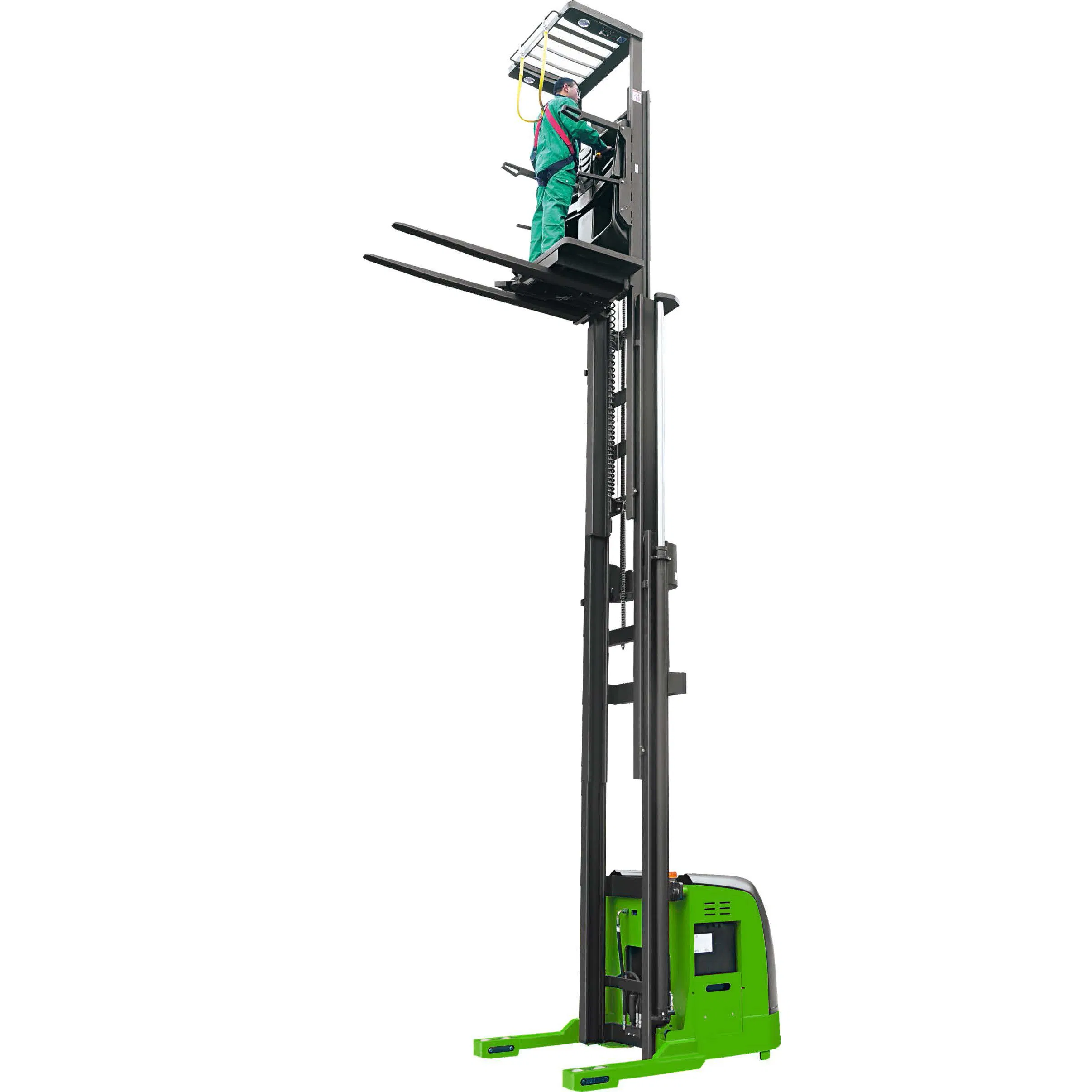

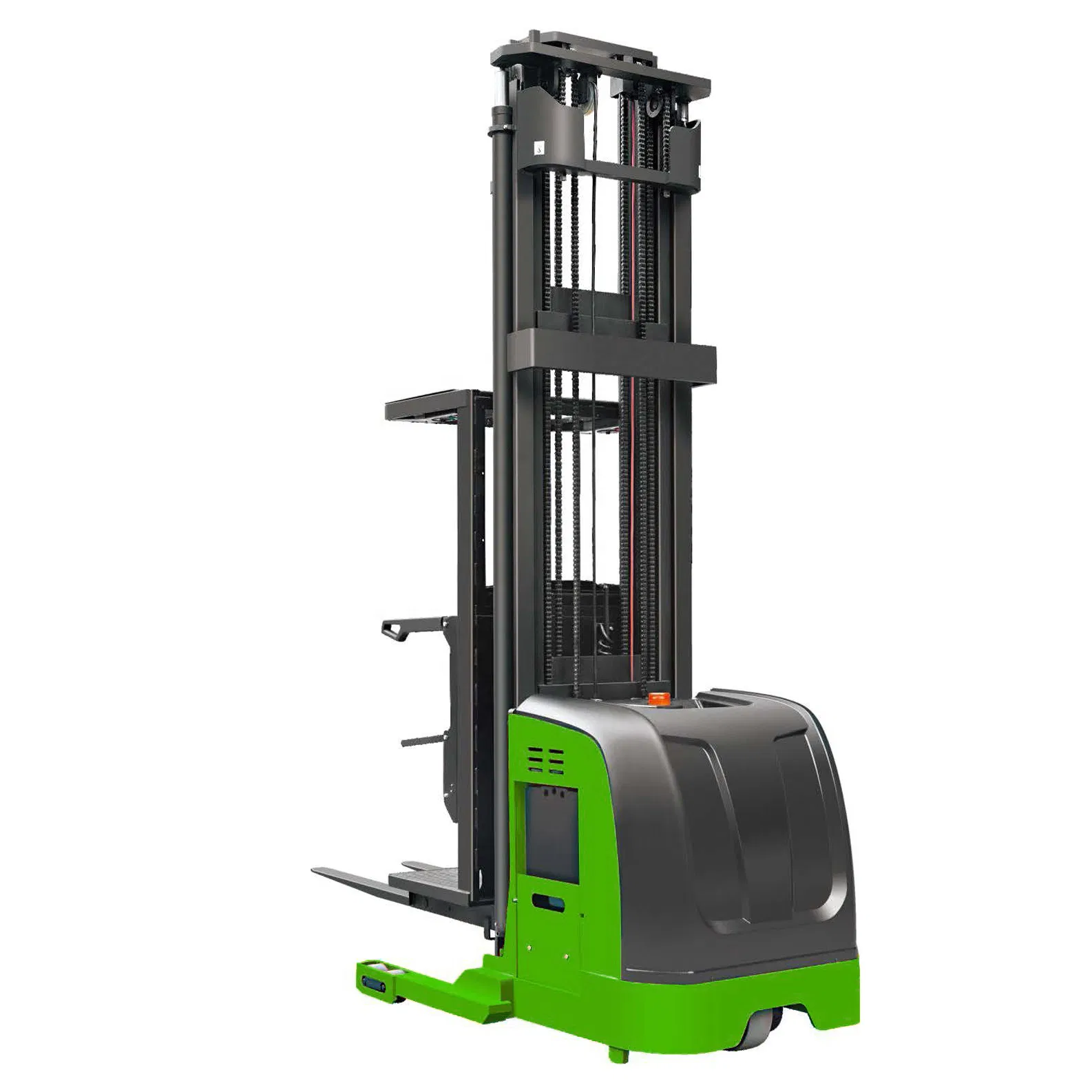

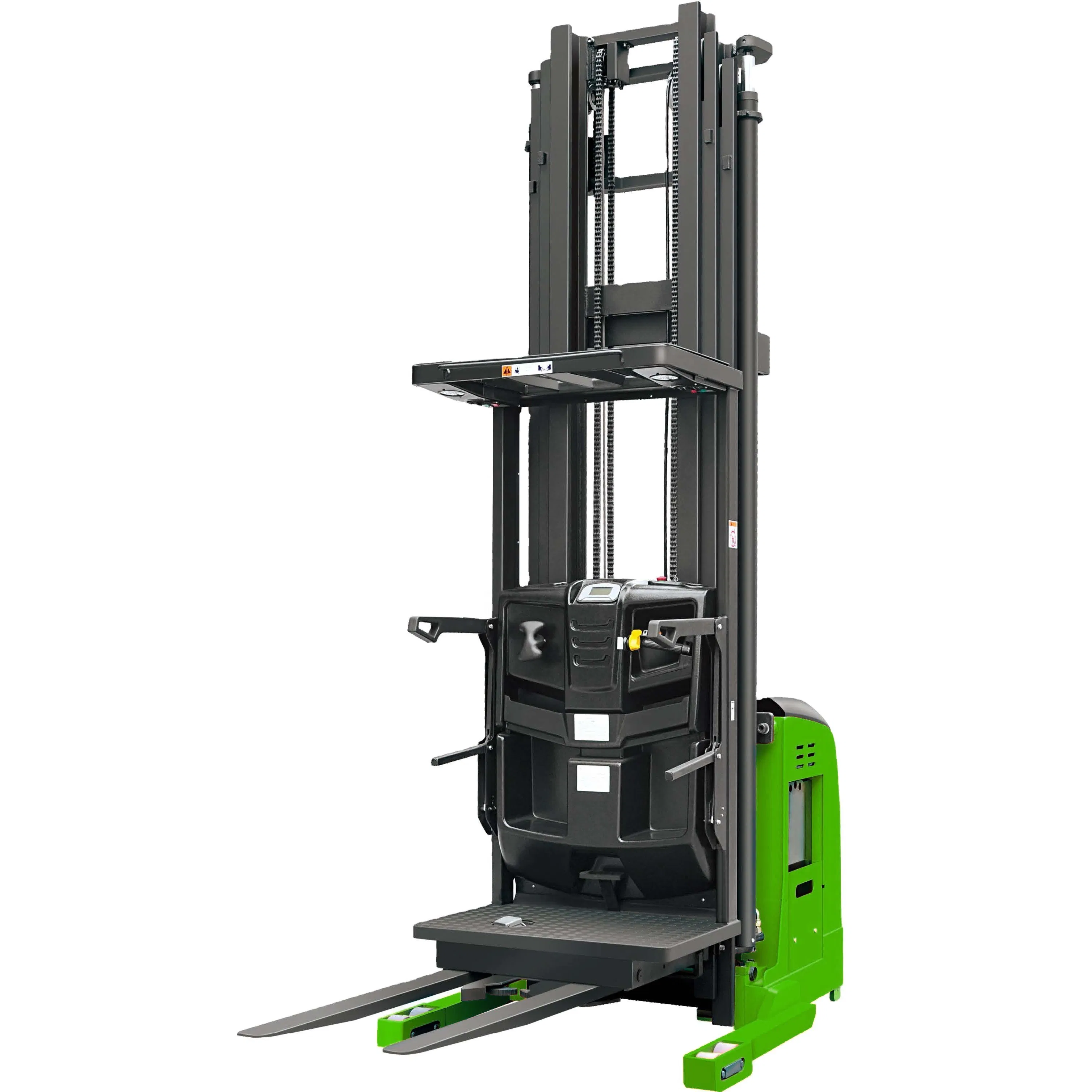

High level electric order picker designed for high racked warehouse operations, offering stability and efficiency at significant lifting heights.
| Main Configuration | |
|---|---|
| 1) Rated Capacity | 1500 KG |
| 2) Lift Height Options | 5000 / 7000 / 9000 MM |
| 3) Mast Type | Triplex mast, FFL (Full Free Lift) |
| 4) Control System | 24V AC power with CURTIS controller |
| 5) Steering System | Electric power steering (EPS) |
| 6) Operation | Finger tip control via joystick |
| 7) Safety Features | Safety belt, reversing buzzer, LED working light, beacon flash light |

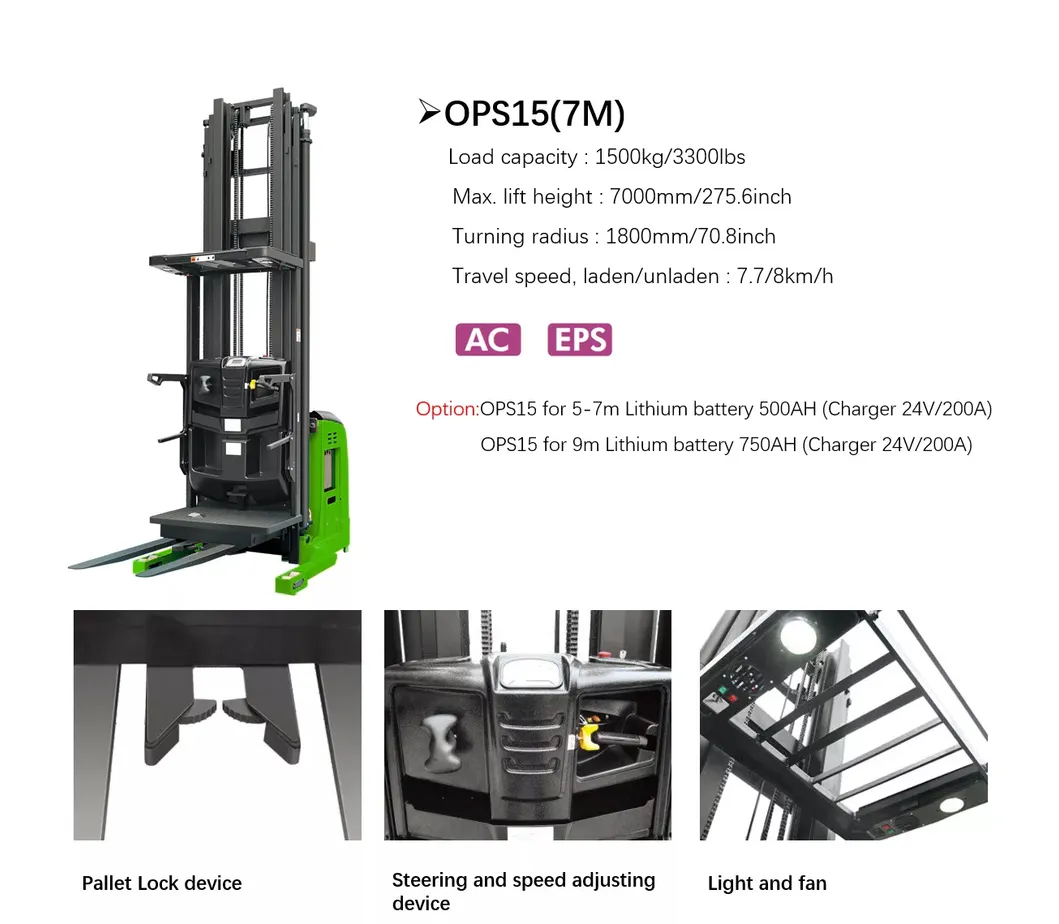

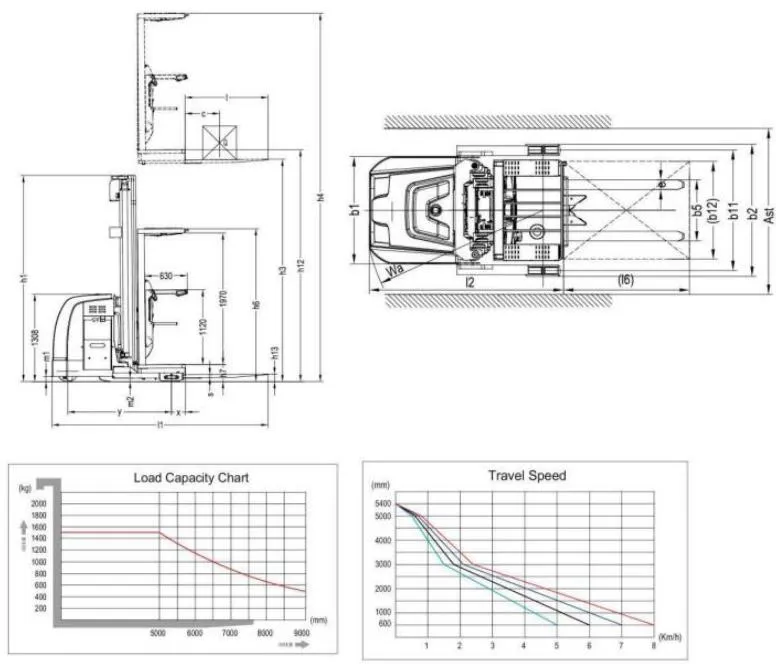

| Parameter Item | Unit | Specification (OPS15) |
|---|---|---|
| Load Capacity | kg | 1500 |
| Load Centre | mm | 600 |
| Max. Lift Height | mm | 5000 / 7000 / 9000 |
| Height, Mast Lowered | mm | 2410 / 3080 / 3750 |
| Height, Mast Extended | mm | 7230 / 9230 / 11230 |
| Overall Length | mm | 3200 |
| Overall Width | mm | 1100 / 1352 |
| Fork Dimensions | mm | 45 / 100 / 1220 |
| Turning Radius | mm | 1800 |
| Service Weight (with battery) | kg | 3870 |

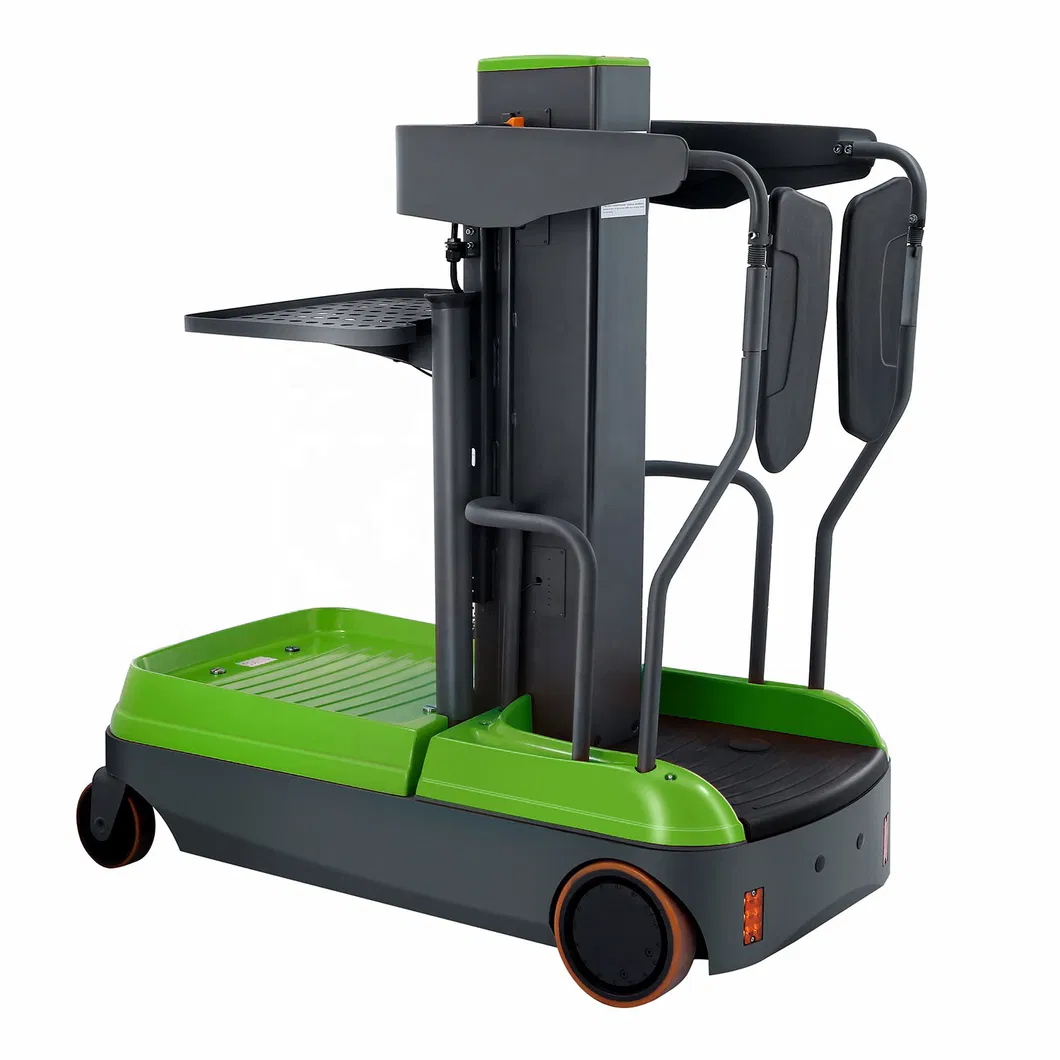

Model: OPSM

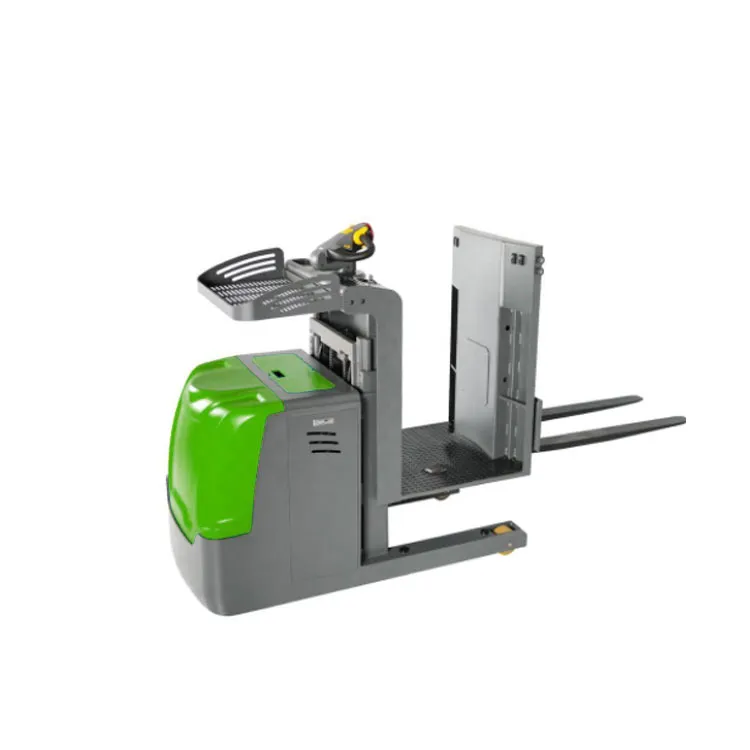

Model: OPL10S

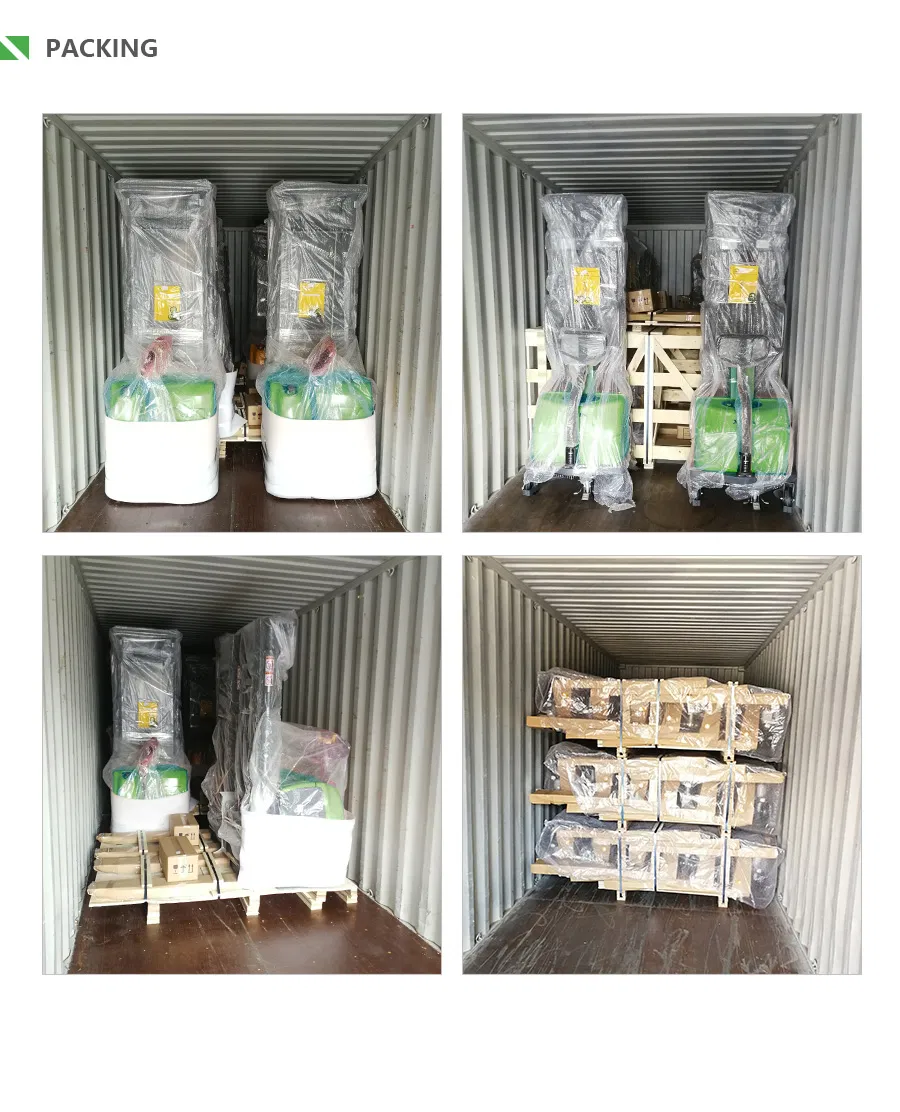

Standard Packaging
Delivery requirements are strictly followed with careful packaging for each unit. Producing time is usually 30-45 days after receiving the advanced payment.
