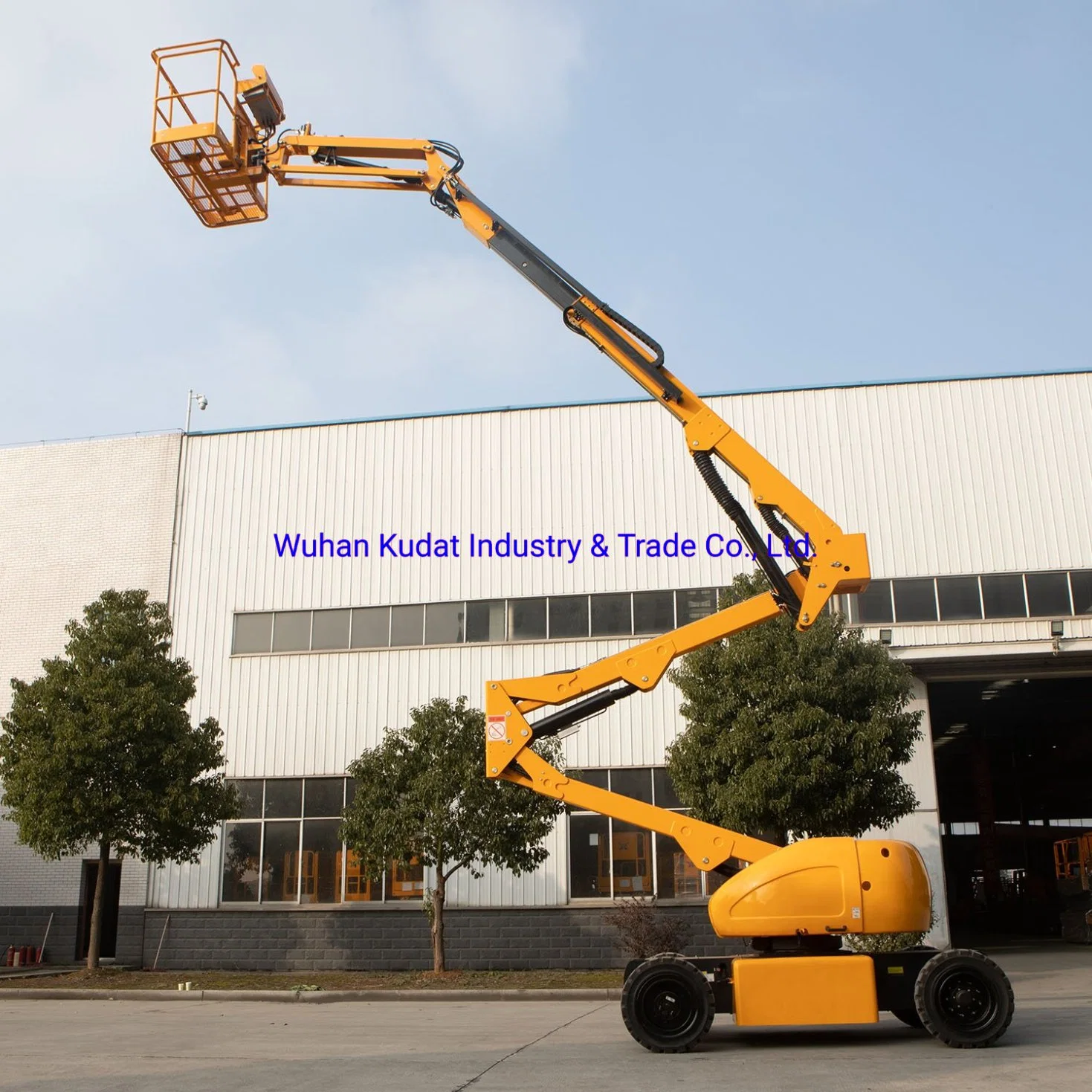

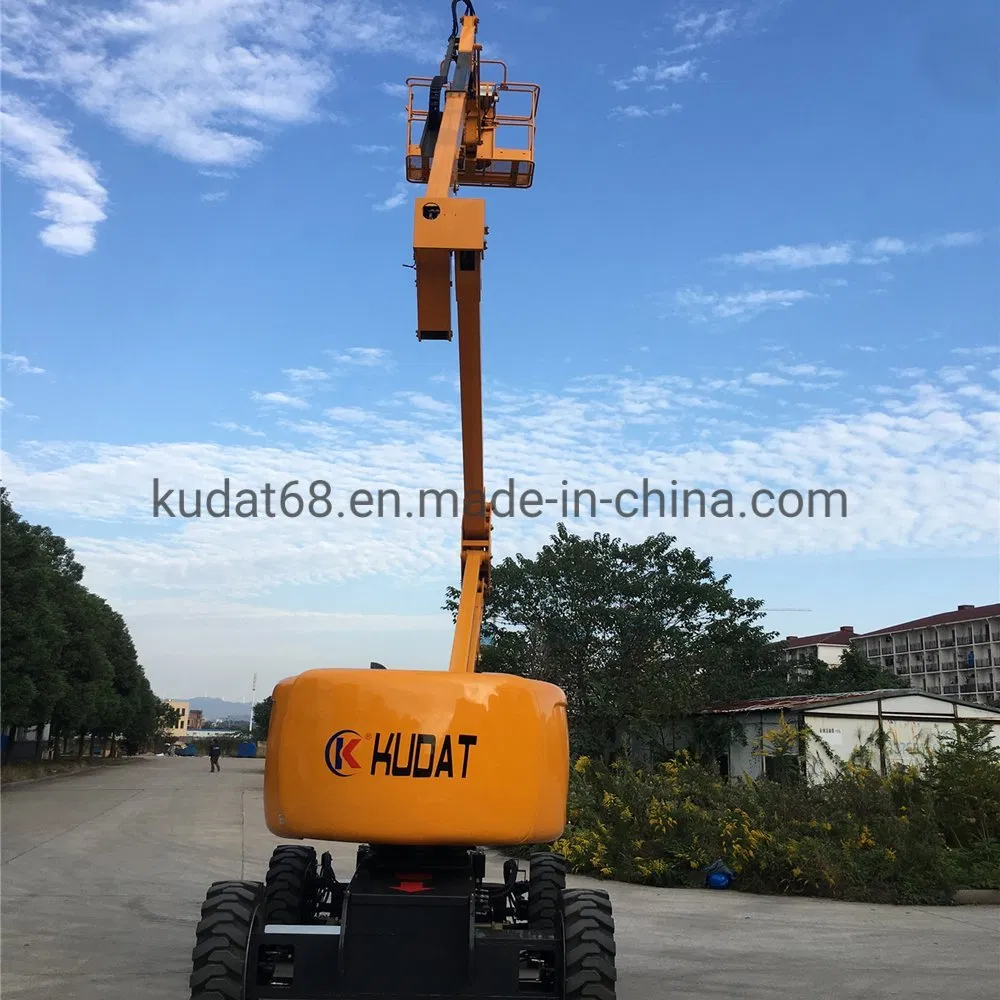

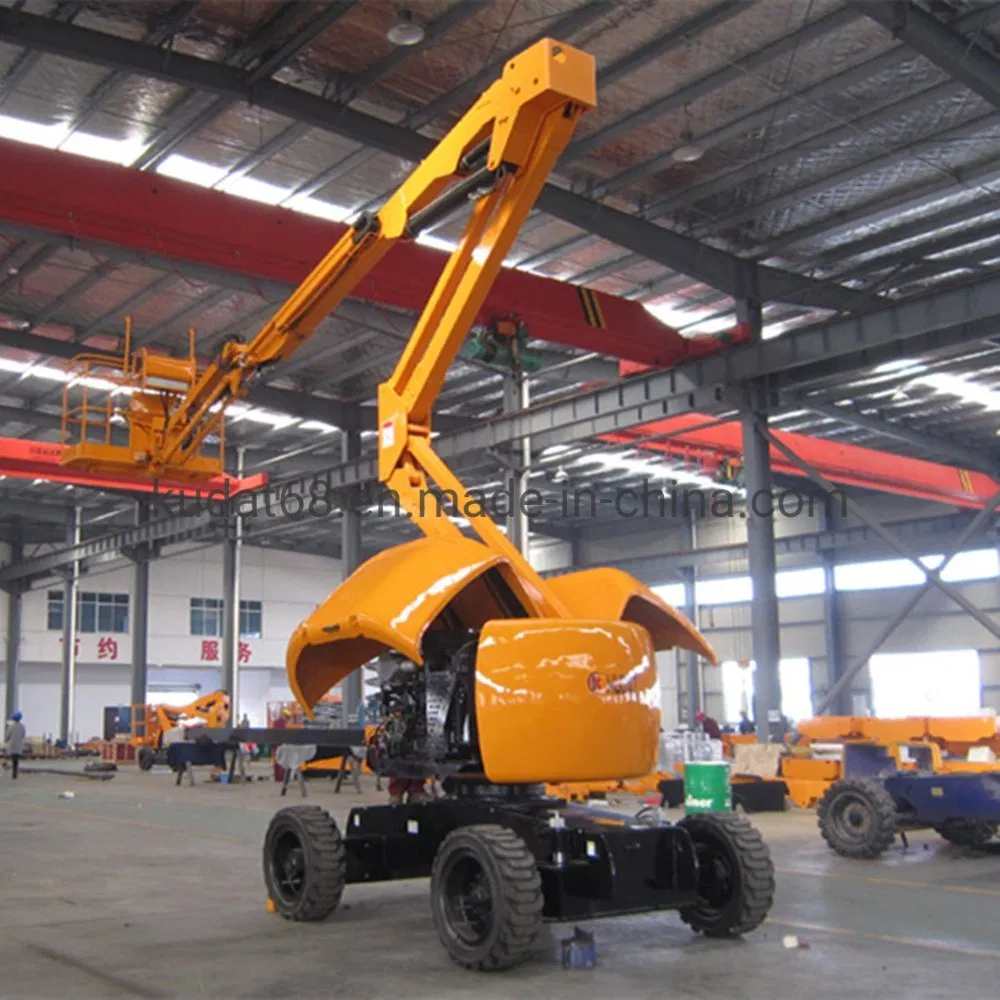

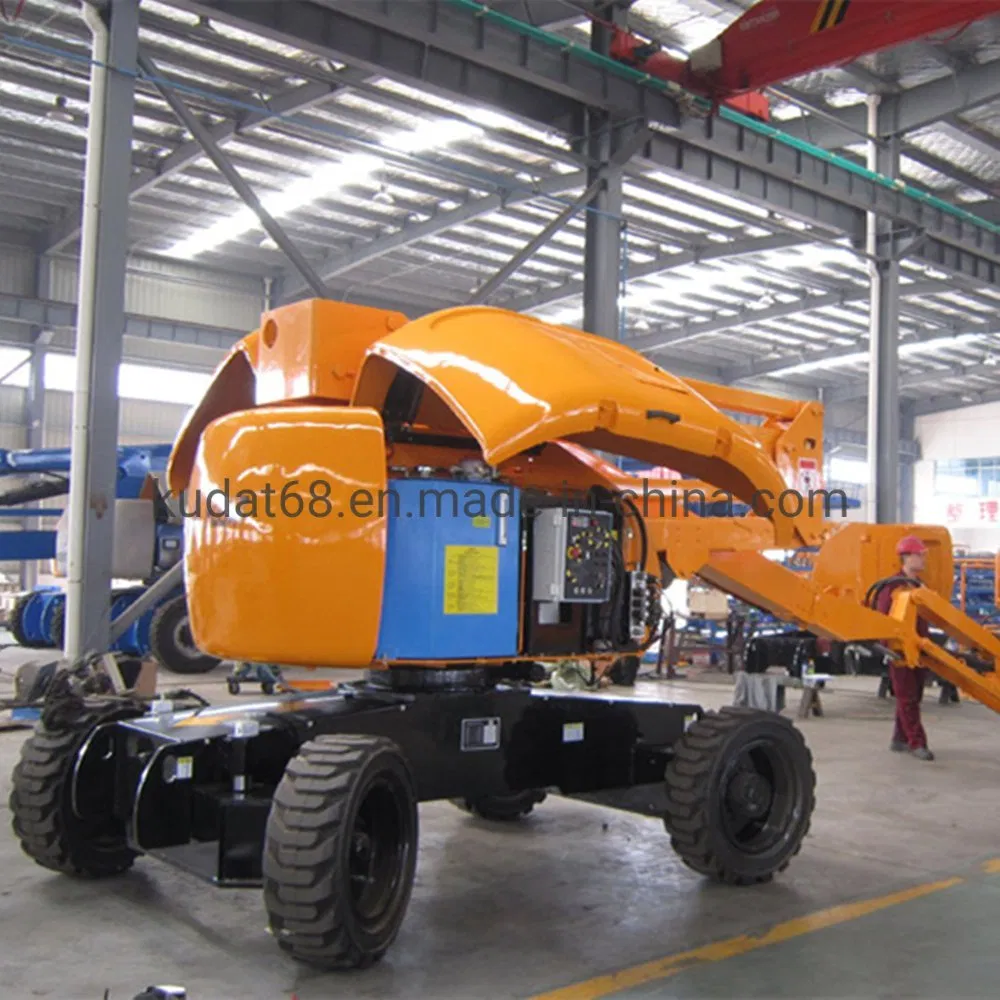

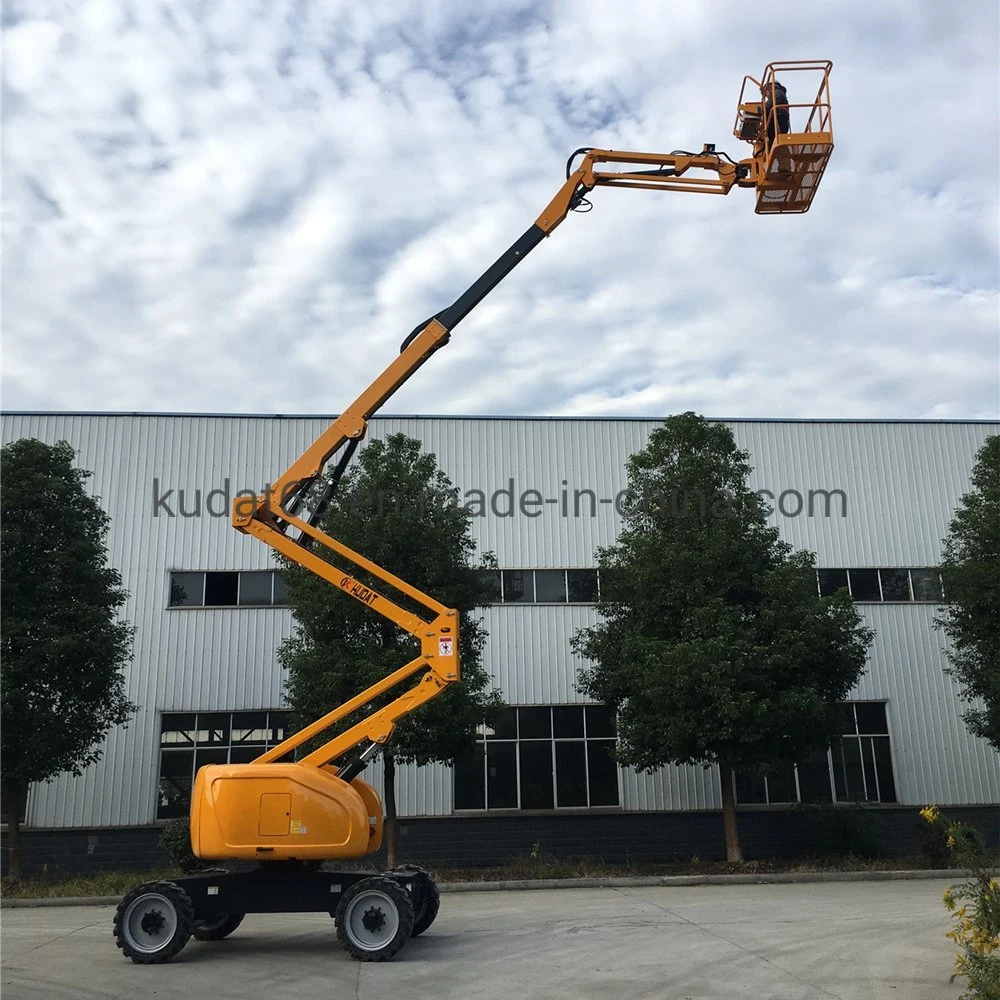

Our boom lift can be divided into two types: telescopic and articulating. The telescopic boom lift is powered by an internal combustion engine, with 4*4 and 4*2 driving modes available. This aerial work platform offers a wide operation range and is designed for rough terrain. Main applications include building construction, bridge building, shipbuilding, outdoor advertising installation, and projects in mines, ports, and airports.
| MODEL: GTZZ16Z | |||
| MEASUREMENTS | Metric | US | |
| Working height maximum | 17.7m | 58ft | |
| Platform height maximum | 16m | 52ft 6in | |
| Horizontal reach maximum | 9.5m | 25ft | |
| A | Platform length (8ft model) | 0.76m | 2ft 6in |
| C | Platform width (8ft model) | 1.83m | 6ft |
| D | Height - stowed | 2.38m | 7ft 5in |
| E | Length - stowed | 6.80m | 22ft 3in |
| B | Width | 2.29m | 7ft 5in |
| F | Wheelbase | 2.20m | 7ft 2in |
| G | Ground clearance - center | 430mm | 1ft 4in |
| Lift capacity (restricted) | 230kg | 500lbs | |
| Platform rotation | 180° | ||
| Turntable Swing | 360° non-continuous | ||
| Drive speed - stowed | 6.3 km/h | 3.9mph | |
| Turning radius - inside | 3.0m | 9ft 8in | |
| POWER | |||
| Power source | B3.3NA-C60 (45kw / 60HP) | ||
| Hydraulic tank capacity | 113.6L | - | |
| Fuel tank capacity | 100L | - | |
1. Functions of positioning upward & outward and crossing
The articulating boom machine offers multi-faceted functions of positioning upward, outward, and crossing, allowing access to difficult areas through various movement paths.

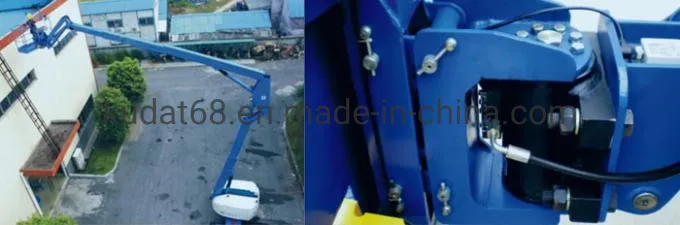

2. Complete safety devices
Includes four-link weighing devices, overload protection, automated detection for platform amplitude and height, and high-precision load sensors to ensure operation stability.
3. Compact structure
Structures lower than 16m with electric motors are compact, enabling the boom to pass through small openings and operate in restricted spaces.

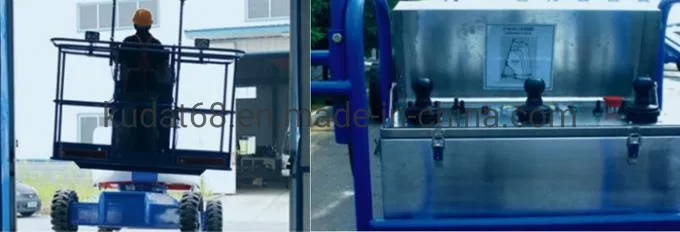

4. Control box
Equipped with full proportion joysticks, CAN bus, and PLC control system for high positioning accuracy. The stainless steel box prevents damage from moisture and welding slag.

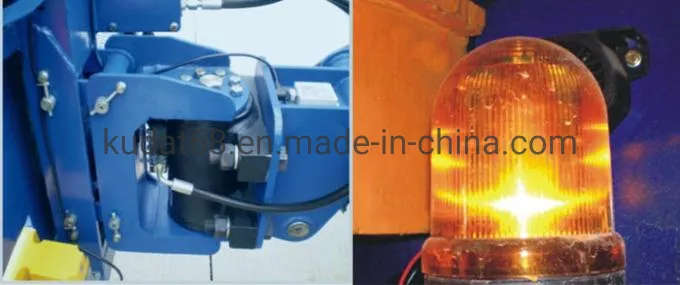

5. Rotary platform & Strobe light
Standard rotary actuator allows ±80° rotation for flexibility. Strobe lights provide alerting signals during operation.

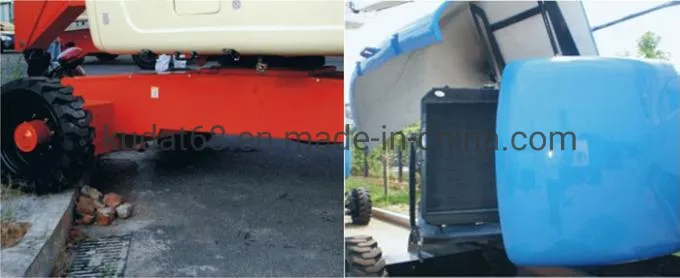

6. Active oscillation axle & Engine Tray
Perceives terrain to ensure four-wheel landing on uneven roads. Swing-out engine tray facilitates easy maintenance and repair.

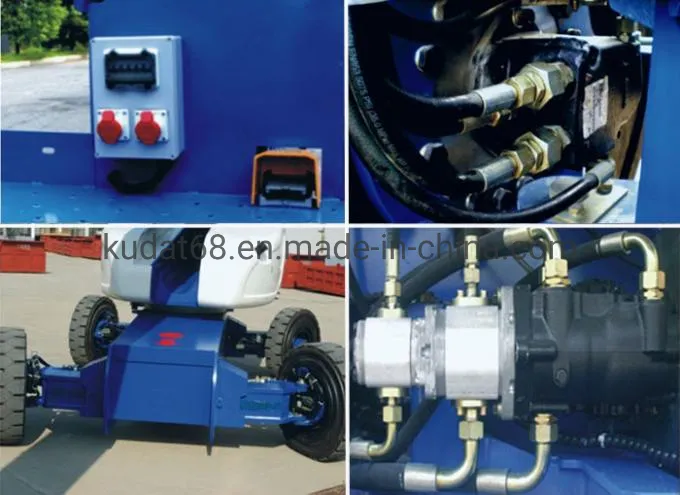

7. Hydraulic system
Closed circuit hydraulic traveling system with wide speed range. Adopts double value core circuits for enhanced safety using premium brands.

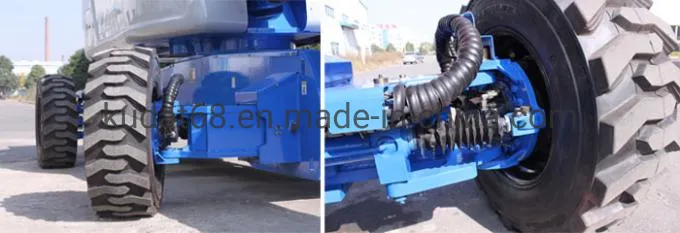

8. Driving mode 4*4 (Optional)
Powerful four-wheel drive with great grade-ability for challenging terrains.
