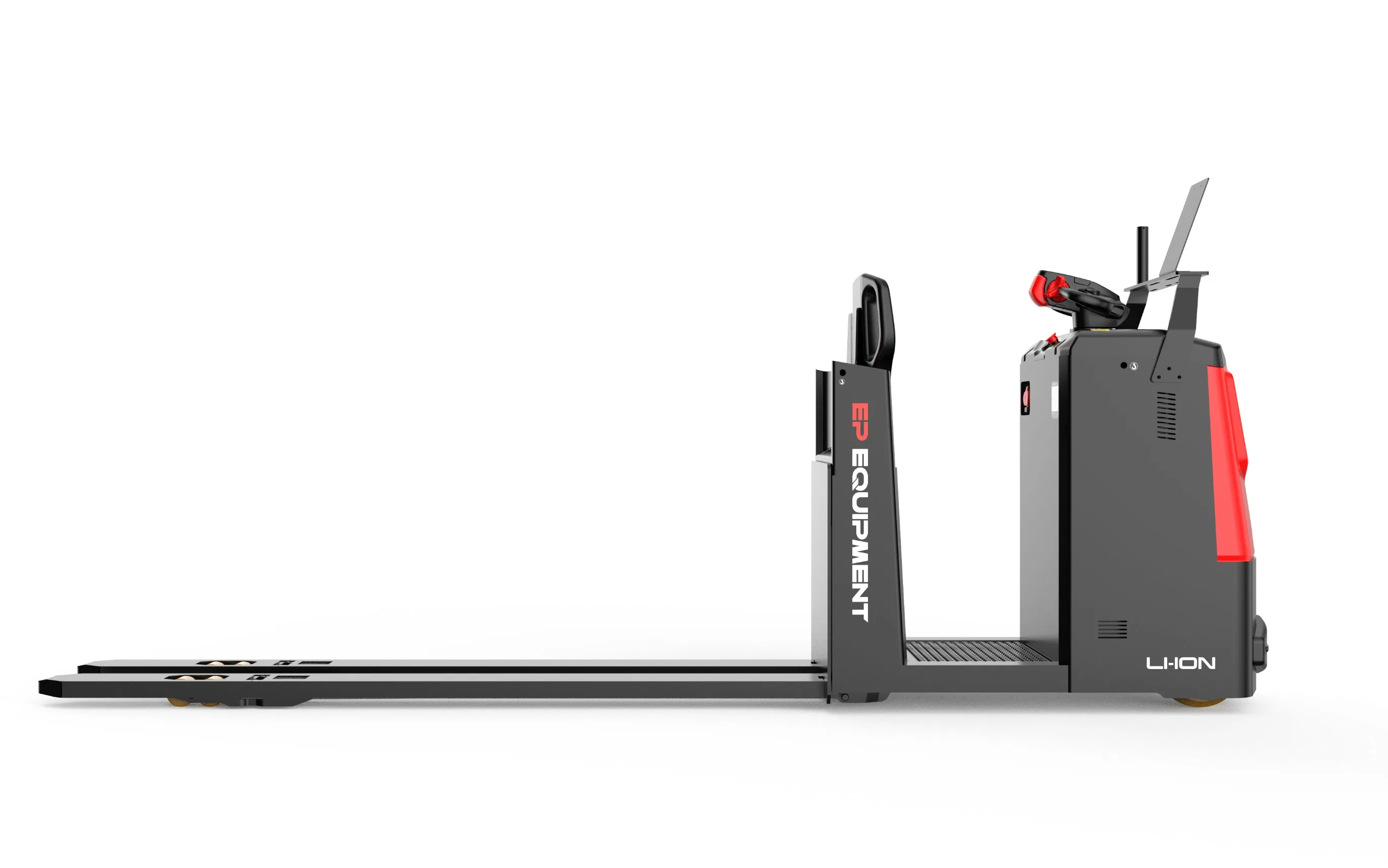

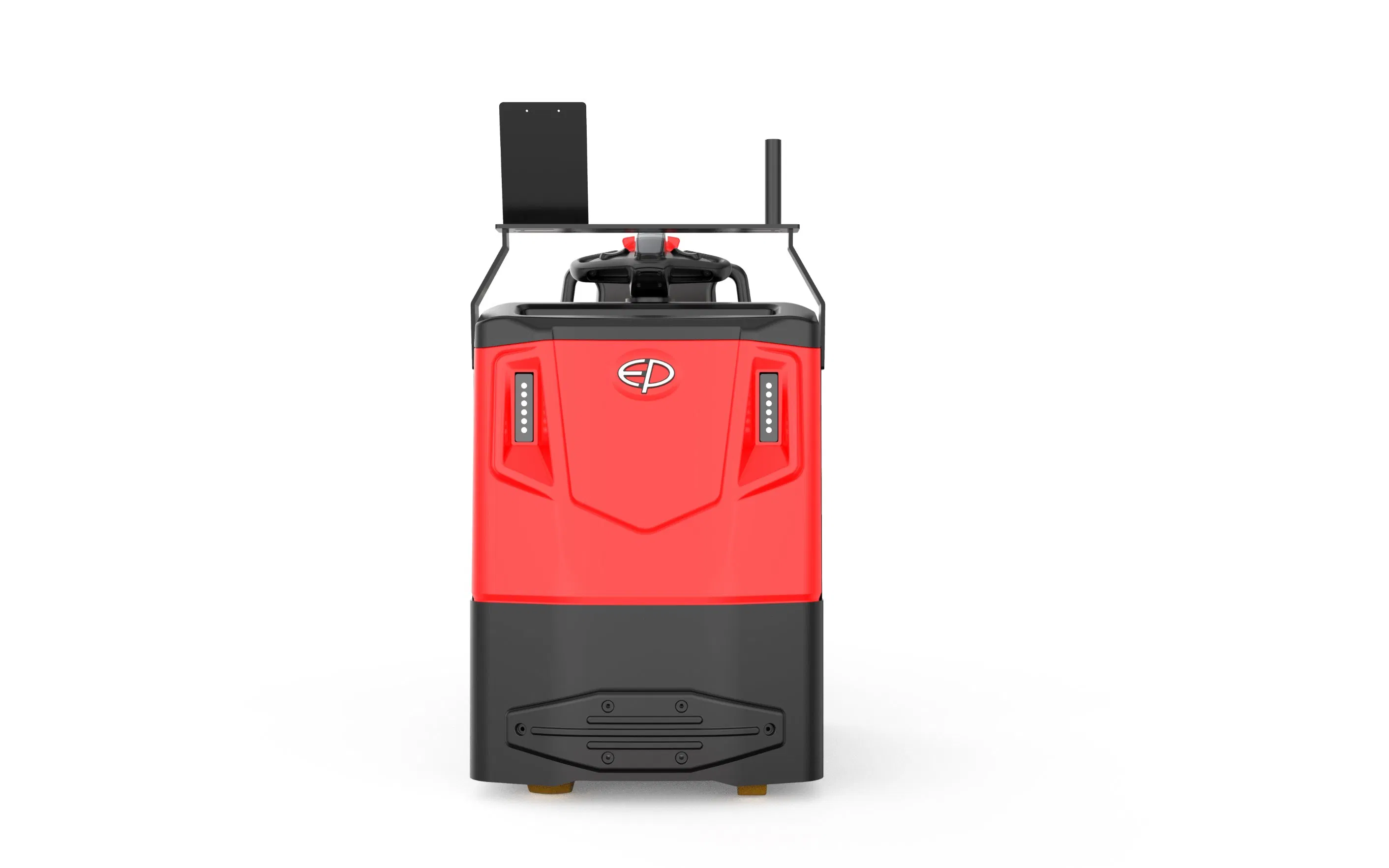

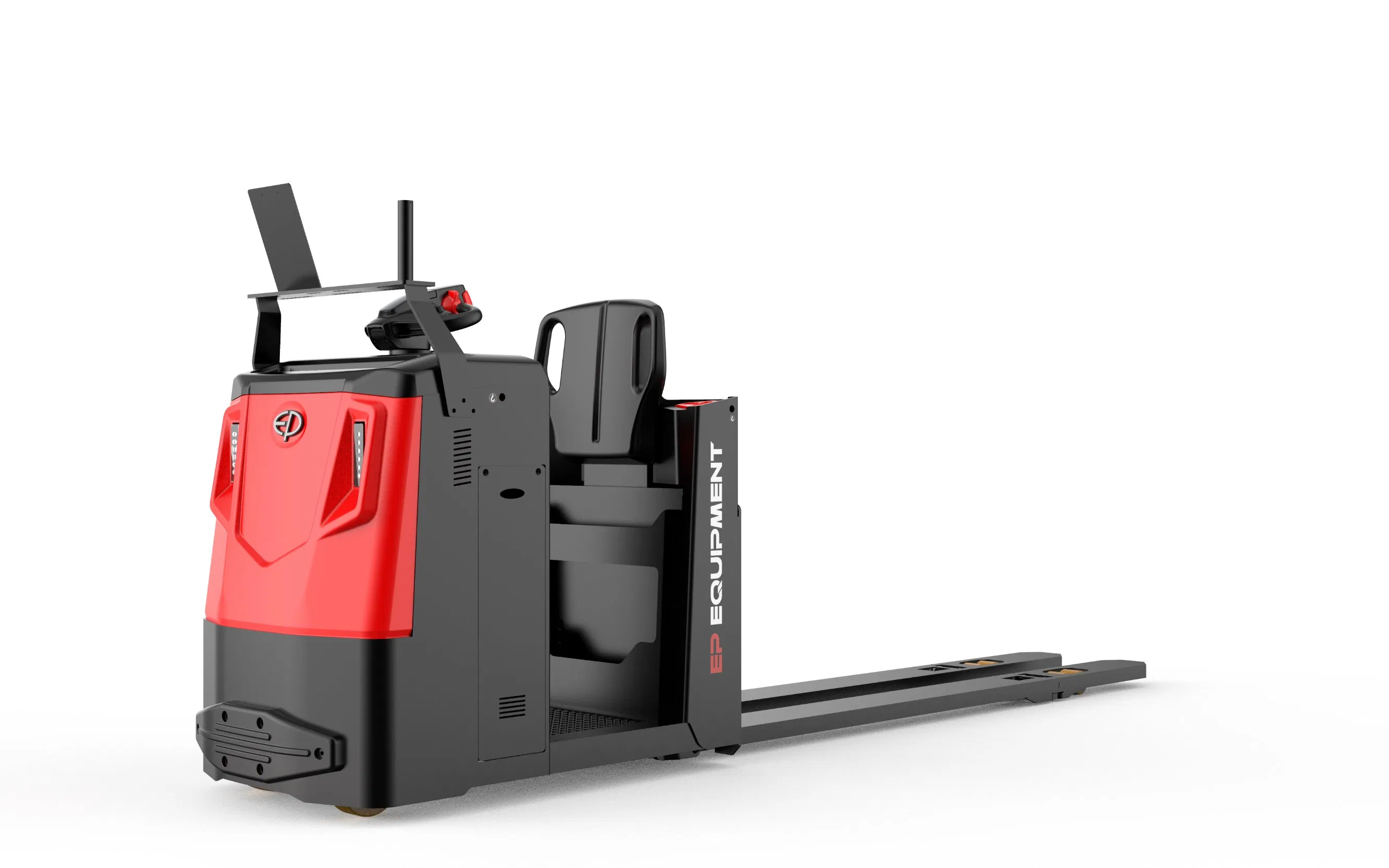

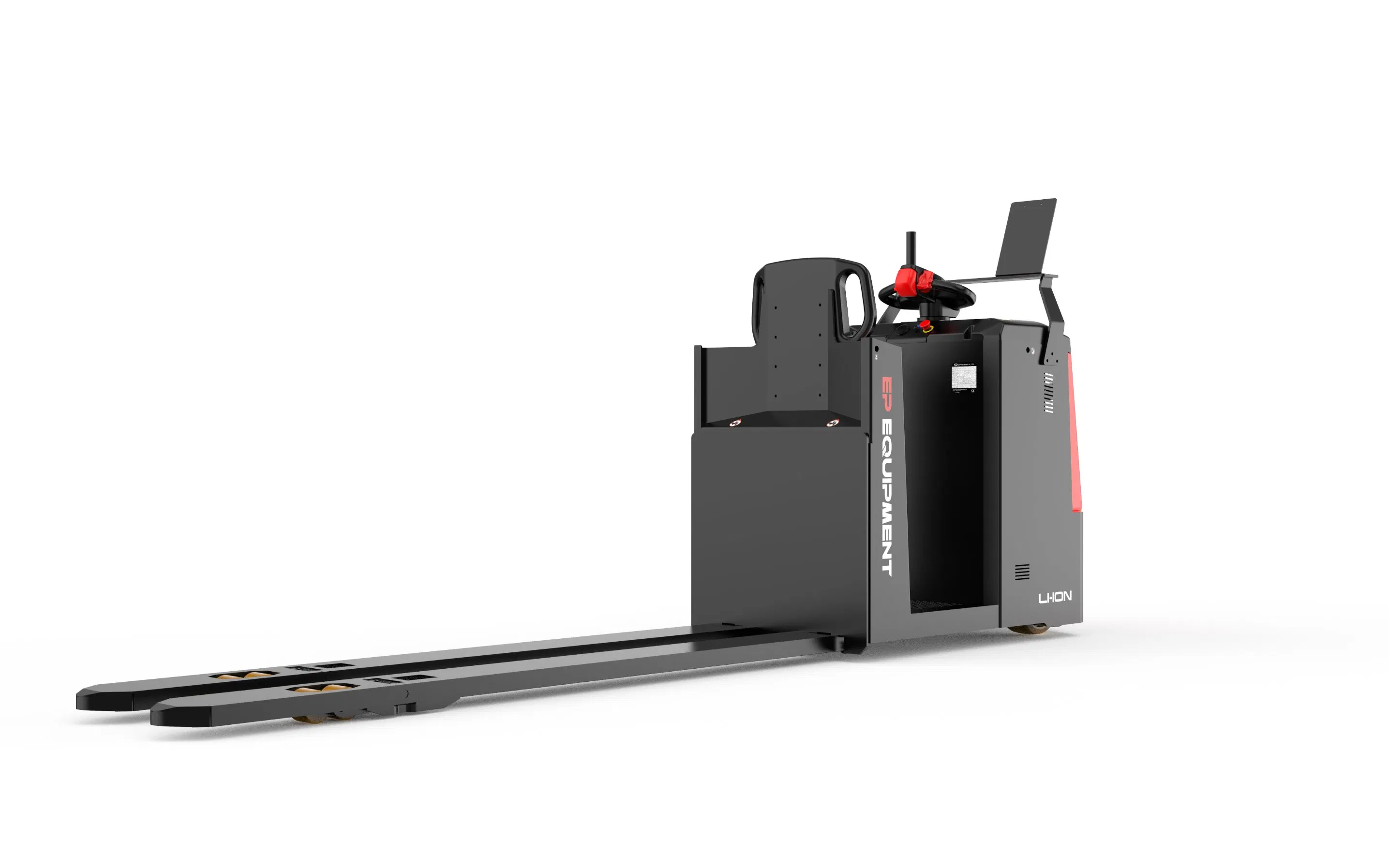

2500kg Low Level Order Picker with Fast Acceleration Tpl251

Customization: Available
After-sales Service: Local Service
Warranty: 2 Years

Product Description

i

Basic Specifications

Model
TPL251
Transmission
Automatic
Power Type
Electric Energy
Load Capacity
2500kg
Emission
Zero Emission
Drive Motor
3.3kw (S2 60 Min)
Turning Radius
2172mm
Lift Height
120mm
Overall Length
2526mm
Overall Width
800mm
Condition
New
D

Product Overview

TPL251 LOW Level Order Picker 2.5T

TPL251 is a 2.5-ton low level order picker designed for order picking specifically for accessing products stored at low levels. Its optional super-long 2400mm forks enable TPL251 to handle two pallets simultaneously. The high capacity Li-Ion battery grants high picking rates supported by opportunity charging with an external plug. With a travel speed of 14.5km/h, TPL251 can streamline order picking operations, enhancing productivity in warehouses and distribution centers. Particularly high battery capacities guarantee the highest picking rates, even in economic multi-shift operations.

S

Standard Configurations

  • Fork dimensions: 560*1150 standard (560*2400 optional)
  • Overall width: 800mm
  • Travel speed: 14.5km/h
  • Lift height: 120mm
  • 24V/ 280Ah Li-ion battery (410Ah optional)
  • 24V /100A charger
  • 3.3kW AC drive motor
  • PU drive wheel
  • Battery indicator with hourmeter
A

Applications

TPL251 is a trustworthy assistant for warehouses that apply a low-level racking system to fulfill large-scale handling tasks. Excelling in environments such as distribution centers, supermarkets, retail outlets, and manufacturing facilities, TPL251 is especially appropriate for long-distance handling thanks to its fast acceleration and traveling speed. Side buttons and a comfortable operating compartment enhance productivity and minimize operator fatigue for long working hours.
F

Key Features

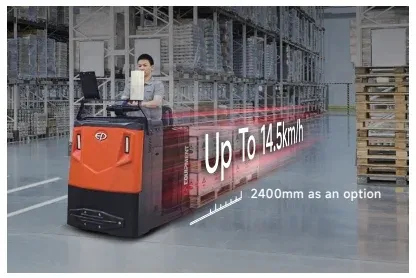

High-speed Performance

High-speed Performance and Dual-pallet Handling

With a top travel speed of 14.5 km/h, the TPL251 significantly increases throughput for long-distance order picking. The optional 2400 mm forks enable the handling of two pallets simultaneously, optimizing load cycles and minimizing travel time between aisles.

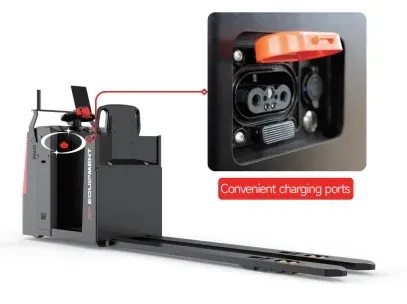

Li-ion Power System

Advanced Li-ion Power System

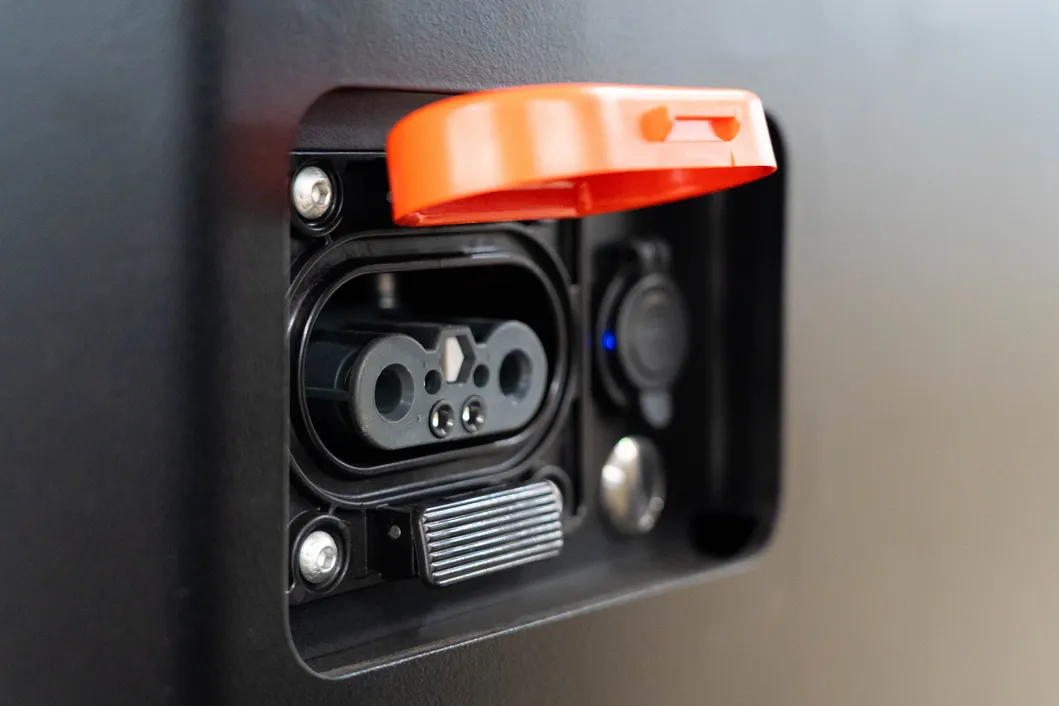

The high capacity Li-Ion battery system supports opportunity charging, ensuring the machine is ready for multi-shift operations without long downtime. This technology provides consistent power and eliminates the maintenance required by traditional batteries.

Ergonomic Station

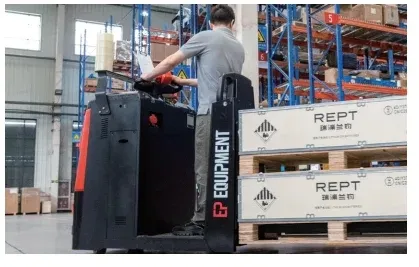

Ergonomic and Comfortable Operator Station

Designed for operator well-being, the suspended platform and low-step entrance minimize vibration and fatigue. The foam backrest and wide standing space provide comfort during long shifts, while optional storage brackets accommodate accessories like scanners or WMS terminals.

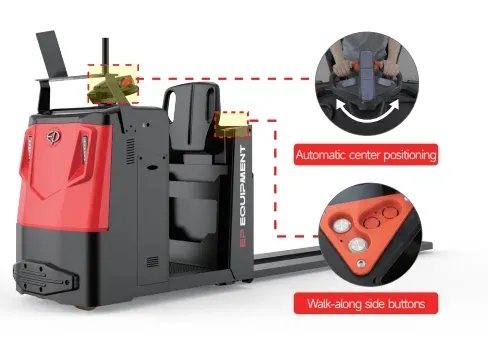

Precision Handling

Precision Handling and Easy Operation

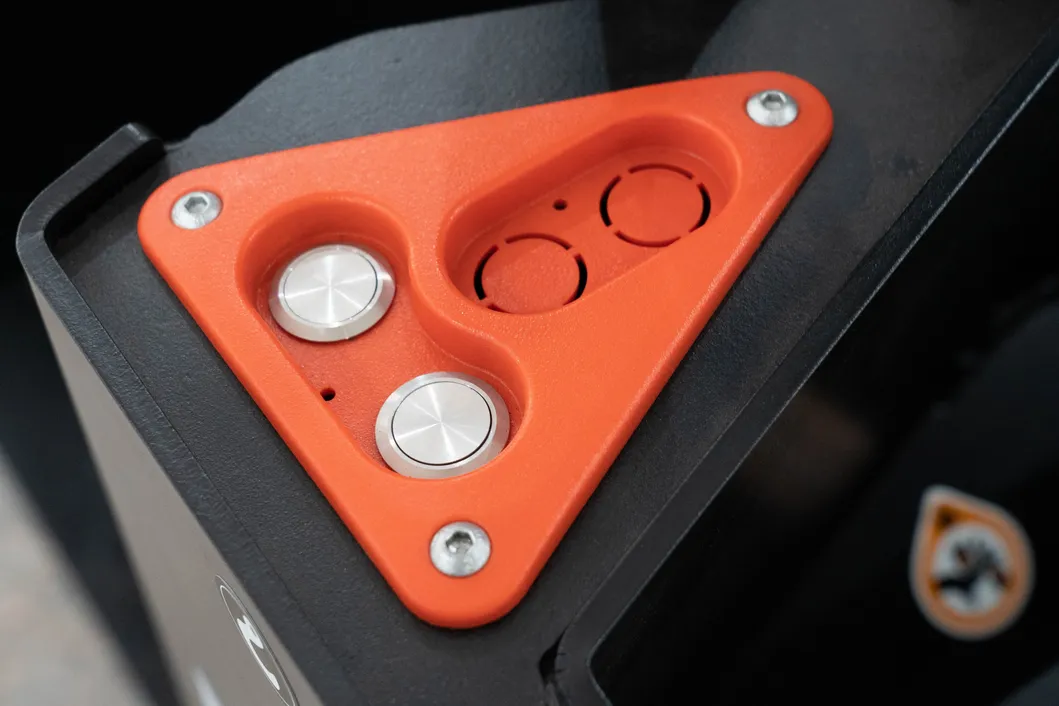

Equipped with electric power steering and automatic center positioning, the TPL251 ensures effortless control. Walk-along side buttons allow operators to move the truck alongside them during picking, improving workflow and reducing unnecessary steps.

O

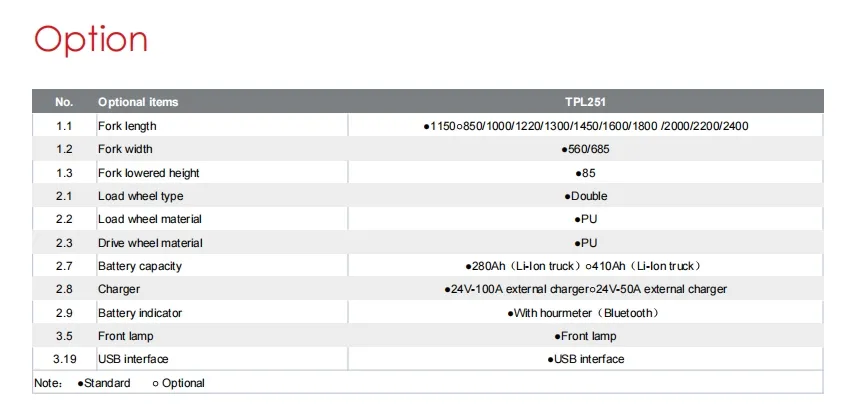

Available Options

Options
P

Detailed Photos

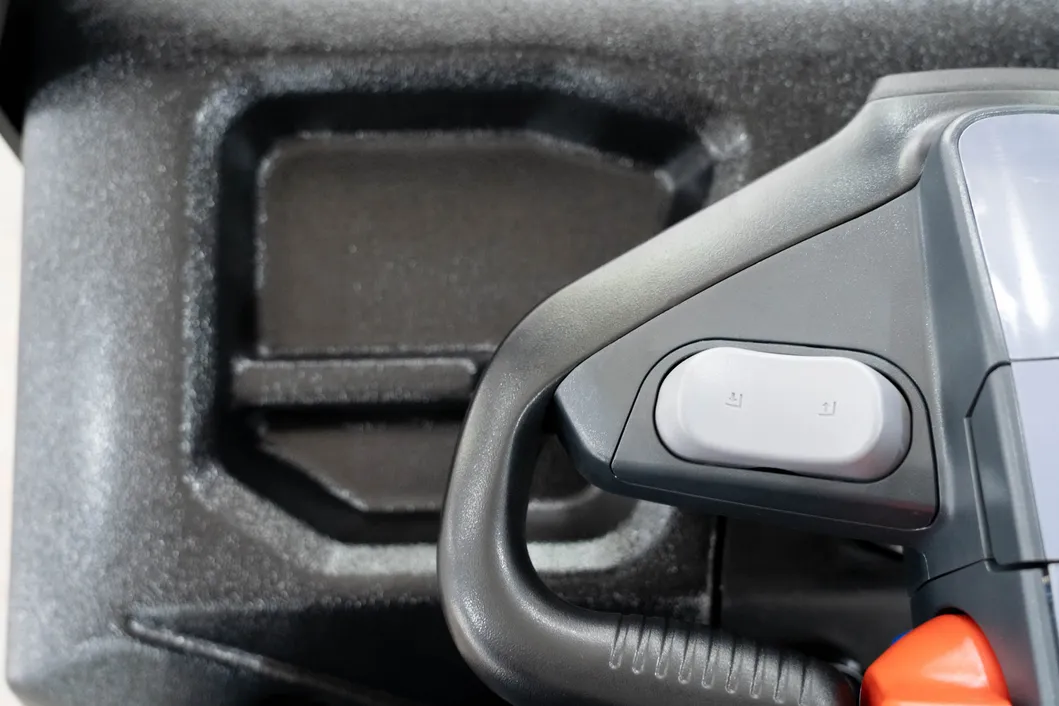

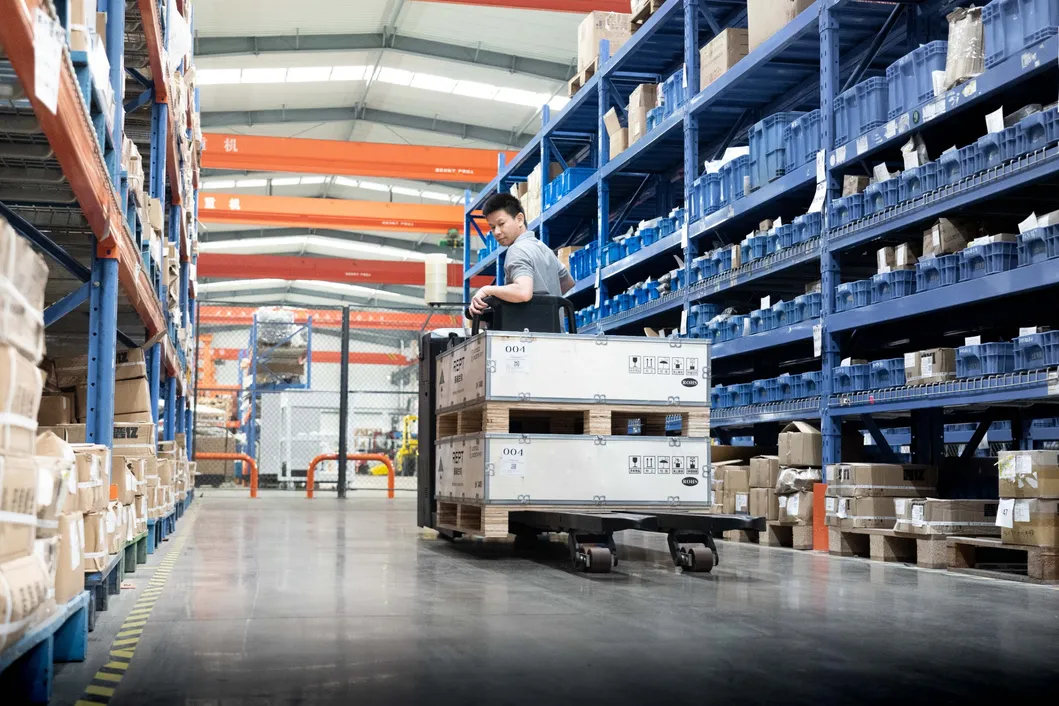

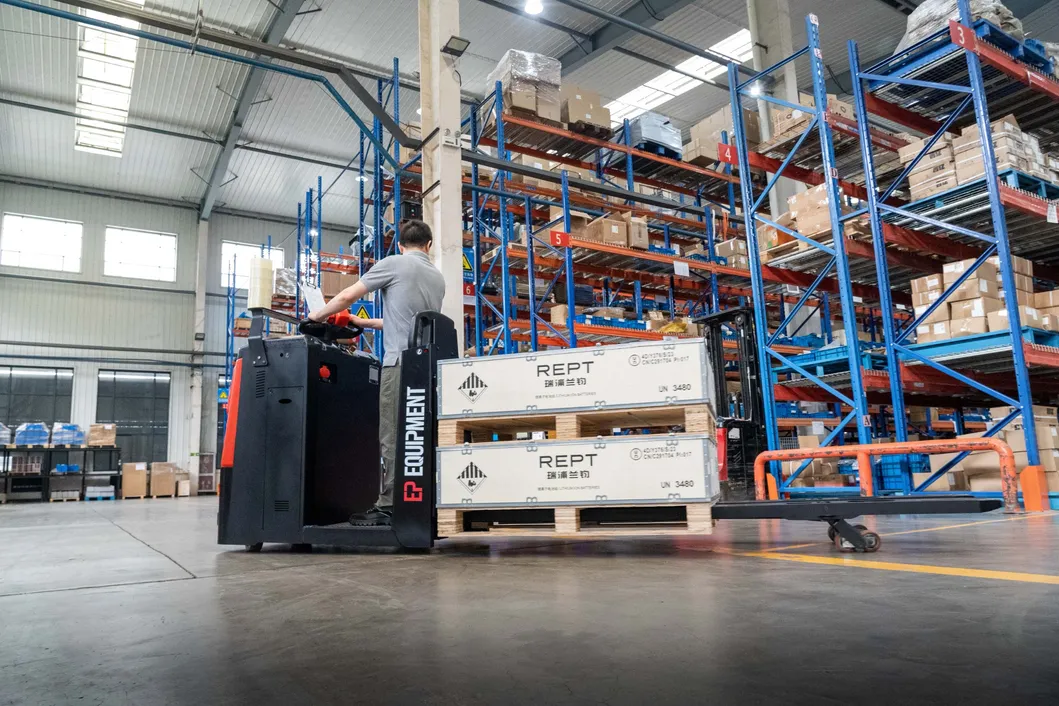

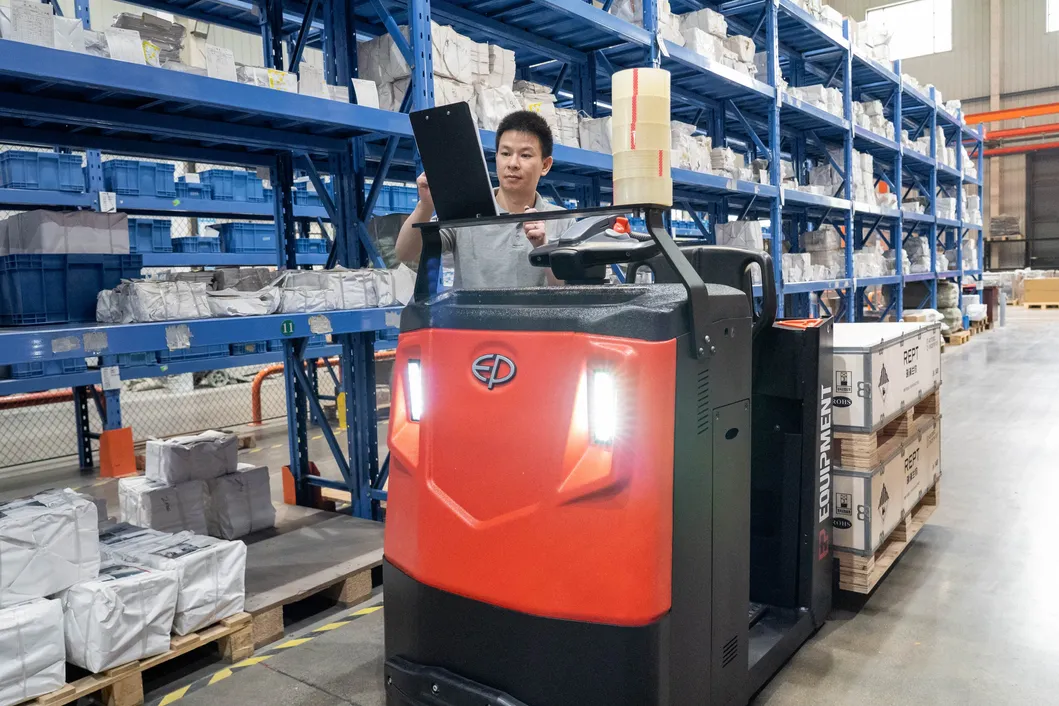

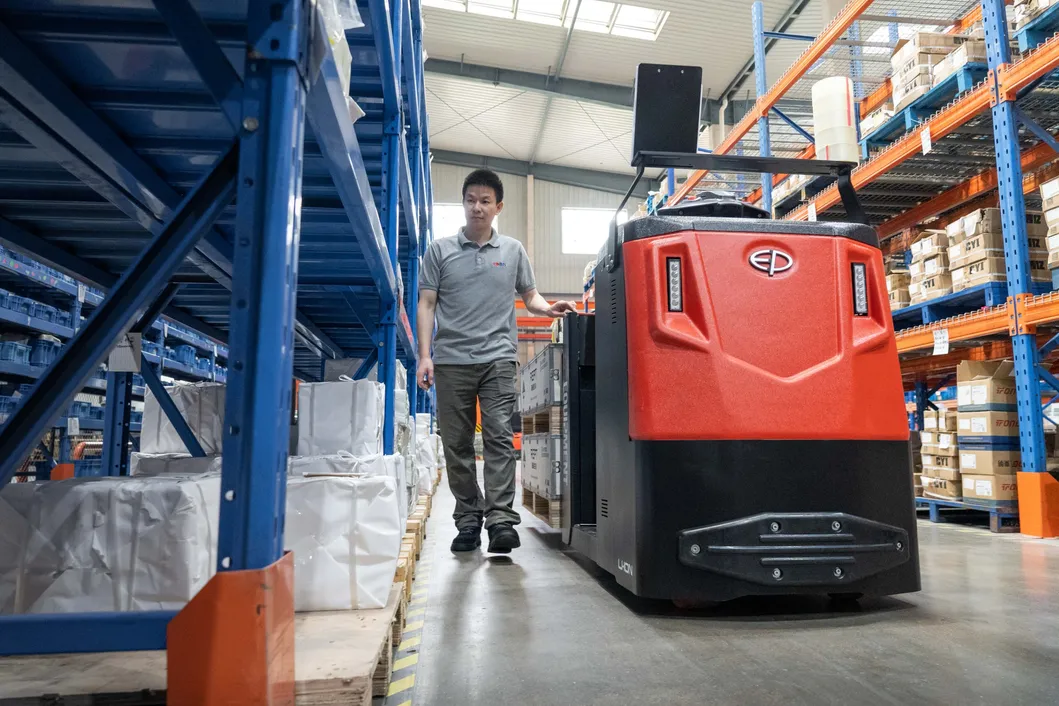

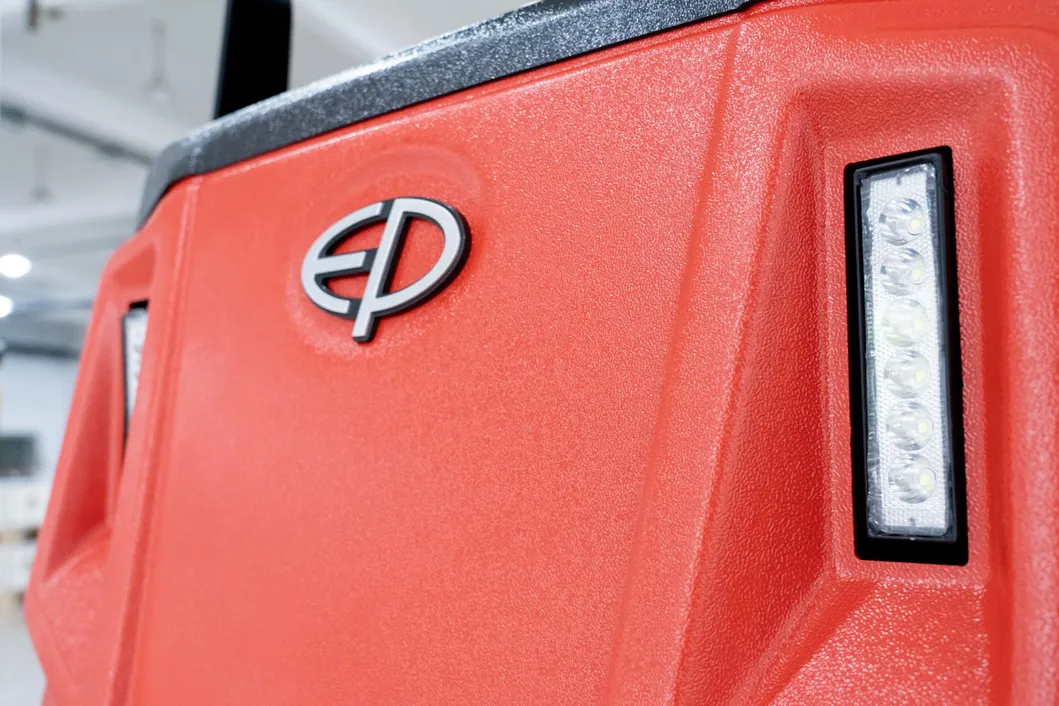

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6 Detail 7 Detail 8
?

Frequently Asked Questions

What is the maximum load capacity of the TPL251?
The TPL251 has a robust load capacity of 2500kg (2.5 tons), making it ideal for heavy-duty order picking tasks.
How fast can this order picker travel?
It features a high-speed performance with a top travel speed of 14.5 km/h, which significantly increases efficiency in large warehouses.
Does it support handling multiple pallets?
Yes, with the optional 2400mm super-long forks, the TPL251 can handle two pallets simultaneously to optimize workflow.
What are the benefits of the Li-ion battery system?
The Li-ion battery allows for opportunity charging, meaning you can plug it in during short breaks to maintain high picking rates throughout multi-shift operations.
Is the operator platform comfortable for long shifts?
Absolutely. It includes a suspended platform to reduce vibration, a low-step entrance for easy access, and a foam backrest for maximum operator comfort.
What kind of steering system does it use?
The TPL251 is equipped with electric power steering and automatic center positioning for precise and effortless handling.
