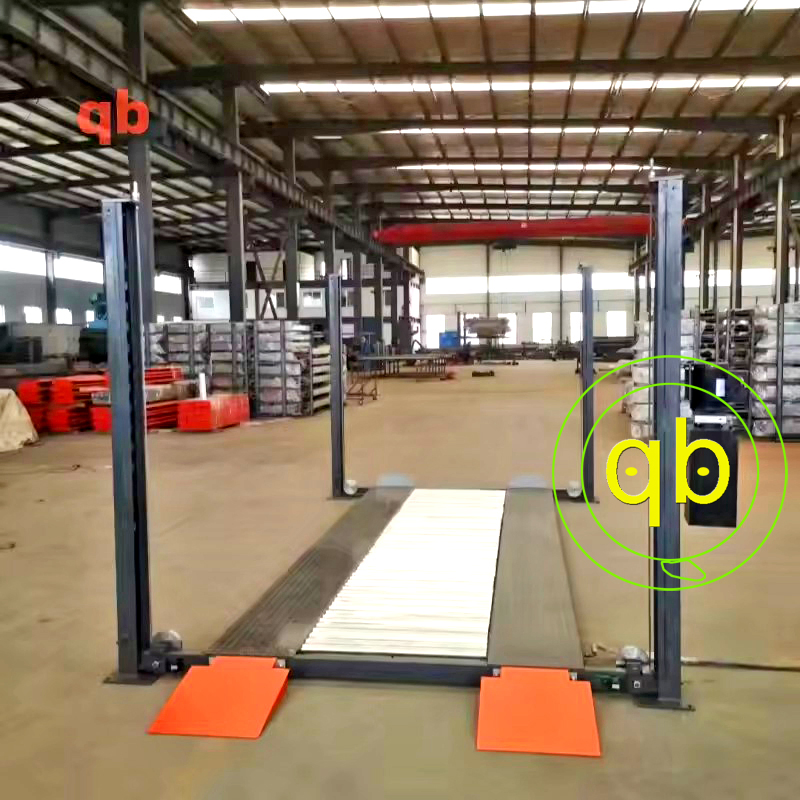

4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
1 / 5
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform
4-Pole Car Parking System Mechanical Garage Vertical Lift Platform

4-Pole Car Parking System Mechanical Garage Vertical Lift Platform

Customization: Available
Parking Post: 2
Level: 2
Send Inquiry

Product Description

Basic Information
Model NO.
FPP707/708
Capacity
2000kgs
Color
Any Colour
Installation
Indoor & Outdoor
Lifting Height
1800mm/1900mm
Material
Steel
Operation
Manual
Safety Features
Automatic Safety Locks, Emergency Stop Button, Overload Protection
Type
Four Post Parking Lift
Vehicle Compatibility
Sedans, SUVs
Warranty
12 Months
Lift Mode
Hydraulic Cylinder
Certification
CE, ISO, CCC
Rise/Drop Time
60s/50s
Voltage/Power
220V, 380V or Customized / 2.2kw
HS Code
84289020
Production Capacity
3000 Units/Year

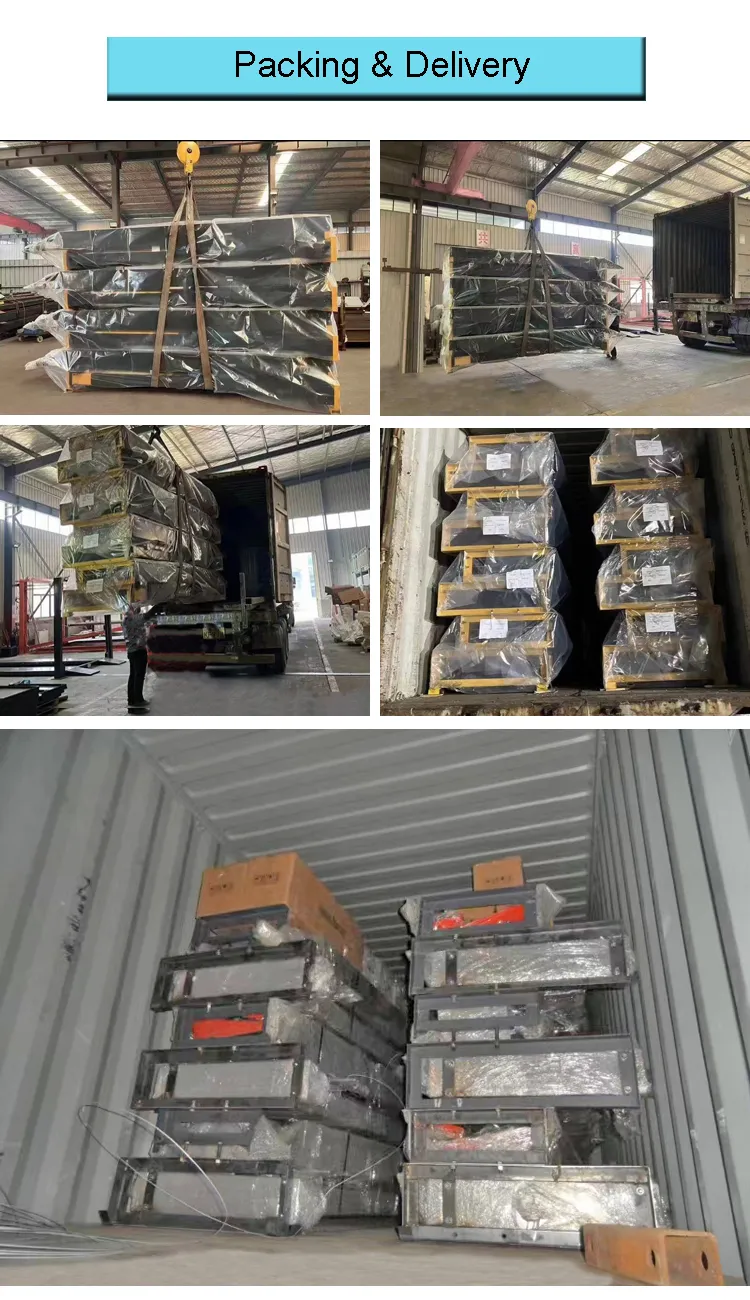

Packaging & Delivery
Package Size
250.00cm * 240.00cm * 100.00cm
Gross Weight
750.000kg
Product Description
Four Post Parking Lift
Operating Principle

The transmission mode of the equipment is hydraulic, which hydraulic pump outputs high pressure oil to push hydraulic cylinder, and drive carrying board up or down for parking and retrieving. When carrying board rises to designated position, the car can drive in and drive out.

Key Features
  • Single hydraulic pump drives to rise up wirerope.
  • The system is locked and unlocked automatically.
  • There are anti-dropping metal blocks in columns for safety.
  • Collecting oil structure can prevent oil to drip under car.
  • The self-lubricated bearings are used to ensure safety at any height.
  • Anti-skid design and traction plate are friendly for driving cars.
Technical Parameters
Specification FPP707 FPP708
Lifting Capacity7000lbs/3200kgs8000lbs/3800kgs
Lifting Height1800mm1900mm
Overall Height2086mm2138mm
Width Between Posts2353mm2353mm
Width Between Boards949.5mm949.5mm
Rated Oil Pressure18Mpa
Rise/Drop Time60s/50s
Voltage/Power220v, 380v / 2.2kw
Operation ModeManual
Product Gallery

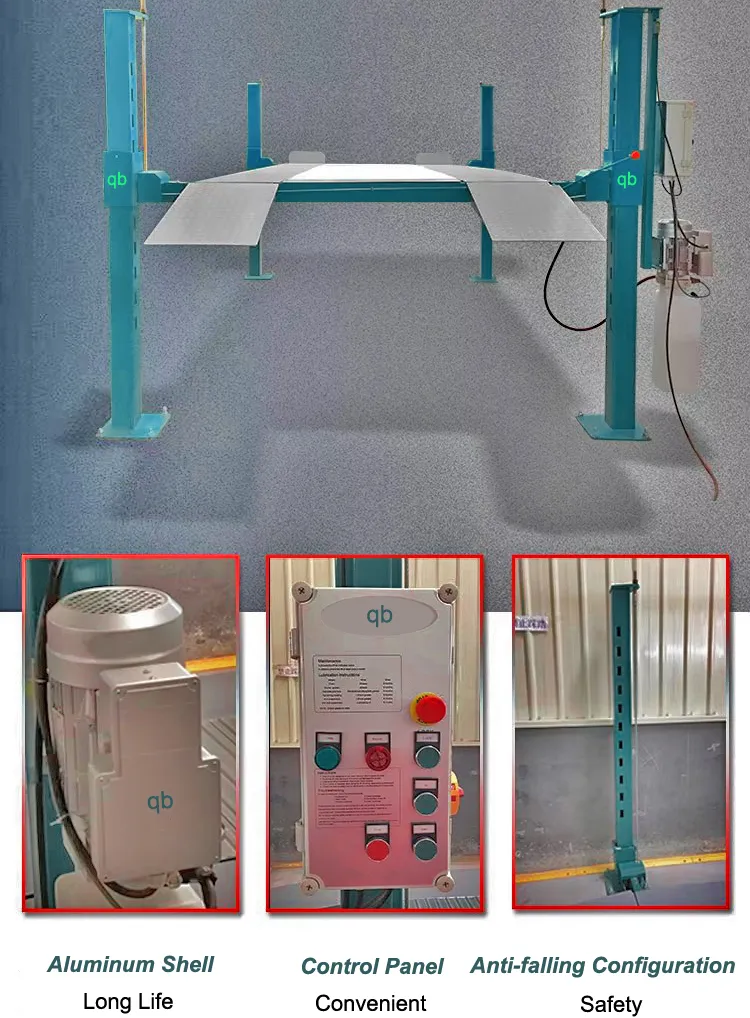

Parking System Detail 1

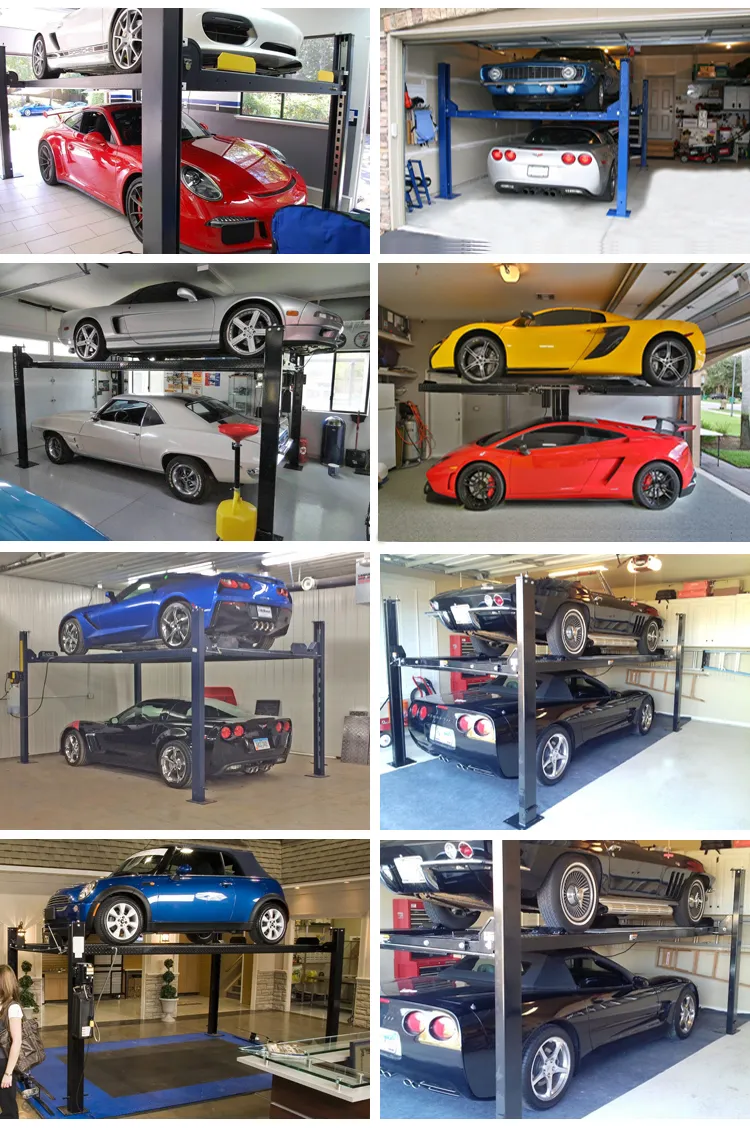

Parking System Detail 2
Parking System Detail 3
Parking System Detail 4
Parking System Detail 5
Parking System Detail 6
Parking System Detail 7
Parking System Detail 8
Parking System Detail 9
Parking System Detail 10
Parking System Detail 11
Frequently Asked Questions
Q: Are you a factory or trading company? A: We are a factory with more than 30 years' manufacturing and design experience in parking lift systems.
Q: Could the parking system be customized? A: Yes. The parking system can be fully customized according to your site dimensions and specific requirements.
Q: Could the parking system be used for parking SUVs? A: Yes. The system can be customized to fit various vehicle types including Sedans and SUVs. Please contact us for specific model recommendations.
Q: Could the system be used outdoors? A: Yes. The structure surface is galvanized or painted for waterproof protection. Extra covers can be installed to protect against rain, snow, and heavy wind.
Q: What are the voltage requirements? A: The voltage can be customized (e.g., 220V, 380V) according to your local power supply standards.
Q: What safety features are included? A: The system includes automatic safety locks, emergency stop buttons, anti-dropping metal blocks, and overload protection to ensure maximum safety.
