Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Moves
Push Around
Running Mode
Moving
Feature
Insulating
Certification
CE
Max. Working Height
11.2m
Max. Platform Height
9.2m
Loading Capacity
150kg
Occupants
1
Platform Dimension
0.67m X 0.66m
HS Code
8428909090
Production Capacity
4000 Pieces/Year
Packaging & Delivery
Package Size
654.00cm * 221.00cm * 668.00cm
Package Gross Weight
2000.000kg
Transport Package
Wooden Box
Product Description

Aerial Work Platform AWP - Reliable and efficient solution for personnel access at various heights.

Aerial work platform AWP
Model GTWY1-5 GTWY1-6 GTWY1-8 GTWY1-9 GTWY1-10 GTWY1-12
Max. Working Height 6.7m 8.2m 9.8m 11.2m 12.4m 14m
Max. Platform Height 4.7m 6.2m 7.8m 9.2m 10.4m 12m
Loading Capacity 150kg 150kg 150kg 150kg 136kg 120kg
Occupants 1 1 1 1 1 1
Platform Dimension 0.67m x 0.66m
Overall Height 1.99m 1.99m 1.99m 1.99m 1.99m 2.68m
Power AC 380V/220V/110V
AC Motor 0.75KW
Power DC 12V
DC Motor 1.3KW
Personnel Lift PAV Platforms
Core Features
✔️Outriggers with interlock
✔️AC power to platform
✔️Emergency stop button
✔️Emergency lowering system
✔️Easy loading in pickup trucks
✔️Two controllers operation
✔️Forklift pockets
✔️Transport tie hole
✔️Deadman Switch
✔️Cylinder holding valve
Available Options
➕Overload sensor with alarm
➕Beacon
➕All motion alarm
➕Leveling sensor

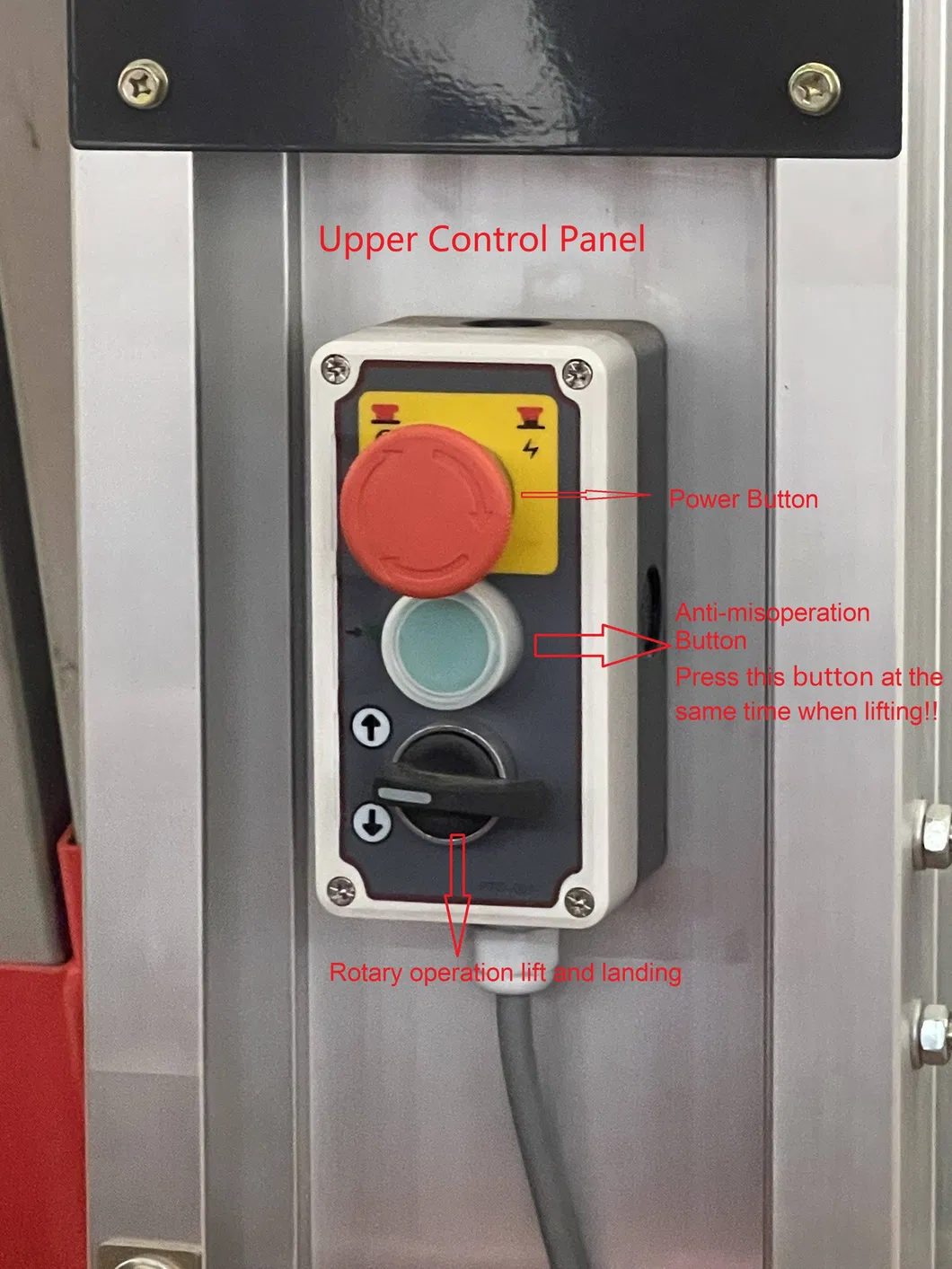

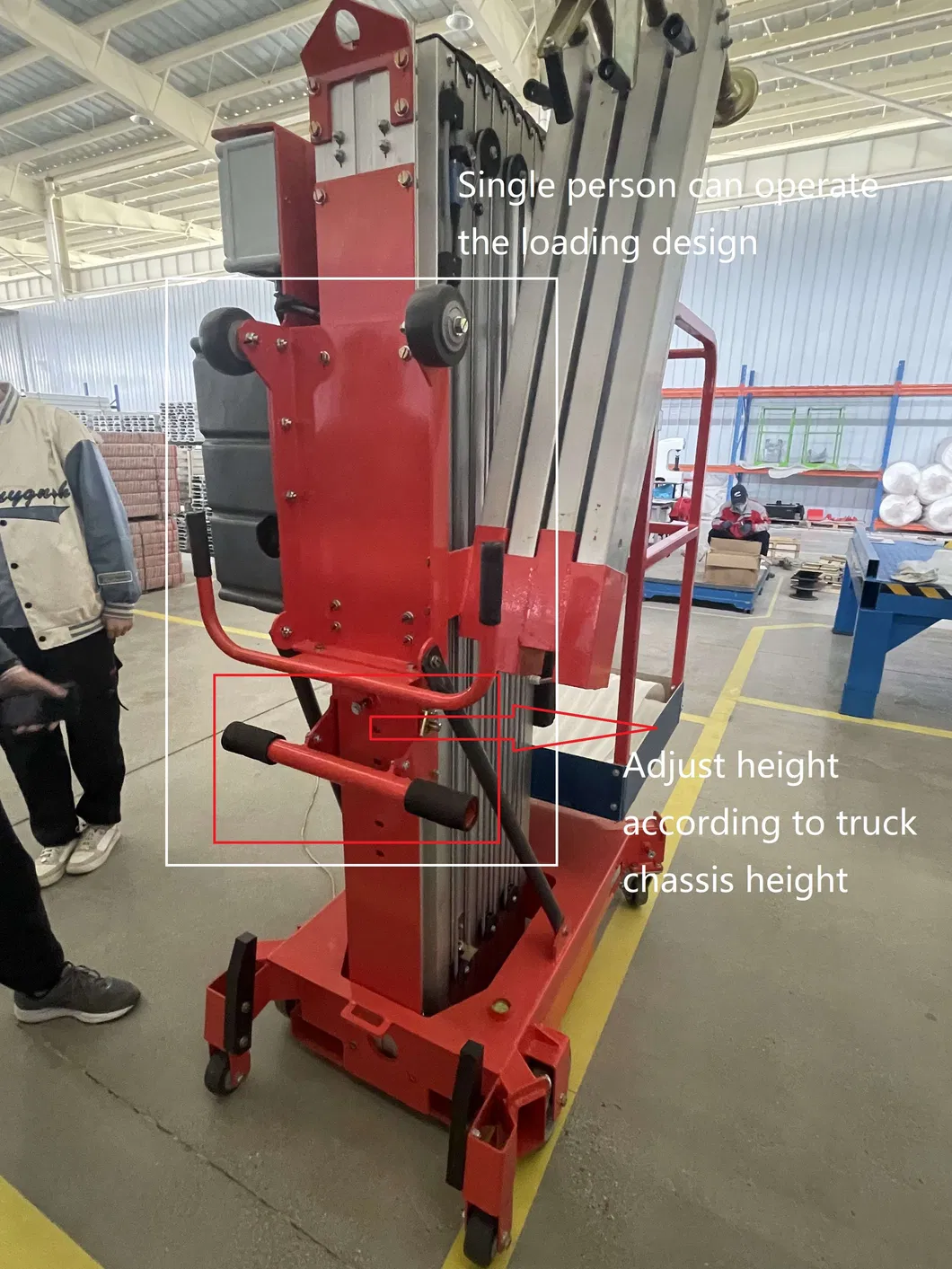

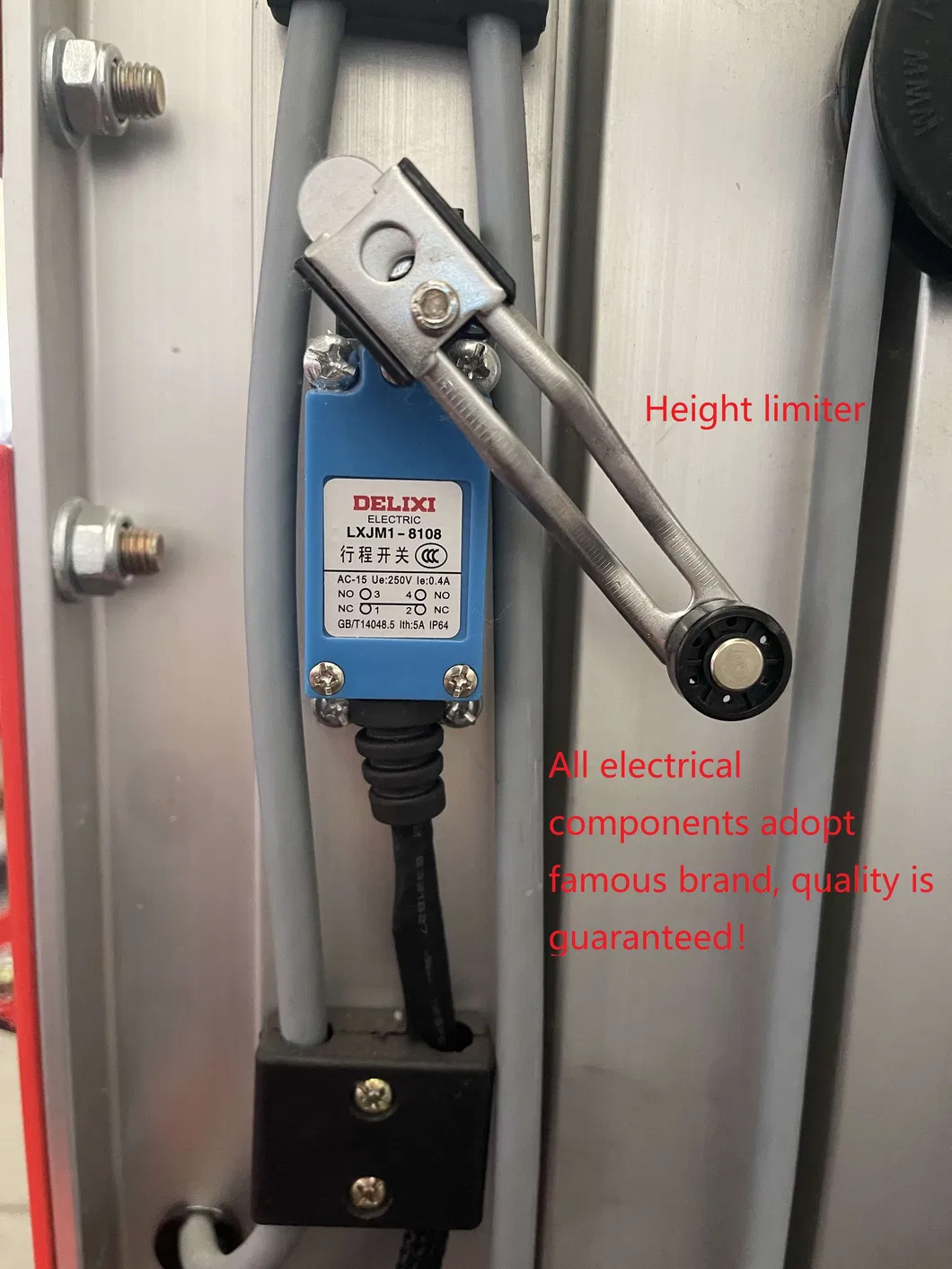

Work Platform Detail 1 Work Platform Detail 2 Work Platform Detail 3

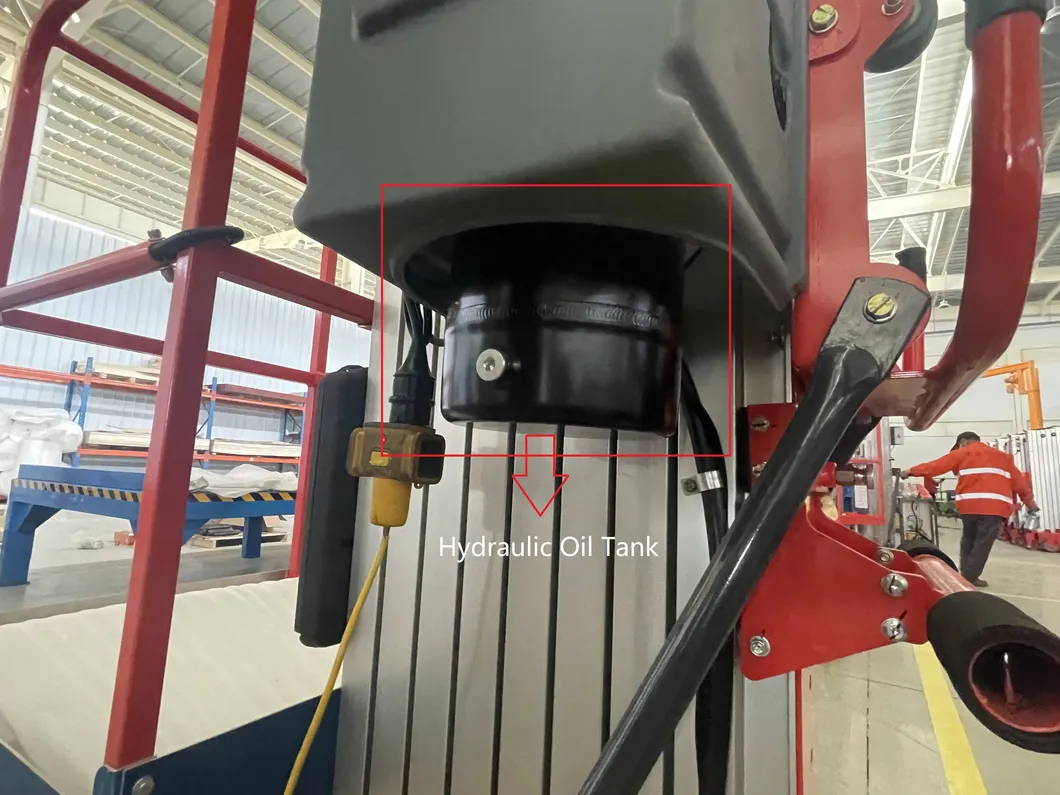

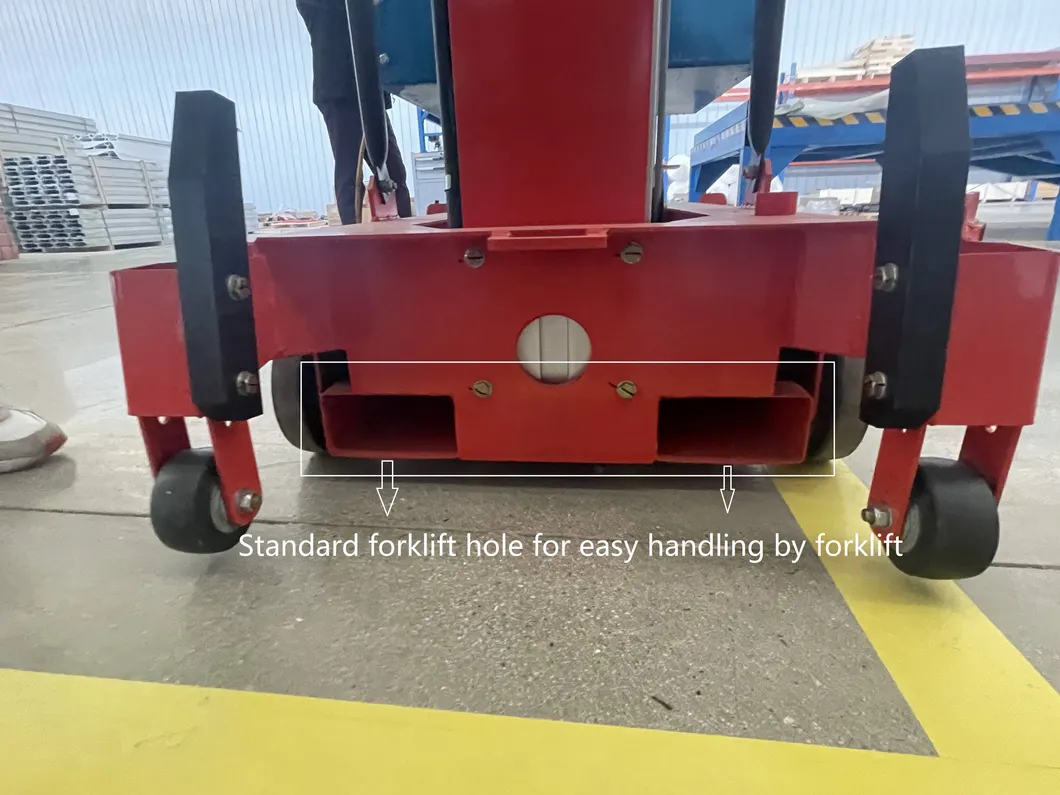

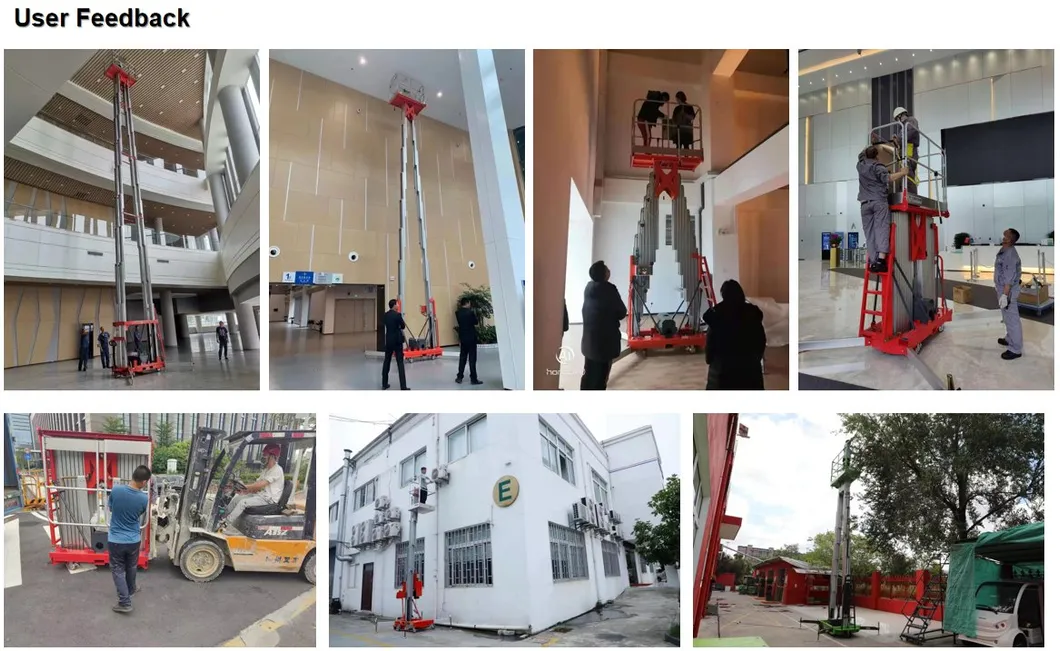

Application 1 Application 2 Application 3
Full View Platform
Dimensional Drawing
Frequently Asked Questions
What is the maximum working height of these platforms?
The maximum working height varies by model, ranging from 6.7m with the GTWY1-5 up to 14m with the GTWY1-12 model.
What are the power options available?
We offer both AC (380V/220V/110V) and DC (12V) power options to suit different working environments and requirements.
What is the load capacity for the personnel lift?
Most models support a loading capacity of 150kg, which is ideal for one occupant plus necessary tools. The capacity for higher-reach models like GTWY1-12 is 120kg.
Is the platform easy to transport?
Yes, the design includes forklift pockets and transport tie holes, and it is specifically designed for easy loading in pickup trucks.
What safety features are integrated into the AWP?
Standard safety features include outriggers with interlock, emergency stop buttons, an emergency lowering system, and a cylinder holding valve.
Are there any optional safety upgrades?
Yes, you can choose to add an overload sensor with alarm, a motion beacon, an all-motion alarm, and a leveling sensor for enhanced safety.
