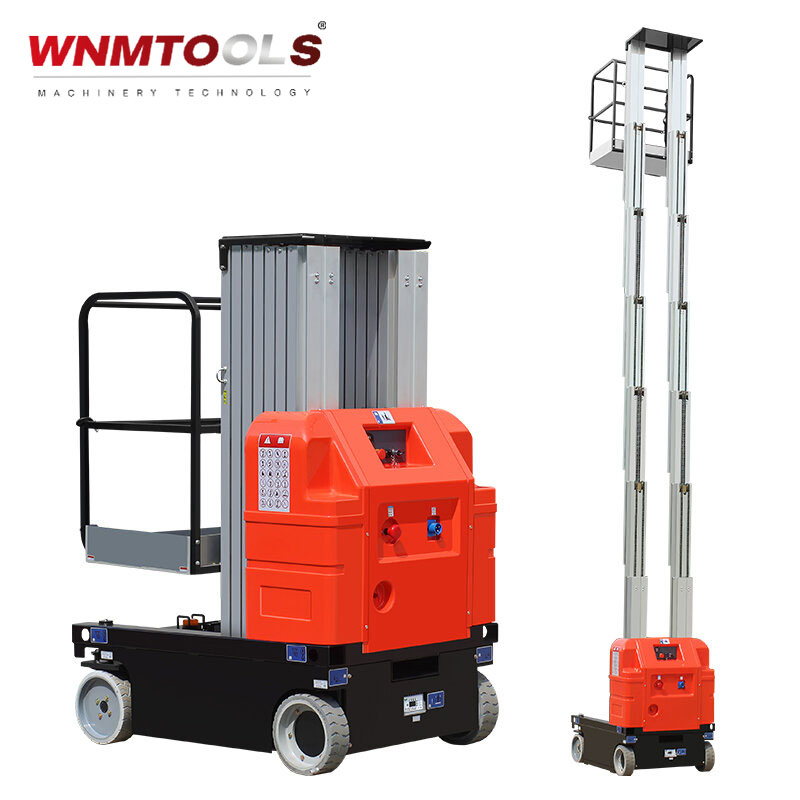

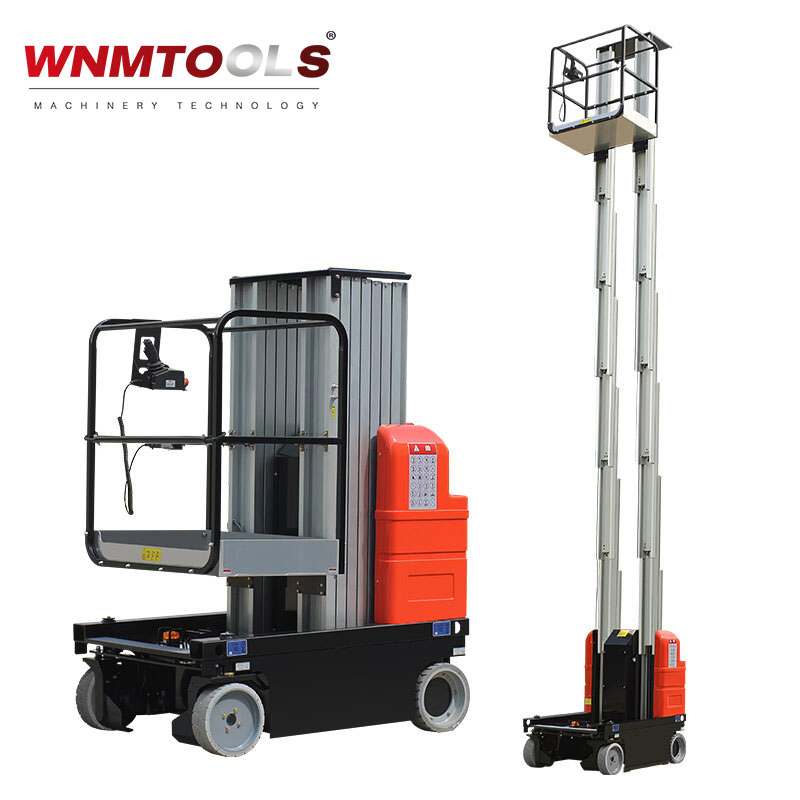

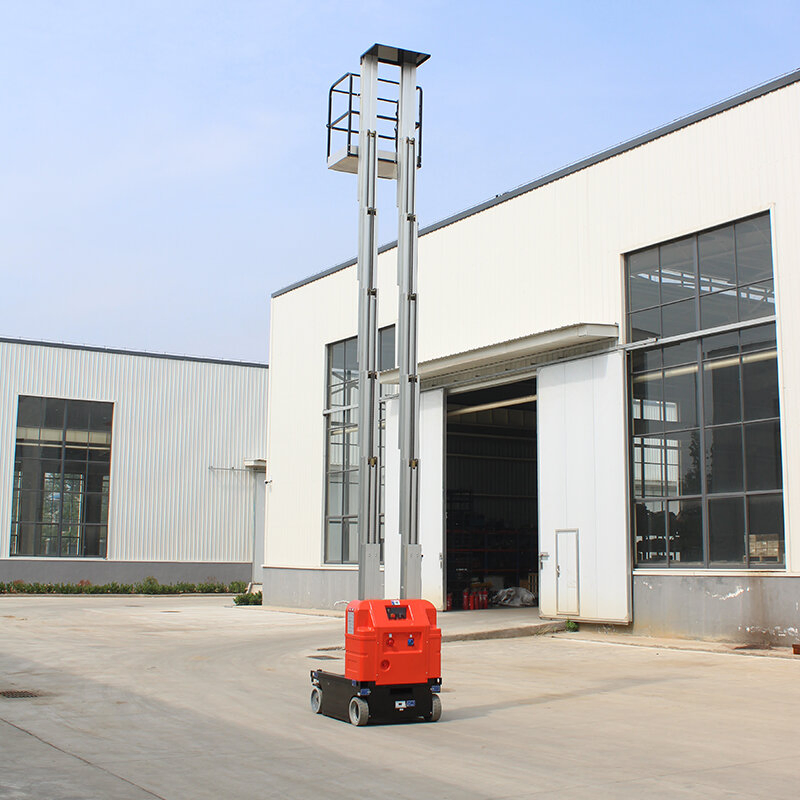

4m 6m 8m 10m Lifting Height Adjustable Mobile Electric Single Mast Aluminum Alloy Mast Lift Work Platform

Product Overview

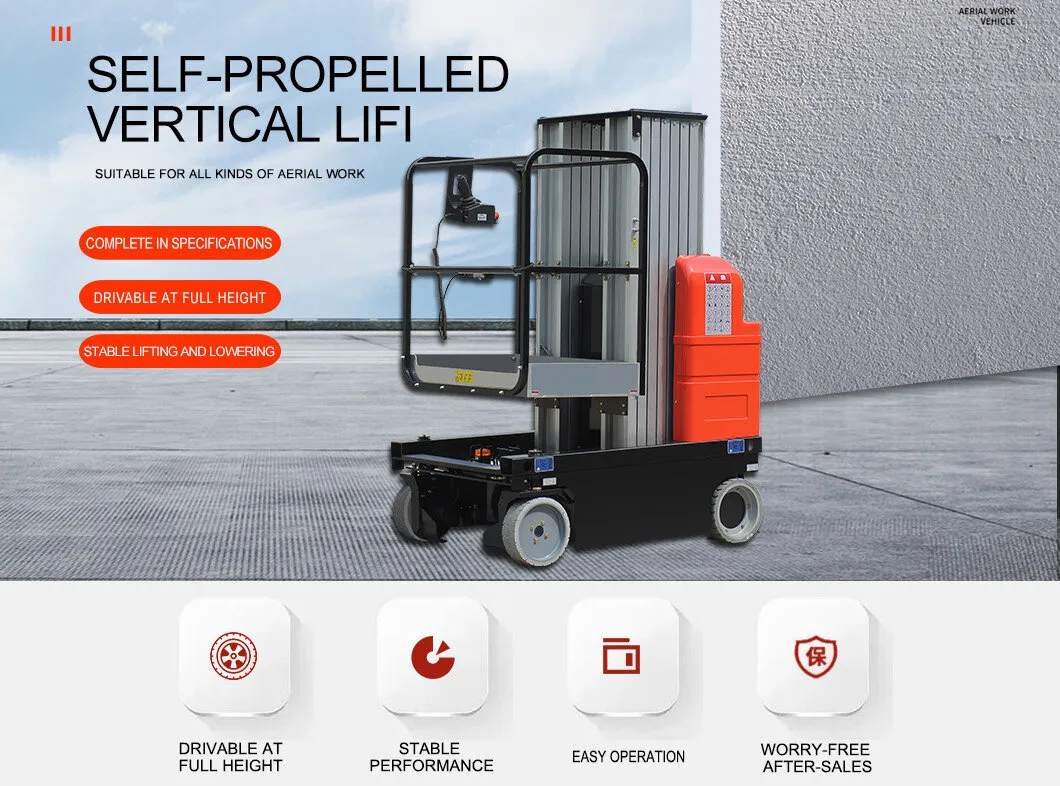

Vertical lift is a double mast self-propelled aerial working platform. Operators can control lifting and walking directly from the platform without descending, allowing for efficient movement between working locations. The equipment features integrated walking and steering functions, eliminating the need for manual traction or external power supplies. This flexible and convenient design makes aerial work more efficient and safe for modern industrial production.

Basic Information

Model

Lift

Application

Workshop, Shipboard, Warehouse

Mechanism

Vertical Mast Lift

Capacity

Middle-Level

Moves

Self-propelled

Driven Type

DC

Certification

CE, ISO 9001

Working Height

8~11m

Technical Specifications

Model No.	Units	CR-6	CR-7.5	CR-7.5D	CR-9D
Max. Platform Height	mm	6000	7500	7500	9000
Max Working Height	mm	8000	9500	9500	11000
Load Capacity	kg	150	125	200	150
Overall Size	mm	14007601990	140010201990	146010201990	14608201990
Platform Size	mm	1260*700	1260*700	1000*620	1000*620
Drive Speed (Stowed)	km/h	4	4	4	4
Battery	V/Ah	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah

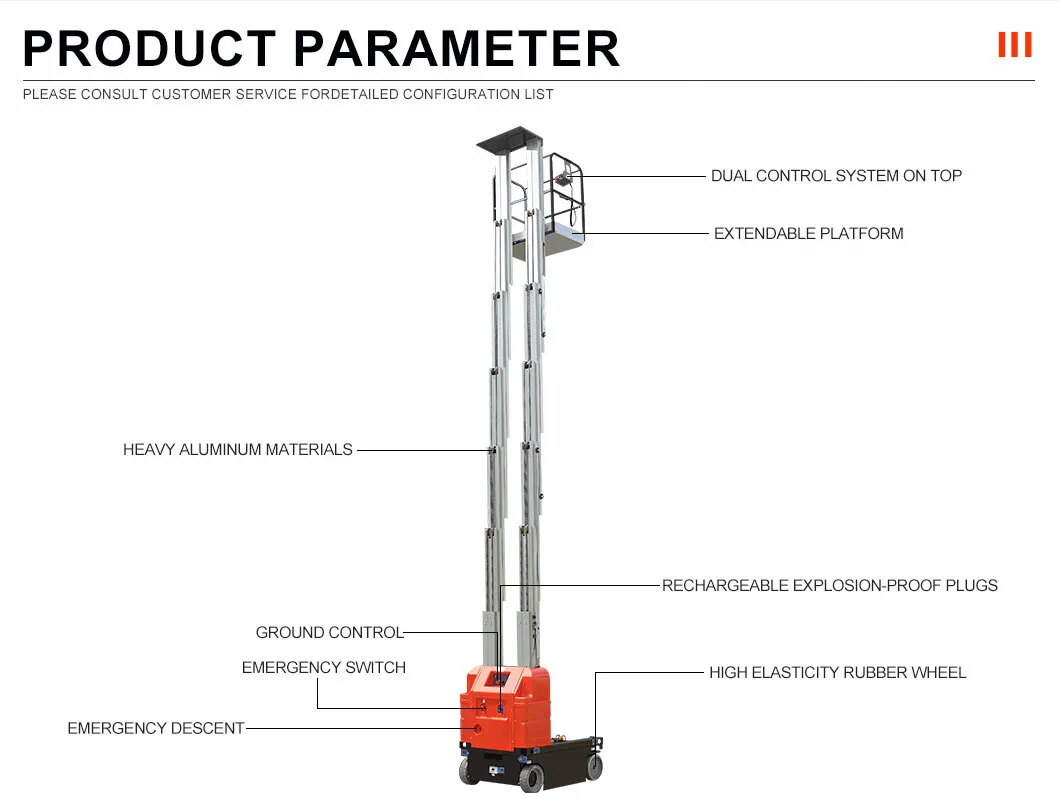

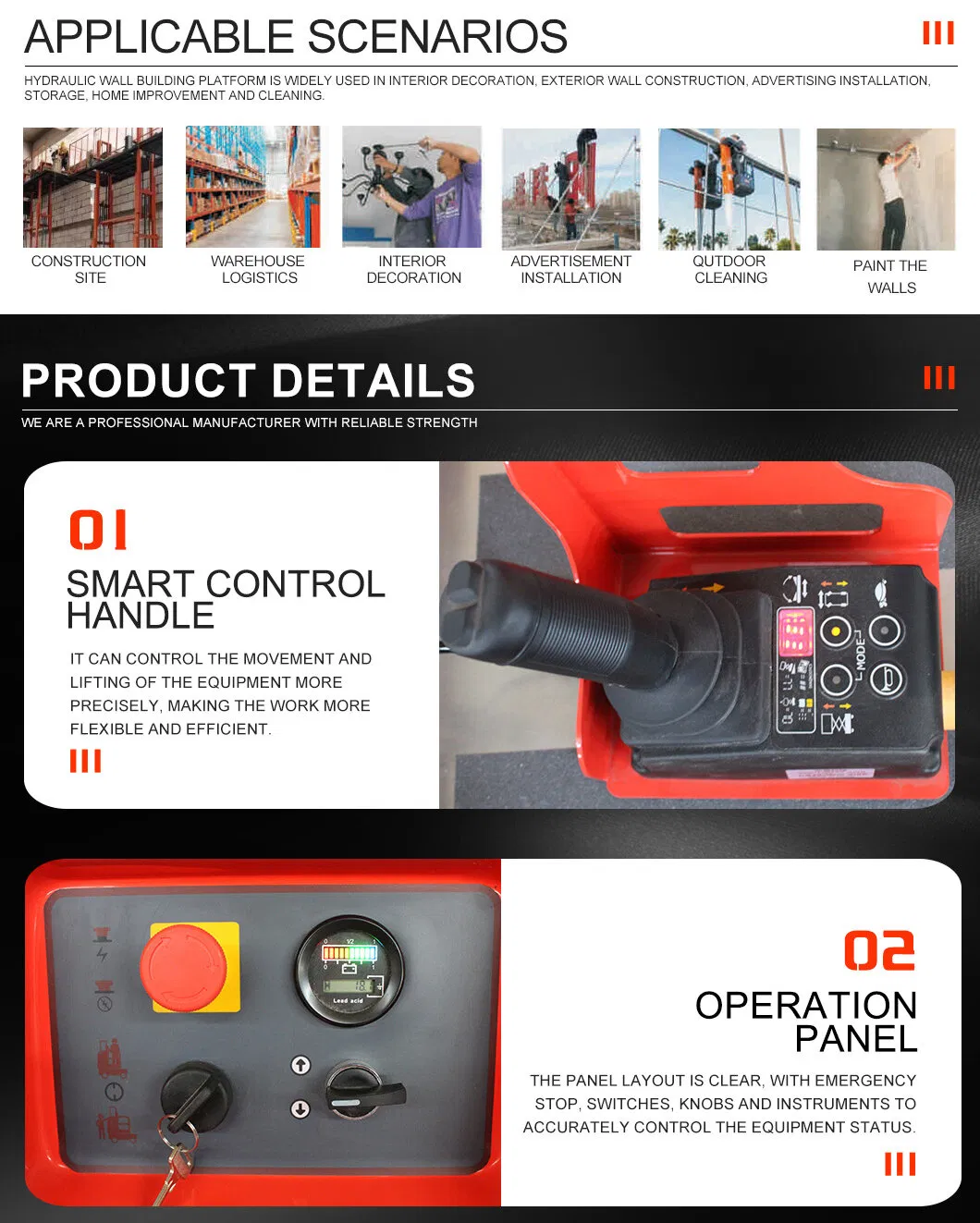

Detailed Photos & Advantages

Product Key Advantages

Greater maneuverability and operational smoothness
Compact design and light-weight structure for easy transport
Hydraulically controlled front wheel steering with maintenance-free brushless AC motor
Integrated machine tilt sensing function for enhanced safety

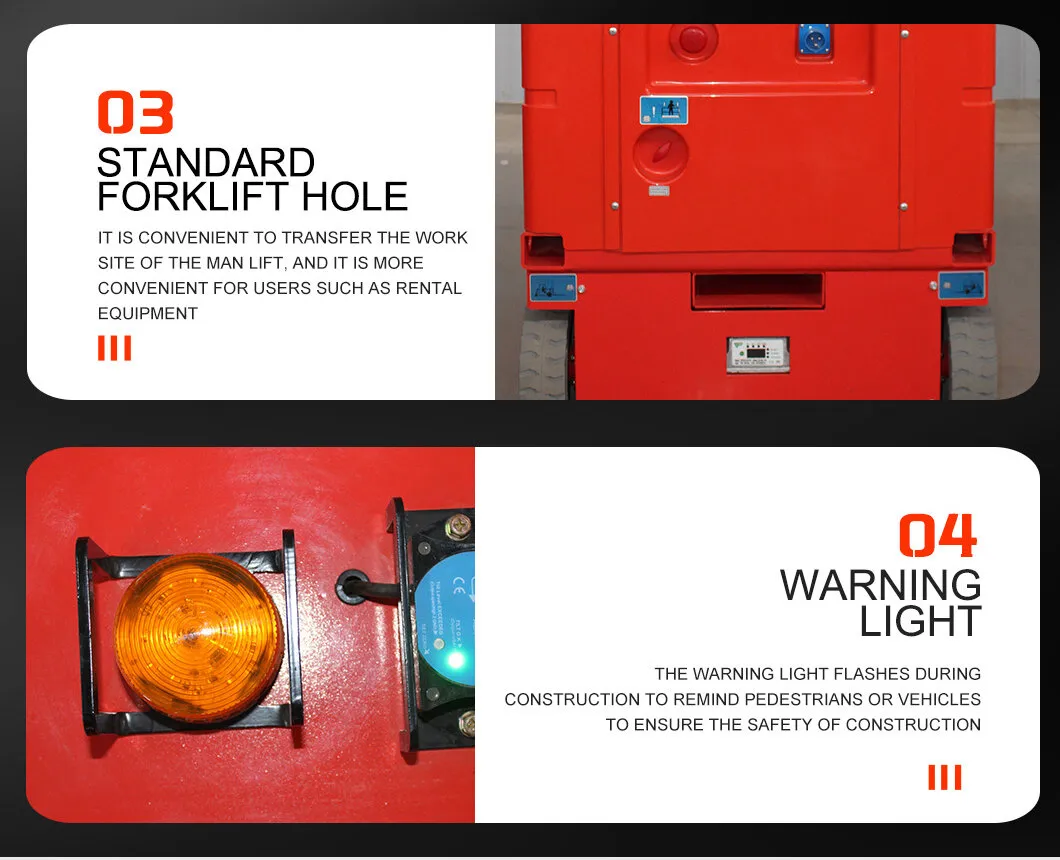

Equipped with buzzer, strobe light, horn, and emergency drop cable
Minimal downtime with low maintenance requirements

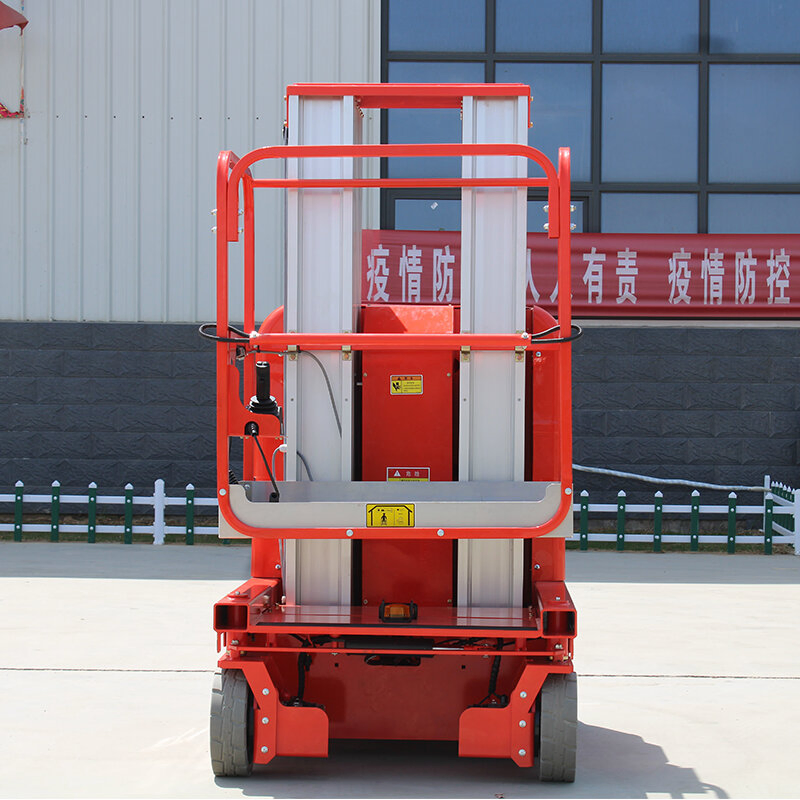

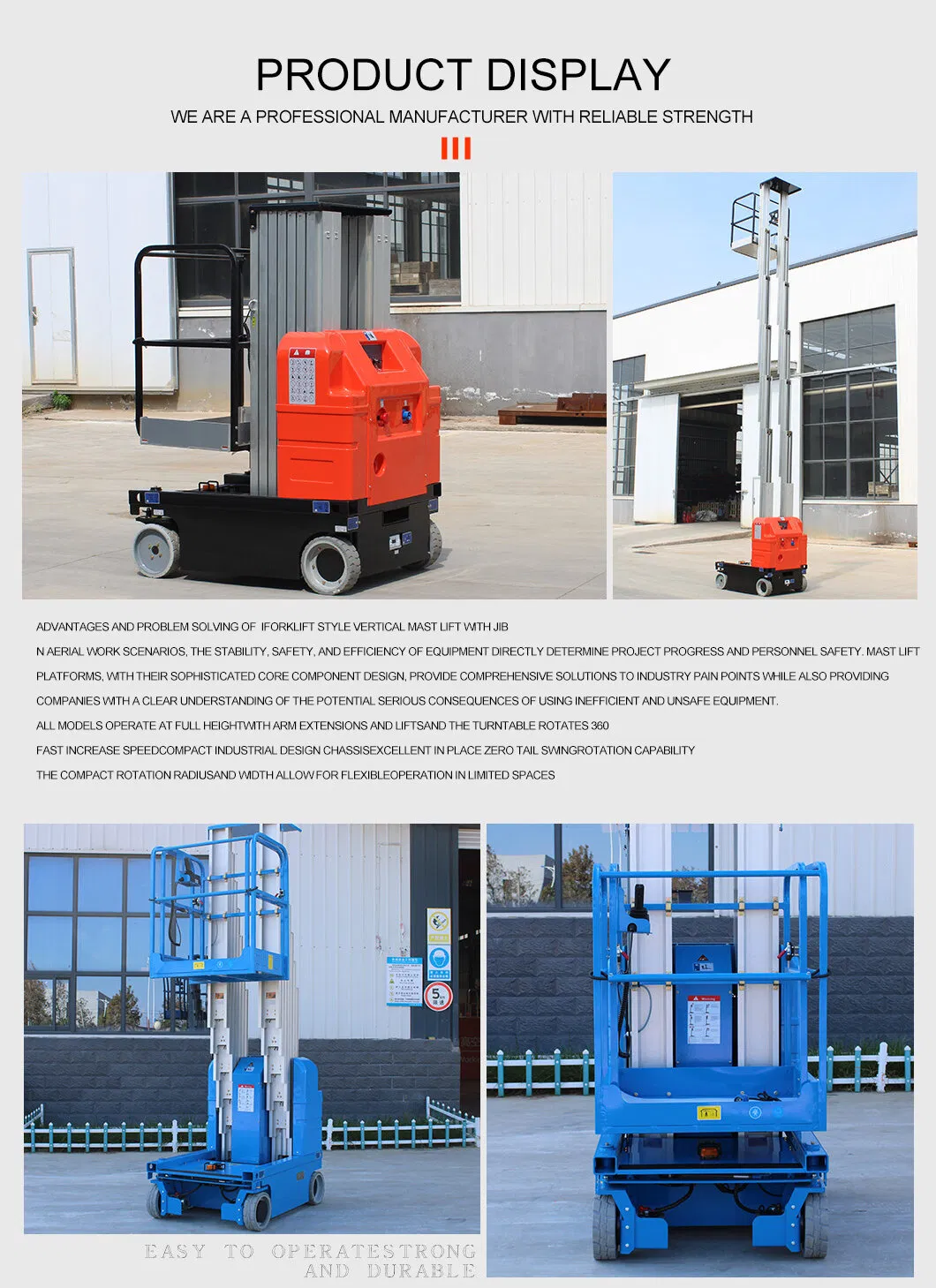

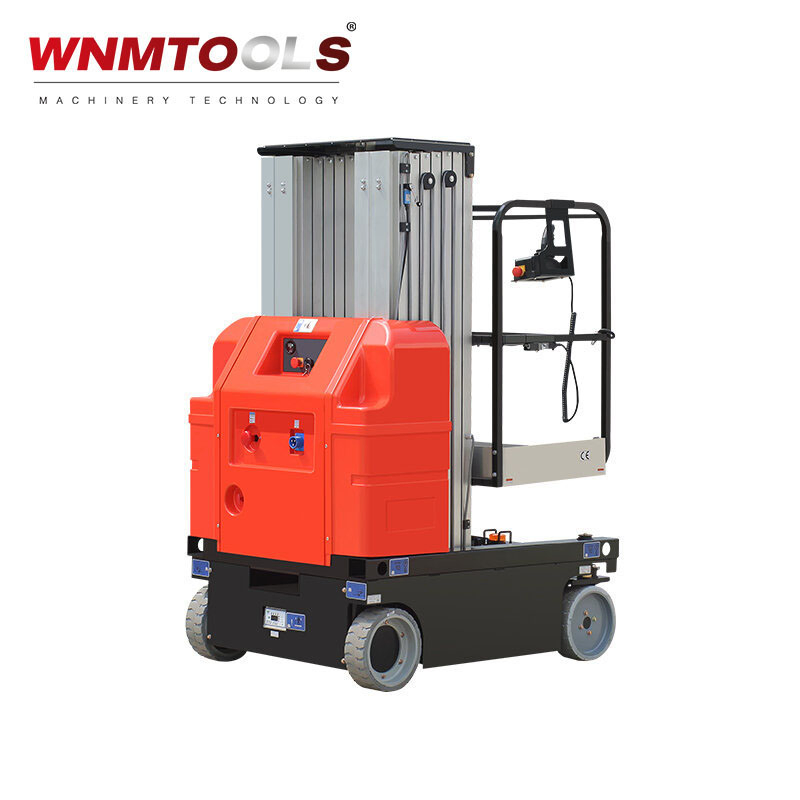

Product Display

FAQ

Q1: Can the machine be customized? Yes, as a factory, we can customize the machine specifications according to your specific requirements.

Q2: Do you provide international installation support? Yes, technicians can be dispatched to your country to assist with the installation and adjustment of the equipment.

Q3: How long is the warranty period? The warranty is 12 months. During this period, replacement parts for any malfunctions are provided free of charge, along with lifelong technical support.

Q4: How quickly do you respond to technical issues? We guarantee to provide technical solutions and support within 24 hours of receiving an inquiry.

Q5: What are the primary safety features? The unit includes a tilt sensing function, emergency drop cable, strobe light, buzzer, and is CE/ISO certified for safe operation.

Q6: What is the power source for this platform? The platform is powered by a 24V DC battery system with a maintenance-free brushless AC motor for driving.
