Optimized Heavy-Duty Performance: Features a 230kg platform payload, surpassing comparable models by 28%. Designed for industrial maintenance and large-scale logistics.

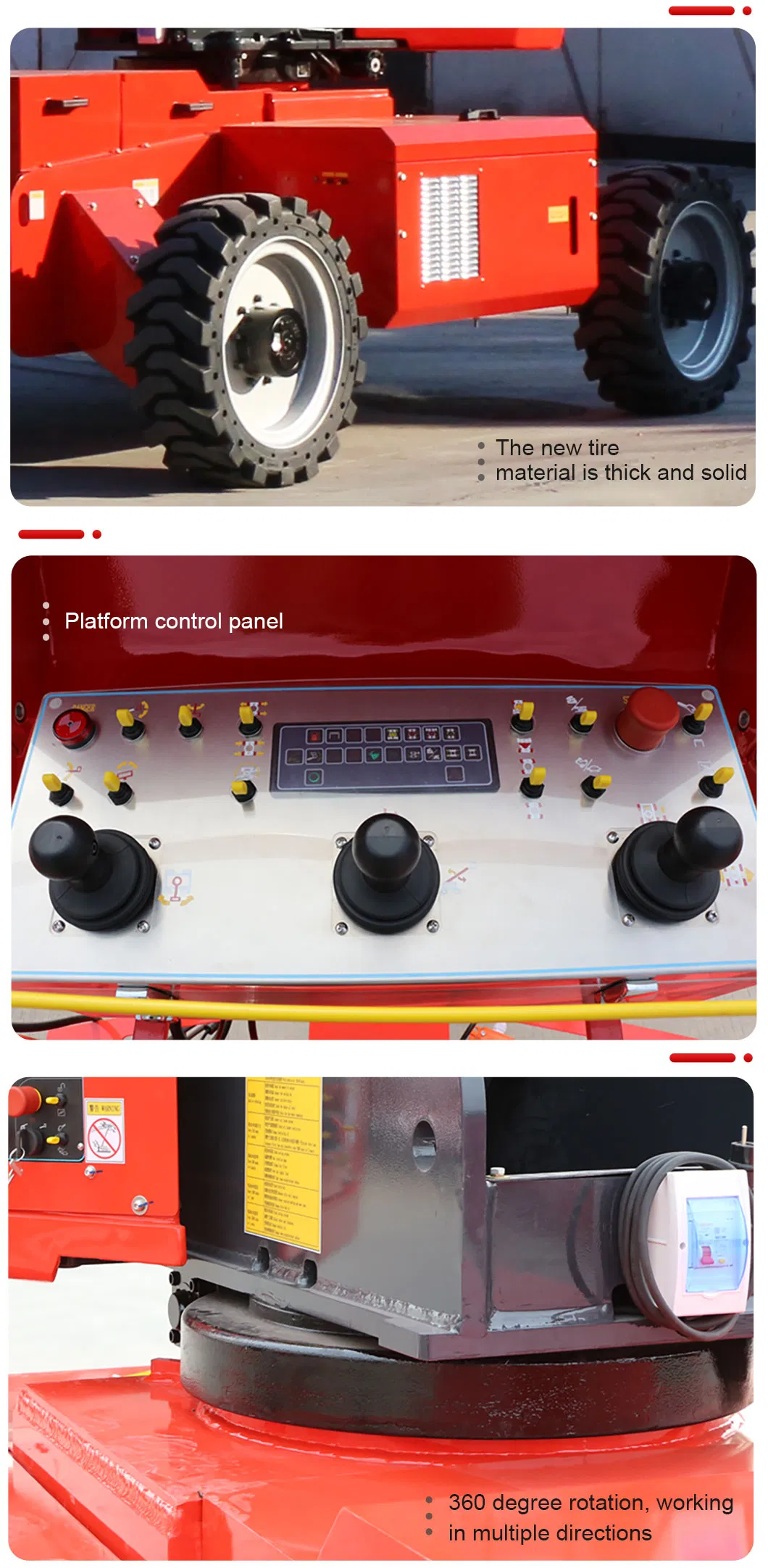

Precision Control System: Equipped with multi-way valve control and pressure compensation technology for exceptional stability. Allows 355° continuous rotation for accessing confined workspaces.
Enhanced Safety: Includes high-precision platform load sensors and EN280-compliant safety mechanisms (emergency descent, guardrails, and harness anchors).

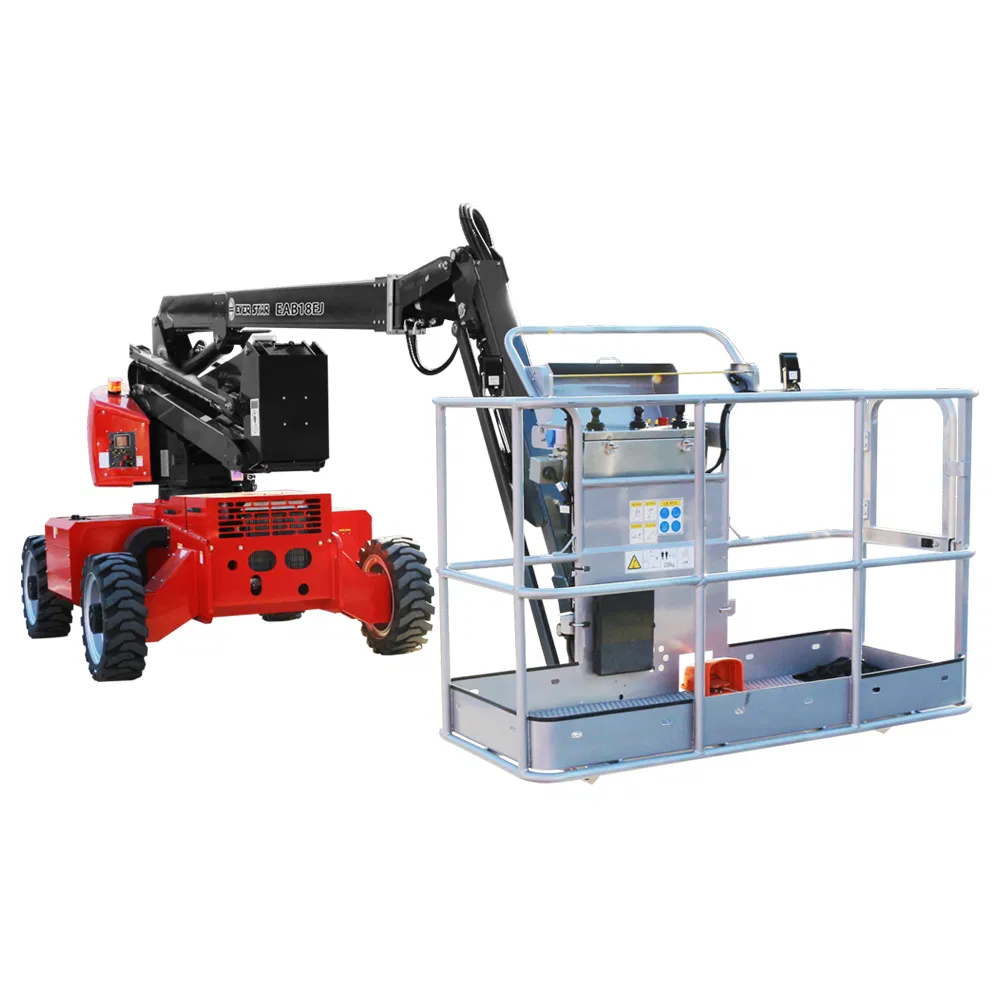

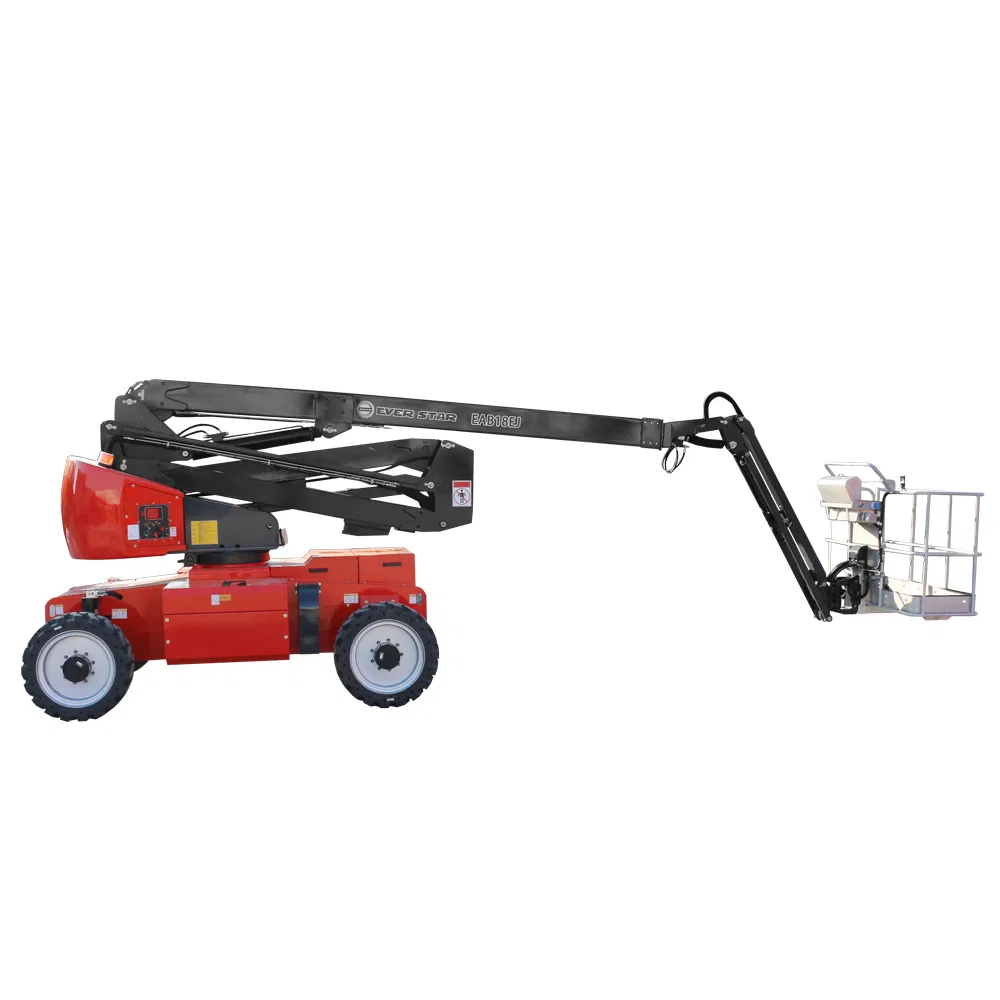

| Item (EAB18EJ) | Unit | Performance Parameters |
|---|---|---|
| Max. working height | m | 18 |
| Max. platform height | m | 16 |
| Max. horizontal outreach radius | m | 9.55 |
| Lifting capacity | kg | 230 |
| Maximum span height | m | 7.9 |
| Stowed Dimensions (L*W*H) | m | 7.36 * 2.28 * 2.23 |
| Platform size | m | 1.83 * 0.76 |
| Turning radius (Inside/Outside) | m | 1.86 / 4.9 |
| Stowed drive speed | Km/h | 5 |
| Maximum gradeability | / | 40% |
| Battery | V/Ah | 48 / 390 |
| Overall weight | kg | 7500 |
