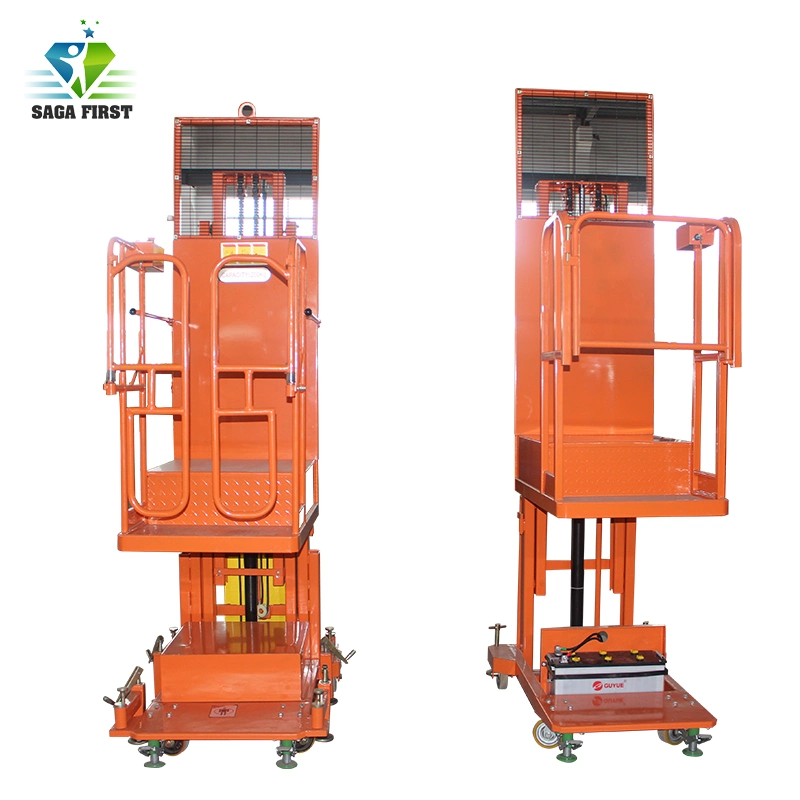

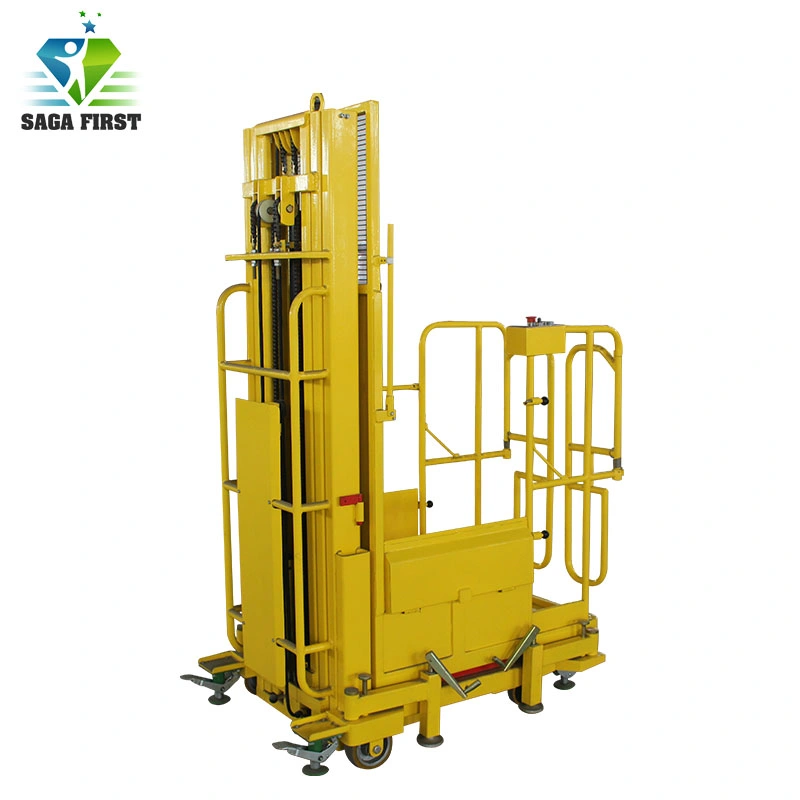

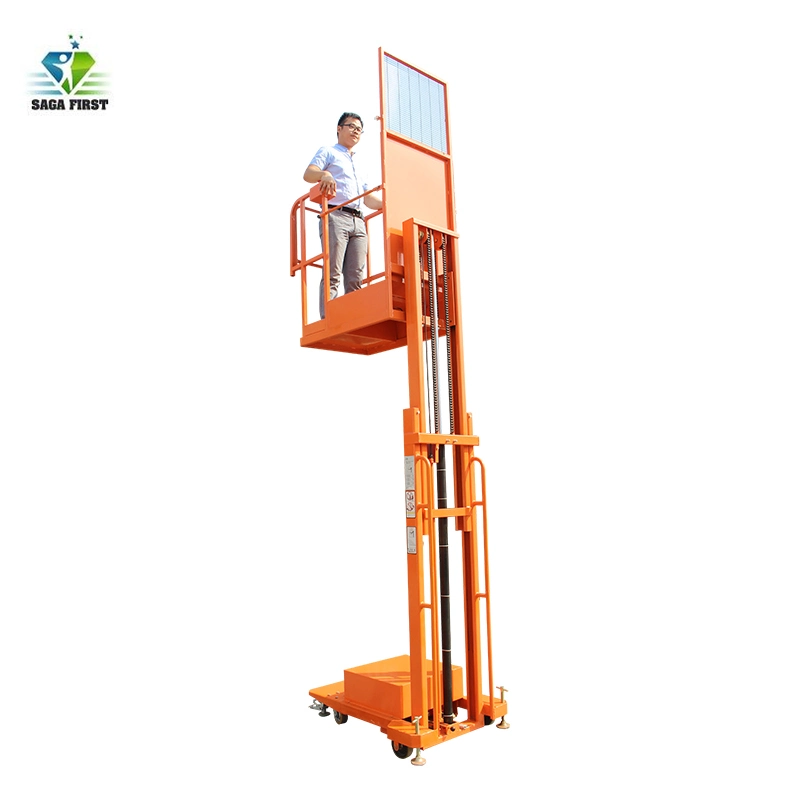

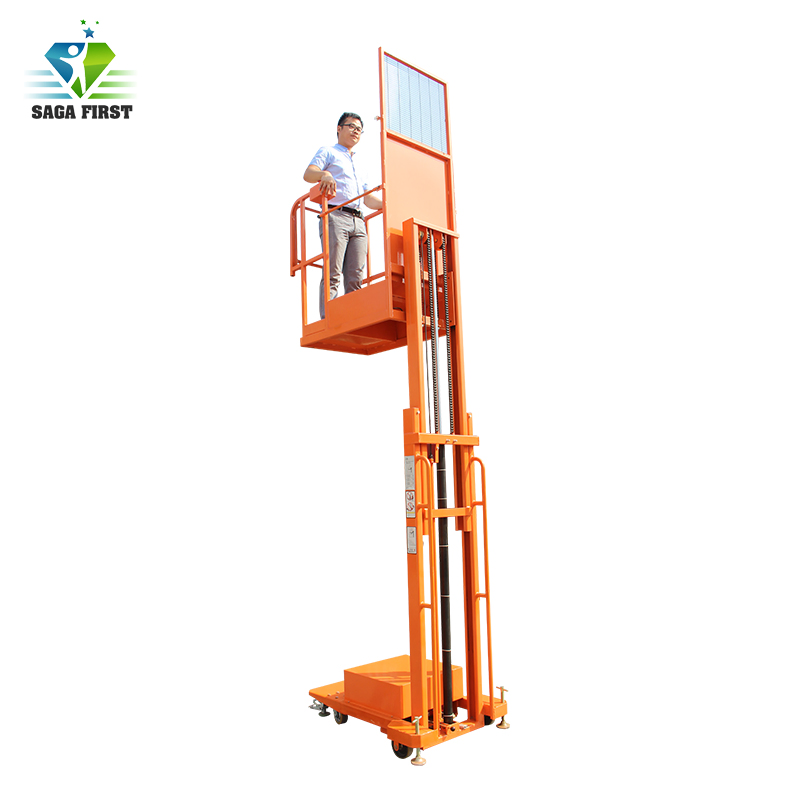

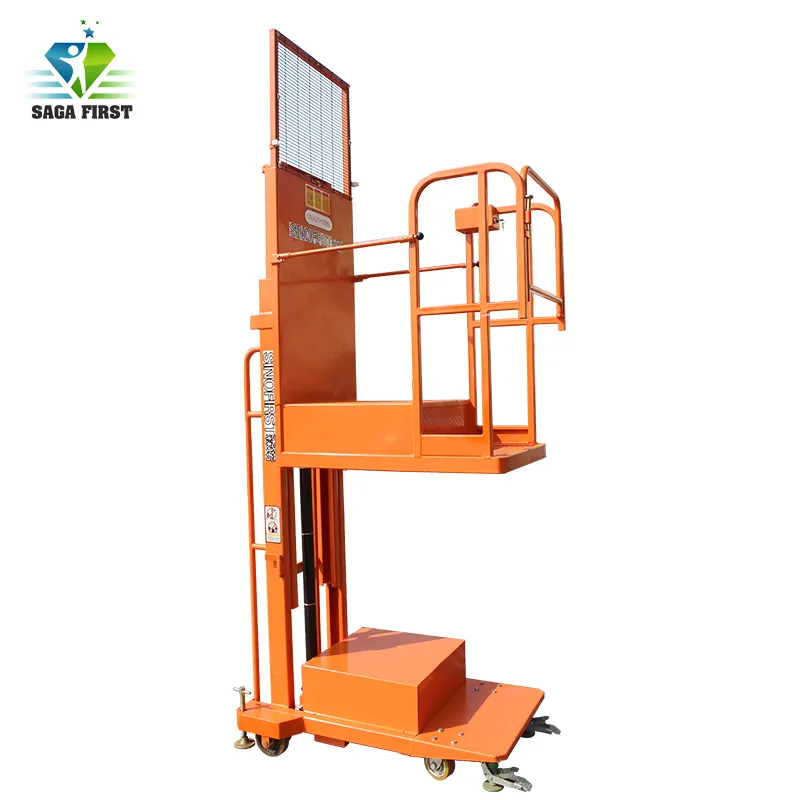

4.5m 200kg Aerial Electric Hydraulic High Level Mobile Order Picker

Basic Info.

Model NO.

SP

Lift Mechanism

Lift Chain

Carrying Capacity

Middle-Level

Driven Type

DC

Max Platform Height

2.7m, 3.3m, 4.0m, 4.5m

Load Capacity

200kg

Platform Size

600*640mm

Power

DC (with Battery)

Lifting Motor

1.6kw

Battery

12V/120ah

Warranty

12 Months

Certification

GS, CE, RoHS, ISO 9001, SGS

Product Overview

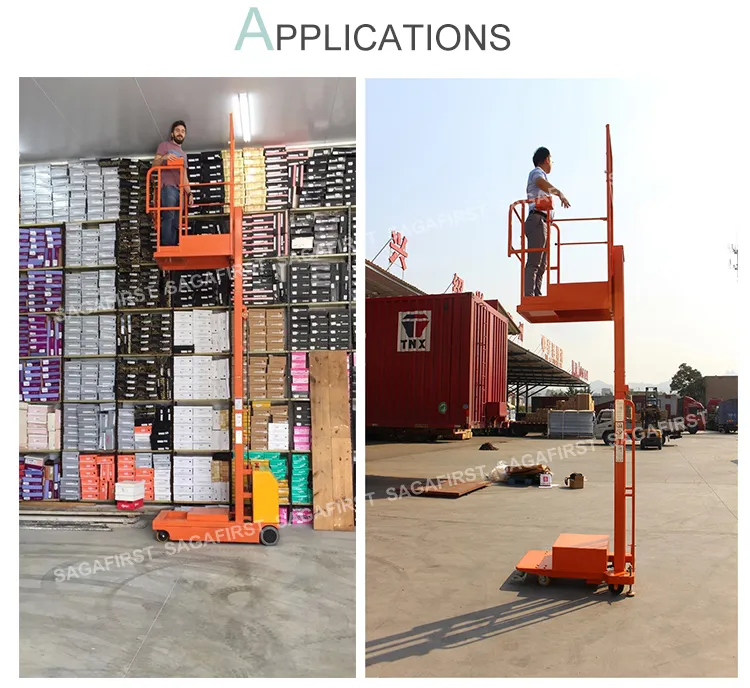

The 4.5m 200kg Aerial Electric Hydraulic Mobile Order Picker is designed for high-level efficiency. This semi-electric order picker is moved manually by the operator and lifted via reliable battery power. Due to its simplified and robust structure, the failure rate is extremely low, making it a cost-effective alternative to self-propelled models while remaining highly popular for warehouse and supermarket applications.

Safety Precautions

Explosion-proof valves
Spillover valve
Emergency decline valve
Overload protection locking device
Cylinder check valve

Model No.	Unit	SP2-2.7	SP2-3.3	SP2-4	SP2-4.5
Lift Rated Capacity	kg	200	200	200	200
Max. Platform Height	mm	2720	3300	4000	4500
Max Working Height	mm	4720	5300	6000	6500
Platform Size	mm	600*600	600*640	900*600	900*600
Overall Net Weight	kg	268	313	315	366

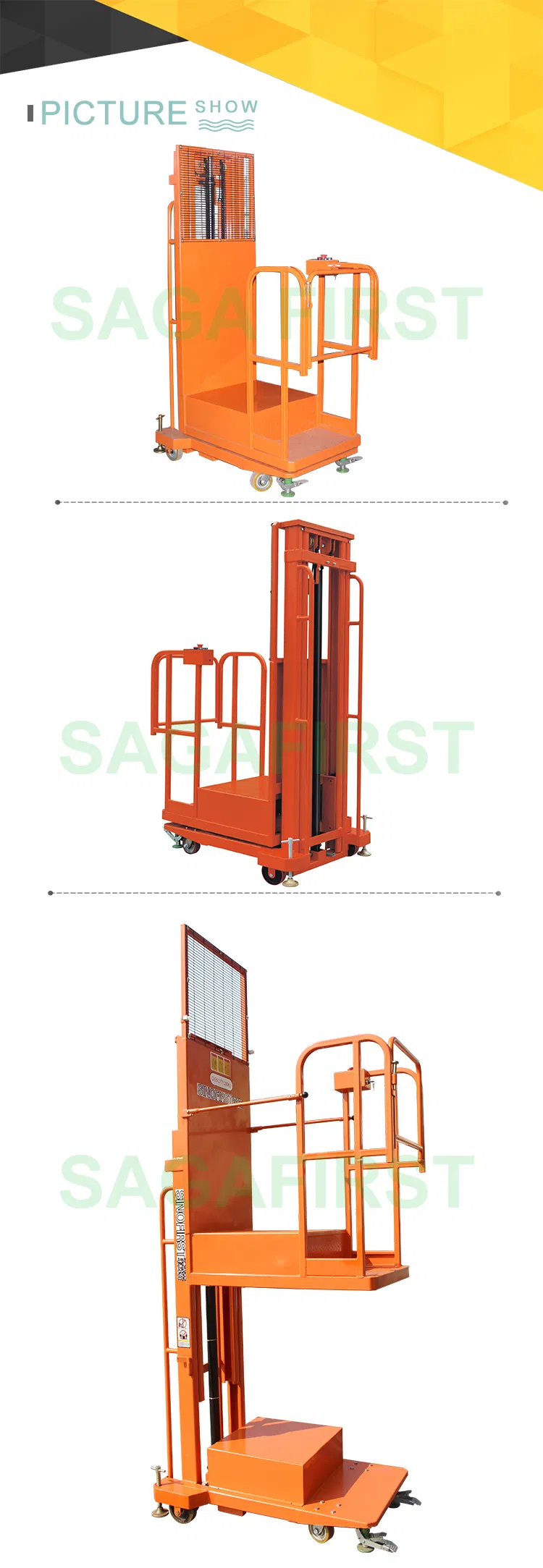

Product Showcase

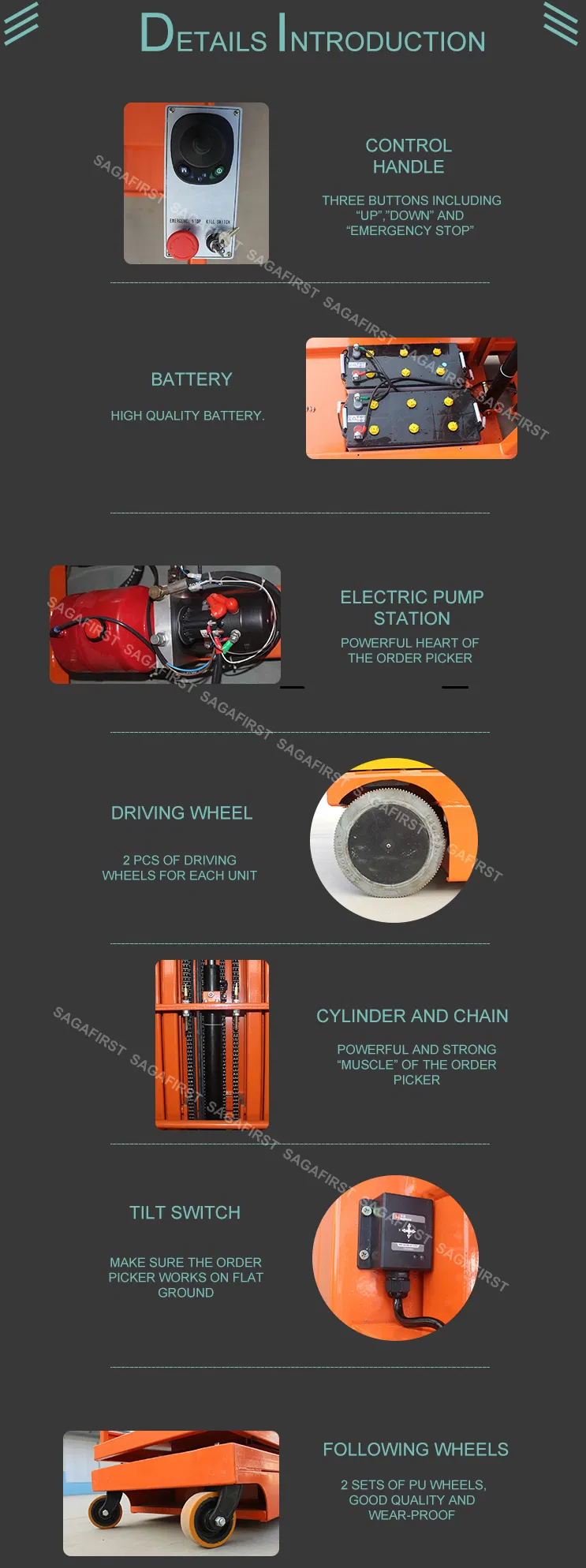

Standard Configurations

Self-lock Gate on Platform
Non-Marking Tyres
Emergency Stop Button
Intelligent Battery Charger
Forklift Handling Holes
Maintenance-Free Battery

Professional Service

1. Customized design based on specific height or capacity requirements.
2. Port-to-port or door-to-door shipment arrangements.
3. Operational videos and comprehensive maintenance manuals provided.
4. Fast-response technical support and spare parts delivery within 7 days.

Frequently Asked Questions

1. How can I purchase replacement parts?

The equipment uses standard hardware components available in most local hardware markets or forklift parts shops. We also provide original parts directly.

2. How is the equipment repaired if a problem occurs?

The design features a very low failure rate. If an issue arises, we provide detailed video guidance and technical instructions to facilitate local repair.

3. What is the standard quality warranty?

We offer a 24-month quality warranty, during which free replacement parts are provided for any quality-related failures.

4. What are the available payment terms?

We accept 100% TT in advance for orders under USD 4,999. For larger orders, 30% TT in advance with the balance due before shipment, or Irrevocable L/C at sight.

5. Can the equipment be customized (OEM/ODM)?

Yes, we offer customization for lifting capacity, height, platform size, color, logo, and specialized manuals.

6. What is the typical delivery timeframe?

Standard production and delivery time is approximately 15 to 20 days after receiving the down payment.
