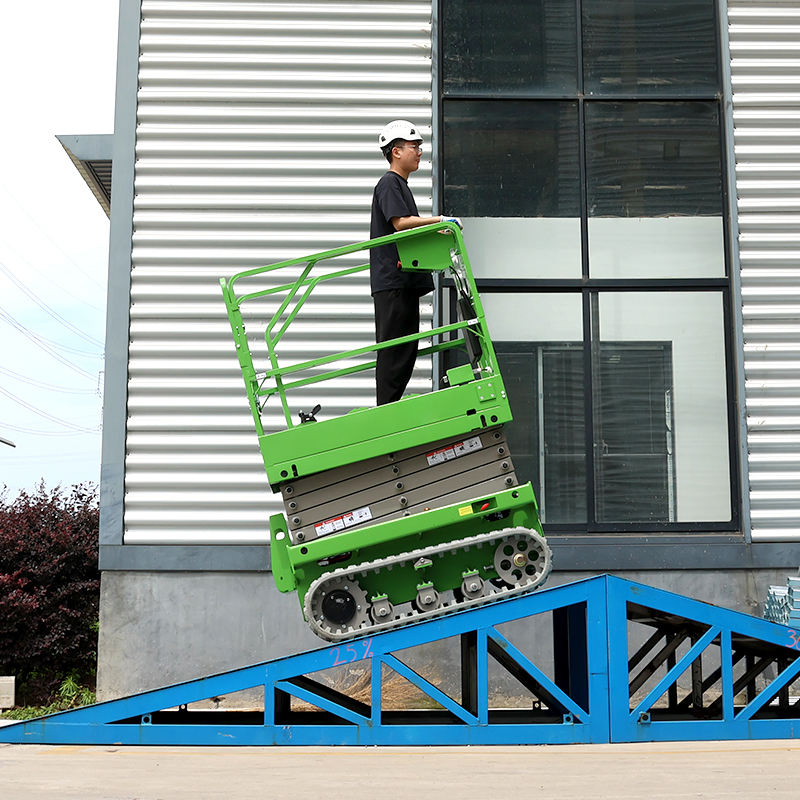

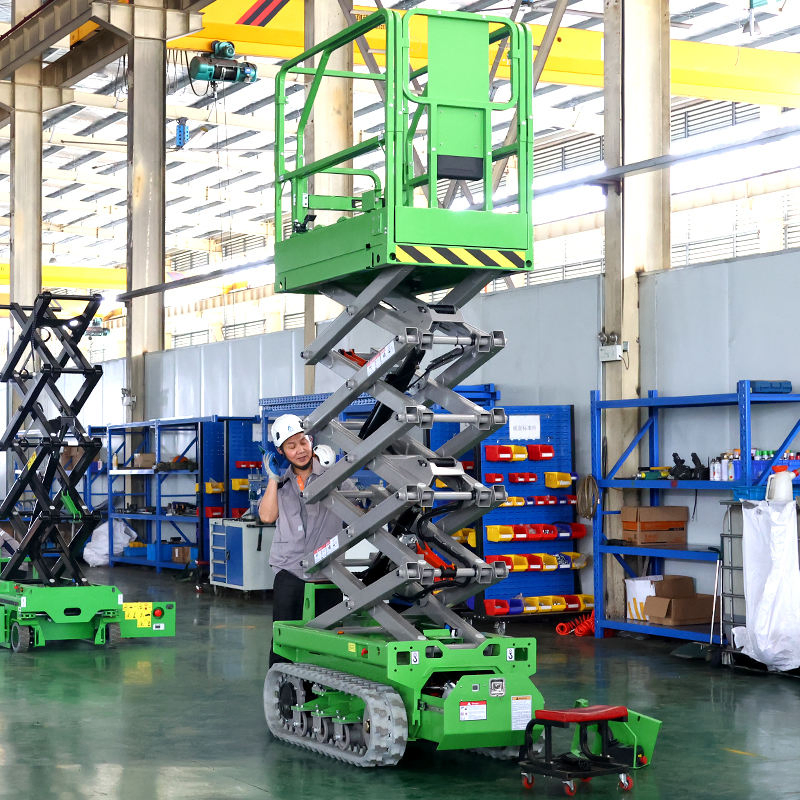

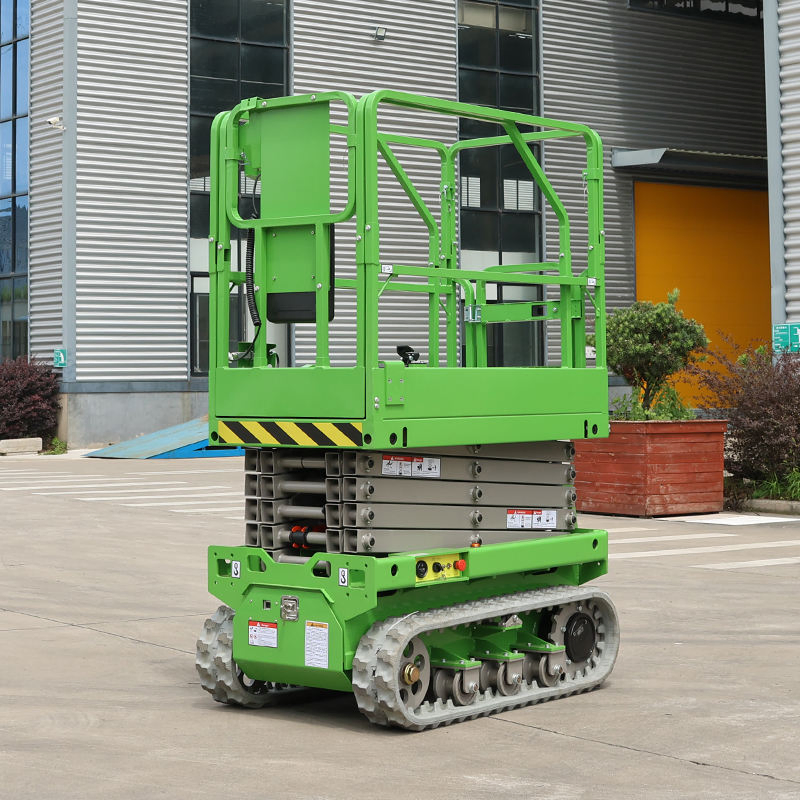

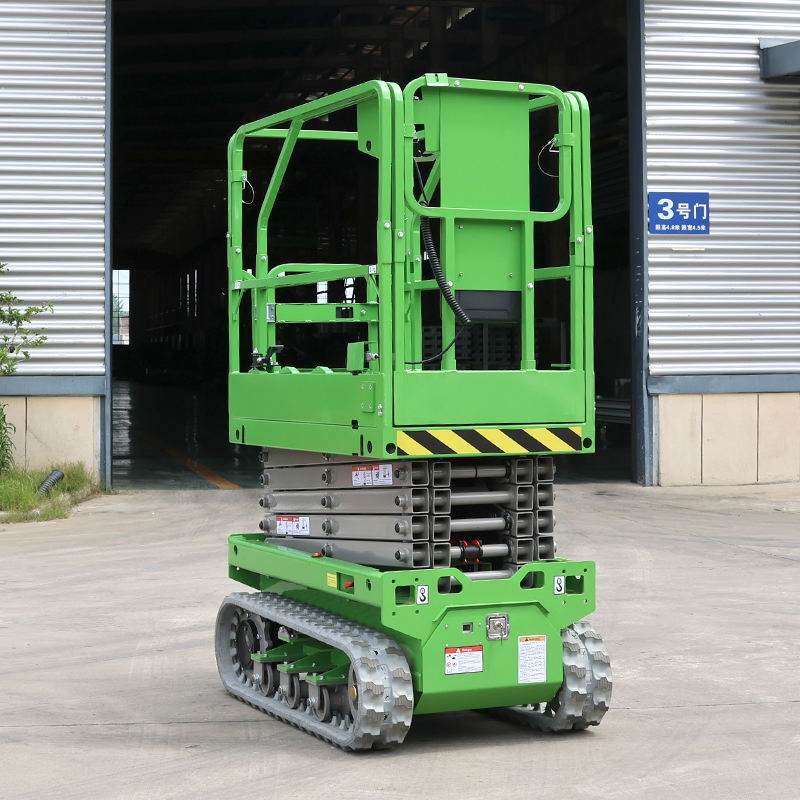

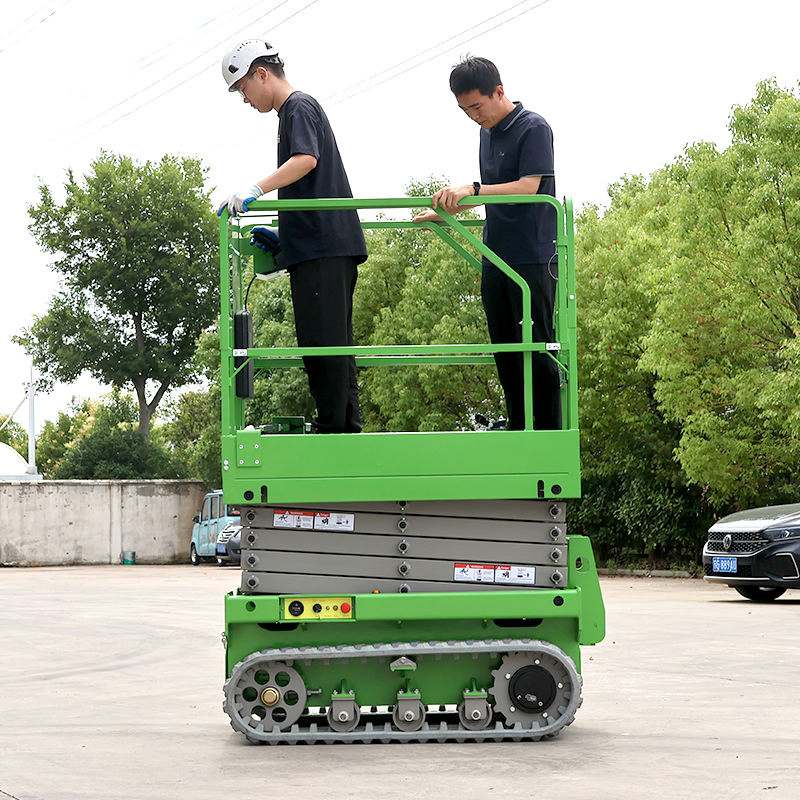

6m 8m 10m 12m 14m Aerial Platform Self Propelled Crawler Scissor Man Lift Electric Mobile Scissor Lift

1 / 5

6m 8m 10m 12m 14m Aerial Platform Self Propelled Crawler Scissor Man Lift Electric Mobile Scissor Lift

Customization:	Available
After-sales Service:	Online Support
Warranty:	1years

Send Inquiry

Product Description

Basic Information

Model NO.

BJ-0607T

Application

Workshop, Warehouse, Building

Lift Mechanism

Scissor Lift

Carrying Capacity

230kg

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

CE, ISO 9001

Dimensions

1750*920*1520mm

Max Occupancy

Electric Motor

24V/2×1kw

Product Description

Technical Parameters

Model	BJS0507T	BJS0607T	BJS0610T	BJS0810T	BJS1012TL	BJS1212TL	BJS1416TL
Max Operating Height (m)	6.6	7.8	8.3	10.3	12	14	16
Max Platform Height (m)	4.6	5.8	6.3	8.3	10	12	14
Platform Length (mm)	1400	1400	1800	1800	2270	2270	2670
Platform Width (mm)	760	780	800	800	1120	1120	1120
Rated Load Capacity (kg)	230	230	300	300	450	450	450
Gradeability (%)	30	30	30	30	30	30	30
Weight (kg)	816	1055	1640	1745	3460	3760	4760

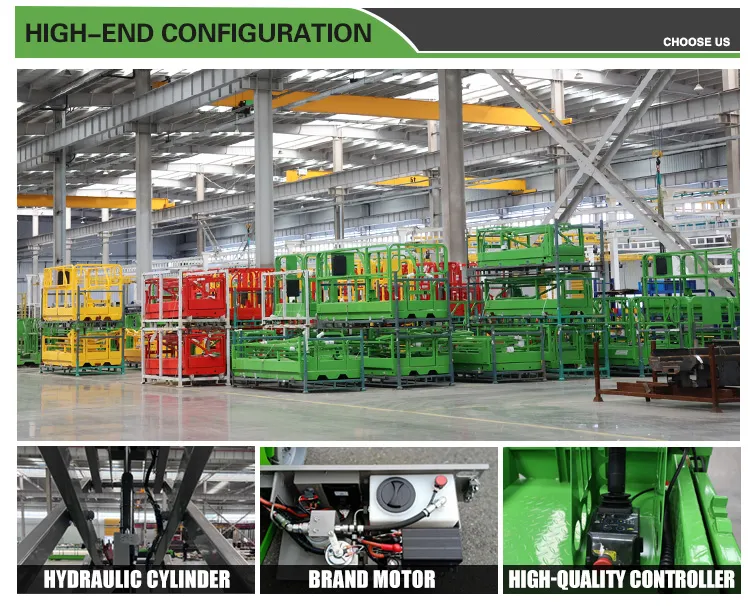

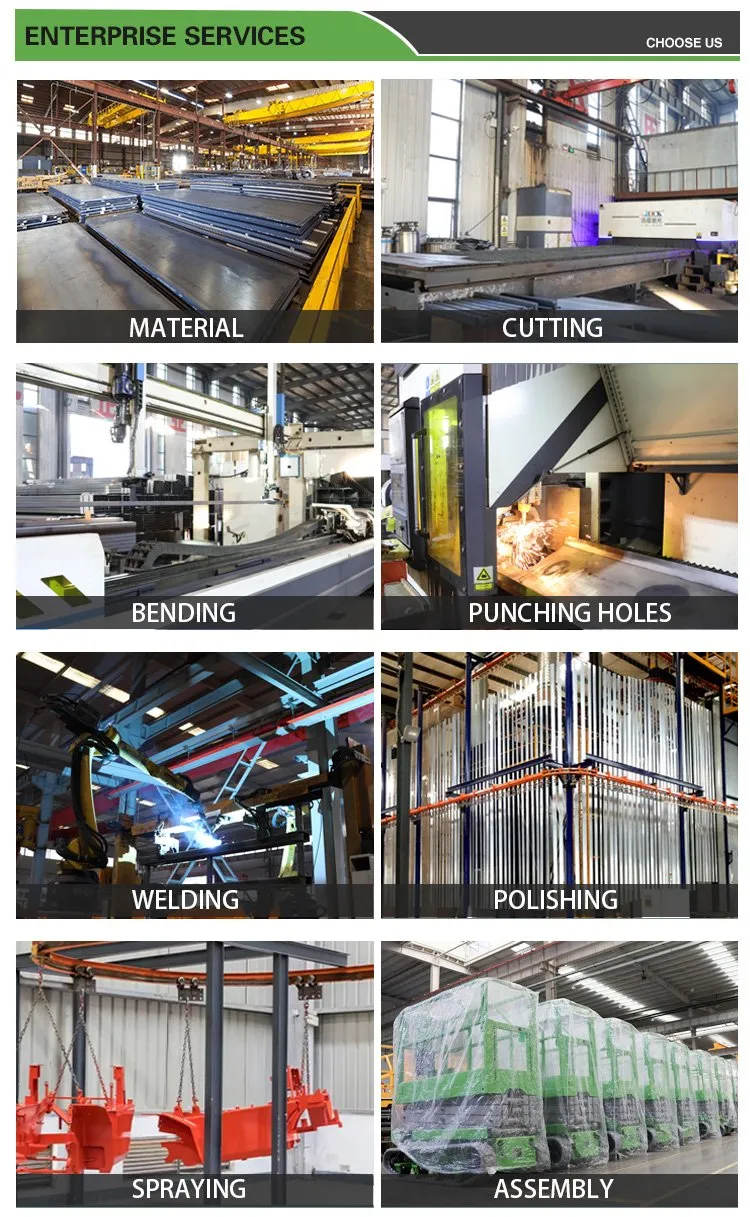

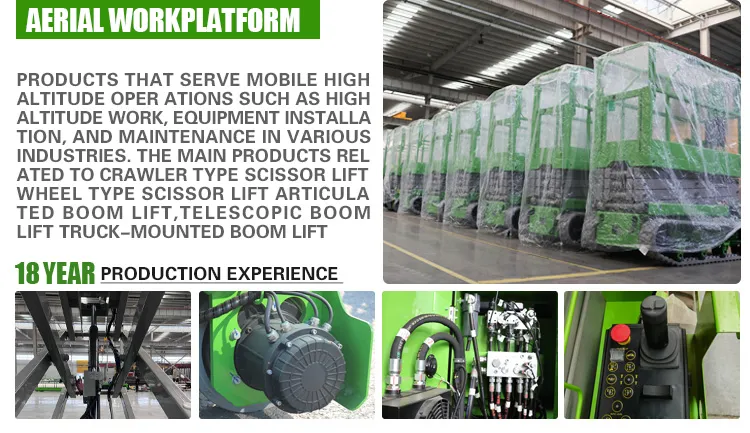

Manufacturing & Facility

Frequently Asked Questions

Q1: What is the maximum load capacity of these scissor lifts?

Depending on the model, the rated load capacity ranges from 230kg for compact models up to 450kg for high-reach TL series.

Q2: Can the platform be extended for extra reach?

Yes, all models feature an extension part with lengths ranging from 600mm to 1100mm to provide additional horizontal outreach.

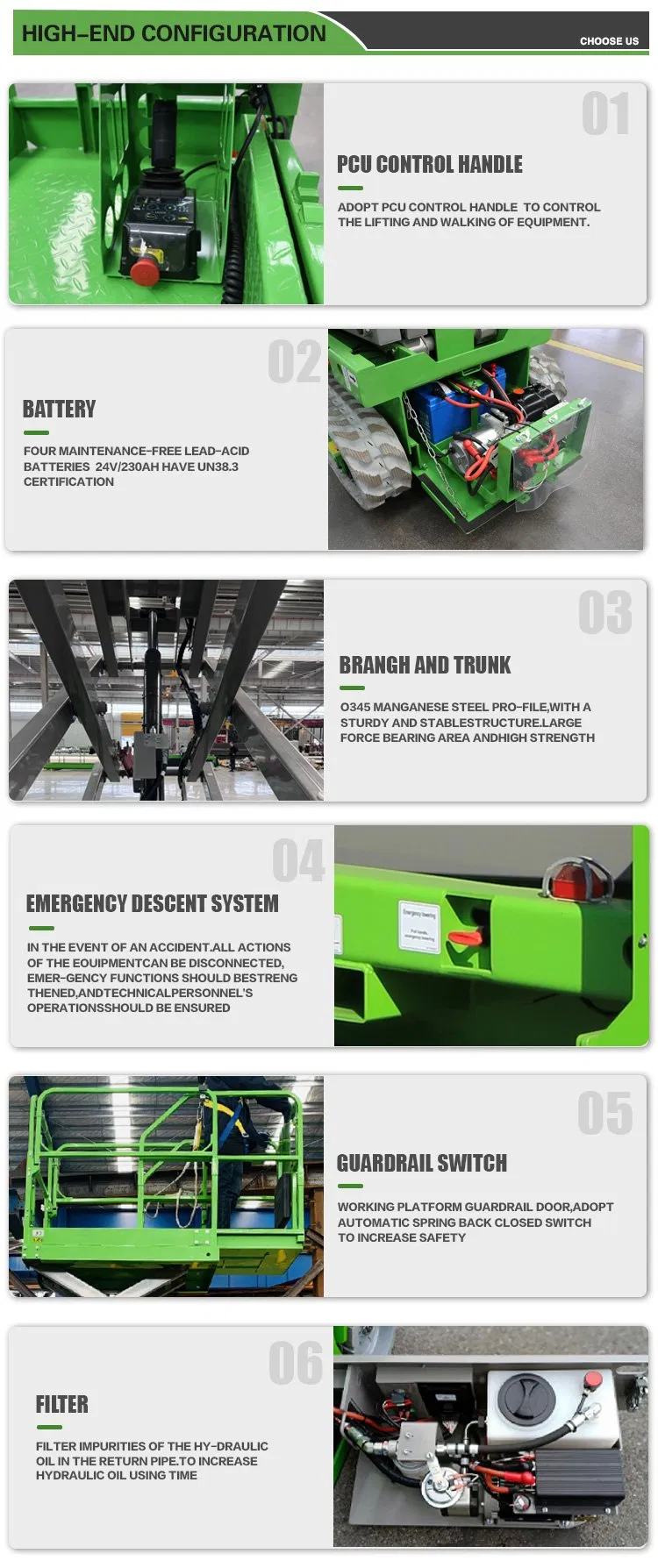

Q3: What type of batteries do these lifts use?

They are equipped with high-performance, maintenance-free lead acid batteries, typically in 24V or 48V configurations depending on the motor requirements.

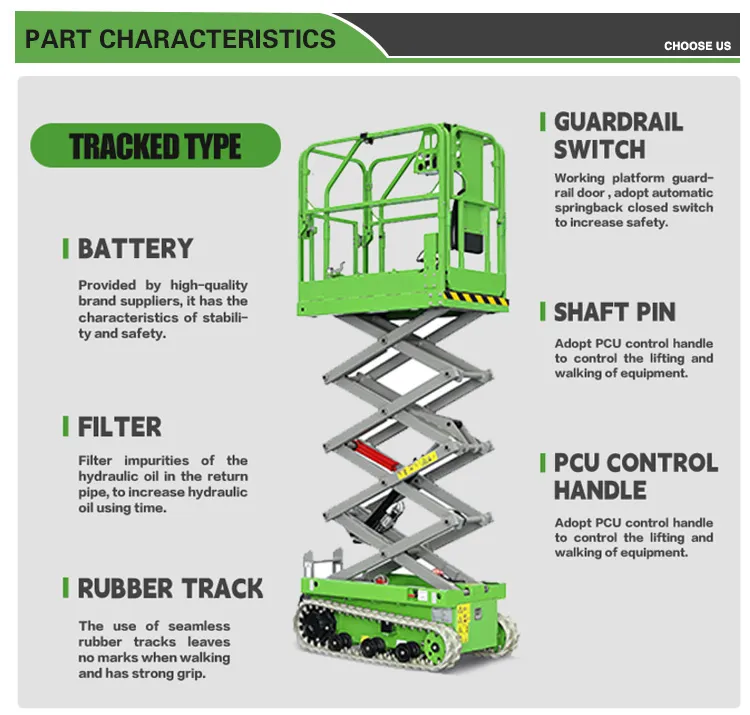

Q4: Are the tracks suitable for indoor use?

Yes, our crawler lifts use non-marking rubber tracks (for specific models) which are ideal for protecting delicate indoor flooring.

Q5: What certifications do these products hold?

All scissor lift models are manufactured under strict quality standards and carry CE and ISO 9001 certifications.

Q6: What is the maximum gradeability of the equipment?

The self-propelled units are designed with a gradeability of 30%, allowing them to navigate slopes and uneven surfaces effectively.
