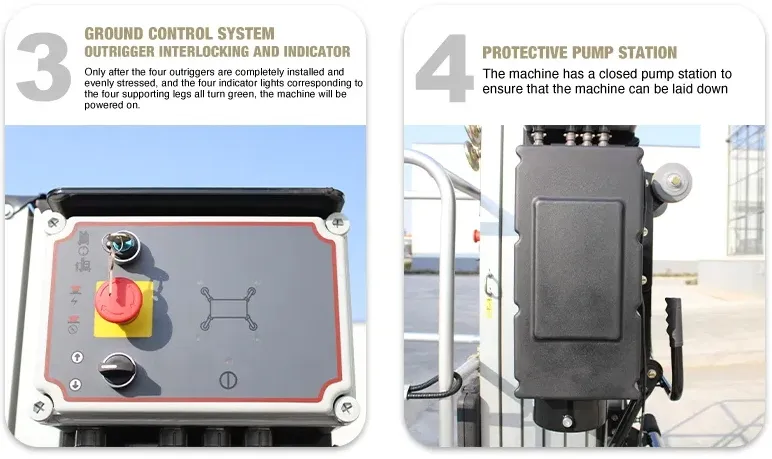

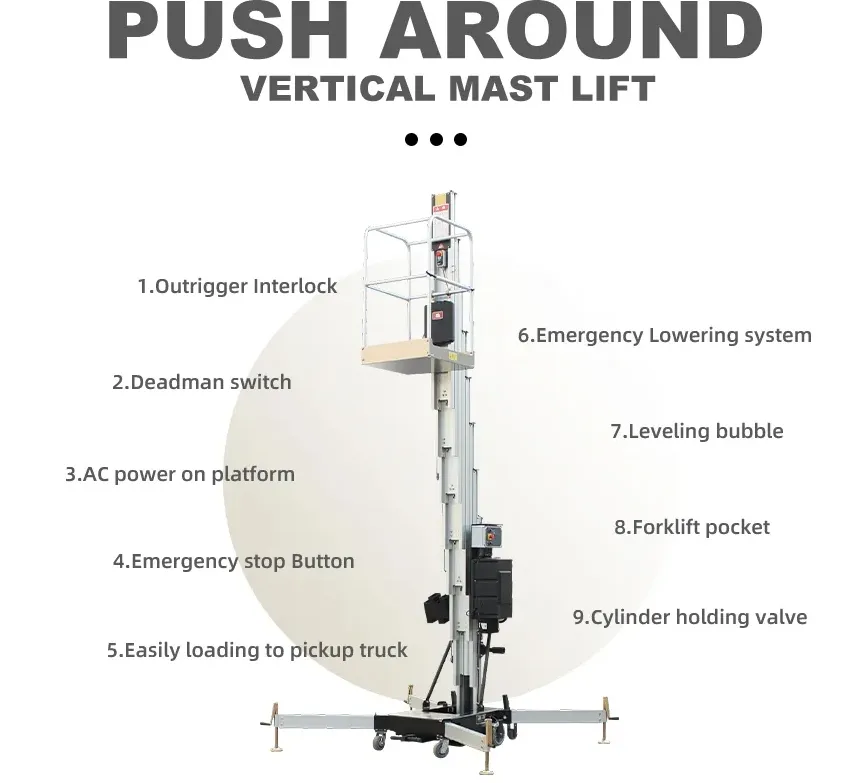

To ensure operational safety, the lift is only powered once all four outriggers are fully deployed, evenly stressed, and their respective indicator lights turn green. This mechanism guarantees stability. A prominent red emergency stop button allows for immediate halting of all functions.
Equipped with aviation-grade connectors for fast, modular maintenance. Drag cables boast a flex life of over 5 million cycles, offering excellent resistance to wear, oil, UV rays, and heavy mechanical stress.

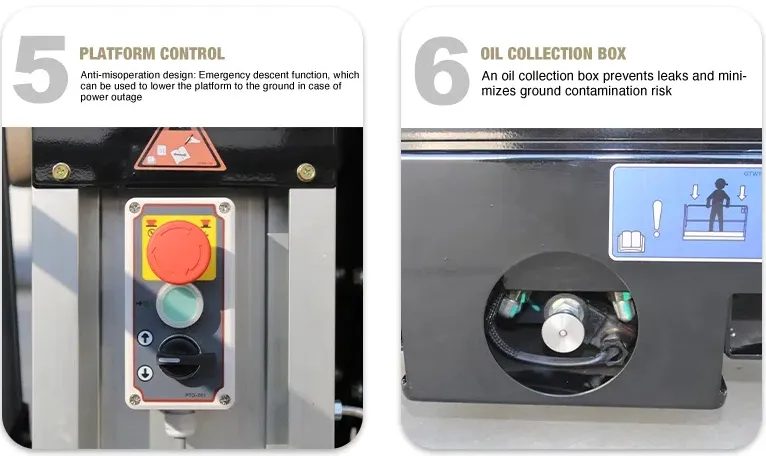

Uses a dual-action safety setup: an emergency stop button and a public switch. Users must hold the public switch while turning the lift control to prevent accidental activation.
| MODEL | GTWY1-5 | GTWY1-6 | GTWY1-8 | GTWY1-9 | GTWY1-10 | GTWY1-12 |
| Max. Working Height | 8.1m | 6.7m | 9.6m | 11m | 12.4m | 14m |
| Max. Platform Height | 4.7m | 6.1m | 7.6m | 9m | 10.4m | 12m |
| Loading Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg |
| Platform Dimension | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m |
| Overall Length | 1.26m | 1.26m | 1.3m | 1.3m | 1.4m | 1.42m |

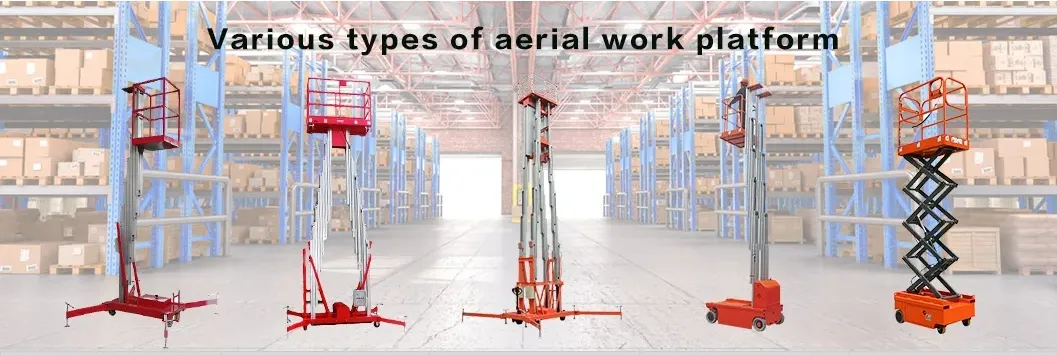

Warehouse shelf access and high-altitude storage solutions in supermarkets.
Maintenance, cleaning, and commissioning of production line equipment.

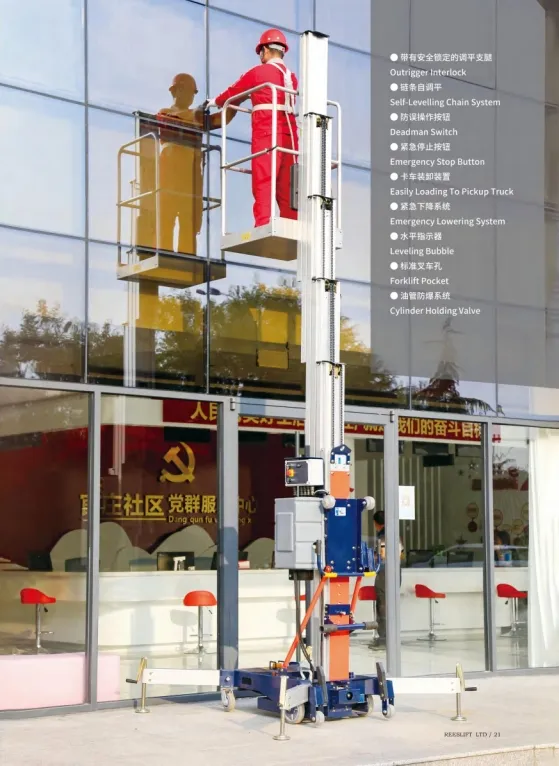

Safe access for libraries and archives. Aluminum alloy prevents rust and contamination.
