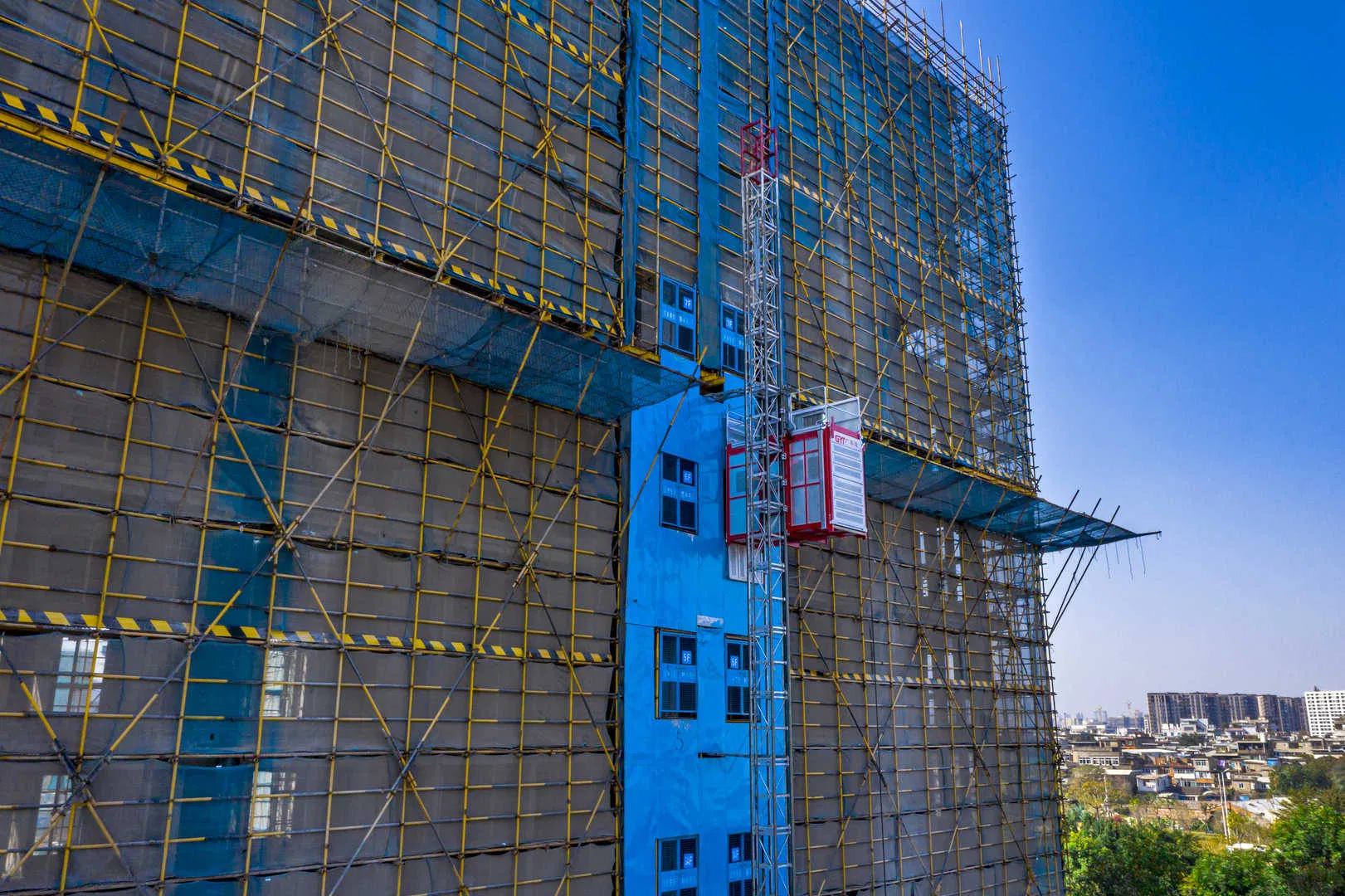

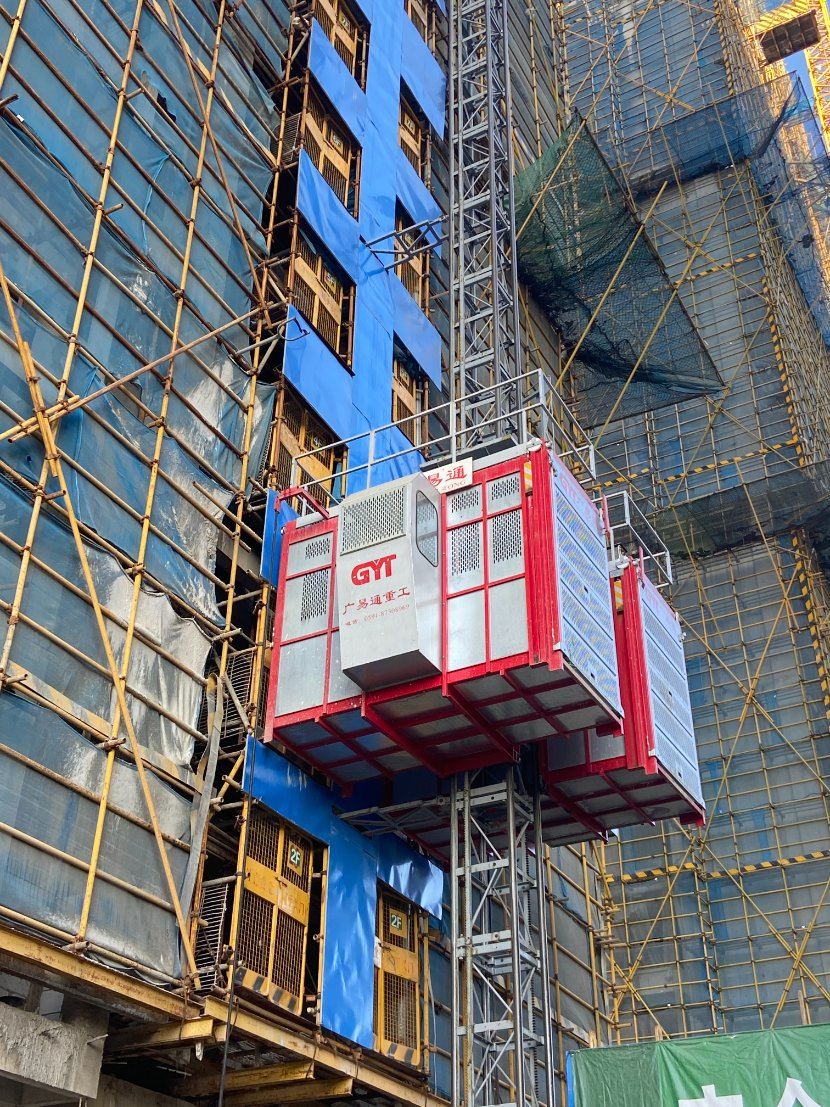

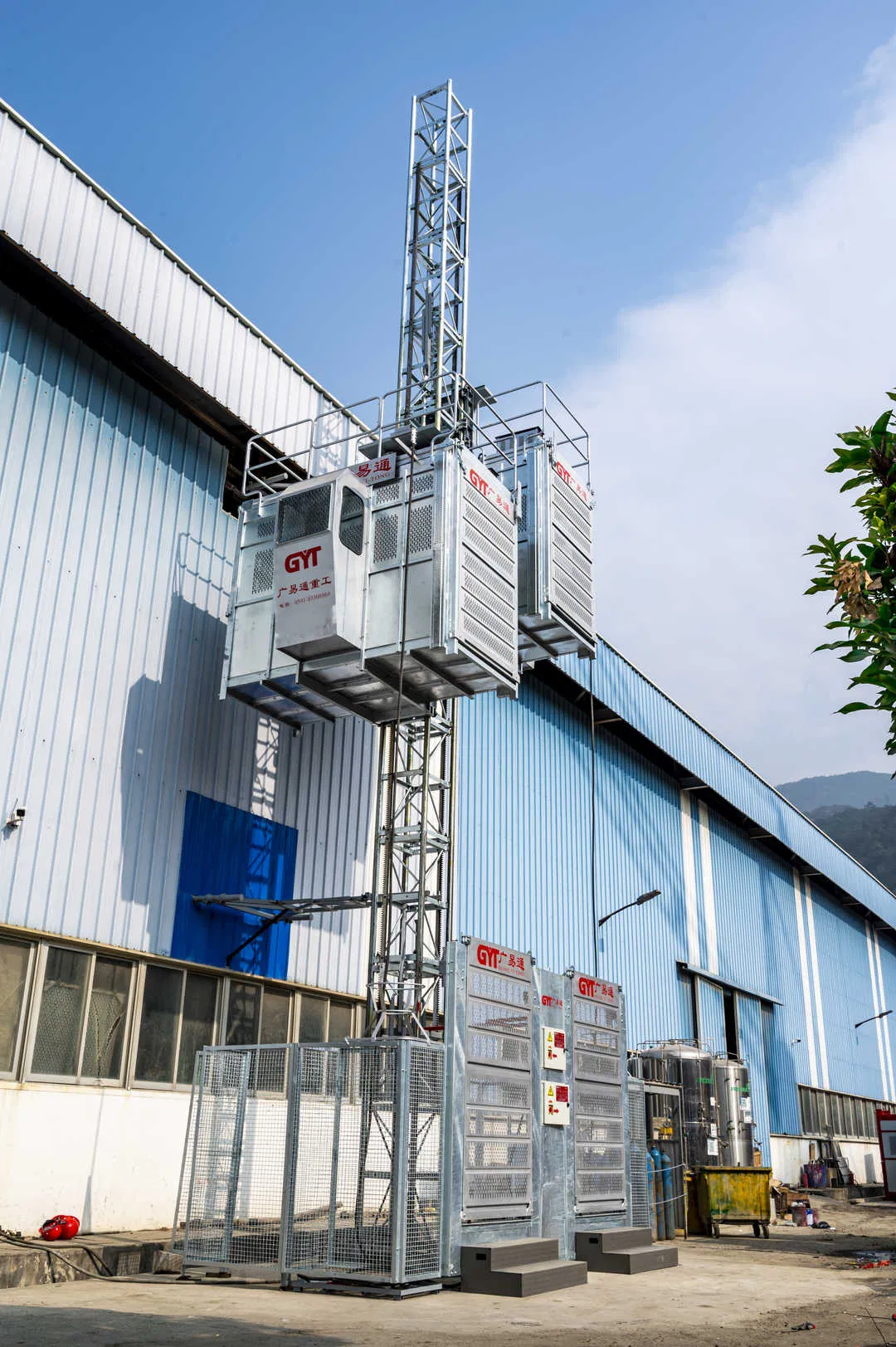

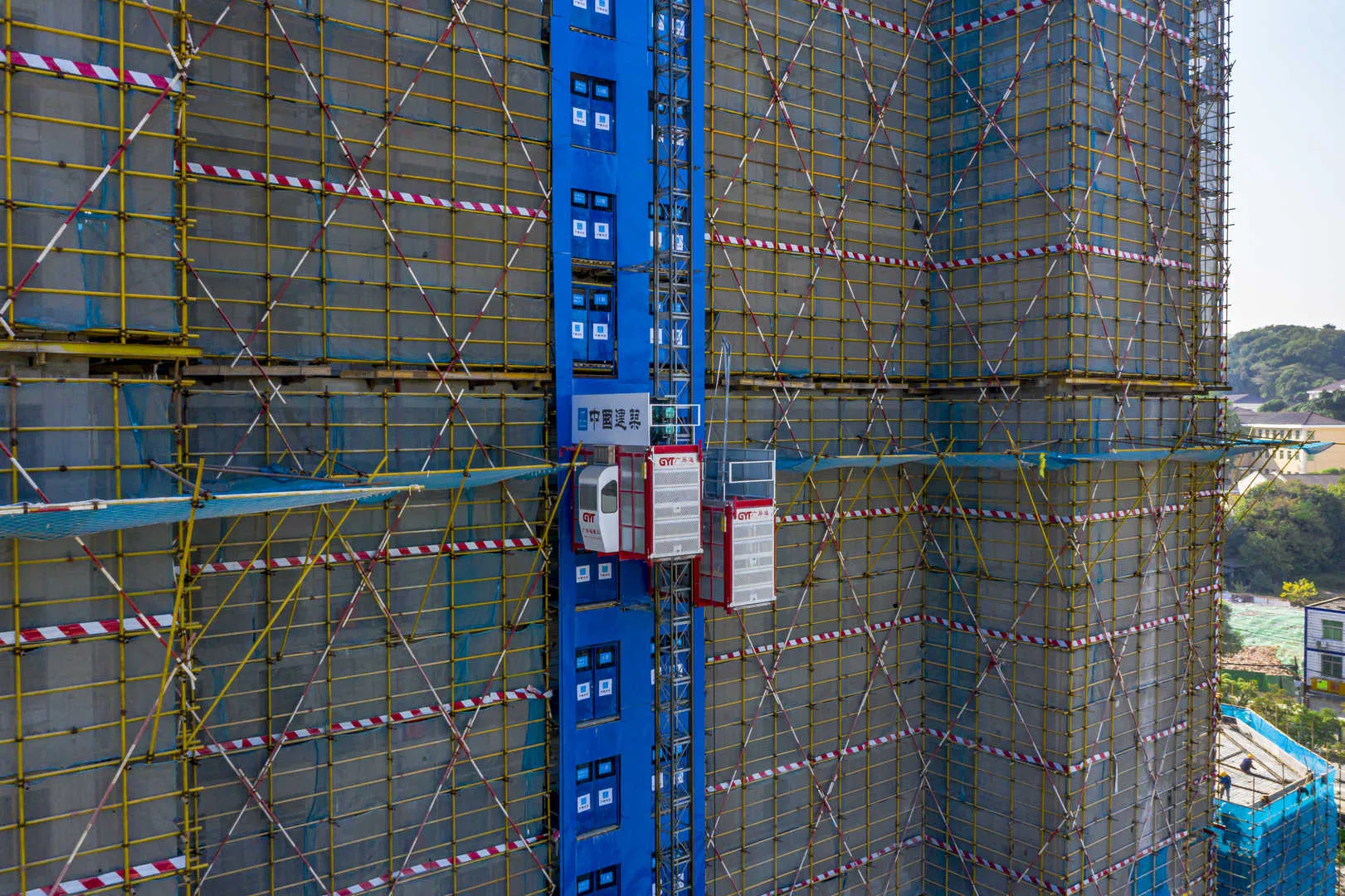

CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift
1 / 5
CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift
CE Approved Construction Building Material & Personnel Lifting Construction Lift

CE Approved Construction Building Material & Personnel Lifting Construction Lift

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
SC200/200
Type
Stationary
Load Capacity
1T - 2T
Speed
20M/Min - 40M/Min
Usage
Construction Hoist
Lift Drive
Electric Motor
Rated Capacity
1000kg-2000kg
Motor Power
3*15kw/3*11/2*15/3*18.5
Max Height
300m
Mast Section Size
0.65*0.65*1.508m

Product Description

Designed according to various building situations for maximum flexibility.
Certified with ISO9001, CE, and SGS international standards.
Available in Double or Single cage configurations with loading capacity from 1000kg to 2000kg.
Equipped with Frequency converter or DOL control systems (Low, Mid, and High speed).
Production line utilizes special fixtures and molds to ensure precision in all sizes.
High-quality raw materials sourced from top-tier steel groups; reliable Schneider or German brand electric parts.
Compact and reasonable structure designed for easy installation and adjustment.
Rigorous factory testing including motor brake, safety device operation, and loading tests.
Construction Lift

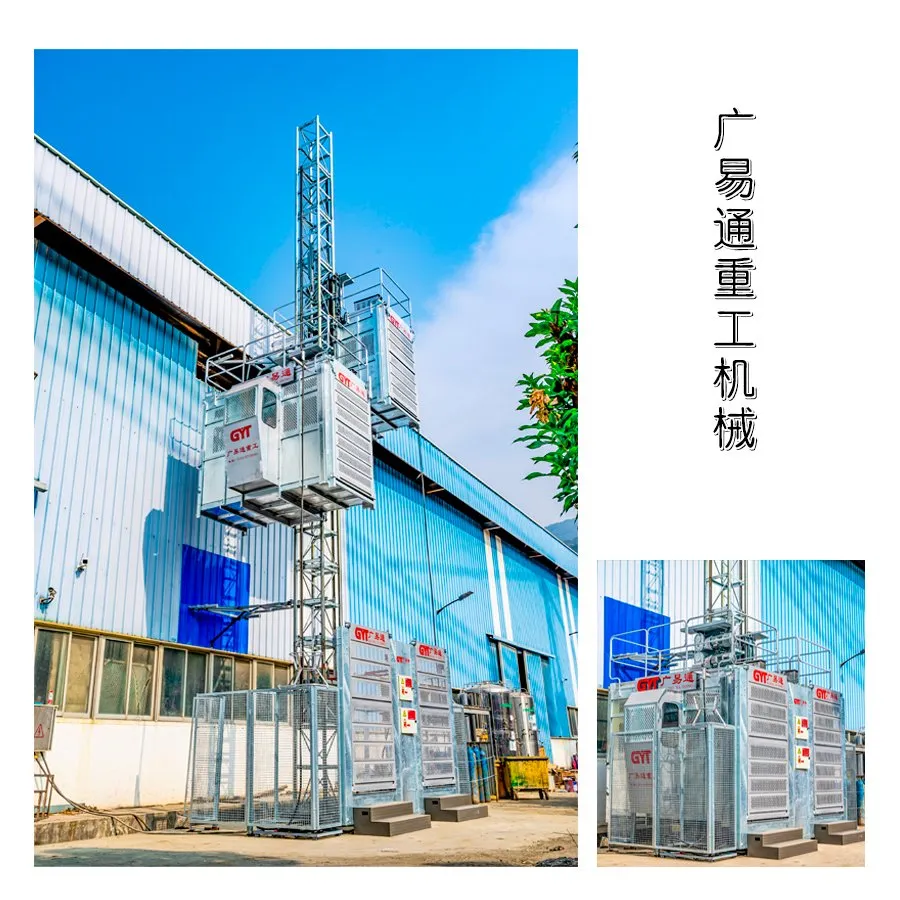

Personnel Lifting

Technical Parameters

Characteristic Model Rated Loading Lifting Speed Motor Power
Double cages SC200/200 2x2000kg 33m/min 2x(3x11kw)
Double cages SC150/150 2x1500kg 33m/min 2x(2x13kw)
Single cage SC200 2000kg 33m/min 3x11kw
Low speed (VFD) SC200/200D 2X2000kg 0-40m/min 2x(3x11kw)
Mid speed (VFD) SC200/200Z 2x2000kg 0-60m/min 2x(2x23kw)

Detailed Features & Specification

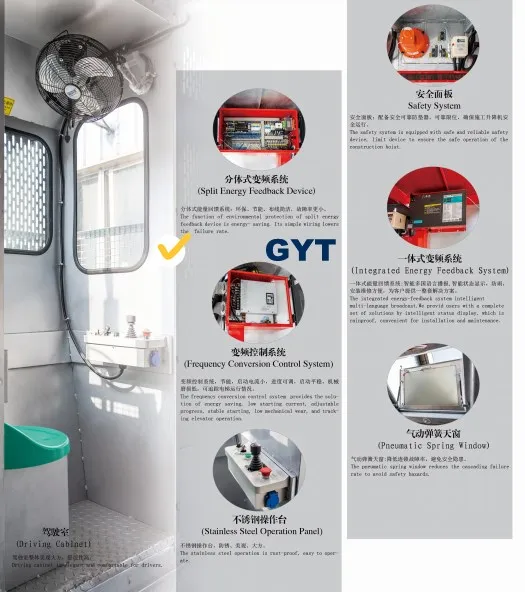

Detail 1

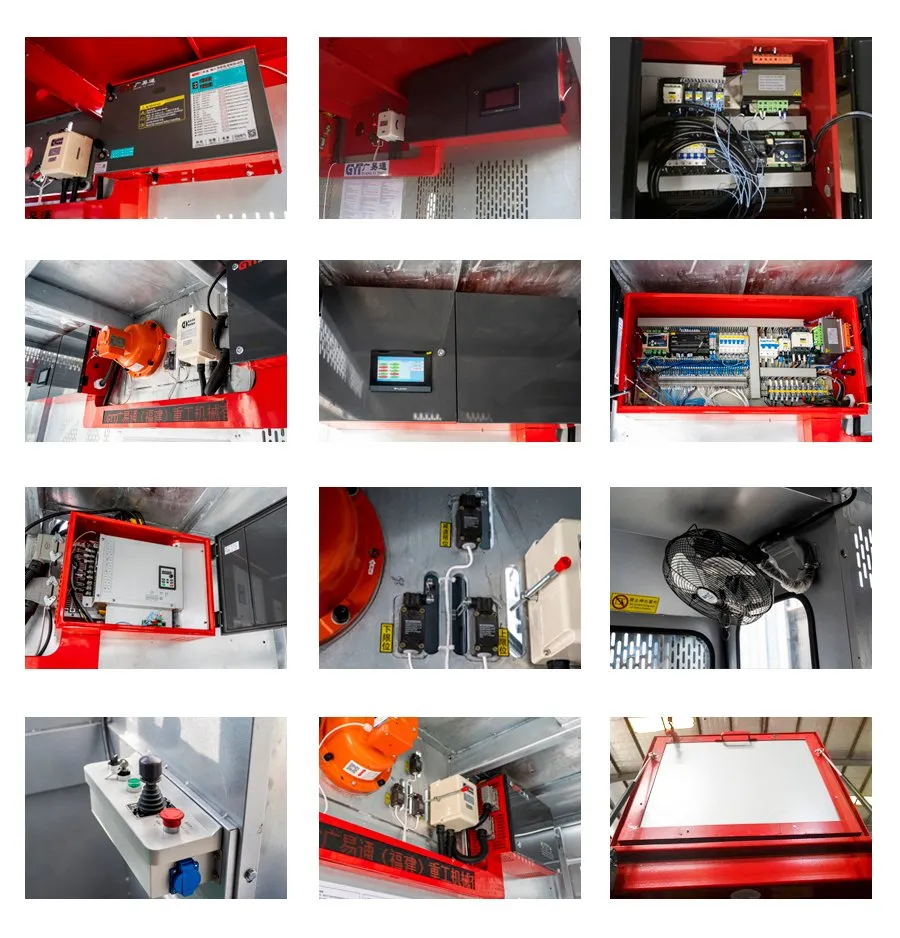

Detail 2

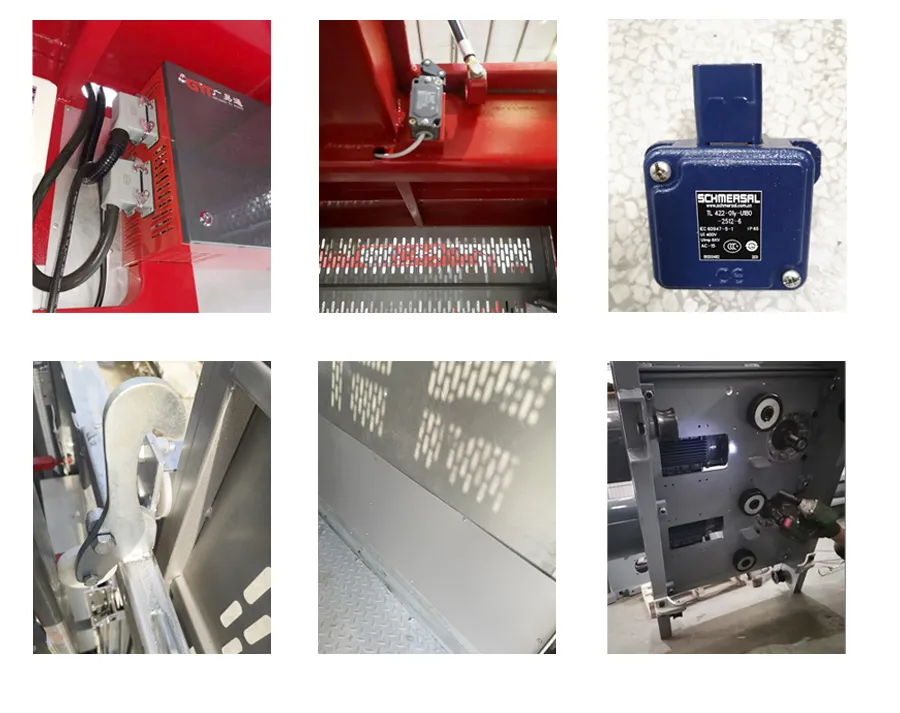

Detail 3
A. High Power Fan: Widely used for heat dissipation in the operation room.
B. Honeywell Switch: International brand skylight window switches.
C. Safety Console: Equipped with a safety switch for authorized personnel only.
D. Humanized Design: Air compression spring skylight for easy operation.
E. Electric Box: External control box with clear signals and Schneider components.
F. CNC Processing: Integrated welding for drive frames to reduce noise and vibration.

Why Choose Us?

Over 10 years of manufacturing and exporting experience.
Expert technical team with strong innovation and improvement capabilities.
Zero accident record with excellent feedback from global end-users.
Competitive pricing with high-quality, stable operation experience.
Fast response sales and dedicated after-sale service.
OEM services available for global partners and distributors.

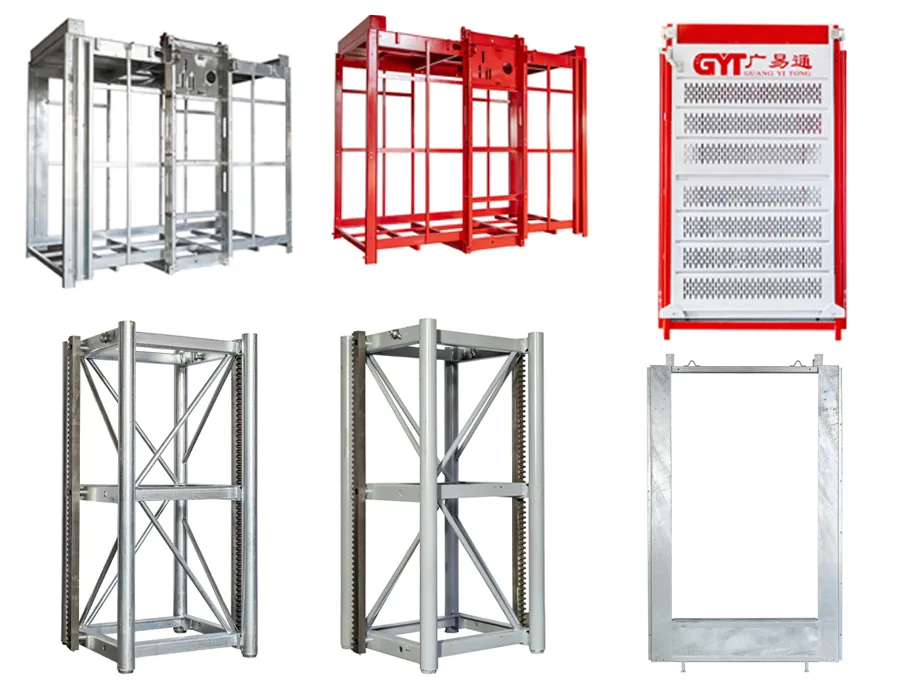

Manufacturing

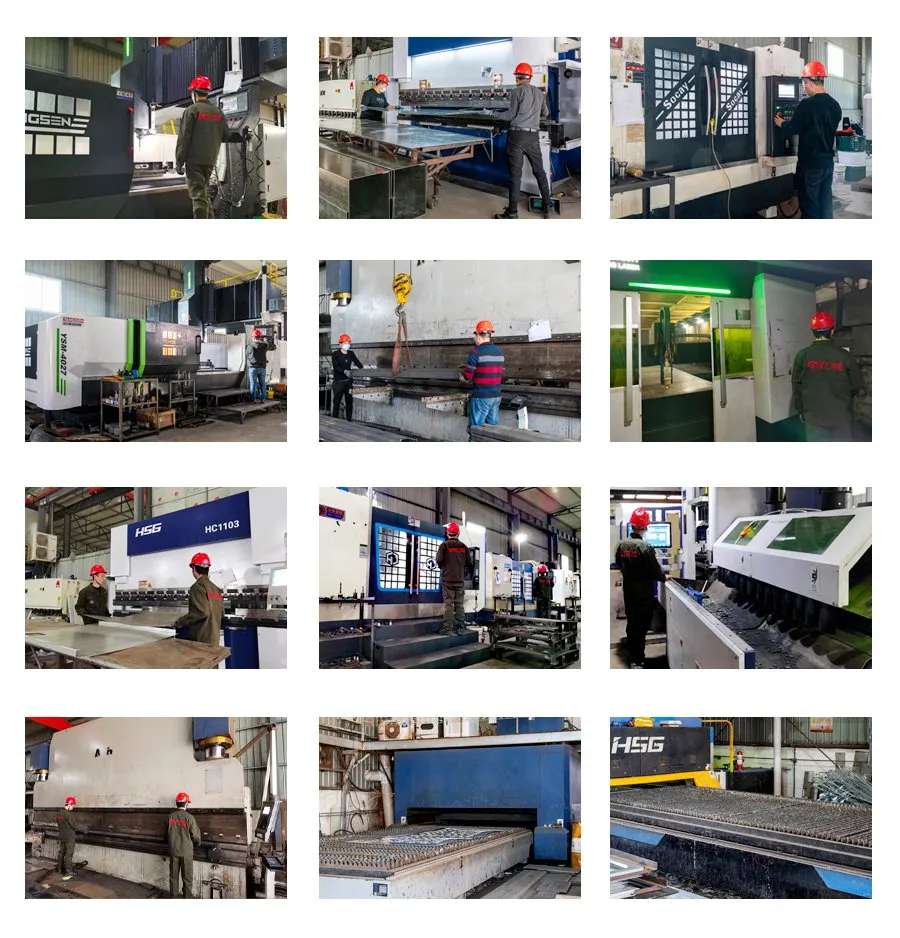

Workshop

About Our Company

We are a comprehensive enterprise integrating design, production, sales, and leasing. As a professional manufacturer of construction elevators for more than 20 years, our facility covers nearly 20,000 square meters. With a dedicated team of engineering technical personnel, our product quality is stable, cost-effective, and highly applicable. We have become a high-quality supplier for many well-known construction companies globally across South America, South Asia, and Europe.

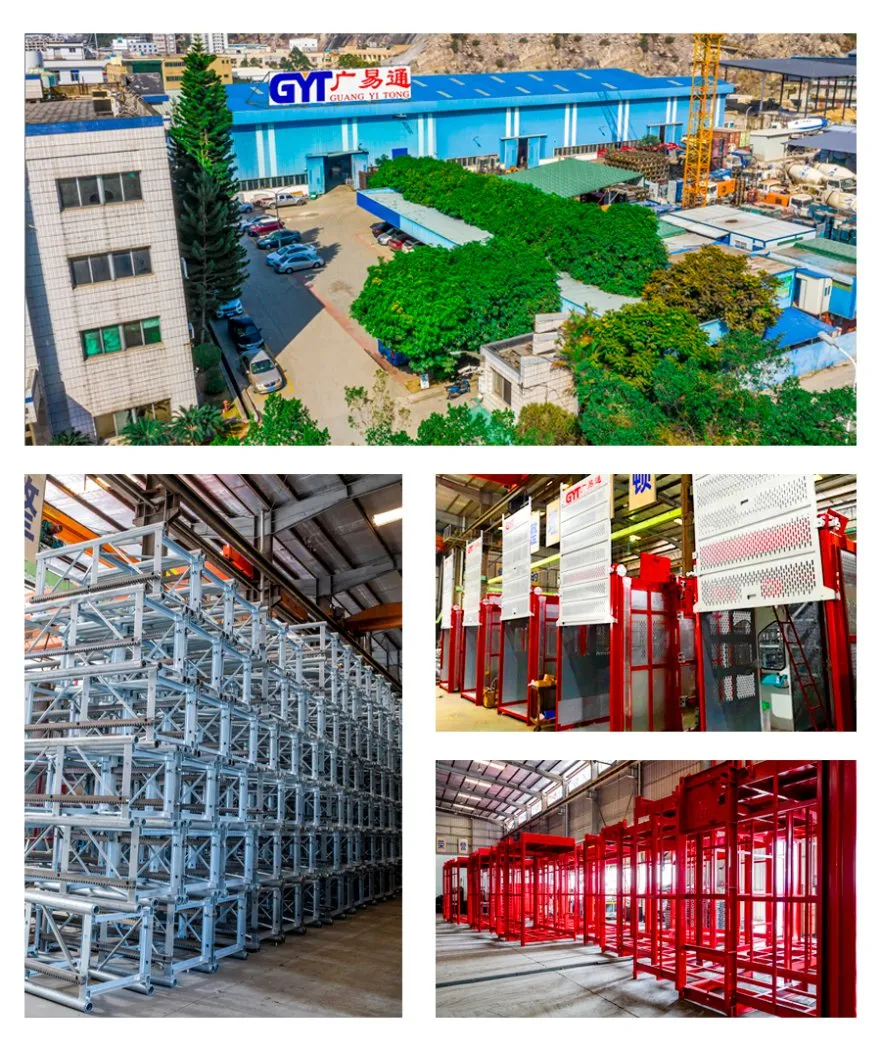

Company View

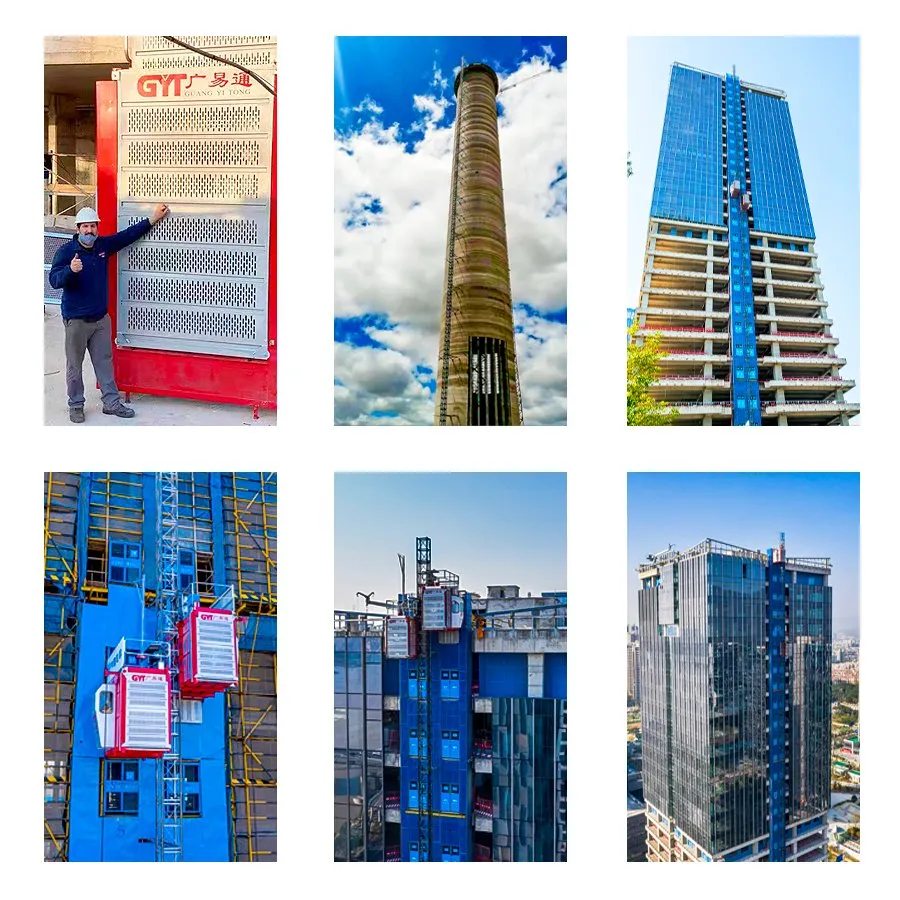

Project Example
Feedback

Frequently Asked Questions

What are your main products?
We produce all kinds of Construction Elevator Passenger materials hoists from 500kg load to 3200kg load and all related spare parts.
Do your products have international certificates?
Yes, our building Construction Elevators have passed CE, ISO, and SGS certifications to ensure global safety standards.
What is the typical delivery time?
We typically ship cargo within 20-30 days after receiving the initial deposit, depending on the order specifications.
Are you a manufacturer or a trader?
We are a professional manufacturer with over 10 years of experience, featuring advanced production lines and a dedicated R&D team.
Can you provide customized solutions for special sites?
Yes, we have the technology to develop new designs and support customers with solutions for special vertical access problems on construction sites.
What information is needed for a quotation?
Please provide the lift height, load capacity, cage type (single/double), mast tower finish, and local power supply details.
