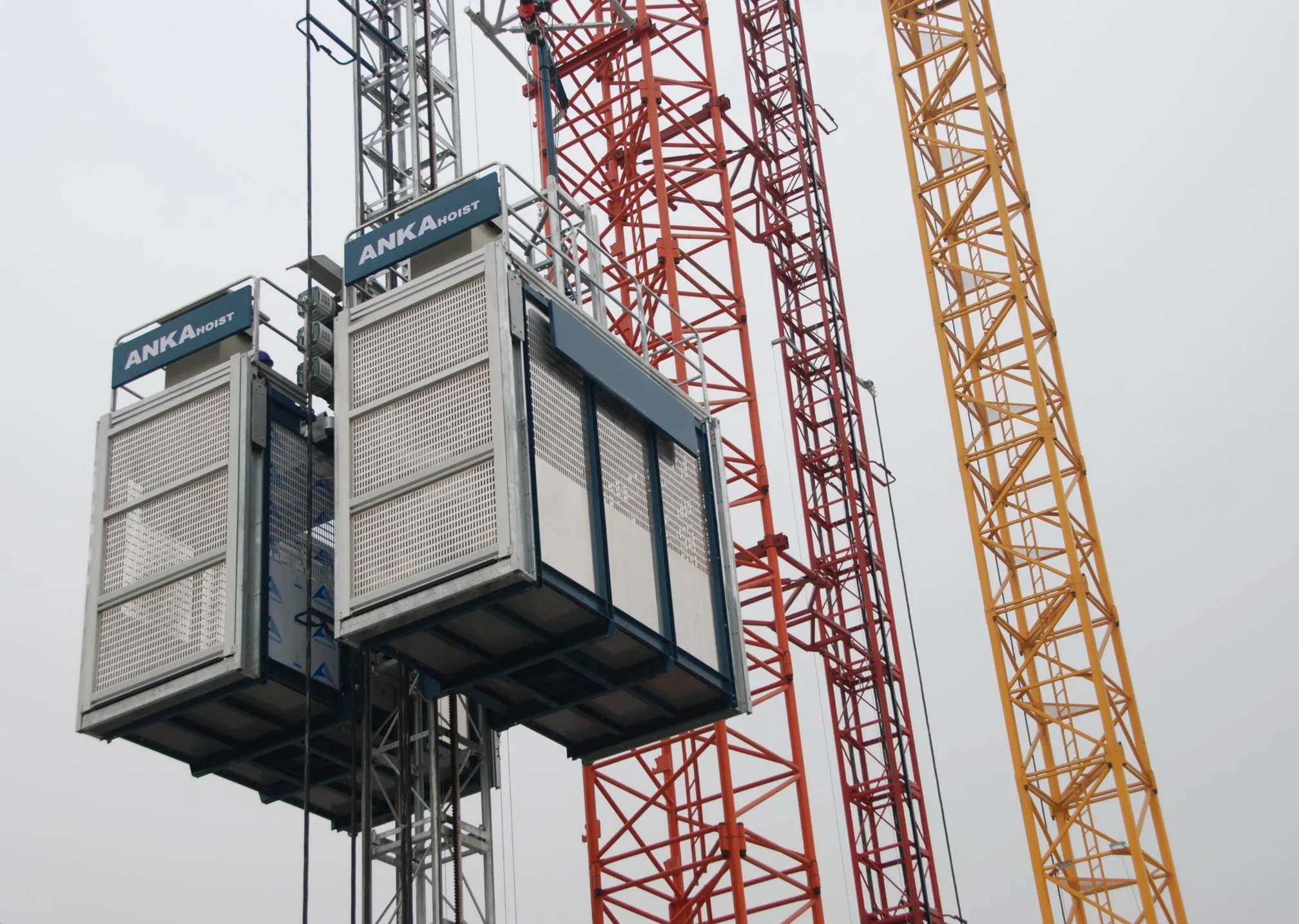

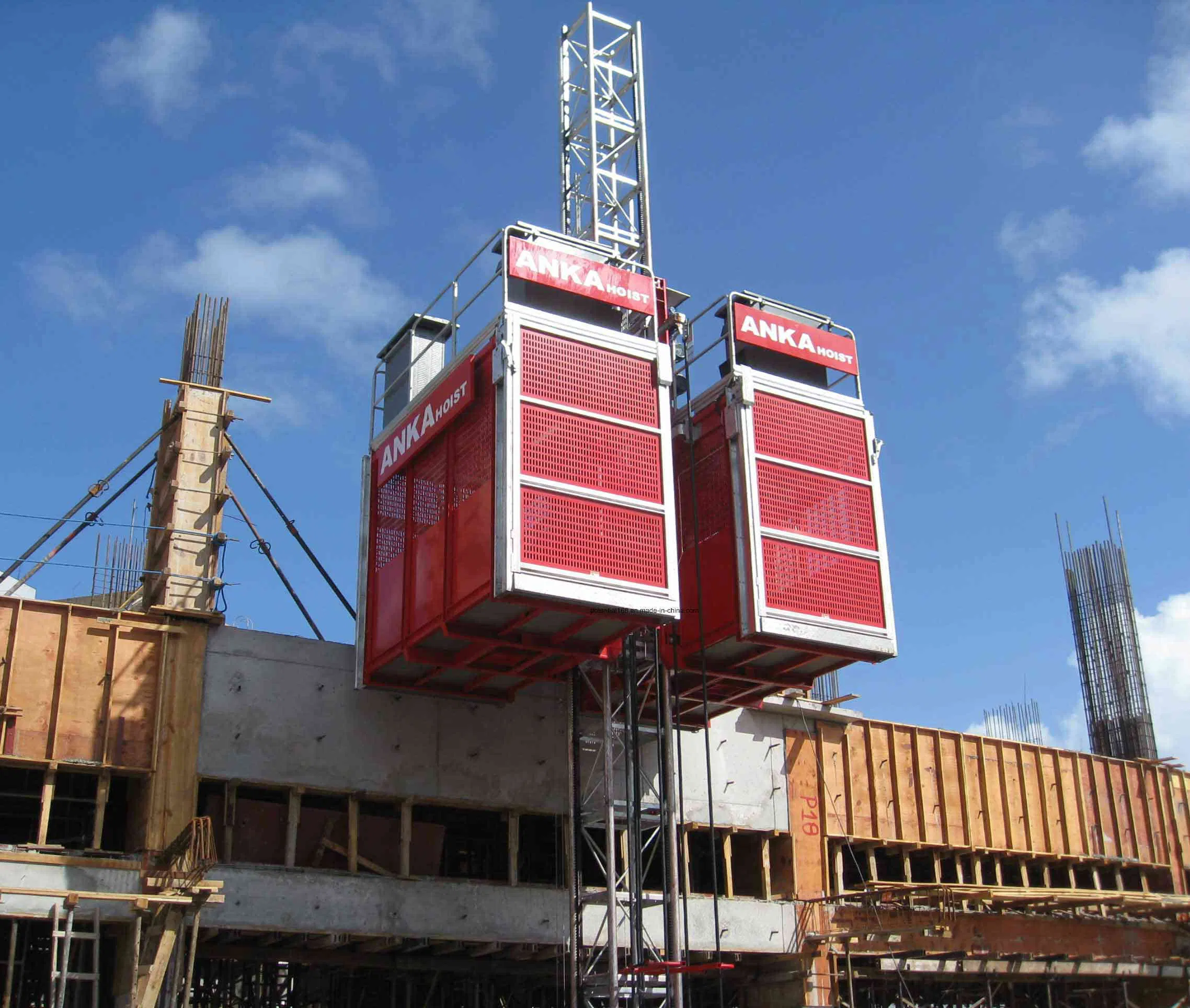

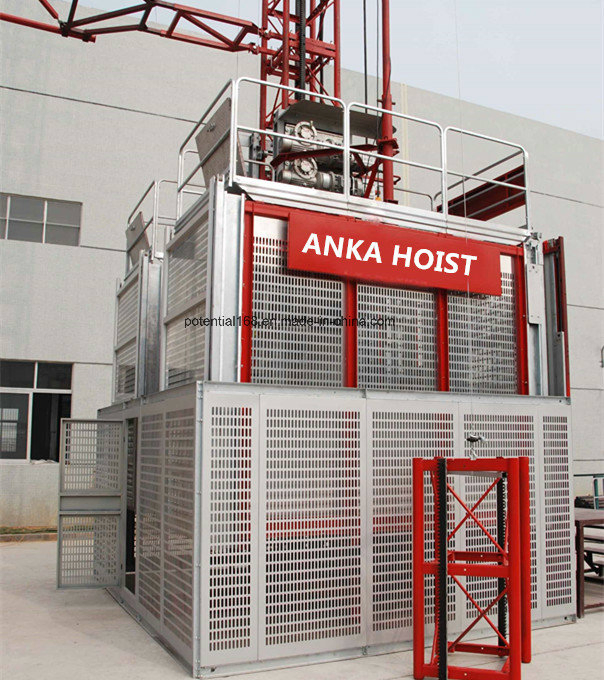

High-performance SC200/200GZ dual lift designed for demanding construction environments.

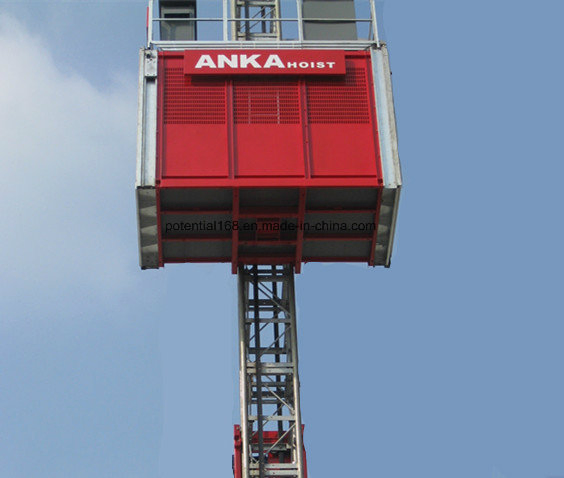

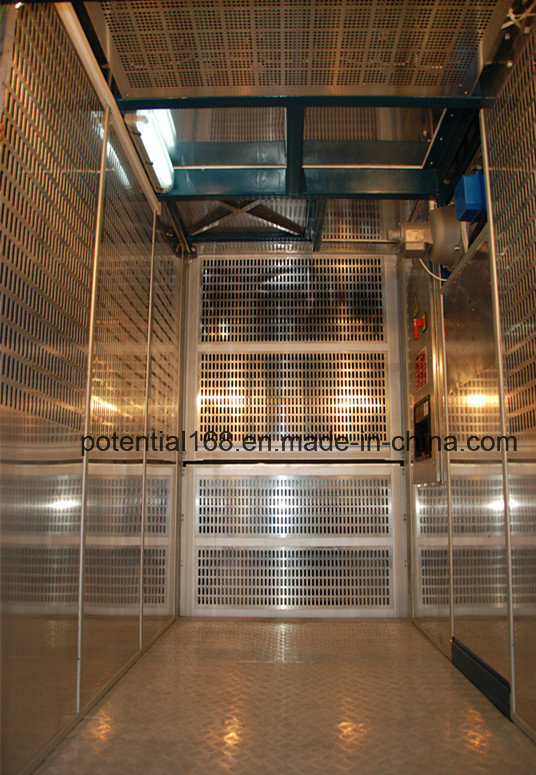

Our personnel and material / goods hoists are available in both single and twin cage configurations. The capacity ranges from 1000kg to 3200kg. Using frequency conversion drives, the hoist can reach speeds of 36 m/min up to 96m/min, with a maximum working height of 450 meters.
Premium Components: Electric components and frequency converters are sourced from international famous brands, with terminators from Phoenix. Motor and gearbox options include premium international brands for specific requirements.
| Model | Capacity (kg) | Lifting Speed (m/min) | Motor Power (kw) | Inverter Power (kw) |
|---|---|---|---|---|
| SC200TD | 2000 | 36 | 3 x 11 | N |
| SC200GD | 2000 | 0-40 | 3 X 11 | 37 |
| SC200GZ | 2000 | 0-63 | 3x18.5 | 55 |
| SC270GZ | 2700 | 0-63 | 3x18.5 | 75 |
| SC200G | 2000 | 0-96 | 3x22 | 90 |
| SC270GS | 2700 | 0-96 | 3x30 | 110 |
| SC120/120GZ | 2x1200 | 0-63 | 2x3x15 | 2x45 |
| SC200/200GZ | 2x2000 | 0-63 | 2x3x18.5 | 2x55 |
| SC270/270GZ | 2x2700 | 0-63 | 2x3x18.5 | 2x75 |
| SC200/200G | 2x2000 | 0-96 | 2x3x22 | 2x90 |
| SC270/270GS | 2x2700 | 0-96 | 2x3x30 | 2x110 |
