Model:VEL180-2.5-STD
Application:Lifting Bag/Box/Rubber/Plane
Vacuum Source:Oil-Free Vacuum Pump
Safety:CE Certificate / Pressure Holding
Max Loading:40/60kg (Customizable)
Control Mode:Manual Valve
HS Code:8428909090
Origin:China

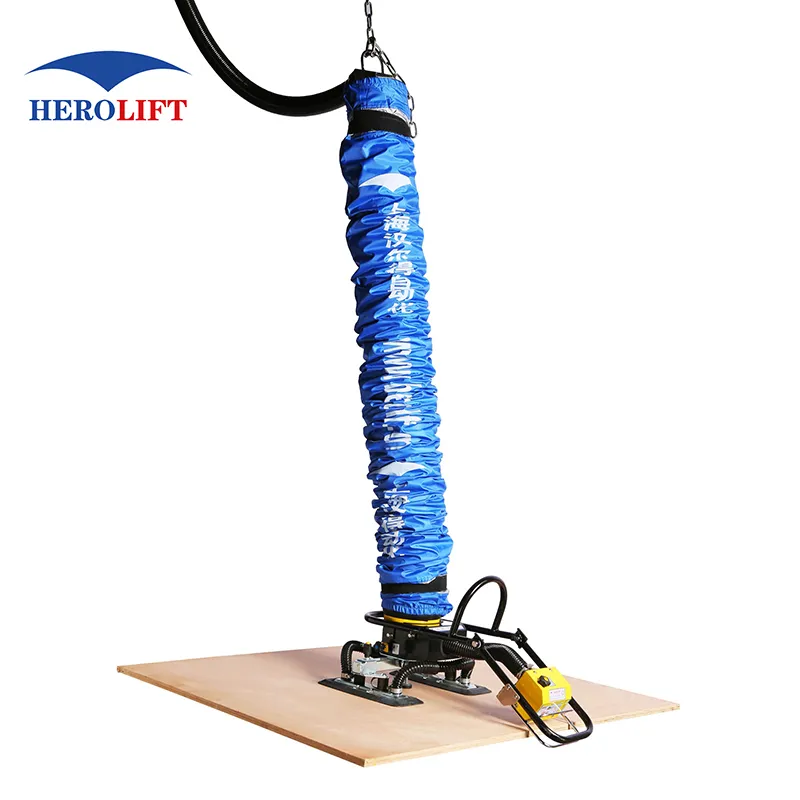

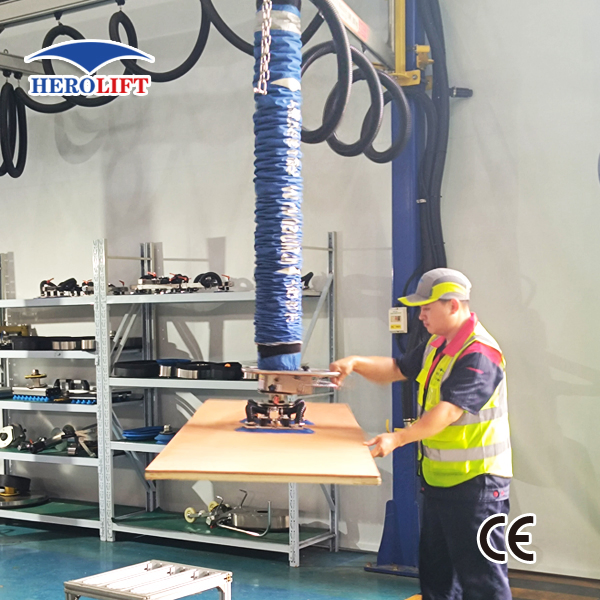

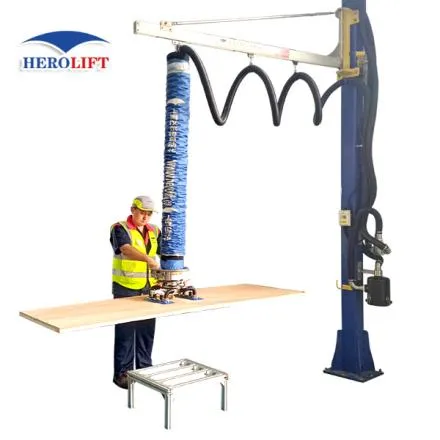

Vacuum lifting tube systems are perfectly suited for handling quickly and safely all types of boards, panels and doors. The vacuum is used for both lifting and gripping operations, thus facilitating the control of the device and optimizing the speed and ease of the process. No need for many buttons, only one person operated with the fingertips to pick up, lift, lower and release the load - simple, fast and safe!
A comprehensive product line has been developed for the woodworking and furniture industry. This has resulted in a wide range of lifting systems that take the strain away from the operator and replace it with a user friendly work aid. We offer solutions that are long-proven and especially designed to solve your handling problems. Comprehensive handling solutions can be provided based on the on-site working conditions.
Lifting capacity:<270 kg
Lifting speed:0-1 m/s
Rotation:360-degree
Swing angle:240 degrees

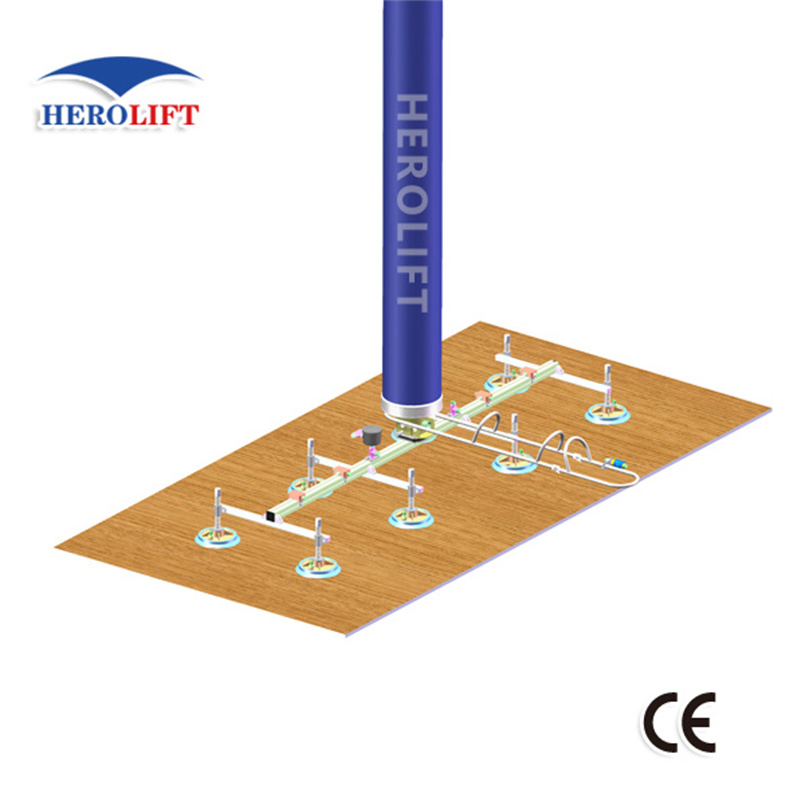

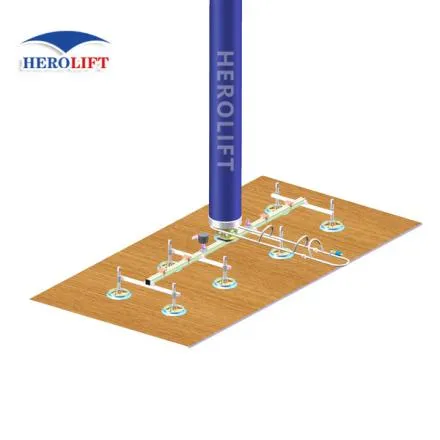

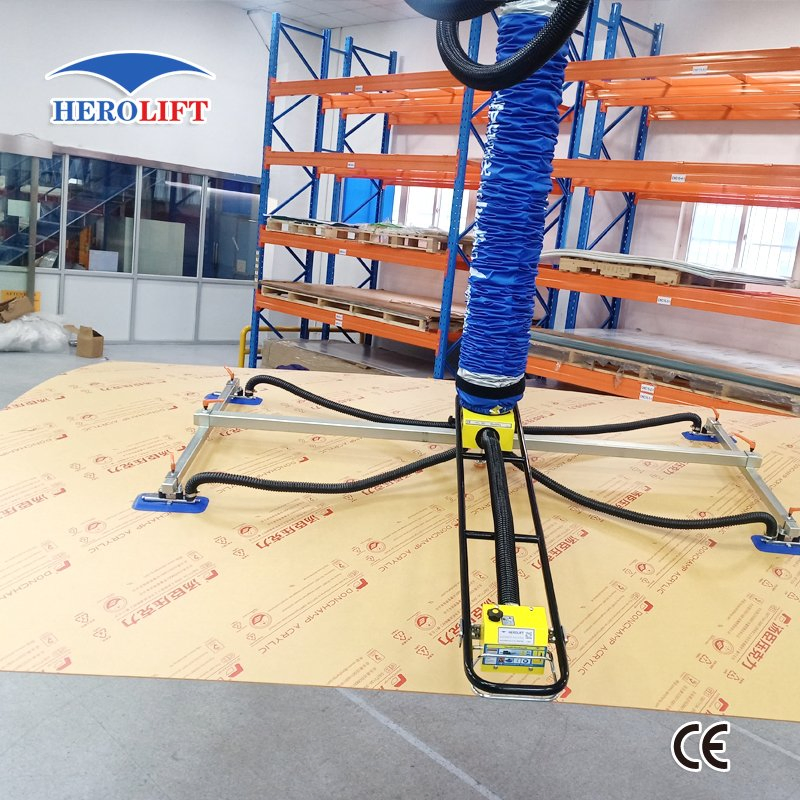

Suction Head Assembly
- Easy replace
- Rotate pad head
- Standard/flexible handle optional
- Protect workpiece surface

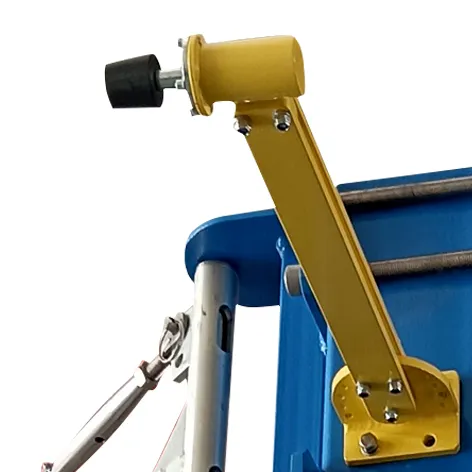

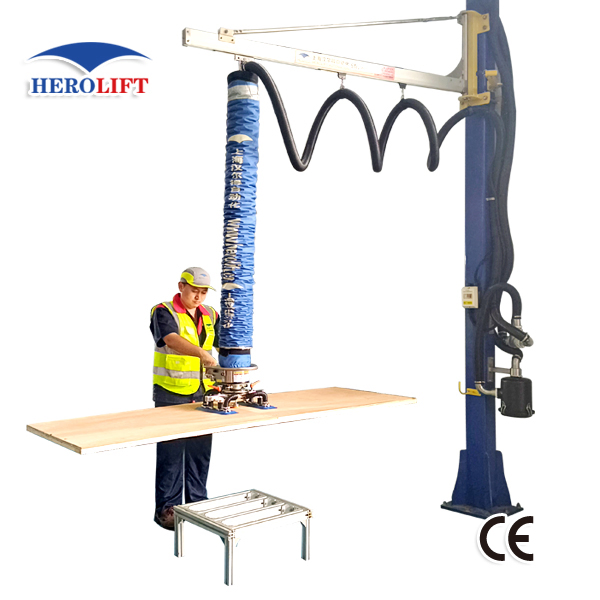

Jib Crane Limit
- Shrinkage or elongation control
- Achieve vertical displacement
- Precise positioning
T
Technical Specification
| Type |
VEL100 |
VEL140 |
VEL180 |
VEL230 |
VEL300 |
| Capacity(kg) |
30 |
60 |
90 |
140 |
300 |
| Tube Diameter(mm) |
100 |
140 |
180 |
230 |
300 |
| Lift Speed(m/s) |
Approx 1m/s |
| Pump Power |
3Kw/4Kw |
4Kw/5.5Kw |
Safety Features:
- Power Failure Protection: Absorbed material will not fall during power interruptions.
- Leakage Protection: Insulated vacuum system to prevent personal injury.
- Current Overload: Prevents damage to equipment from abnormal currents.
- Factory Tested: Stress and installation tests conducted on every unit.

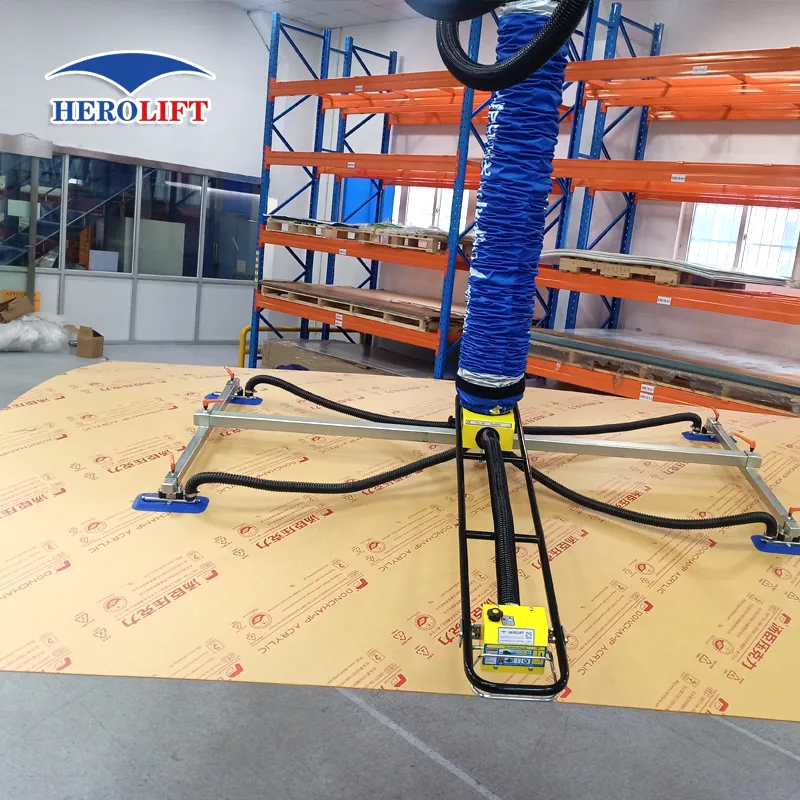

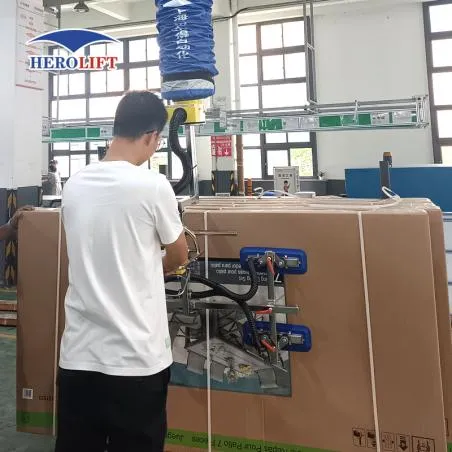

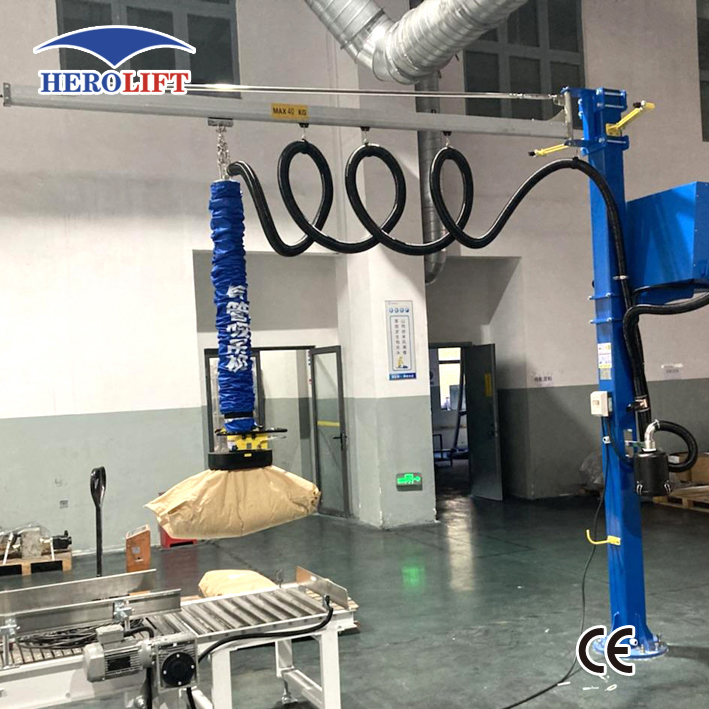

Wide Range of Applications: Sacks, cardboard boxes, wooden sheets, sheet metal, drums, electrical appliances, cans, glass plates, baggage, plastic sheets, stone, and more.
?
Frequently Asked Questions
Q1: How can I choose the best machine for my needs?
A: Provide details about your working material and tasks through pictures or videos. Our experts will evaluate and recommend the most suitable model based on years of industry experience.
Q2: Is the machine easy to operate for a first-time user?
A: Yes, we provide comprehensive technical training and English operating instructions. We also offer support via phone or email to ensure you can operate the equipment confidently.
Q3: What should I do if the machine encounters a problem?
A: During the warranty period, we provide free replacement parts for issues occurring under normal use. Our technical team is available to diagnose problems based on your feedback.
Q4: What kind of guarantee do you offer for breakdowns?
A: The machine comes with a one-year guarantee. Non-consumable parts are replaced free of charge if the issue is caused by a quality fault.
Q5: How long is the typical delivery time?
A: Standard machines are delivered within 20-30 days. For non-standard or customized equipment based on specific requirements, delivery typically takes 45 to 60 days.
Q6: Are the machines safe during power outages?
A: Yes, the system includes power failure protection that ensures the handled material remains securely held and does not fall unexpectedly.
