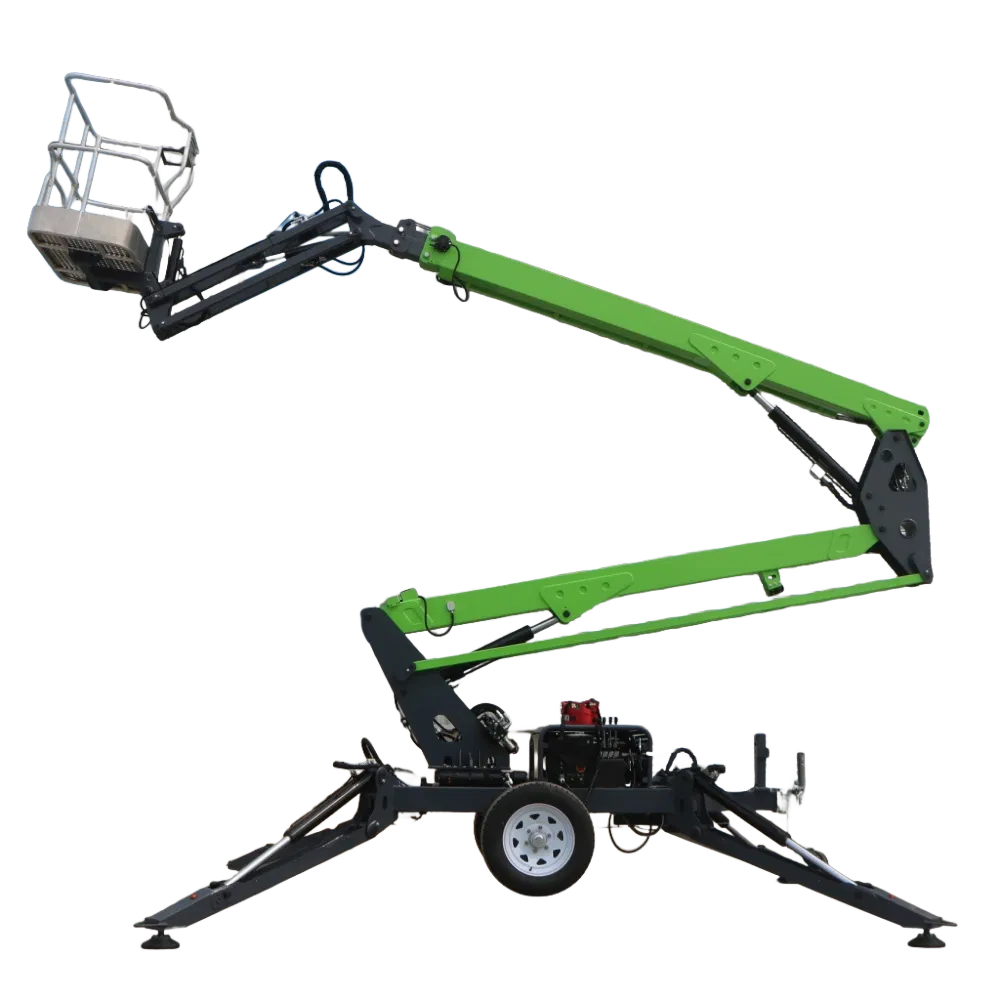

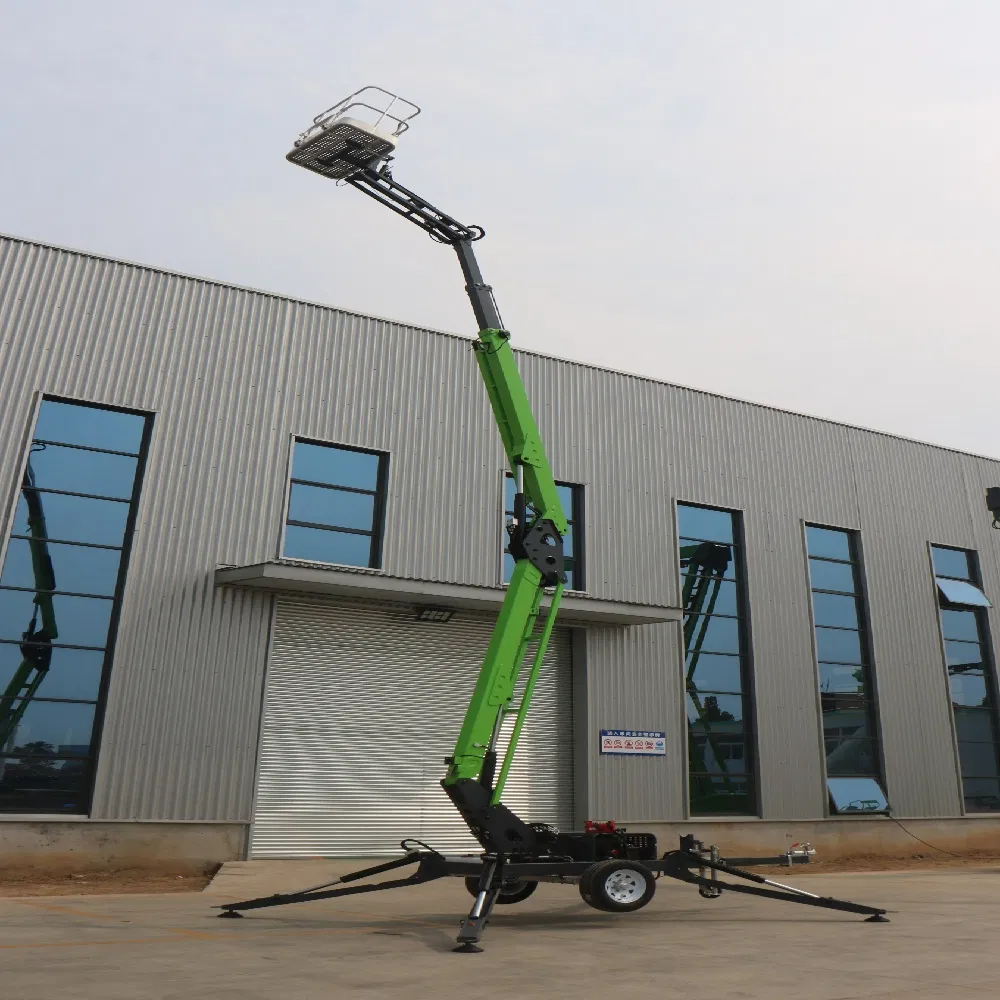

CE & ISO 18m Quick-Deployment Trailer-Mounted 8-18m Telescopic Spider Boom Lift Mewp

Customization: Available
After-sales Service: Online and 24-Hour Telephone Support
Warranty: 24 Months

Product Description

8-18M Electric Towable Articulated Spider Boom Lift

⚙️

Our Electric Platform Height Towable Boom Lift, also known as a Trailer Mounted or Telescopic Boom Lift, offers an exceptional fusion of mobility and performance. Its towable design facilitates easy transport, while the electric system ensures quiet, zero-emission operation. The telescopic boom provides outstanding reach and precise positioning for diverse outdoor aerial tasks.

Electric Towable Articulated Spider Boom Lift

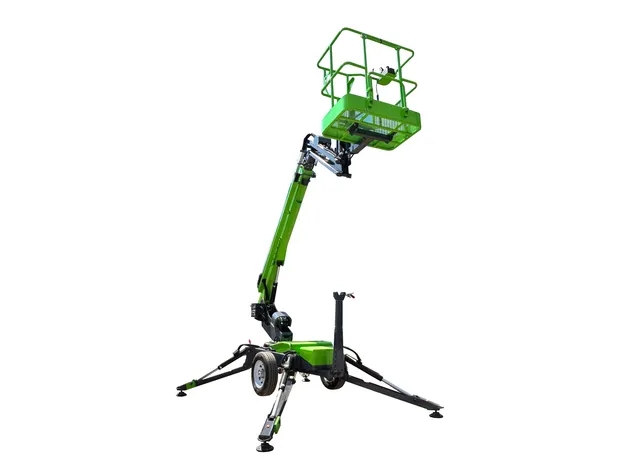

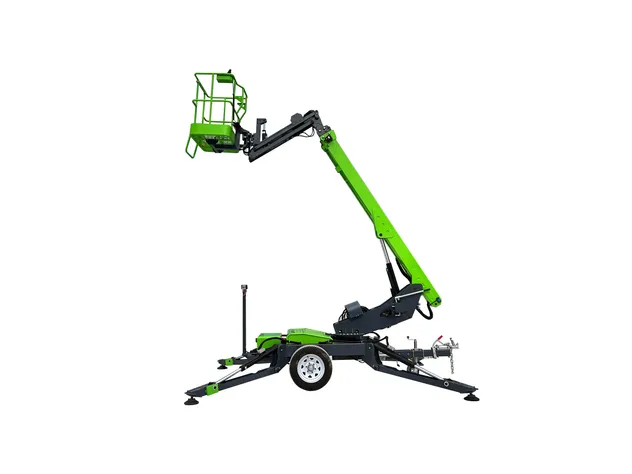

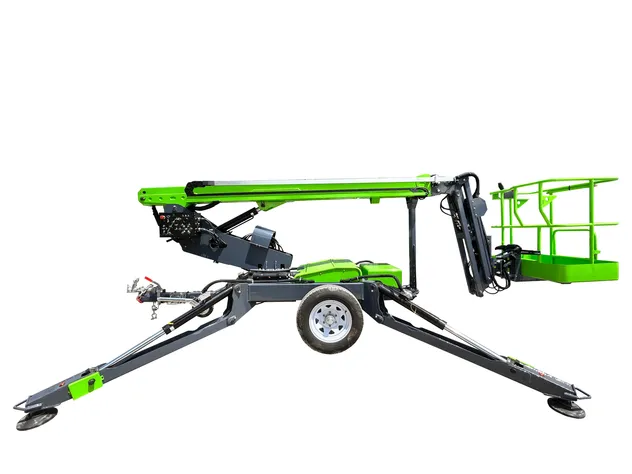

Spider Boom Lift View 1 Spider Boom Lift View 2 Spider Boom Lift View 3

Basic Specifications

Model
T18
Application
High-Altitude Aerial Work
Lift Mechanism
Telescoping Lift
Carrying Capacity
200kg (Middle-Level)
Driven Type
DC Electric
Working Height
15.8m
Working Radius
6.6m
Platform Size
1.1*0.7m
Battery
24V/192ah
Turntable Rotation
355°
Certification
CE, ISO 9001
Weight
1900kg

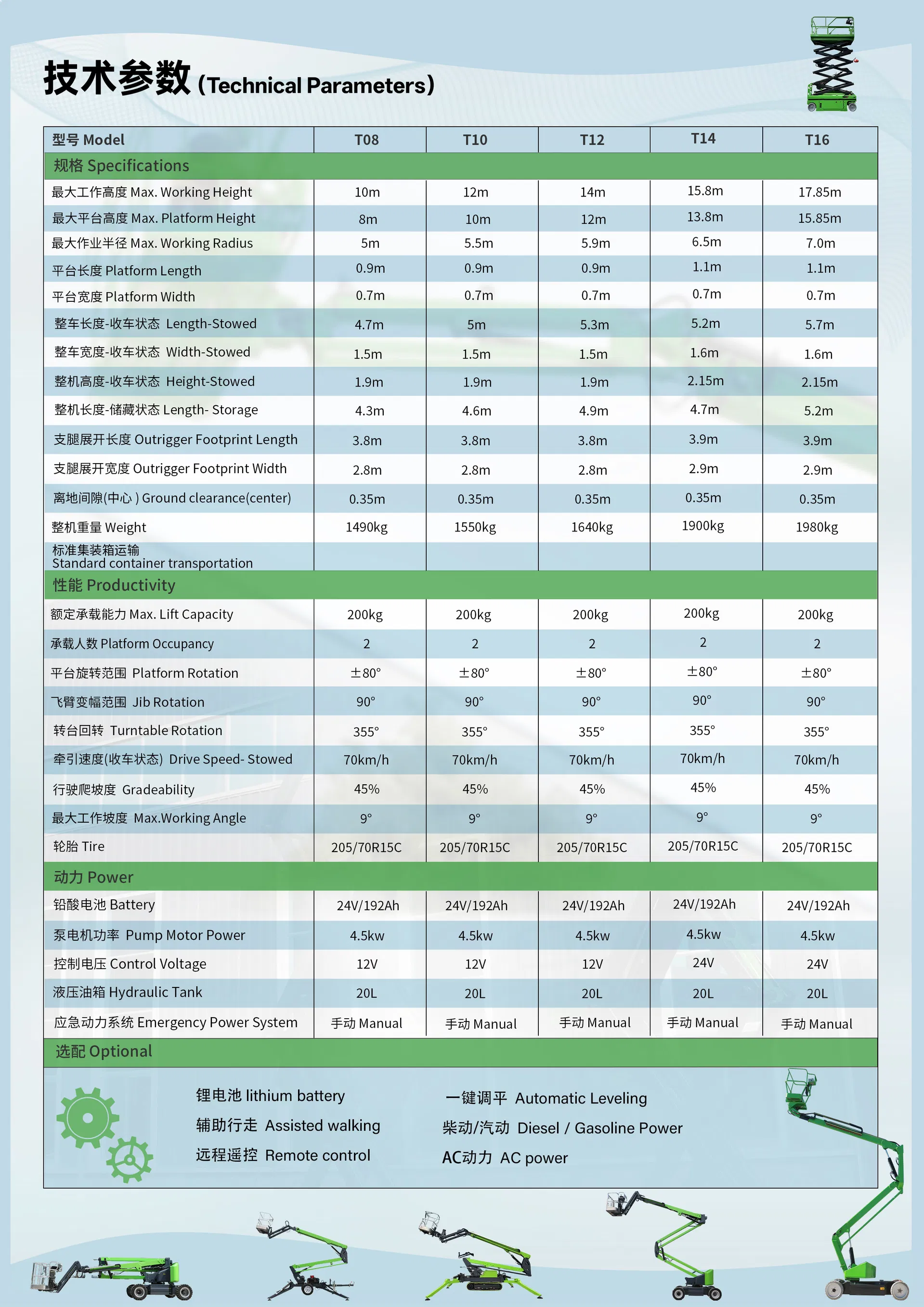

Full Series Specifications

Model T08 T10 T12 T14 T16
Max. Working Height10m12m14m15.8m17.85m
Max. Platform Height8m10m12m13.8m15.85m
Max. Working Radius5m5.5m5.9m6.5m7.0m
Platform Dimension0.9x0.7m0.9x0.7m0.9x0.7m1.1x0.7m1.1x0.7m
Stowed Length4.7m5m5.3m5.2m5.7m
Weight1490kg1550kg1640kg1900kg1980kg
Max. Lift Capacity200kg200kg200kg200kg200kg
Gradeability45%45%45%45%45%

Key Features & Protection

  • ✔️ Comply with CE standards
  • ✔️ Hydraulic leg one-click leveling
  • ✔️ Emergency power source configuration
  • ✔️ Automatic leveling of working bucket
  • ✔️ Boom and outrigger interlock
  • ✔️ 22 Active and passive protections
Electric Boom Lift Detail

Technical Details

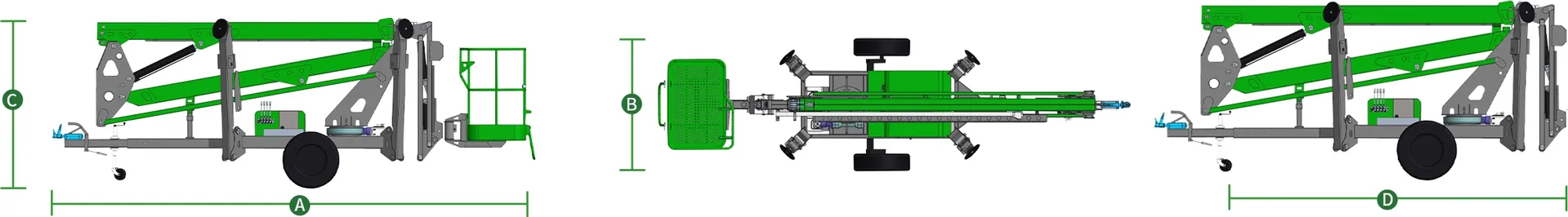

Specification Diagram 1 Specification Diagram 2

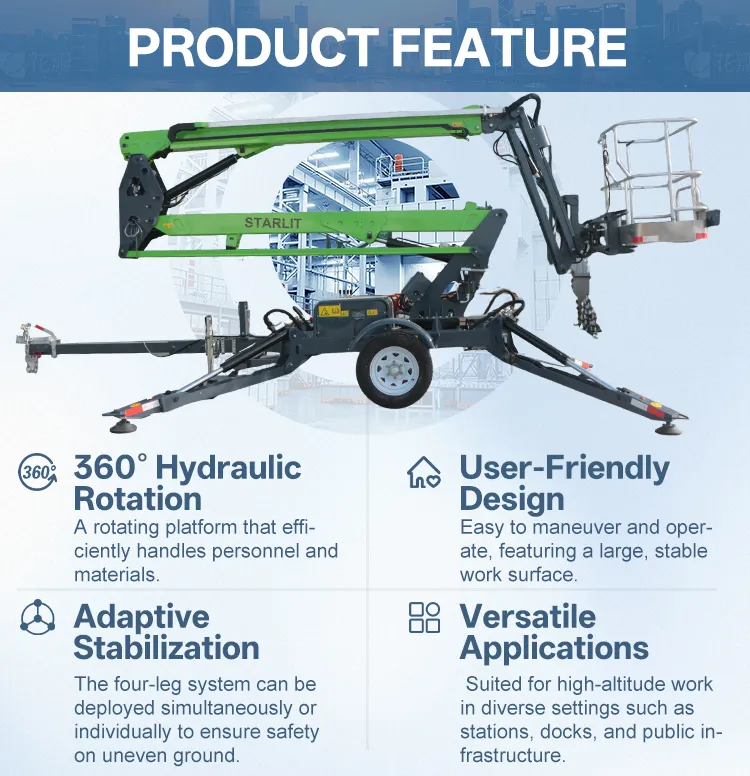

Operating Range Structural Design

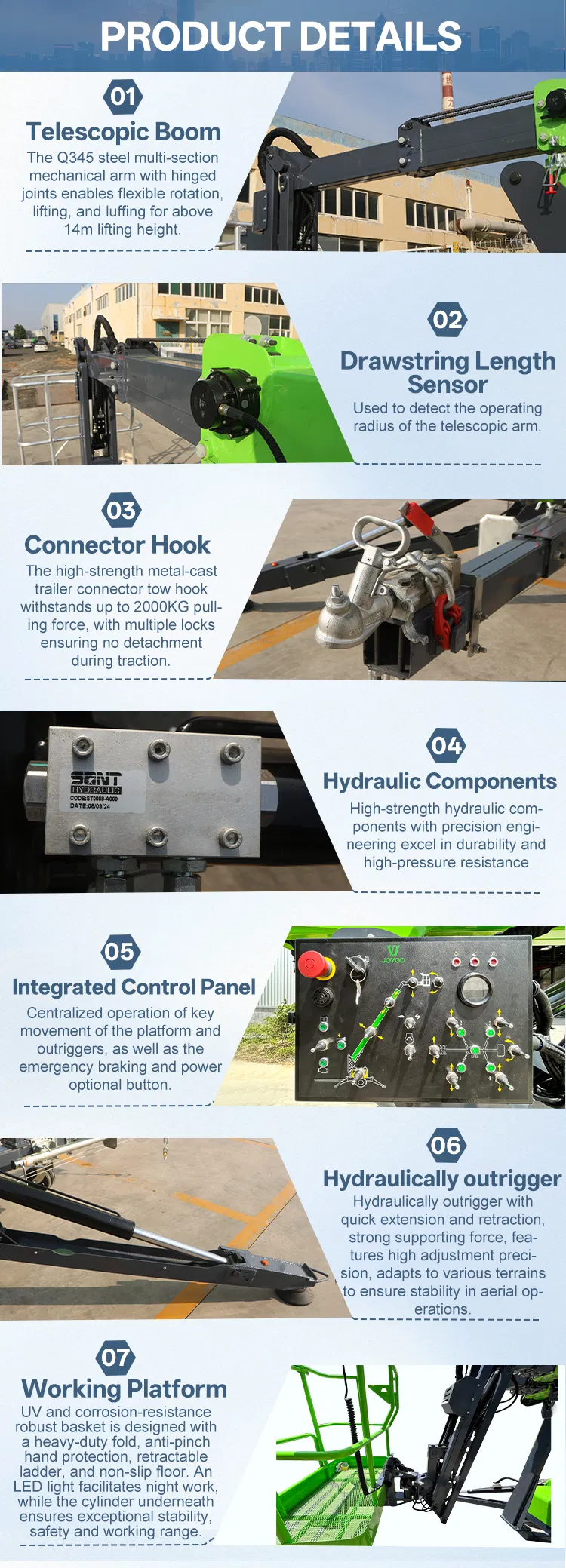

Component Details 1 Component Details 2

Packing & Delivery

Package Size
470.00cm * 160.00cm * 215.00cm
Gross Weight
1900.000kg
Transport Package
Industrial Protective Felt

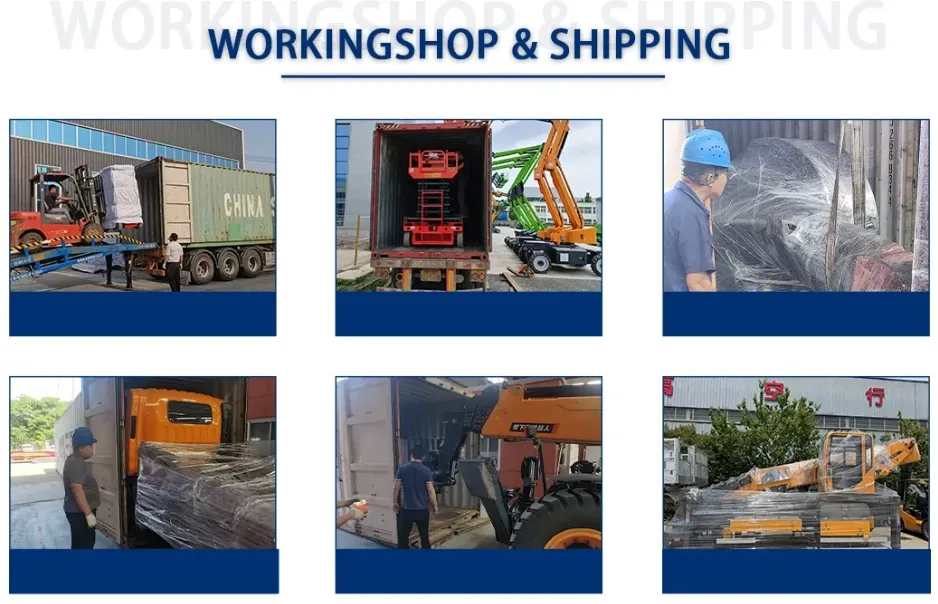

Packaging View 1 Packaging View 2

Frequently Asked Questions

What is the maximum working height of this series?
The series offers various models with working heights ranging from 10 meters (T08) up to 17.85 meters (T16).
What is the rated load capacity of the platform?
All models in this series have a standard rated load capacity of 200kg, suitable for 2 people with tools.
Is the boom lift easy to move between job sites?
Yes, it features a towable trailer-mounted design with a drive speed of up to 70km/h when stowed, making it highly portable.
What power options are available?
The standard model is DC battery powered (24V/192Ah). Optional power sources include Lithium batteries, Diesel/Gasoline power, or AC power.
Does it have safety features for uneven ground?
Yes, it is equipped with hydraulic legs featuring one-click automatic leveling to ensure stability on various terrains.
