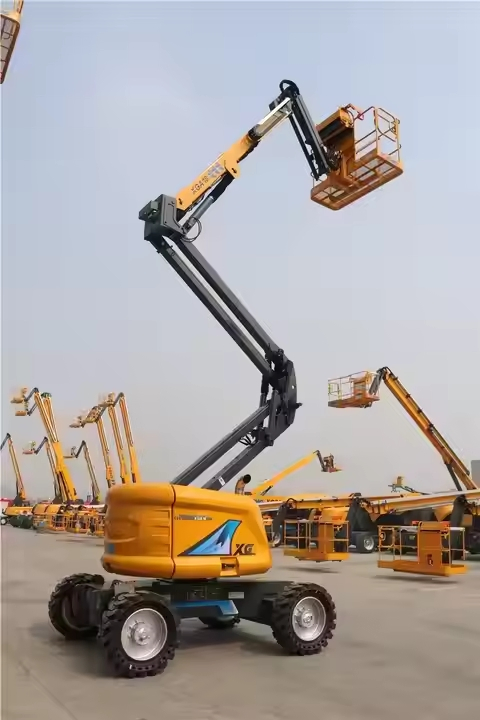

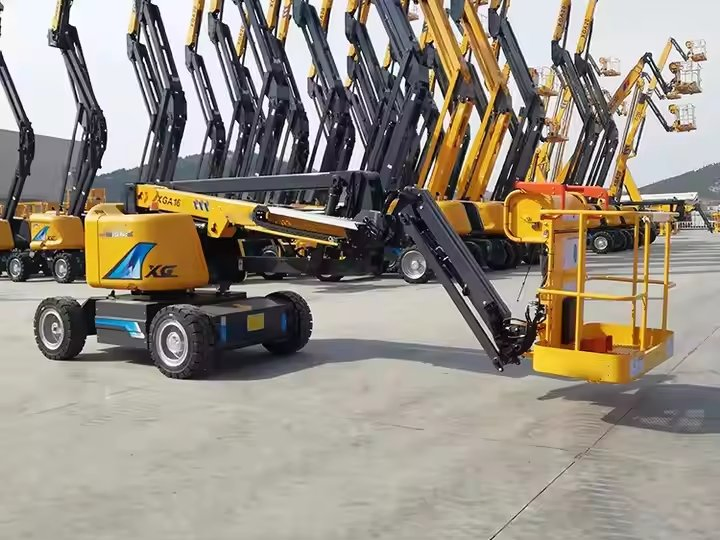

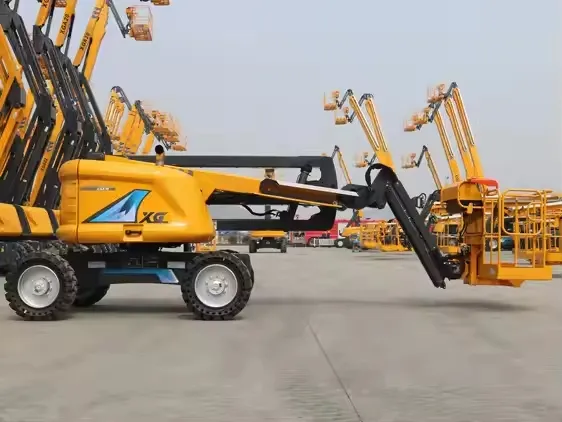

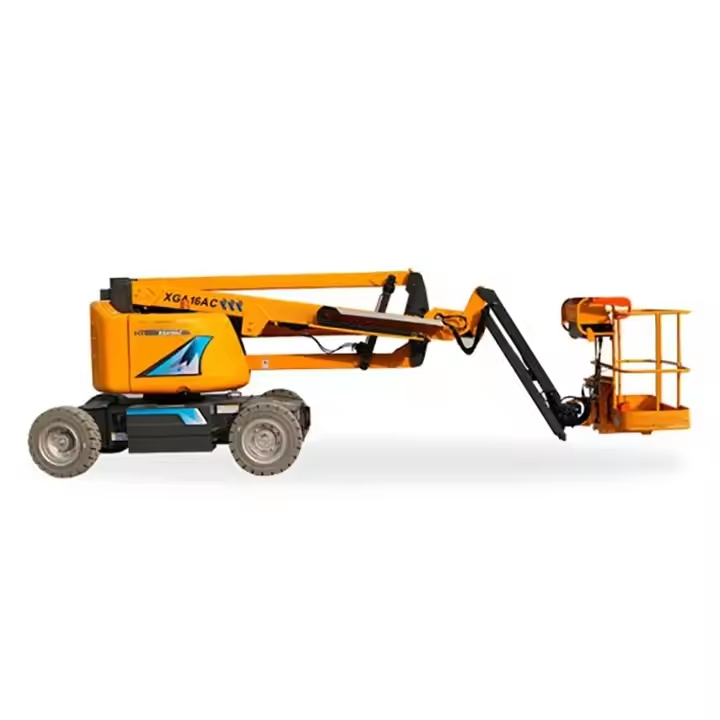

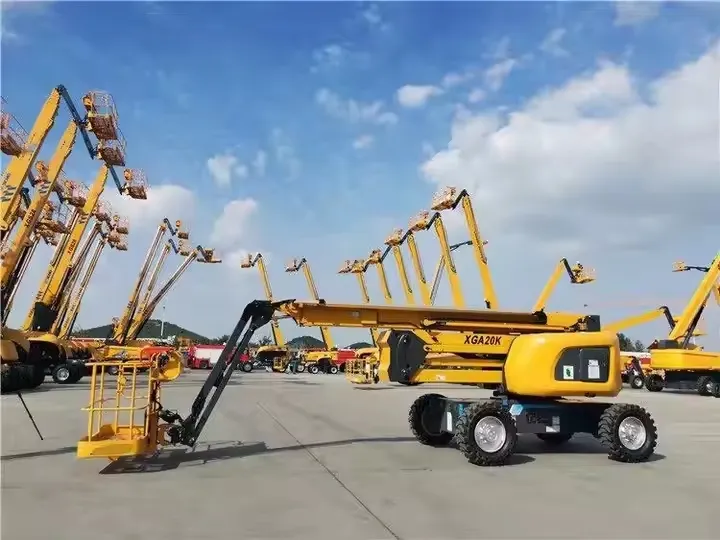

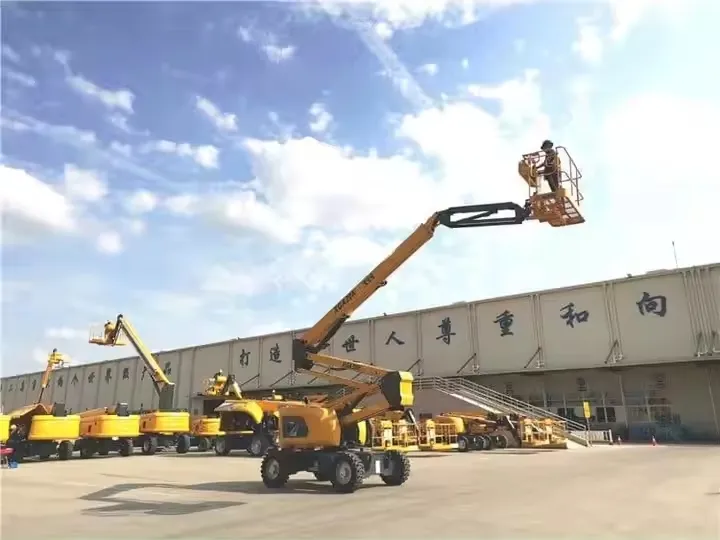

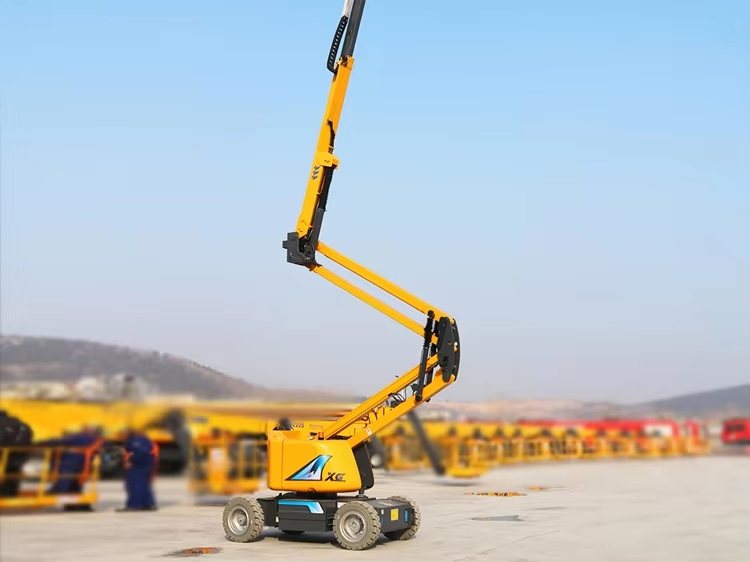

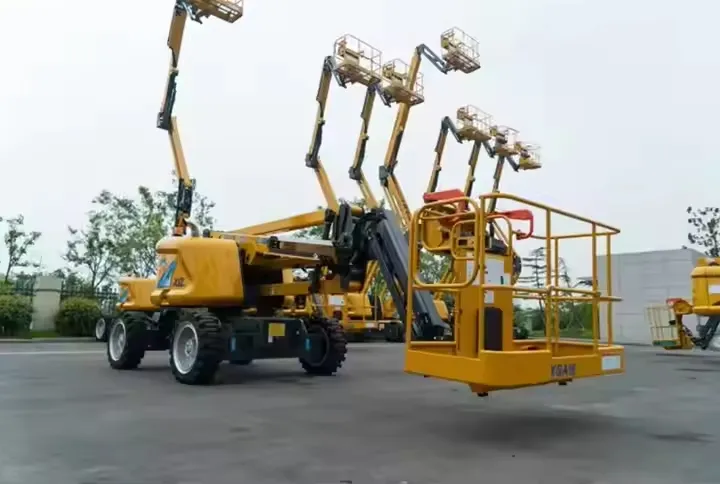

20m New Articulated Boom Lift XGA20K Mobile Hydraulic Aerial Work Platform
XGA20K is a compact mobile elevating work platform designed for precision and efficiency. With its obstacle-surmounting capabilities and strong driving force, it is safe, reliable, and easy to operate. It is widely used in construction, steel structure installation, petrochemical industries, and rental markets.
Key Advantages & Features:
| Item | Unit | Parameters |
|---|---|---|
| Overall length | mm | 8520 |
| Overall width | mm | 2300 |
| Overall height | mm | 2400 |
| Wheelbase | mm | 2500 |
| Max. working height | m | 20.63 |
| Max. platform height | m | 18.63 |
| Max. working range | m | 12.08 |
| Max. carrying weight | kg | 256(unlimited)/350(limited) |
| Slewing angle of turntable | ° | 360 |
| Dimension of platform | mm | 1830×760×1150 |
| Overall weight | kg | 9900 |
| Max. traveling speed | km/h | 5.5 |
| Max. gradeability | % | 45 |
| Engine rated power | kW/(r/min) | 36.8/(2400) |
