Basic Information
Application
Workshop Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Dimensions
10300*2200*1200mm
Product Name
Hydraulic Platform Lift
Production Capacity
500000 Set/Years
📊
Product Parameters

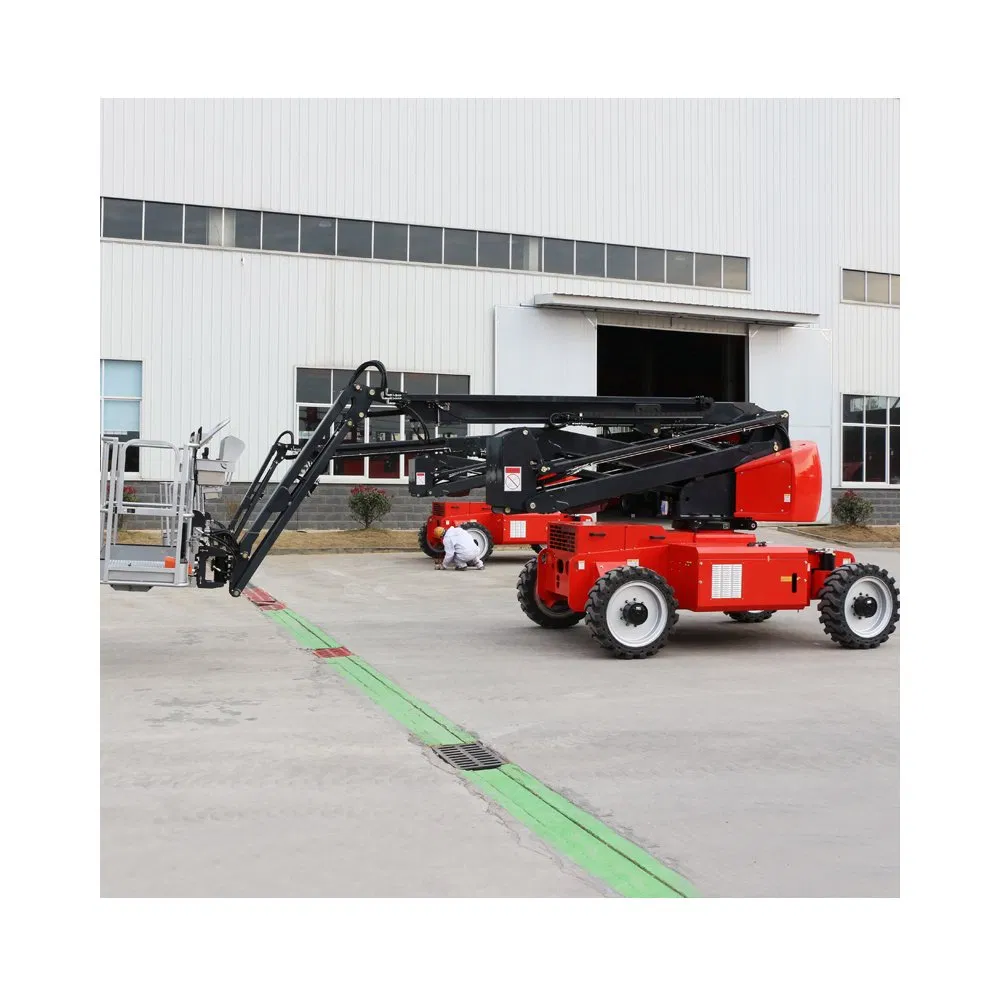

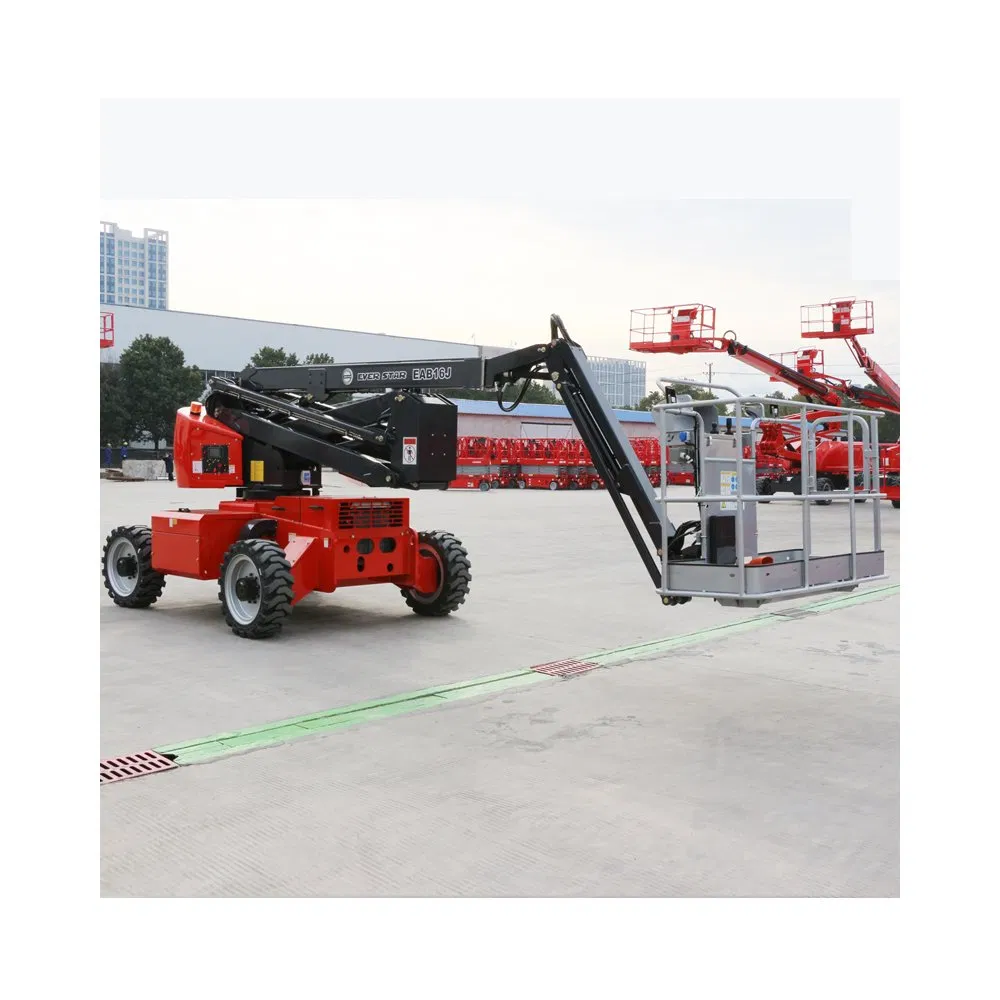

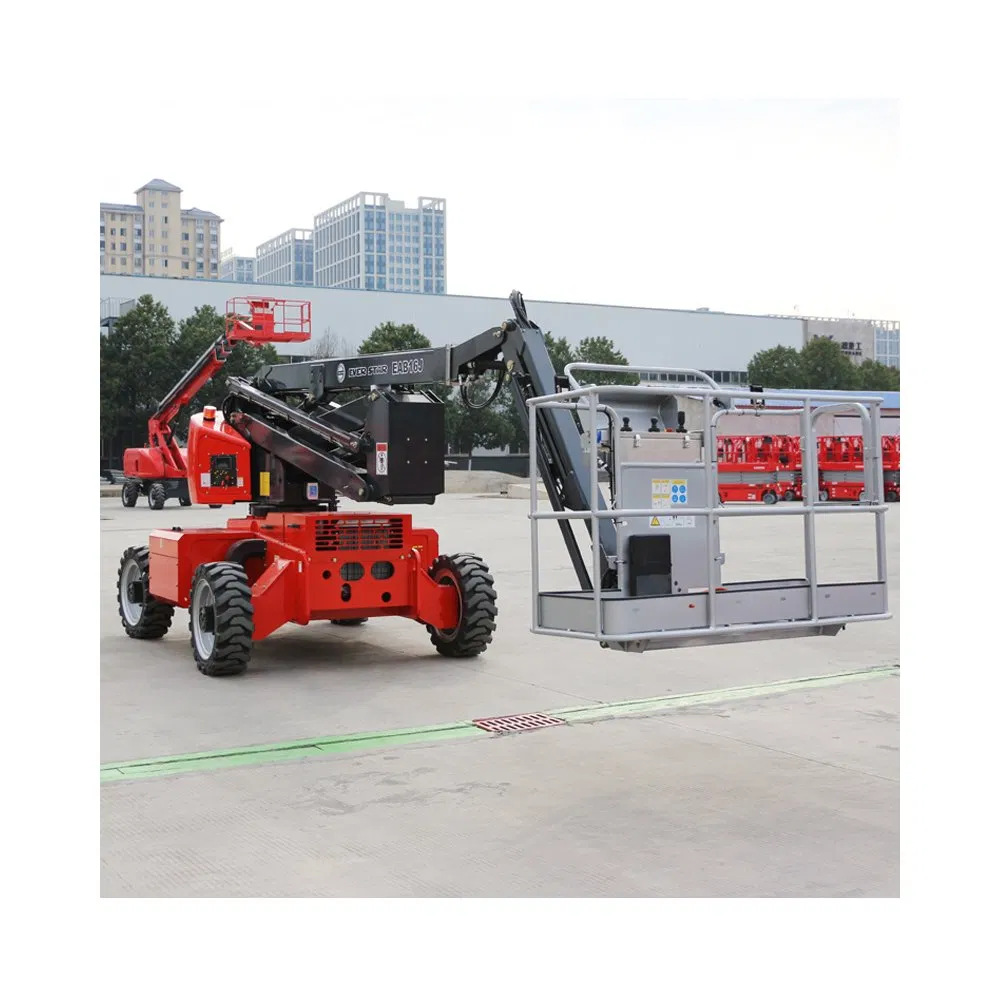

16-34m Diesel Telescopic Boom Lifts
| Model | ETB16J | ETB20J | ETB22J | ETB24J | ETB29J | ETB30J | ETB34J |
| Max. Working Height(m) | 16 | 20 | 21.9 | 23.7 | 28.7 | 30 | 34 |
| Max. Platform Height(m) | 14 | 18 | 19.9 | 21.7 | 26.7 | 28 | 32 |
| Max. Lift Capacity(kg) | 230 | 480 | 300 | 480 | 480 | 480 | 480 |
| Max. Horizontal Outreach(m) | 12.6 | 15 | 13.7 | 15.8 | 18.5 | 20.6 | 20.6 |
| Stowed Length(m) | 8.55 | 9.07 | 10.06 | 9.1 | 10.76 | 12.79 | 12.6 |
| Engine Power(kw) | ≈36kw @ 2400rpm~2600rpm |
| Weight(kg) | 7500 | 9500 | 9400 | 10400 | 12600 | 16800 | 18500 |
40-63m Diesel Telescopic Boom Lifts
| Model | ETB40J | ETB48J | ETB58J | ETB63J |
| Max. Working Height(m) | 40.4 | 48 | 58 | 63 |
| Max. Platform Height(m) | 38.4 | 46 | 56 | 61 |
| Max. Lift Capacity(kg) | 480 | 480 | 480 | 480 |
| Max. Horizontal Outreach(m) | 24 | 23.6 | 26 | 26 |
| Engine Power(kw) | ≈54kw | ≈54kw | ≈54kw | ≈74kw |
| Weight(kg) | 21800 | 23110 | 27500 | 28500 |
Frequently Asked Questions
What is the maximum working height available for these lifts?
Our diesel telescopic boom lifts offer a wide range of working heights, starting from 16 meters up to a maximum of 63 meters for heavy-duty industrial applications.
What kind of power source do these telescopic boom lifts use?
These lifts are powered by high-performance diesel engines, typically ranging from 36kw to 74kw depending on the specific model and height requirements.
Are these aerial platforms suitable for shipyard and construction use?
Yes, they are specifically designed for demanding environments like shipyards and construction sites, featuring hydraulic systems and explosion-proof capabilities.
What is the maximum lifting capacity of the platform?
Most of our mid-to-high range models feature a robust lifting capacity of up to 480kg, allowing for multiple personnel and equipment to be lifted safely.
Do the products come with international certifications?
Absolutely. All our hydraulic platform lifts are CE certified, ensuring they meet rigorous safety and quality standards for international markets.
Can the color of the lift be customized?
Yes, we can adjust the exterior color and branding requirements based on our customers' specific needs.
