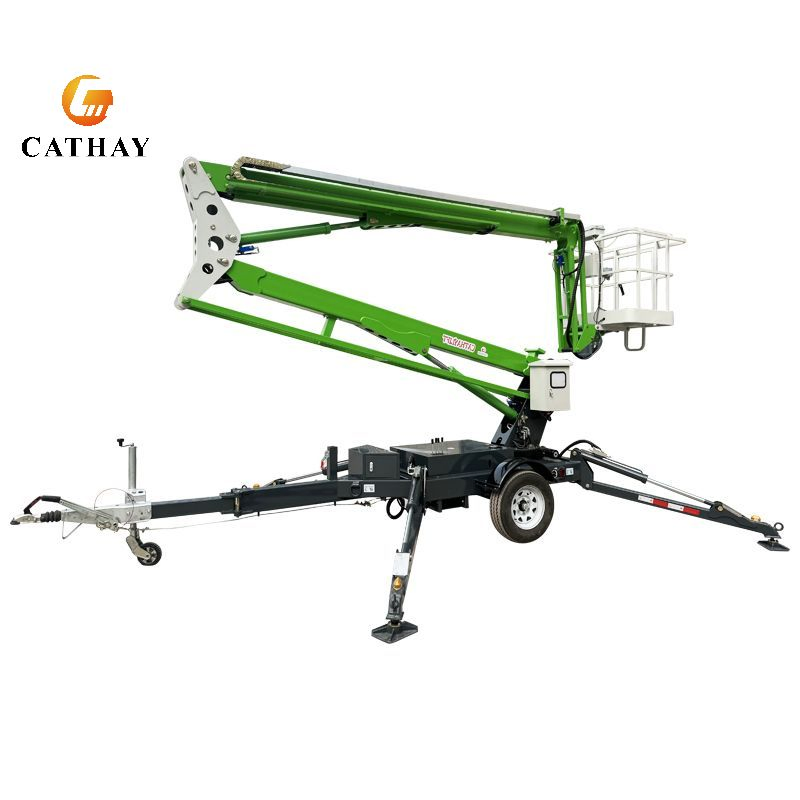

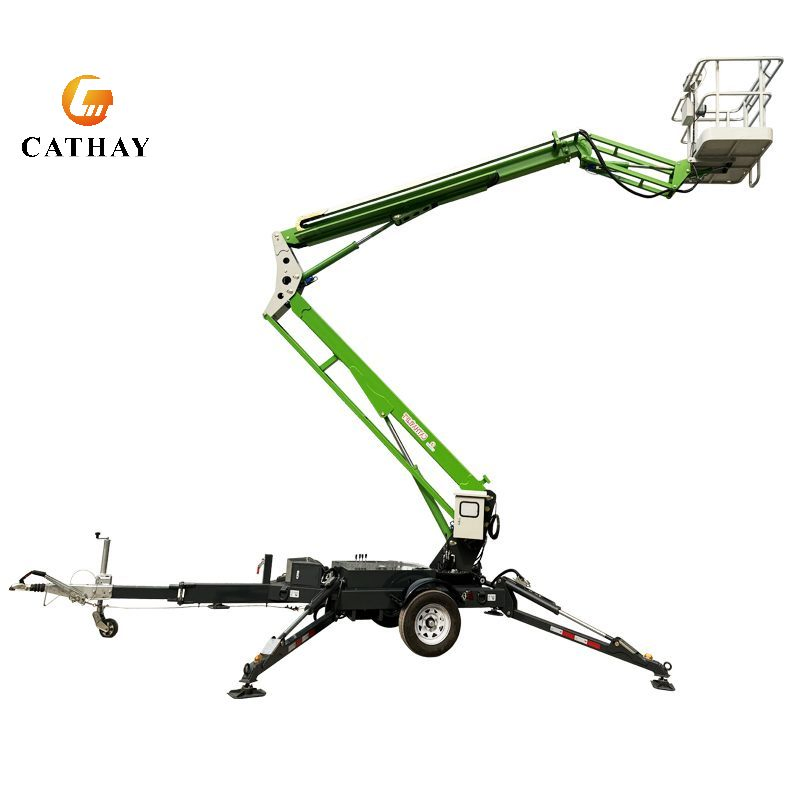

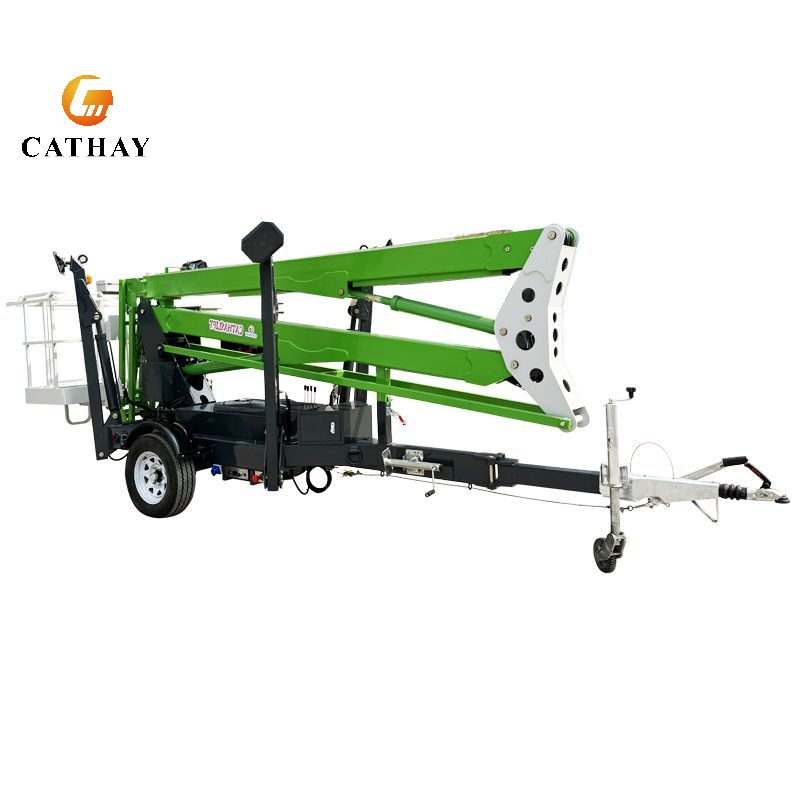

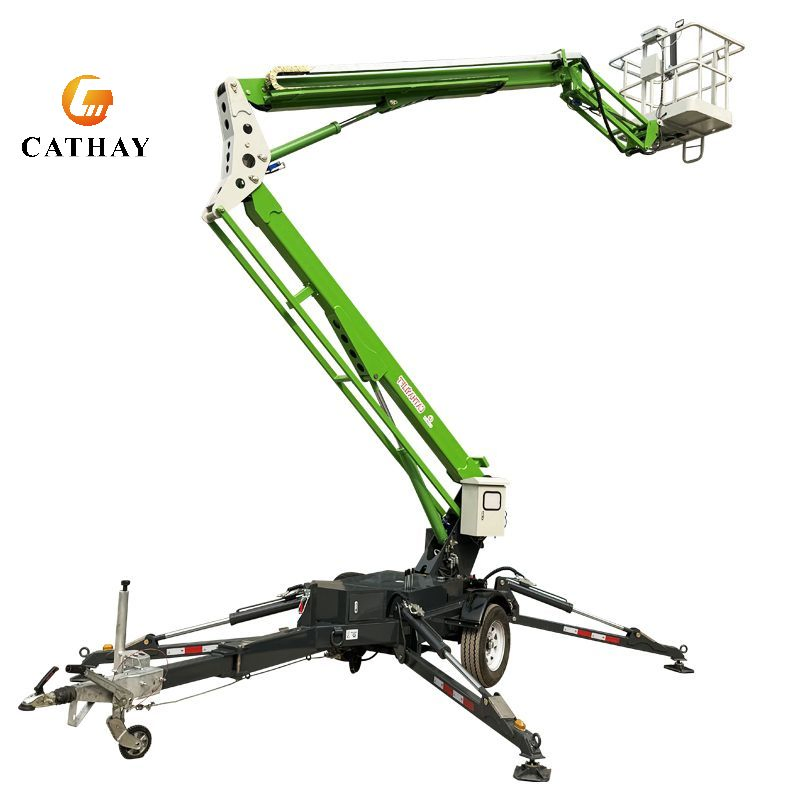

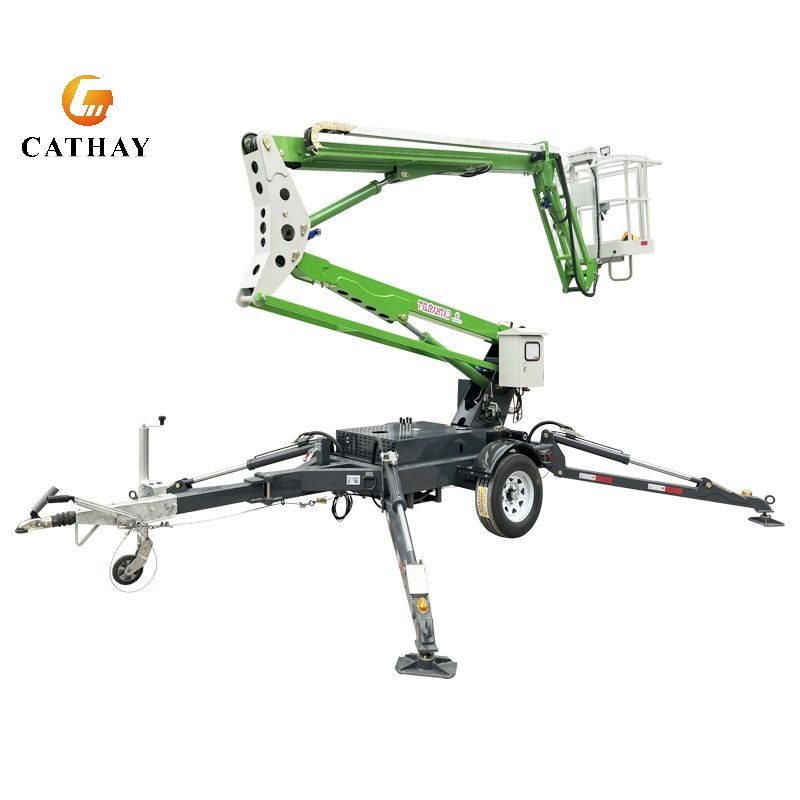

China 10m-24m Electric Aerial Working Man Spider Cherry Picker Trailer Mounted Towable Articulated Boom Lift
OEM & ODM & OBM

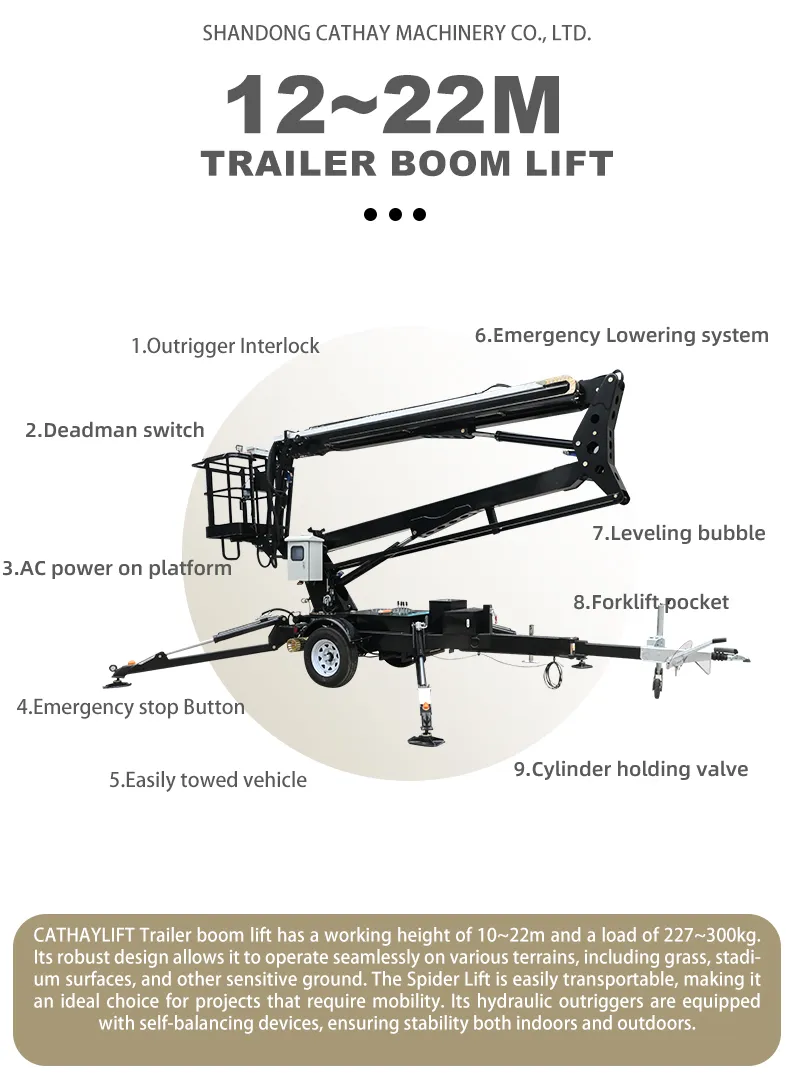

The Trailer boom lift is divided into two different types: telescopic and articulated. The maximum platform height is 14m, and the models with higher lift heights are all telescopic versions. The horizontal working radius of 5.5m~11m, and its 360-degree rotating table, make it have outstanding performance in various aerial work projects.
| Model Type | CTA-12A | CTA-14A | CTA-14T | CTA-16T | CTA-18T | CTA-20T | CTA-22T | CTA-24T |
|---|---|---|---|---|---|---|---|---|
| Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic | Telescopic | Telescopic |
| Lifting Height | 10M | 12M | 12M | 14M | 16M | 18M | 20M | 22M |
| Working Height | 12M | 14M | 14M | 16M | 18M | 20M | 22M | 24M |
| Load Capacity | 227Kg | |||||||
| Working Radius | 5.5M | 6.5M | 7.8M | 8.5M | 10.5M | 11M | 11M | 11M |
| Net Weight | 1750KG | 1950KG | 1850KG | 2150KG | 2350KG | 3000KG | 3500KG | 5000KG |

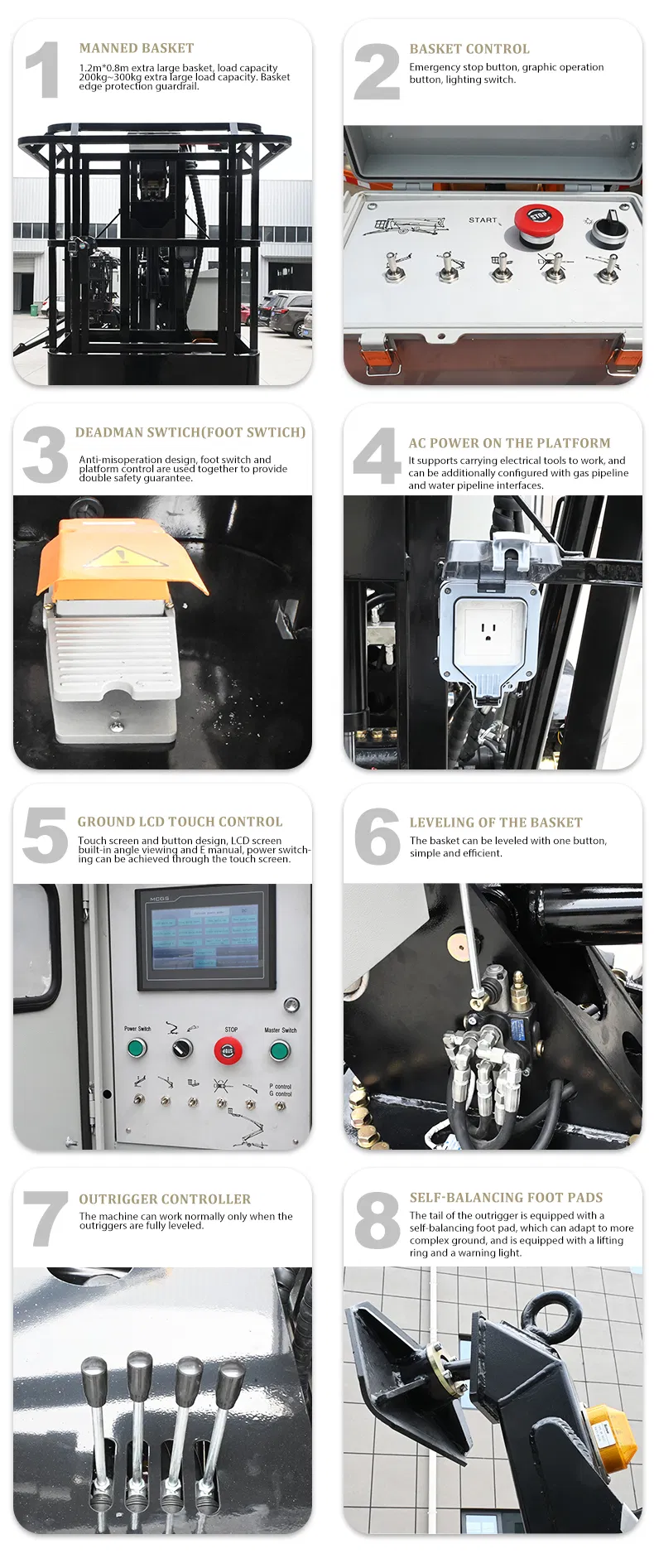

Note: Tailored requirements such as large slope work, one-key leg leveling, insulated baskets, and remote control are available upon request.

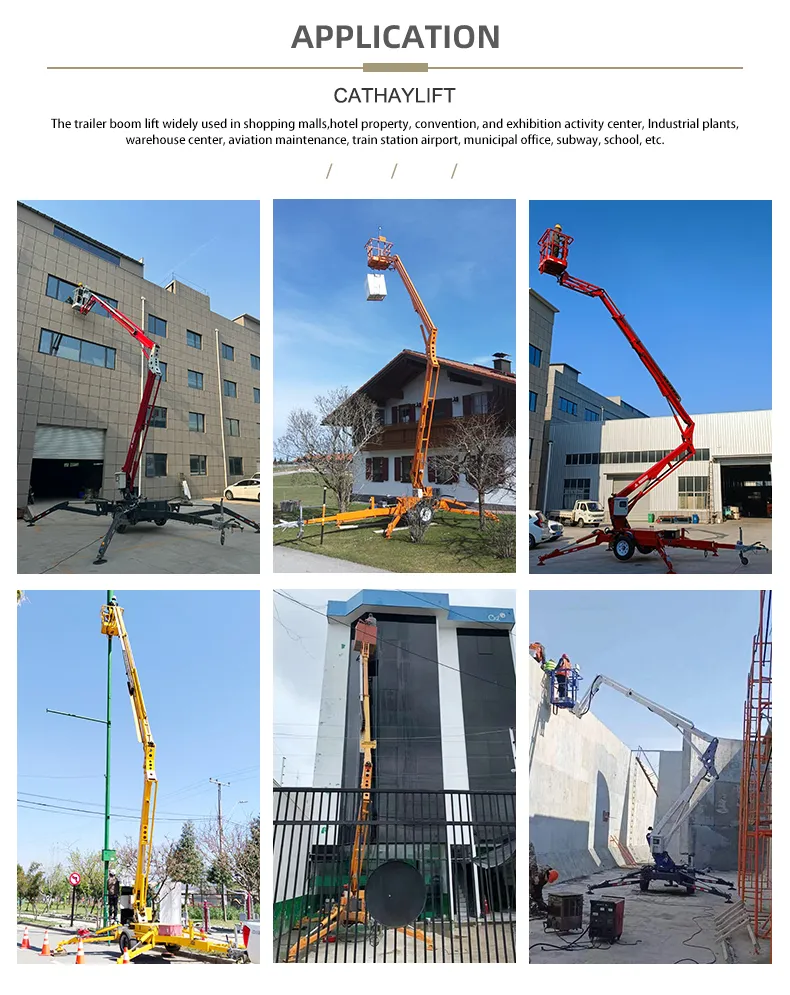

Boom lifts are versatile machines used across various industries to enhance safety and efficiency when working at height. In construction, they support installing steel structures and accessing high-rise buildings. In agriculture, they assist with harvesting, pruning, and spraying. Utility workers rely on them for electrical maintenance and pole inspections using optional insulated platforms.
