i Basic Information
Lift Mechanism
Articulated Lift
Mast Section
0.65X0.65X1.508(M)
★ Quality Design & Manufacturing
We pay all our attention to product design and manufacturing to ensure peak performance and safety on construction sites.
All Production Lines adopt special fixtures, moulds, and gauges to ensure precise detail sizing.
High-quality raw materials from China Bao Steel Group; components like motors, reducers, and safety devices are selected for low noise and reliability.
Special design with a compact and reasonable structure, making installation and adjustment easy.
Rigorous factory testing including motor brakes, safety device operations, limit switches, dropping tests, and loading tests.

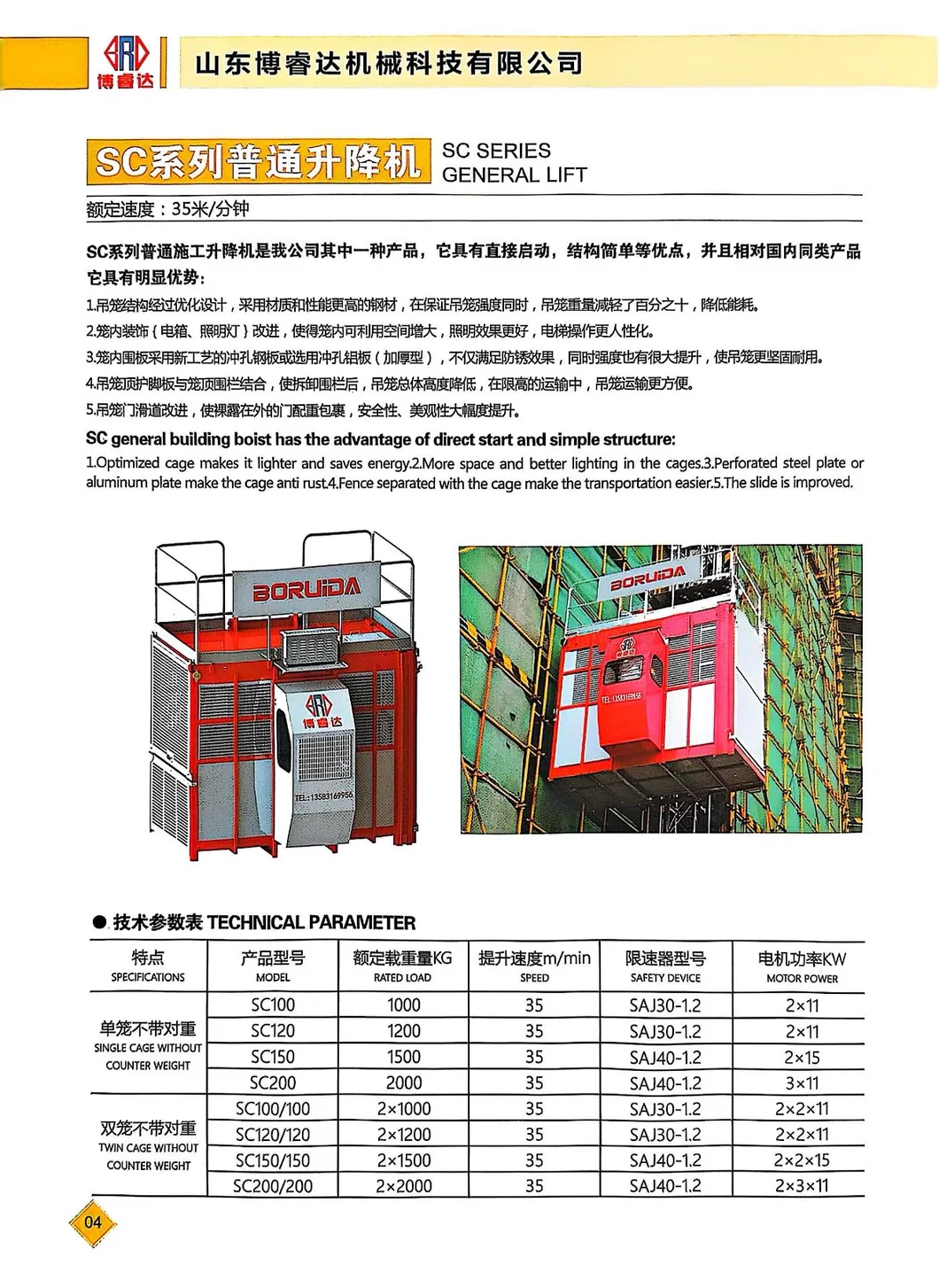

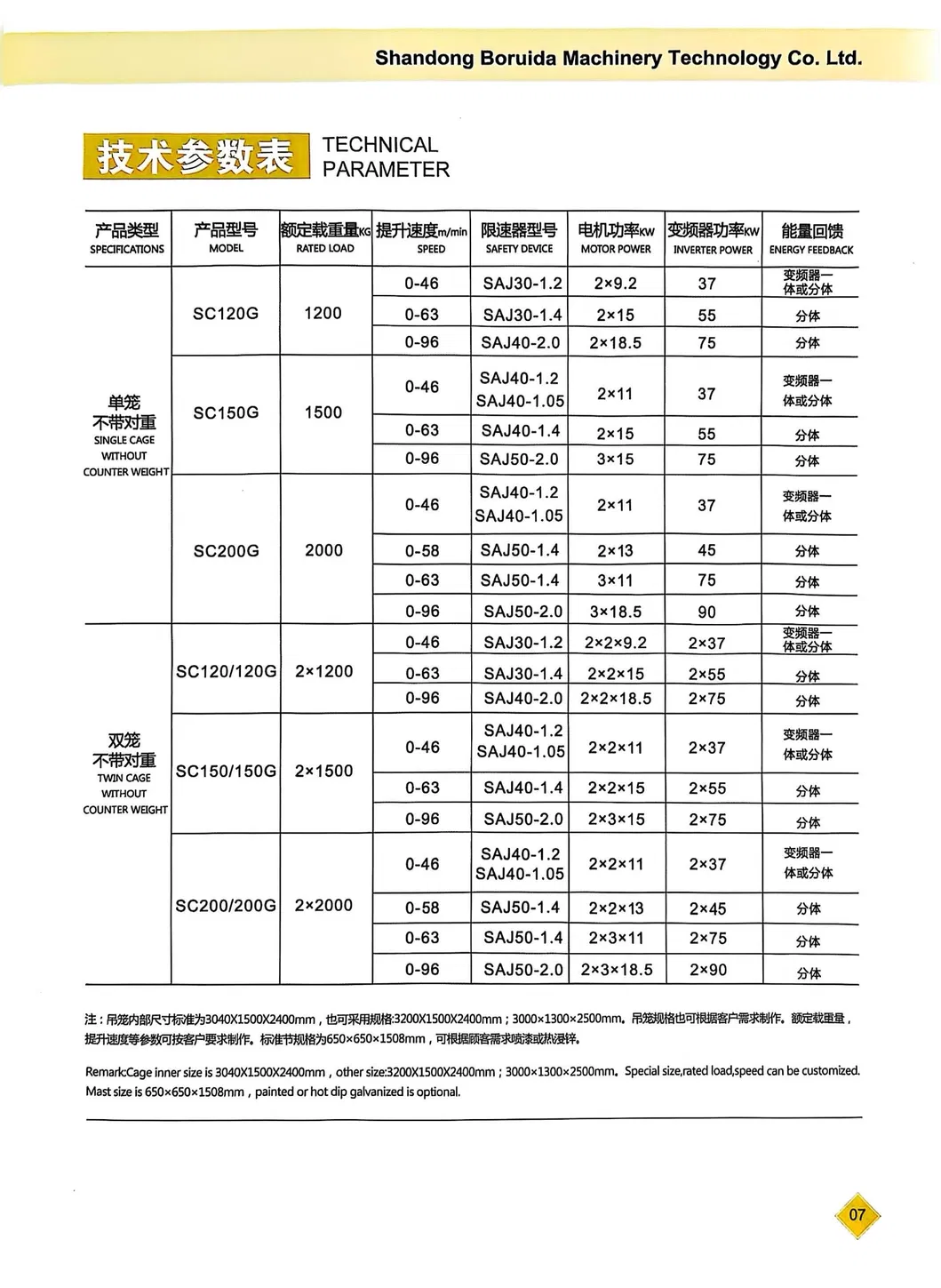

📋 Product Specifications
| Characteristic |
Model Type |
Model |
Rated Loading |
Lifting Speed |
Motor Power |
| Double cages |
Standard |
SC200/200 |
2x2000kg |
33m/min |
2x(3x11kw) |
| Standard |
SC150/150 |
2x1500kg |
33m/min |
2x(2x13kw) |
| Standard |
SC100/100 |
2x1000kg |
33m/min |
2x(2x11kw) |
| Single cage |
Low speed |
SC200D |
2000kg |
0-40m/min |
3x11kw |
| Mid speed |
SC200Z |
2000kg |
0-60m/min |
2x23kw |
✔ Prominent Features
Robot Welding: Mast sections welded by welding robots ensure reliable quality and elegant appearance.
Rust Removal: Steel structures processed with blasting technology for outstanding surface painting adhesion.

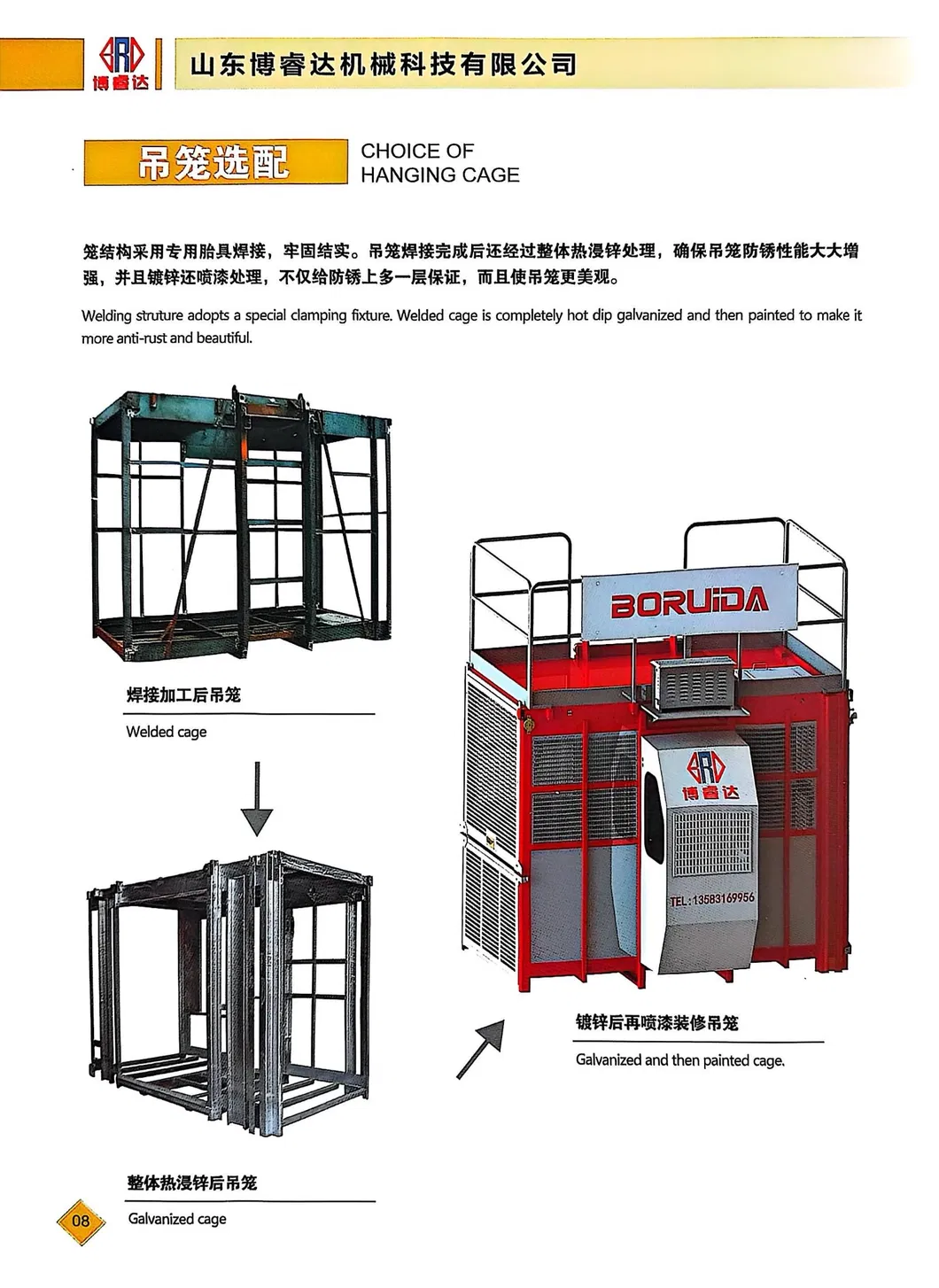

Lightweight Design: Suspension cage uses figured aluminum plates, making it lightweight and artistic.

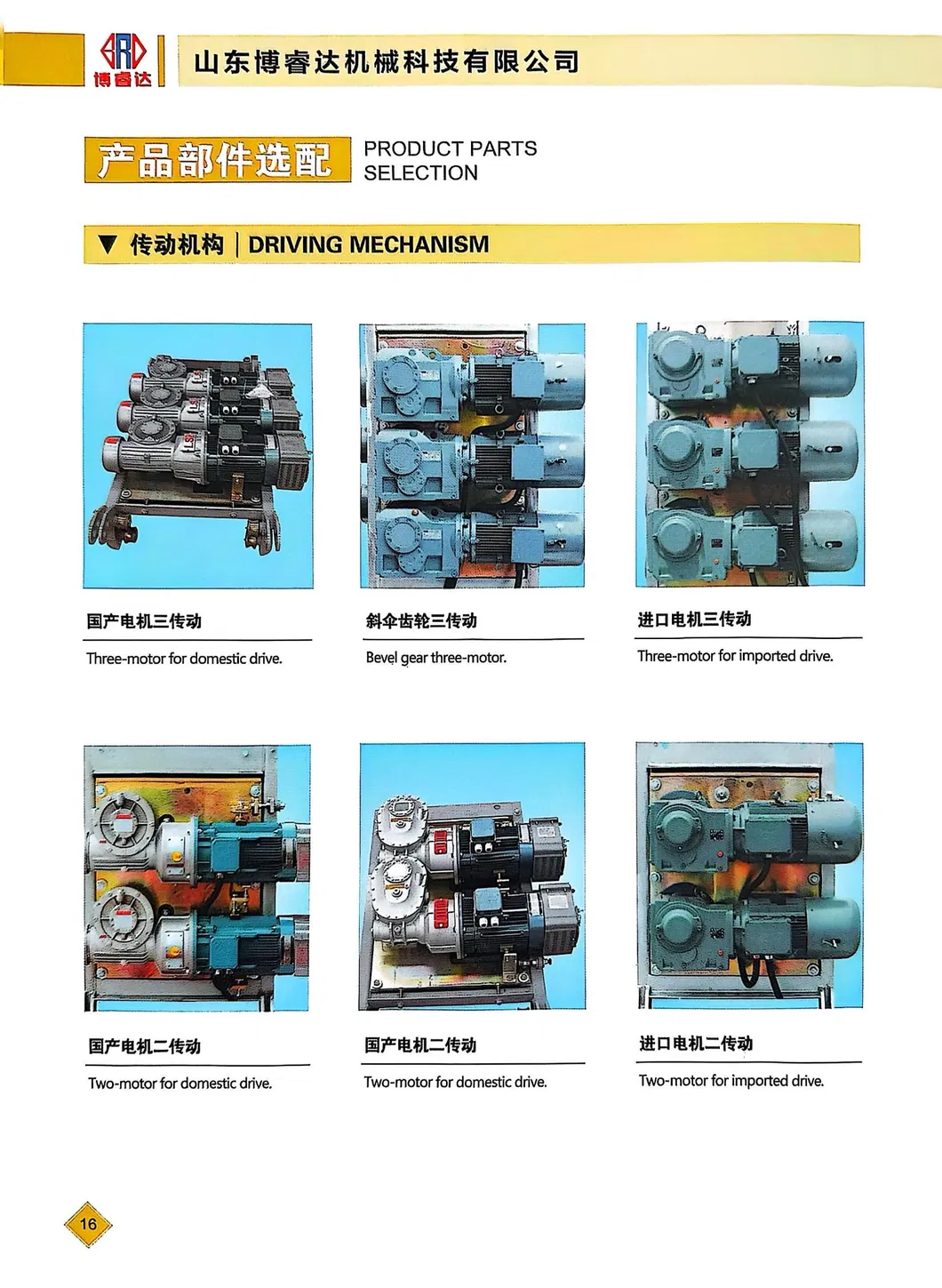

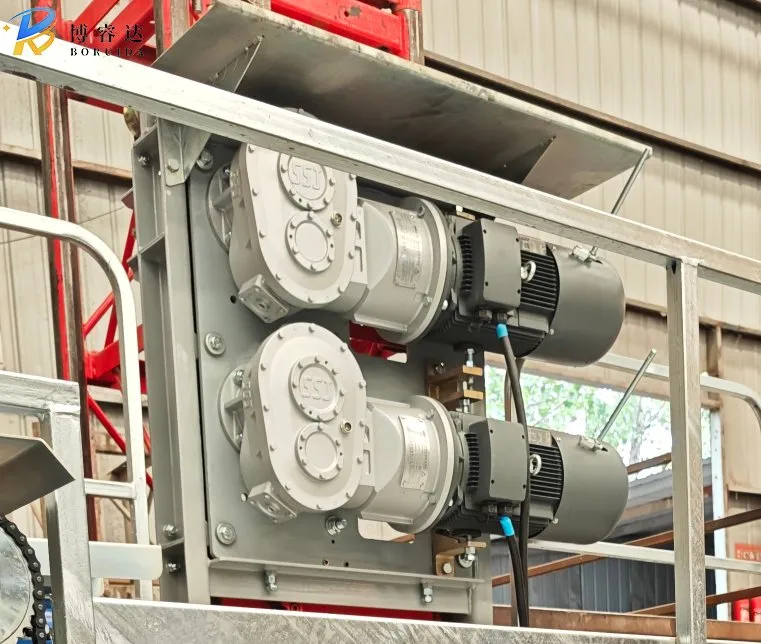

Stability: Transmission mechanisms provide high efficiency, long service life, and stable performance.
Safety Devices: Equipped with SAJ40-1.2 anti-falling devices to restrict excessive downward movement.

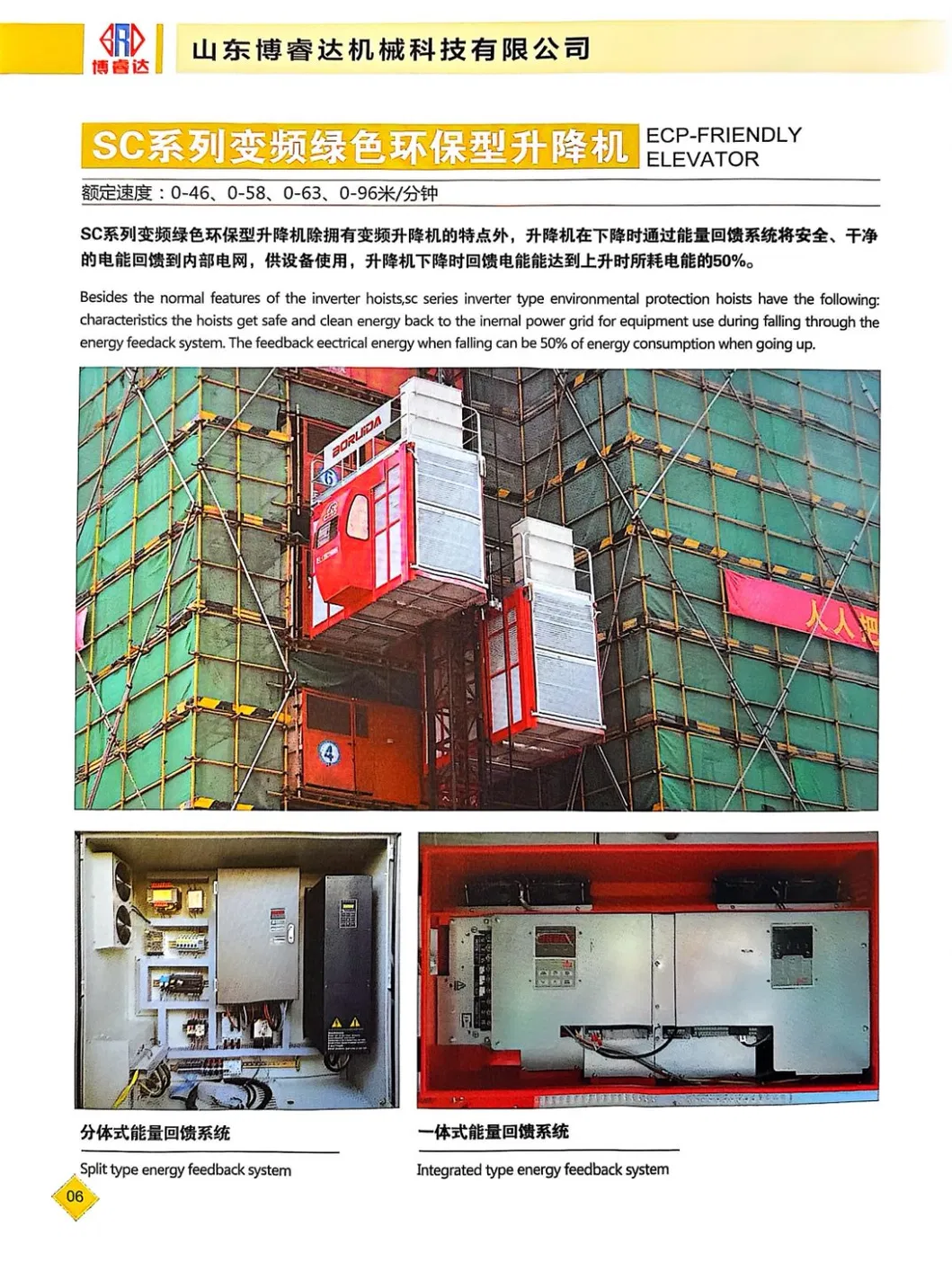

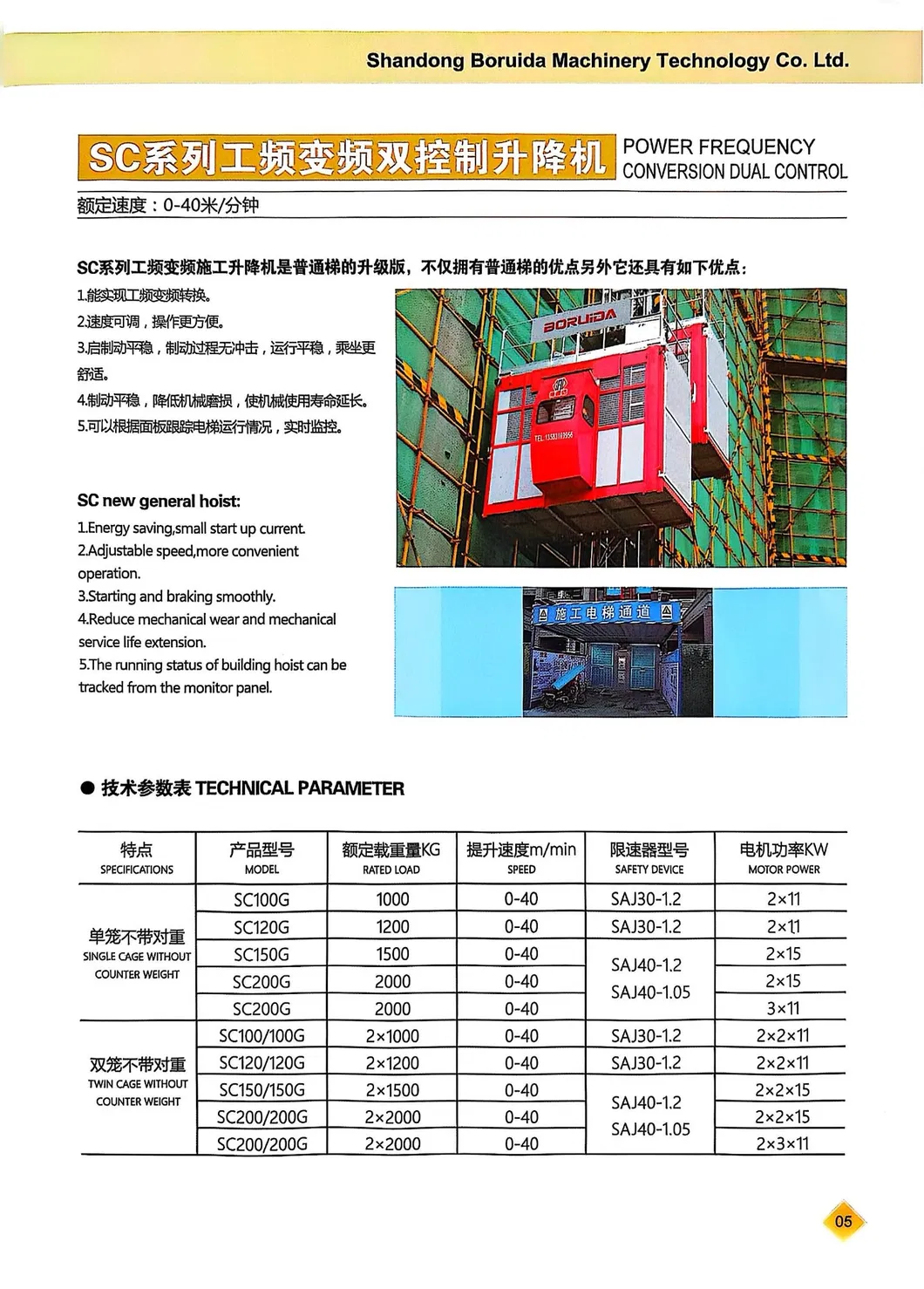

Frequency Conversion: Offers safe, stable, and energy-saving operation with smaller starting electricity.

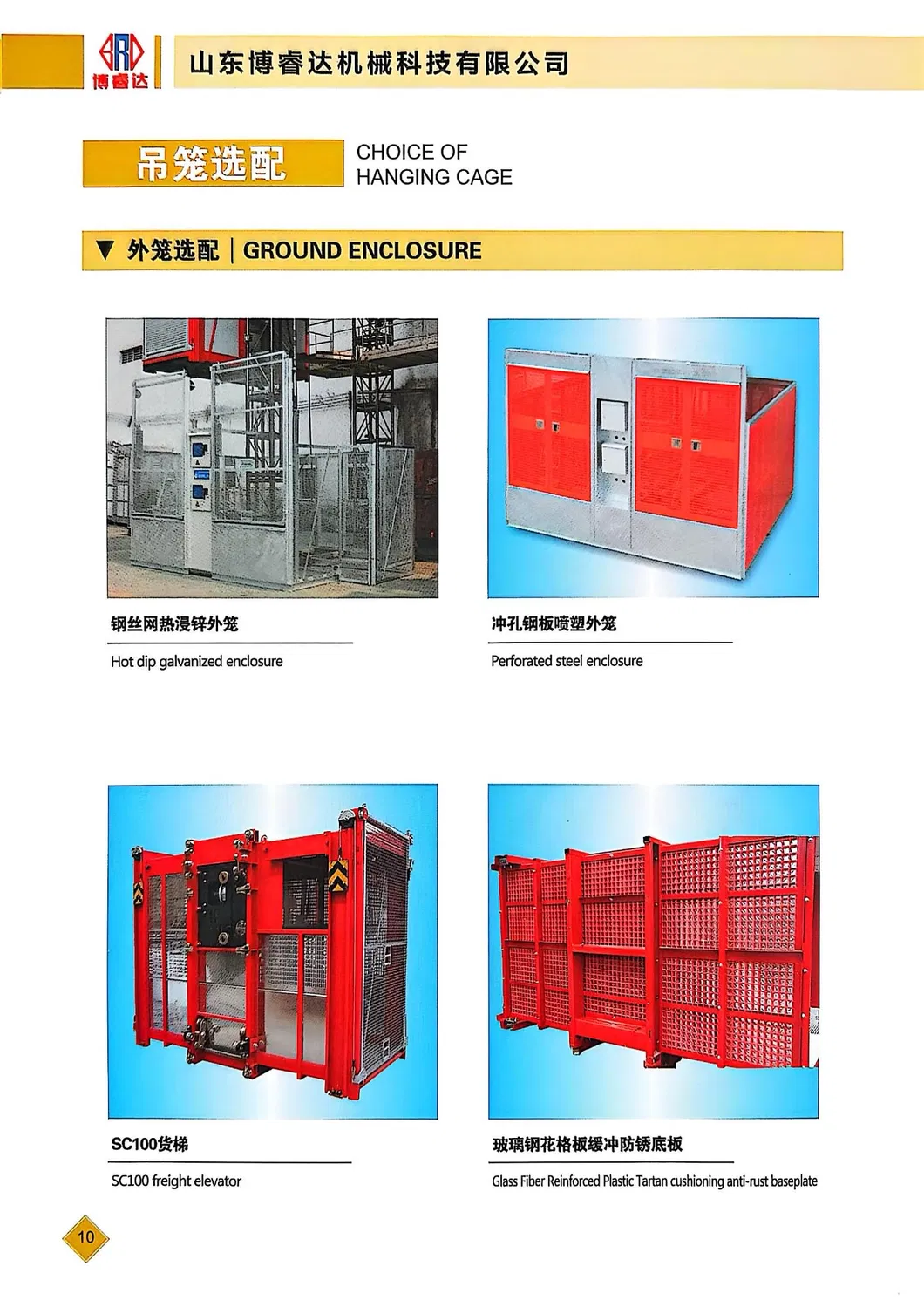

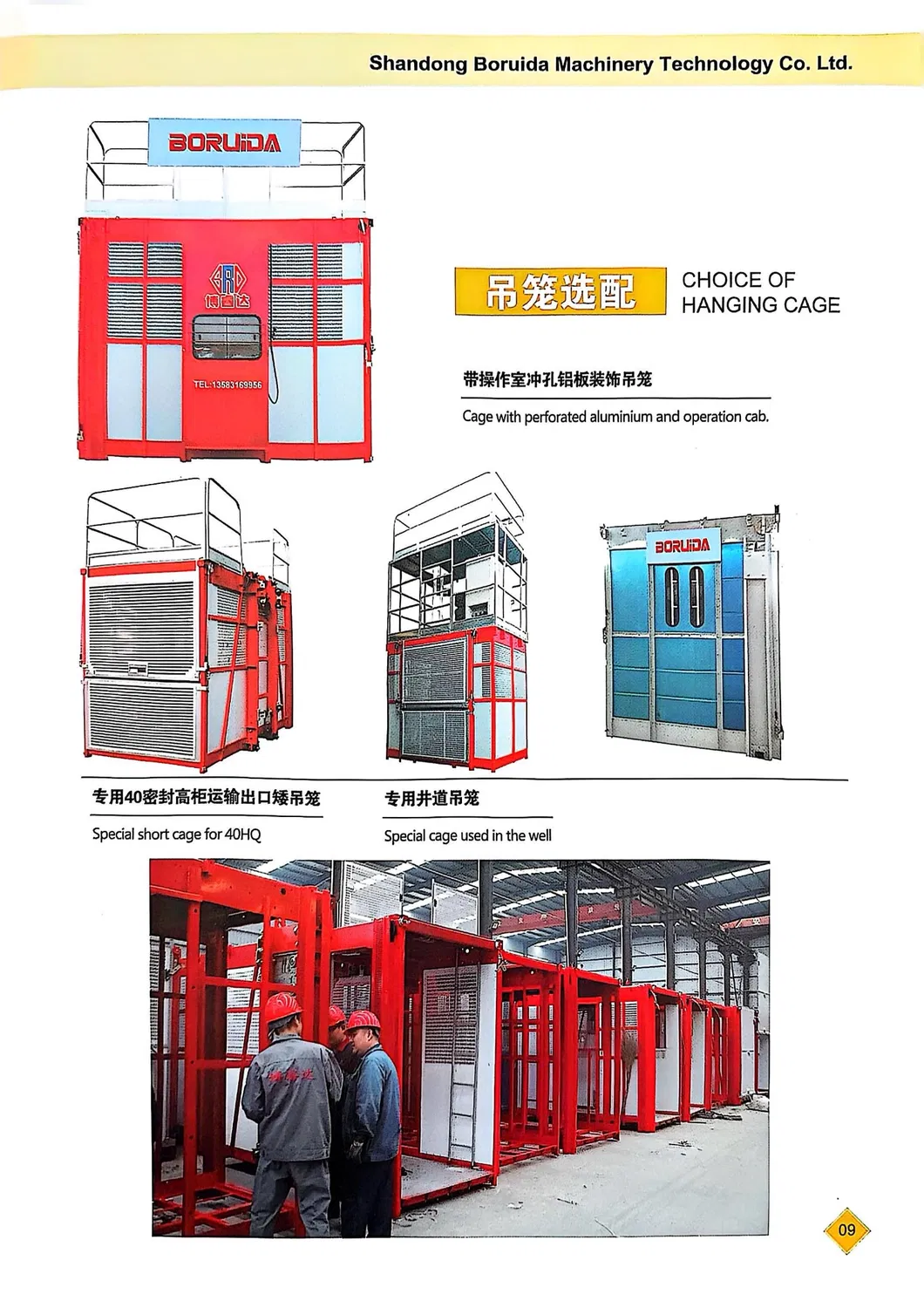

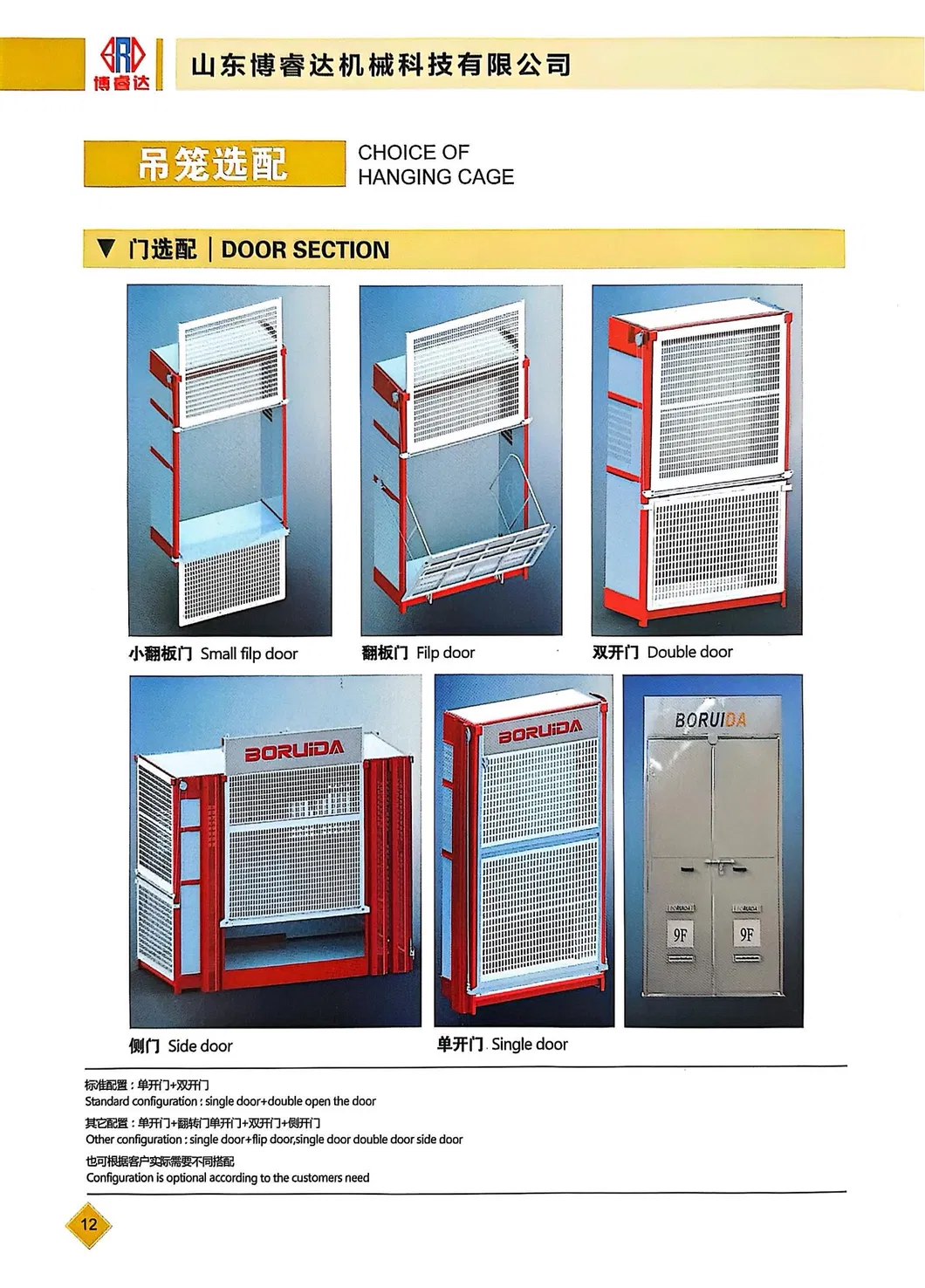

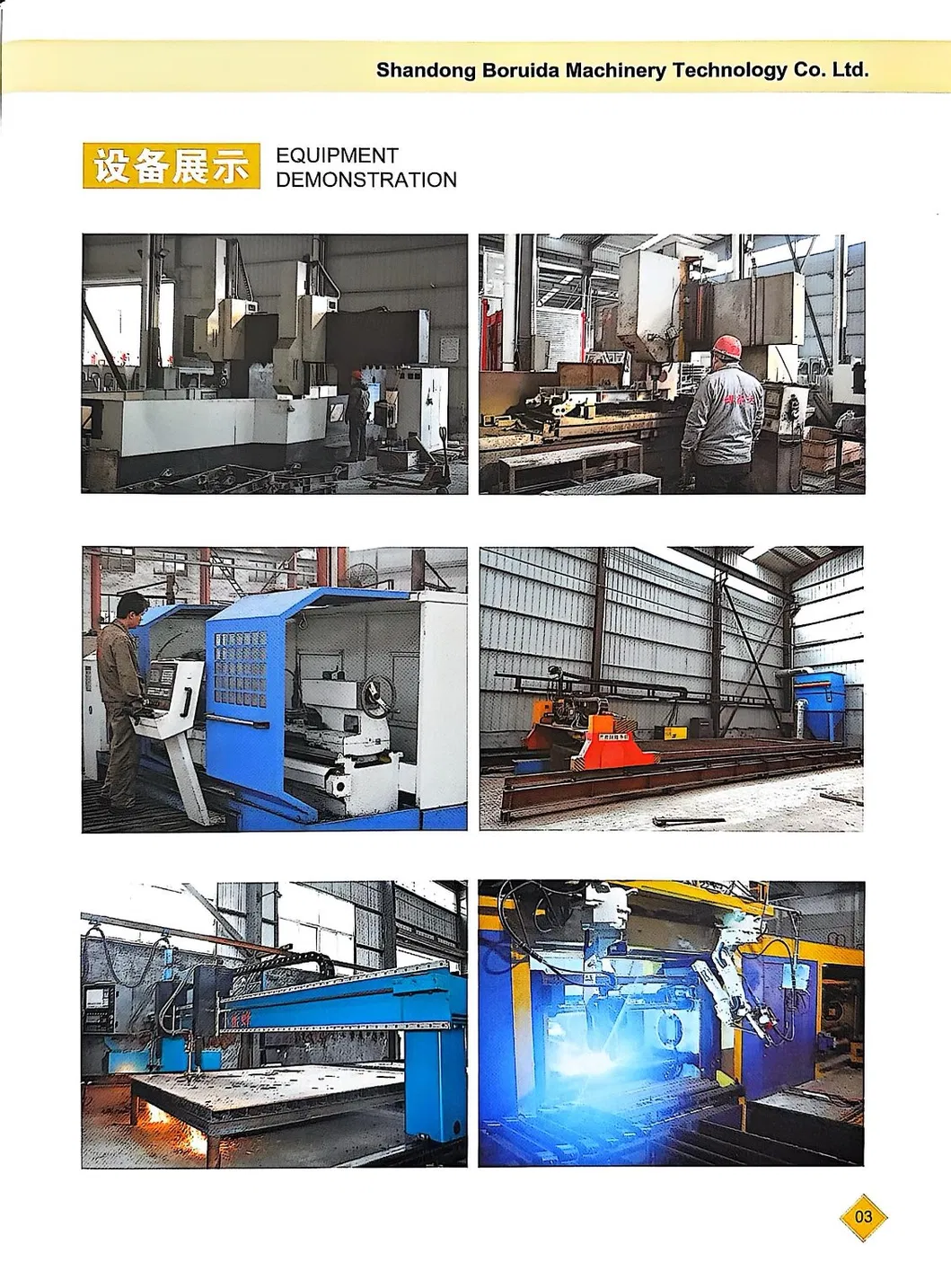

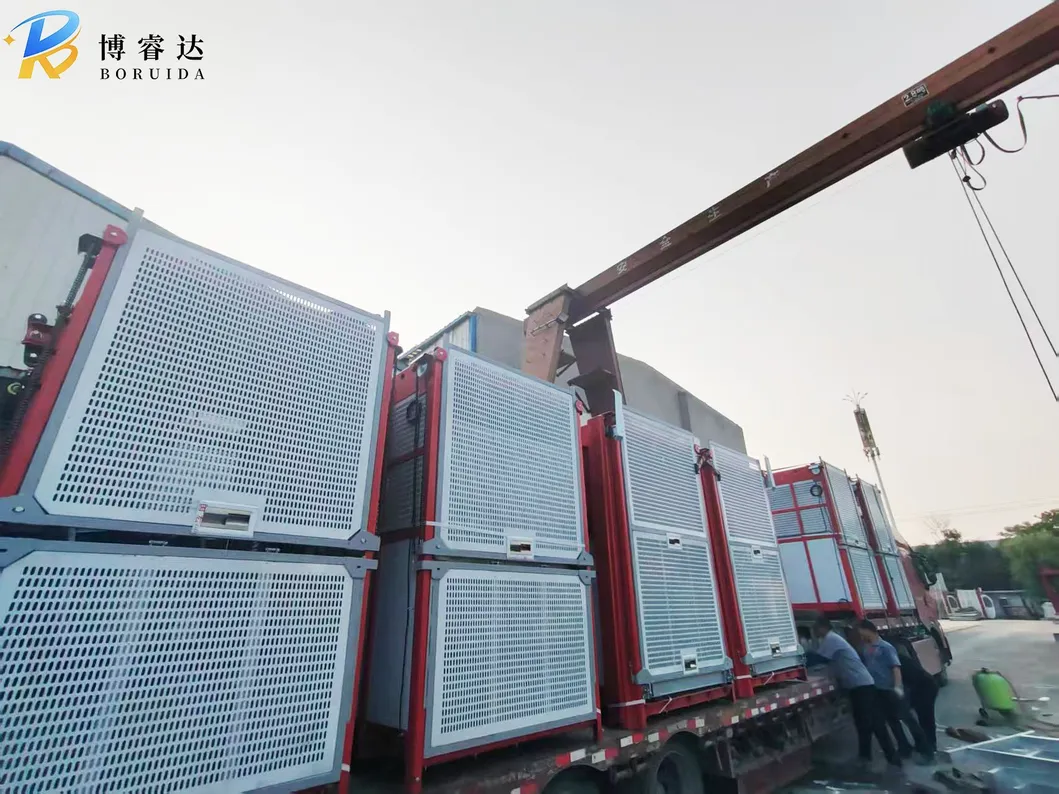

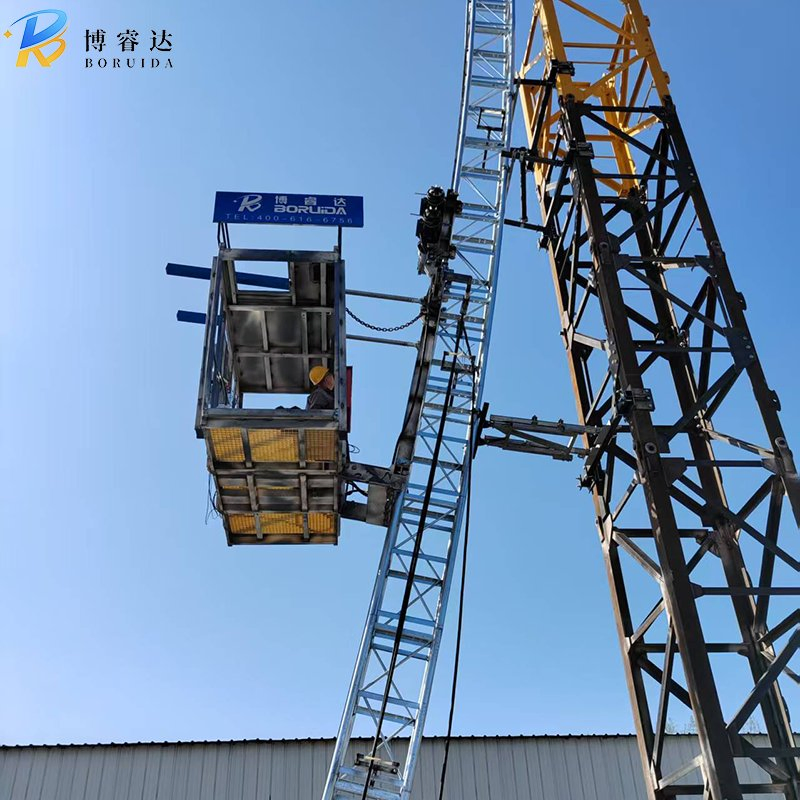

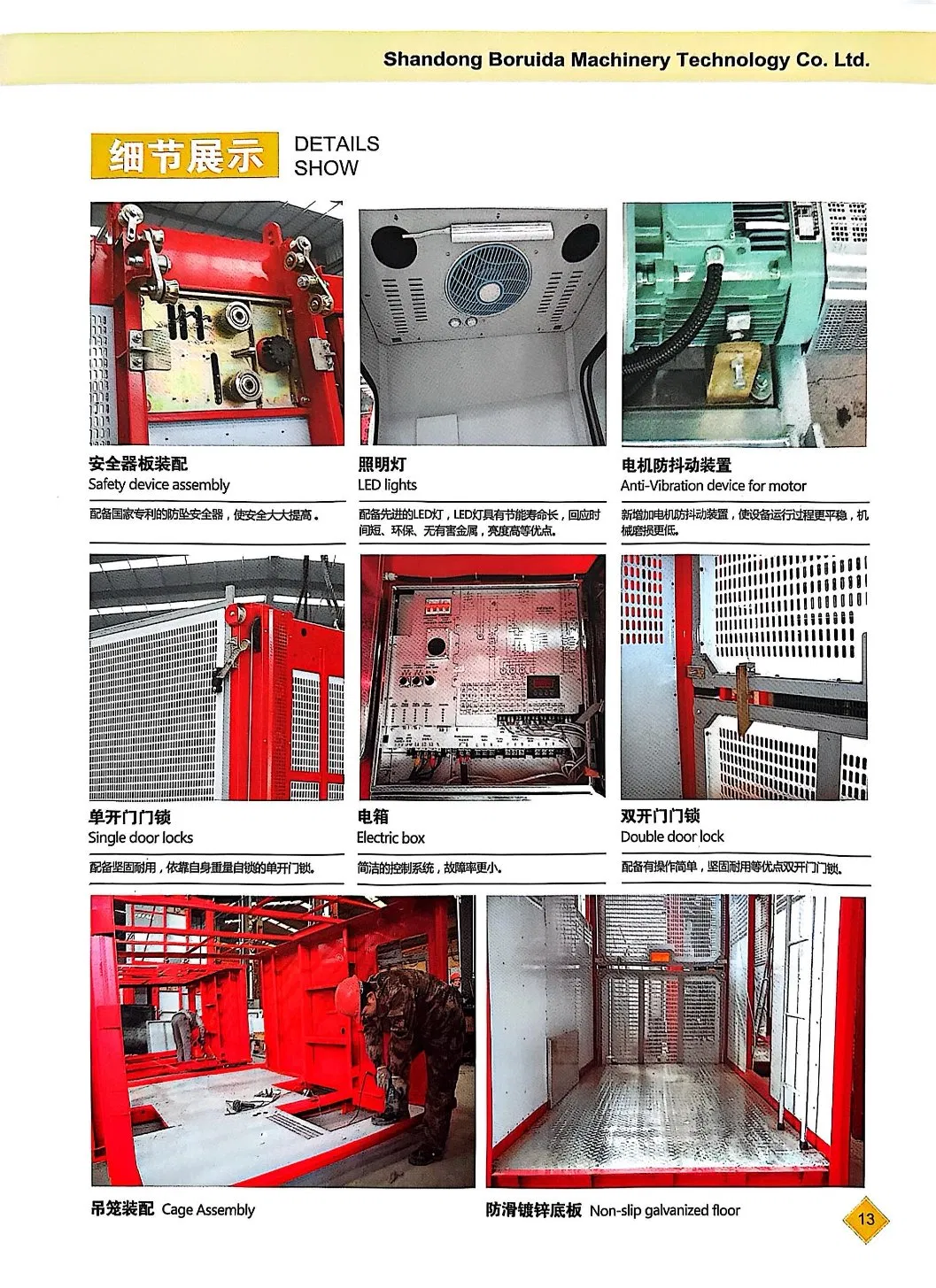

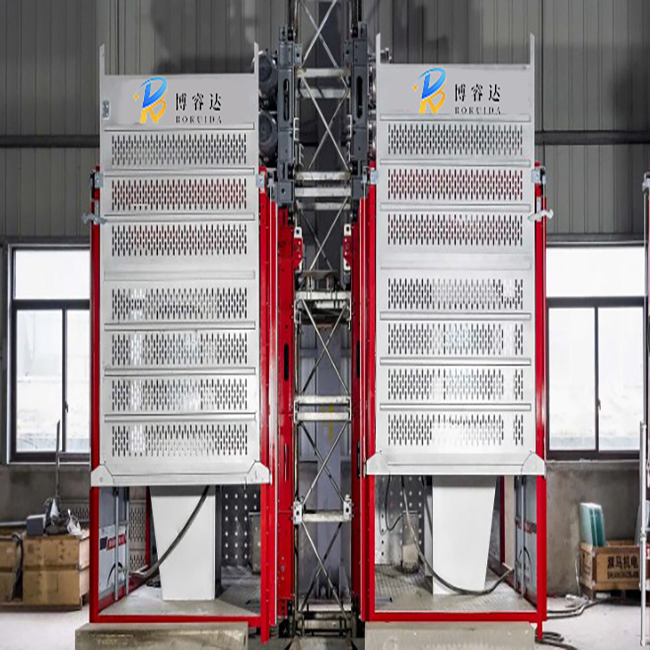

📷 Product Gallery
❓ Frequently Asked Questions
1. What safety mechanisms are installed in the construction hoist?
The equipment features a complete set of overload protection devices, variety of limiters, and a SAJ40-1.2 anti-falling safety device to restrict excessive downward movement and prevent accidents.

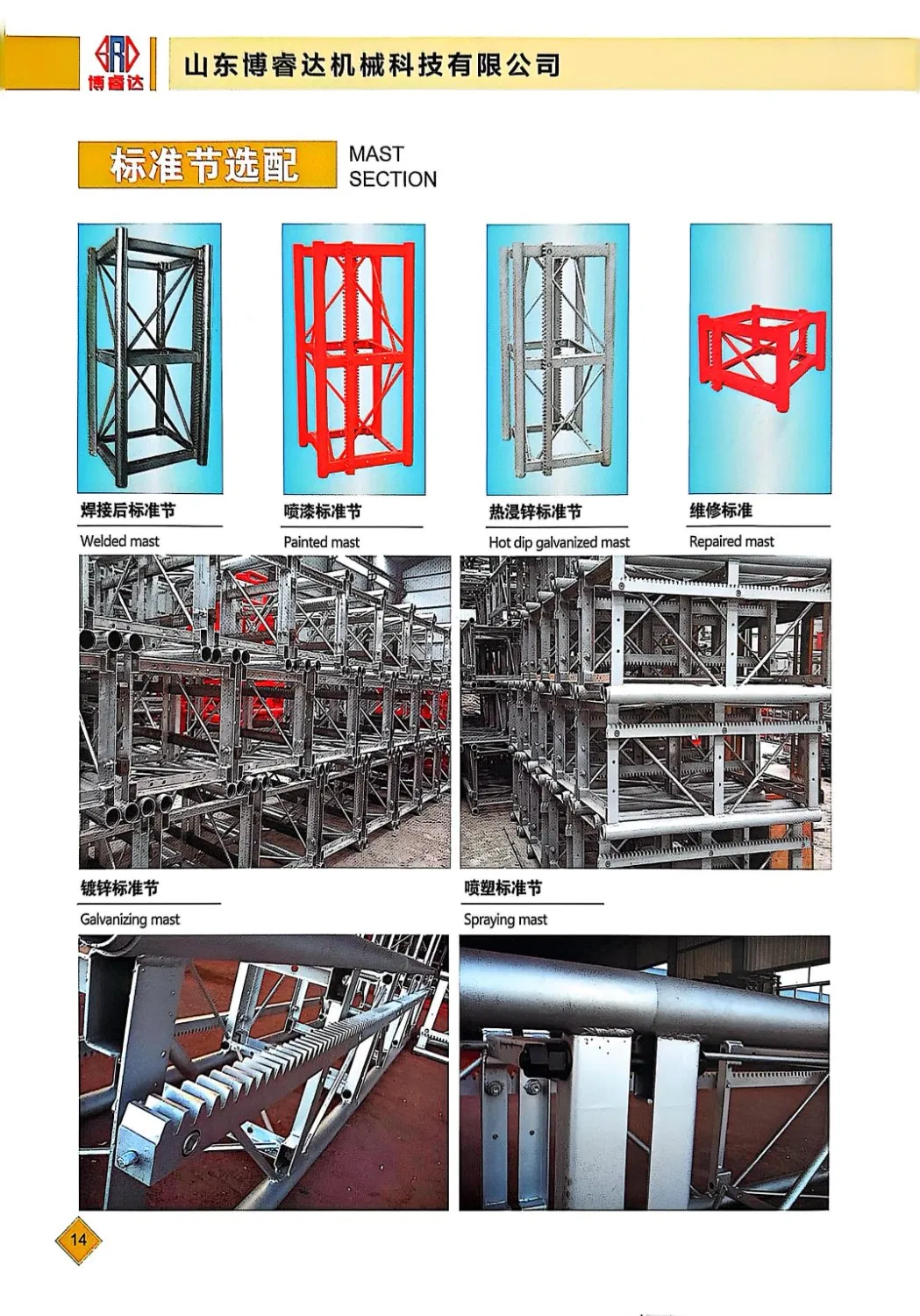

2. What are the material specifications for the mast section?
The mast sections are made of high-quality seamless steel pipes, which provide excellent verticality, anti-pressure properties, and anti-aging durability. All structures are blasted to remove rust before painting.
3. How is the quality of the welding ensured?
We use specialized welding robots for the mast sections, ensuring consistent, reliable quality and a clean, professional appearance.
4. Is the construction elevator energy efficient?
Yes, our frequency conversional models are highly energy efficient. The starting electricity is smaller than the working electricity, allowing for a safe, stable, and comfortable operation.
5. Are the machines tested before they leave the factory?
Every unit undergoes rigorous testing including motor brake checks, safety device operation, limit switch checks, dropping tests, and loading tests to ensure it is ready for immediate use.
6. What is the standard loading capacity?
Depending on the model (SC100, SC150, or SC200), the rated loading capacity ranges from 1000kg to 2000kg per cage, available in both single and double cage configurations.
