Overview & Basic Info
| Model NO. |
CL0.5-1 |
| Application |
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism |
Lift Chain |
| Driven Type |
Hydraulic |
| Feature |
Explosion-Proof |
| Certification |
CE |
| Origin |
China |
Technical Specifications
| Model |
CL0.5-2200 |
| Load Capacity |
100kg - 10 Ton |
| Platform Size |
1500*1500mm (Customized) |
| Max Lifting Height |
10000mm (Customized) |
| Platform Material |
100*50*4mm rectangular tube + 3mm checkered plate Q345B |
| Pump Motor |
2.2kw - 5kw |
| Lifting Chains |
16A |
| Safety Rope |
Diameter 10mm |

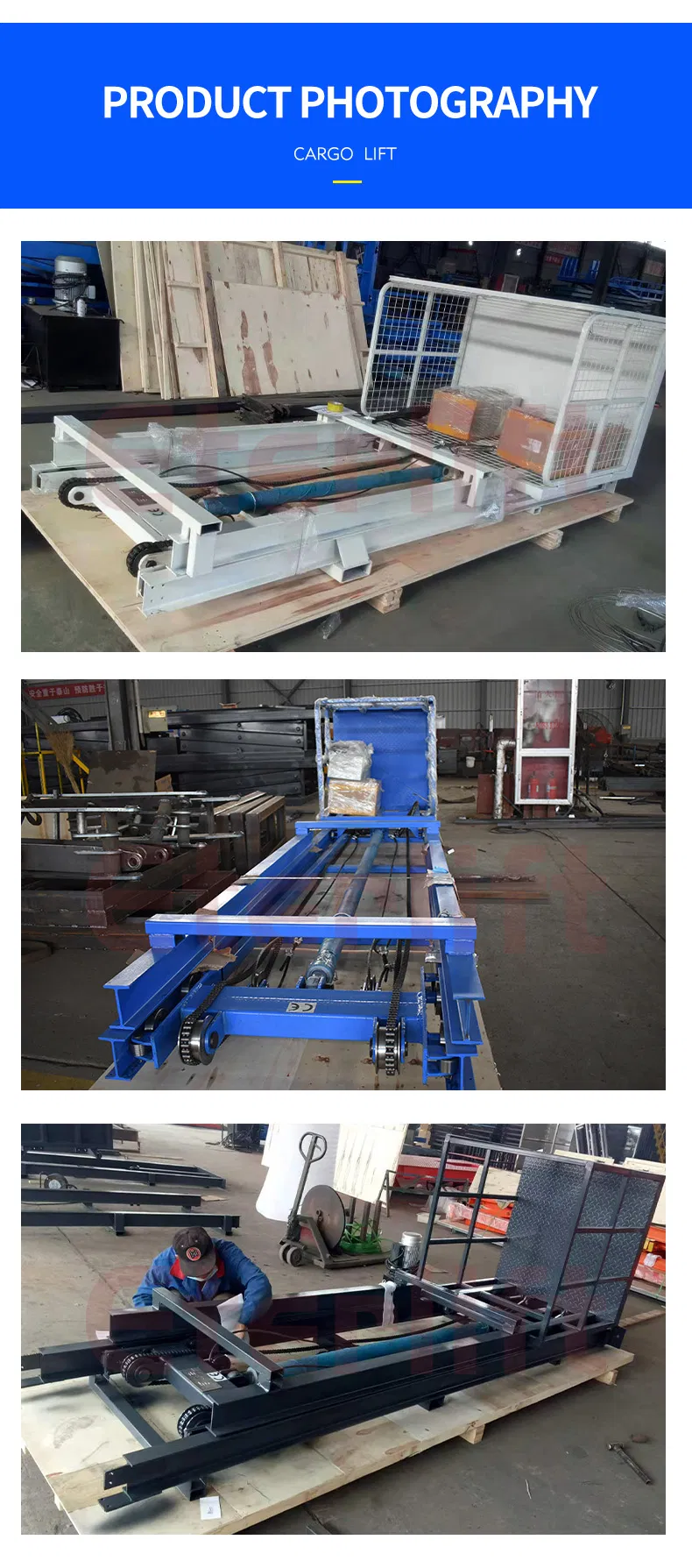

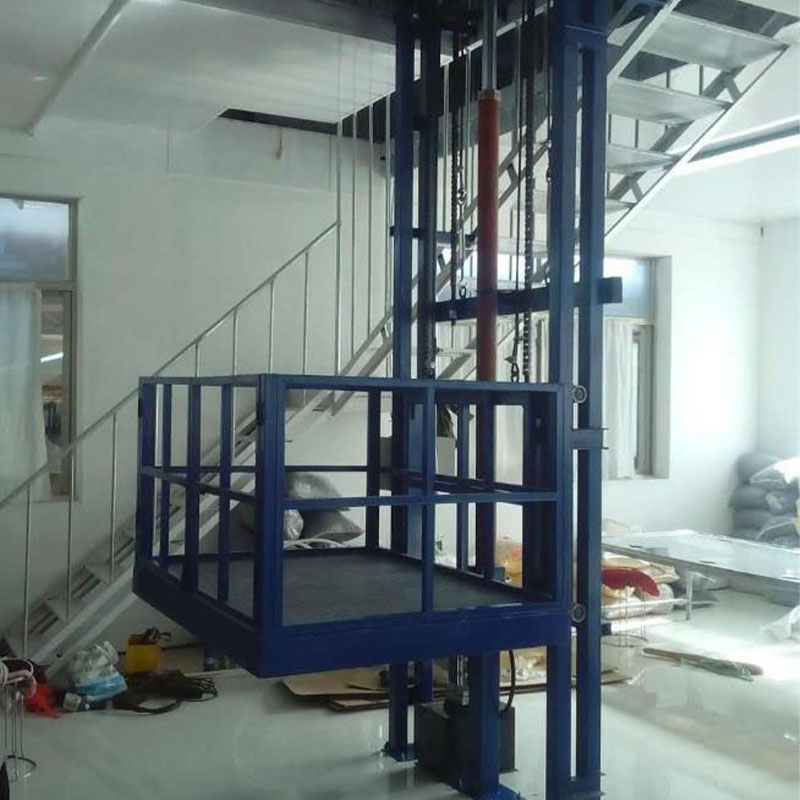

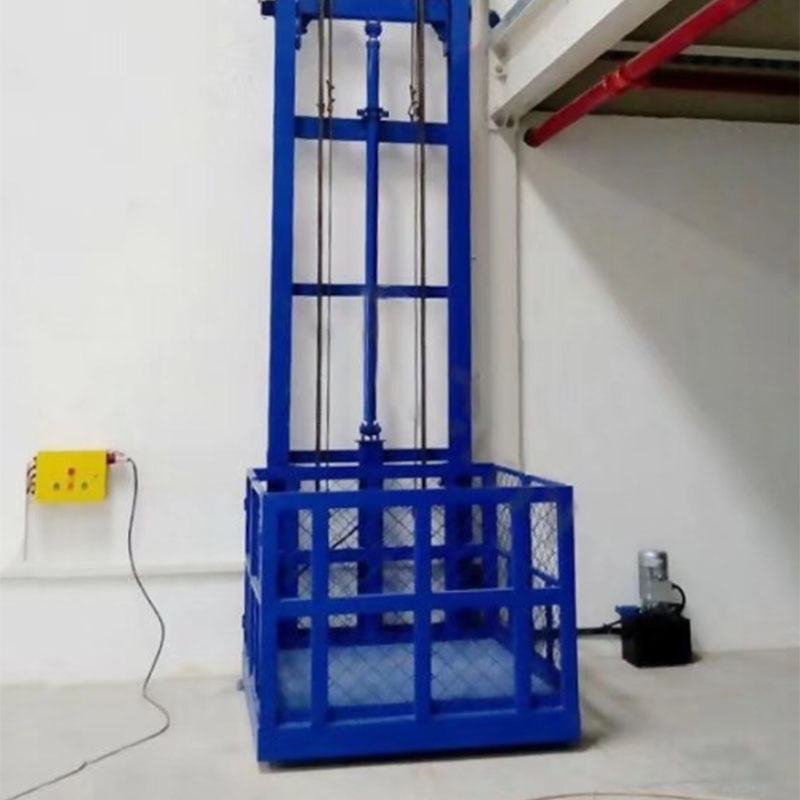

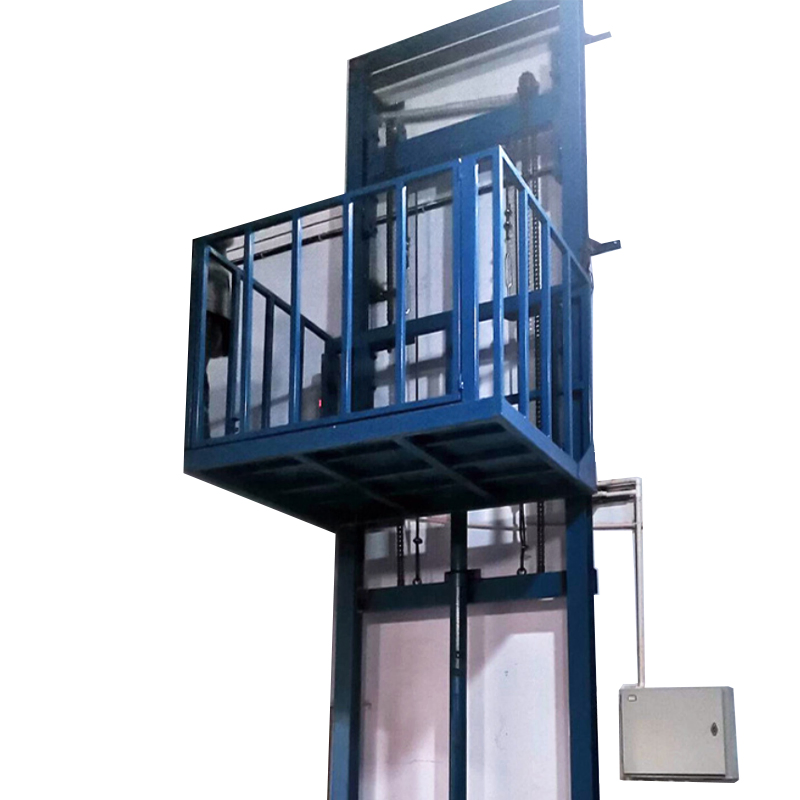

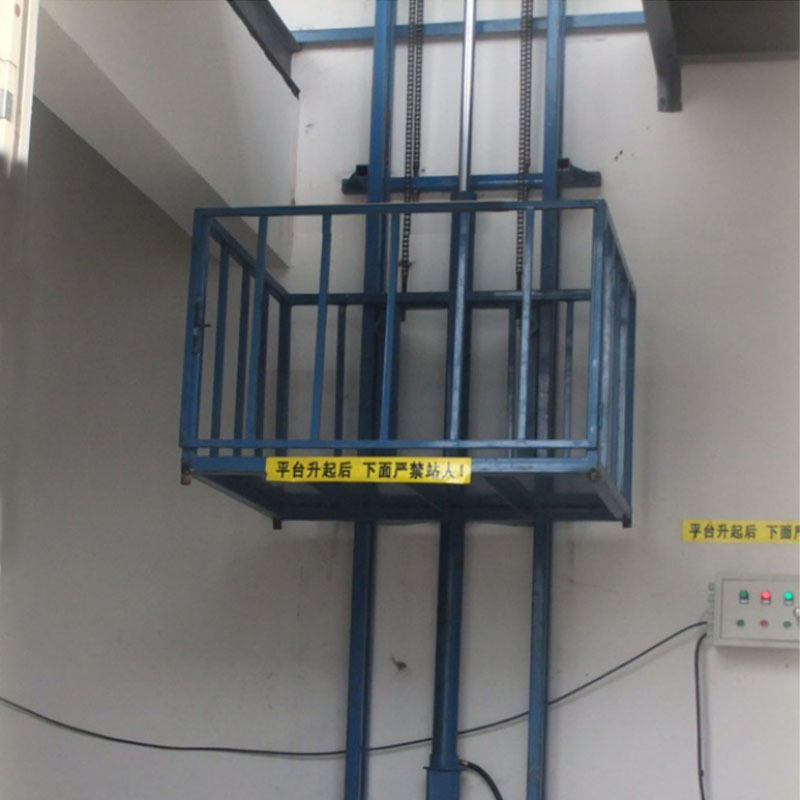

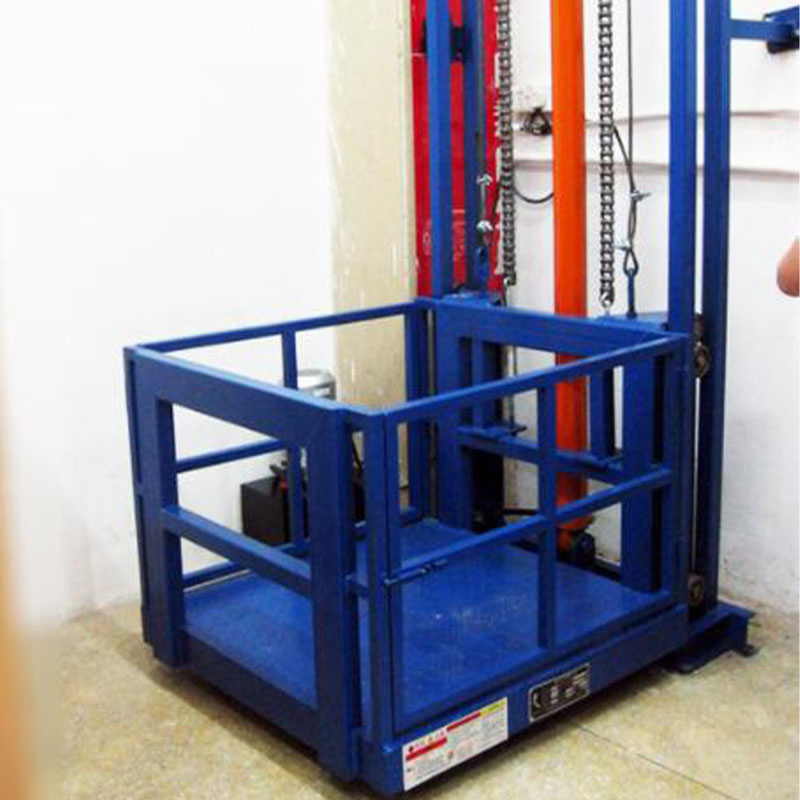

Product Gallery
Mezzanine Lift Door Solutions
The doors of a mezzanine lift in a warehouse can be fixed to the platform in several ways, depending on the design, safety requirements, and usage:
◈
Hinged Doors: Attached directly to the platform with heavy-duty hinges; can be single or double-leaf and equipped with interlocks.
◈
Vertical Lift Doors: Move up and down using a counterweight or motorized mechanism, similar to roller shutters.
◈
Folding Doors: Comprised of multiple panels that fold upon opening, ideal for tight spaces.
◈
Guillotine-Style Doors: Consist of two or more sections that counterbalance each other, common in high-security environments.
Mounting Methods
- Direct Mounting: Doors attached to the main lift frame.
- Guide Rails & Tracks: Essential for sliding and vertical movement.
- Spring-Loaded Mechanism: Ensures automatic closure for safety.
- Electromagnetic Locks: Keeps doors secured during operation.
Frequently Asked Questions
Q1: What is the maximum weight capacity of this cargo lift?
The load capacity is highly customizable, ranging from 100kg up to 10 tons to suit various industrial needs.
Q2: Can the platform size be customized for my warehouse?

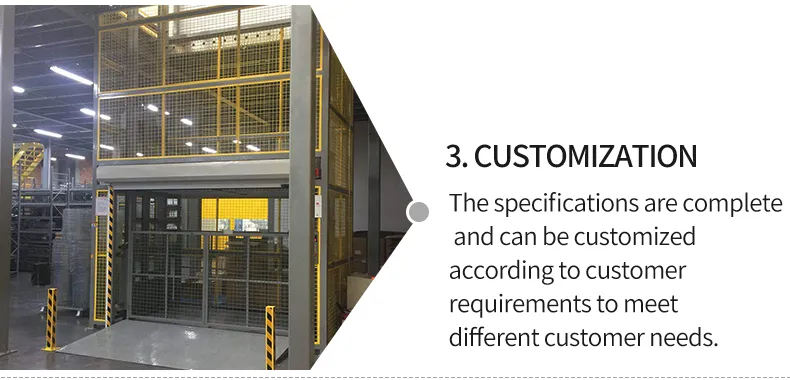

Yes, while the standard size is 1500*1500mm, we can customize the platform dimensions and the lifting height (up to 10,000mm) according to your specific requirements.
Q3: What safety features are included?
The lift includes high-strength lifting chains (16A), 10mm diameter safety ropes, explosion-proof features, and interlocked door systems to ensure secure operation.
Q4: What type of power system does it use?
It utilizes a high-efficiency hydraulic driven system with a pump motor ranging from 2.2kw to 5kw.
Q5: What kind of packaging is used for delivery?
The product is securely packed in a specialized wooden box (standard size 200cm x 200cm x 200cm) to ensure safe international transport.
Q6: Does the equipment have international certification?
Yes, the cargo lift platform is CE certified, meeting European safety and quality standards.
