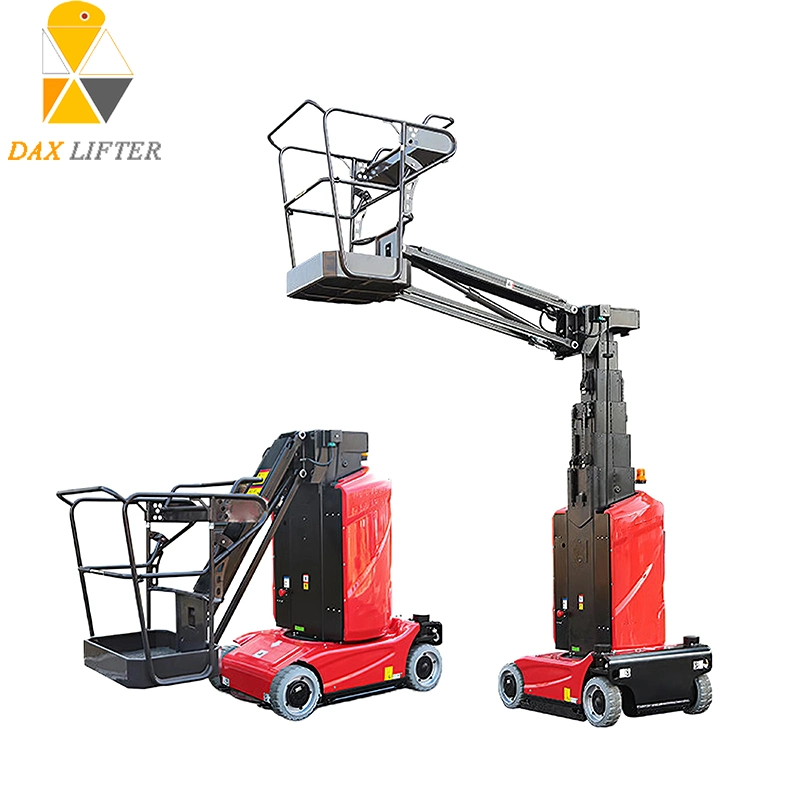

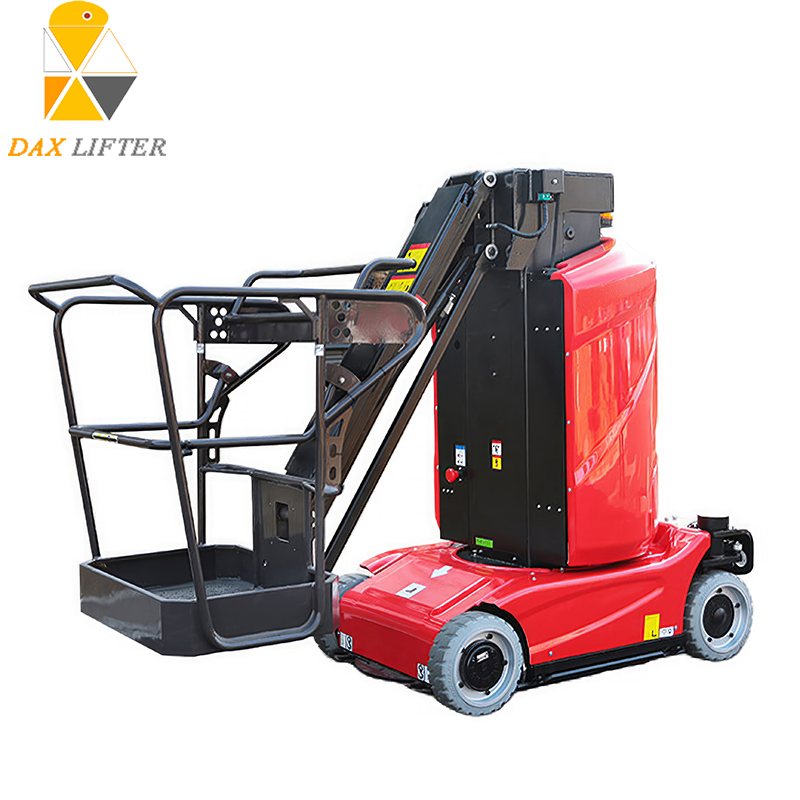

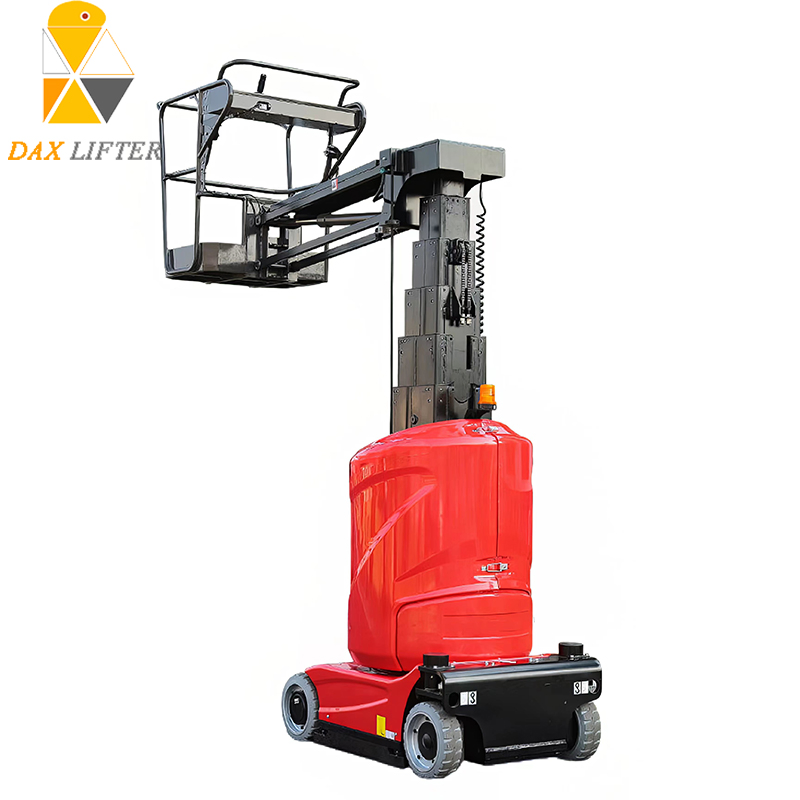

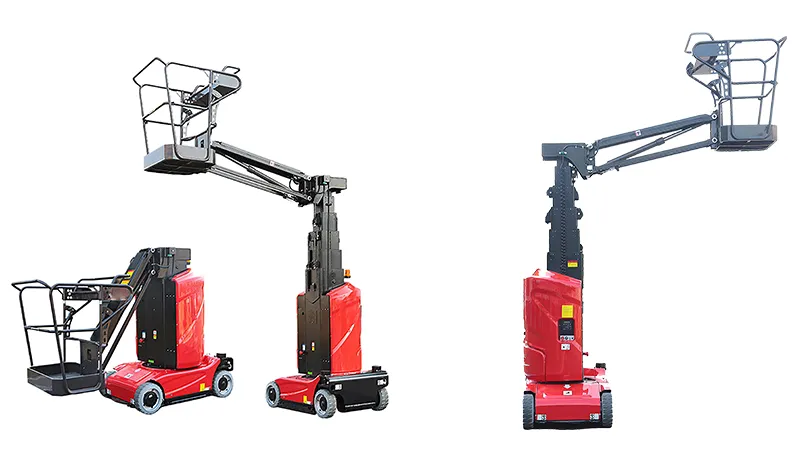

The DXTT-FB® is a small, flexible aerial work equipment designed for restricted working spaces such as airports, hotels, and supermarkets. It offers high-end configurations at an economic price point, making professional-grade performance more accessible.

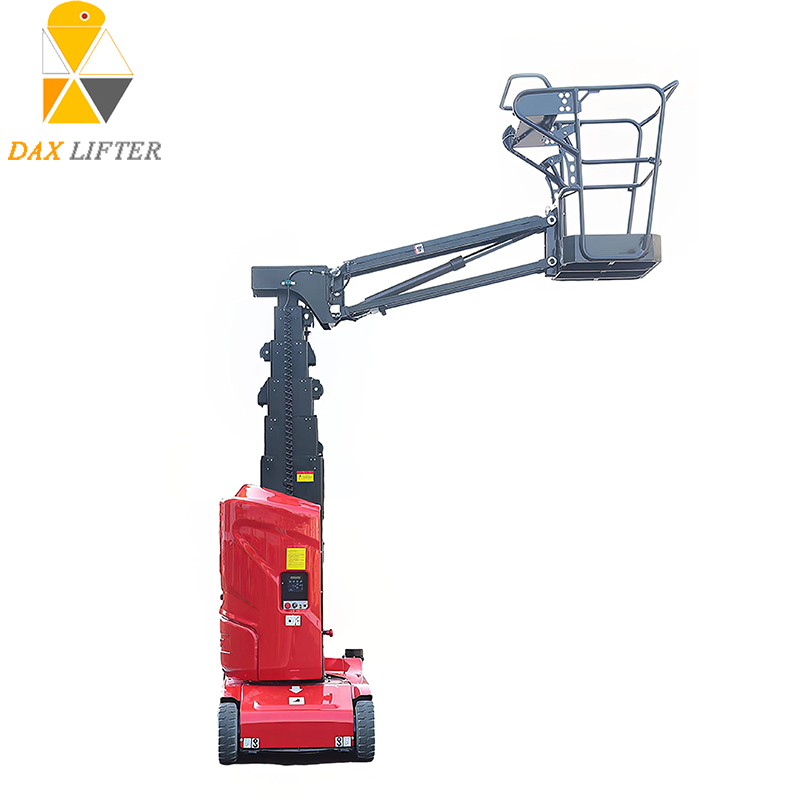

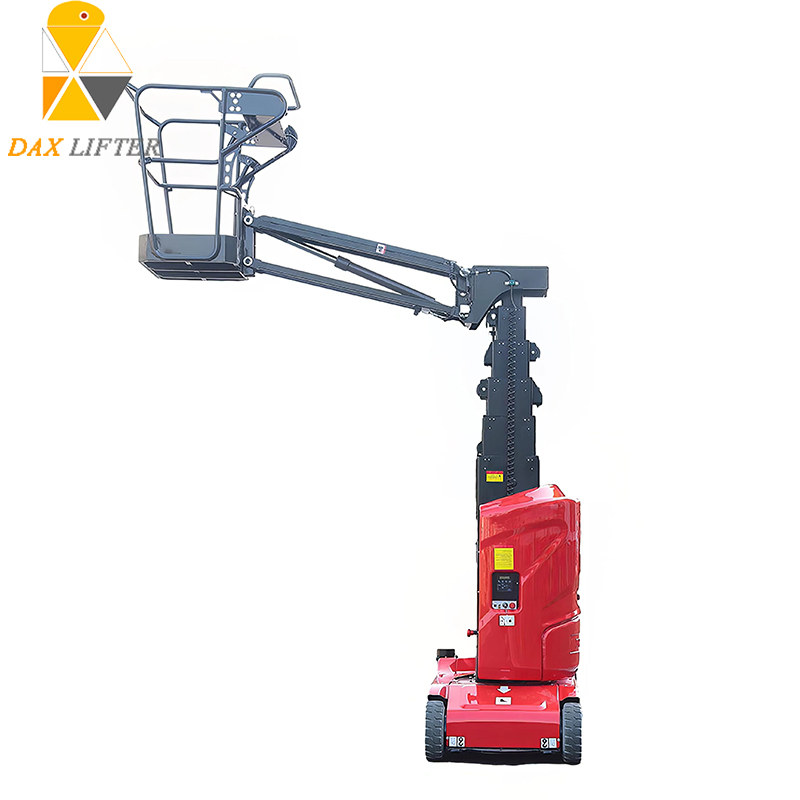

The most prominent feature of this equipment is its 3m horizontal extension at high altitudes, which significantly expands the operational range for workers while ensuring safety and practicality.

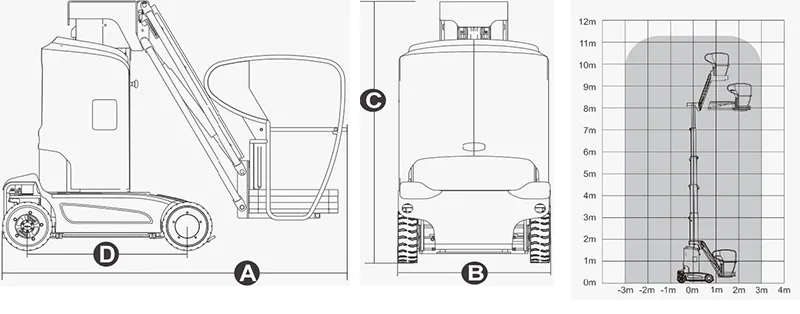

| Parameter | Specification |
|---|---|
| Max. Working Height | 11.2m |
| Max. Platform Height | 9.2m |
| Loading Capacity | 200kg |
| Max. Horizontal Reach | 3m |
| Up and Over Height | 7.89m |
| Platform Dimension | 0.62m × 0.87m × 1.1m |
| Travel Speed (Stowed) | 4.5km/h |
| Battery | 24V/240Ah |
| Weight | 2950kg |
The maximum working height reaches up to 11.2 meters, with a platform height of 9.2 meters.
It has a rated loading capacity of 200kg to 227kg, suitable for one worker plus tools.
The most prominent feature is its ability to extend 3 meters horizontally at high altitudes, providing a much larger working range.
Yes, it is specifically designed with a small volume and self-propelled movement to suit narrow warehouse work, hotels, and supermarkets.
The lifter is compliant with CE, RoHS, and ISO standards, and includes safety features like an emergency stop switch.
It utilizes a 24VDC power system with a high-capacity 240Ah battery for efficient, long-lasting performance.
