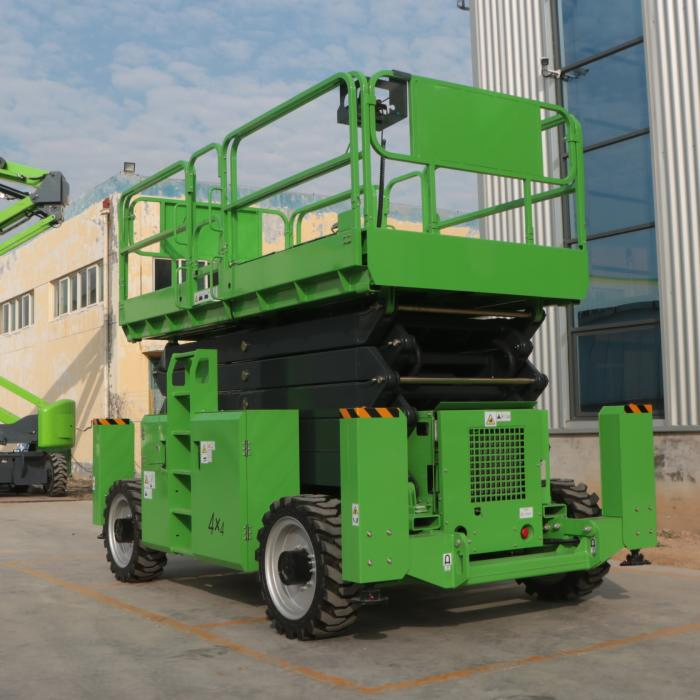

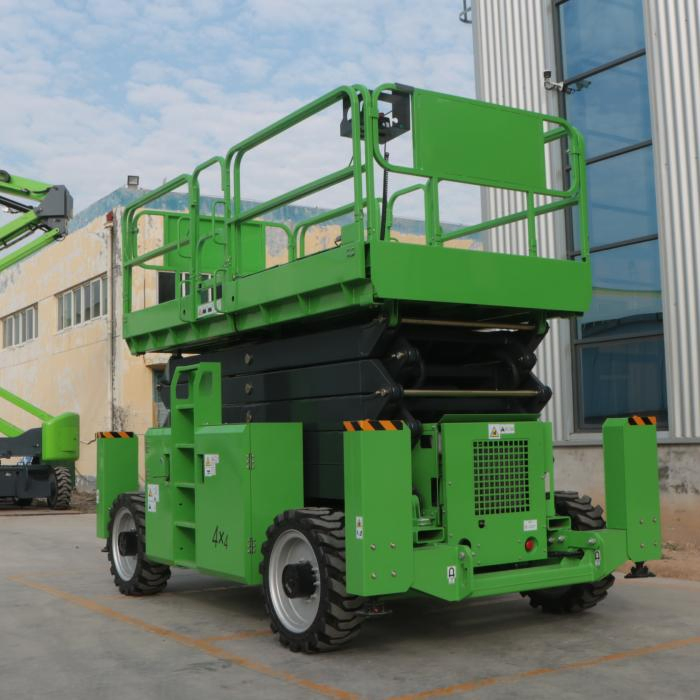

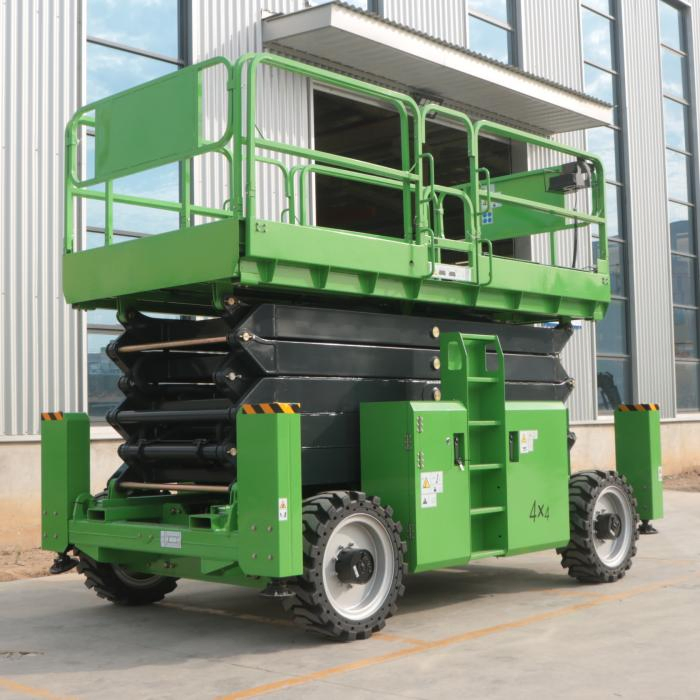

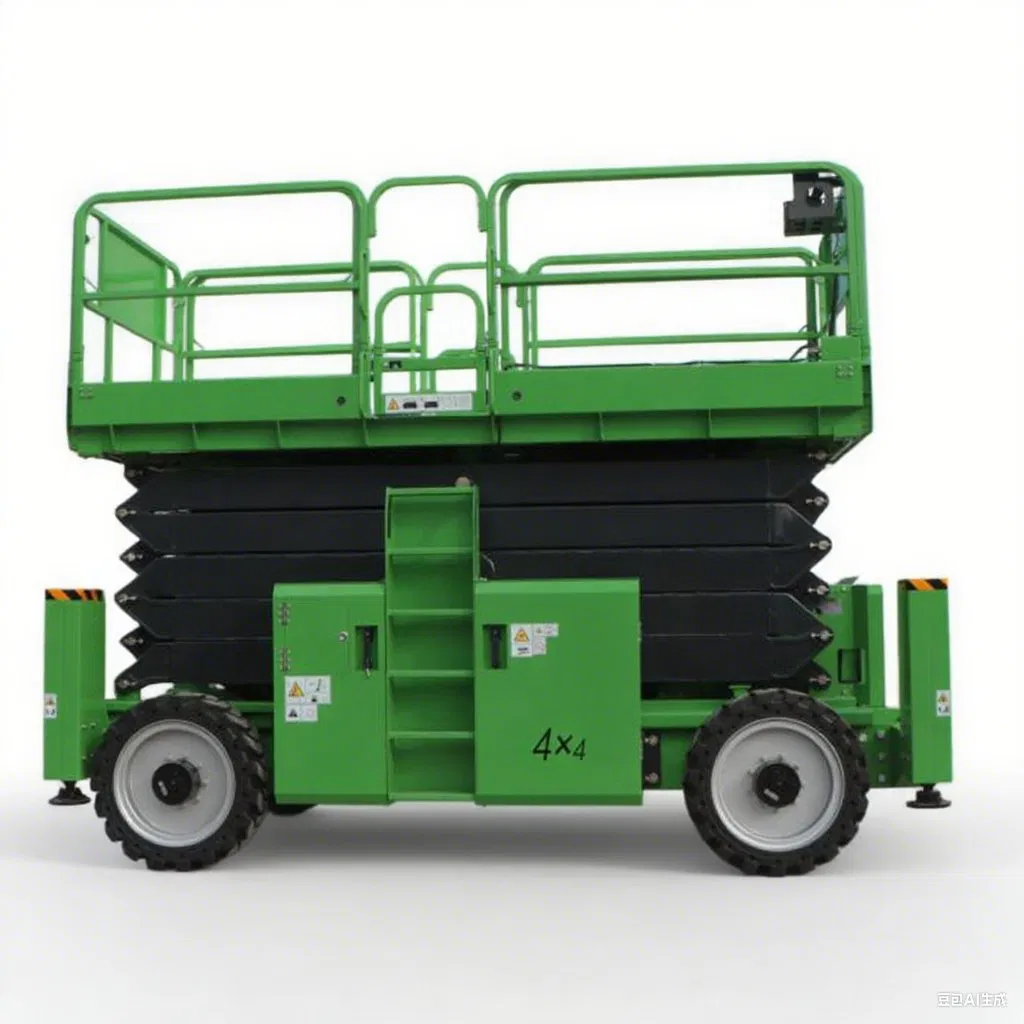

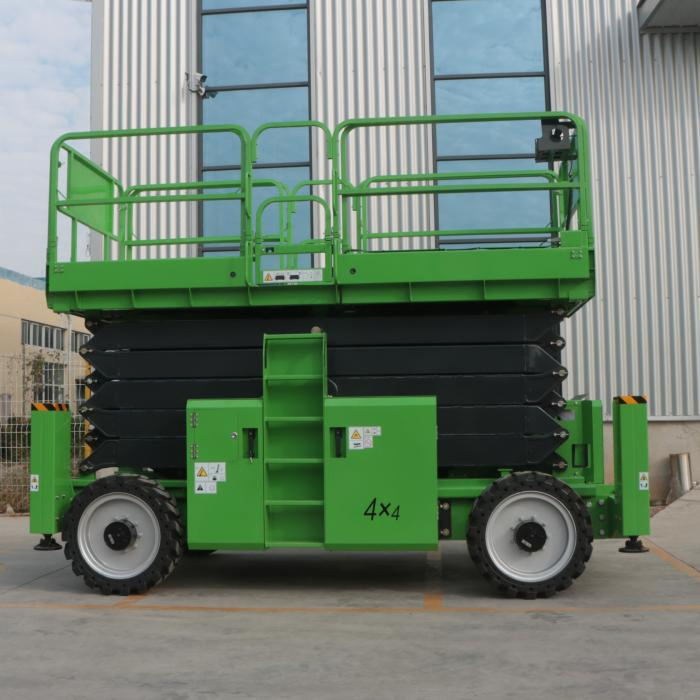

16m Max Height Diesel Scissor Lift - 450kg Capacity & Rough Terrain Option for Outdoor Jobs From Gp

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years

Product Description

Overview

Model NO.
GTJZ16D
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Vehicular
Driven Type
DC
Running Mode
Moving
Feature
Insulating
Certification
CE
Wheelbase
2.84m
Ground Clearance
0.23m
HS Code
8427109000
Package Size
150cm * 50cm * 180cm

Product Description

Aerial work platforms have made many difficult and dangerous jobs much easier, such as indoor and outdoor cleaning (ceilings, curtain walls, glass Windows, eaves, canopies, chimneys, etc.), installation and maintenance of billboards, installation and maintenance of street lamps and traffic signs, construction site work, etc. The features of this high-altitude lifting platform are flexibility, convenience and speed. A lifting platform can be used instead of scaffolding to reach the height you need and solve your problem. At the same time, it can also save your expenses and precious time. It is particularly suitable for continuous high-altitude operations in large areas such as airport terminals, stations, docks, shopping malls, sports venues, residential property management, factory and mine workshops, etc.

Product Parameters

Parameters Specifications
ModelGTJZ16D
Max. working height18m
Max. platform height16m
Max. lift capacity680kg
Lift capacity of extended platform230kg
Length (without/with outrigger)4.2m / 4.81m
Width3.25m
Height - stowed2.56m
Wheelbase2.84m
Platform dimension3.95 × 1.83m
Extended platform1.22 / 1.52m
Min turning radius2.78 / 4.95m
Grade ability21.8° (40%)
Weight8850kg
EngineYanmar 4TNV94L-B×PHZ
Engine power rating35.5Kw / 2600rpm

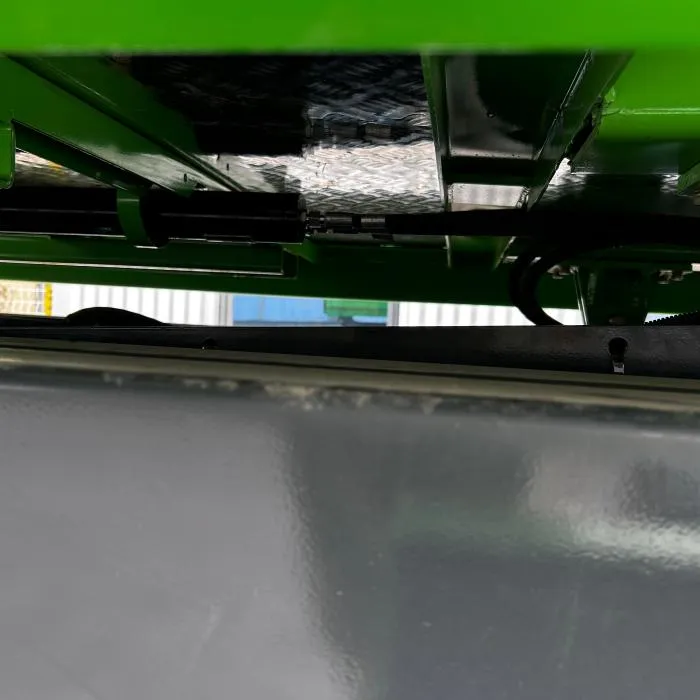

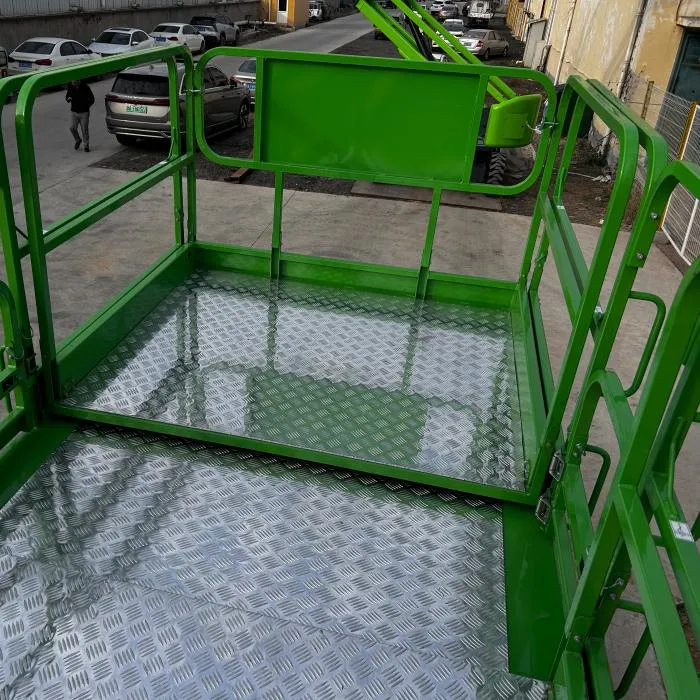

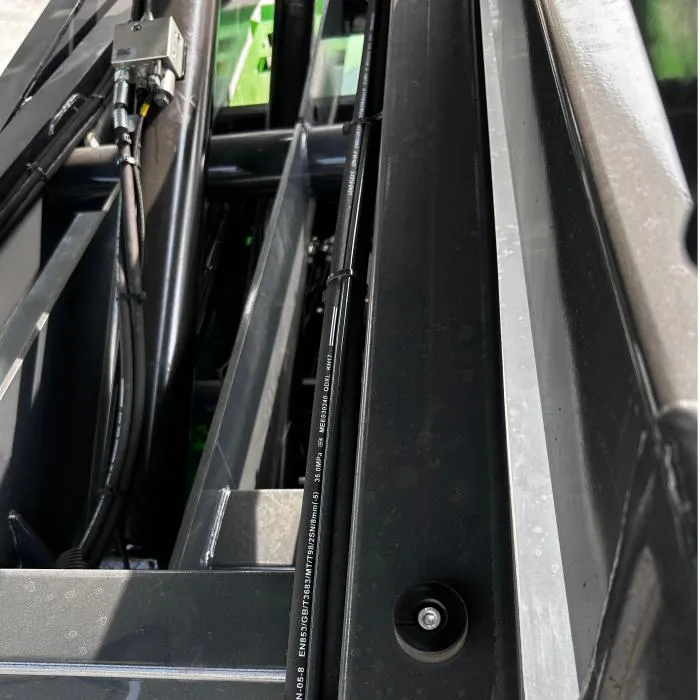

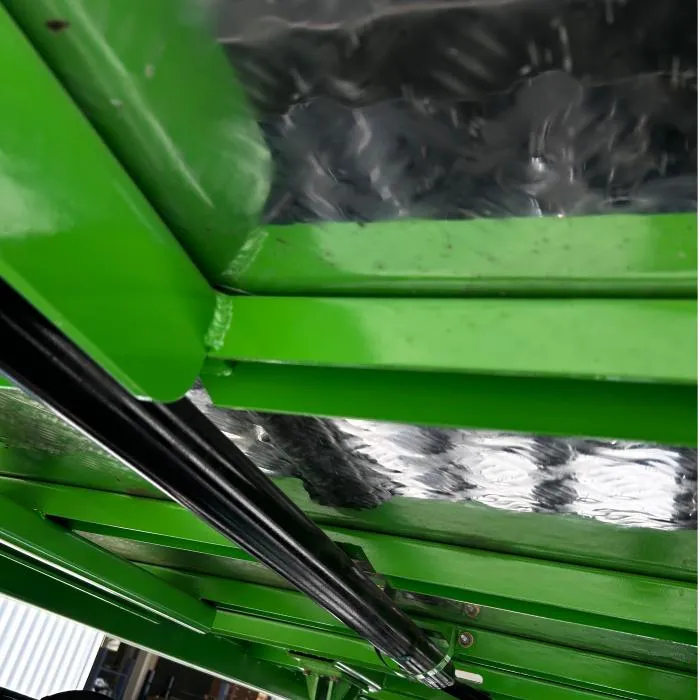

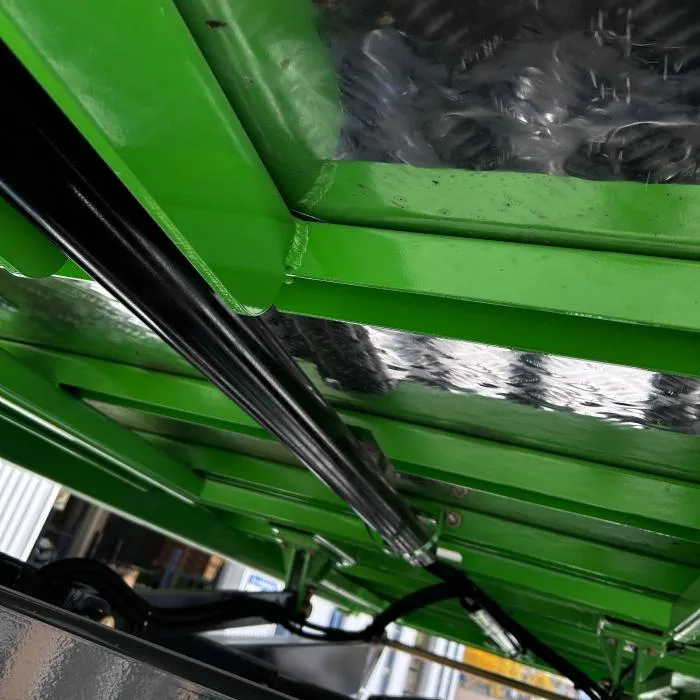

Detailed Photos

Our Advantages

Advantage 1
Advantage 2
Advantage 3
Advantage 4
Advantage 5
Advantage 6
Advantage 7

Frequently Asked Questions

What is the maximum working height of the GTJZ16D model?
The GTJZ16D diesel scissor lift provides a maximum working height of 18 meters, with a platform height of up to 16 meters.
What is the total lift capacity of this equipment?
The main platform has a maximum lift capacity of 680kg, and the extended platform can support up to 230kg.
Is the scissor lift suitable for rough terrain?
Yes, with its 4x4x2 drive mode and 40% gradeability, it is designed for outdoor jobs and rough terrain environments.

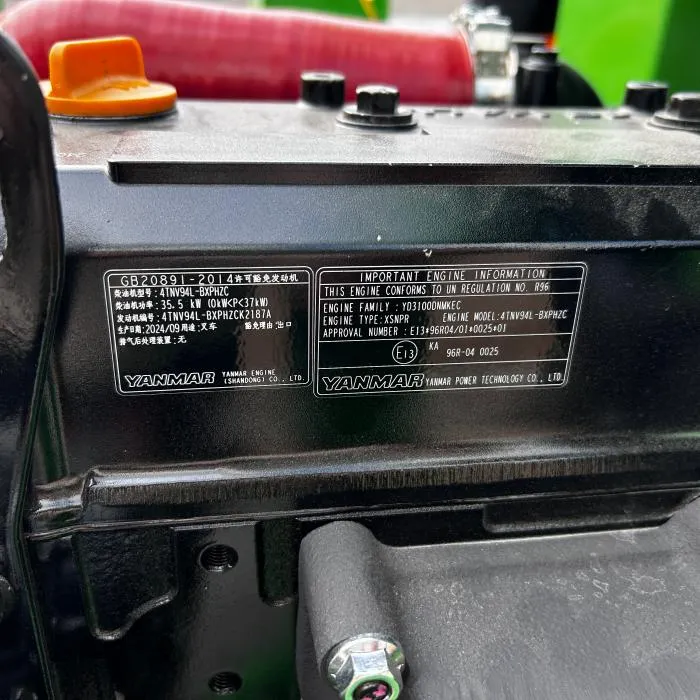

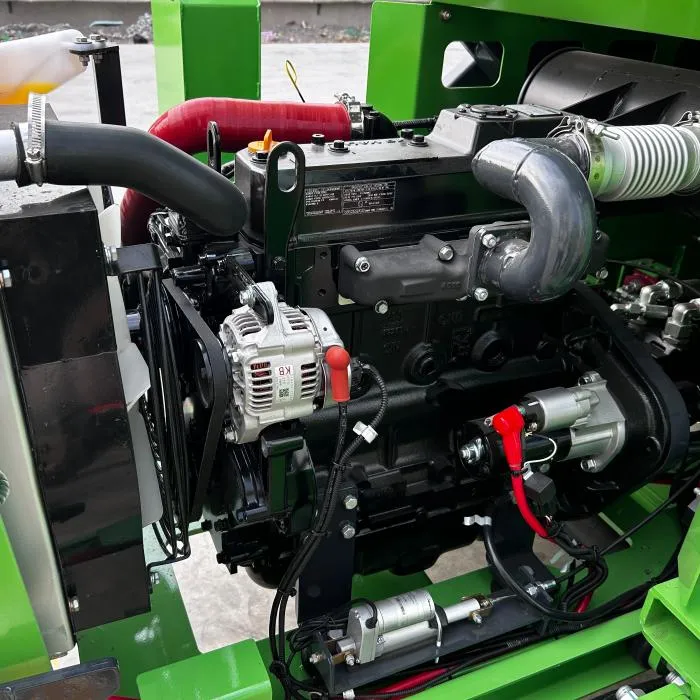

What engine powers this aerial work platform?
The equipment is powered by a reliable Yanmar 4TNV94L-B×PHZ engine with a rating of 35.5Kw at 2600rpm.
What are the primary applications for this lift?
It is ideal for high-altitude cleaning, billboard installation, street lamp maintenance, and large-scale construction in terminals, shopping malls, and industrial workshops.
Does this product meet international safety standards?
Yes, the GTJZ16D scissor lift is CE certified, ensuring it meets rigorous safety and performance standards.
