Product Description

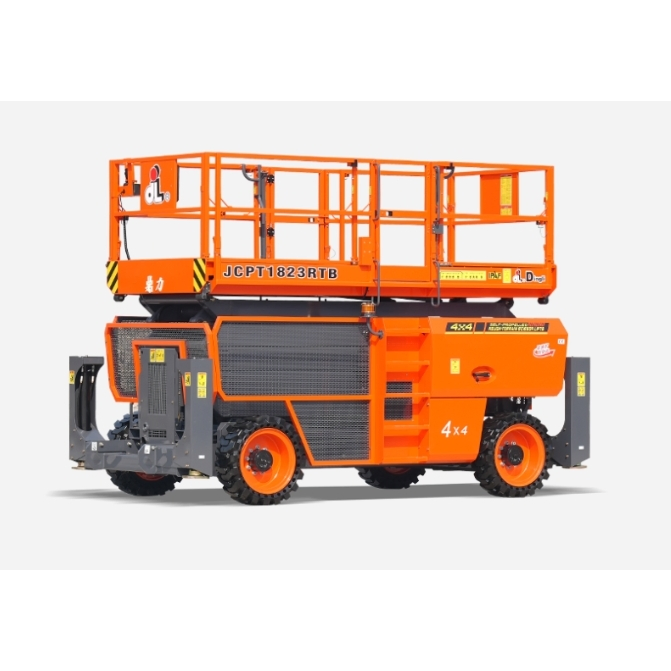

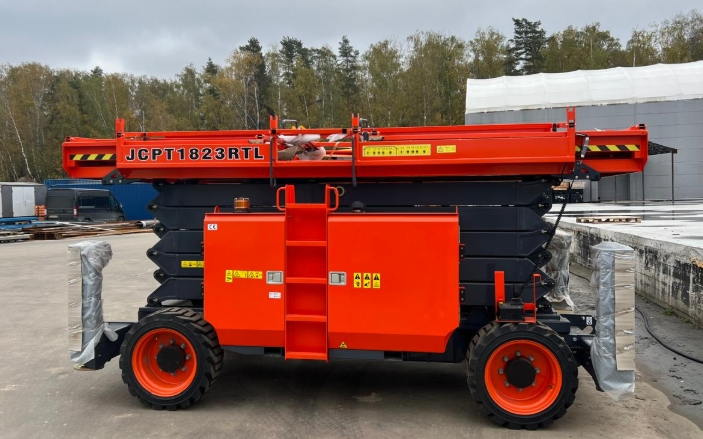

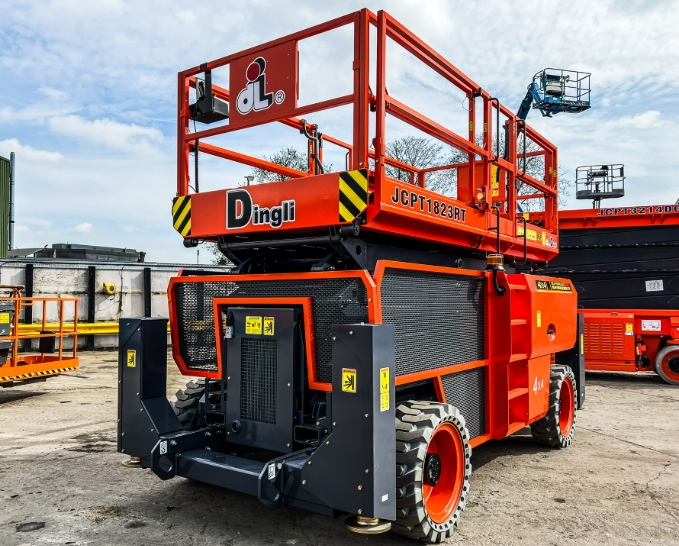

Introducing the Diesel-Powered JCPT1823RTB Self-Propelled Scissor Lift. Designed for heavy-duty performance, this lift delivers a max working height of 18m (59ft) and a 680kg SWL platform capacity, ideal for construction, industrial maintenance, and warehouse operations.
Equipped with 4×4 drive and proportional joystick controls, it ensures precise maneuverability on rugged terrain. The dual slide-out platform extension enhances workspace flexibility, while safety features like tilt alarms, motion sensors, LED beacons, and explosion-proof tubing prioritize operator security. Powered by an 18.2kW diesel engine, it offers extended runtime and reliability for high-demand environments.
Standard Features:
- Proportional Joystick Controls
- Self-Locking Gate
- Dual Slide-Out Platform Extension Deck
- 4×4 Drive
- Self-Weight Lowering System
- Tubing Explosion-Proof System
- Onboard Fault Diagnostic System
- Automatic Leveling Hydraulic Outriggers
- Anti-Restart Engine Protection
- Emergency Pump & Stop Button
- Platform Load Sense System
- Oscillating Axle Chassis
Frequently Asked Questions
What is the maximum working height of this scissor lift?
The 1823RT model provides a maximum working height of 18.00 meters (approx. 59 feet), with a platform floor height of 16.00 meters.

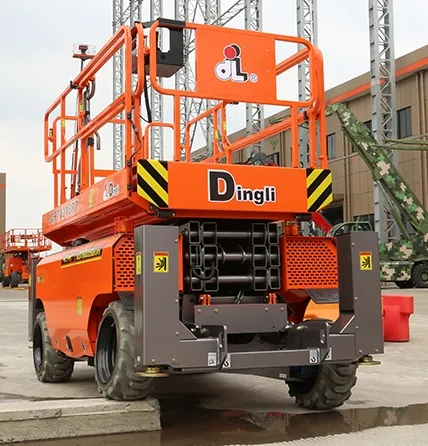

Can this machine handle rough terrain?

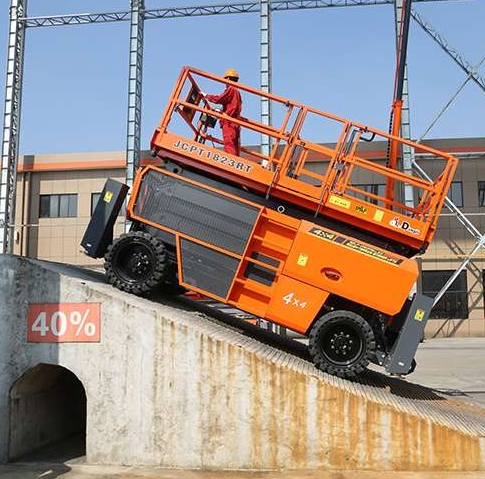

Yes, it is specifically designed for rough terrain with a 4×4 drive system, oscillating axle chassis, and 40% gradeability.
What is the weight capacity of the platform?
The main platform has a safe working load (SWL) of 680kg. If the platform extension is used, the extension capacity is 227kg.
Is the lift equipped with any safety systems?
Yes, it includes a tilt alarm, motion alarm, emergency stop buttons, tubing explosion-proof system, and an automatic leveling hydraulic outrigger system.
What powers the 1823RT scissor lift?
It is powered by a high-performance diesel engine (18.2kW / 3000rpm) supported by a 100L fuel tank for extended operations.
