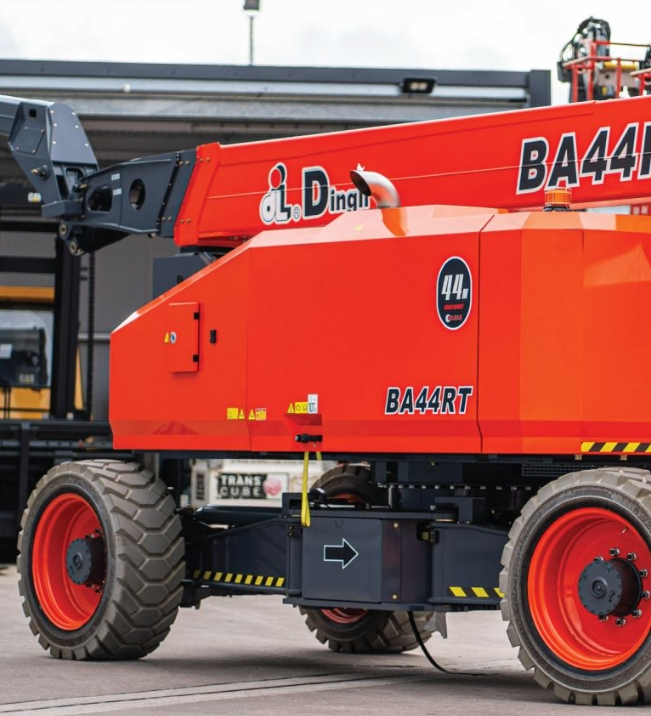

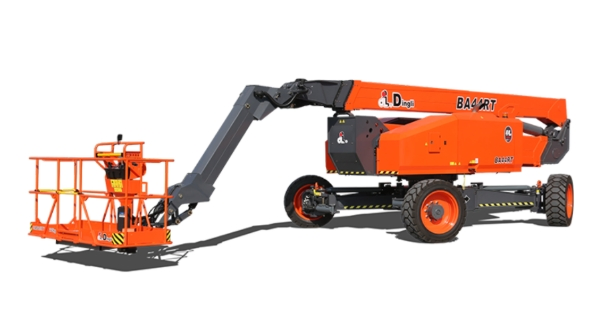

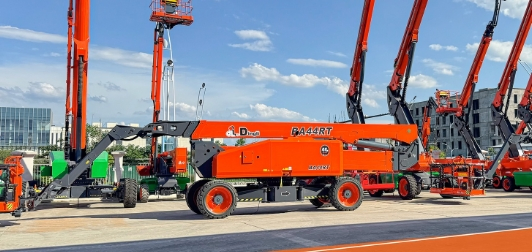

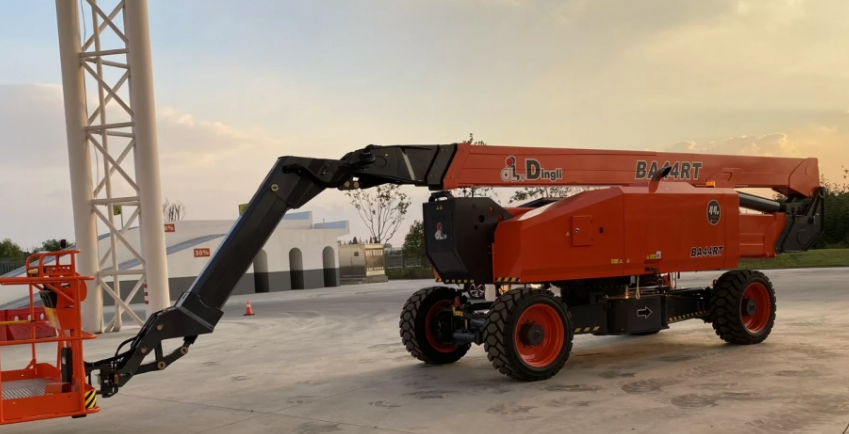

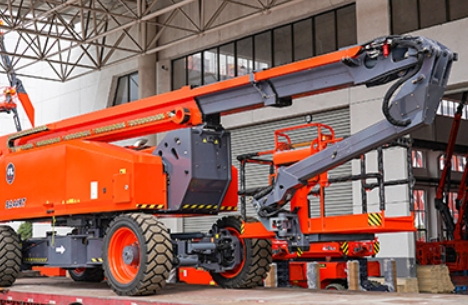

Dingli Ba44rt Articulated Boom Lift Construction Equipment Aerial Work Platform Construction Machinery

Customization:	Available
After-sales Service:	Support
Warranty:	Support

i

Basic Information

Model NO.BA44RT

ApplicationLifting

Lift MechanismArticulated Lift

Carrying CapacityMiddle-Level

MovesSelf-propelled

Driven TypeHydraulic

Platform Height42.06m / 138FT

Horizontal Outreach22.97m / 75FT 4in

Up and Over Reach18.80m / 61FT 8in

CertificationGS, CE, RoHS, ISO 9001

Diesel EngineTd2.9 L4/55.4kw

Production Capacity100sets/Month

★

Product Description

Highly efficient operation: Designed with a high working efficiency that minimizes downtime and maximizes productivity, ensuring that construction projects progress smoothly.

Vehicle mounting compatibility: Easily mount the platform on a variety of construction vehicles to increase reach and versatility.

Robust components: Engineered with core components such as an engine, bearing, gearbox, and pump for reliable performance under challenging conditions.

Comprehensive warranty: Backed by a 1-year warranty, guaranteeing industry-leading support and protection for your investment.

CE certified: Compliant with CE standards, meeting the highest safety and quality requirements for aerial work platforms.

📋

Specification

Max. Working Height	44.06m / 144ft 7in
Max. Platform Height	42.06m / 138ft
Max. Operating Range(+0.6m)	22.97m / 75ft 4in
Max. Up And Over Clearance	18.80m / 61ft 8in
Max. Down Probing Depth	9.65m / 31ft 8in
Dimensions (L×W×H)	11.97m×2.44×3.10m
Platform Size (L×W)	2.44m×0.91m / 8ft×2ft 12in
Ground Clearance	0.40m / 1ft 4in
Wheelbase	4.07m / 13ft 4in
S.W.L (Unrestricted)	272kg / 600lb
Overall Weight	23900kg / 52690lb
Diesel Engine	TD2.9 L4/55.4kW
Hydraulic Tank	230L / 61gal

Frequently Asked Questions

What is the maximum working height of the BA44RT?

The maximum working height is 44.06m (144ft 7in), with a maximum platform height of 42.06m (138ft).

What type of engine powers this articulated boom lift?

The lift is powered by a high-performance TD2.9 L4 Diesel Engine with 55.4kW of power.

What is the lifting capacity of the platform?

The platform has a Safe Working Load (S.W.L) of 272kg (600lb), suitable for workers and their necessary equipment.

Is the equipment certified for safety?

Yes, the machine holds multiple certifications including GS, CE, RoHS, and ISO 9001, ensuring it meets international safety standards.

What are the transport dimensions for this model?

The flatbed transport dimensions are approximately 11.97m in length, 2.44m in width, and 3.10m in height.

What is the warranty period for this machinery?

This articulated boom lift comes with a comprehensive 1-year warranty covering core components.
