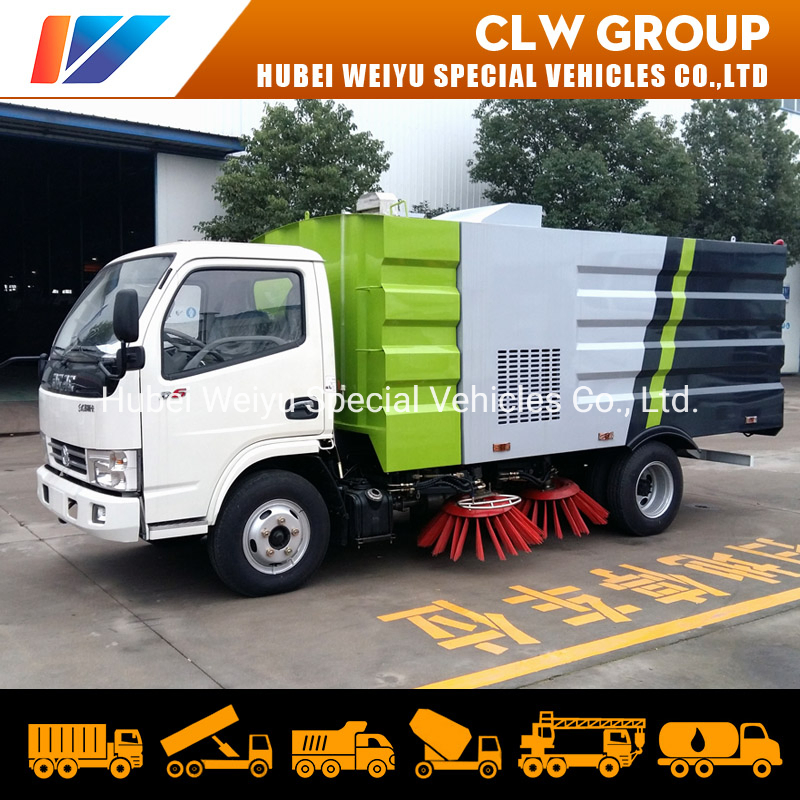

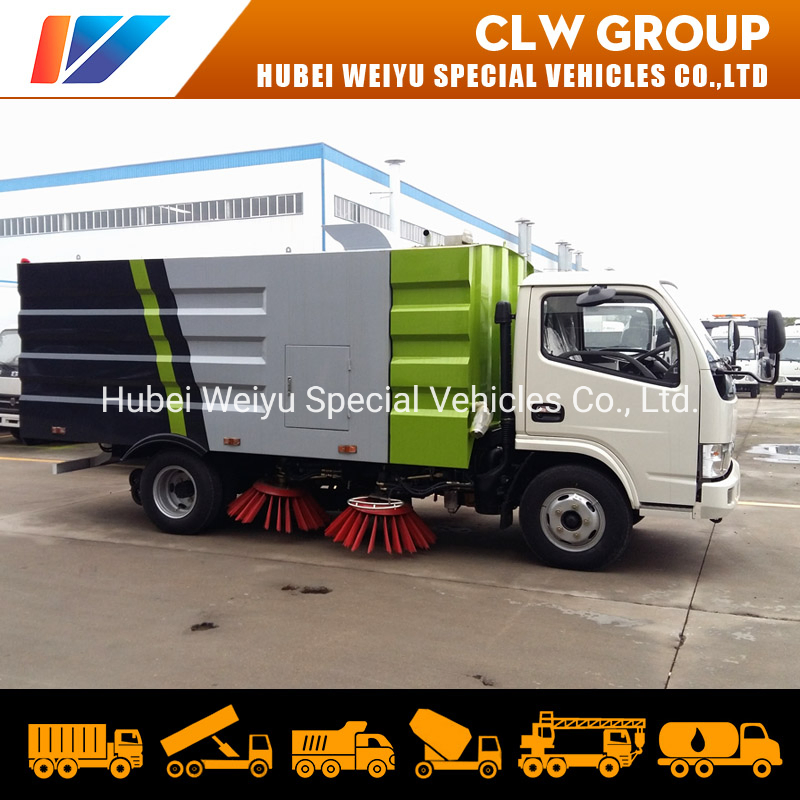

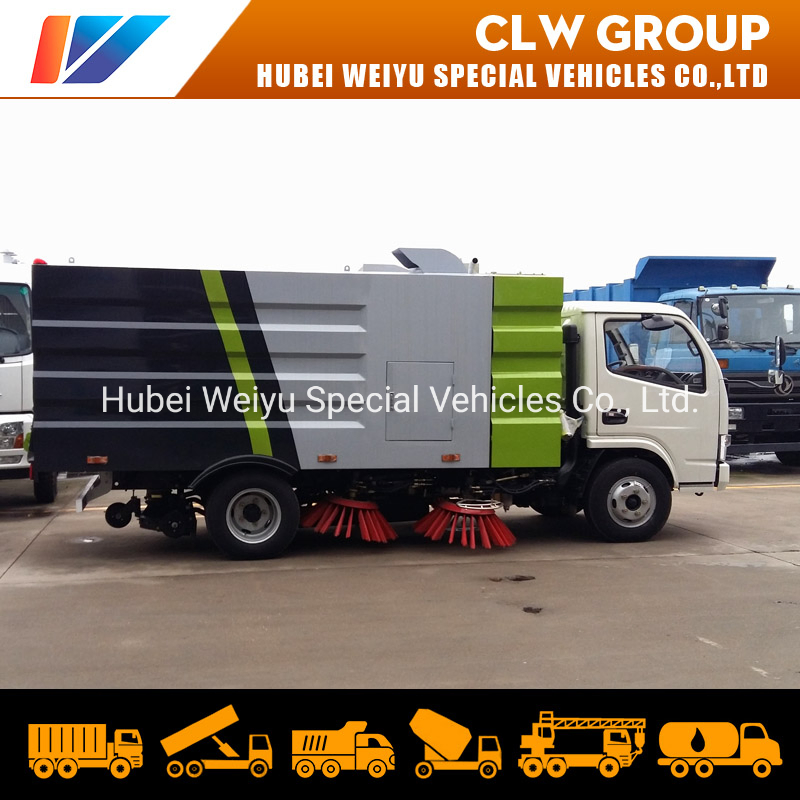

Dongfeng Road Sweeper Truck 5.5cbm Road Cleaning Truck 5tons 6tons China Vacuum Sweeping Truck

1 / 5

Dongfeng Road Sweeper Truck 5.5cbm Road Cleaning Truck 5tons 6tons China Vacuum Sweeping Truck

Customization:	Available
After-sales Service:	Available
Warranty:	One Year

Send Inquiry

Product Description

📋

Basic Information

Model NO.

CLW5050SLC

Type

Sweep and Suck Type

Certification

ISO9000, CCC, TS16949, CE

Transmission

Manual

Emission Standard

Euro 2

Fuel Type

Diesel

Payload

3t 4t 5t

Tank Material

Stainless Steel 304

Sweeping Speed

3-20 Km/H

Max Sweep Width

2.8m

Water Tank

1.5 Cbm

Dust Tank

4.0 Cbm

🚛

Product Description

Road Sweeper Truck 5.5CBM Road Cleaning Truck Vacuum Sweeping Truck

✓ Chassis: High-performance Engine/95HP
✓ Heavy Duty Dust Tank: 4000L to 18000L options
✓ Hydraulic Control Loading & Unloading System
✓ Leakage Proof Device for dirty water containment
✓ Automatic Key Control & Hydraulic Handle Control
✓ Ideal for Urban Garbage Transportation

⚙️

Technical Specifications

General Technical Parameters
Overall Dimension	619019902590 (mm)
Gross Vehicle Weight	8000 (Kg)
Curb Weight	2300 (Kg)
Chassis Specification
Drive Model	4*2
Cabin	Single row, LHD, with Air Conditioning
Engine Power	95HP
Gearbox	5 Forwards & 1 Reverse, Manual
Tire	7.00R16, 6+1 spare tire
Upperstructure Specification
Water Tank (SS304)	1.5 Cbm
Dust Tank (SS304)	4.0 Cbm
Auxiliary Engine	JMC 77HP
Max Cleaning Capacity	40000 m³/h

📷

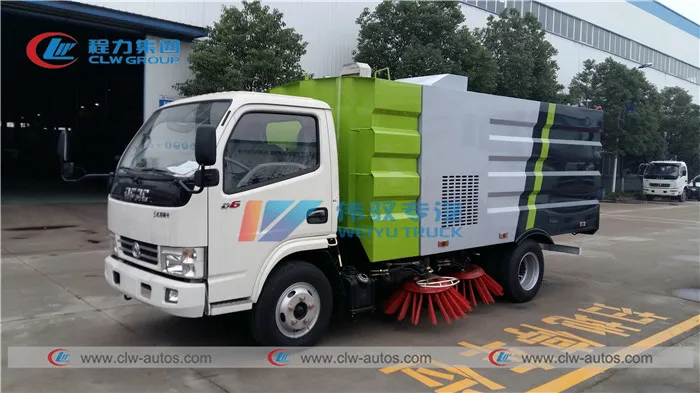

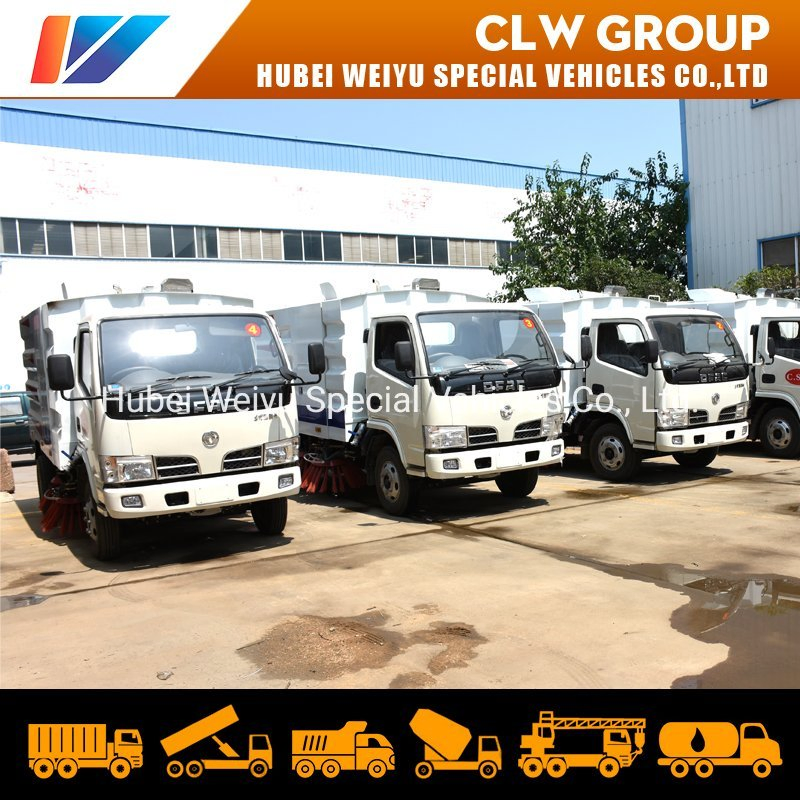

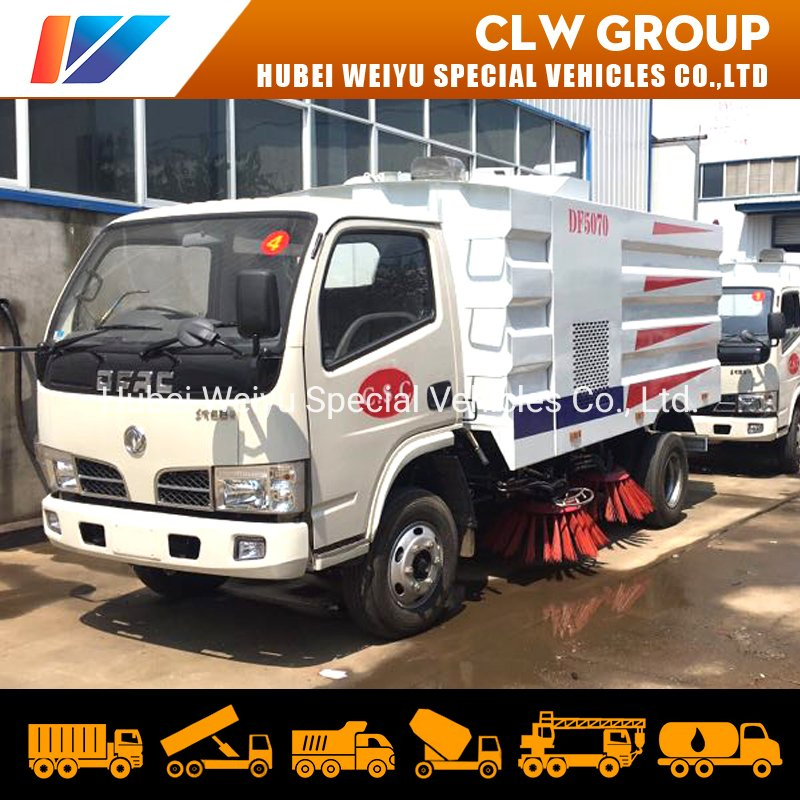

Reference Photos

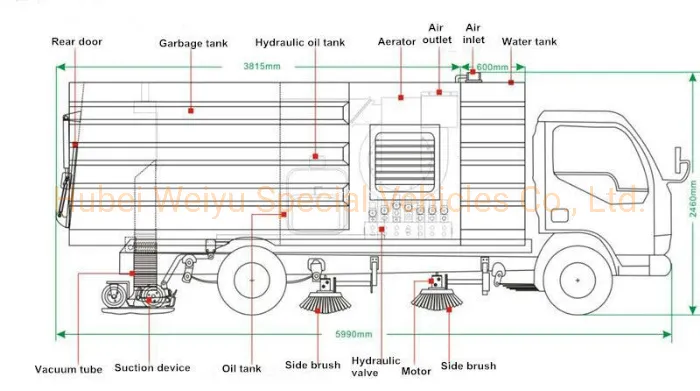

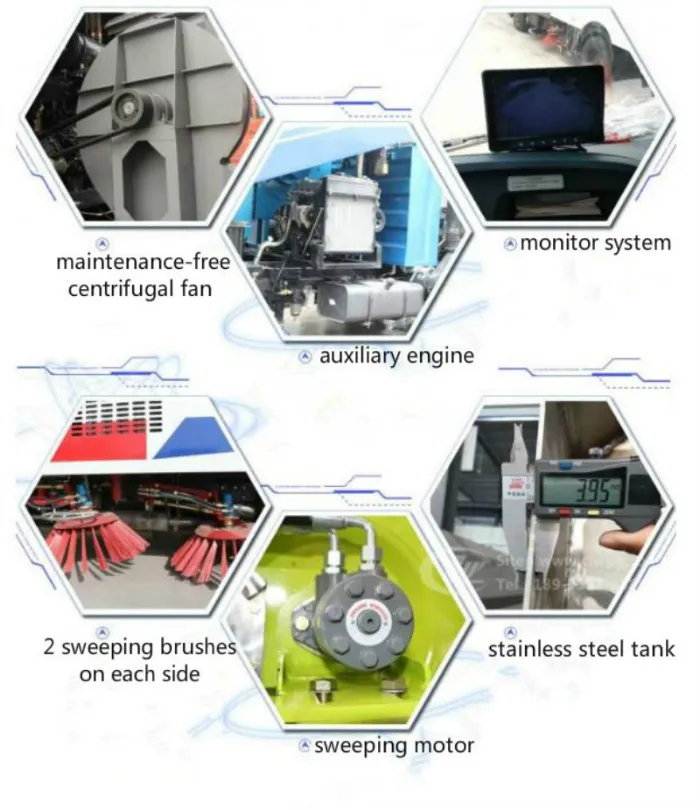

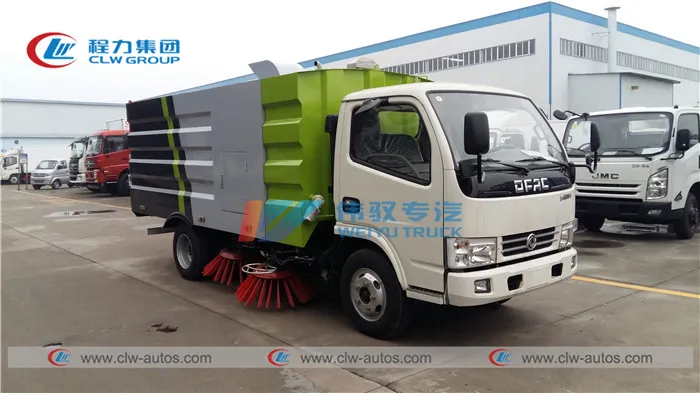

Main Structure & Parts

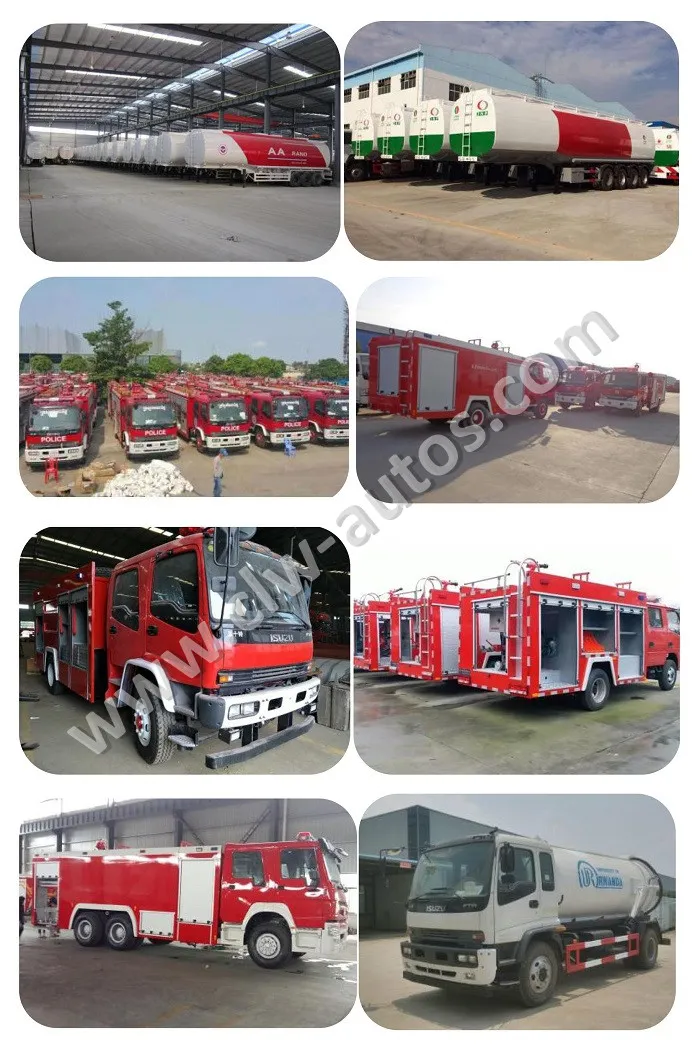

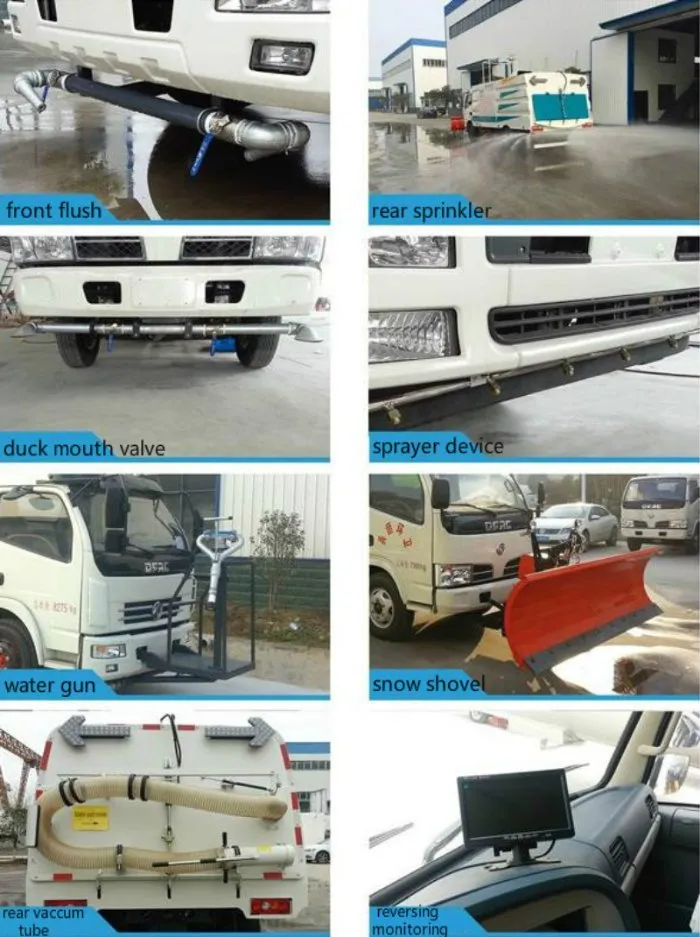

Optional Configurations & Cases

Frequently Asked Questions

What is the tank capacity of this road sweeper truck?

The truck is equipped with a 1.5 CBM water tank and a 4.0 CBM dust tank, both constructed from durable Stainless Steel 304.

What is the maximum sweeping width and speed?

The maximum sweep width is 2.8 meters, and the operational sweeping speed ranges from 3 to 20 km/h.

What kind of engine powers the sweeping system?

The sweeping system is powered by a JMC auxiliary engine with 77HP (57KW), ensuring independent and efficient cleaning performance.

Is the truck suitable for urban environments?

Yes, it is designed specifically for city road cleaning with features like dust suppression water sprays and a vacuum suction device.

What are the standard safety and control features?

Standard features include an electronic water pump, hydraulic control system for the rear door and tank lift, LED arrow lights, and a maintenance-free centrifugal fan.

Can the configuration be customized?

Yes, optional features include front flush, rear sprinklers, reversing cameras, snow shovels, and customized paint colors to meet specific requirements.
