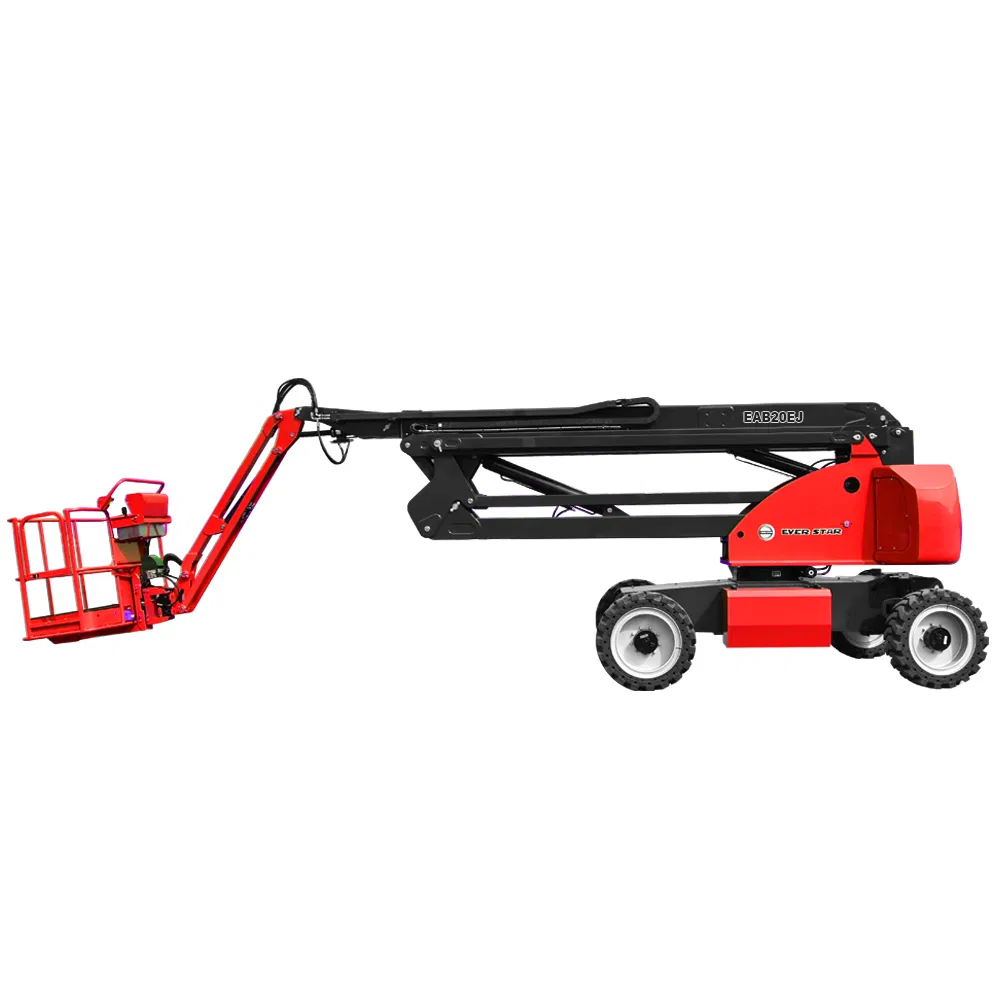

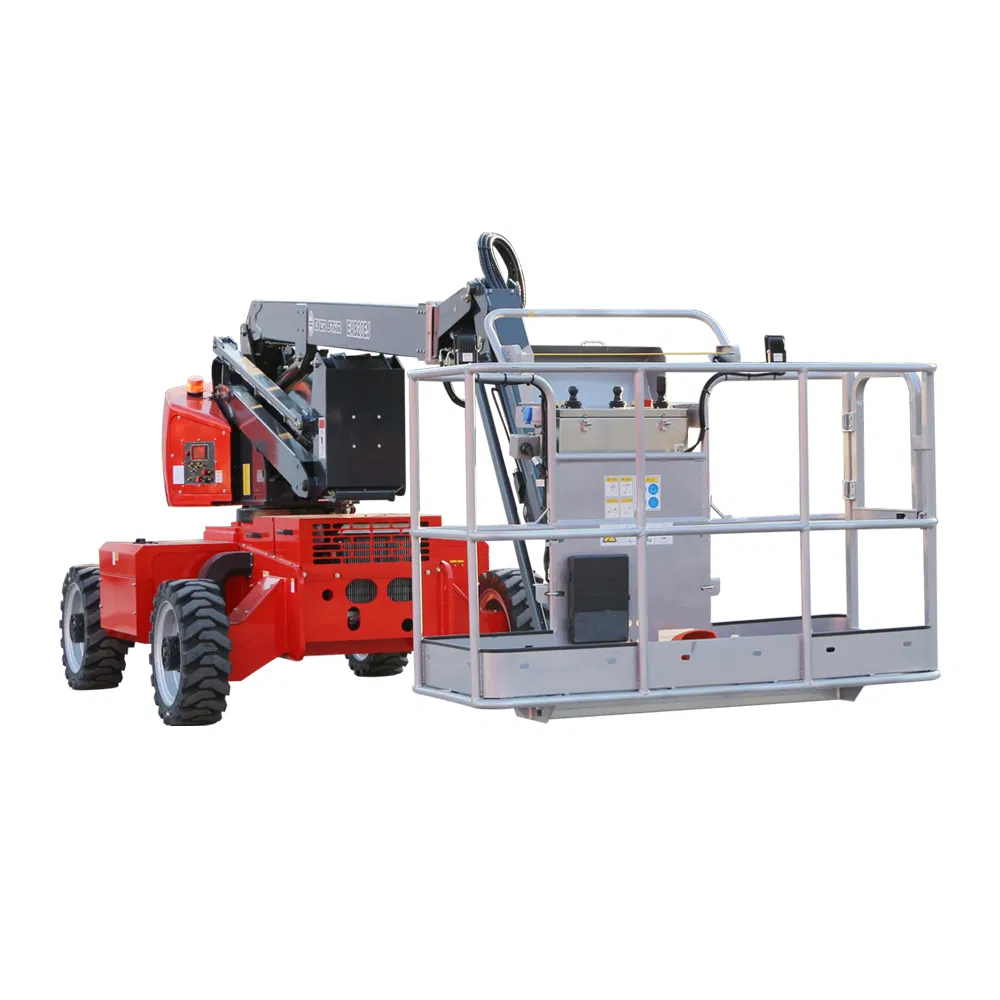

Optimized Heavy-Duty Performance: The boom lift features a 230kg platform payload, surpassing comparable models in its class by 28%. This enhanced capacity ensures seamless handling of tools, materials, and personnel, making it ideal for industrial maintenance and large-scale logistics.

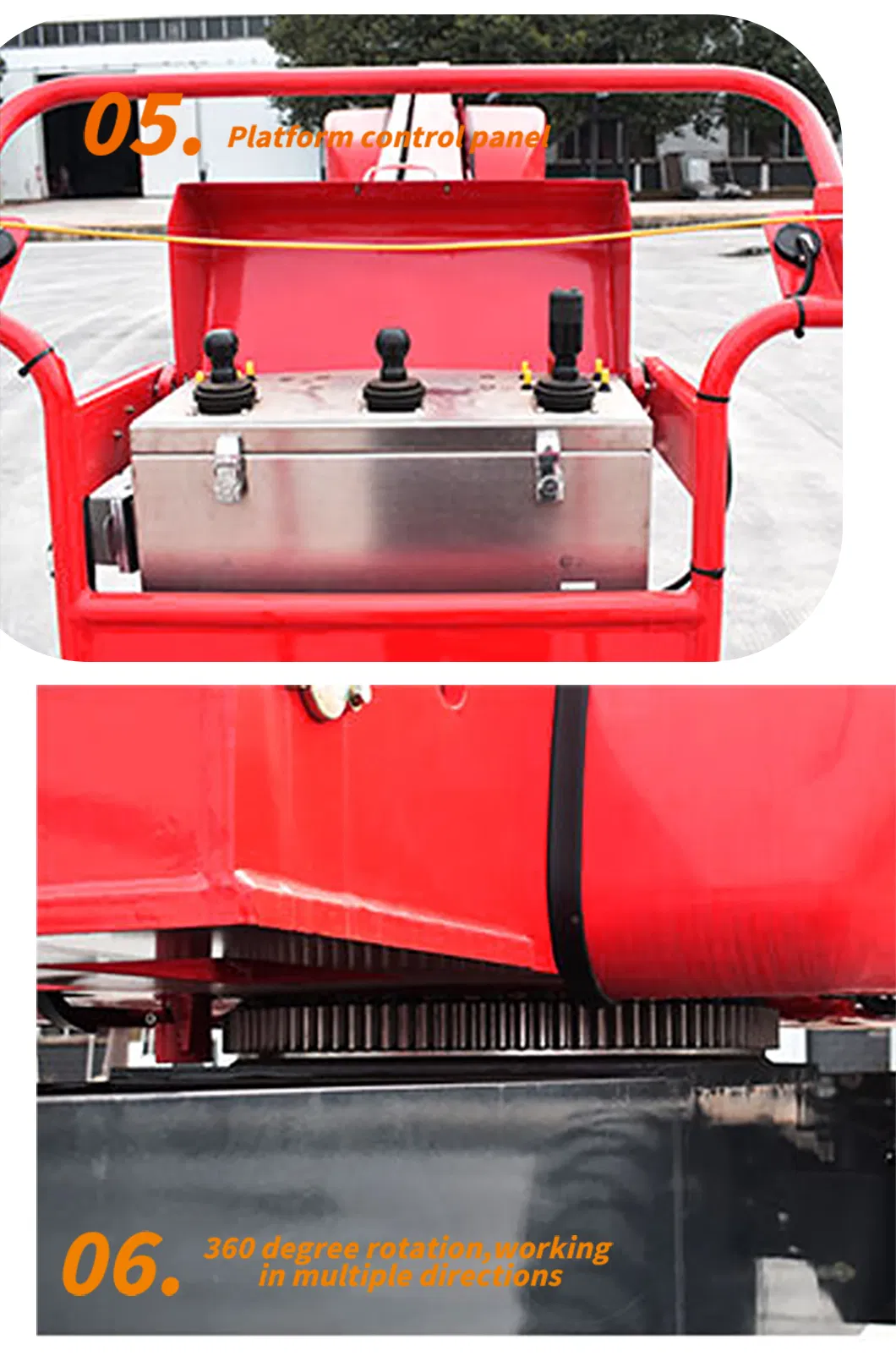

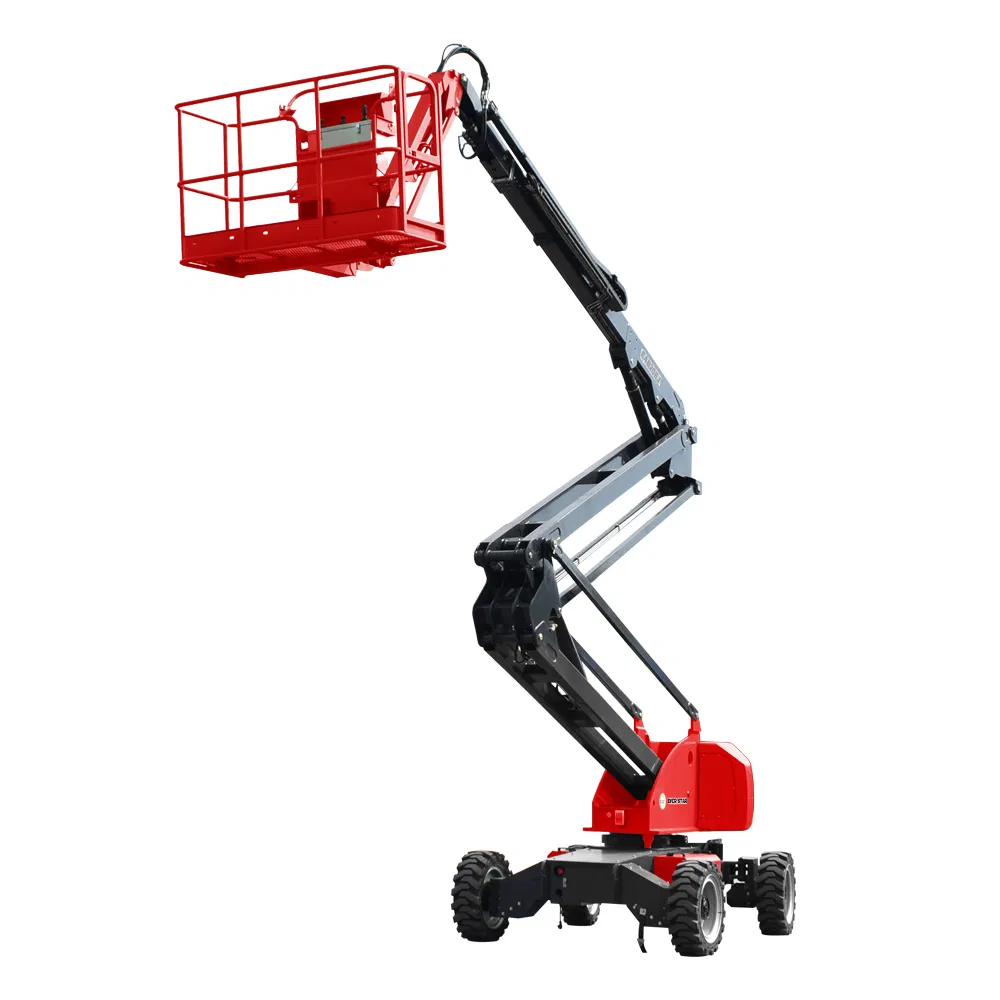

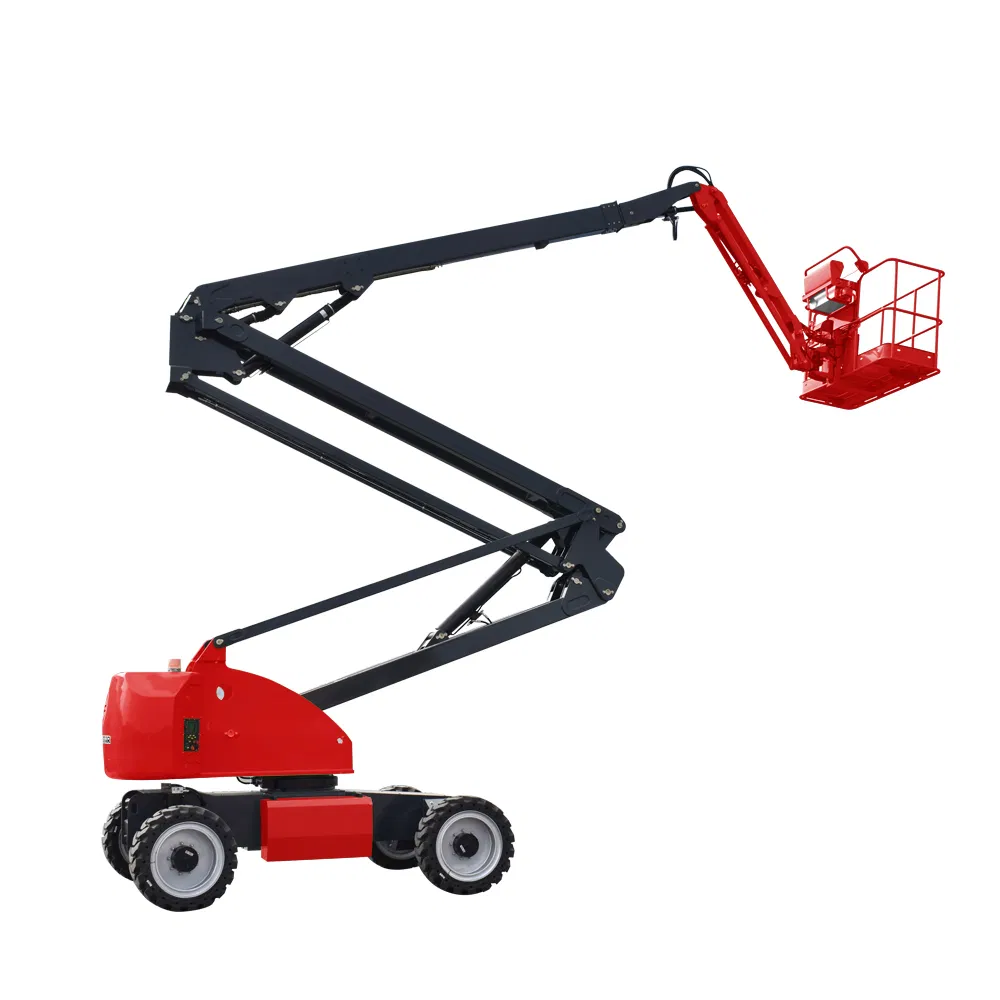

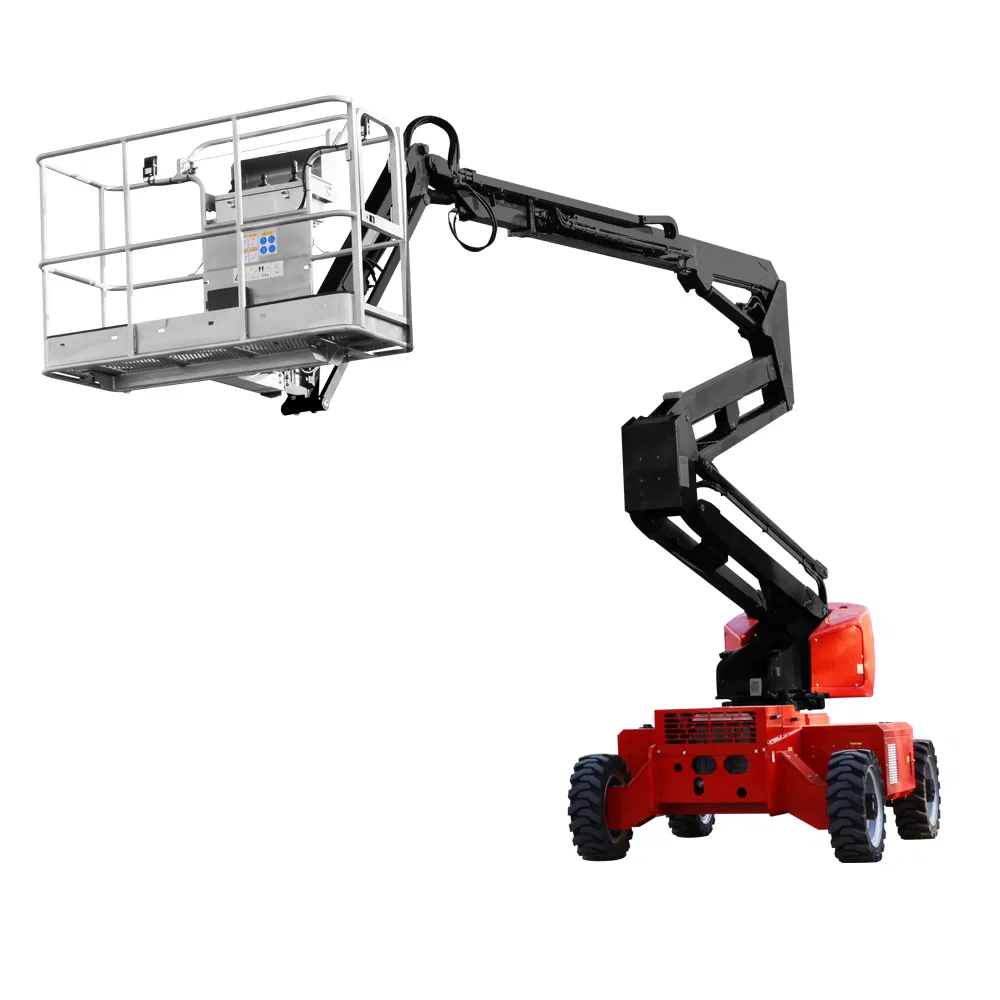

Precision Control System: Equipped with multi-way valve control and pressure compensation technology, the hydraulic system delivers exceptional stability and accuracy. Operators can maneuver around obstacles with confidence using the 360° continuous rotation and multi-stage folding arms.
Enhanced Safety and Reliability: High-precision platform load sensors significantly reduce false alarms. Combined with EN280-compliant safety mechanisms, including emergency descent systems, this design prioritizes operator protection.
Unmatched Operational Efficiency: High-capacity hydraulic system powers rapid platform movement, boosting productivity by up to 30%. The 4WD steering system and 45% gradeability ensure swift repositioning across rough or uneven surfaces.
| Item (EAB20EJ) | Unit | Performance Parameters |
|---|---|---|
| Max. working height | m | 20.1 |
| Max. platform height | m | 18.1 |
| Max. horizontal outreach radius | m | 11.6 |
| Lifting capacity | kg | 230 |
| Maximum span height | m | 8 |
| Stowed Length | m | 8.27 |
| Width | m | 2.38 |
| Stowed Height | m | 2.3 |
| Wheelbase | m | 2.4 |
| Center ground clearance | m | 0.34 |
| Platform size (L*W) | m | 1.83*0.76 |
| Turning radius outside | m | 5.2 |
| Stowed drive speed | Km/h | 5 |
| Maximum grade ability | / | 40% |
| Tire type | / | 33*12-20 |
| Turntable rotation | / | 355° continuous |
| Travel motor | kw | 4*4 |
| Battery | V/Ah | 48/390 |
| Overall weight | kg | 8000 |
