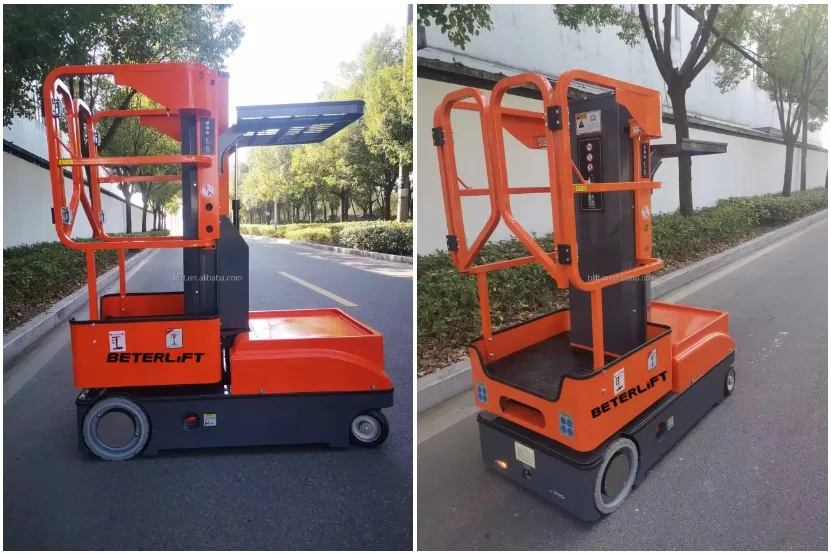

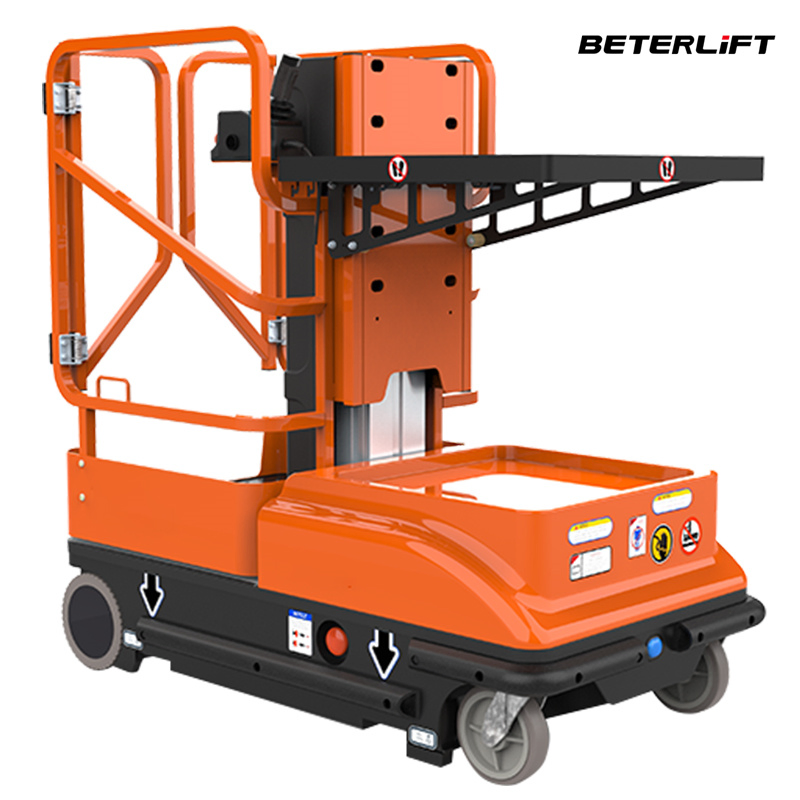

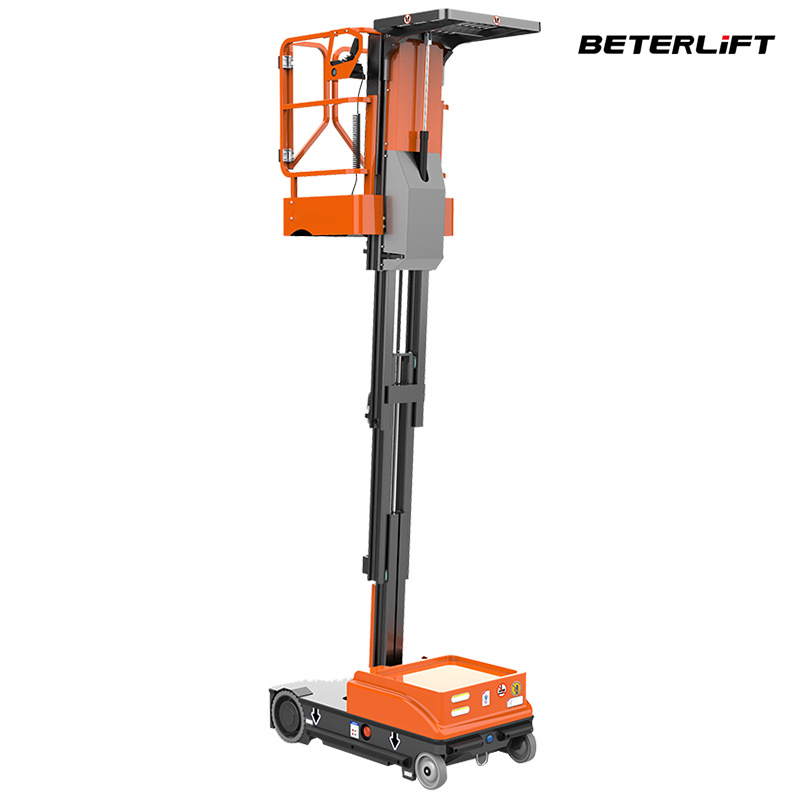

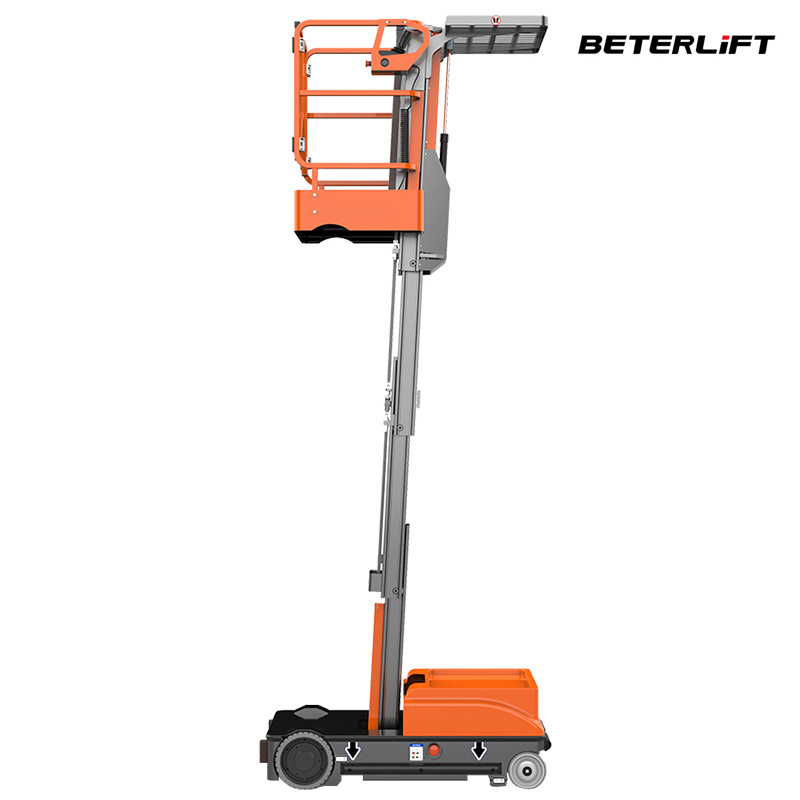

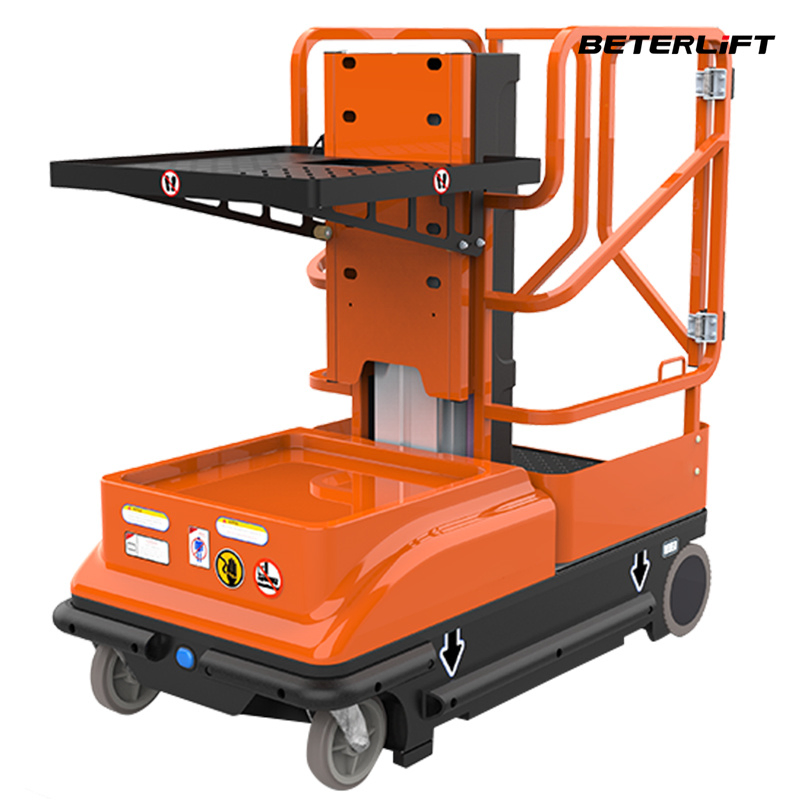

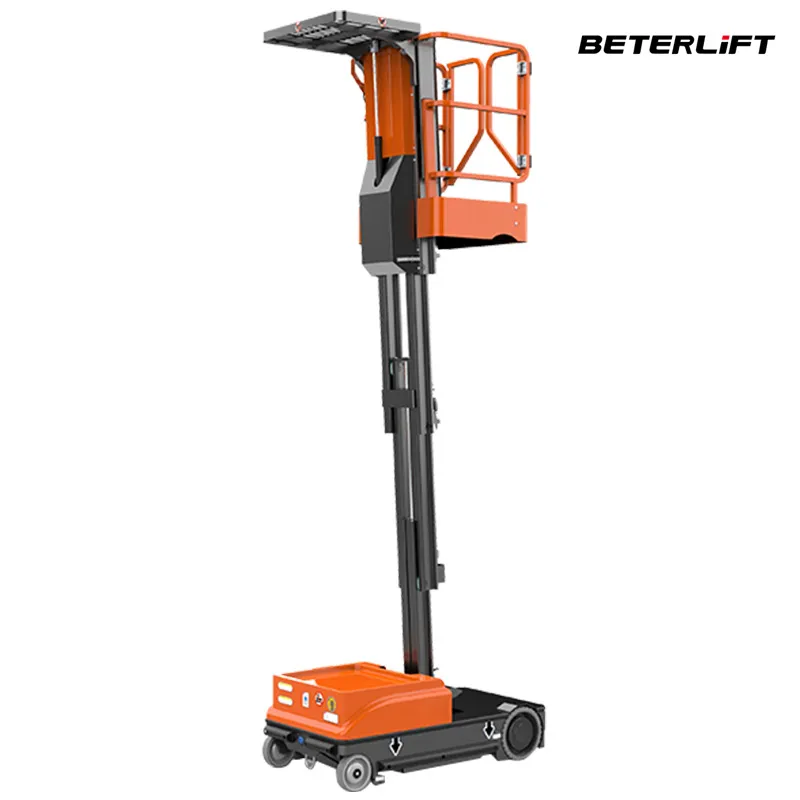

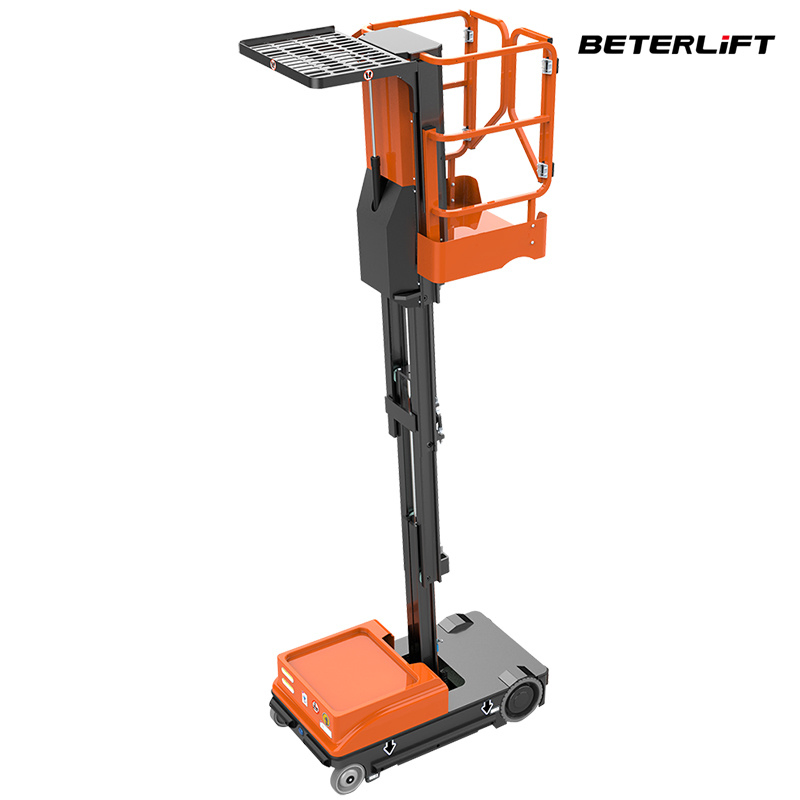

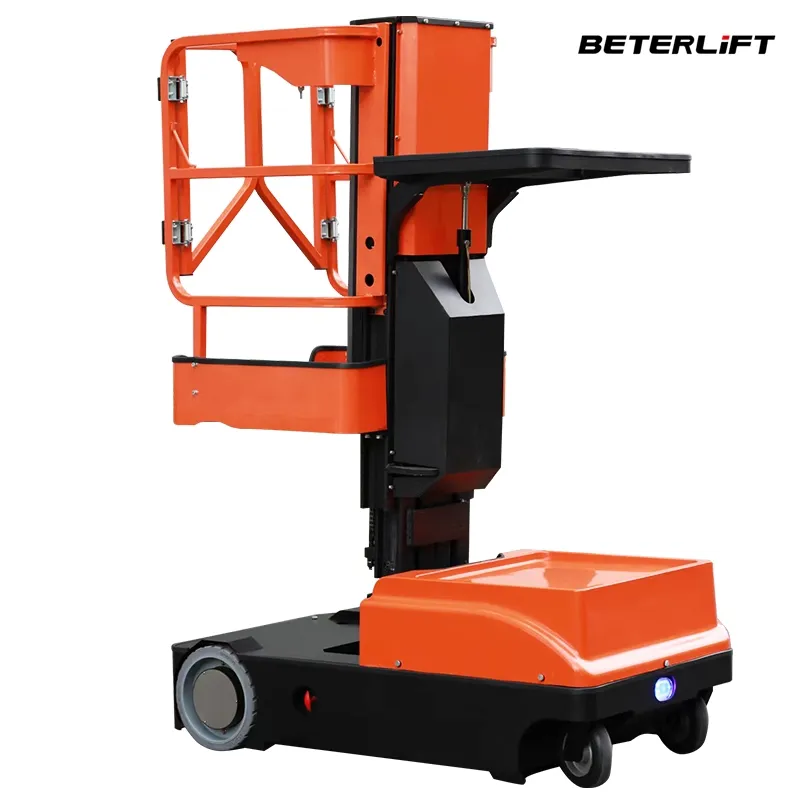

5m 6m Low Level Access Aerial Work Lift Platform Electric Order Picker

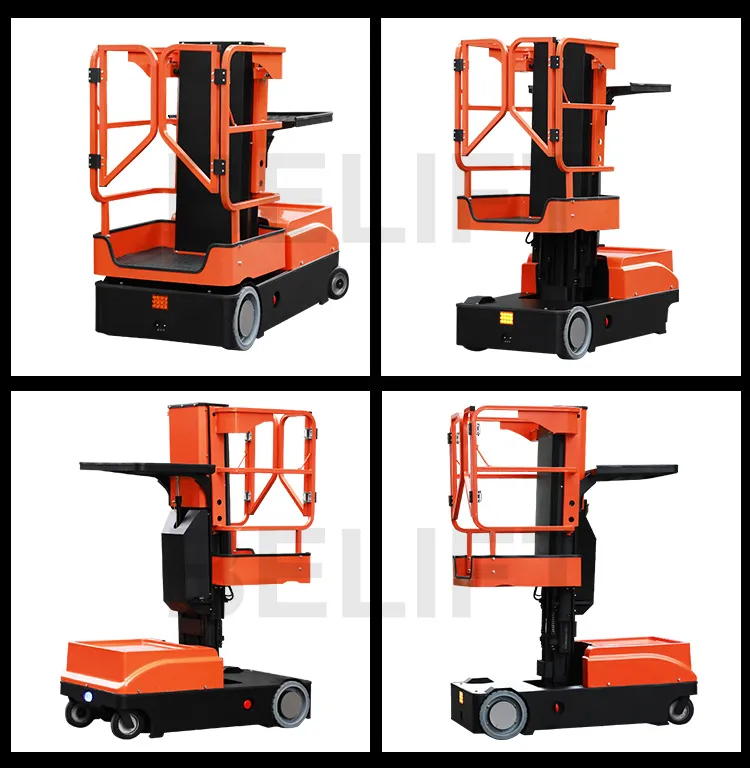

Self-propelled Order Picker is specially designed for indoor outdoor aerial works with lower height and narrow space. With compact sizes, light weight and strengthened structure, it is portable and easy to operate. Equipped with safety precautions to keep it safe and steady, the function of automatic walking, turning and lifting highly improves the worker's efficiency.
This High-End electric order picker can carry goods in multiple areas with a working height up to 5-6 meters, making it ideal for picking items on third-level shelves, changing price labels, or installing ceiling decorations and lighting.
| Model Specifications | EAP-H5 | EAP-H6 |
|---|---|---|
| Maximum platform height (mm) | 3000 | 4000 |
| Working height (mm) | 5000 | 6000 |
| Overall machine length (mm) | 1480 | |
| Overall machine width (mm) | 756 | |
| Standing platform size (mm) | 695*720 | |
| Standing platform load (kg) | 150 | |
| Grid platform load (kg) | 90 | |
| Performance Parameters | ||
| Ascending/descending time (sec) | 30/40 | 40/50 |
| Maximum climbing ability | 5° - 8° | |
| Driving speed (Km/h) | 0-4 | |
| DC battery voltage/capacity (V/Ah) | 2×12/100 | |
1. Adopting perfect shot blasting treatment and anti-corrosion paint spraying for a beautiful appearance.
2. Unique design for compact structure, strong enough to support high loading capacities.

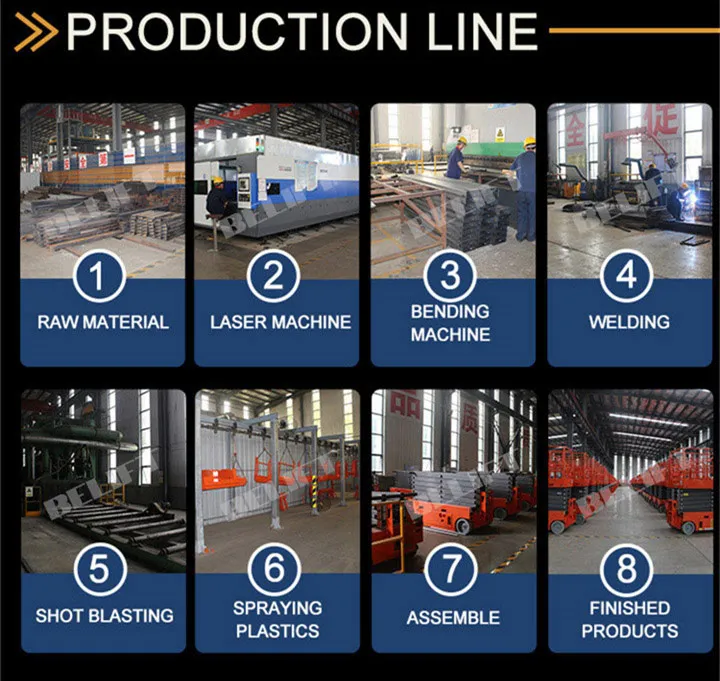

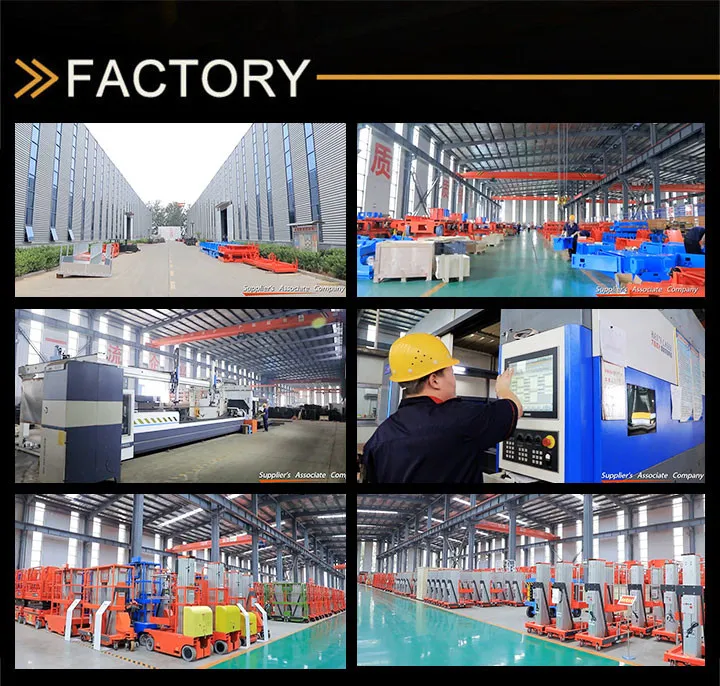

3. Produced by automatic production lines with highly guaranteed quality.
4. High strengthened steel structures, offering smooth lift and drop with minimal faults.
Certifications: CE, ROHS, SGS, ISO etc.
