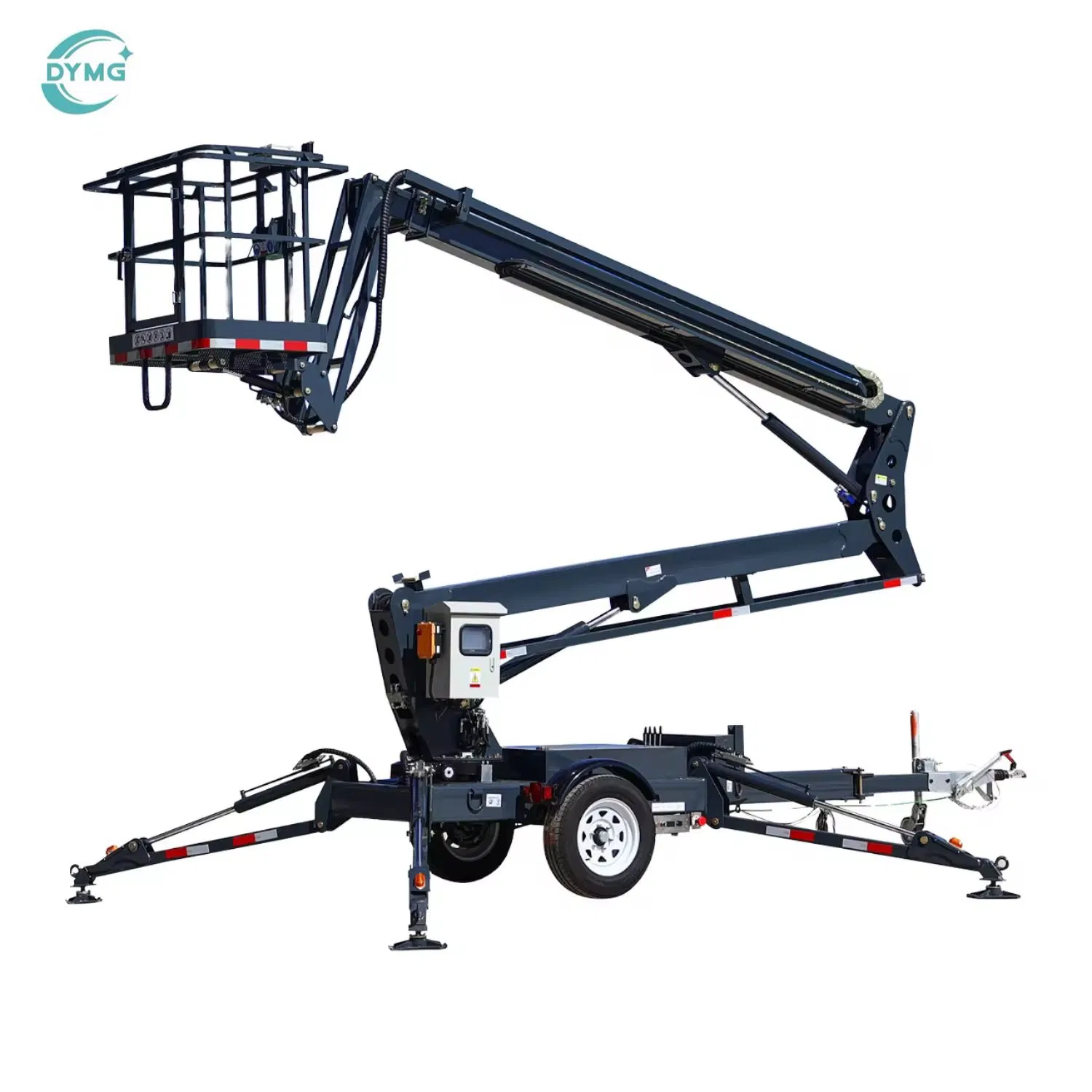

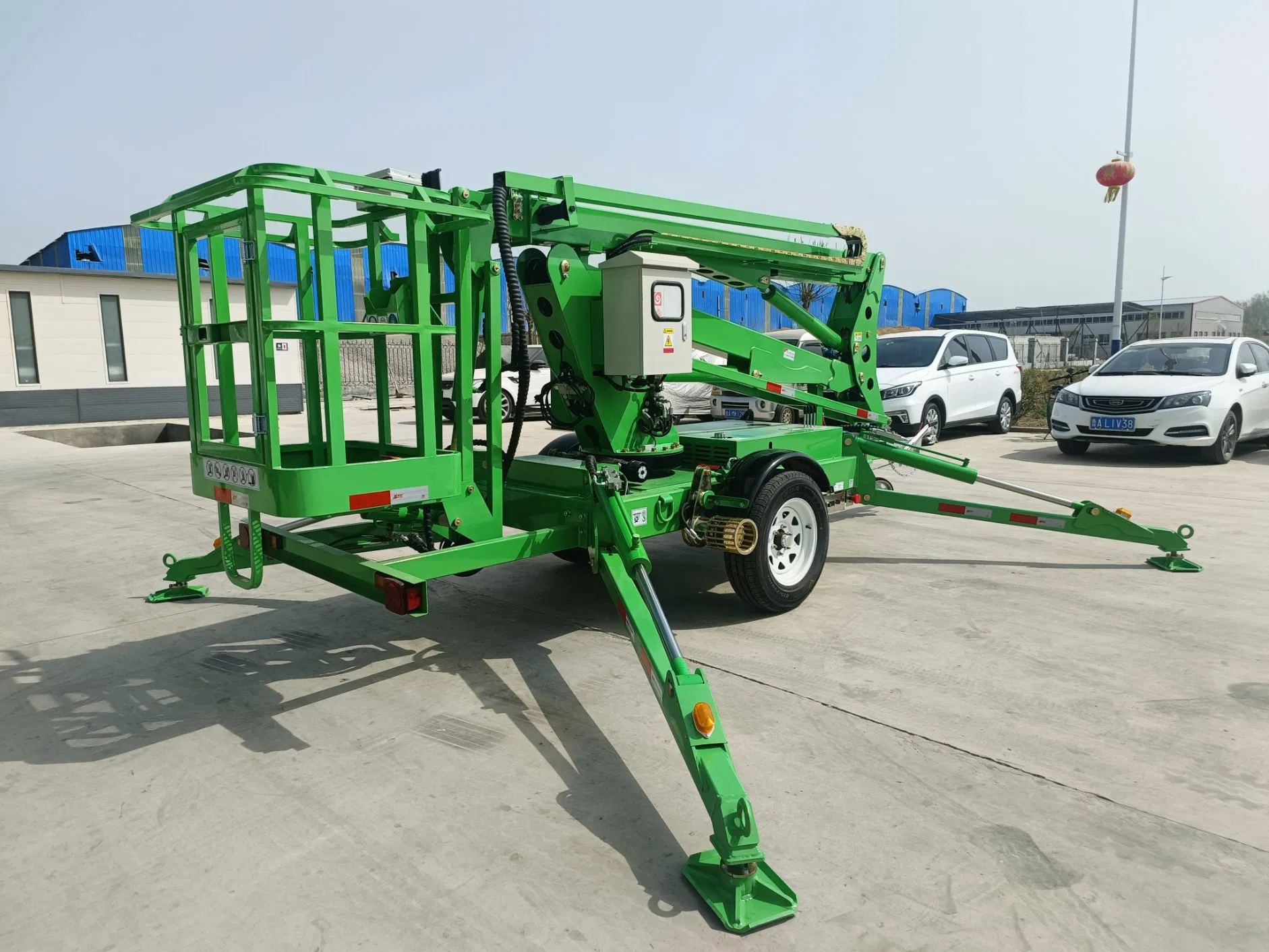

Dymg 10m 12m 14m 16m 18m 20m 22m Electric Hydraulic Self Walking Trailer Towable Boom Lift Articulated Boom Lift Telescopic Cherry Picker Spider Boom Lift

Customization: Available
After-sales Service: Free Parts
Warranty: 24 Months

Product Description

Overview & Basic Info
Model NO.
TBL
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Driven Type
Hydraulic
Feature
Explosion-Proof, 360 Degree Rotary
Lifting Speed
70km/H
Moving Method
by Car or Truck Tow
Certification
GS
Package Size
560.00cm * 170.00cm * 210.00cm
Gross Weight
2500.00kg
Product Description

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs. They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage. It can be towed everywhere by car, and the four automatic hydraulic legs provide high stability. Widely used in roads, street light maintenance, shopping malls, and other working places.

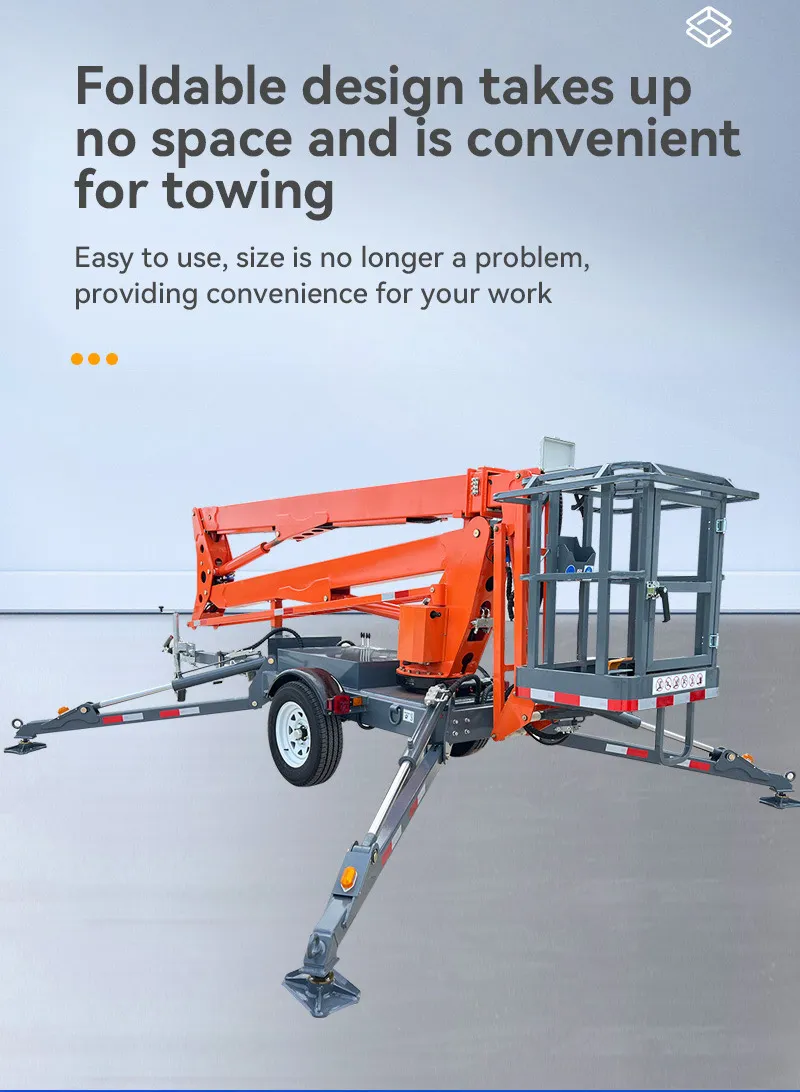

Trailer Boom Lift Overview
Technical Parameters
Model Type 10M 12M 14M 16M 18M 20M 22M
Lifting height 10M 12M 14M 16M 18M 20M 22M
Working height 12M 14M 16M 18M 20M 22M 24M
Load capacity 200KG 200KG 200KG 200KG 200KG 200KG 200KG
Working radius 5.5M 6.5M 8.5M 10M 11M 11M 11M
Net Weight 1855kg 2050kg 2300kg 2500kg 3000kg 3100kg 3500kg
Detailed View

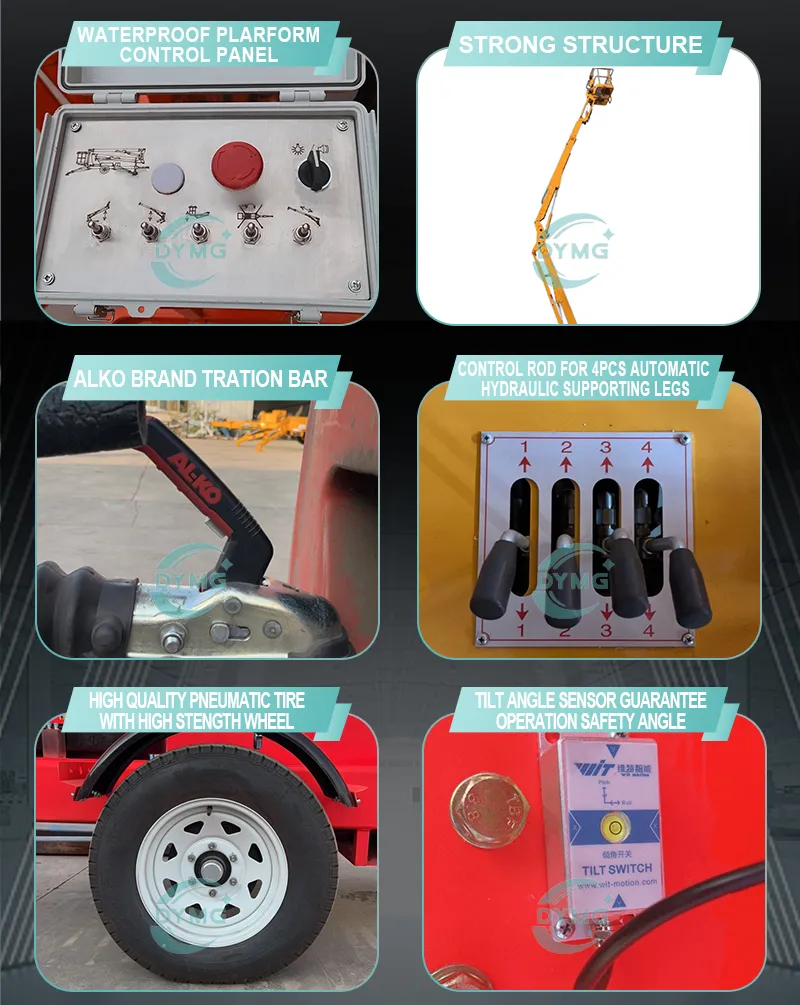

Detailed Component View
Main Features
1
High Strength Material: Adopting high strength steel, welded by Automatic Welding Machines for maximum durability.
2
Advanced Working Cage: Features retractable ladder, abrasive floor for grip, and LED lighting for night operations.
3
Hydraulic Outriggers: 4 automatic hydraulic legs balance the machine on any ground condition.
4
Versatile Power: Available in Diesel or Storage Battery configurations based on requirements.
5
Safety Systems: Includes anti-explosion valves in cylinders and emergency decline values for power-off situations.
6
Operation: Smooth lifting and 360-degree rotation provide flexible and safe operation.

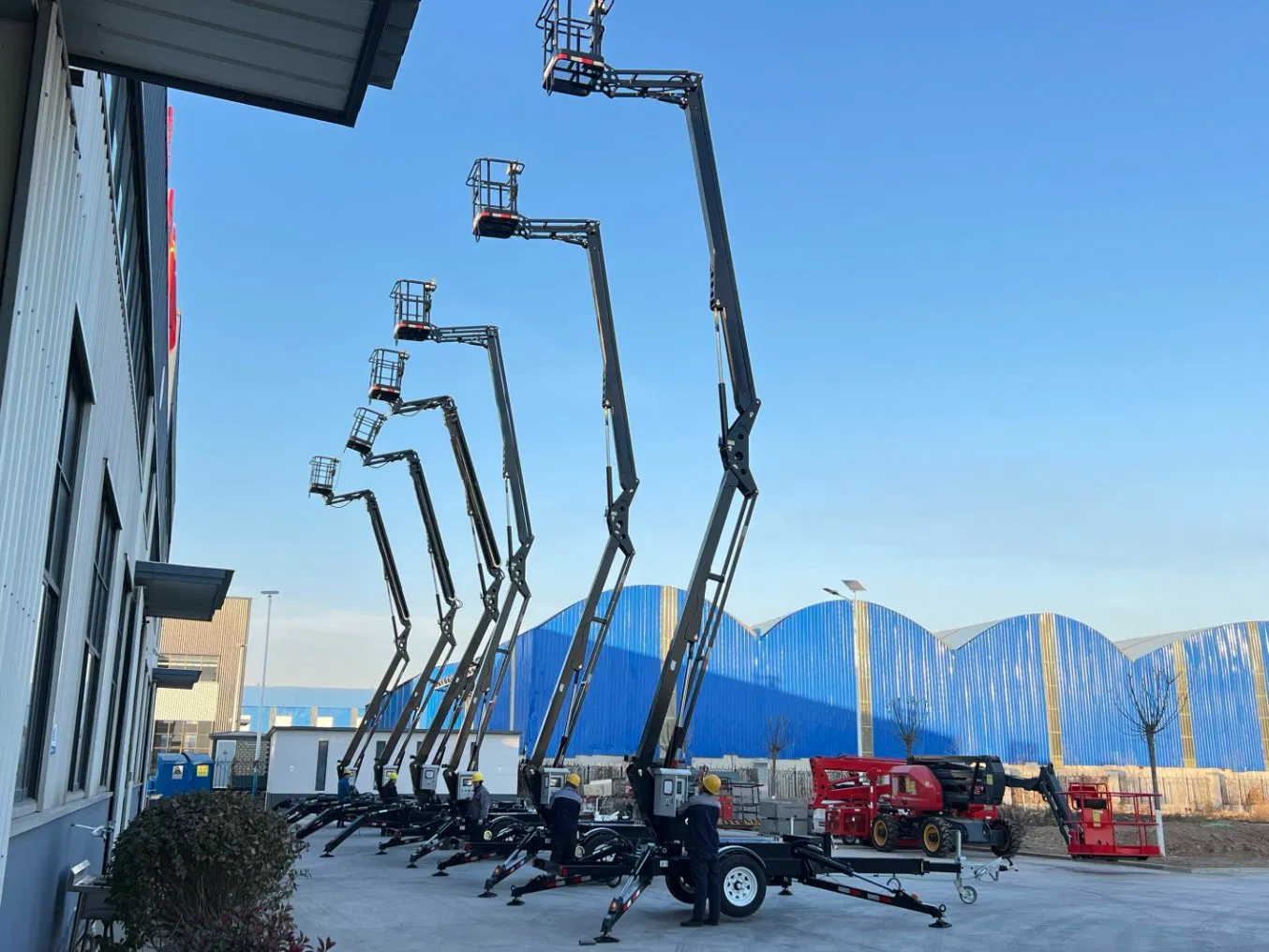

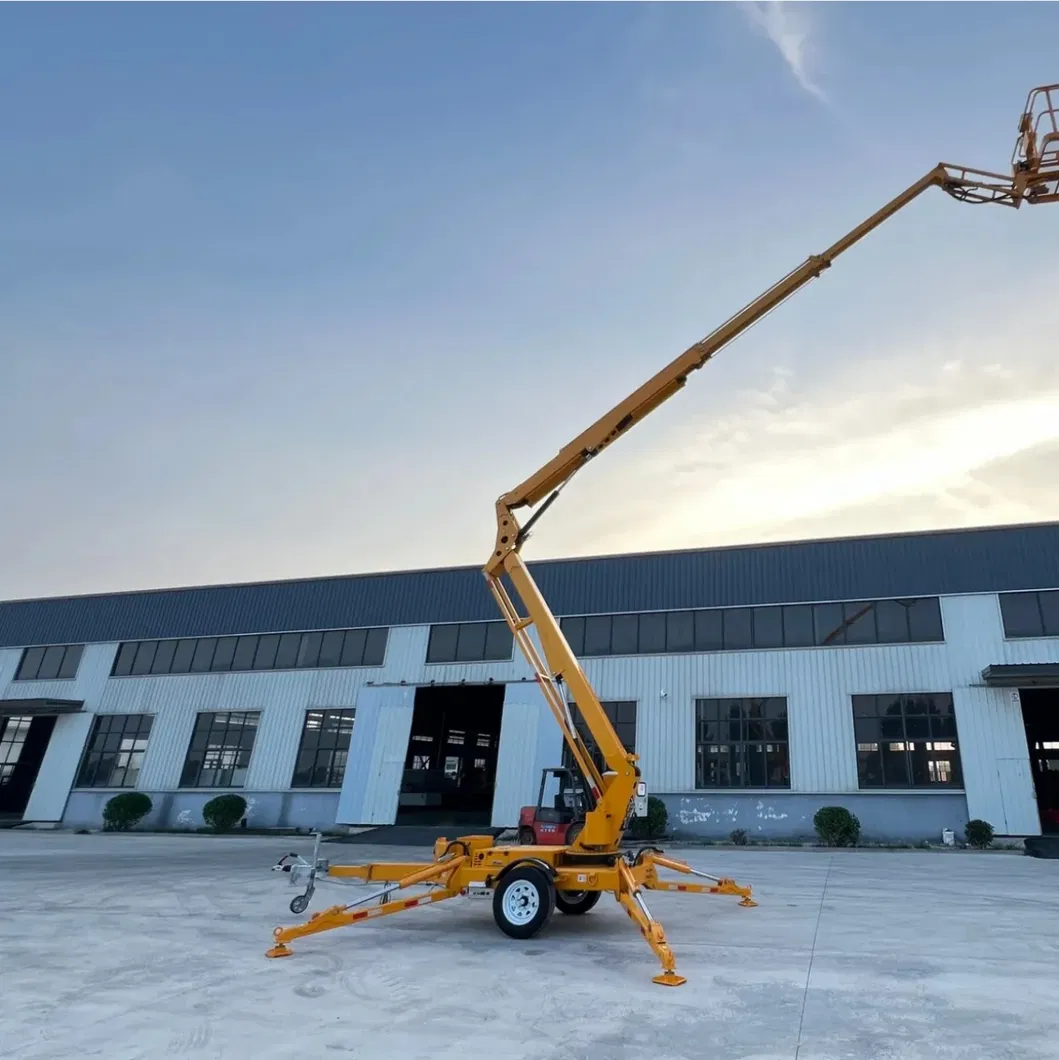

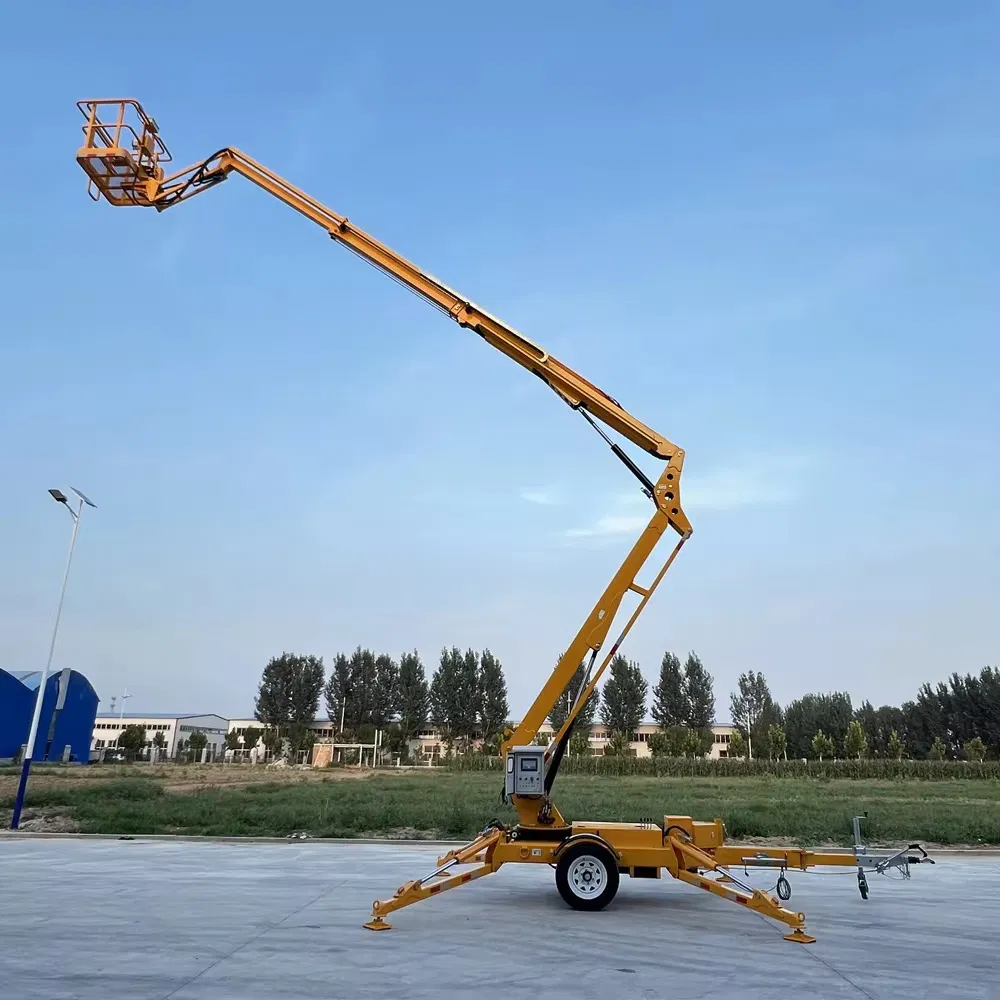

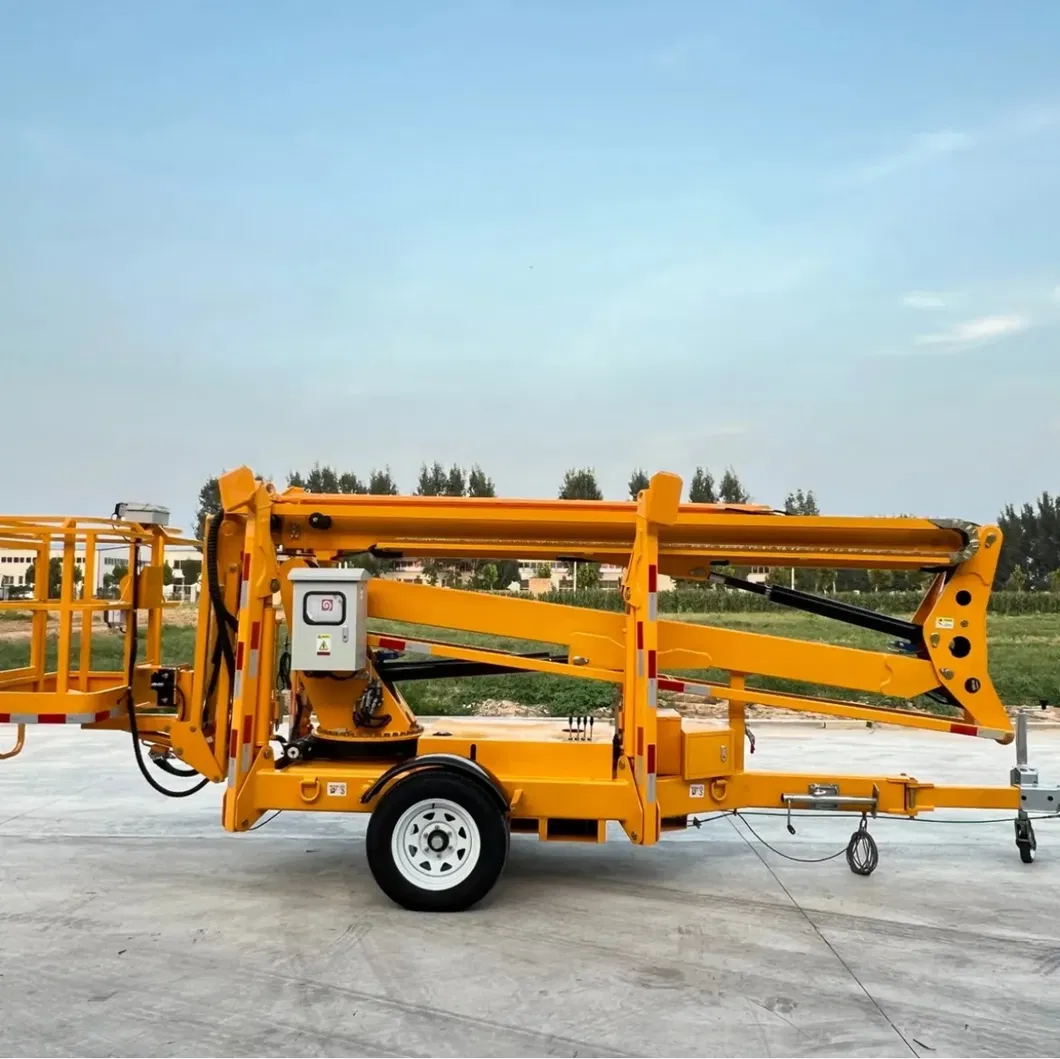

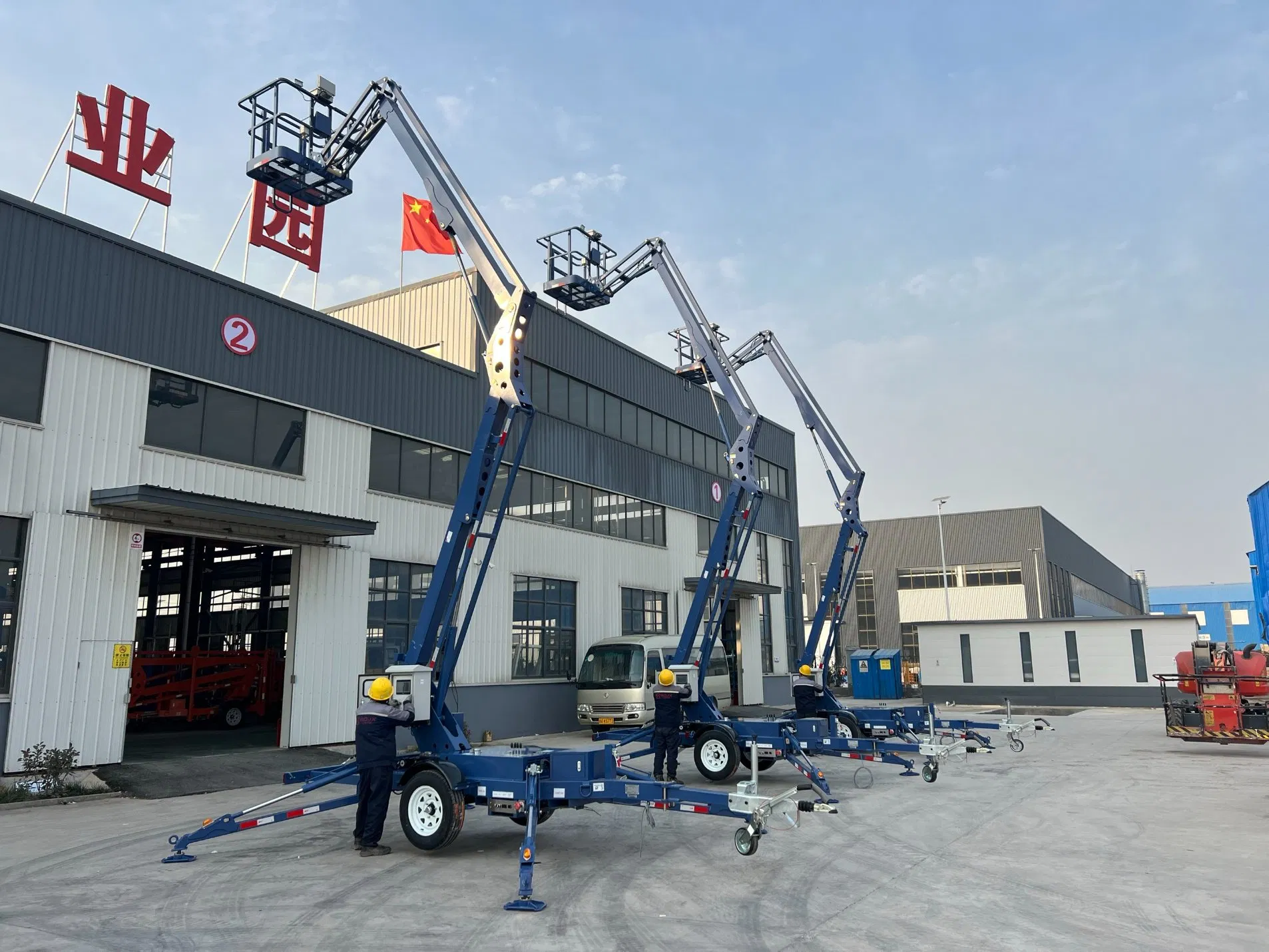

Product Gallery
Packaging & Shipping

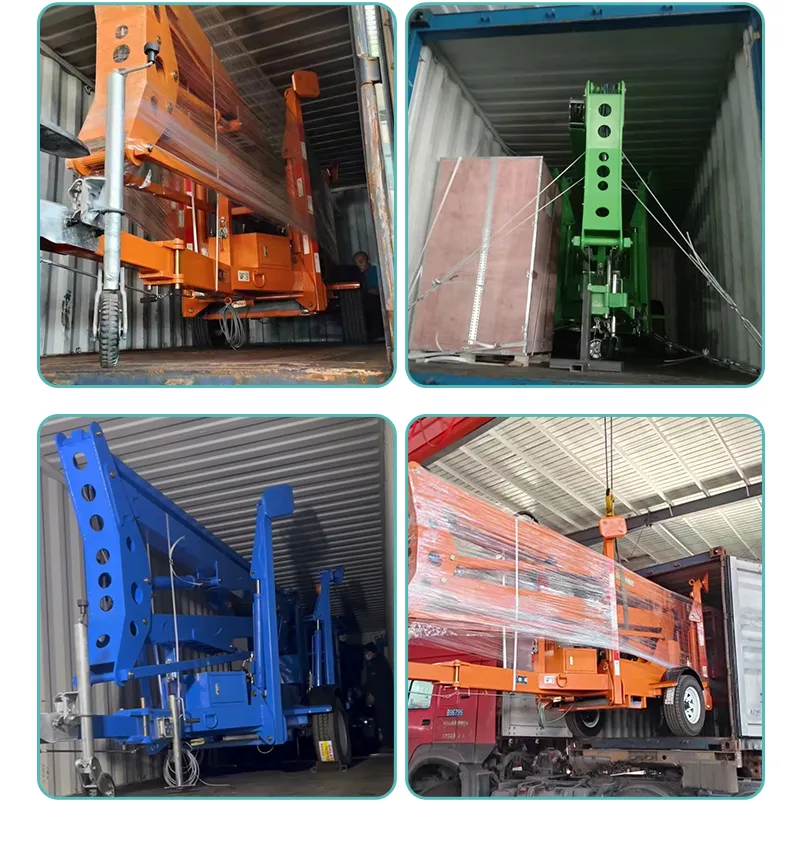

Packaging Process
After Sales Service
  • ✅ User-friendly English manual provided for machine operation and maintenance.
  • ✅ One year warranty for the entire machine (excluding man-made faults).
  • ✅ Free replacement parts for non-human factor issues during the warranty period.
  • ✅ 24-hour technical support via email or phone; response within 2 hours.
Frequently Asked Questions
What is the standard delivery time for the lift?
For in-stock models, the lead time is approximately 5 days. Customized units generally take about 15 working days.
How long is the warranty period?
The product comes with a standard 24-month warranty period to ensure reliable long-term use.
What power source options are available for the trailer boom lift?
Customers can choose between Diesel power or Storage Battery power depending on their specific site requirements.
How does the lift handle uneven ground surfaces?
The lift is equipped with four automatic hydraulic outriggers that can independently adjust to balance the machine even on uneven roads.
What safety features are included for emergency situations?
The machine includes anti-explosion valves within the hydraulic cylinders and an emergency decline valve to safely lower the platform if power is lost.
Is the equipment suitable for indoor use?
Yes, its compact folded design and efficient footprint make it ideal for narrow spaces, including shopping malls and warehouses.
