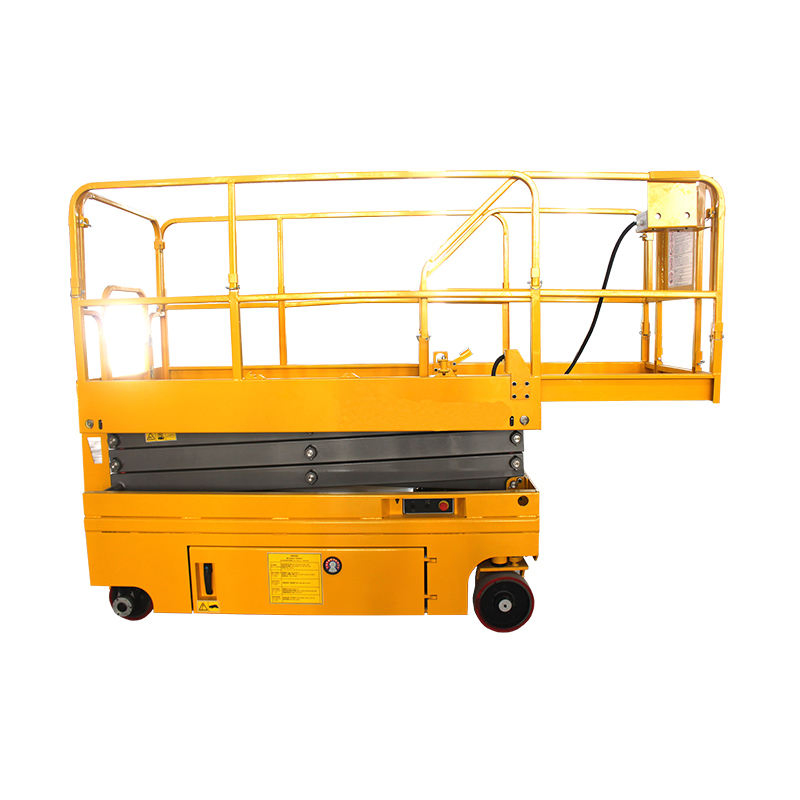

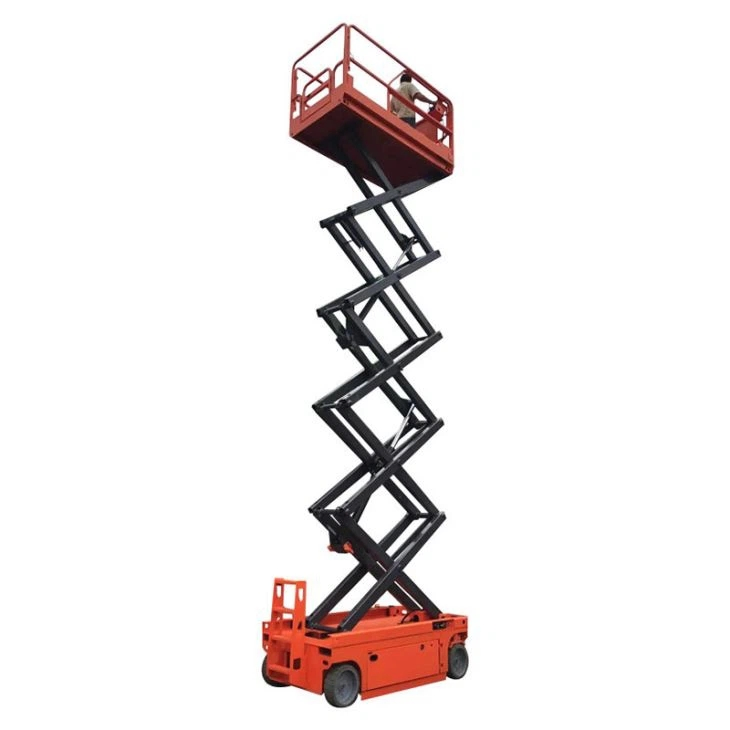

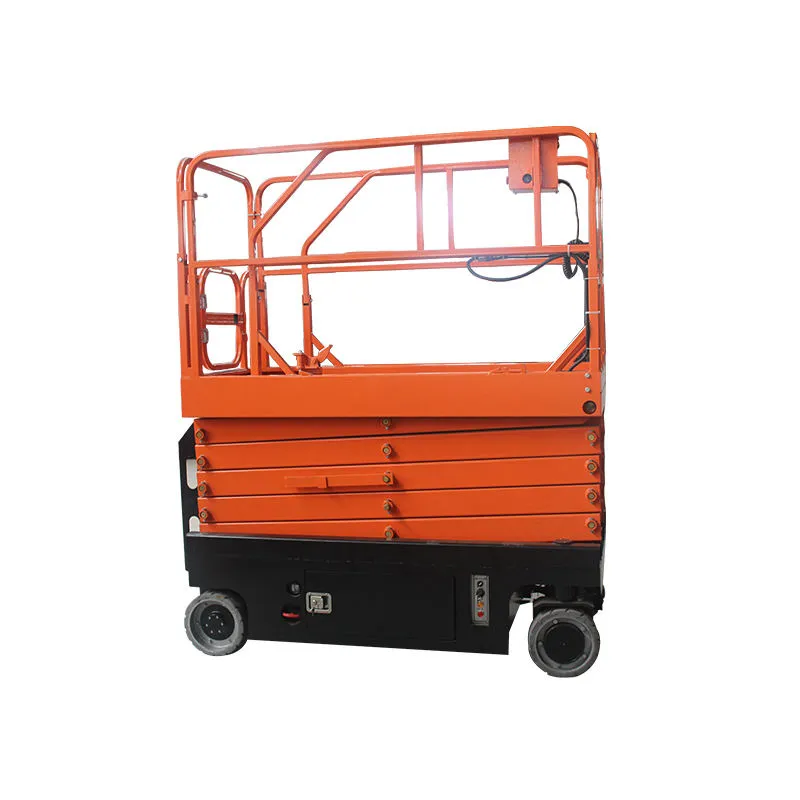

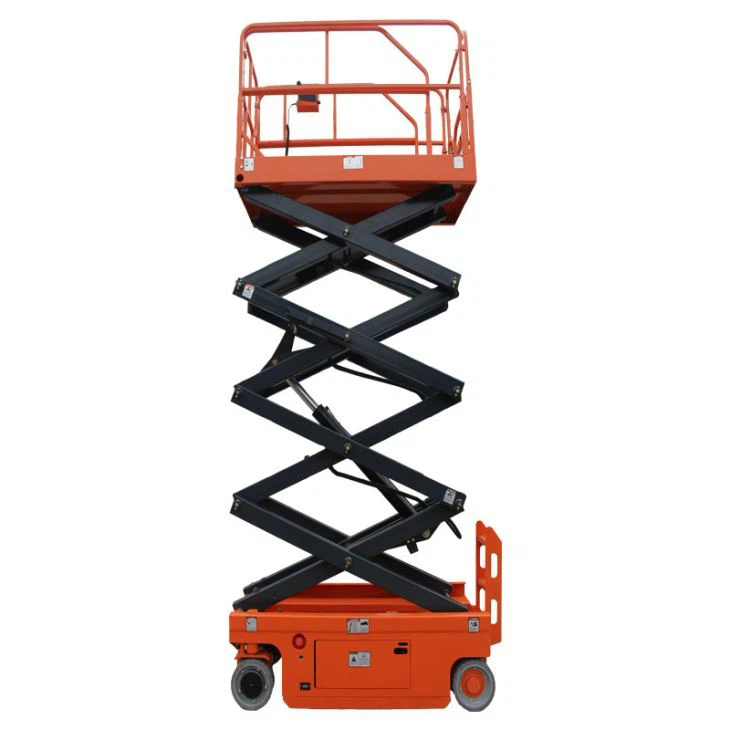

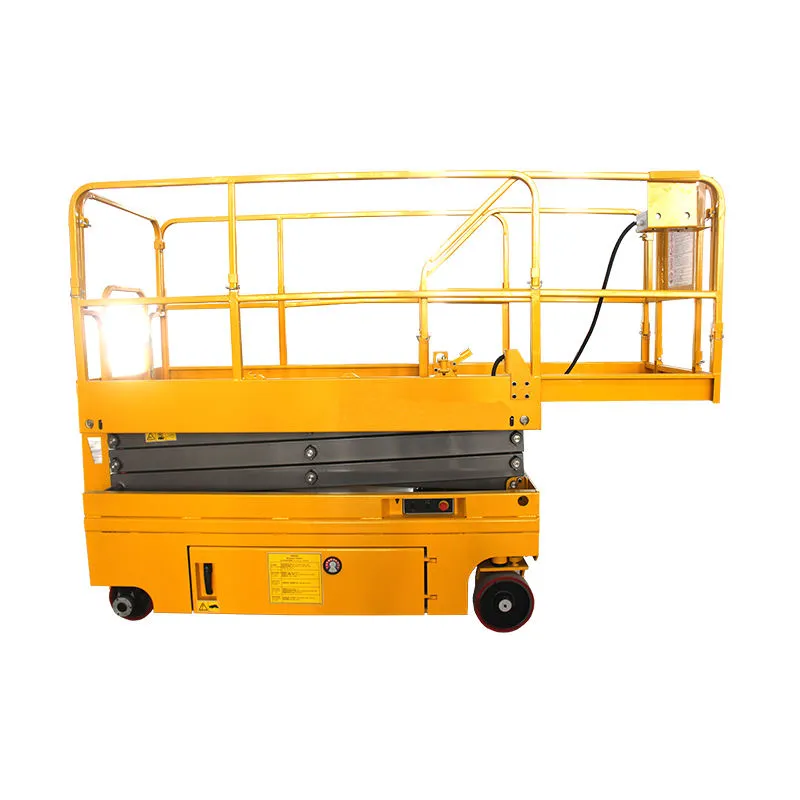

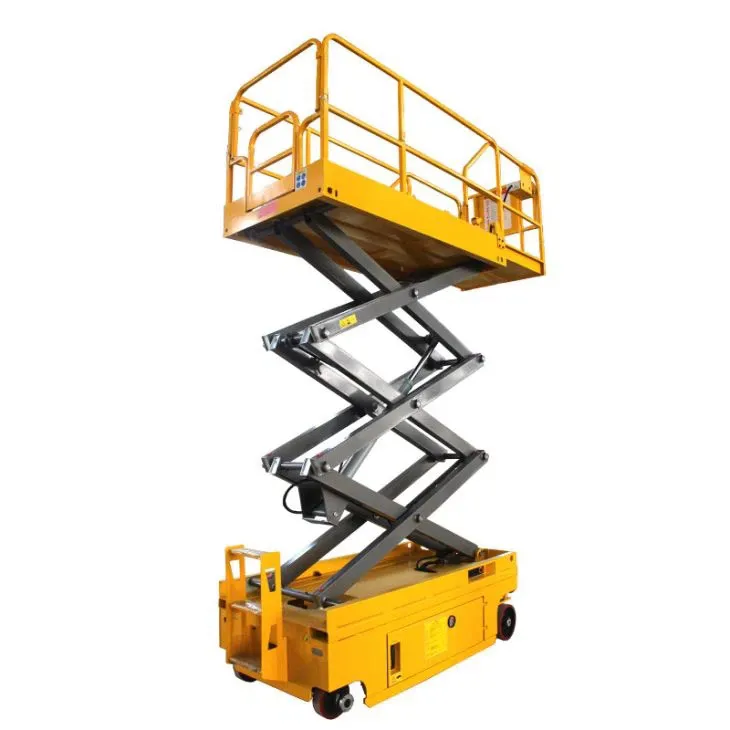

Progan Lift
1 / 5
| Model No. | Unit | SP06 | SP08 | SP10 | SP12 |
|---|---|---|---|---|---|
| Lifting capacity | kg | 300 | 300 | 300 | 300 |
| Folding max height (guardrail unfolded) | mm | 2150 | 2275 | 2400 | 2525 |
| Folding max height (guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 |
| Overall Length | mm | 2400 | 2400 | 2400 | 2400 |
| Overall Width | mm | 1150 | 1150 | 1150 | 1150 |
| Platform Size | mm | 2270×1150 | |||
| Platform extend size | mm | 900 | 900 | 900 | 900 |
| Min ground clearance (folding) | mm | 110 | 110 | 110 | 110 |
| Min ground clearance (rising) | mm | 20 | 20 | 20 | 20 |
| Wheelbase | mm | 1850 | 1850 | 1850 | 1850 |
| Power source | v/kw | 24/3.0 | 24/3.0 | 24/3.0 | 24/3.0 |
| Running speed (folding) | km/h | 4 | 4 | 4 | 4 |
| Rising/falling speed | sec | 40/50 | 40/50 | 70/80 | 70/80 |
| Battery | V/Ah | 4×6/210 | |||
| Whole weight | kg | 1900 | 2080 | 2490 | 2760 |
