Electric Low-Level Order Picker for Fast Retail Backroom Stock Replenishment

Customization: Available
After-sales Service: Online Support and on-Site Repair Services
Warranty: 1 Year

Product Description

Basic Information
Model NO.
OPL10S/OPS15BD
Type
Order Picker
Power
AC Motor
Load Capacity
1-1.5 Ton
Fuel
Electric
Lift height
1.2-5.5 Meters
Origin
China
Production Capacity
200units/Month

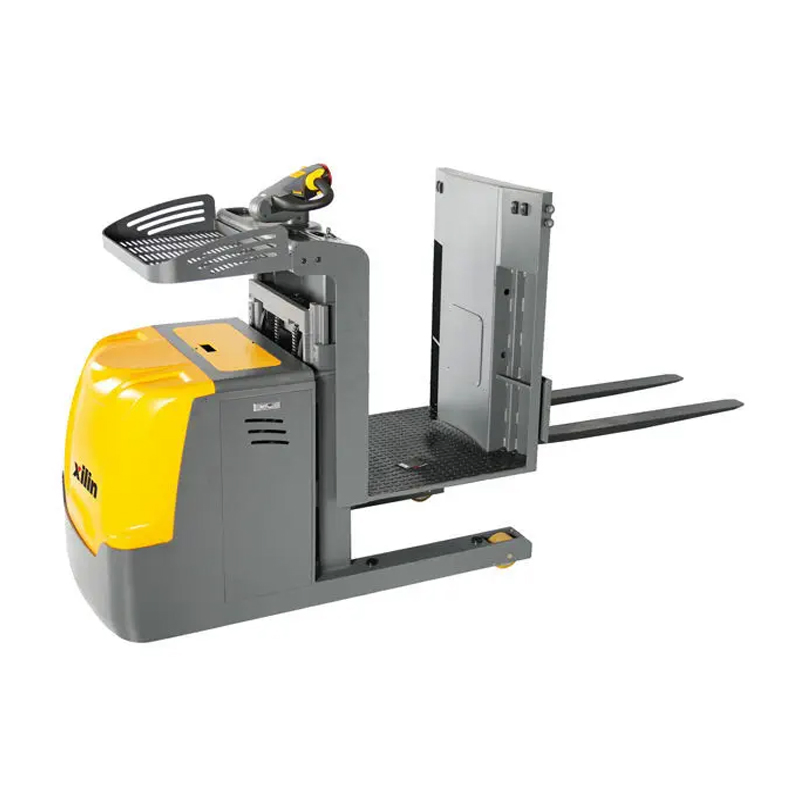

OPL10S Electric Low-Level Order Picker
Electric Low-Level Order Picker

The OPL10S is a highly efficient and ergonomic Electric Low-Level Order Picker specifically designed to streamline picking operations at lower rack levels (up to 1.2 meters). It enhances productivity and safety in warehouses, distribution centers, and retail backrooms by allowing operators to work comfortably at height while traveling quickly between locations.

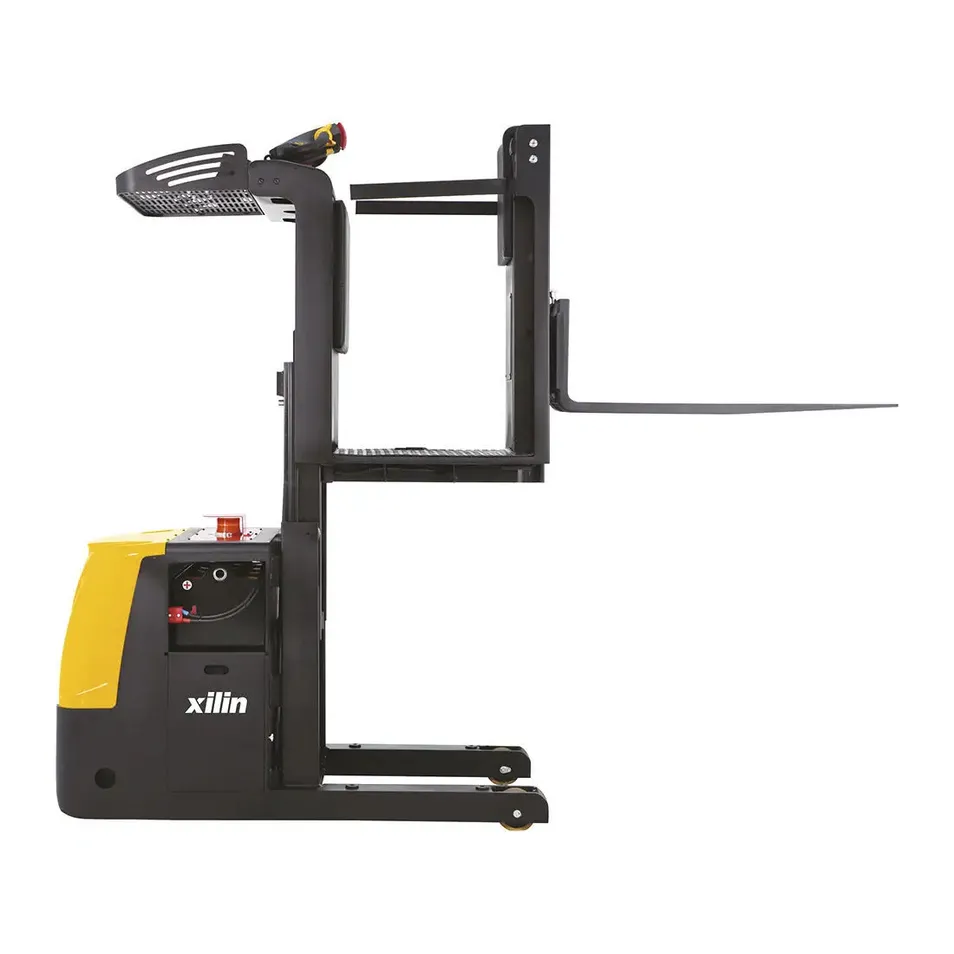

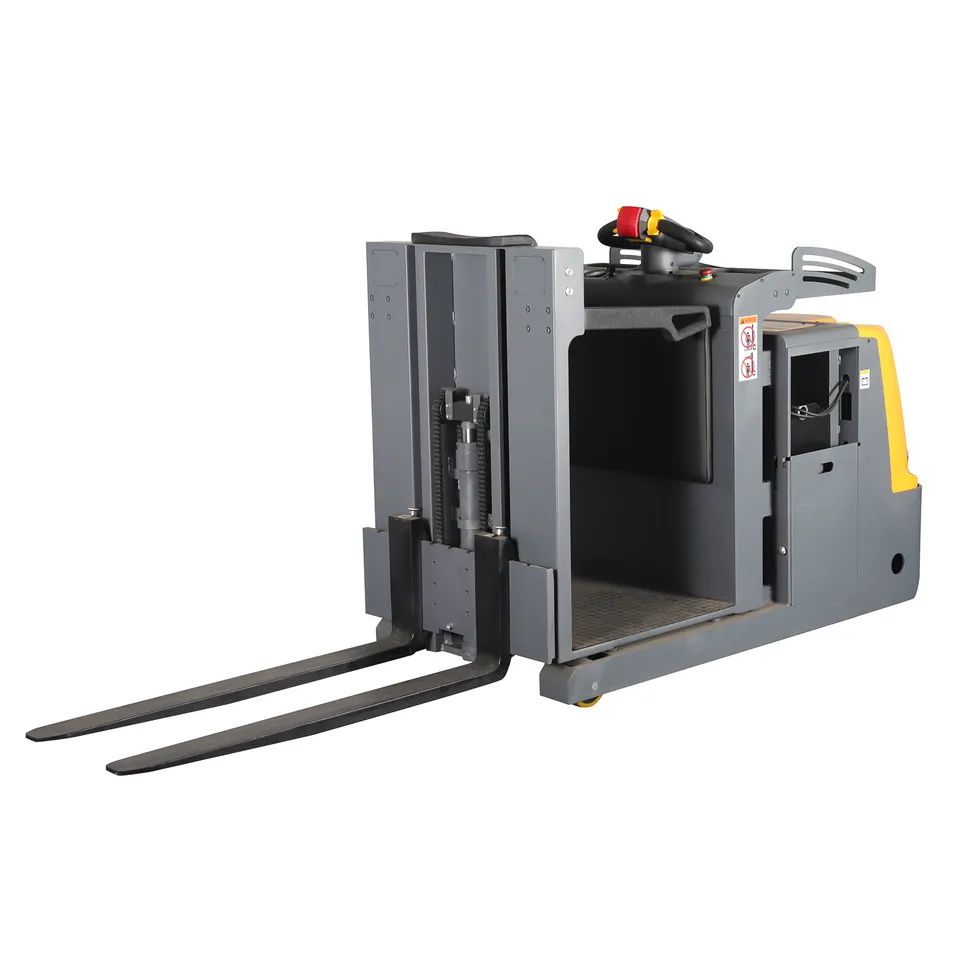

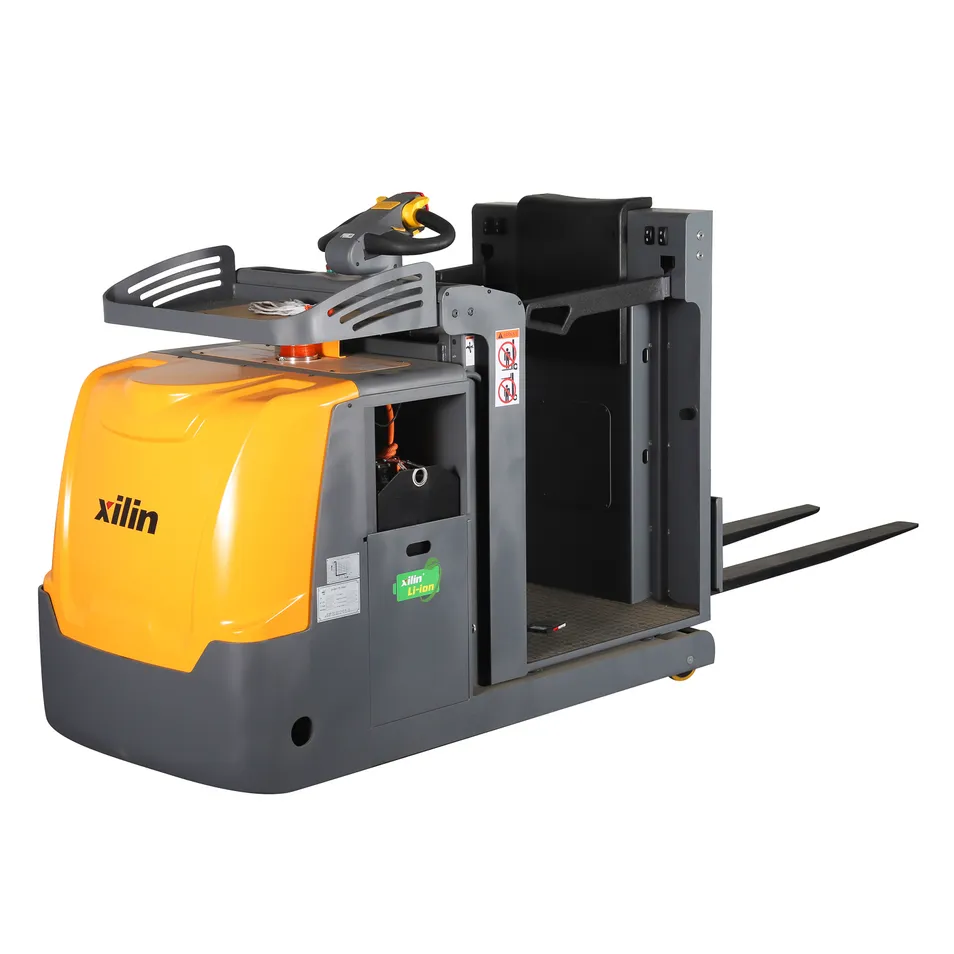

OPL10S View 1 OPL10S View 2 OPL10S View 3
Key Features & Advantages
  • Dual Control Positions: Features extra fork lifting/lowering buttons and a straight driving control on the platform backrest for off-truck operation.
  • Advanced EPS: Electric Power Steering handle provides light and precise steering with minimal effort.
  • High Travel Speed: Up to 10 km/h at full load and maximum gradeability of 10%.
  • Premium AC Drive System: Smooth acceleration and easy maintenance with speed frequency control.
  • Battery Management: Side-way battery design for easy removal and replacement.

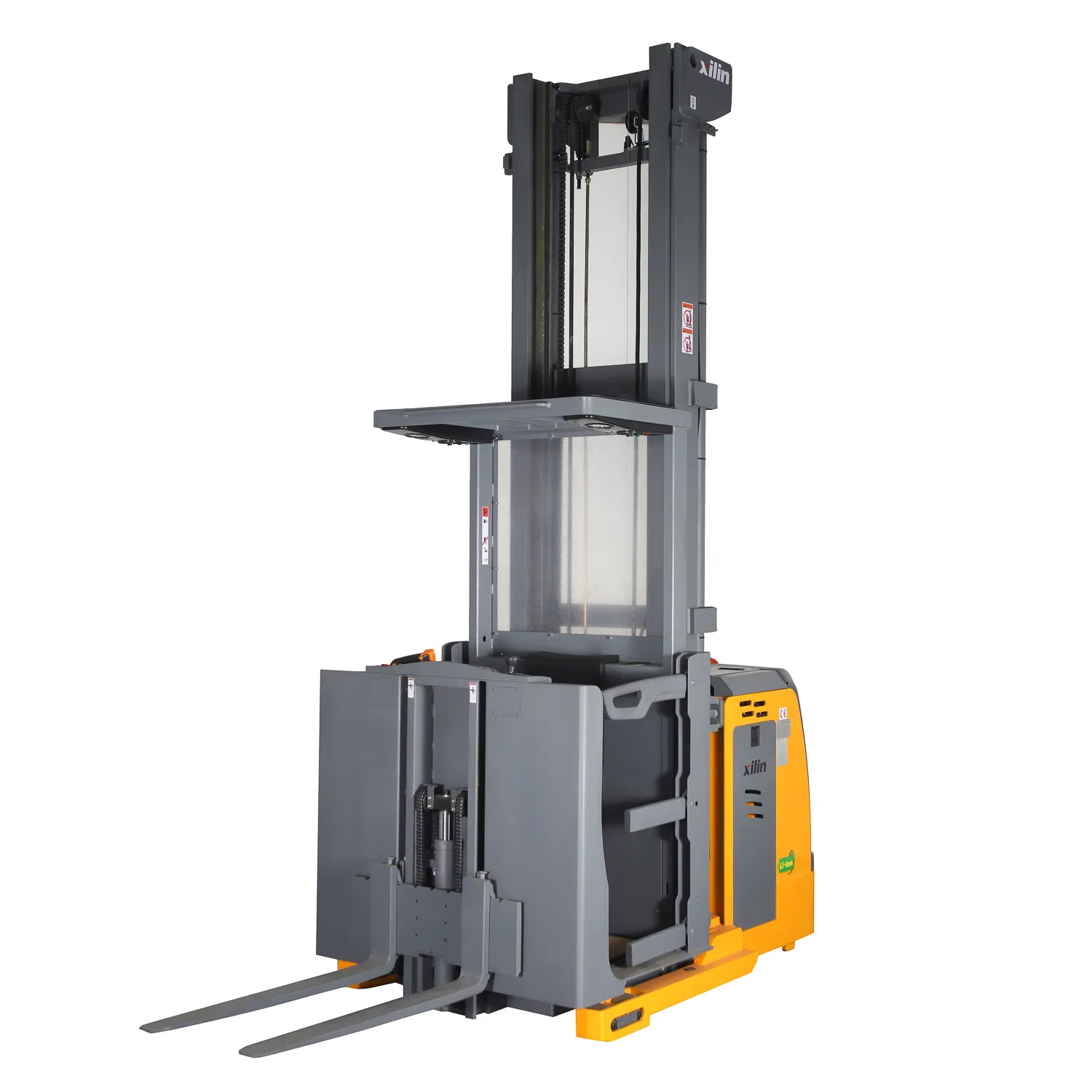

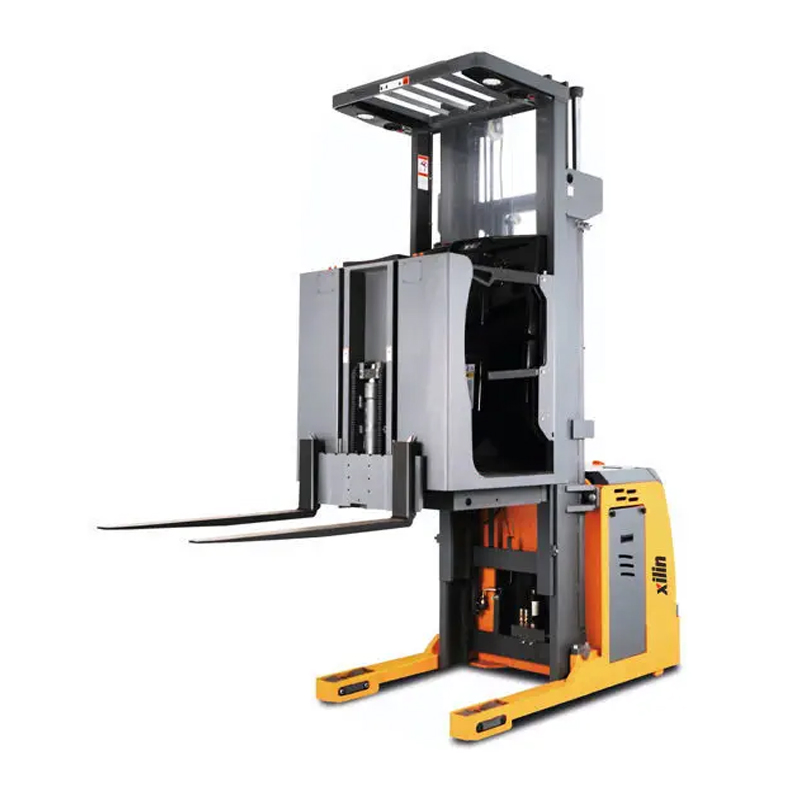

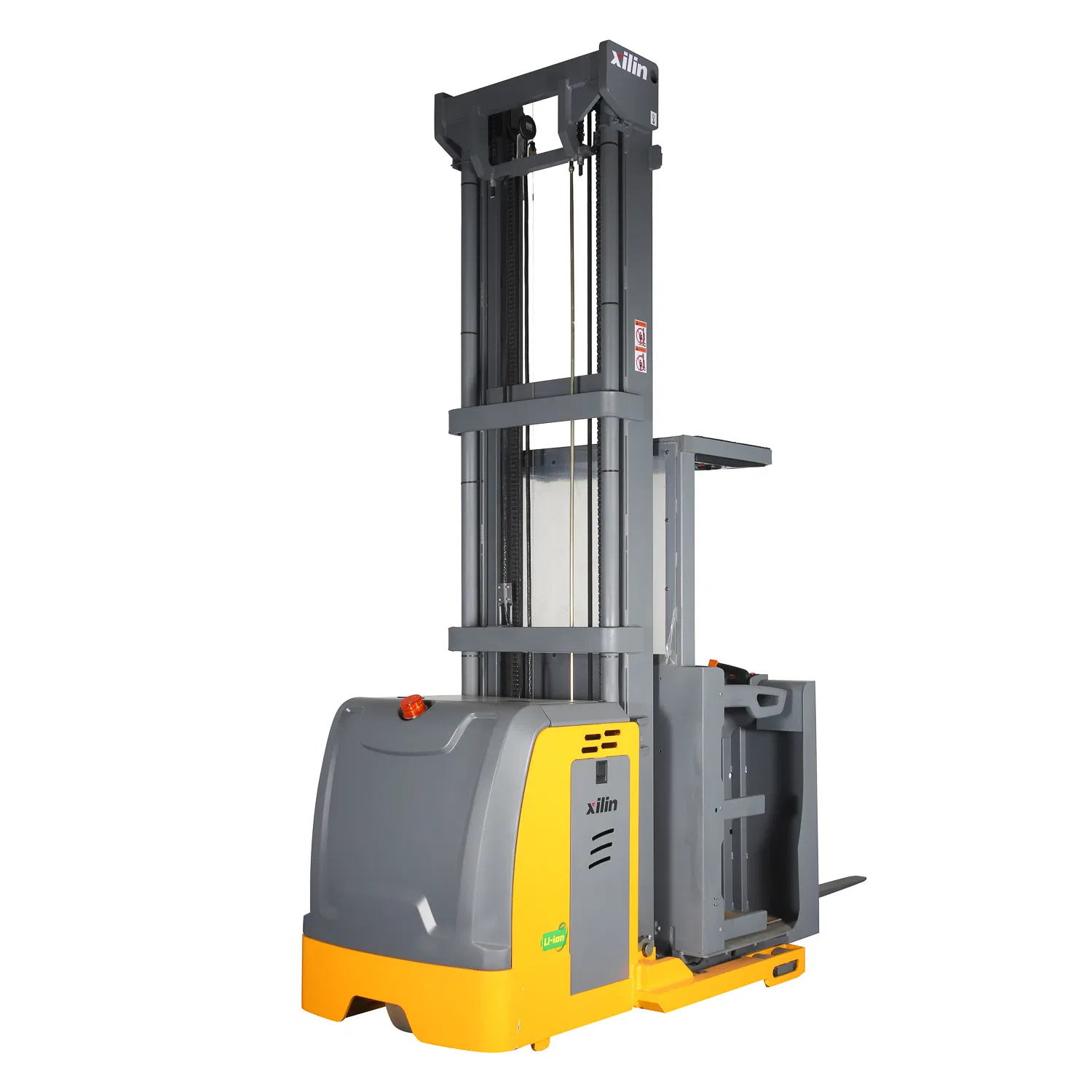

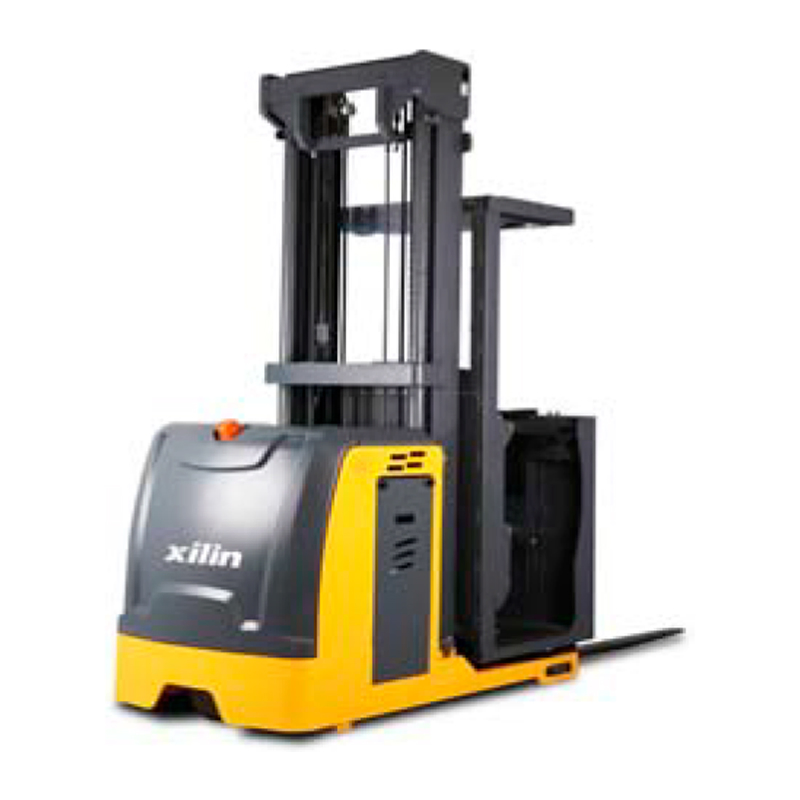

OPS15-BD Electric Mid-Level Order Picker

The OPS15-BD is a sophisticated and safety-focused Electric Mid-Level Order Picker engineered to deliver exceptional stability and operator confidence for order picking, stock replenishment, and maintenance tasks at medium heights. It combines a robust low-center-of-gravity chassis with advanced safety systems.

  • Triple Lift Limit Protection: Electronic, hydraulic cylinder, and mechanical protection to prevent over-lifting.
  • Automatic Speed Management: Descent speed automatically slows below 500mm from the ground to prevent collisions.
  • Safety Interlock System: Protective railing equipped with a safety switch; truck only operates when locked.
  • Centralized Control Handle: Intuitive handle for simultaneous control of driving and lifting functions.
  • Maintenance-Free AC Motor: Reliable power without carbon brushes to replace.
Technical Specifications
Model OPL10S OPS15BD
Load1000 kg1500 kg
Lift1020 mm4500/5000/5500 mm
Additional lift800 mm/
Fork dimensions35/100/1070 mm35/100/1070 mm
Fork spread200-750 mm200-750 mm
Travel speed (laden)7.7 km/h8 km/h
Battery24V450Ah lead-acid24V560Ah lead-acid
Main Product Range

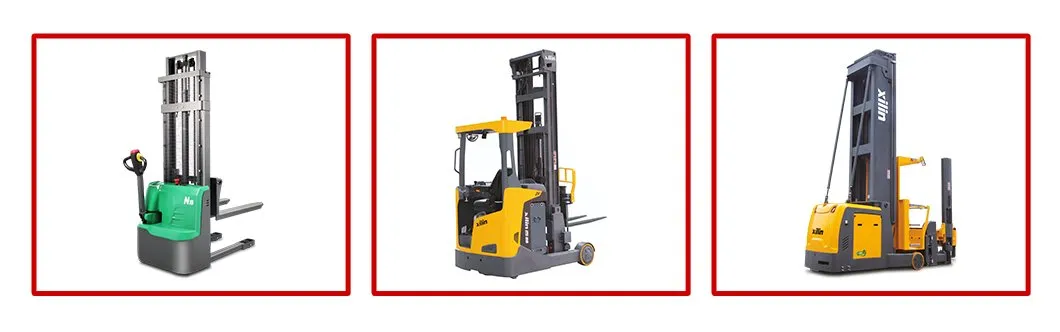

Main Products
Strategic Partnership & Quality

We proactively integrate ourselves into a select network of leading manufacturers renowned for advanced production technology and rigorous quality management systems (ISO 9001, CE certification). We ensure every product, from man-up VNA trucks to versatile electric pallet stackers, is built to exacting global standards.

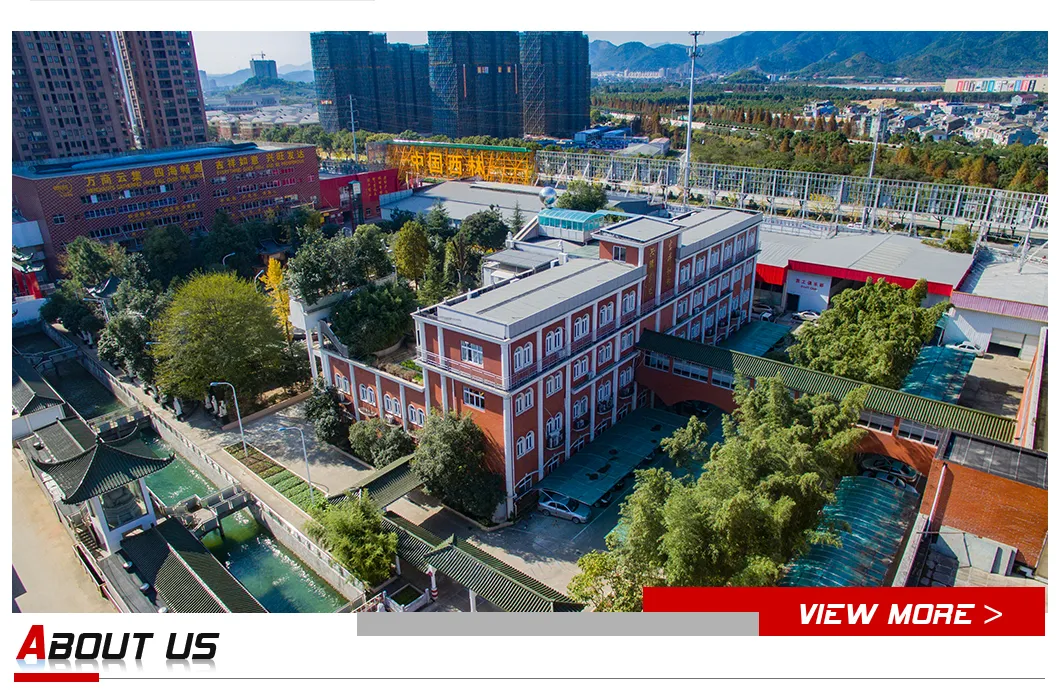

Manufacturing Excellence

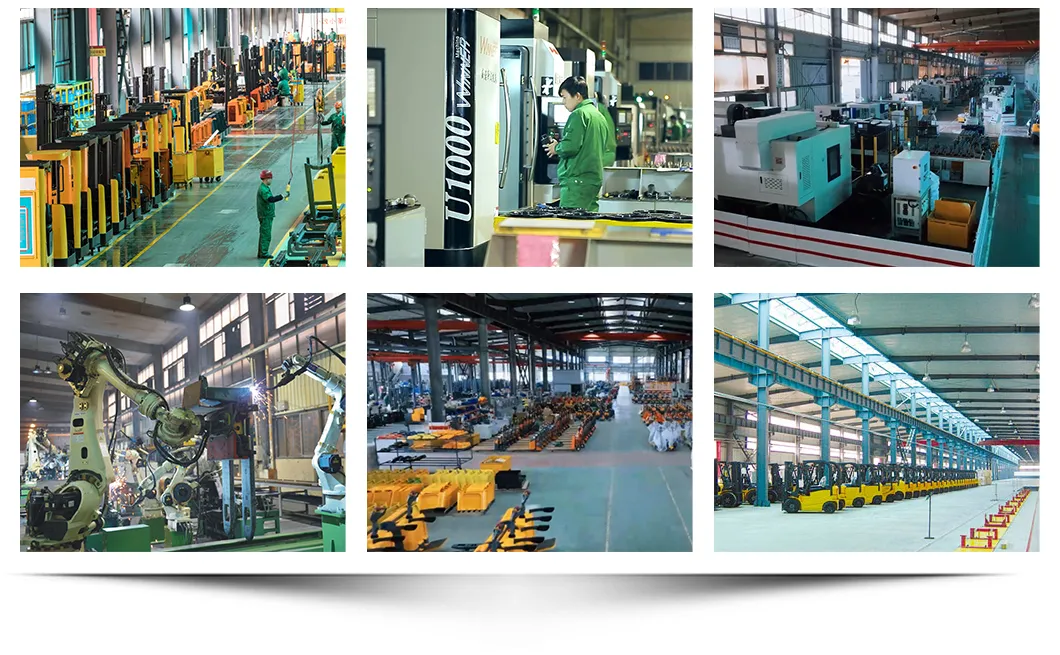

Corporate Advantage Certificates Customer Visit

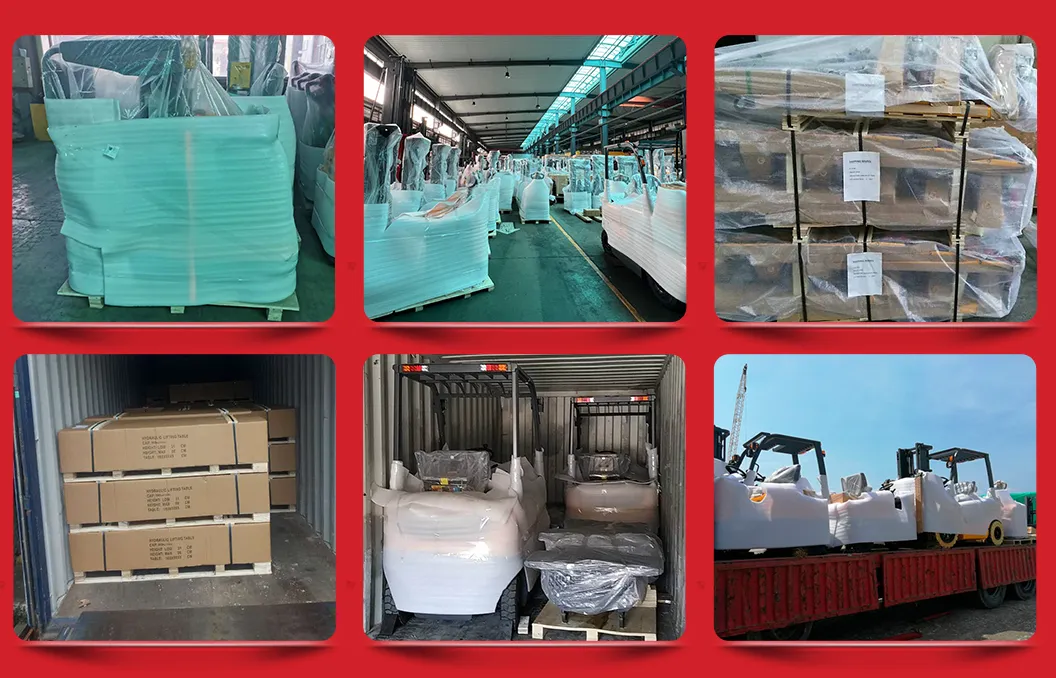

Packaging & Shipping
Packaging and Shipping
Frequently Asked Questions
What products do you offer?
We supply a full range of electric and diesel forklifts, including counterbalance forklifts, reach trucks, VNA stackers, electric pallet trucks, and stackers. Attachments are also available.
Can you customize products?
Yes. We offer customization of colors, branding (OEM), and specific features such as fork dimensions and lift height.
Is there a quality guarantee?
Yes. All partner factories are ISO-certified, and products meet CE standards. We conduct 100% pre-shipment inspections and provide relevant certificates.
What is the lead time?
Standard models typically take 15-30 days. Customized or large orders may require 30-60 days. A clear production schedule is provided after order confirmation.
What are the shipping terms?
We work under standard Incoterms including FOB, EXW, CFR/CIF, and DAP (delivered to your specified address). We provide full shipping documents for all exports.
What is the warranty and after-sales support?
We provide a 12-month warranty for manufacturing defects. Support includes English manuals, remote video technical support, and supply of genuine spare parts.
