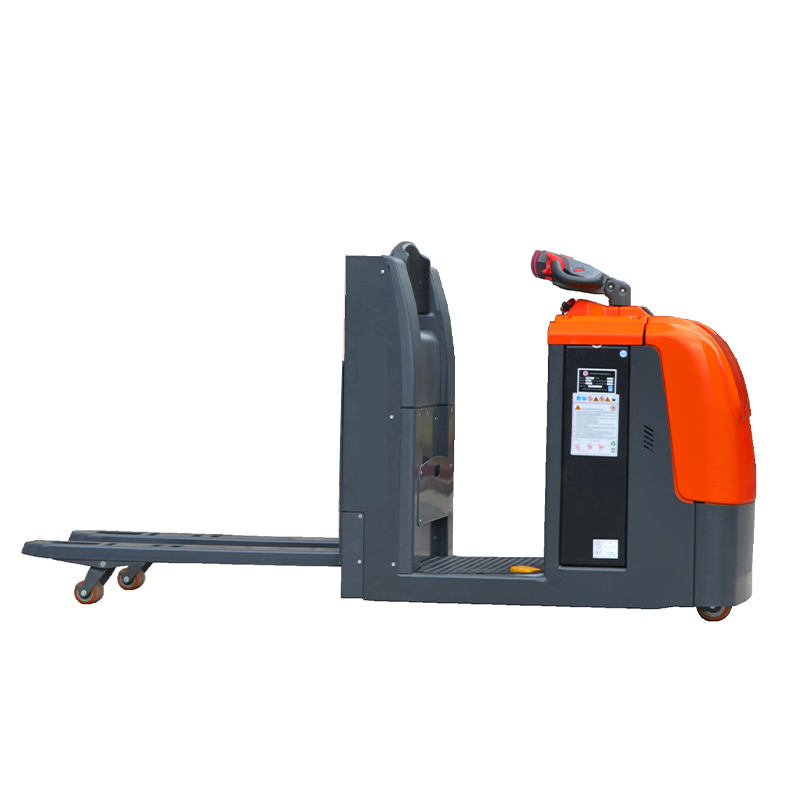

Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
1 / 5
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller
Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller

Low-Level Order Picker All Electric Walking Low Position Picking Car Electronic Steering Imported Controller

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.NXT JXD20
TypePost Pallets
MaterialSteel
Size1140mm*1140mm
Load Capacity2T
Entry Type2-Way
Service Weight1070 kg
Battery24V/360Ah
ColorCustomizable
CertificationCE, ISO9001
Low-Level Order Picker
Higher Safety Factor

The main gantry adopts 12# channel steel, with legs up to 21.3mm thick. Sturdy fixed support legs and high-strength vehicle body steel frame ensure absolute stability during operation.

Key Functional Highlights

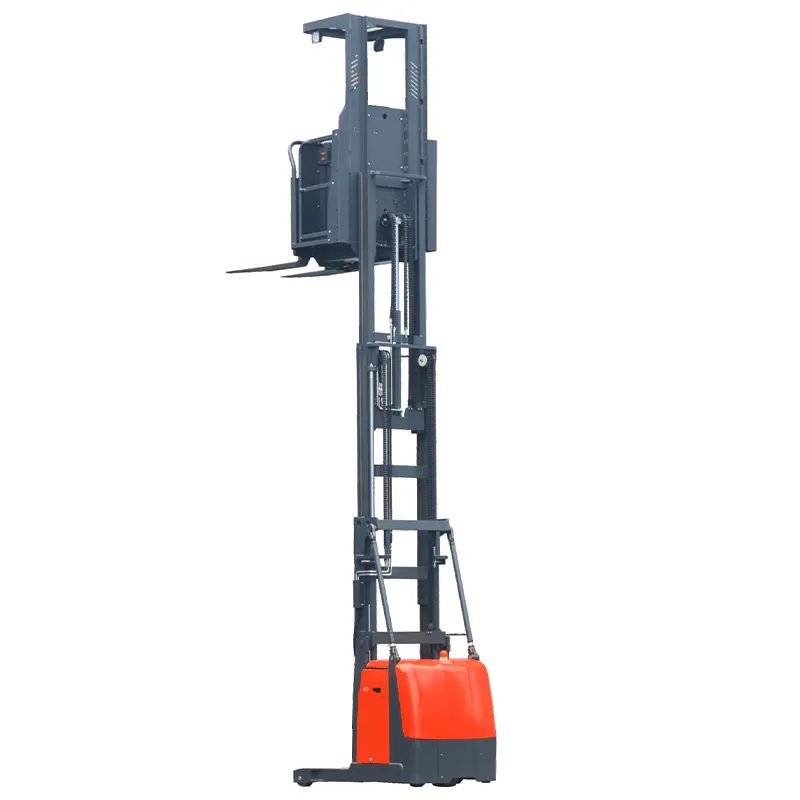

Stable Operation

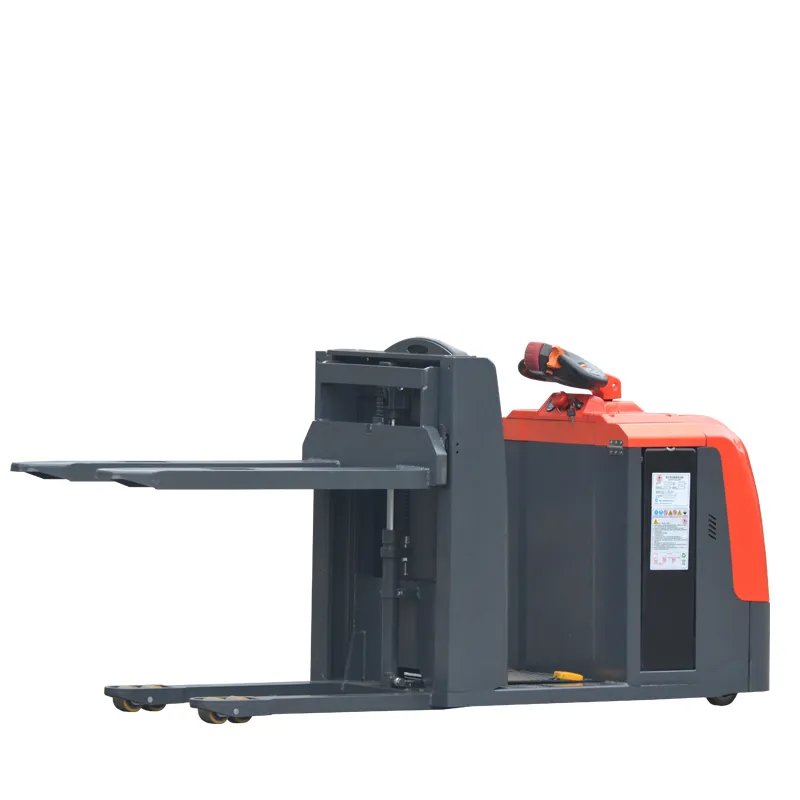

Lifting Power
Control System
  • CURTIS AC Controller: High power drive with stepless speed regulation and reverse braking function.
  • Hydraulic Power Unit: Compact structure, reliable performance, and adjustable lifting speeds.
  • Lifting Limit Function: Automatically cuts power at peak height to prevent accidents and extend system life.
  • Battery Side Replacement: Designed for continuous multi-shift operations, making battery swaps fast and easy.
  • Dual Control Elements: Operators can move the picker from either side, reducing get-on/off delays.
  • Floating Bracket: Enhances stability and prevents tilting during turns.
Technical Parameters
Characteristics
Model-JXD20
Power unit-Electric
Rated traction weightQ (kg)2000
Load centrec(mm)600
Wheel basey (mm)2080
Wheels/Tyres
Driving wheel sizeΦ×w(mm)φ250×75
Bearing wheel sizeΦ×w(mm)φ80×70

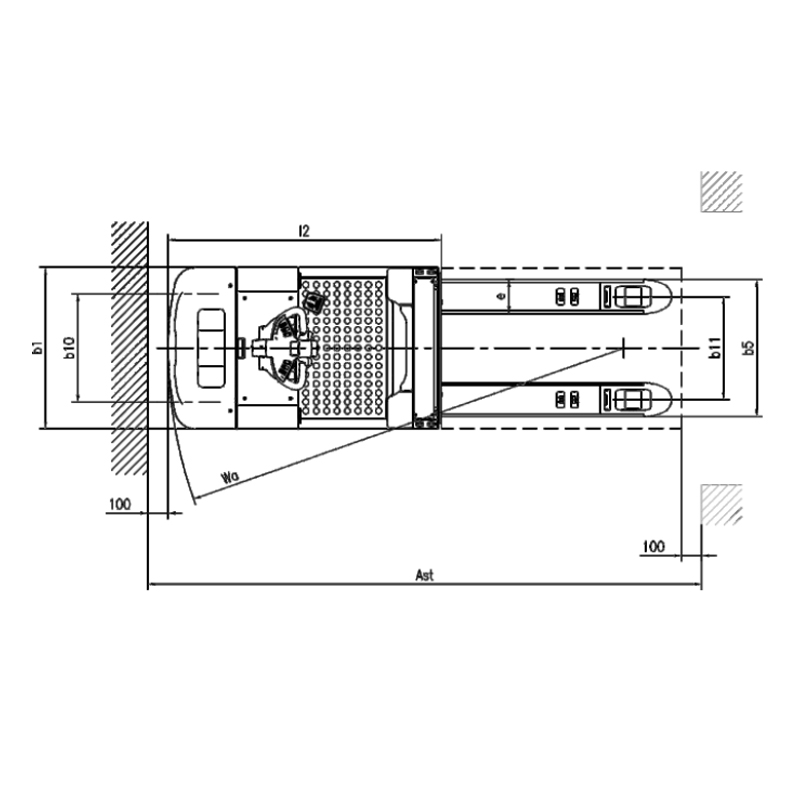

Dimensions
Overall lengthI1(mm)2517
Overall widthb1/b2 (mm)808
Aisle width (800x1200 pallet)Ast (mm)2780
Performance
Travel speed (laden/unladen)(km/h)5.2/5.5
Gradeability (laden/unladen)(%)3/6
Usage
Details

The Electric Pallet Stacker is an essential innovation for modern warehouses. Capable of lifting loads up to 1.5 tonnes and reaching heights of 5 meters, it ensures efficient material handling without damaging goods. It is user-friendly, requires low maintenance, and is perfect for both experienced and new workers.

Certificates & Production
Certification

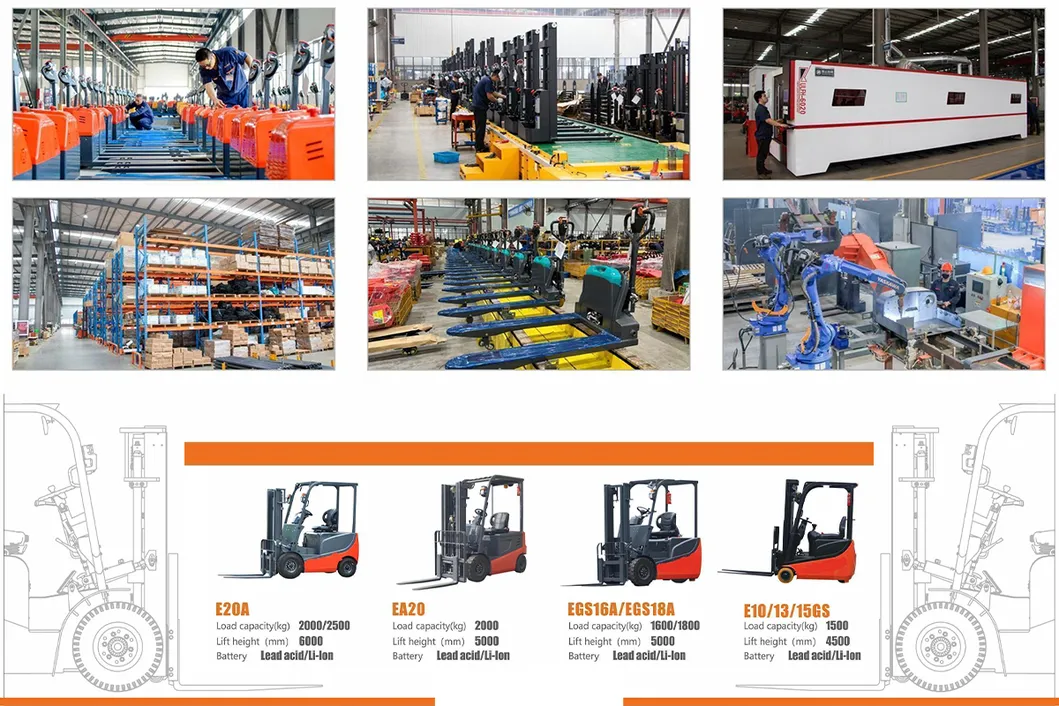

Workshop
Frequently Asked Questions
What is your standard delivery time?
The delivery time is approximately 30 working days. Production may take longer during peak industrial seasons.
How do you manage quality control?
We maintain a strict quality control system supported by a professional QC team to ensure every unit meets safety standards.
What color options are available for the equipment?
Our standard colors are Yellow, Red, and Green. However, we can customize the color according to your specific color code requirements.
Can I monitor the production progress of my order?
Yes, during the manufacturing process, we can provide video calls, photos, and videos for your reference.
What kind of warranty and after-sales service is provided?
We provide a 1-year warranty for each machine. If any parts fail due to quality issues within this period, new parts will be sent free of charge within 7 working days.
What certifications does the equipment hold?
Our production processes follow ISO 9001:2008 standards, and all of our forklifts/pickers carry the CE certification.
