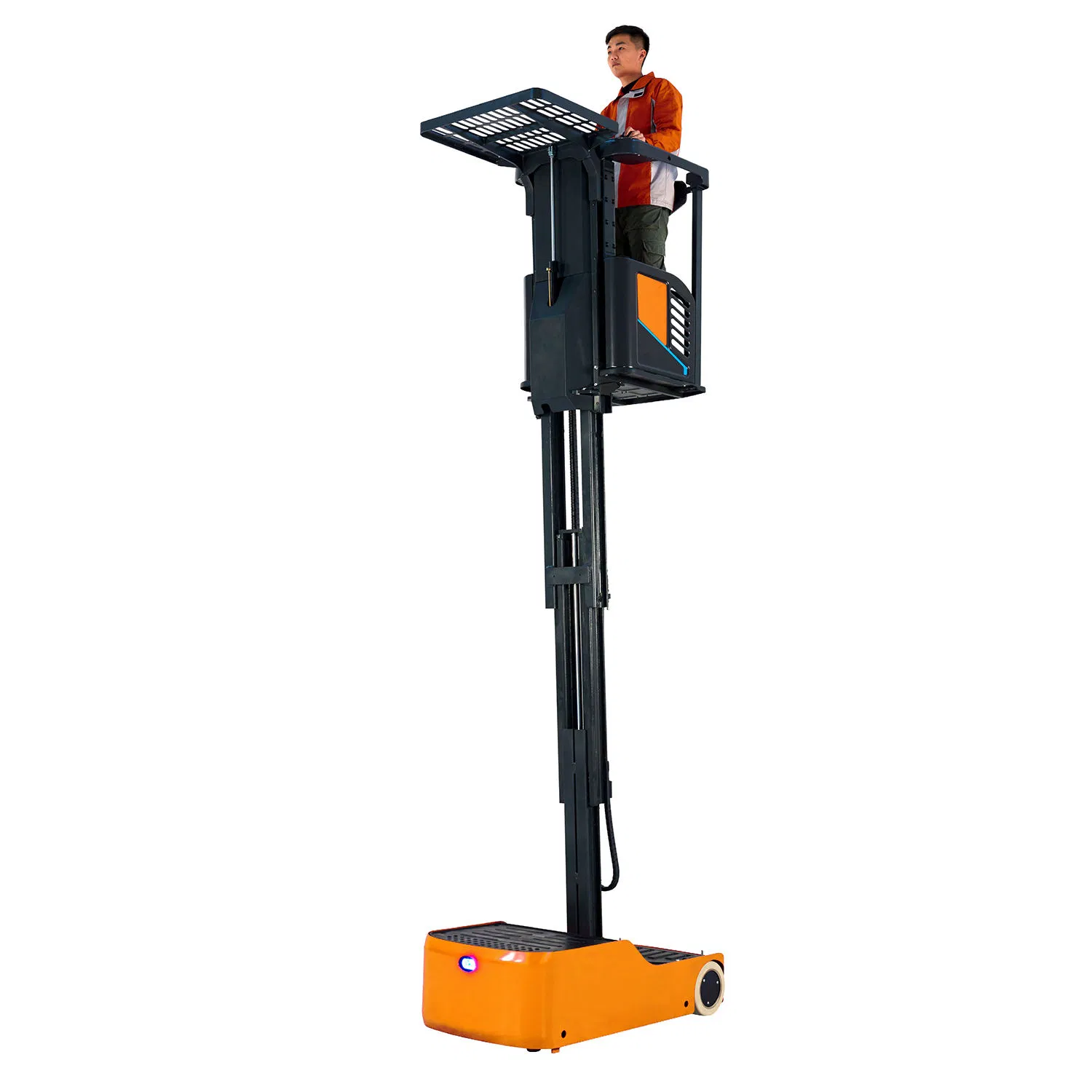

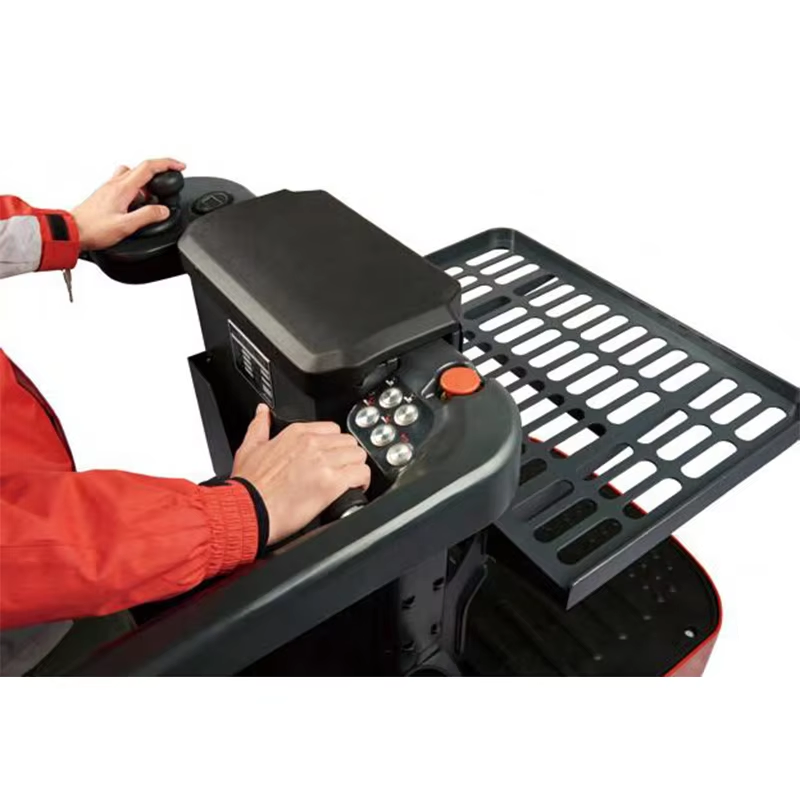

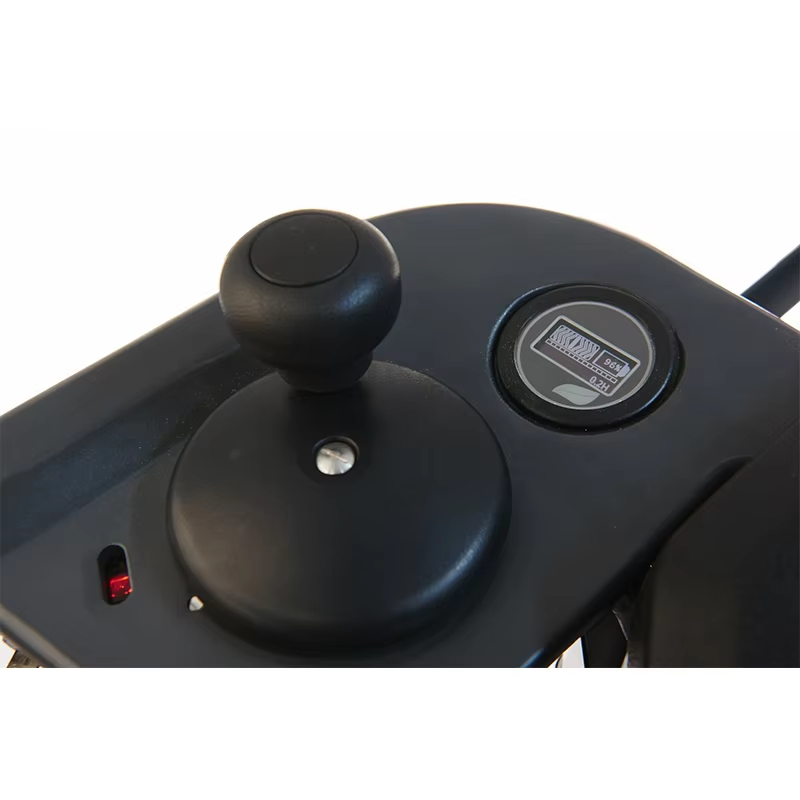

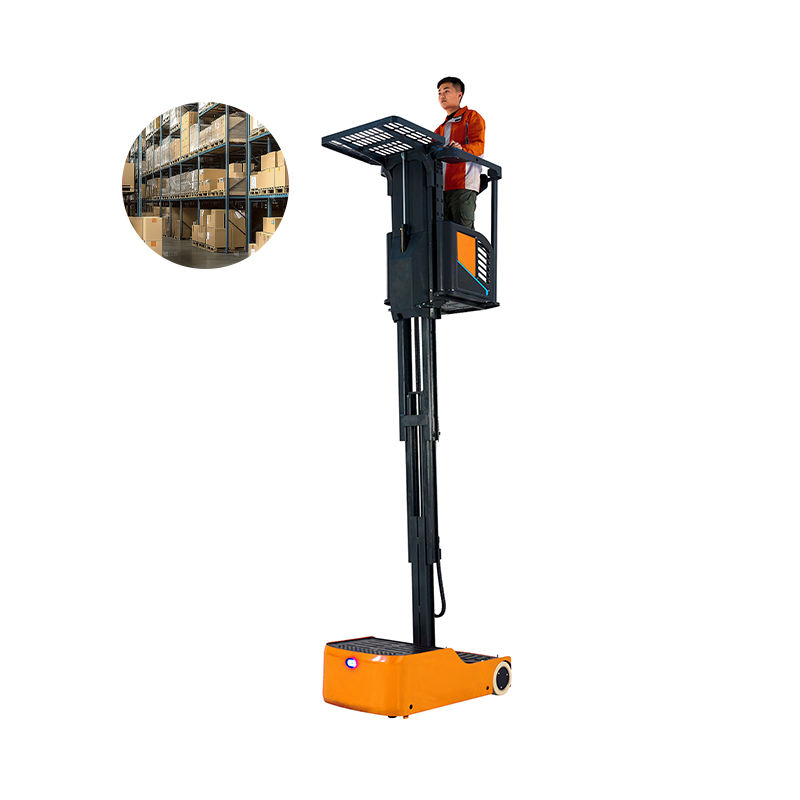

High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
1 / 5
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height
High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height

High Level Electric Order Picker with 200kg Capacity 3000 mm Rise Height

Customization: Available
After-sales Service: 24 Hours Online
Warranty: 1years
Send Inquiry

Product Description

Overview & Specifications

Model NO.
NJ2Q01LD
Type
Battery Order Picker
Load Capacity
0.2t
Power
DC Motor
Fuel
Electric
Lift Height
3620mm
Condition
New
Production Capacity
1000PCS/Month

Product Visuals

Electric Order Picker
High Level Order Picker

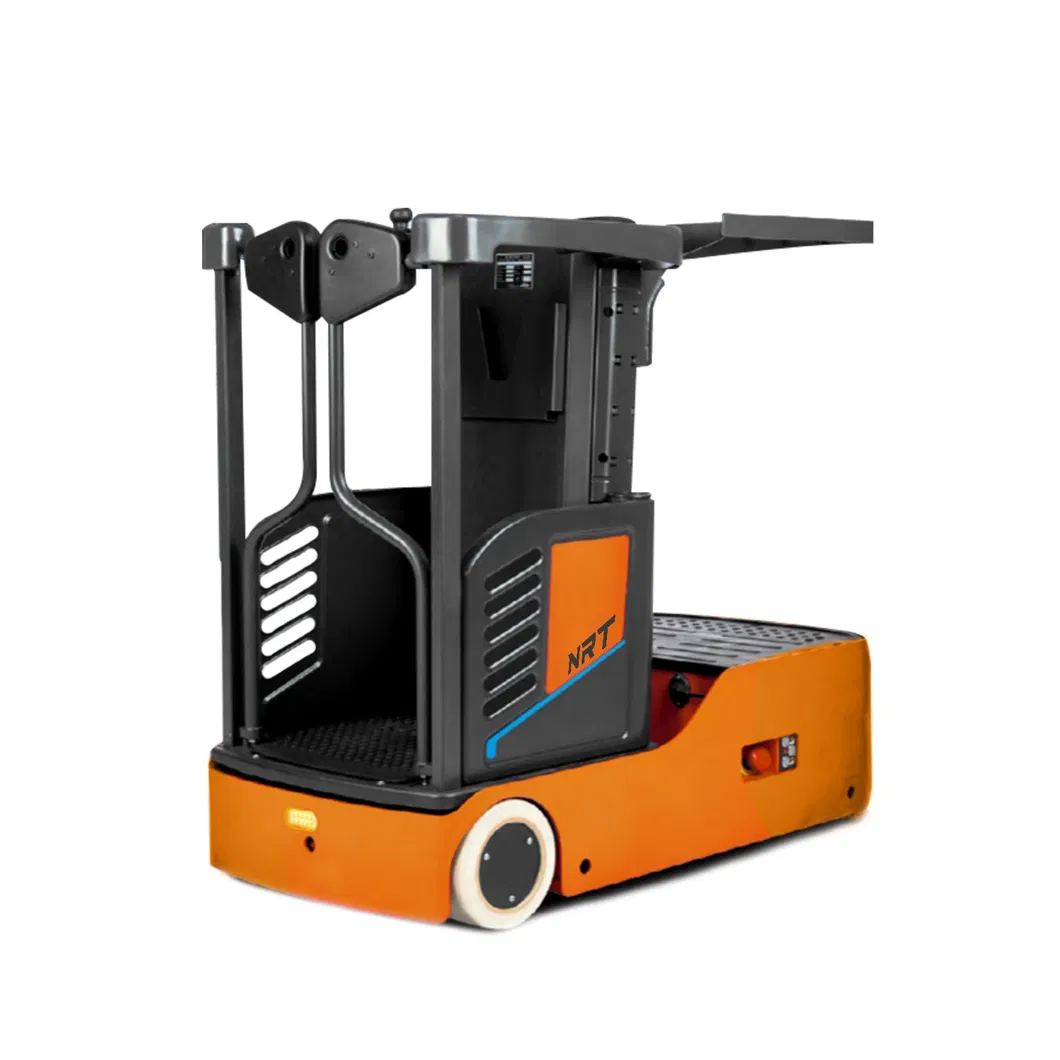

Order Picker Design

Technical Parameters

ItemOrder Picker
Capacity200kg
Weight770kg
Height of mast, lowered1425mm
Lift3620mm
Height of mast, extended4100mm
Seat height/standing height275mm
Stand height, elevated3000mm
Overall length1440mm
Overall width750mm
Turning radius1260mm
Battery24V/120Ah
Type of drive controlDC
Noise level74[dB (A)]

Detailed Gallery

Picker Features
Operational View

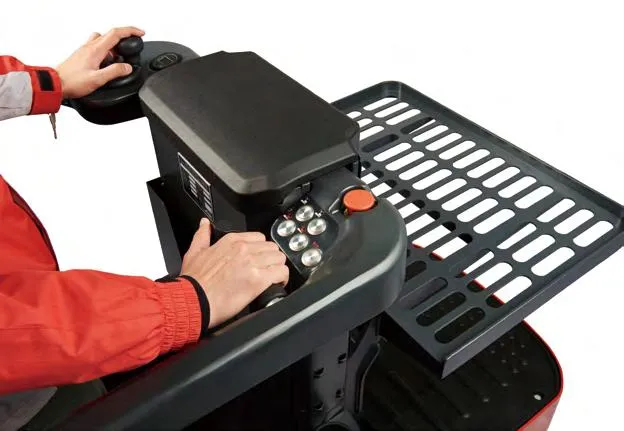

Mechanism Detail

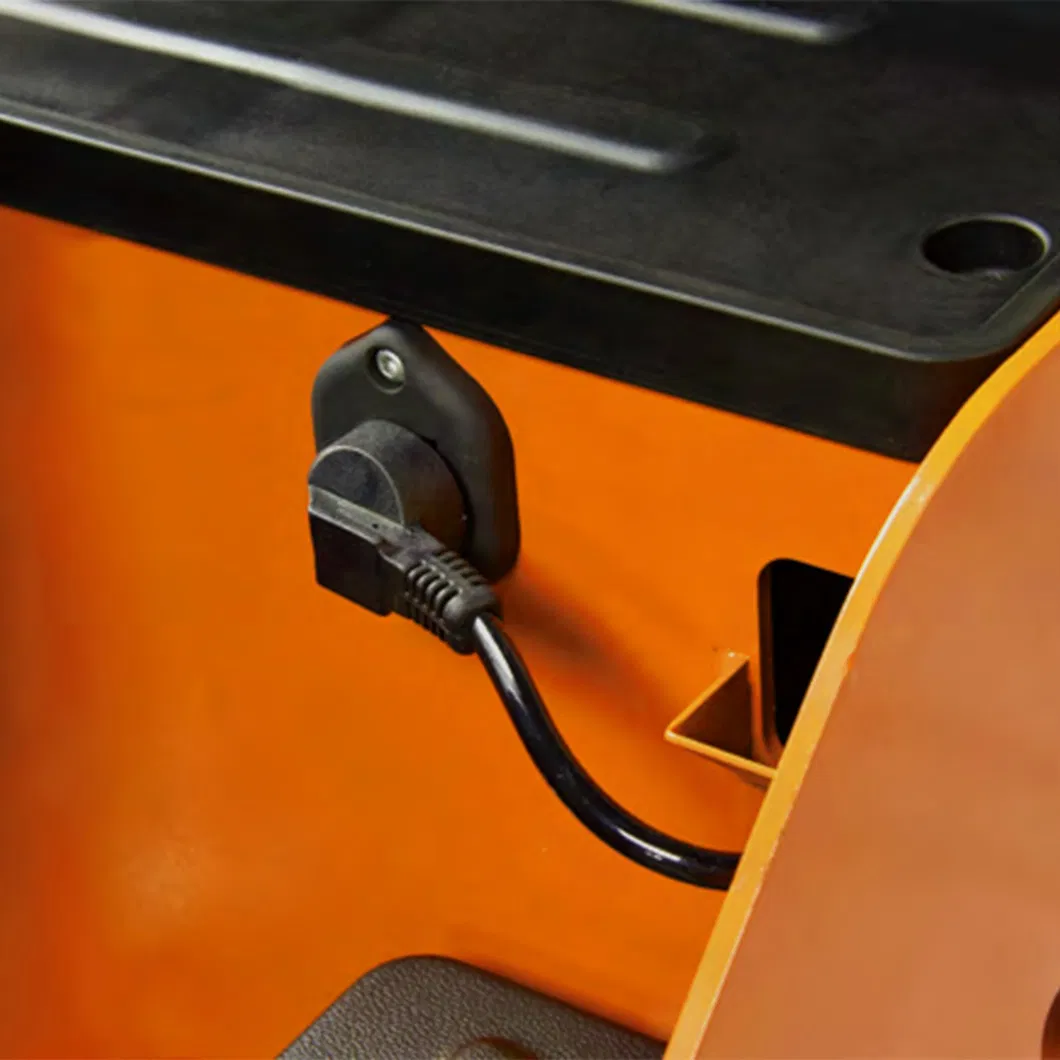

Control System

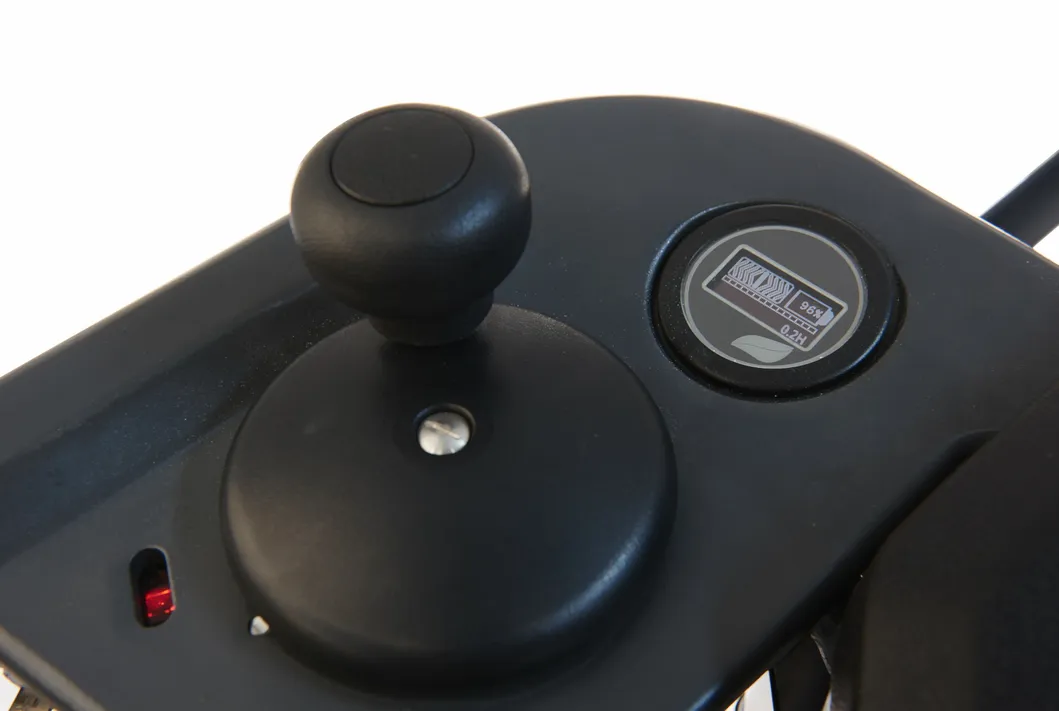

Chassis Detail
Battery System
Full View Diagram
Safety Components

Frequently Asked Questions

Q1: How long is the warranty for these products?
We provide a warranty of 12 months or 1000 hours, whichever comes first, from the date of shipment.
Q2: What is the typical delivery time?
For standard products, we often have stock and can deliver immediately. Typically, the production time is 15-20 days after receiving the advance payment.
Q3: What is the continuous working time and charging duration?
The continuous working time is approximately 3-6 hours, depending on battery capacity. It usually takes 8-12 hours to fully charge the battery. Chargers are automatic and stop once full.
Q4: Are customization, OEM, or ODM options available?
Yes, we can provide customized products based on your requirements. Both OEM and ODM options are available to meet special requests.
Q5: What are the specifications of the chargers?
Our chargers support various voltages (110V, 220V, 240V, 380V, 415V) with single or three-phase power. Plugs can be customized to USA, UK, Australia, or European standards.
Q6: Can we request a specific color for the product?
Yes, we can accommodate requests for specific colors to match your branding or preference.
