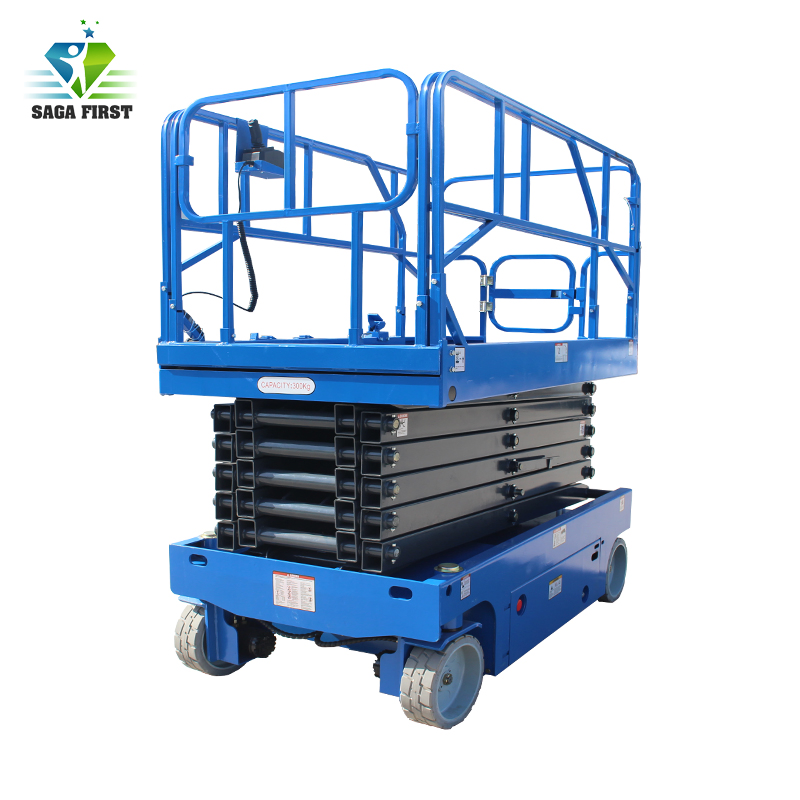

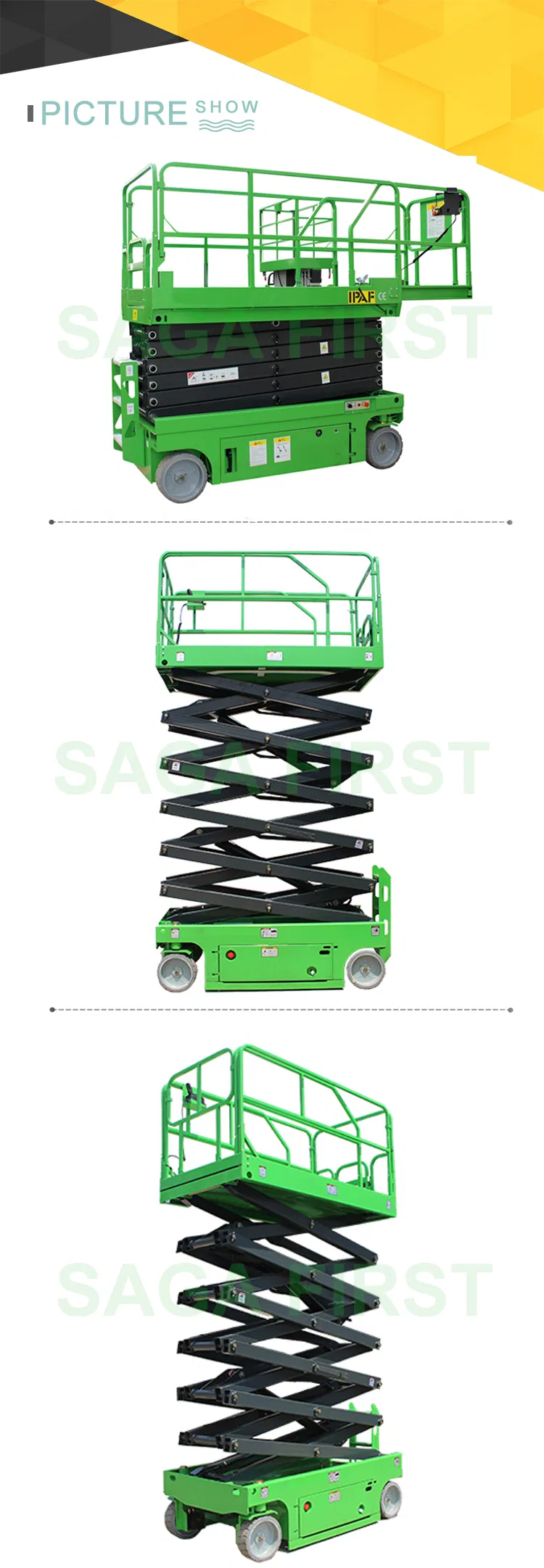

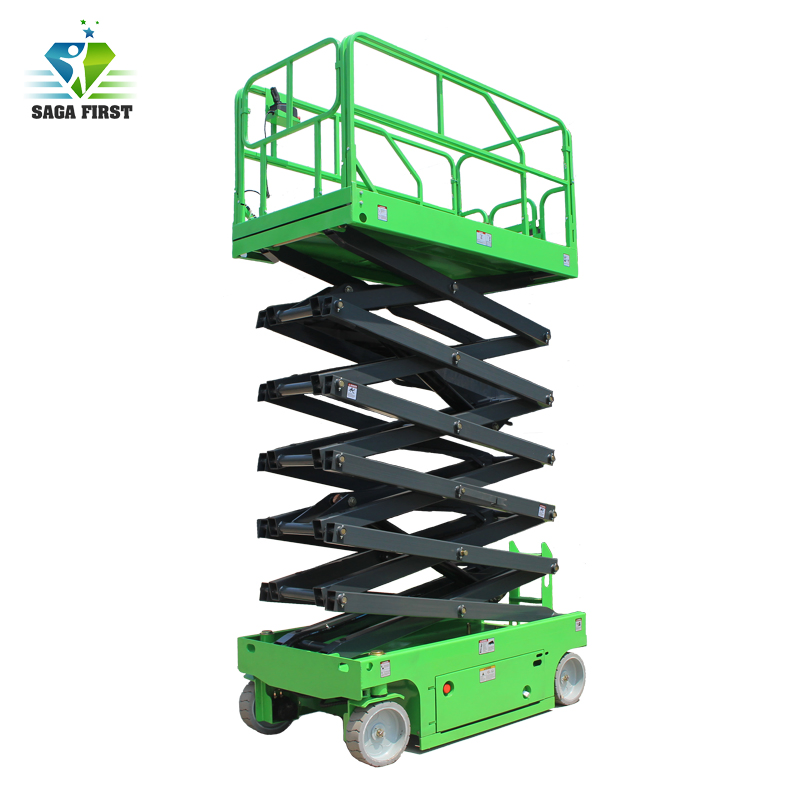

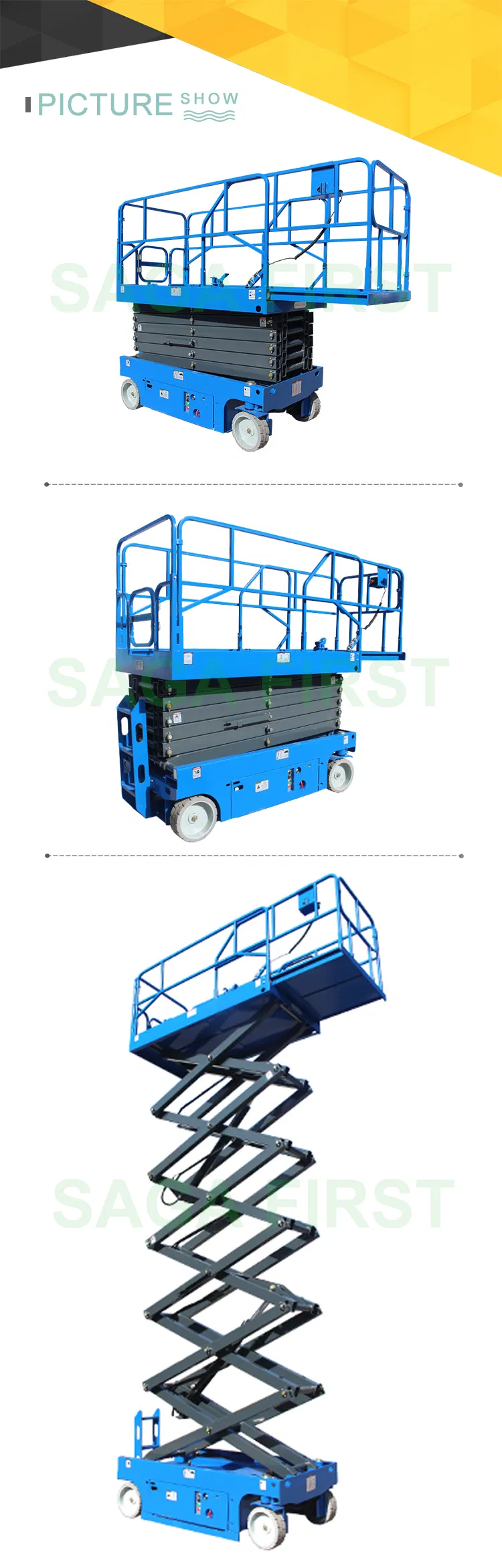

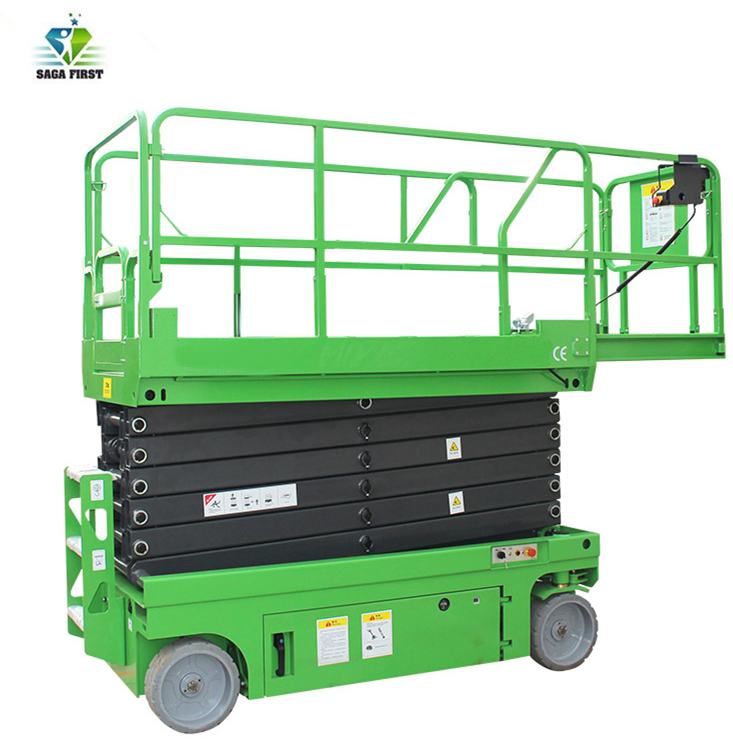

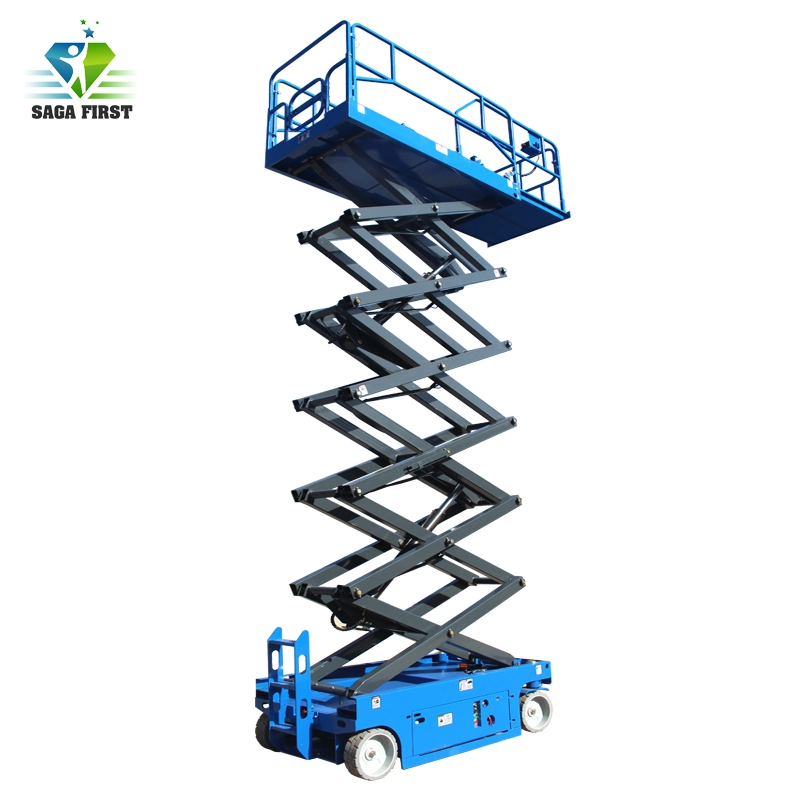

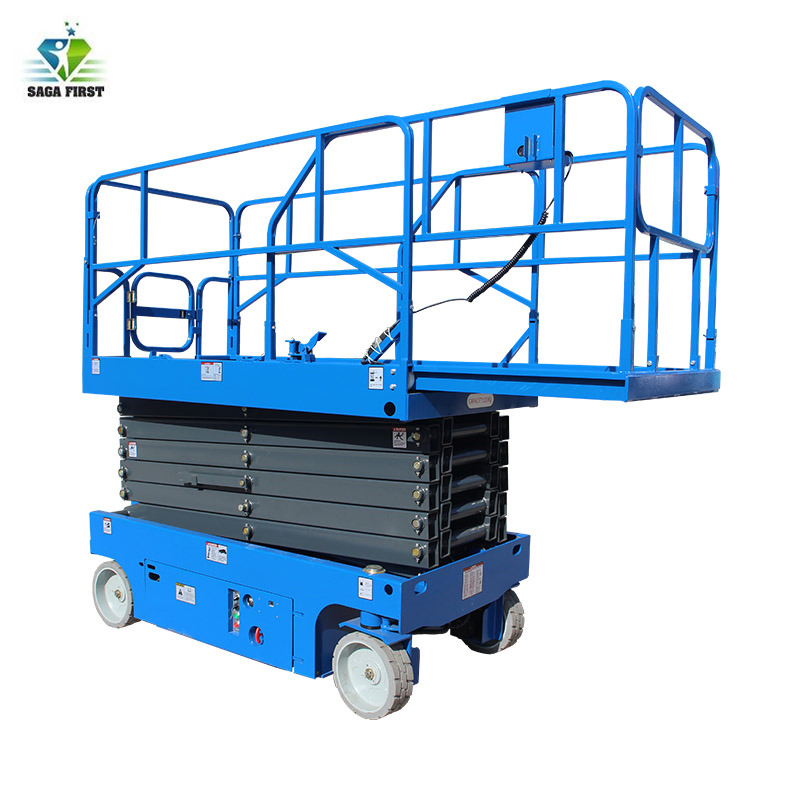

6m-12m Self Propelled Hydraulic Driven Aerial Scissor Lift
The Aerial Scissor Lift is driven by hydraulic principle. A hydraulic motor supplies power for driving and lifting. This hydraulic self-propelled scissor lift is renowned for its high precision, great sensitivity, low wear, and lower noise levels.
Compact structure can be modularized into a small space. With a new electric propulsion system, the ride provides more flexibility and more environmentally friendly exhaust emissions. Features include an automatic hole protection system and an extensible platform workspace.
| Model No. | SP06 | SP08 | SP10 | SP12 | SP14 |
|---|---|---|---|---|---|
| Max Platform Height (mm) | 6000 | 8000 | 10000 | 12000 | 14000 |
| Max Working Height (mm) | 8000 | 10000 | 12000 | 14000 | 16000 |
| Lifting capacity (kg) | 300 | 300 | 300 | 300 | 300 |
| Overall Length (mm) | 2400 | 2770 | |||
| Overall Width (mm) | 1150 | 1330 | |||
| Platform Size (mm) | 2270×1150 | 2640x1150 | |||
| Power source (v/kw) | 24/4.0 | 24/4.5 | |||
| Battery (V/AH) | 24/200 | 24/270 | 24/300 | ||
| Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3400 |

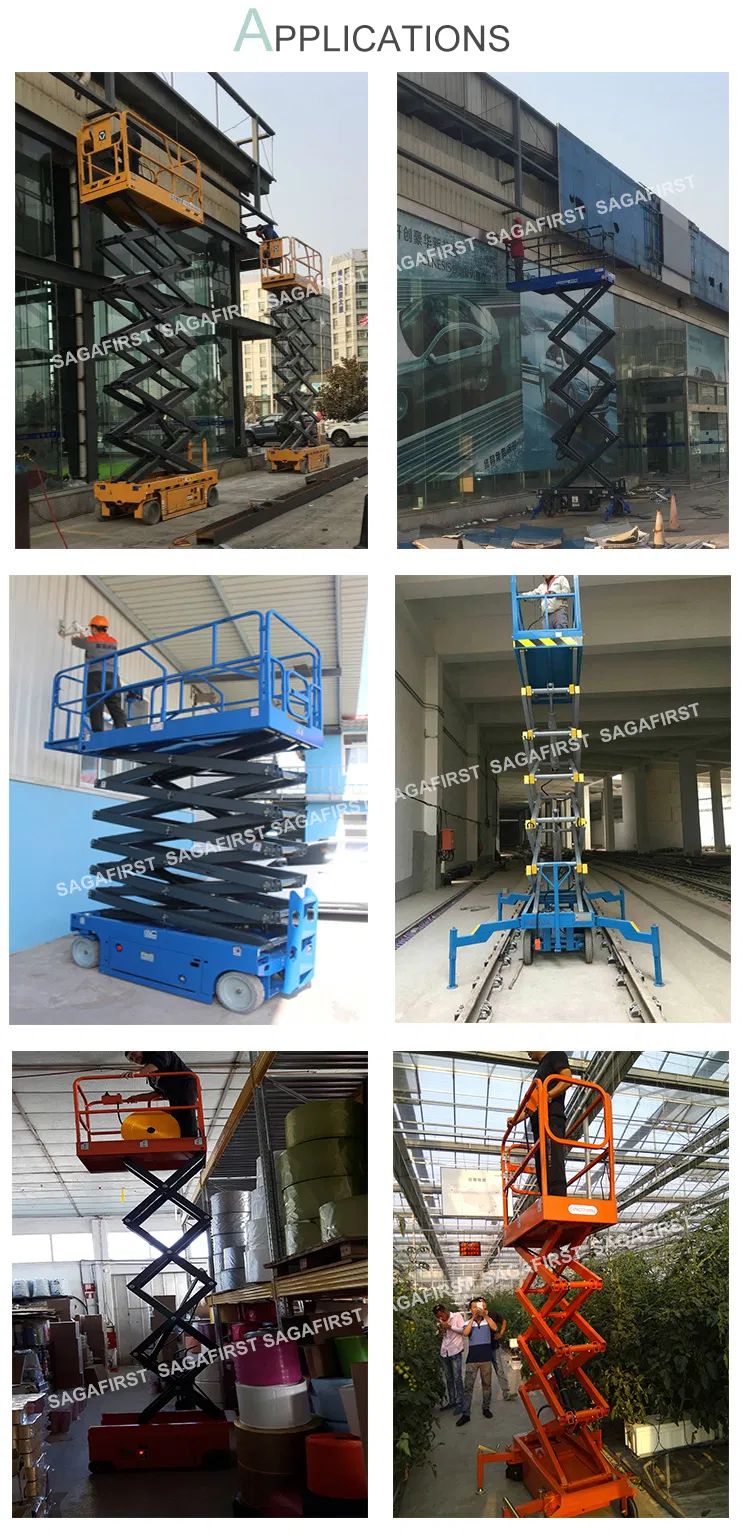

The Aerial Scissor Lift is widely used in construction sites, building maintenance, factory daily aerial work, and various other aerial tasks. All units are approved by European certificates and meet international standards.
