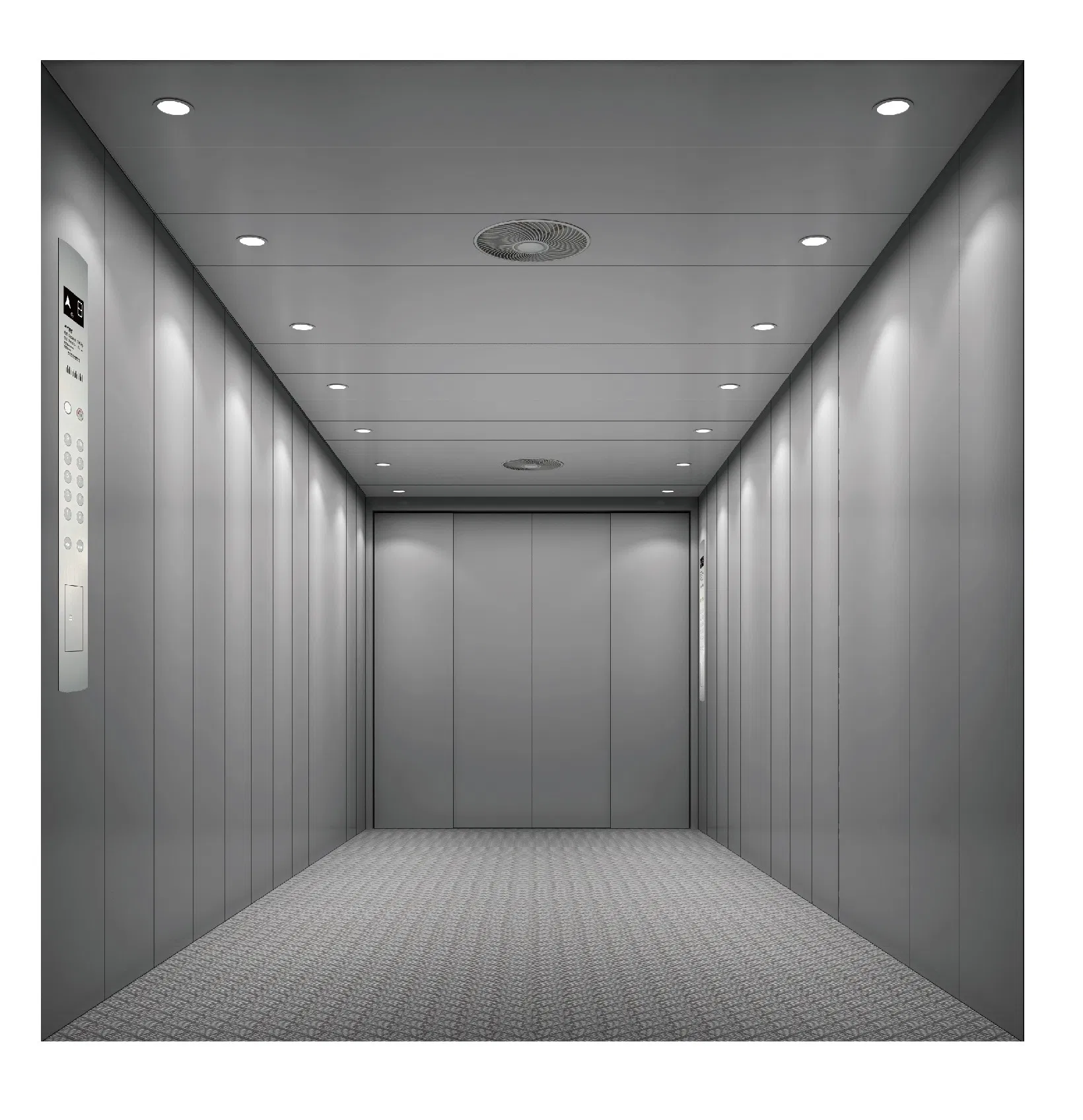

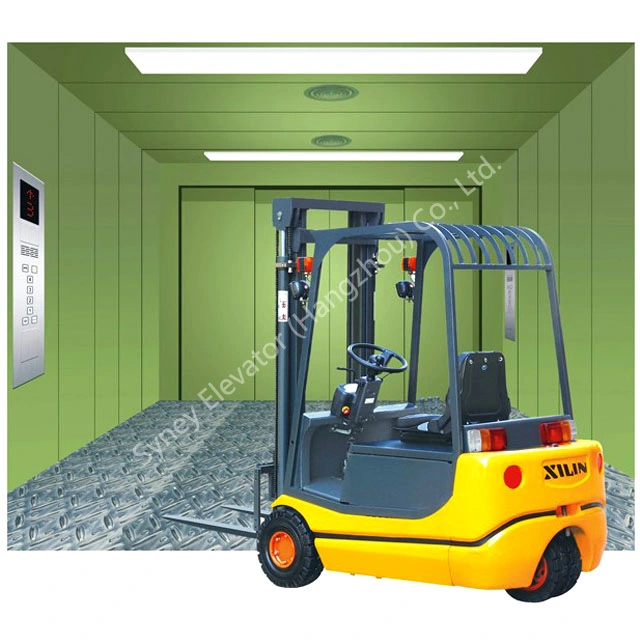

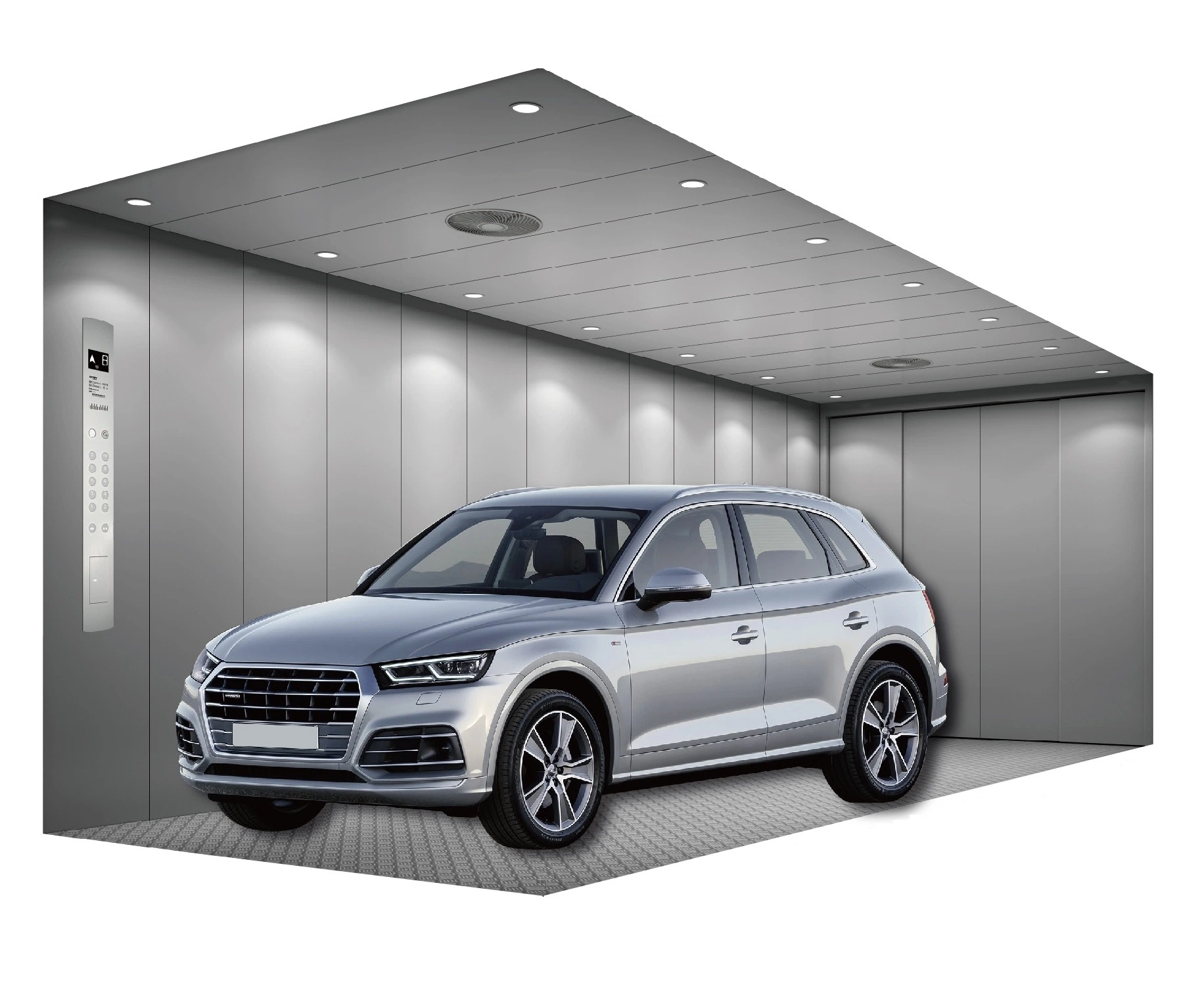

This cargo elevator creates a new concept of goods moving, ensuring the best loading capacity with wide open space. Safe and reliable, with high structural strength and smooth running, this freight lift is the ideal choice for supermarkets, shopping malls, logistic centers, exhibition centers, factories, and warehouses, capable of working under strict conditions.
Multi infrared light covers the whole door height to ensure safety. When a light beam is blocked, the closing car door rapidly opens to protect passengers and goods.

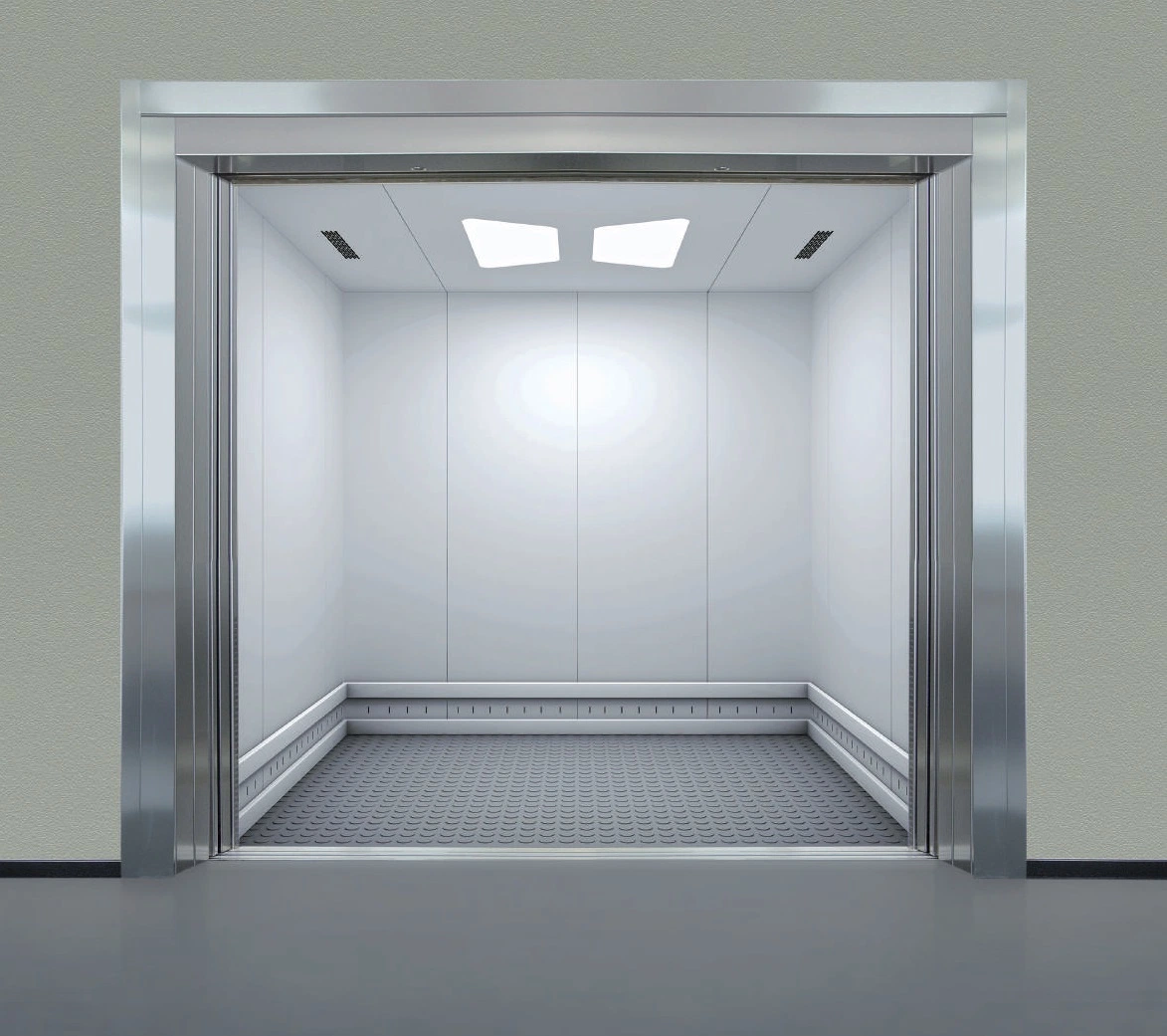

Main parts are designed with a steel structure and bumper panels to protect the cabin from impacts, significantly increasing service life.

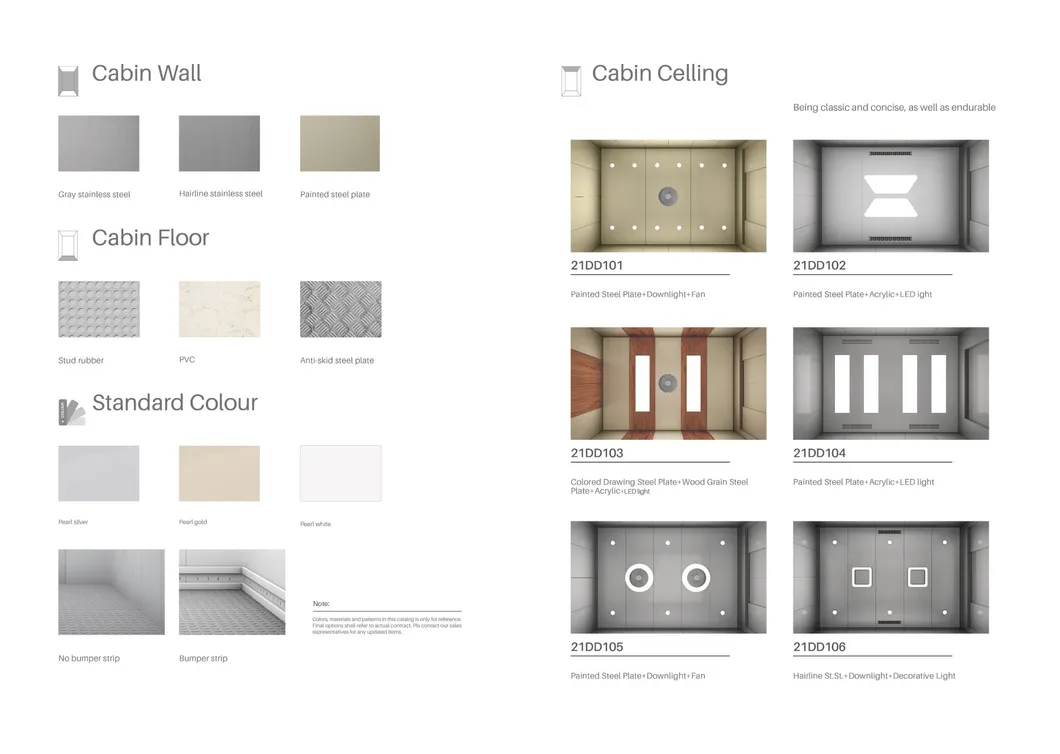

The cabin adopts floating-point rubber flooring, which is skid-proof, durable, and suitable for industrial transport requirements.
Equipped with VVVF technology drive system, providing high reliability, precise control, and a low failure rate during operation.
| Capacity (kg) | Speed (m/s) | Cabin Size (W*D mm) | Open Size (mm) | Shaft Size (W*D mm) | Pit Depth (mm) | Max Travel (m) |
|---|---|---|---|---|---|---|
| 1000 | 0.5 / 0.63 | 1500 * 1500 | 1200 * 2100 | 2400 * 2100 | 2500 | 25 / 30 |
| 1600 | 0.5 / 0.63 | 1700 * 2000 | 1300 * 2100 | 2700 * 2600 | 2500 | 25 / 30 |
| 2000 | 0.5 / 0.63 | 2000 * 2000 | 1500 * 2100 | 3000 * 2700 | 2500 | 25 / 30 |
| 3000 | 0.5 / 0.63 | 2000 * 2800 | 1600 * 2100 | 3100 * 3400 | 3000 | 25 / 30 |
| 5000 | 0.25 / 0.5 | 2400 * 3700 | 1800 * 2100 | 3600 * 4300 | 3000 | 16 / 25 |
Note: The standard specification is for reference only. If site shaft sizes differ, custom designs can be manufactured based on specific parameters.

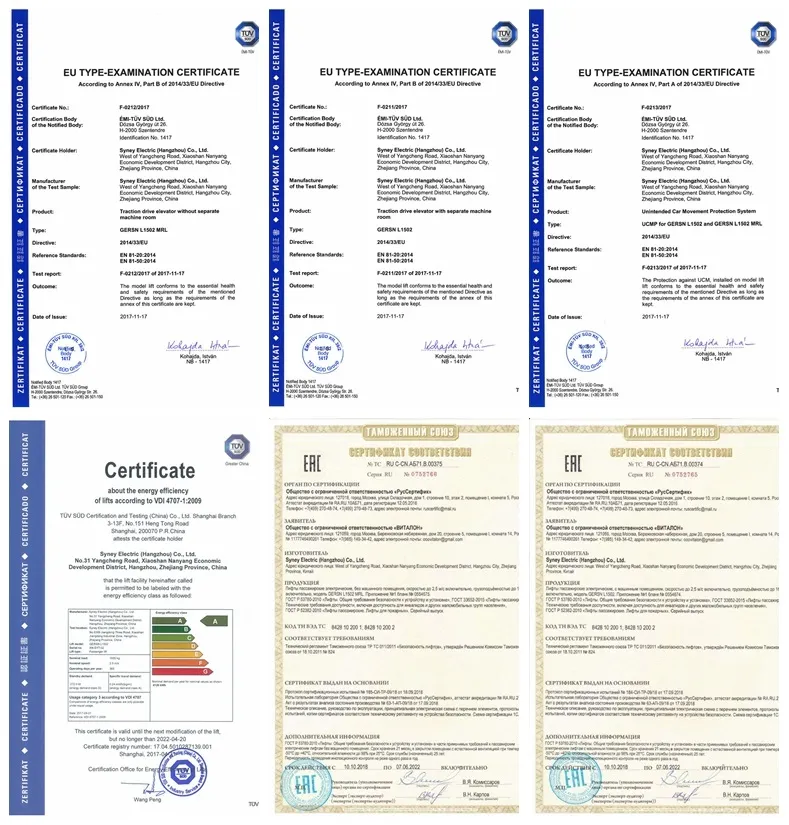

Our products comply with international safety and quality standards, including CE Certificates for elevators with/without machine rooms, UCMP devices, Grade A Energy-Efficiency ratings, and EAC Certificates.
