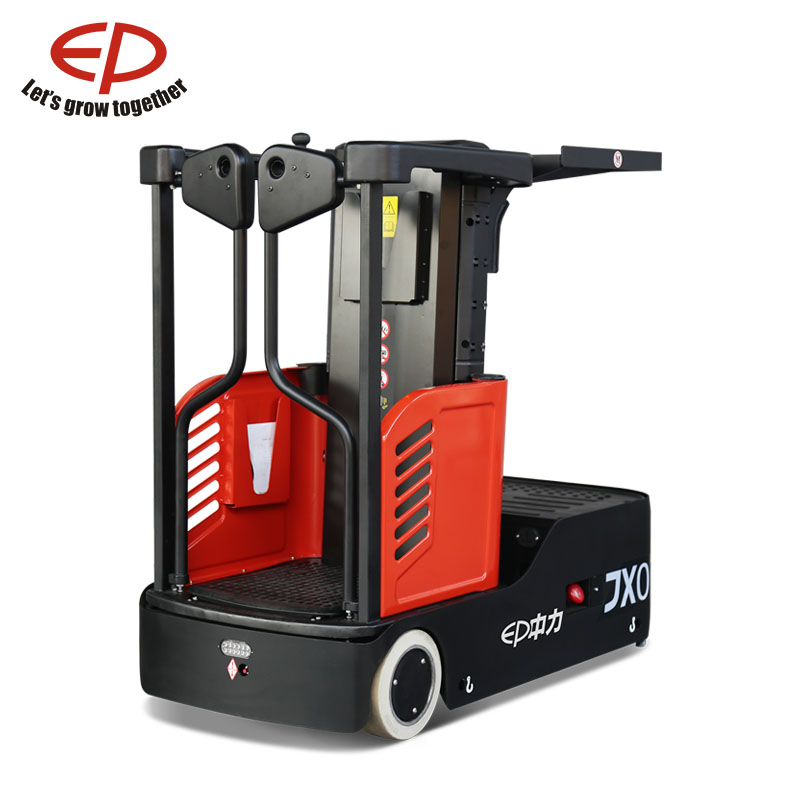

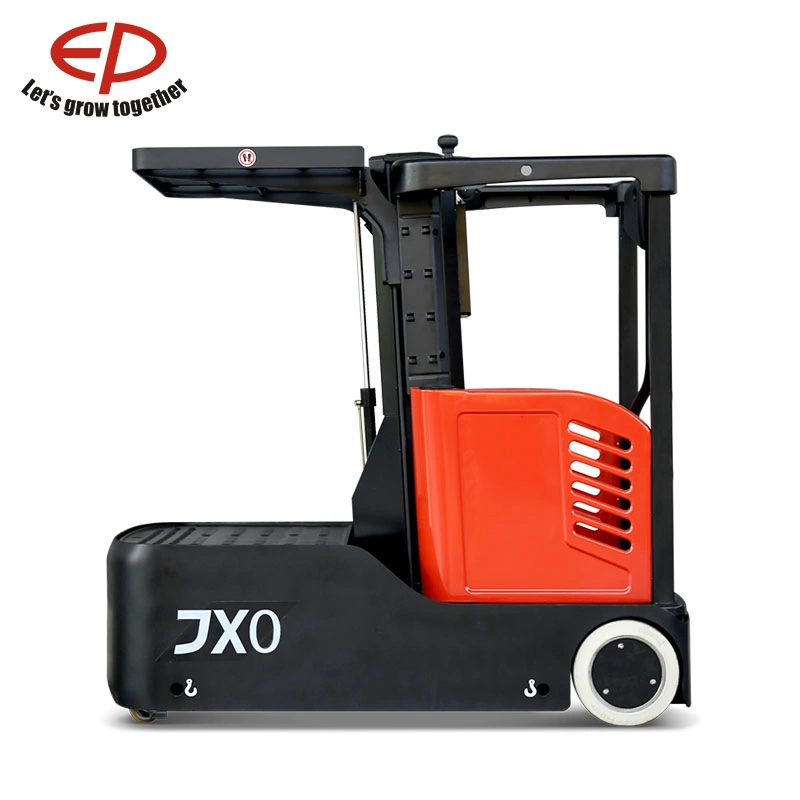

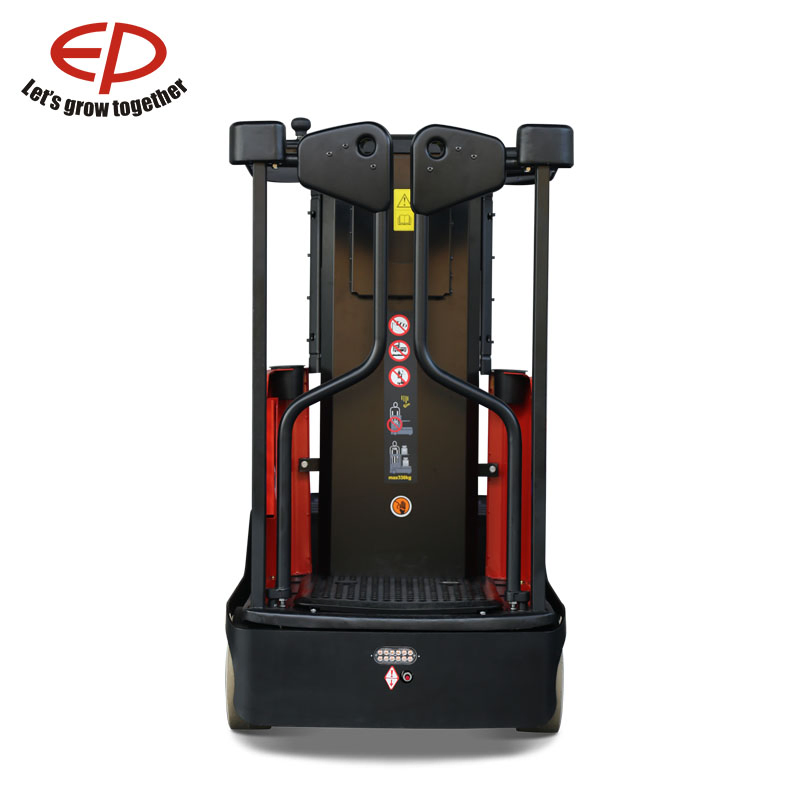

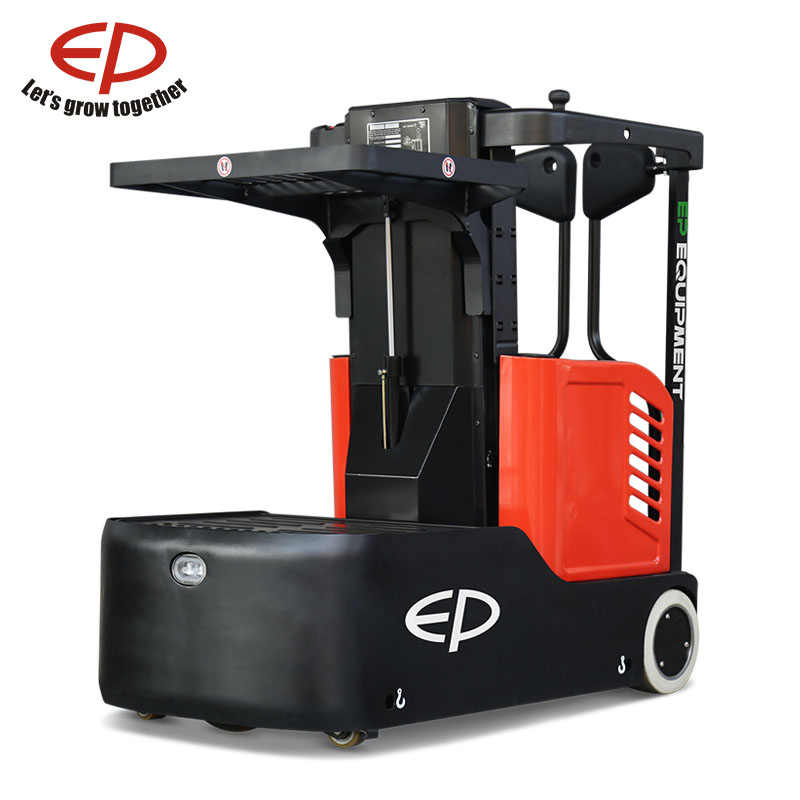

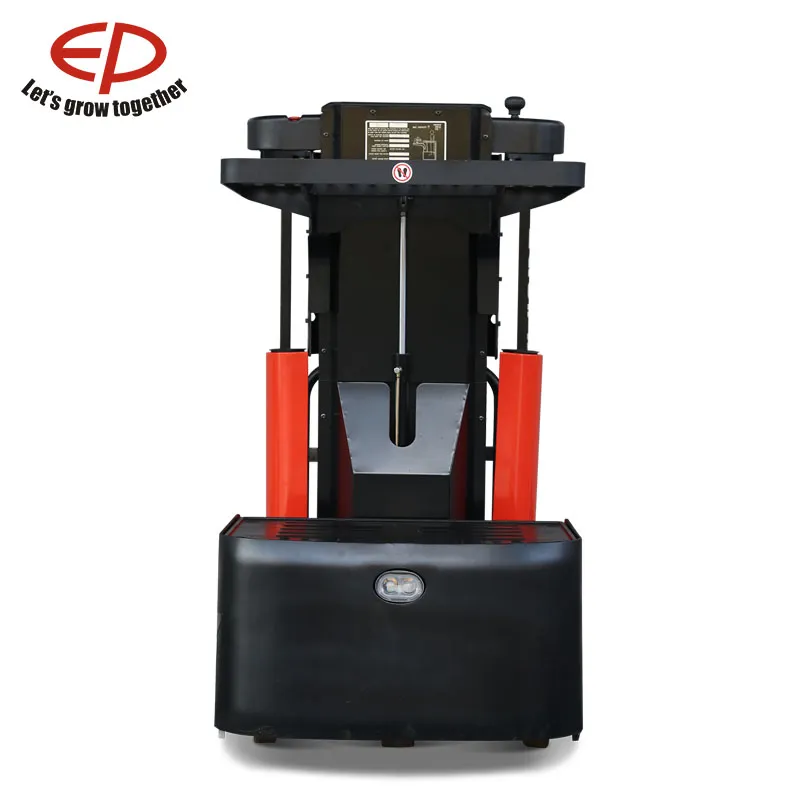

Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
1 / 5
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker
Low Medium Volume Work Assist Vehicle Entry Level Order Picker

Low Medium Volume Work Assist Vehicle Entry Level Order Picker

Customization: Available
Cab Location: Not Adjustable
Type: Order Picker
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
JX0
Power
AC Motor
Load Capacity
≤1T
Fuel
Electric
Load Center
500mm
Lift Height
3620mm
Condition
New
Wheelbase
1095
Turning Radius
1260mm
Drive Motor
0.65kw
Lift Motor
2.2kw
Battery
24V/120ah
📷 Product Gallery

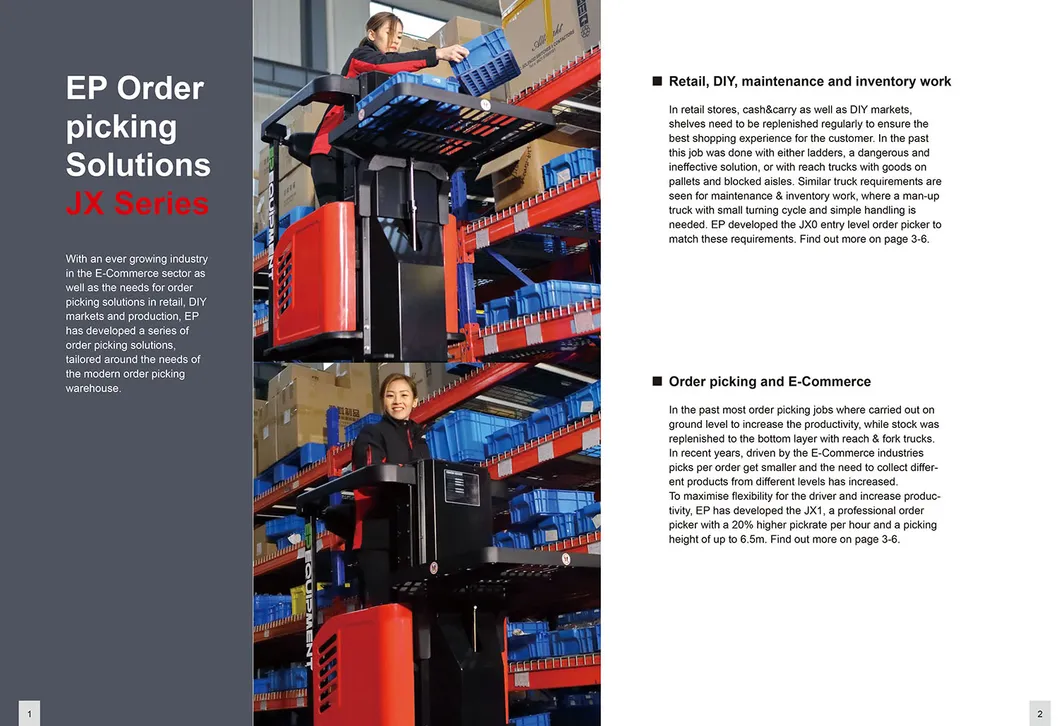

Work Assist Vehicle Entry Level Order Picker

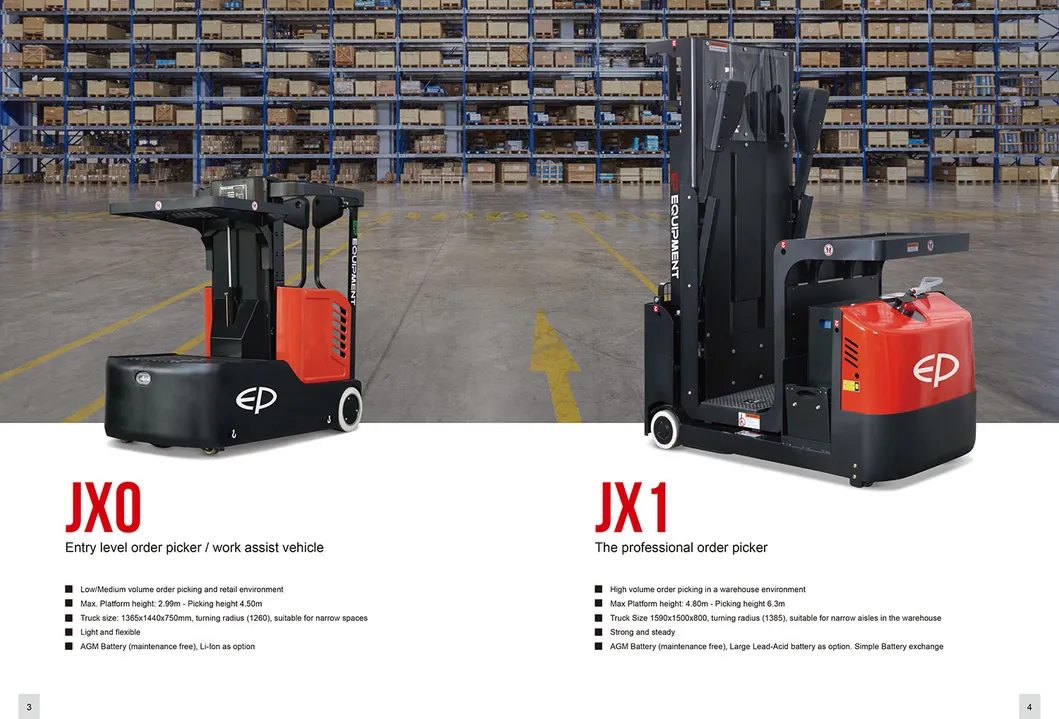

Order Picker Operation

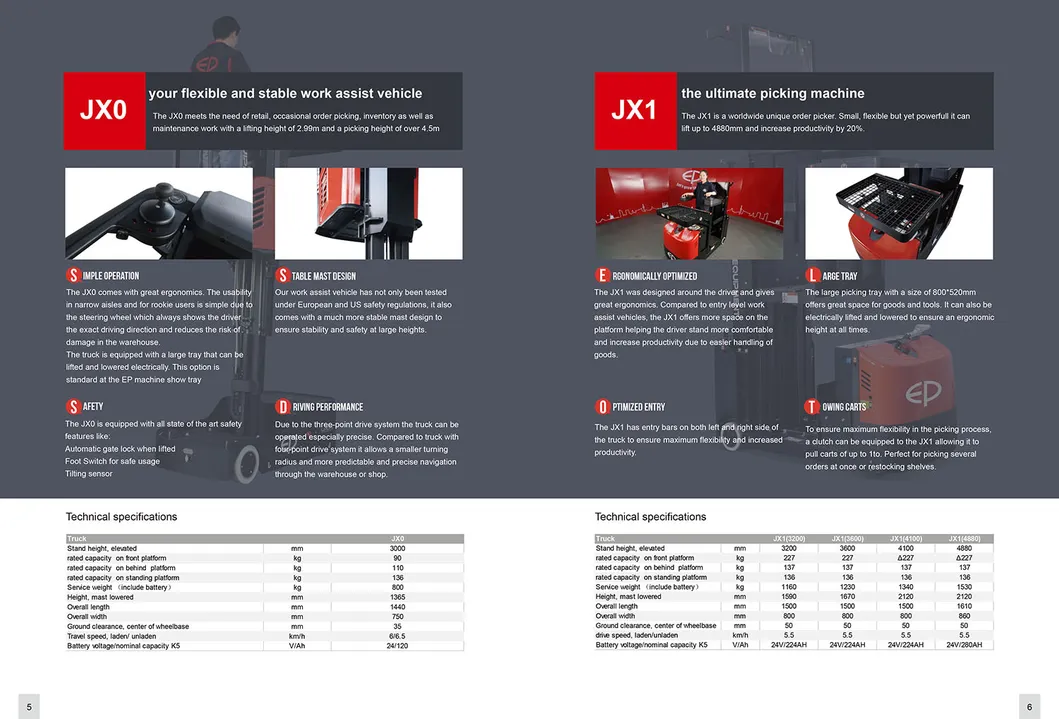

Order Picker Side View
⚙ Technical Parameters
Distinguishing Mark & Weight
1.2Model designationJX0
1.4Operator typeOrder Picker
1.5Rated capacityQ1/Q2/Q3kg90 / 110 / 136
1.9Wheelbaseymm1095
2.1Service weight (include battery)kg800
3.1Tyre typePU / Rubber
3.6Track width, frontb10mm545
4.4Lift heighth3mm3620
4.14Stand height, elevatedh12mm3000
4.21Overall widthb1/b2mm750
5.1Travel speed (laden/unladen)H:0-500km/h6 / 6.5
6.1Drive motor ratingS2 60 minkW0.65
6.4Battery voltage/capacityV/Ah24V/120Ah
10.5Steering typeElectronic steering

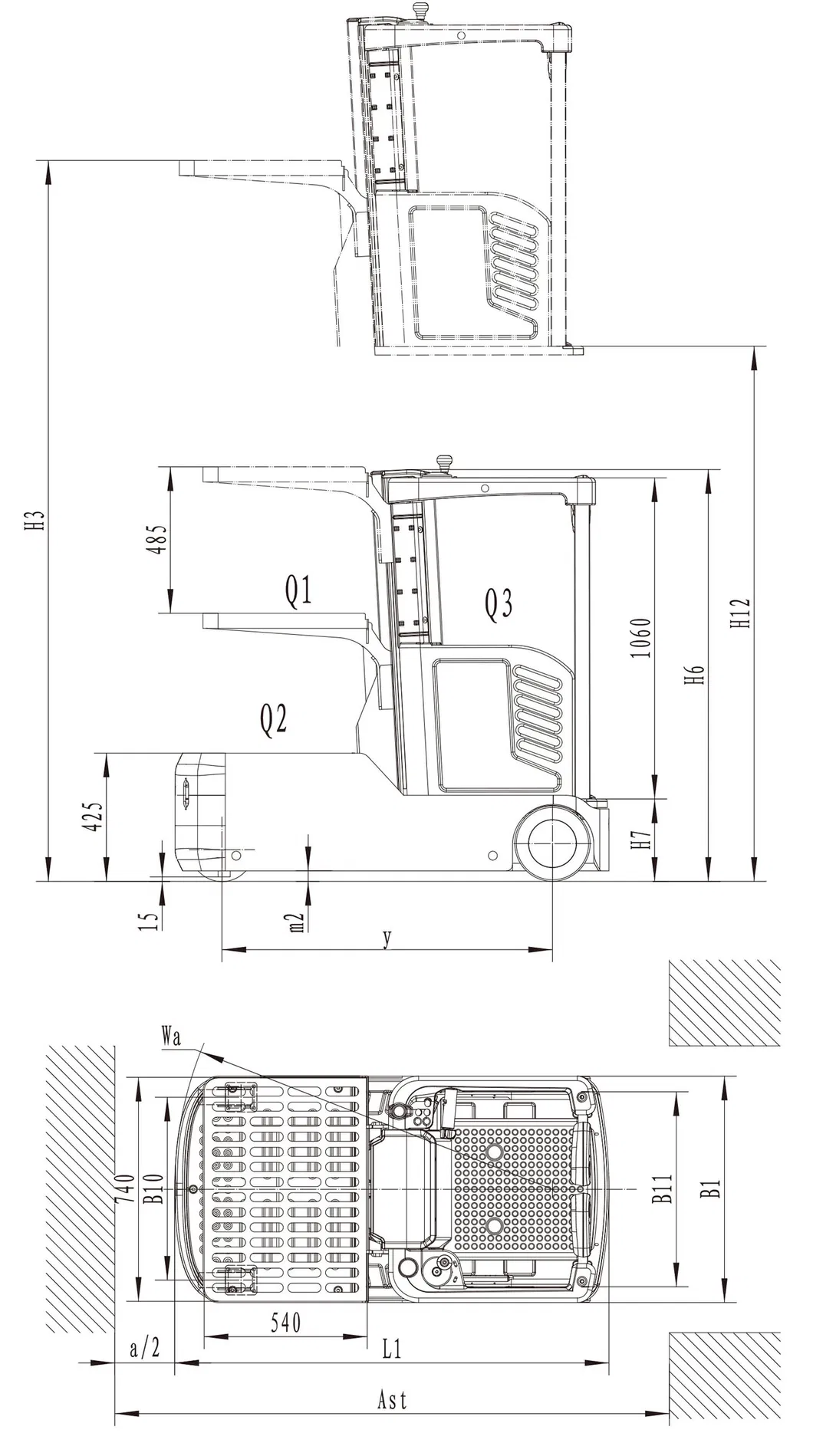

Technical Drawing
👤 Support & Service
Comprehensive Warranty 2 years or 2000 working hours spare parts warranty, whichever occurs first.
24-Hour Response Any quality claim or inquiry will be addressed within 24 hours to ensure quick feedback.
48-Hour Spare Parts Once a claim is accepted, spare parts are arranged for dispatch within 48 hours.
Online Management System Manage claims, technical support, and spare parts orders through an integrated online platform.
Free Training System Training provided to help customers better understand equipment quality and performance.
❓ Frequently Asked Questions
What is the maximum lift height of the JX0 model?
The JX0 model offers a maximum lift height of 3620mm, with an elevated standing height of up to 3000mm.
What type of battery and motor does this order picker use?
It is equipped with a 24V/120Ah battery and an efficient AC drive motor (0.65kw) with a 2.2kw lift motor.
What is the turning radius for narrow aisle operation?
The turning radius is 1260mm, making it highly maneuverable in tight warehouse spaces.
What is the load capacity of this work assist vehicle?
The total load capacity is rated at ≤1 Ton, specifically designed for low to medium volume order picking tasks.
How does the travel speed adjust with height?
For safety, the speed is 6 km/h at low heights (0-500mm) and automatically reduces as the platform rises, down to 1 km/h at heights above 2000mm.
What kind of steering and braking system is included?
The vehicle features electronic steering for precision and an electromagnetic service brake for reliable stopping power.
