Progan Lift
1 / 5
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Warehouse, Supermarket |
| Lift Mechanism | Lift Chain |
| Carrying Capacity | Middle-Level |
| Moves | Self-propelled |
| Driven Type | DC |
| Max. Platform Height | 3m to 6m |
| Lifting Capacity | 300kg |
| Platform Size | 695*720mm |
| Max. Drive Speed | 4km/H (Stowed) / 1.6km/H (Elevated) |
| Battery | 24V/150ah |
| Overall Net Weight | 430-680 Kg |

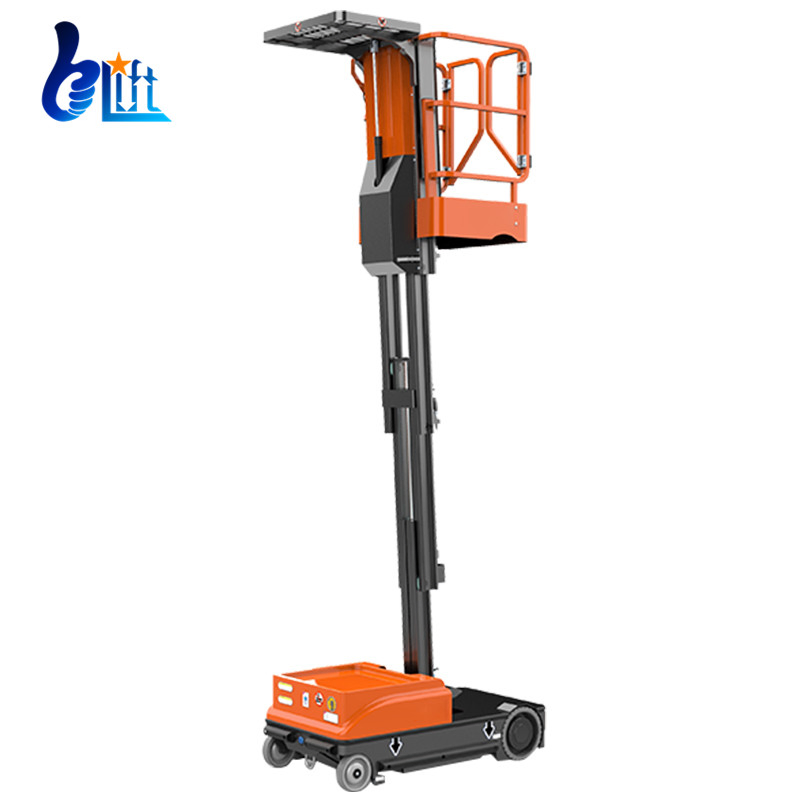

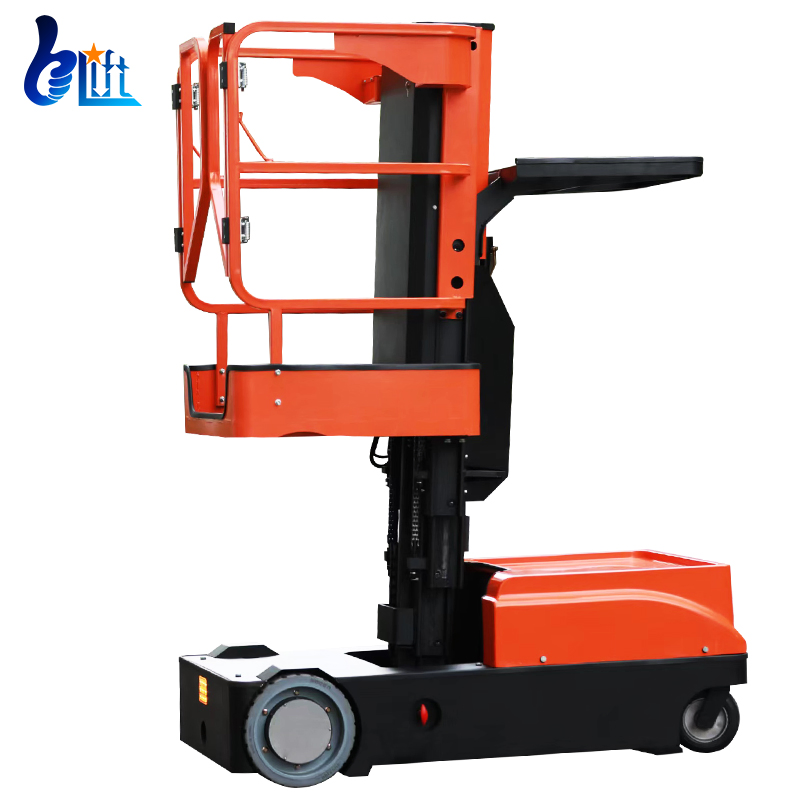

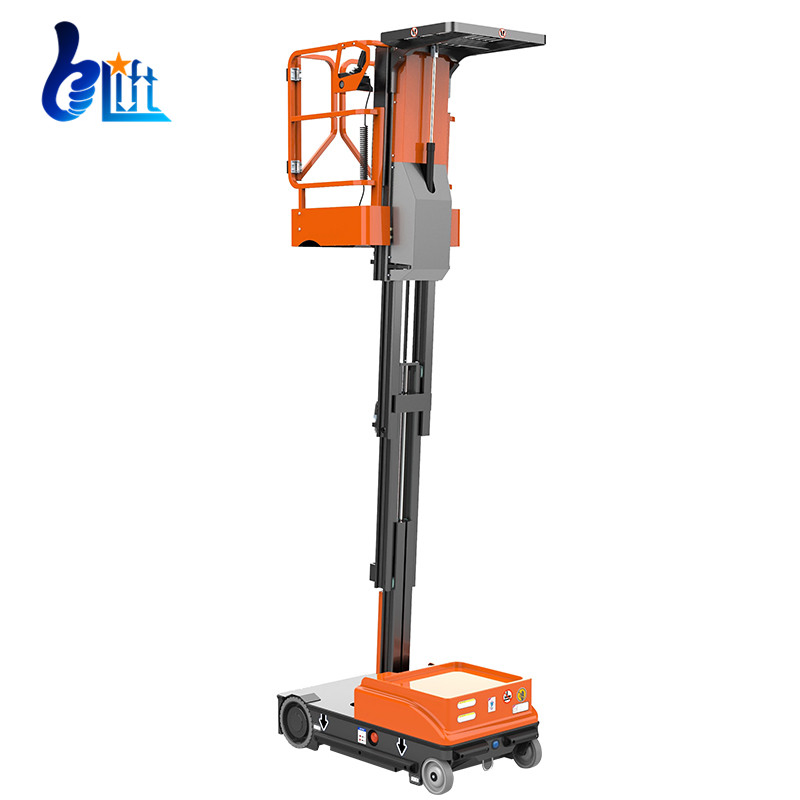

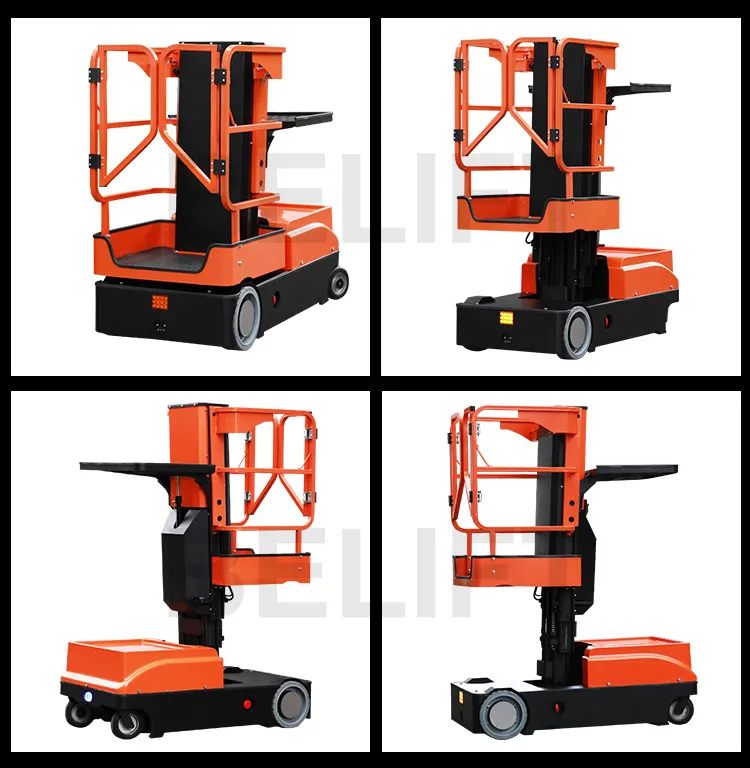

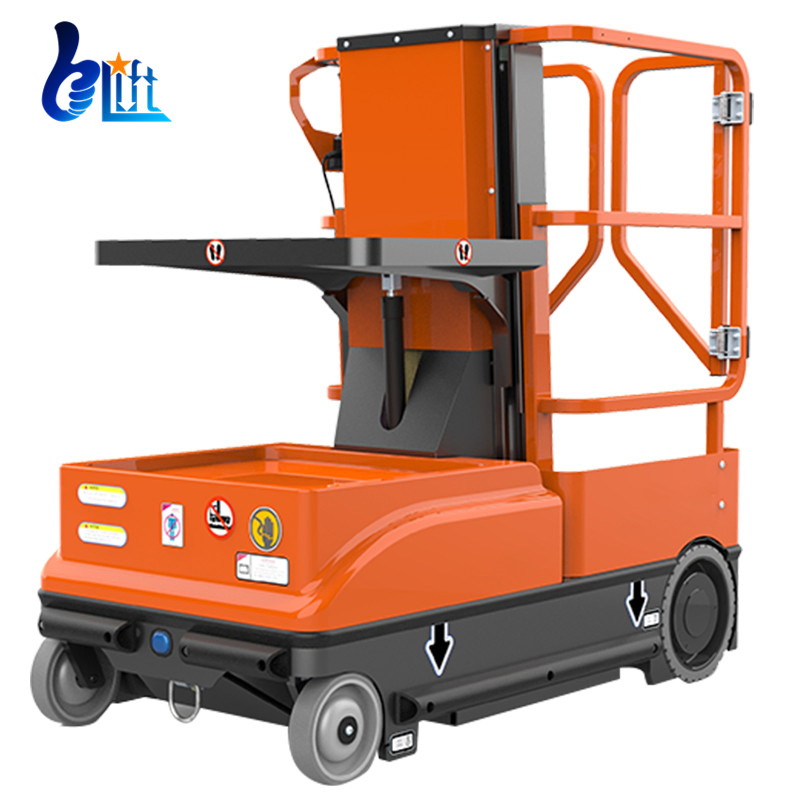

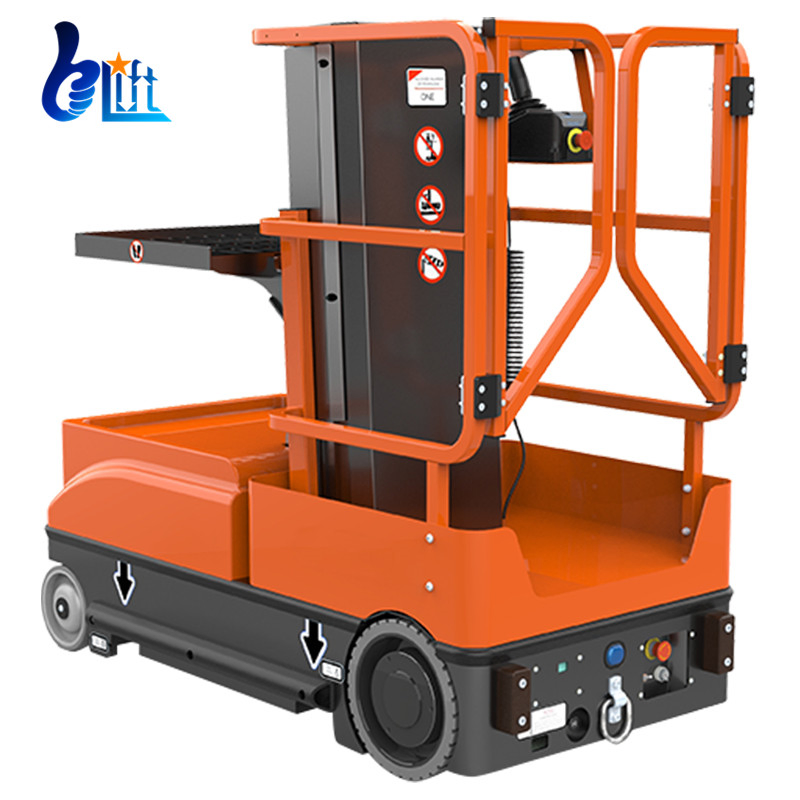

Low Level Access Aerial Work Lift Platform Electric Order Picker

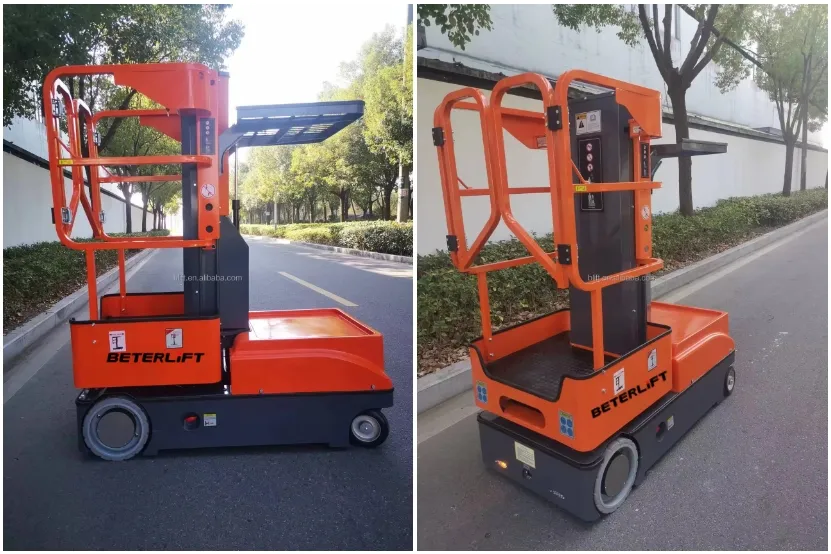

The self-propelled Order Picker is specially designed for indoor and outdoor aerial works with lower height requirements and narrow spaces. With compact dimensions, light weight, and a strengthened structure, it is highly portable and easy to operate.

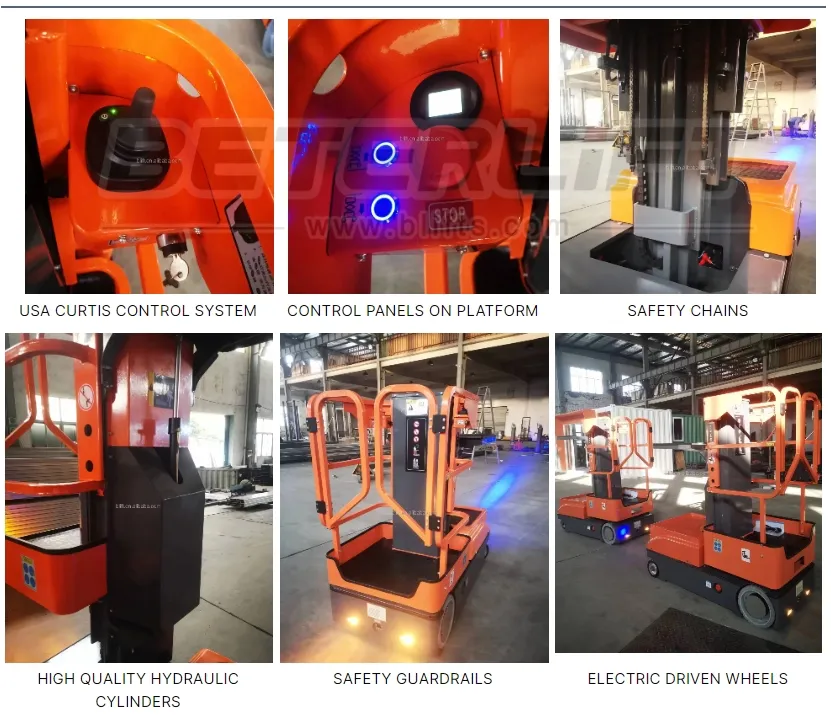

Equipped with advanced safety precautions, this order picker ensures steady performance. Featuring automatic walking, turning, and lifting functions, it significantly improves operational efficiency. The High End electric order picker can handle goods up to a working height of 5-6 meters, making it ideal for third-level shelving, price labeling, or installing ceiling fixtures.
| Model Specifications | EAP-H5 | EAP-H6 |
|---|---|---|
| Maximum platform height (mm) | 3000 | 4000 |
| Working height (mm) | 5000 | 6000 |
| Overall machine length (mm) | 1480 | 1480 |
| Overall machine width (mm) | 756 | 756 |
| Standing platform load (kg) | 150 | 150 |
| Grid platform load (kg) | 90 | 90 |
| Overall machine weight (kg) | 840 | 870 |
| Driving speed (Km/h) | 0-4 | 0-4 |
| DC battery (V/Ah) | 2×12/100 | 2×12/100 |
