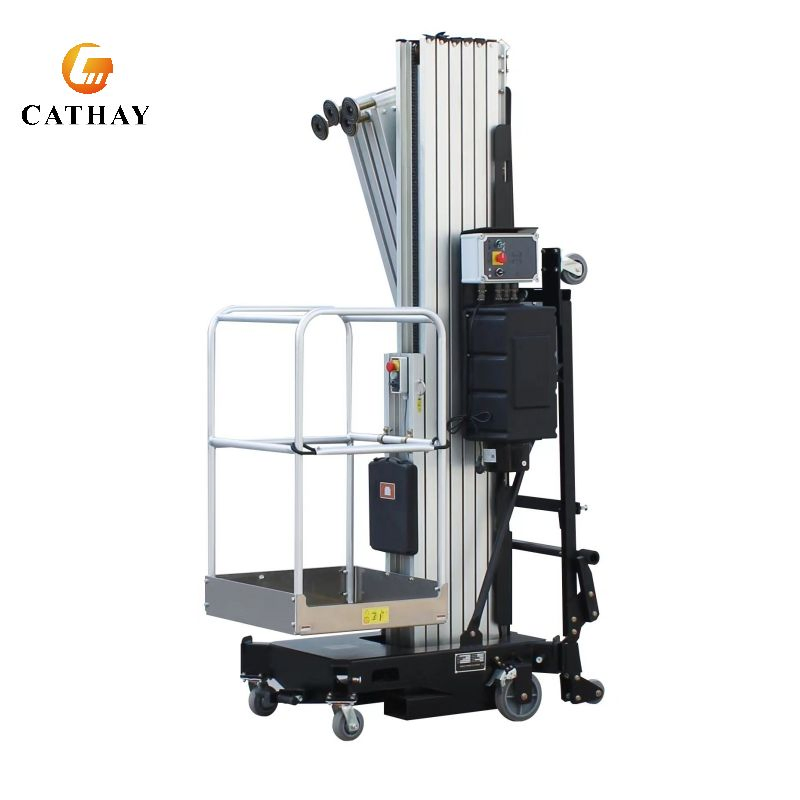

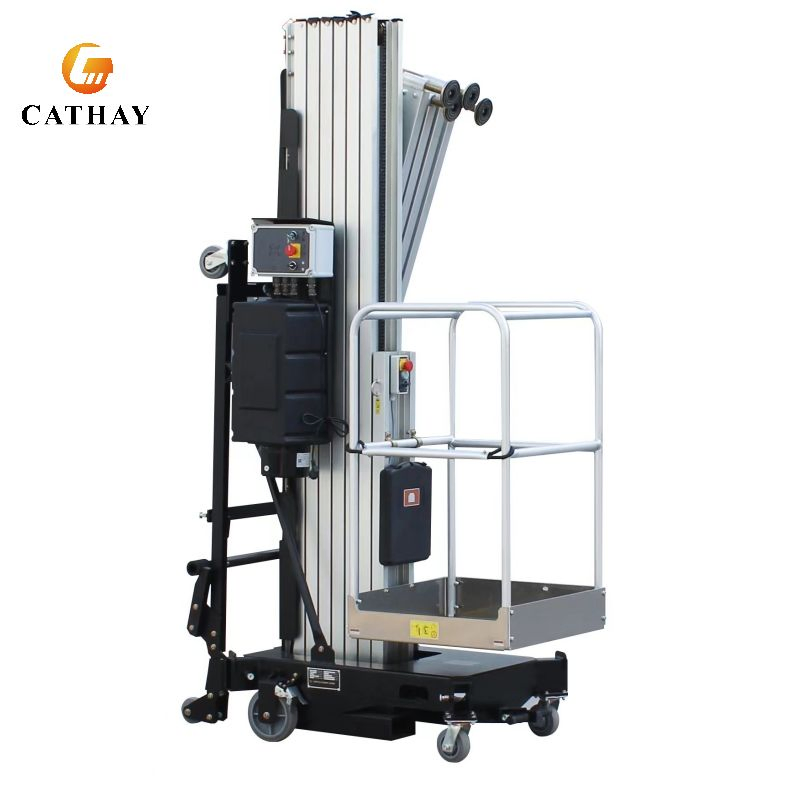

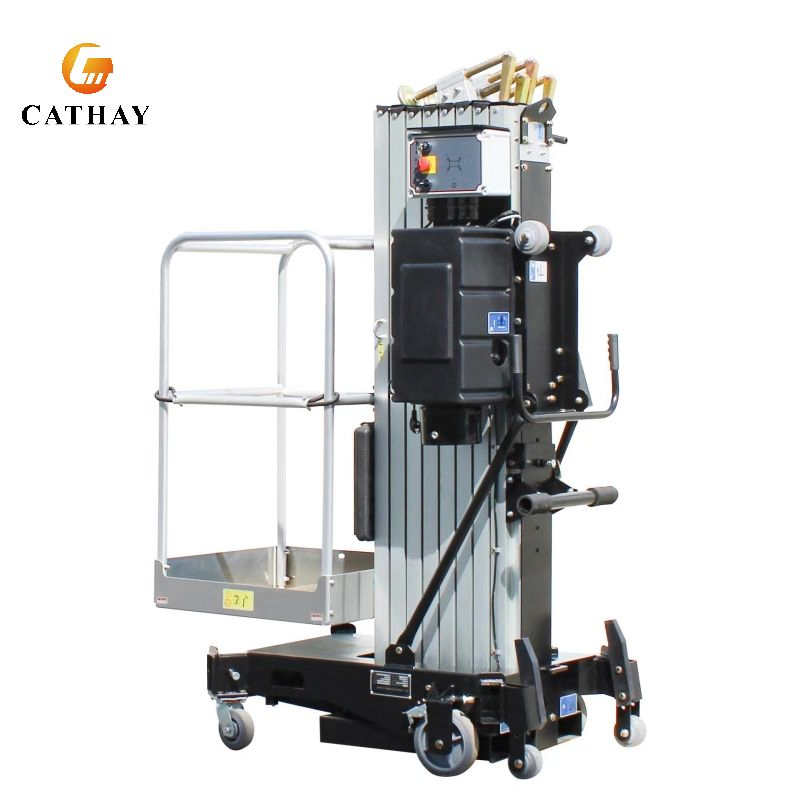

EU USA 5m 8m 10m Electric Small Aerial Working Platform Awp Single Genie One Man Vertical Mast Lift

1 / 5

EU USA 5m 8m 10m Electric Small Aerial Working Platform Awp Single Genie One Man Vertical Mast Lift

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋Basic Information

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Mast Lift

Carrying Capacity

Middle-Level (150kg)

Driven Type

AC/DC/AC+DC

Certification

GS, CE, RoHS, ISO 9001

Lifting Height

5~12m

Platform Size

0.67*0.66m

Motor Power

0.75kw / 1.5kw (DC)

🚀Product Description

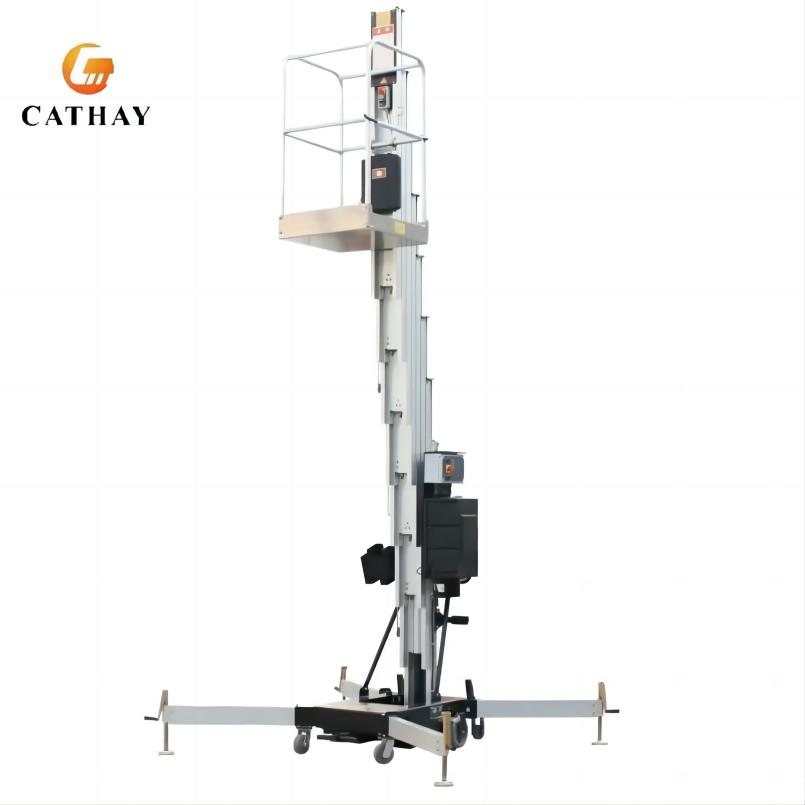

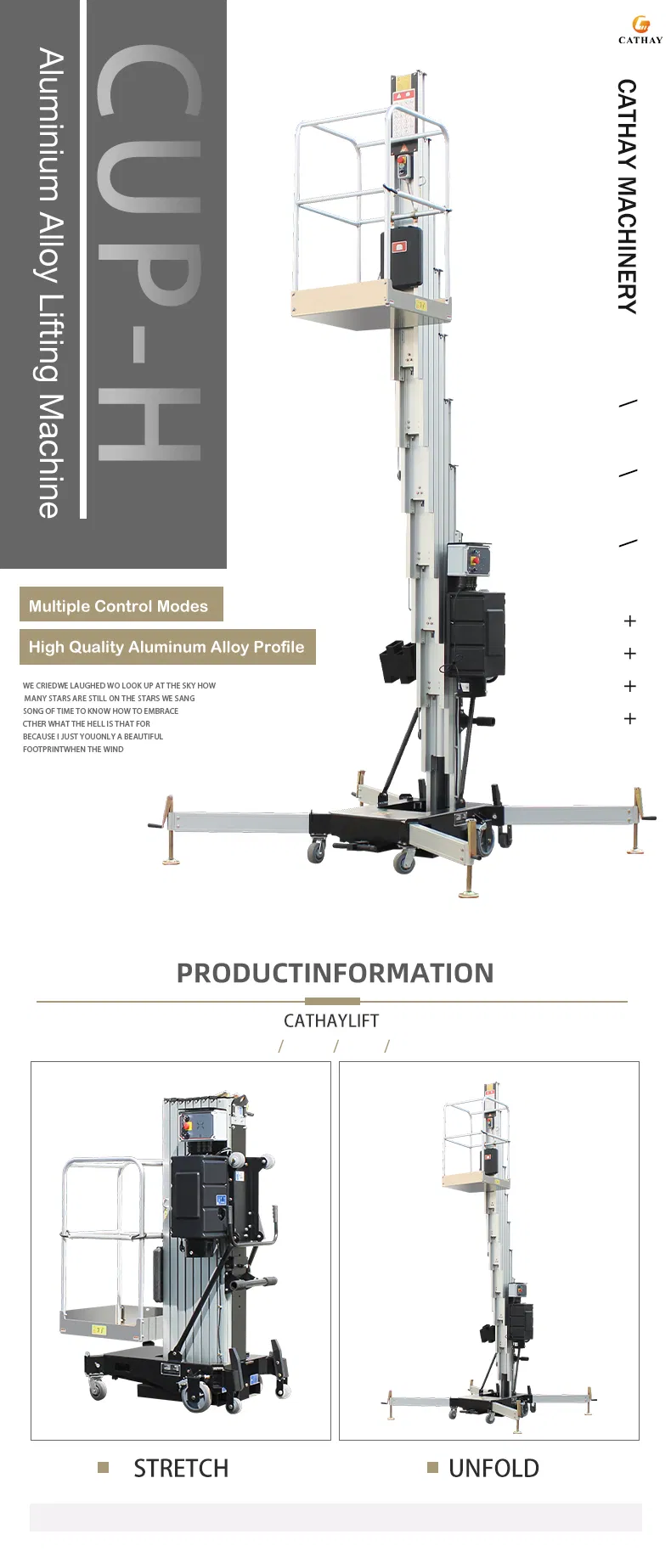

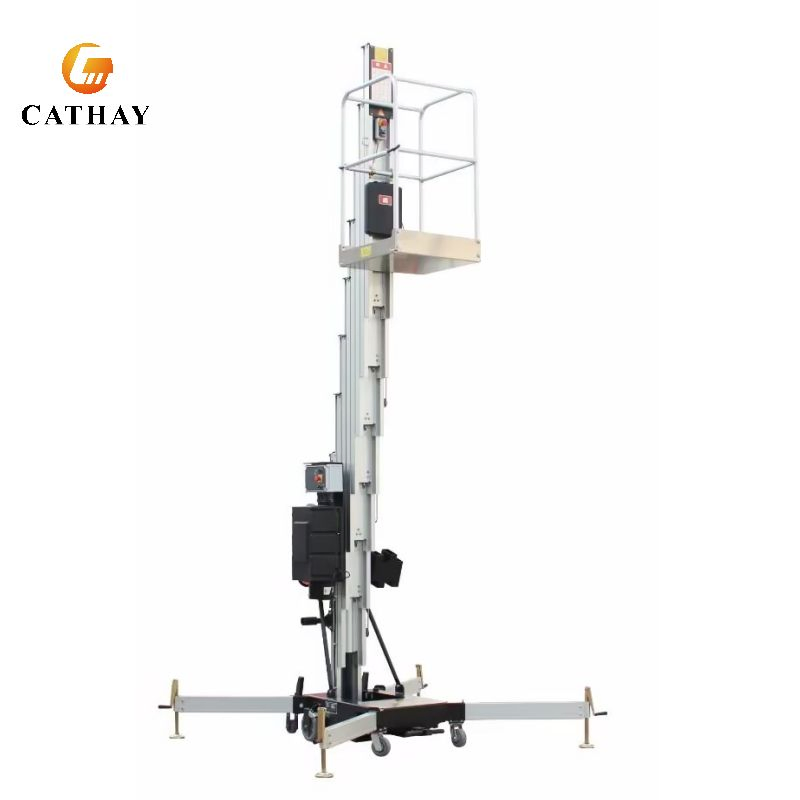

5~14m Electric Single Mast Push Around Vertical Mast Lift with CE

The push around vertical mast lift ranges from 5m to 14m, specifically designed for all indoor aerial work projects. Its compact size allows it to enter a variety of confined spaces, easily pass through doors, and adapt to elevators. Featuring extremely lightweight construction and non-marking tires, it includes stabilizers with rubber pads to protect fragile flooring. This lift can be easily loaded, moved, and set up by one person, or towed by a trailer or van, requiring minimal maintenance.

📝Technical Parameters

Model No.	CUP-5H	CUP-6H	CUP-8H	CUP-9H	CUP-10H	CUP-12H
Max. Platform Height	5m	6m	8m	9m	10m	12m
Max. Working Height	7m	8m	10m	11m	12m	14m
Load Capacity	150kg	150kg	150kg	150kg	136kg	120kg
Overall Size (m)	1.240.741.99	1.240.741.99	1.360.741.99	1.40.741.99	1.420.741.99	1.460.812.68
Net Weight	300kg	320kg	345kg	365kg	385kg	460kg

Note: Standard models are AC powered. Battery power, assisted mobility, and remote control options are available to match different work requirements.

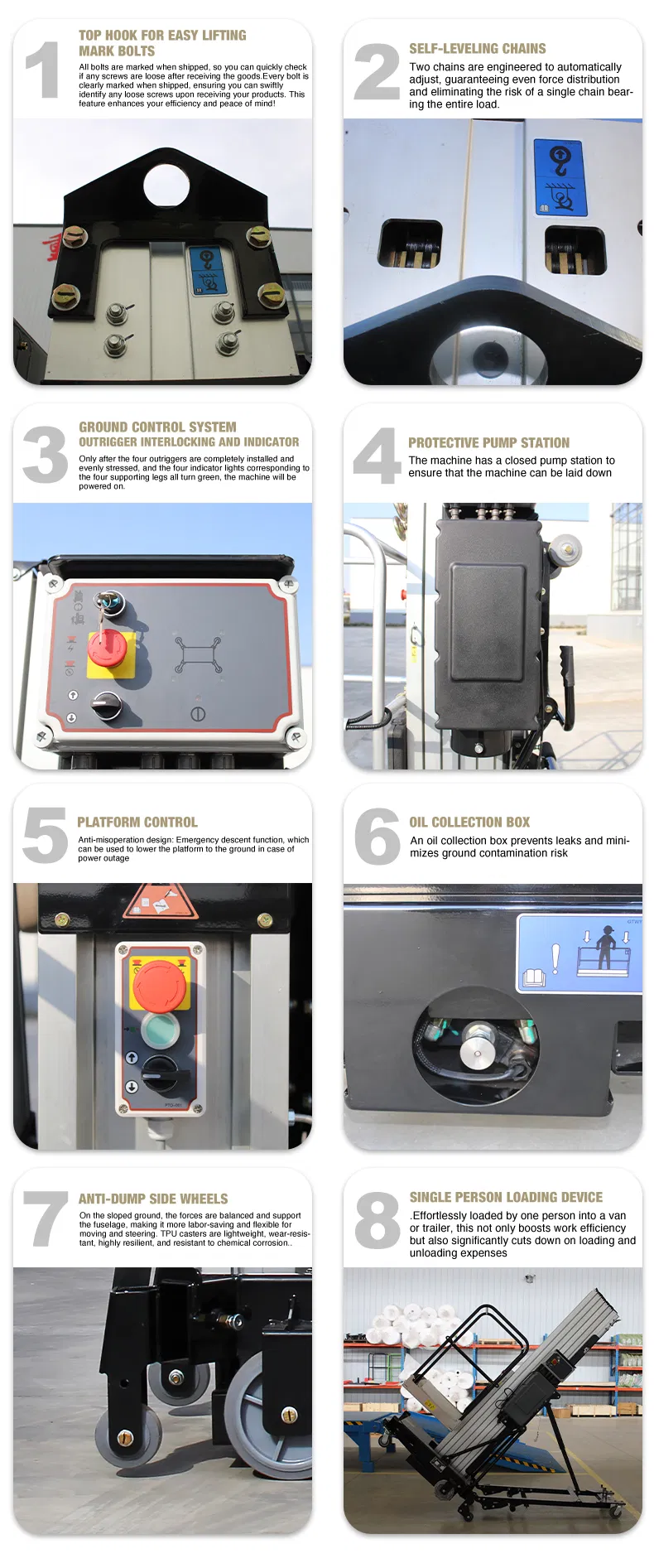

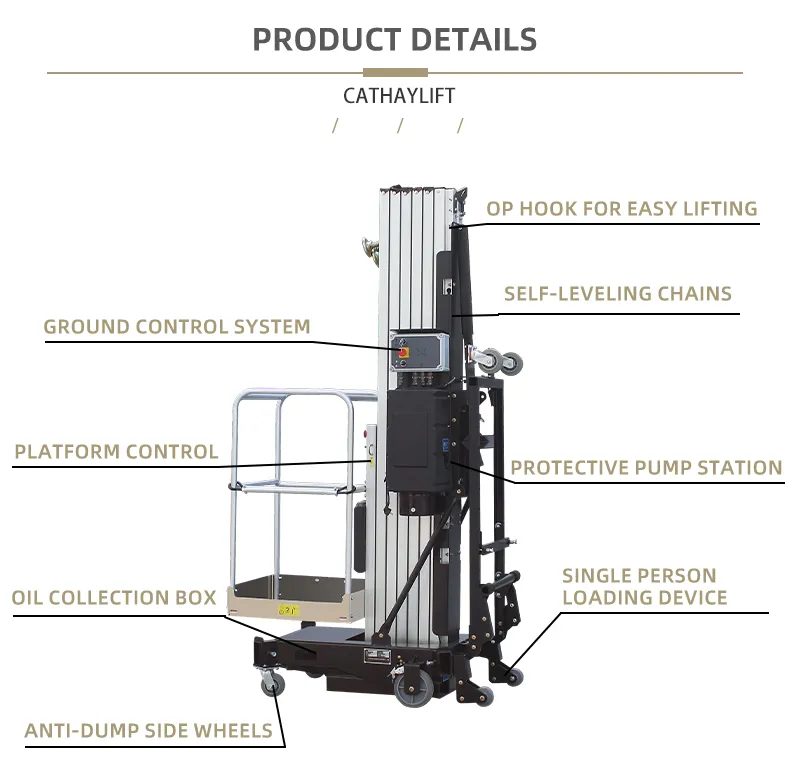

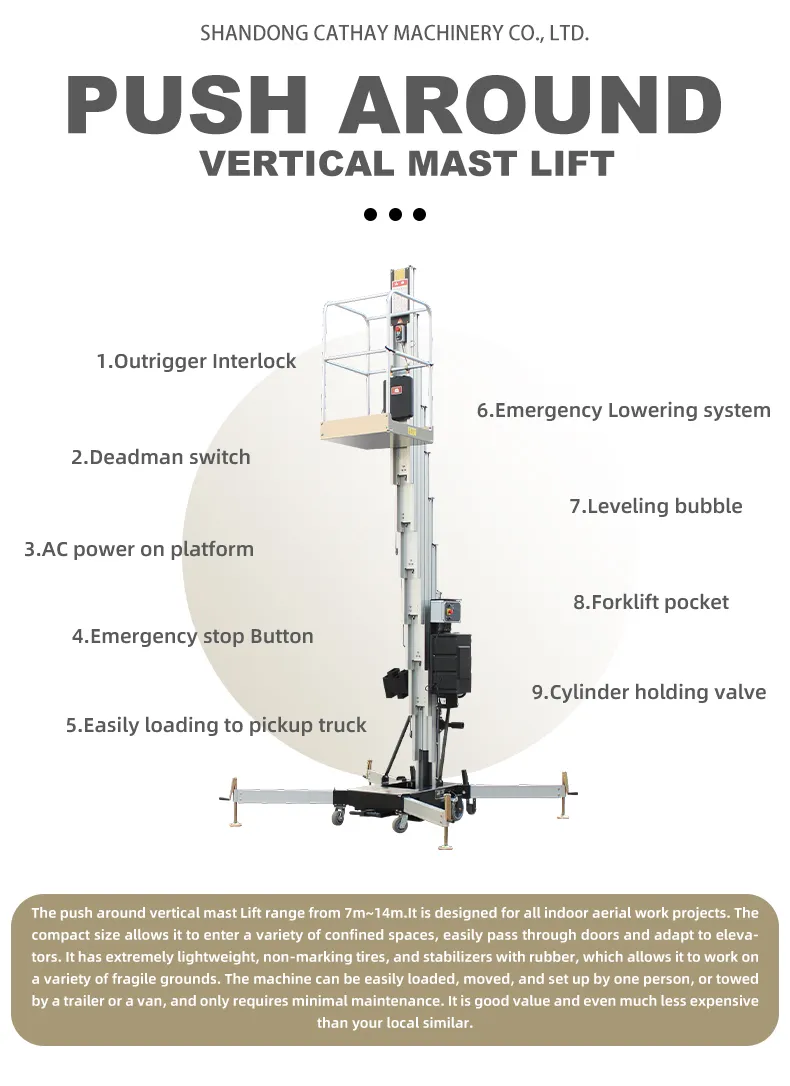

⭐Product Advantages

Outrigger Interlocking System The lift is only powered once all four outriggers are fully deployed and evenly stressed, with green indicator lights confirming stability.

Aviation Plug & Wear-Resistant Cables Equipped with aviation-grade connectors for fast maintenance and ultra-durable drag cables (5 million+ cycles) resistant to UV, oil, and extreme cold.

Safety Control Design Features a dual-action setup with an emergency stop button and a public switch to prevent unintentional activation.

Integrated AC Power An IP66-rated platform socket allows the direct use of power tools like drills or saws in high-altitude environments.

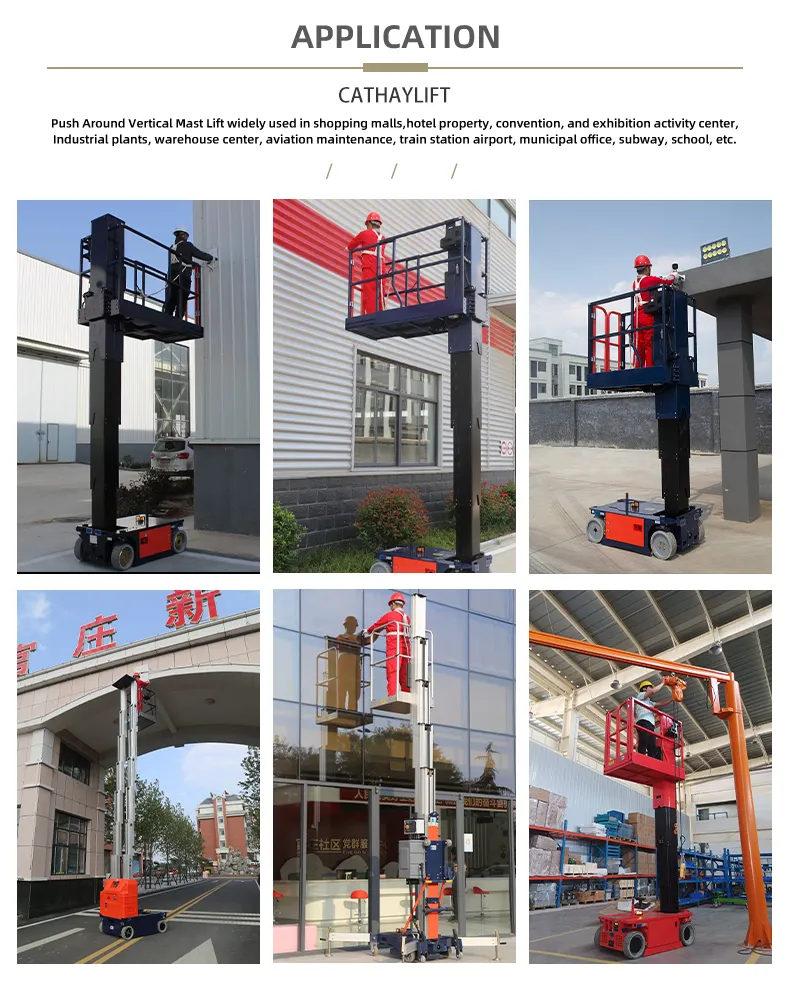

🏢Applications

These aluminum vertical mast lifts are ideal for shopping malls, hotels, exhibition centers, industrial plants, warehouses, airports, and schools. Their compact footprint is perfect for indoor maintenance and overhead tasks in areas with high pedestrian flow.

✔Quality & Teams

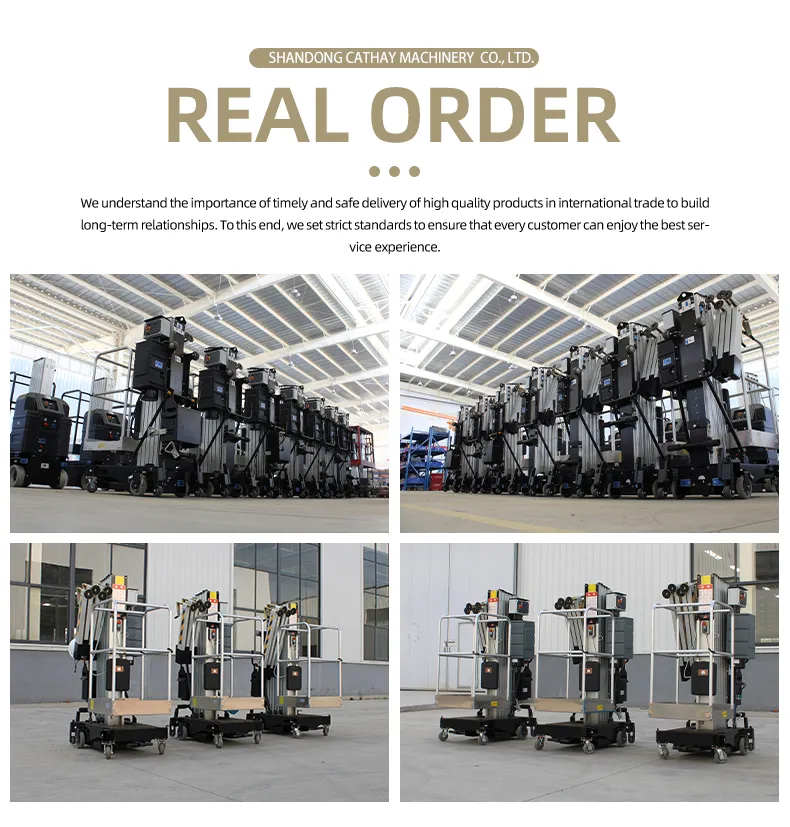

📦Packaging & Shipping

FAQ

What is the maximum working height of this lift?

The series offers maximum working heights ranging from 7 meters up to 14 meters depending on the specific model chosen.

Can the lift be operated on sensitive flooring?

Yes, the lift features non-marking tires and rubber-padded stabilizers, making it safe for use on fragile indoor grounds like hotel lobbies or exhibition halls.

What power sources are available?

The standard configuration is AC powered. However, we offer optional battery (DC) power and AC+DC hybrid systems to suit different operational needs.

Is it easy to transport between different job sites?

Absolutely. The compact design and lightweight aluminum structure allow it to be easily loaded into a van or trailer by a single person.

How does the outrigger interlocking system work?

It is a safety mechanism that prevents the platform from lifting unless all four outriggers are correctly deployed and the machine is perfectly leveled.

What is the load capacity for the single mast lift?

The standard load capacity is 150kg for most models, which is sufficient for one person plus tools. The 12m model has a capacity of 120kg.
