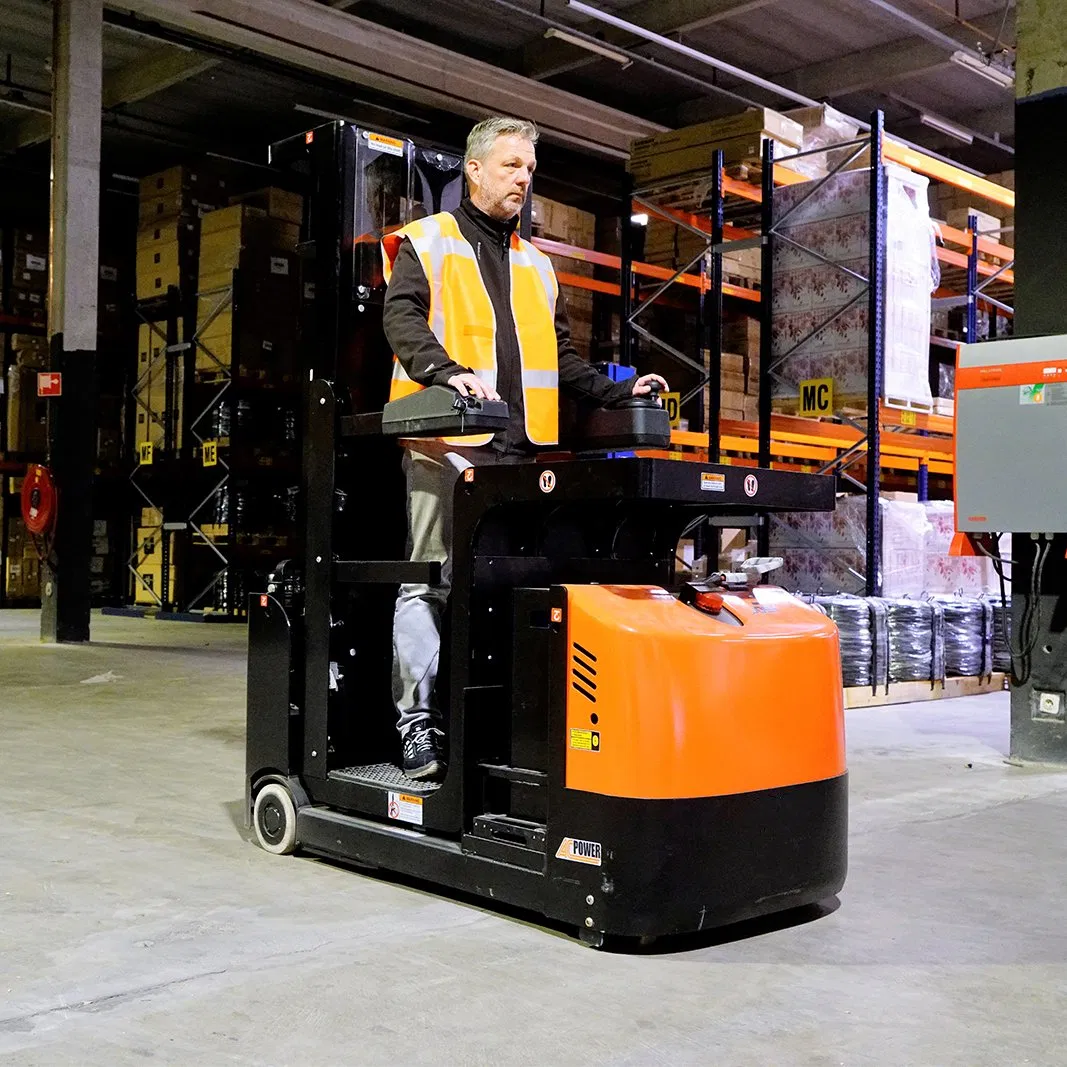

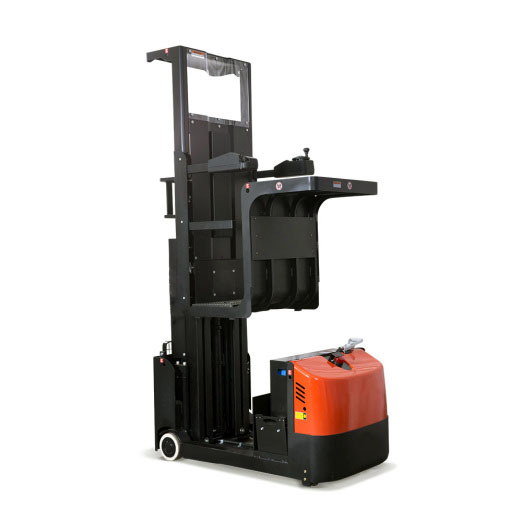

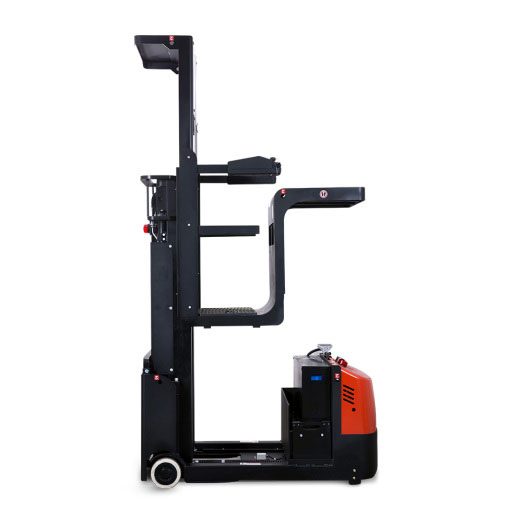

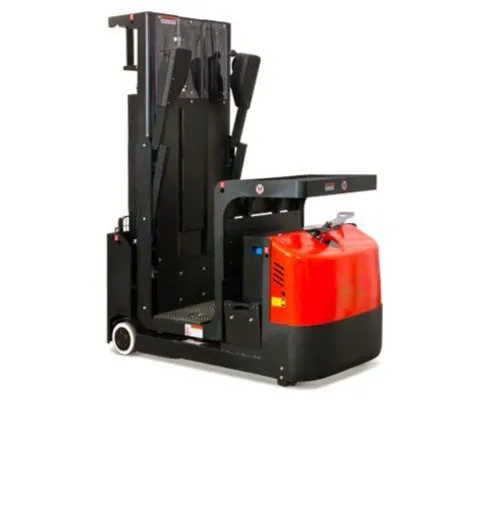

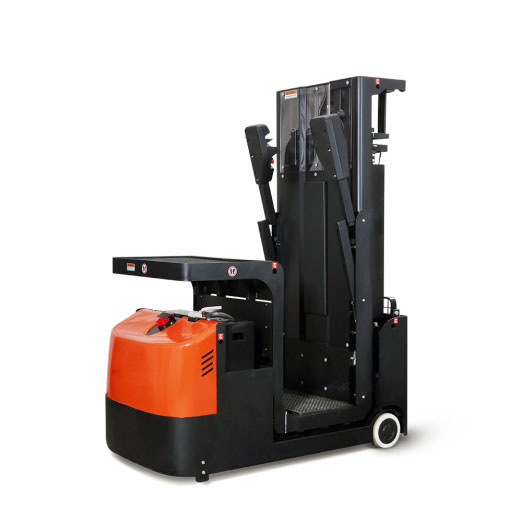

The JX1 vertical order picker helps you increase productivity in your warehouse while reducing the risk of injuries. With its heavy duty, stable mast and a large working platform, the JX1 order picker will give your employees the safety they need to work efficiently.
Positioned between low level order pickers, ladders, and expensive VNA trucks, this vertical order picker allows you to pick products at a height of up to 6.5 meters. Designed for E-Commerce and small goods picking environments, this compact and stable truck improves productivity and safety in warehouse and shopfloor aisles.
| No. | Item Description | Unit | JX1 Spec Details |
|---|---|---|---|
| 1.3 | Drive | - | Electric |
| 1.4 | Drive mode | - | Order Picker |
| 1.5 | Load capacity | Q (kg) | 363kg |
| 2.1 | Service weight | kg | 1242 - 1646 |
| 4.4 | Lift height | h3 (mm) | 4030 / 4930 / 5710 |
| 4.19 | Overall length | l1 (mm) | 1500 / 1610 |
| 4.21 | Overall width | b1/b2 (mm) | 800 - 876 |
| 5.1 | Travel speed (laden/unladen) | km/h | 5.5 / 5.5 |
| 6.4 | Battery voltage/capacity | V/Ah | 24 / 224 |
| 8.1 | Type of drive control | - | AC |

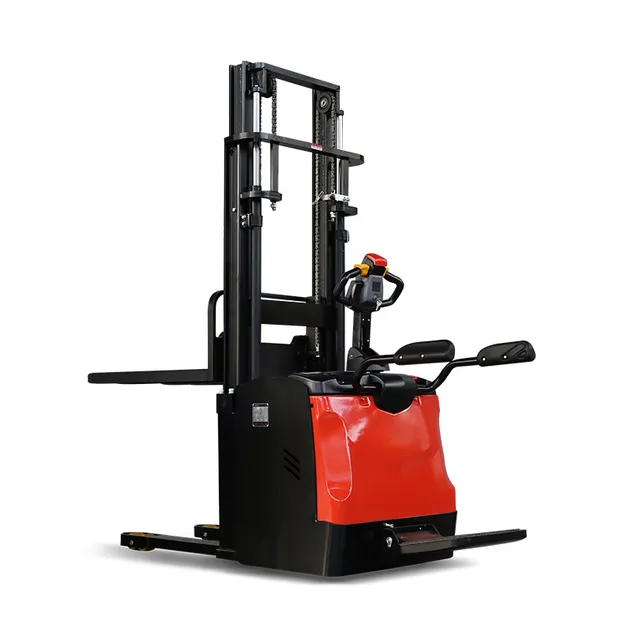

We also supply high-performance handling solutions:
The unit can elevate an operator up to 4880mm and turn around in as little as 1385mm. It is designed to be driven while lifted and diagonally for seamless task transitions. Travel is powered by a high-efficiency AC drive motor, programmable via an onboard LCD dashboard. Standard power is provided by a 224AH maintenance-free battery, with options for larger industrial batteries.

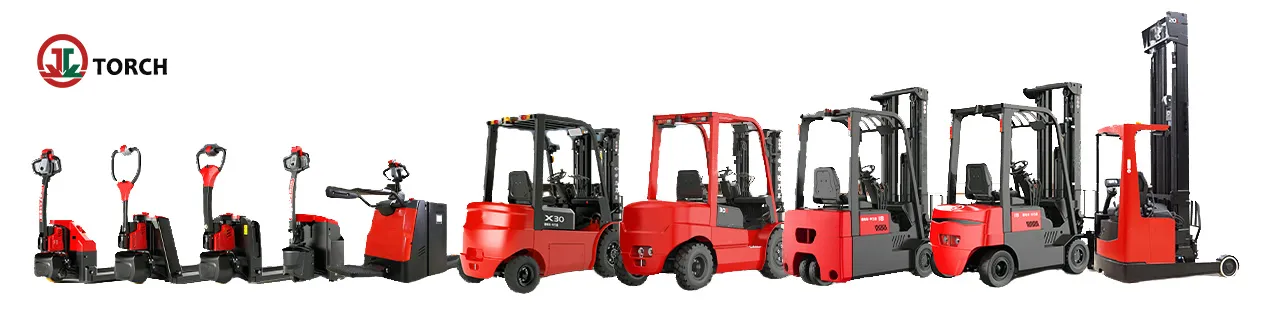

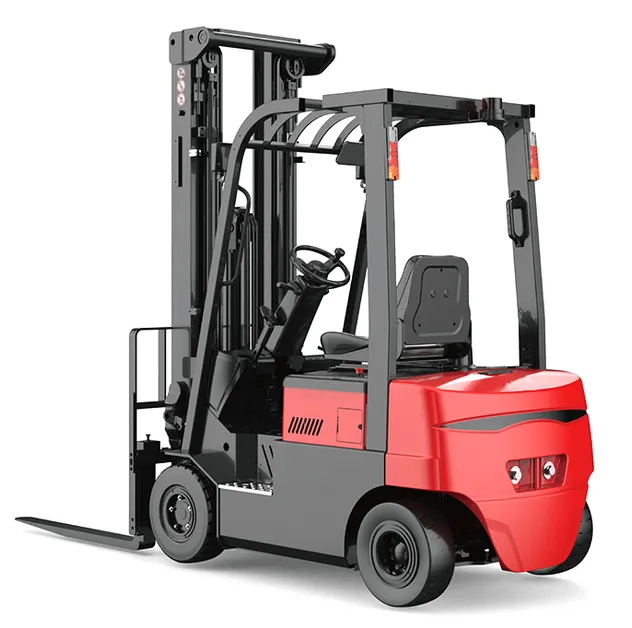

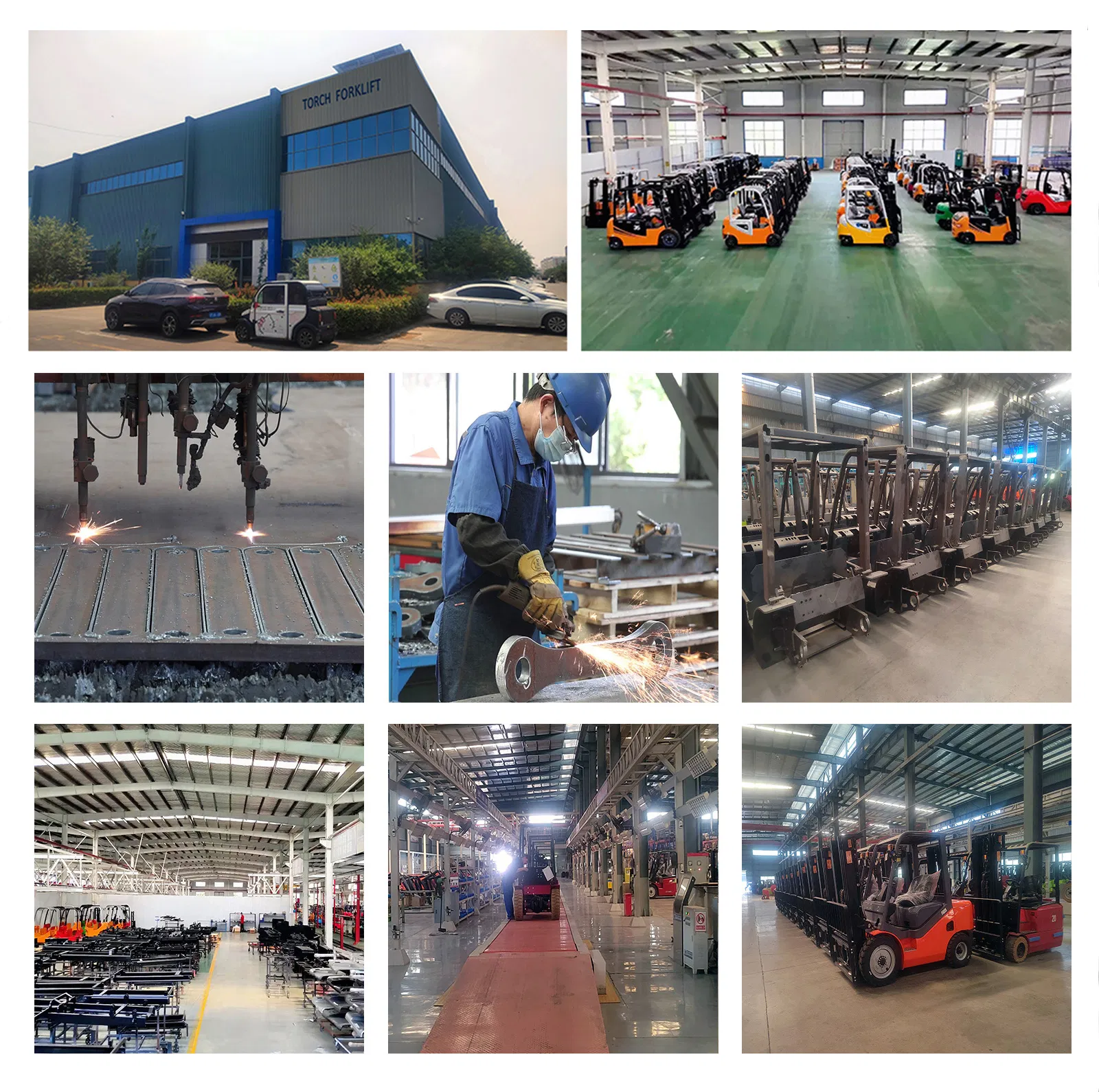

Established in 2020, our company is a leading machinery manufacturer specializing in the R&D, production, and sales of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, stackers, pallet trucks, and industrial AGVs.
Our equipment has been exported to more than 100 countries, including the United States, Mexico, Canada, and Russia. We have built a strong reputation for high-quality products and rapid service response among leading global enterprises.
