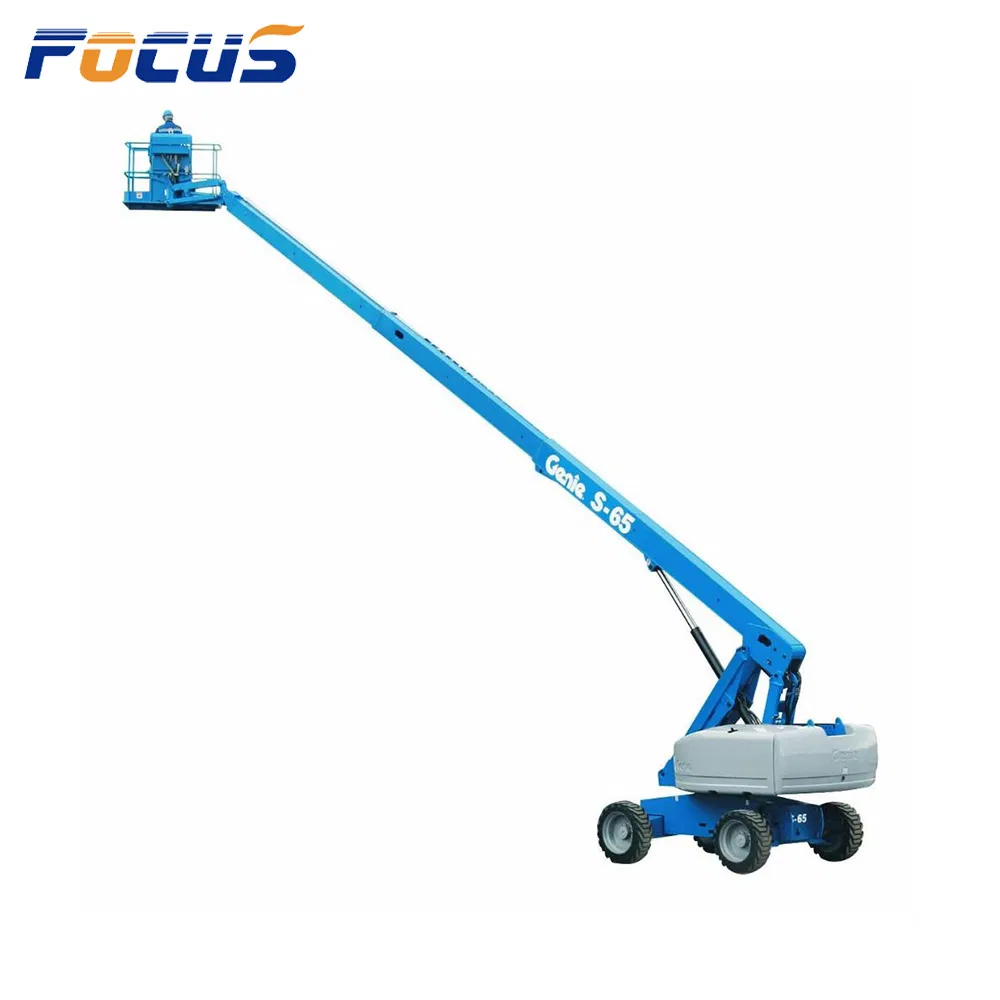

Genie S65 4x4 21.8m Diesel Boom Lift Construction Equipment

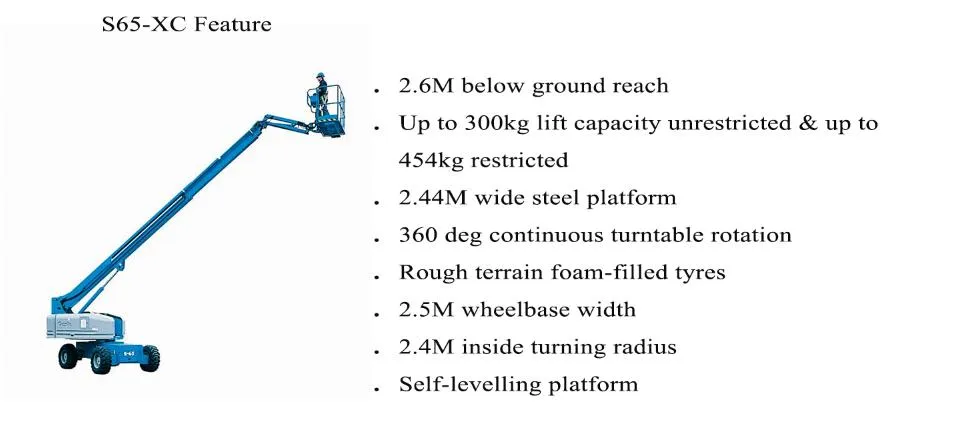

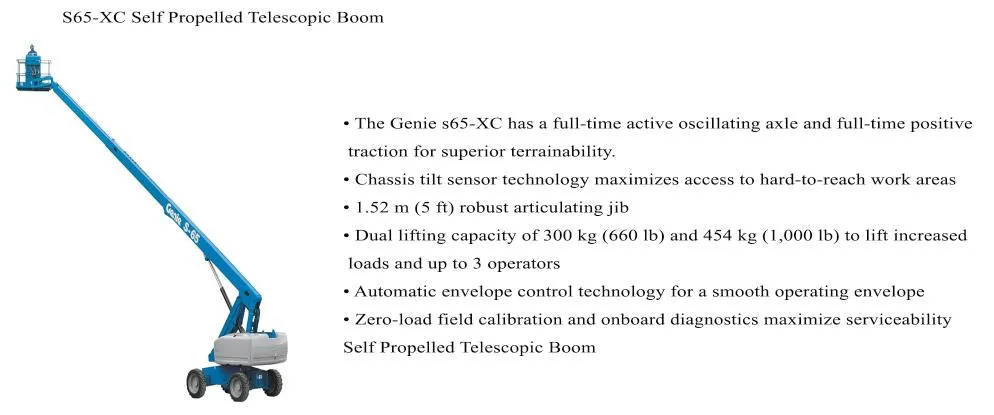

Genie® S®-65 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. And, the Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and job site materials.

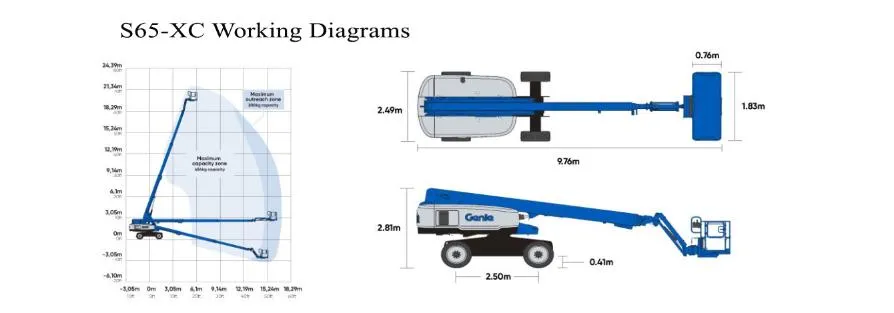

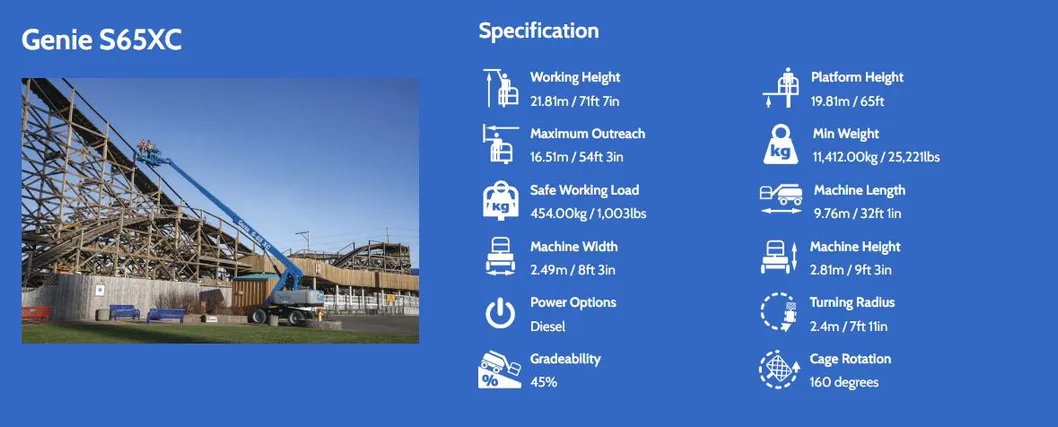

| Genie S-65 XC Specifications | ||
|---|---|---|
| Measurements | Metric | US |
| Working height maximum | 21.81 m | 71 ft |
| Platform height maximum | 19.81 m | 65 ft |

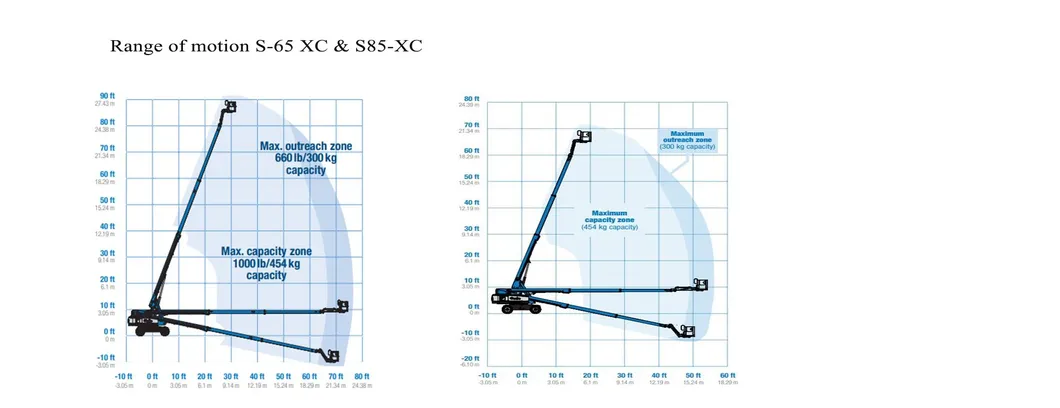

| Horizontal reach maximum | 16.51 m | 54 ft 2 in |
| Below ground reach | 2.65 m | 8 ft 8 in |
| Productivity | ||
| Maximum lift capacity - unrestricted | 300 kg | 660 lbs |
| Maximum lift capacity - restricted | 454 kg | 1000 lbs |
| Platform rotation | 160° | 160° |
| Turntable rotation | 360° continuous | |
| Drive speed - stowed | 4.8 km/h | 3.0 mph |
| Gradeability - stowed | 45% | 45% |
| Turning radius - inside | 2.40 m | 7 ft 9 in |
| Power | ||
| Power source | Deutz D2011L03i, 48 hp (36 kW) | |
| Hydraulic tank capacity | 170 L | 45 gal |
| Fuel tank capacity - diesel | 132 L | 35 gal |
