Customization: Available
Type: Wellhole
Load Capacity: 1000kg-3000kg
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
D
Speed
0.5-1.0 M/S
Drive Mode
AC
Open & Close Type
Automatic
Lift Mechanism
Lift Chain
Deceleration Device
With Deceleration Device
Guide Rail
T Guide
Elevator Door
Center Opening Door
Product Price
$9000-30000/Unit
Production Time
Within 25-30 Days
Machine Room
With and Without
Origin
China
!

Product Description

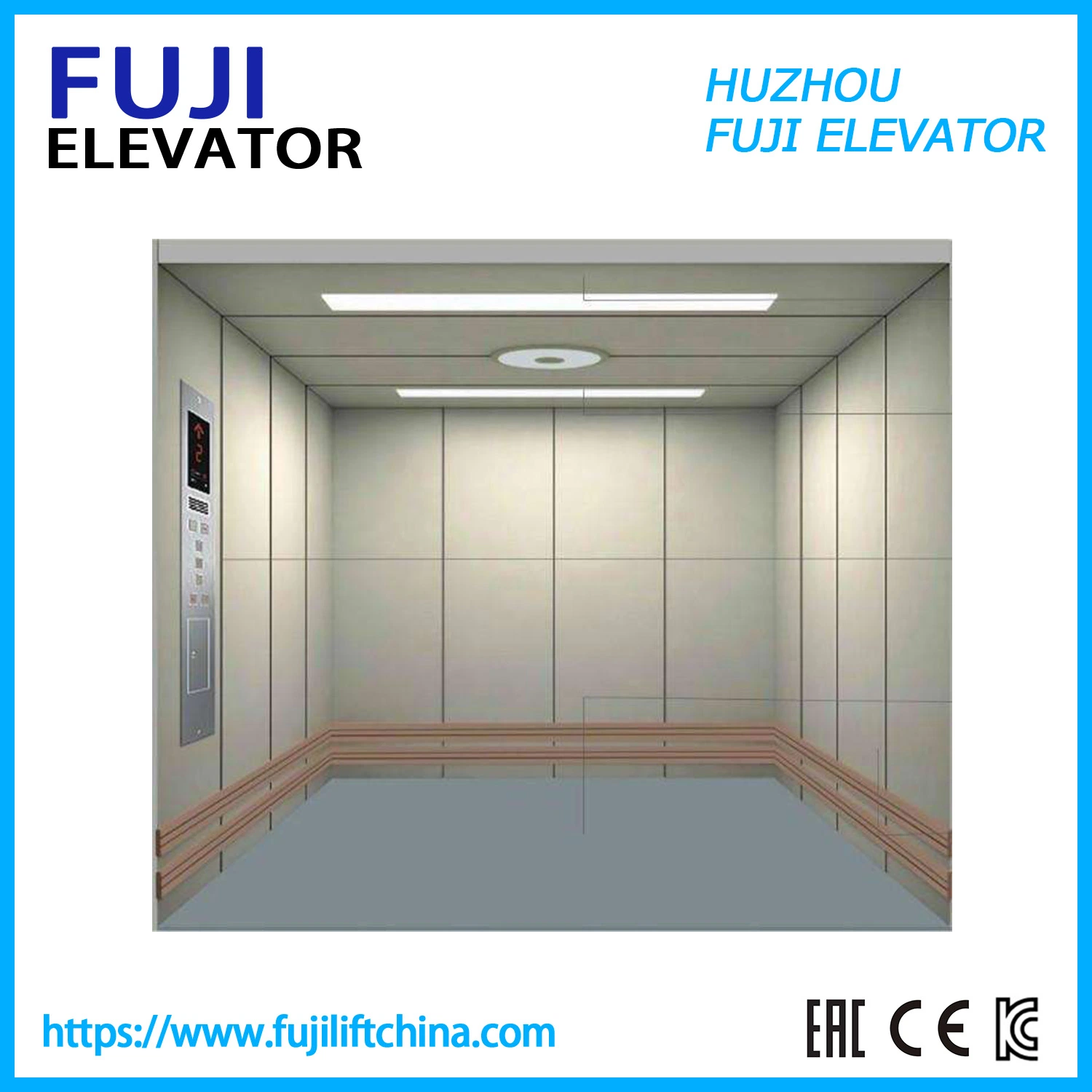

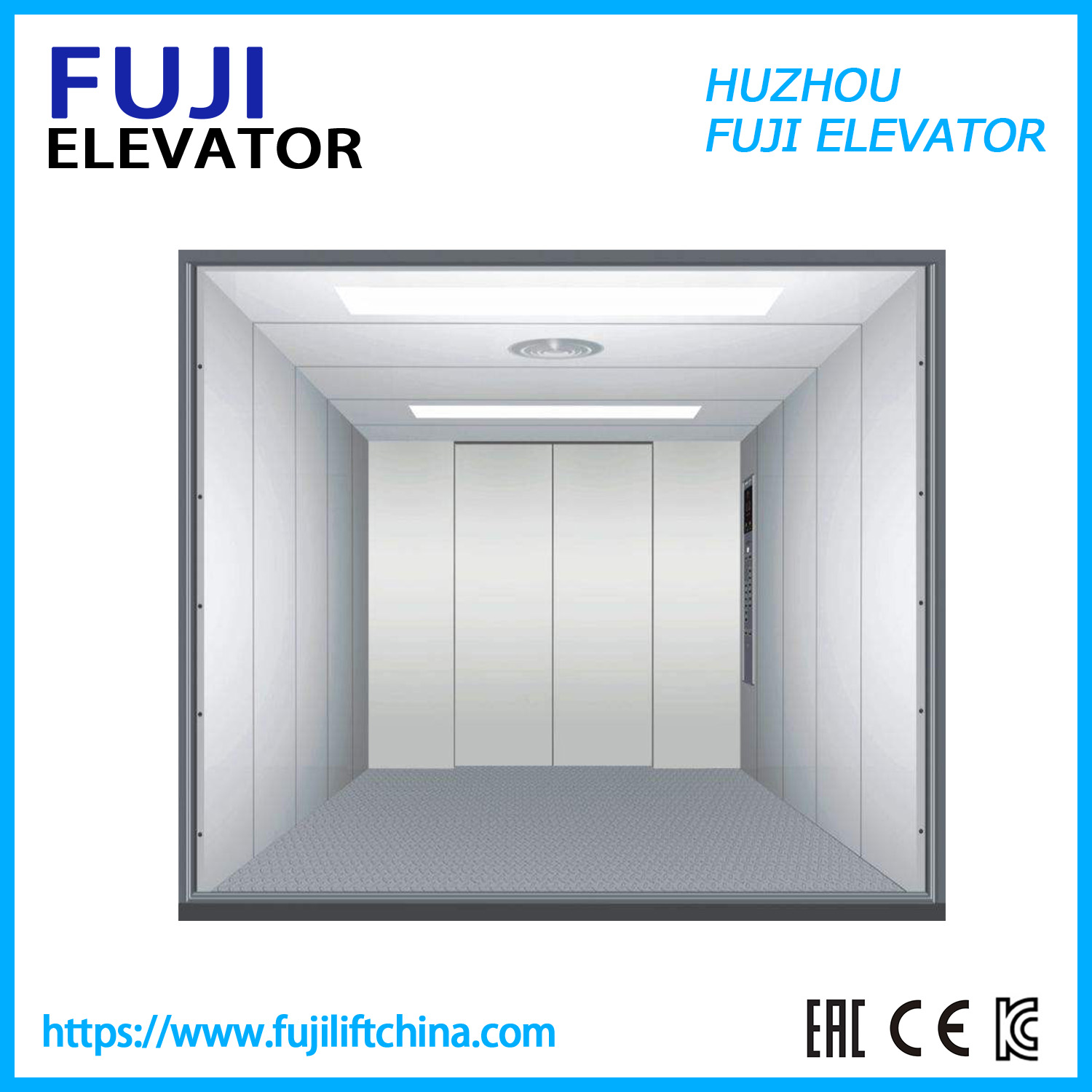

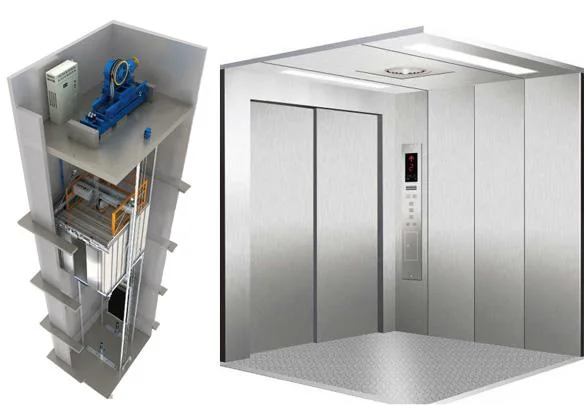

Car Elevator

The intelligent automobile elevator introduces well-developed international automobile elevation technology. It has been developed and manufactured through absorption, conversion, and enhancement. Advanced technology removes the negative factors of shaking cars, noise from burdened traction systems, and uneven force to the elevator car, optimizing the characteristics of the product series.

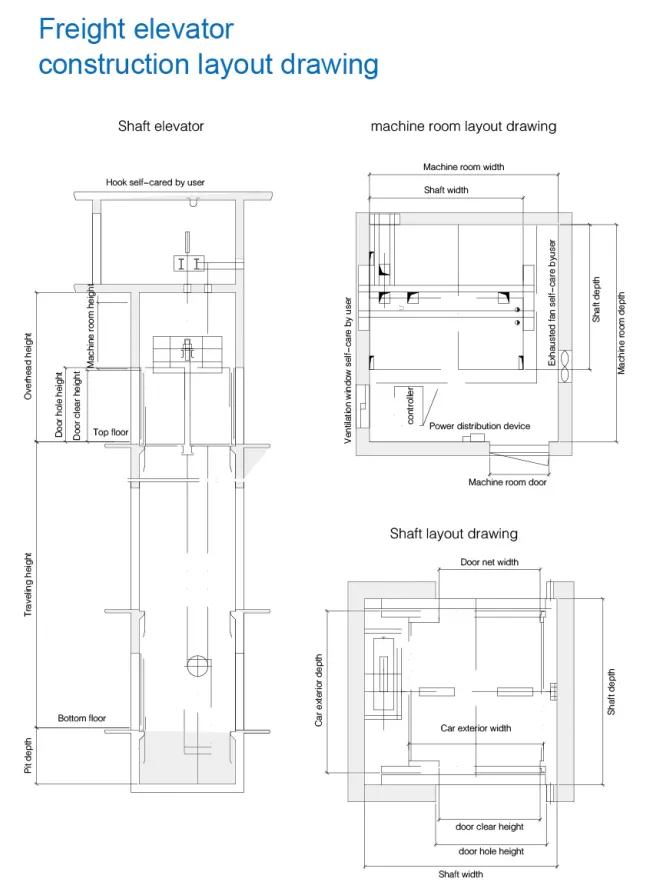

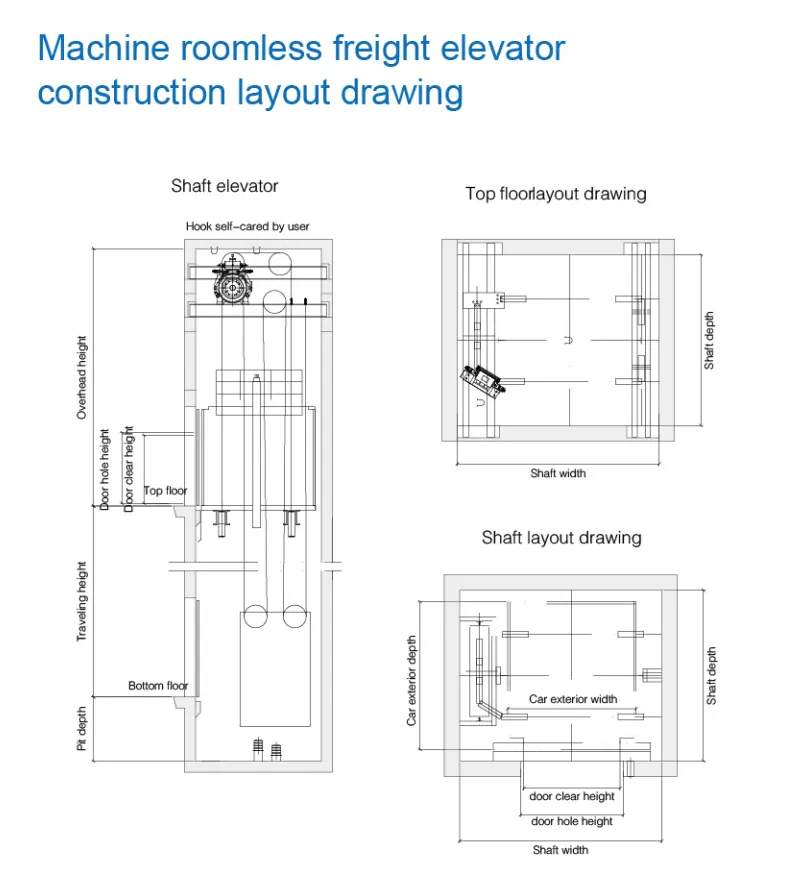

Technical Drawing 1 Technical Drawing 2
S

After-Sales Service & Support

  • The factory provides a comprehensive installation manual for technical staff.
  • Remote guidance is available for accurate commissioning and setup.
  • For special requirements, engineers can be dispatched to the site to guide installation.
  • Agents are welcome to send technicians to the factory for professional inspection and training.
How to report issues: Please provide the factory number or contract number. This allows the technical team to check specifications and provide a quick solution via email or phone.
F

Key Features of Car Elevators

  • Load Adaptation: Designed to handle rapid increases and decreases in load and non-uniform stress, unlike standard freight lifts.
  • Dual Controls: Equipped with two control button boxes, allowing drivers to operate the lift without leaving the vehicle.
  • High Capacity: Rated load capacity exceeds 3 tons with a spacious car area for various vehicle sizes.
  • Through-Door Design: Front and rear doors facilitate easy entry and exit for vehicles.
P

Technical Parameters

Capacity (KG) Speed (m/s) Car Size (WxDxH)mm Door Opening (WxD)mm Shaft Size (WxD) OH (mm) Pit Depth (mm)
3000 0.25/0.5 2700x5800 2400x2200 4100x6160 4800 1600
5000 0.25/0.5 3500x7200 2600x2200 4750x7560 4800 1600
M

Standard Functions

1. Automatic stop16. Anti-mischief function
2. Self-diagnostic of call button17. Auto-running of full-load
3. Auto light/ventilation shut off18. Re-opening via hall button
4. Repeat open/close door19. Door load sensor
5. Infrared Light curtain protection20. Arrival tip
6. Fire running function21. Self-diagnostic of faults
7. Automatic door lock/unlock22. Current floor auto-opening
8. Terminal landing speed adjustment23. Offside prevention
9. Driver/Non-driver operation24. Overhaul running operation
10. Orientation selection25. Auto-stop and rescue fault
11. Overload voice-light alarm26. High speeding protection
12. Enforced stopping prevention27. Hoist way data protection
13. Current floor call record28. Automatic directional change
14. Internal auto-response29. Power-fail data protection
15. Signal fault protection30. Five-party interphone
Application 1 Application 2
?

Frequently Asked Questions

Q1: What is the maximum load capacity for these car elevators? A: The standard rated load capacity is between 3,000kg and 5,000kg, designed to accommodate various small to medium-sized vehicles.
Q2: Can the driver operate the elevator without leaving the car? A: Yes, the car is equipped with two control button boxes, allowing the driver to control the elevator conveniently from inside the vehicle.
Q3: What kind of after-sales support is provided for installation? A: We provide detailed installation manuals, remote technical guidance for commissioning, and can send engineers to the site for complex installations.
Q4: How does the elevator handle uneven loading? A: The structural design is specifically enhanced to handle the rapid load changes and non-uniform stress typical of vehicle transport.
Q5: Is there a safety system to prevent door accidents? A: Yes, the elevators are equipped with infrared light curtain protection and door load sensors to ensure safe entry and exit.
Q6: What is the typical production lead time? A: The standard production time is within 25 to 30 days after order confirmation.
