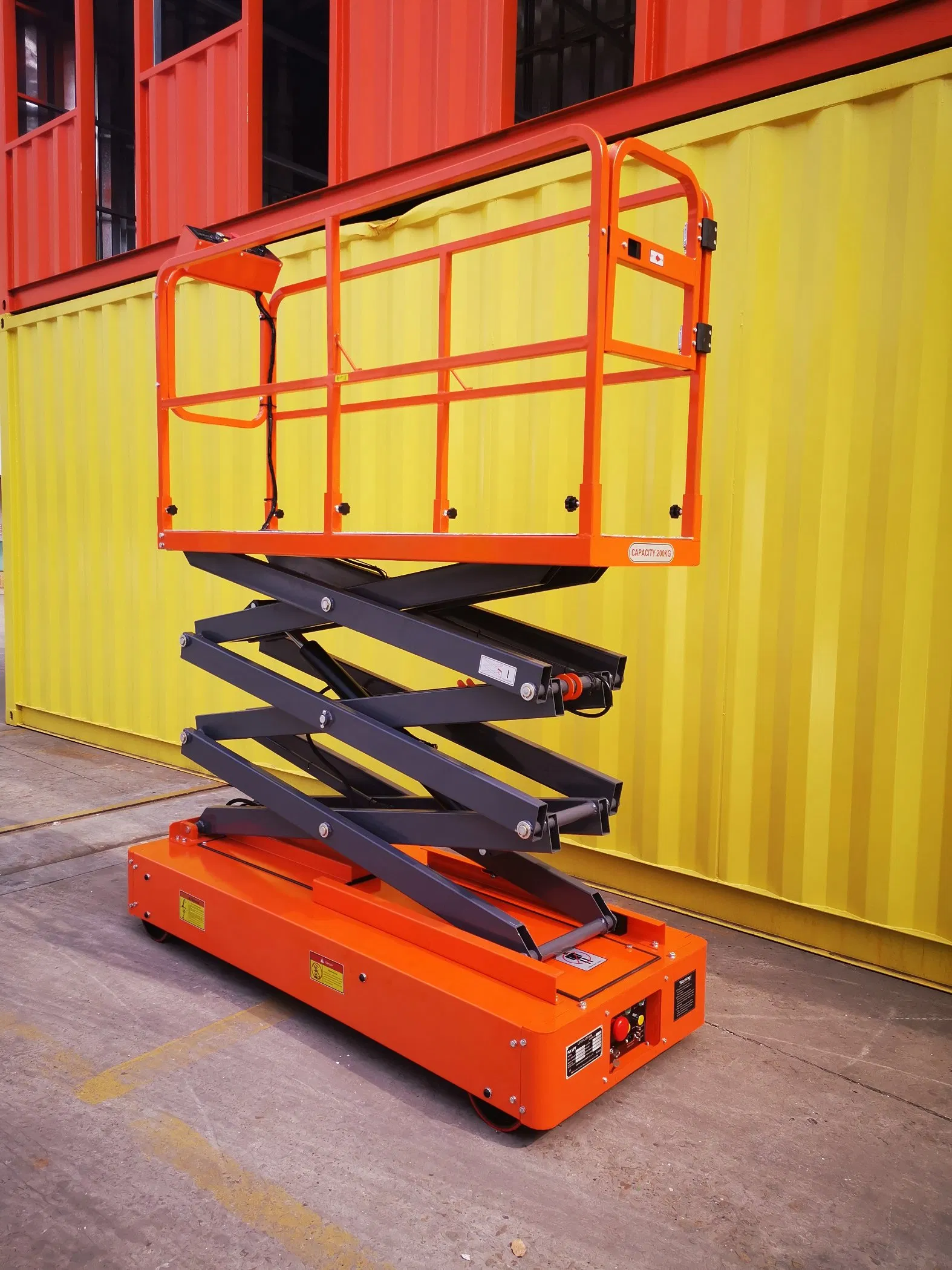

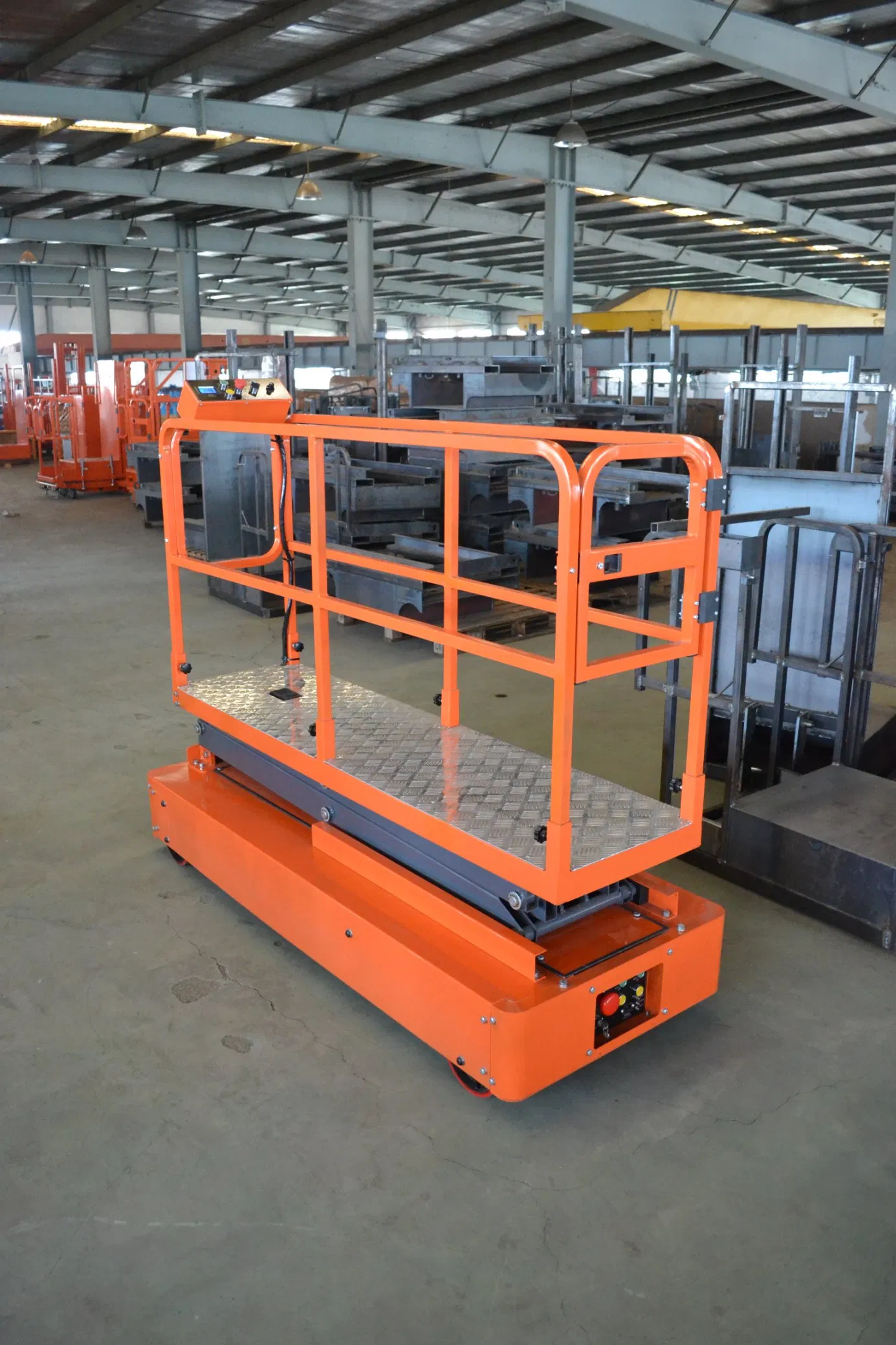

Greenhouse Picking Scissor Lift Platform Electric Small Platform

Customization: Available
Warranty: 12 Months Apart From Man-Made Faults
Application: Greenhouse

Product Description

📋 Basic Information
Model NO.
GL0.2-4W
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
Hydraulic
Certification
CE, ISO 9001
Lift Capacity
150kg
Platform Size
1910*640mm
Usage
Fruit or Vegetables Picking
Charger
24V/15A
🌱 Product Description

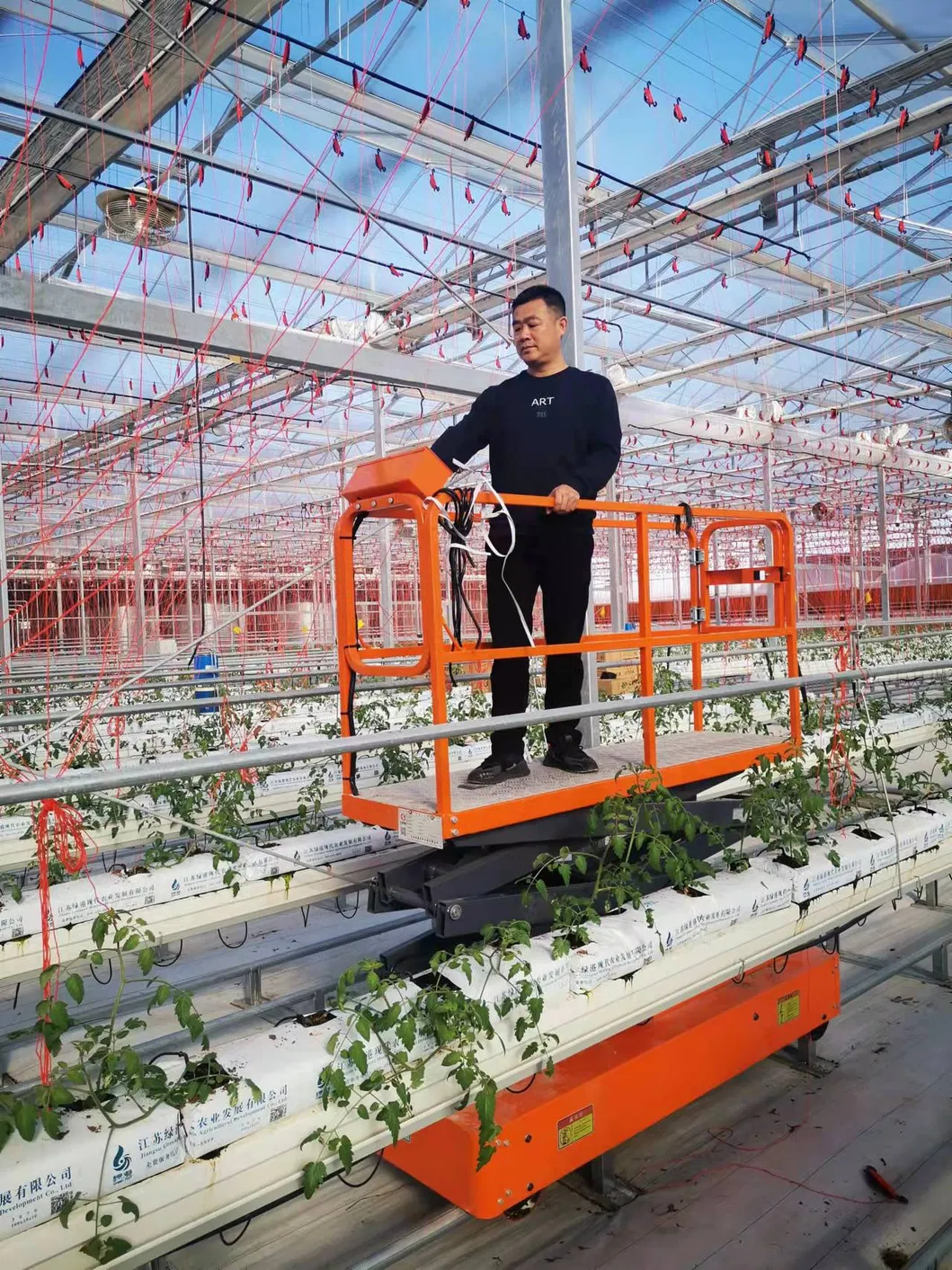

Pipe Rail Trolley

Pipe Rail Trolley for Greenhouse: These electric trolleys are essential for the horticultural industry, providing stable and easy movement along transport rails. Powered by traction batteries, they are easily rechargeable via high-frequency chargers.

Features & Advantages
Ergonomic design with foot switch for flexible and easy movement.
Safe and reliable: Equipped with safety rails and a robust brake system.
Dual movement: 4 flange wheels for orbital movement and 4 rubber tires for concrete roads.
Hydraulic lifting system for smooth and continuous vertical height adjustment.
Dual control panels with emergency stop, direction, and speed control switches.
📊 Technical Specifications
Model Type GL0.2-3.0 GL0.2-4.0 GL0.2-3.0W GL0.2-4.0W
Max. Platform Height3000mm4000mm3000mm4000mm
Min. Platform Height630mm690mm630mm690mm
Platform Size1910*500mm1910*640mm
Rated Load200kg150kg200kg150kg
Overall Length1936mm
Overall Width770mm1020mm
Battery (V/Ah)2*12/802*12/180
Moving Speed0-3.5KM/H (CVT)
Track distance550mm800mm
🔍 Detailed Introduction

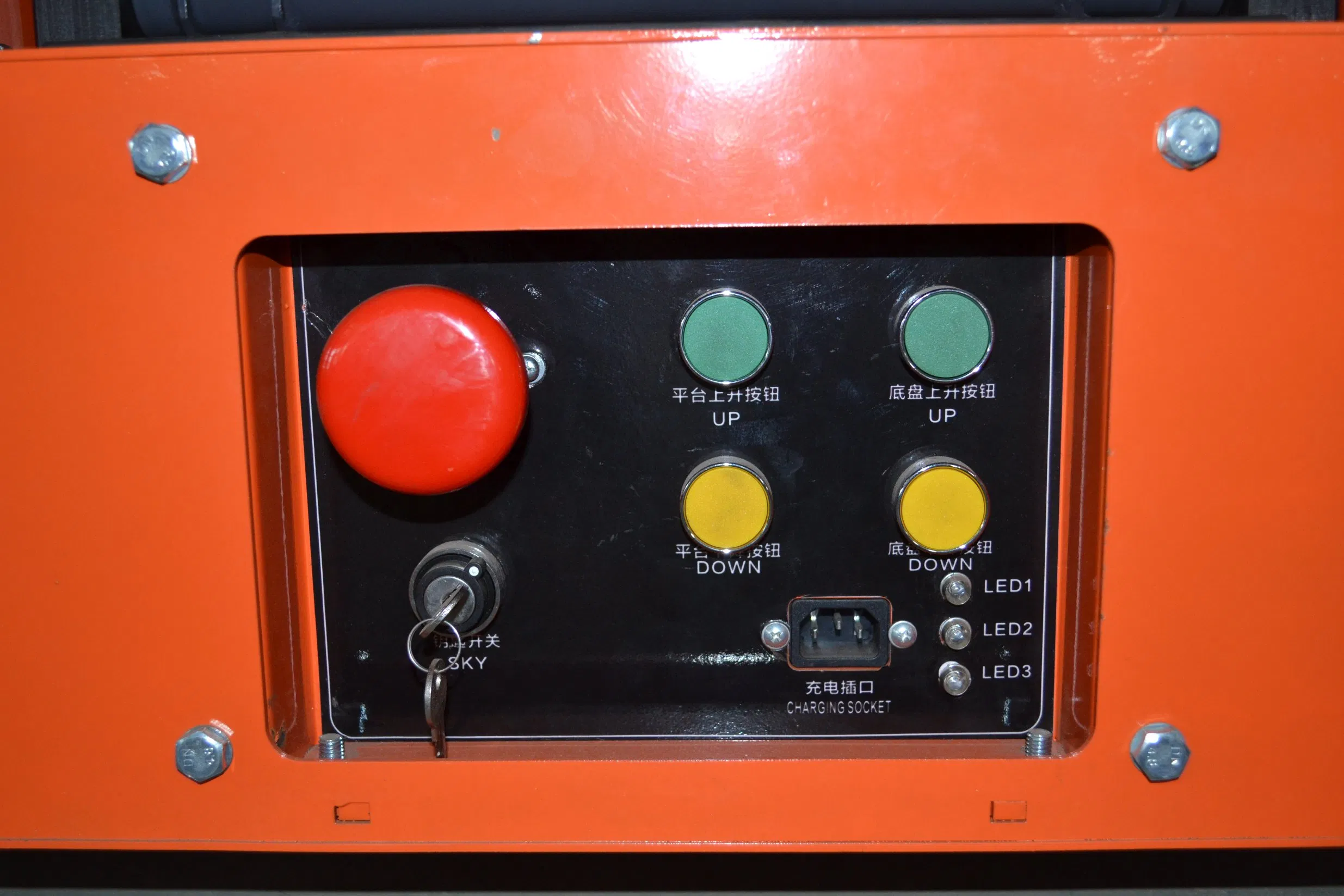

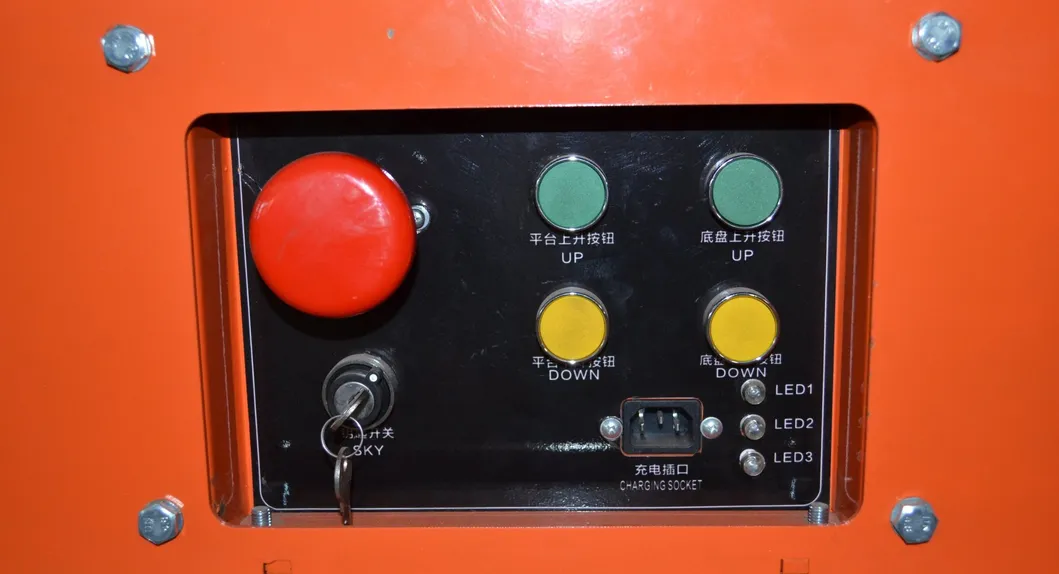

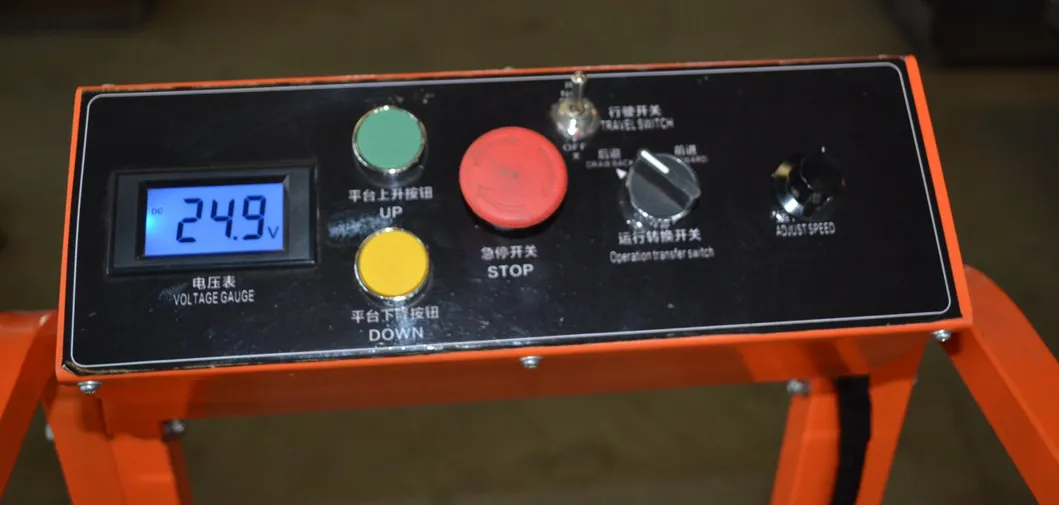

Control Panel 1 Control Panel 2

Operation: Features both an on-platform control panel and a ground-level interface for maximum convenience.

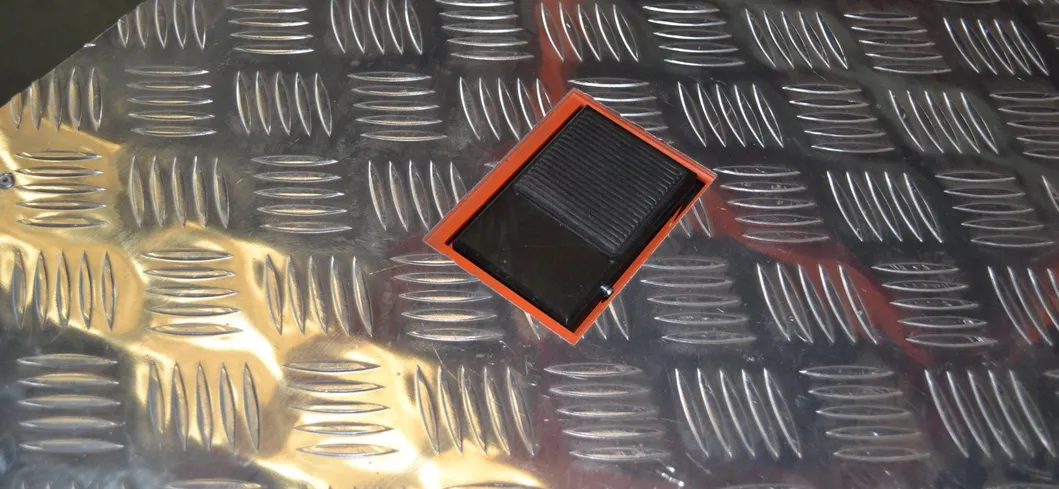

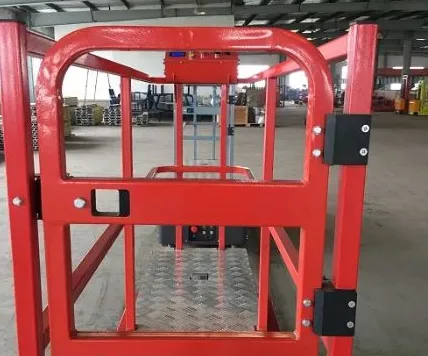

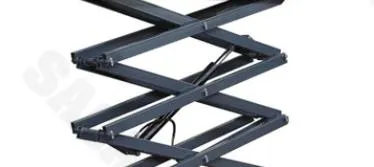

Foot control Scissor system Safety Door
🖼️ Gallery

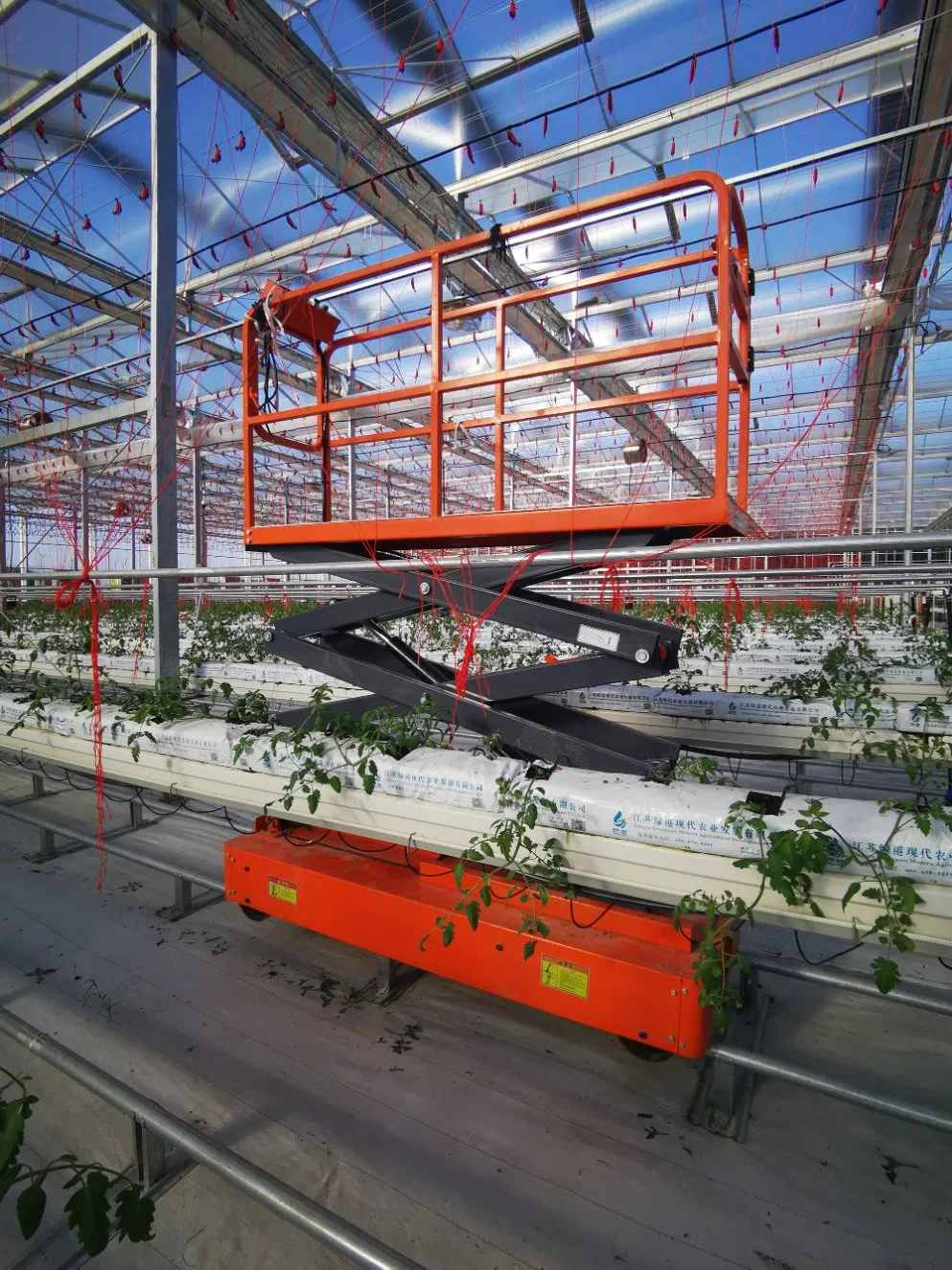

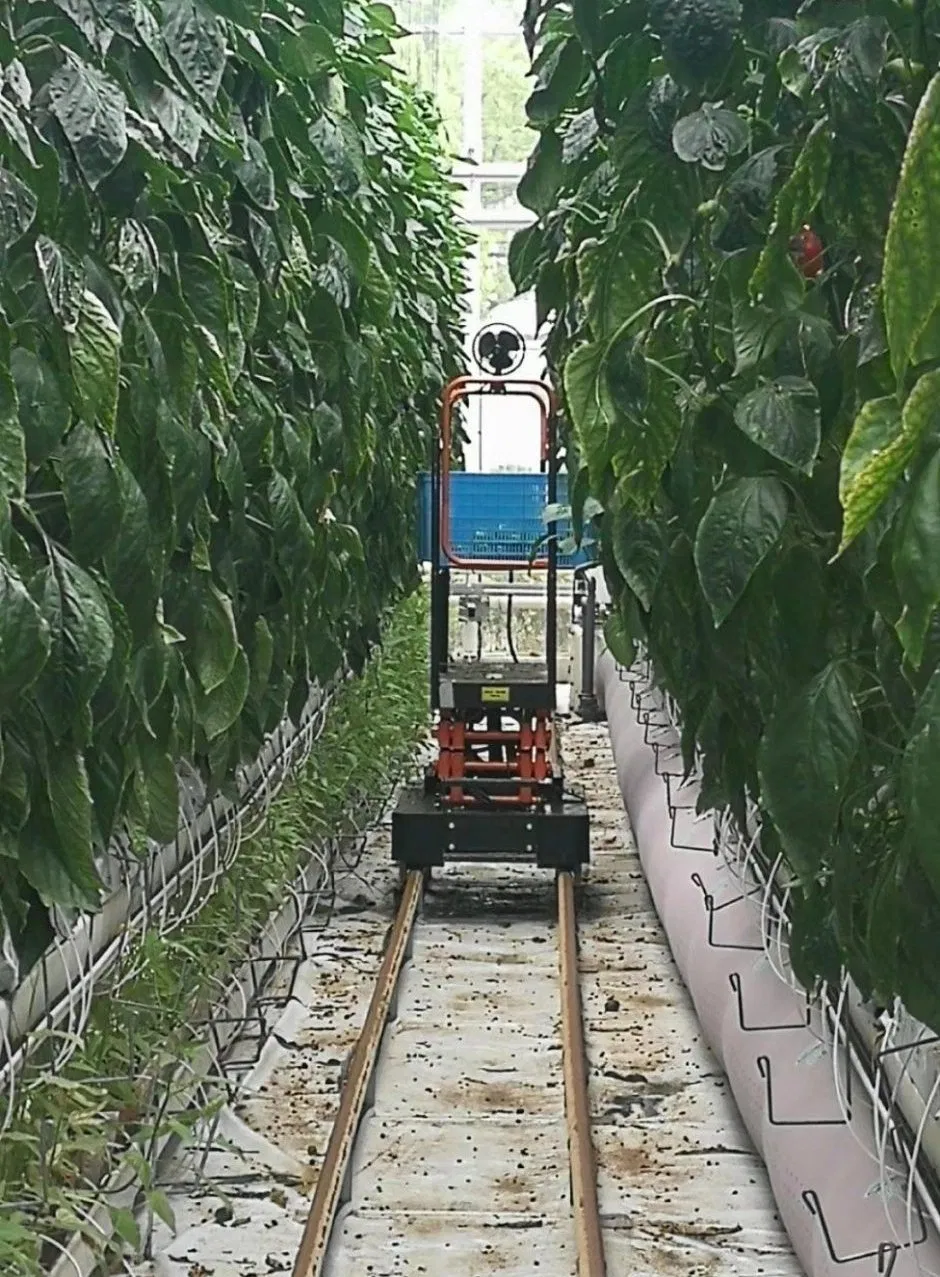

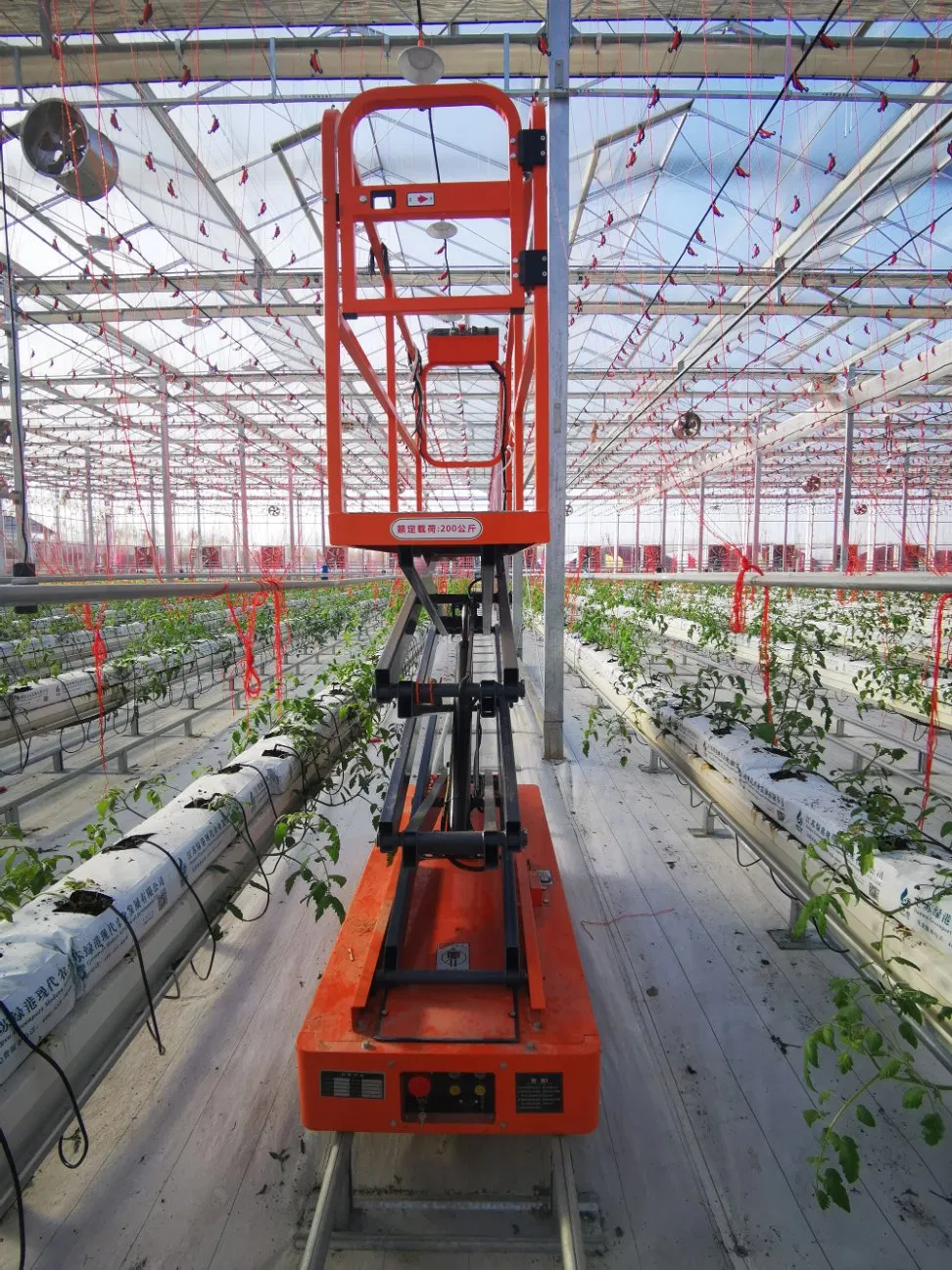

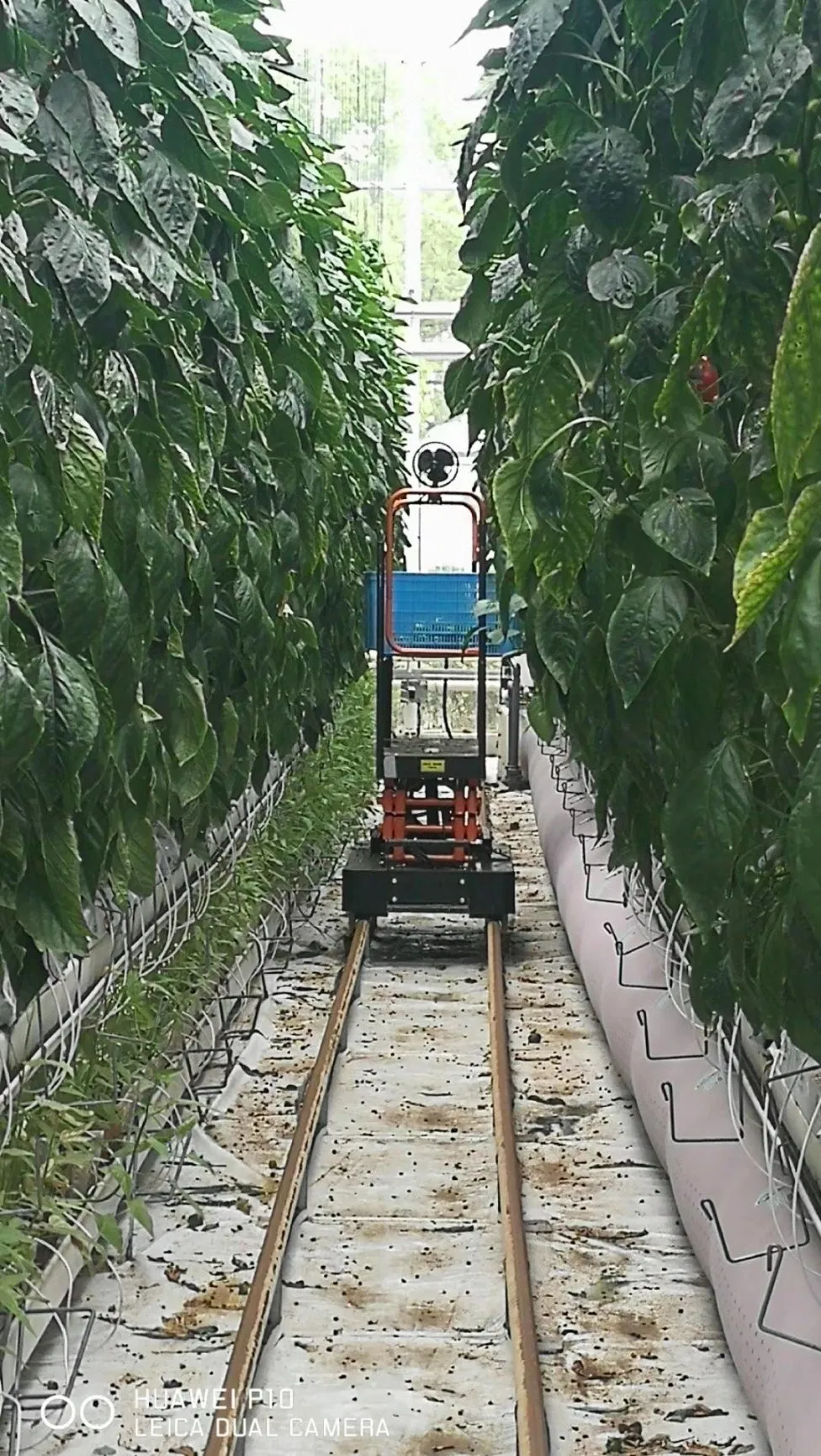

Show 1 Show 2 Show 3
🏢 Manufacturer Profile

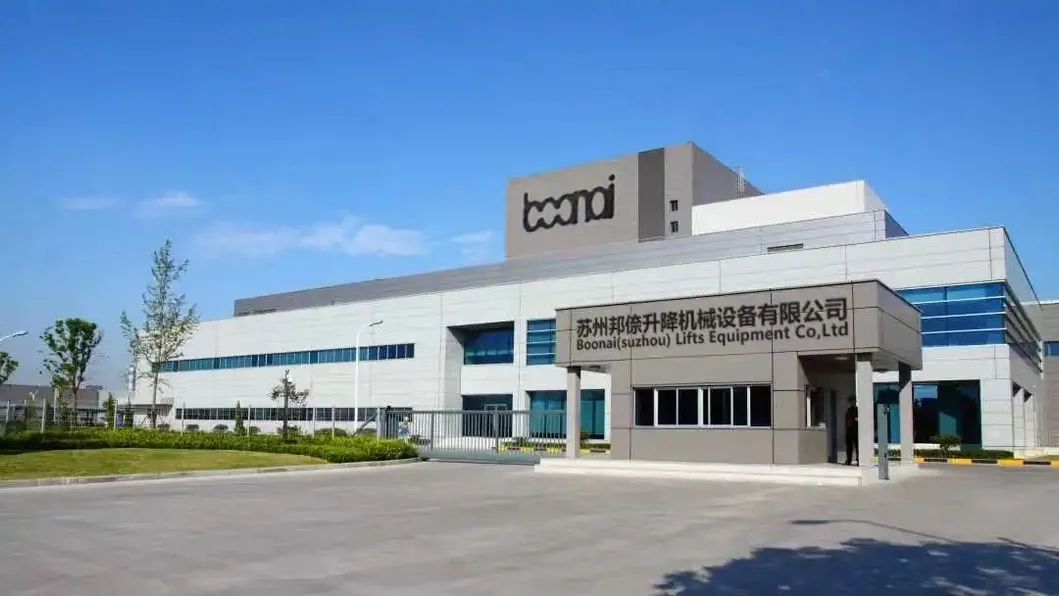

Manufacturing Factory

A modern manufacturing enterprise specialized in aerial work platforms, providing comprehensive services for design, production, sales, and after-sales support. With a focus on "Quality First, Client Oriented," the team ensures rigorous quality control and perfection in every detail. Main products include mast aerial work platforms, scissor lifts, fixed lift tables, and material pickers used extensively in machinery, aviation, and logistics.

📜 Certifications & Support

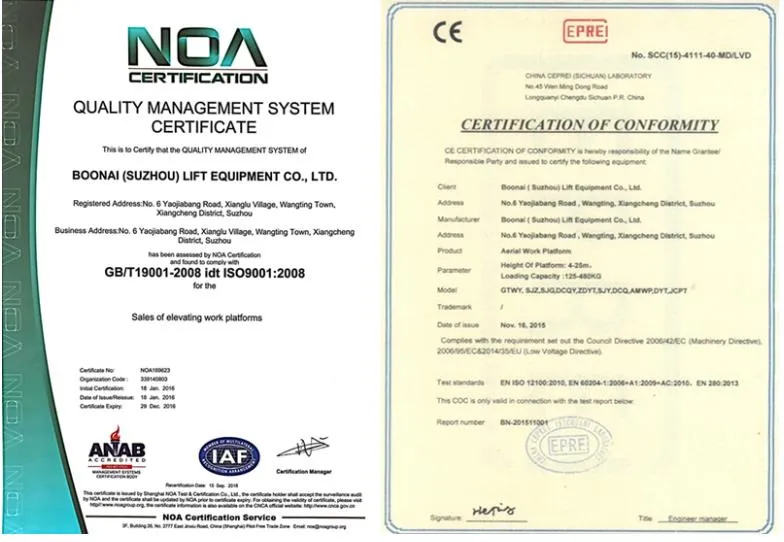

Certifications
1.
English manual provided for operation and maintenance.
2.
One-year warranty for the whole machine.
3.
Free replacement parts for non-human factor issues during warranty.
4.
24-hour technical support via email or online tools.
Customers
FAQ
1. What is the standard delivery time? Generally, immediate delivery is available for stock items. For out-of-stock items, it typically takes 15 to 30 days.
2. What payment methods are accepted? We accept T/T (Bank Transfer), L/C at sight, and other negotiated payment terms.
3. Are OEM and ODM services available? Yes, we can manufacture products according to your specific design or provide customized solutions based on your requirements.
4. How can I get the best price for this lift? The price depends on your specific requirements. Please provide detailed needs for a formal quote.
5. Does the machine work on both rails and concrete? Yes, it is equipped with 4 flange wheels for pipe rails and 4 rubber tires for concrete surfaces.
6. What is the warranty period? The machine comes with a one-year warranty covering non-man-made faults.
