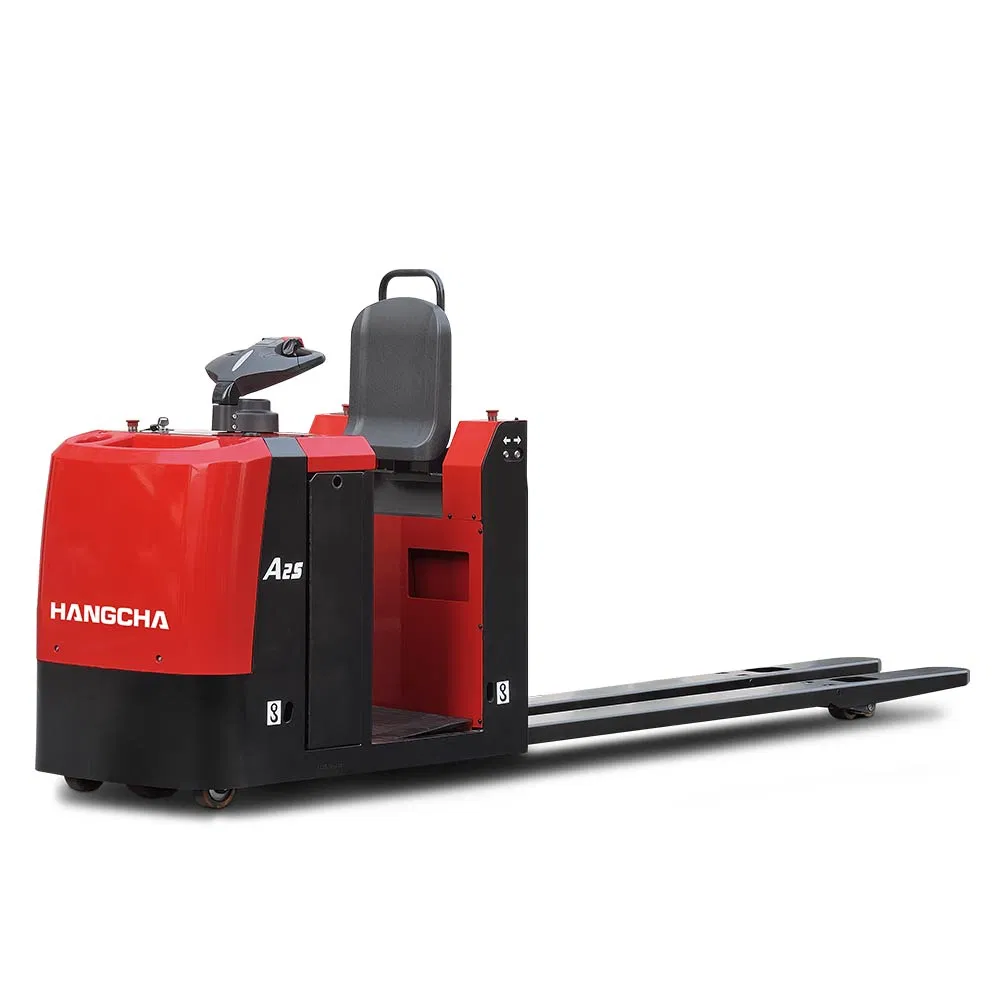

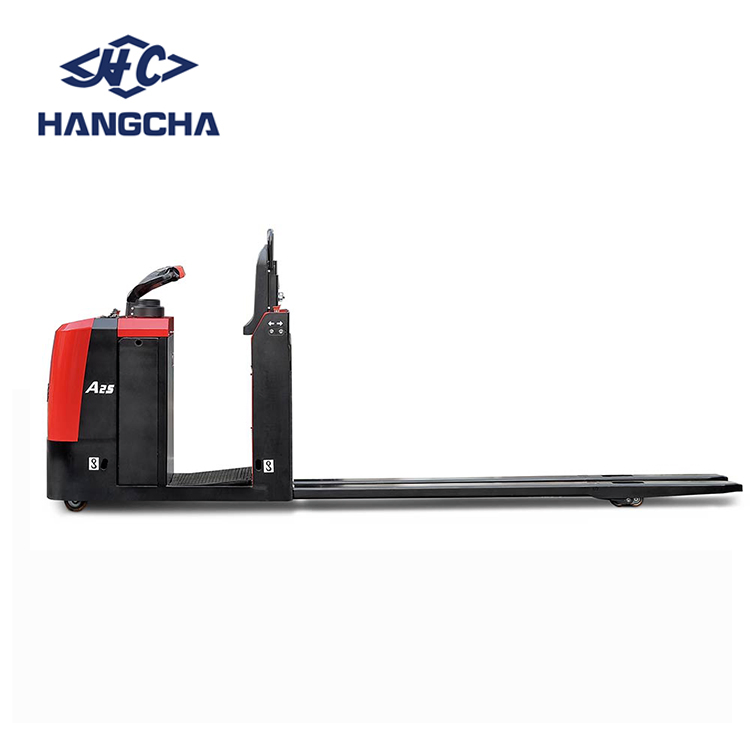

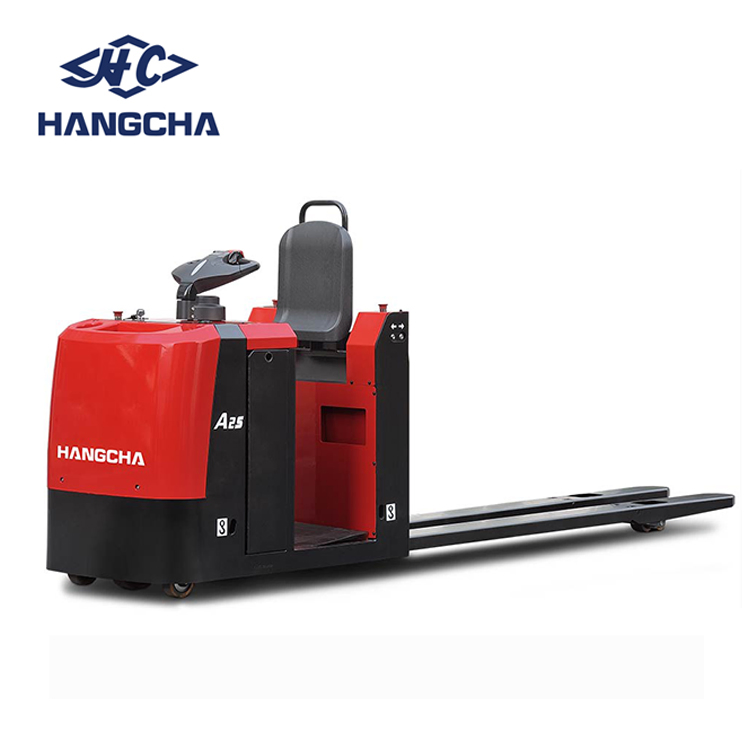

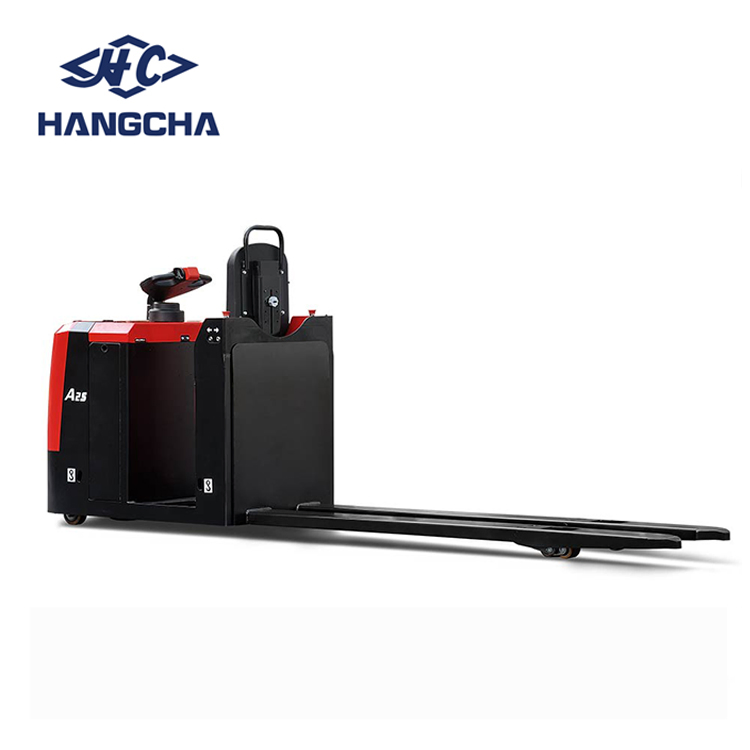

The A series low-level order picker is primarily designed for long-distance transportation within production lines. Featuring a low operator platform for frequent and effortless entry and exit, its standing design significantly enhances operational efficiency. The eco-friendly electric drive system makes it an ideal partner for automobile manufacturing, logistics centers, and warehouses.
| Ref No. | Description | Unit | Value (CJD25-AC1-L) | |
|---|---|---|---|---|
| 1.2 | Model Designation | CJD25-AC1-L | ||
| 1.4 | Operator Type | Order-picker (Standing) | ||
| 1.5 | Rated Capacity | kg/lb | 2500 / 5500 | |
| 1.6 | Load Centre Distance | mm/in | 1200 / 47.2 | |
| 2.1 | Service Weight | kg/lb | 1130 / 2491 | |
| 3.1 | Tyre Type | Polyurethane (PU) | ||
| 4.4 | Lift Height | mm/in | 125 / 4.9 | |
| 4.19 | Overall Length | mm/in | 3730 / 146.9 | |
| 4.21 | Overall Width | mm/in | 800 / 31.5 | |
| 4.22 | Fork Dimensions | mm | 64 / 170 / 2400 | |
| 5.1 | Travel Speed (Laden/Unladen) | kph | 7.0 / 10 | |
| 5.8 | Max Gradeability (Laden/Unladen) | % | 6 / 16 | |
| 6.1 | Drive Motor Rating | kW | 2.2 | |
| 6.4 | Battery Voltage/Capacity | V/Ah | 24 / 360 | |
