Heavy Duty Hydraulic Scissor Lift Table 1000kg 2000kg Cargo Handling

Customization:	Available
After-sales Service:	24-Hour Online Service
Warranty:	One Year

Product Overview

Model NO.

HW1001, HW2001, HW4001

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Scissor Lift

Driven Type

AC (380V/50Hz)

Capacity

1000kg, 2000kg, 4000kg

Certification

CE, ISO 9001

Table Size

820*1300mm (Customizable)

Lift Time

20-25s

Package Size

135.00cm * 85.00cm * 35.00cm

Gross Weight

180.000kg

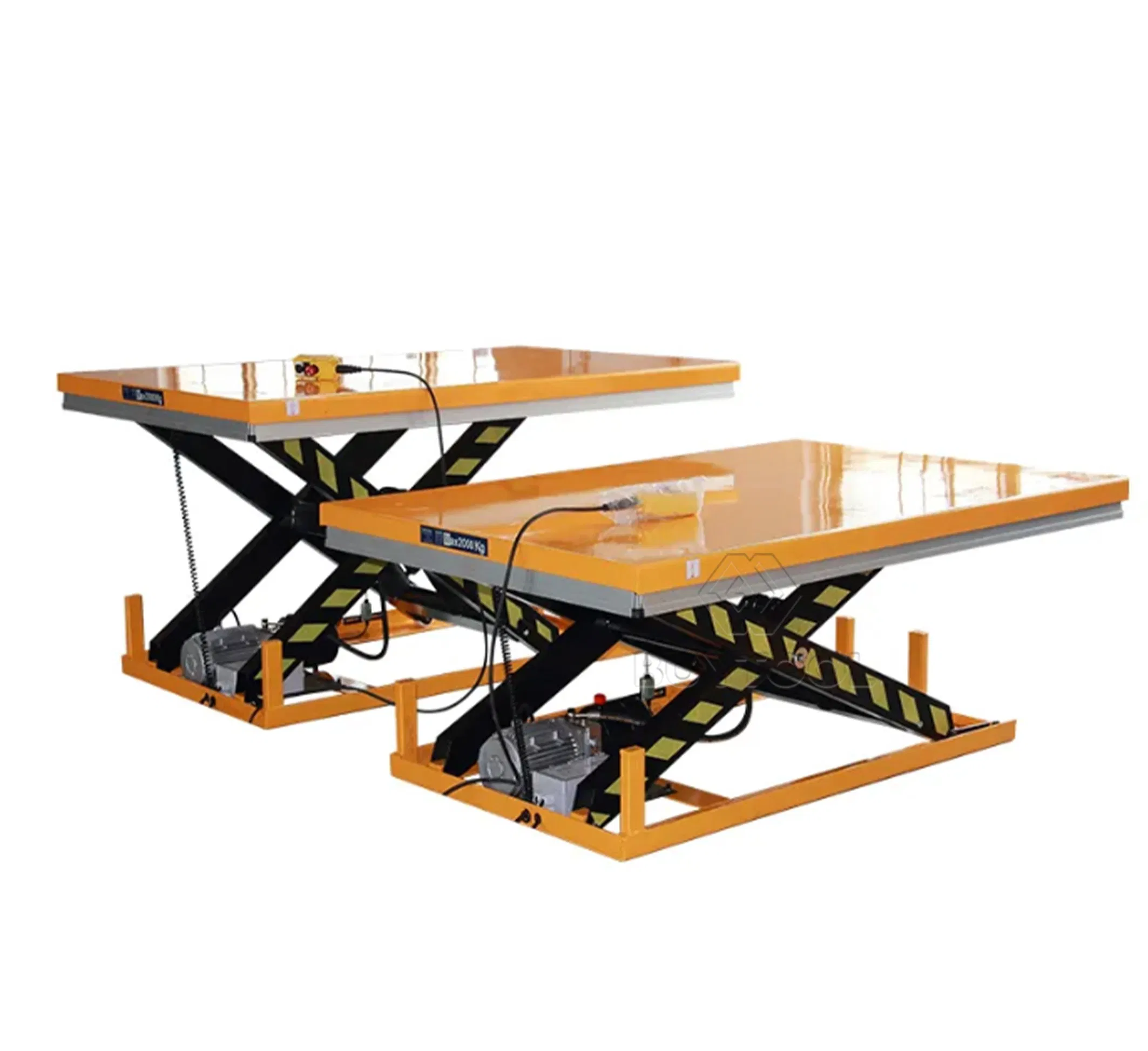

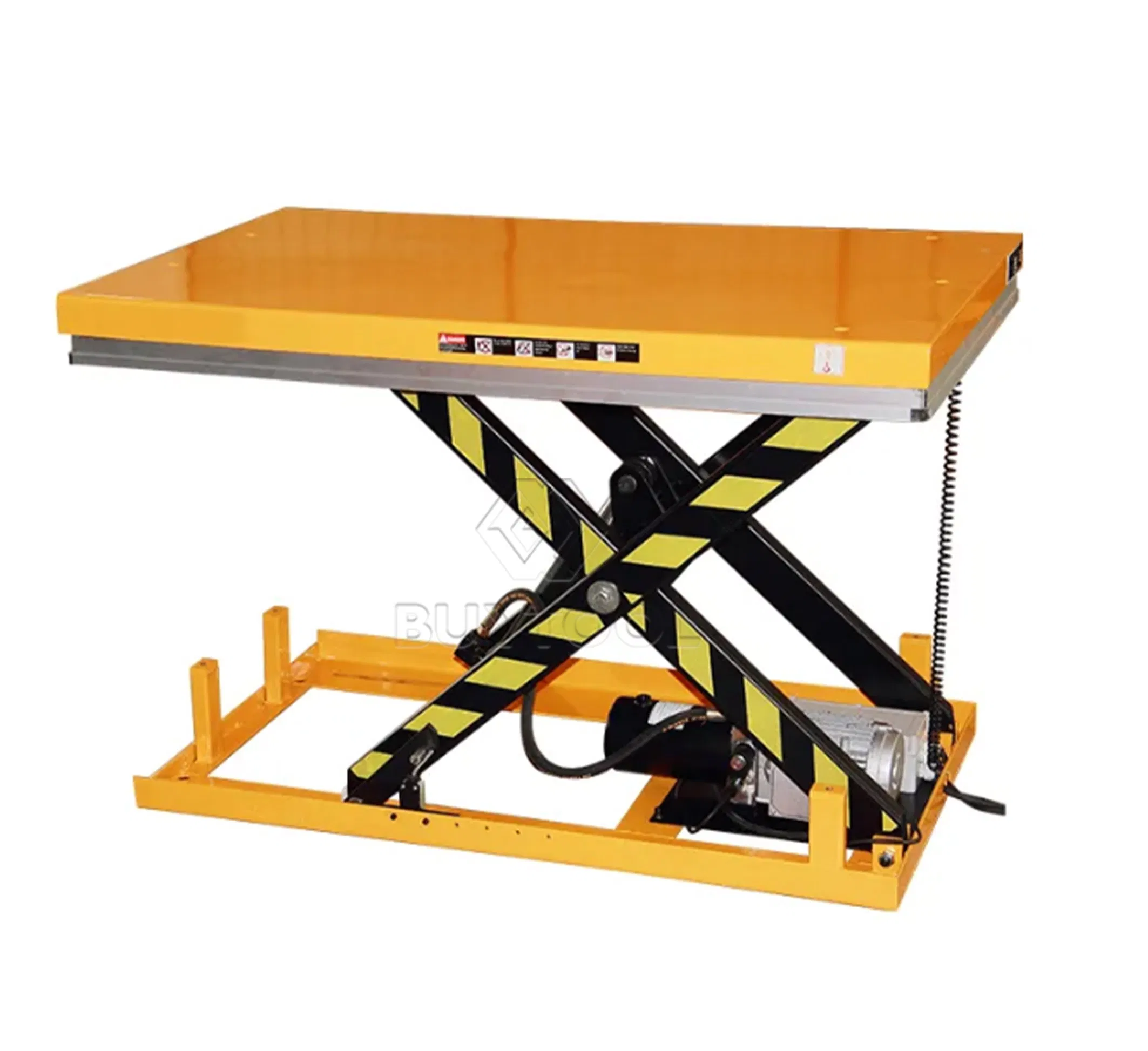

Heavy Duty Hydraulic Scissor Lift Table

Our HW series lift tables are designed for heavy-duty applications, meeting stringent EN norms and ANSI/ASME safety standards. These versatile units are suitable for both above-floor and in-floor pit installations, providing reliable lifting solutions for various industrial environments.

Standard Safety Features

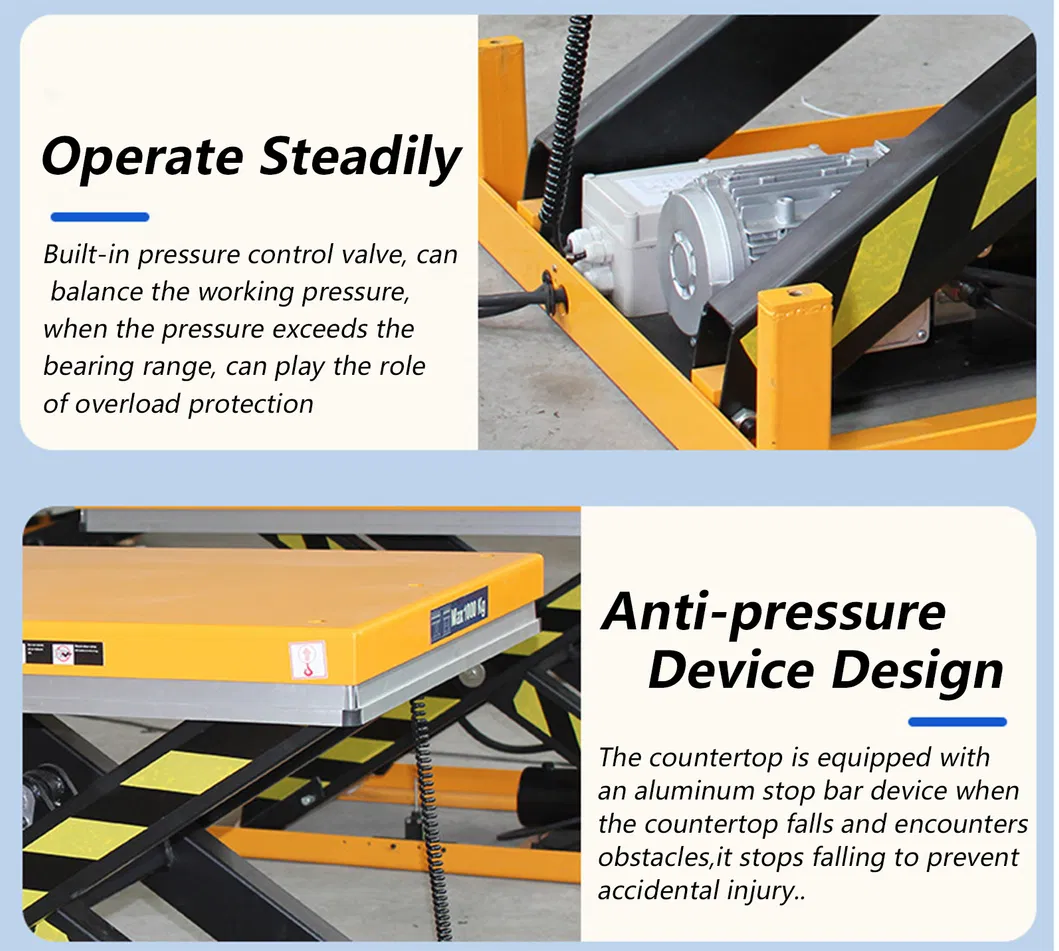

Aluminum safety bar to prevent descent on contact with obstructions.
Low-tension (24V) control box with up-down buttons.
Internal power pack with relief valve against overloading.
Compensated flow valve for controlled lowering speed.

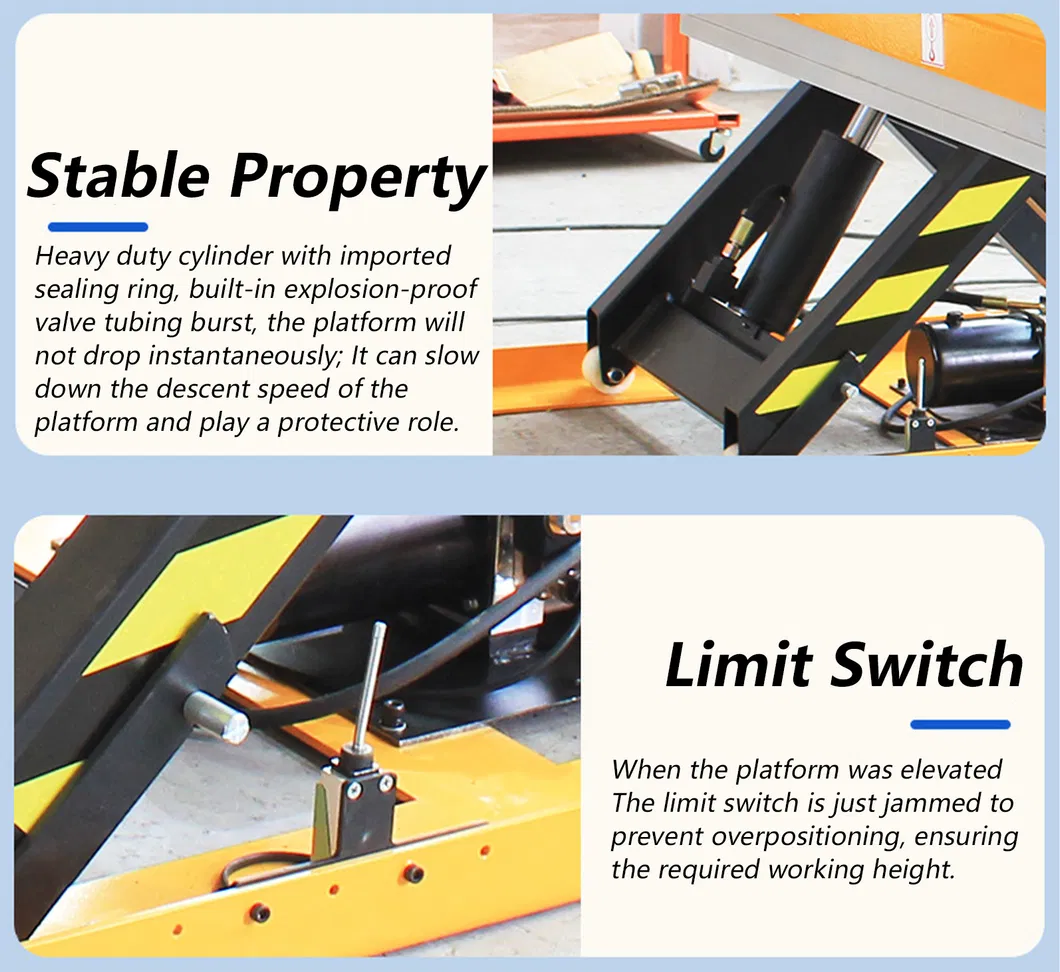

Heavy duty cylinders with drainage system and check valve.
Safety clearance between scissors to prevent trapping.

Other Standard Features

Self-lubricating bushings on all pivot points.
Removable lifting eye for easy handling and installation.
Customizable platform sizes and colors.
High-quality AC power pack (380V/50Hz).

Technical Parameters

Model	Capacity (kg)	Lowered H (mm)	Raised H (mm)	Platform Size (mm)	Lift Time (s)	Power Pack	Weight (kg)
HW1001	1000	205	990	820×1300	20-25	1.1kw	160
HW1003	1000	240	1300	850×1700	30-35	1.1kw	200
HW2001	2000	230	1000	850×1300	20-25	1.5kw	235
HW2004	2000	250	1300	1000×1700	25-35	1.5kw	300
HW4001	4000	240	1050	1200×1700	30-40	2.2kw	375
HW4008	4000	350	1300	2200×1800	35-45	2.2kw	655

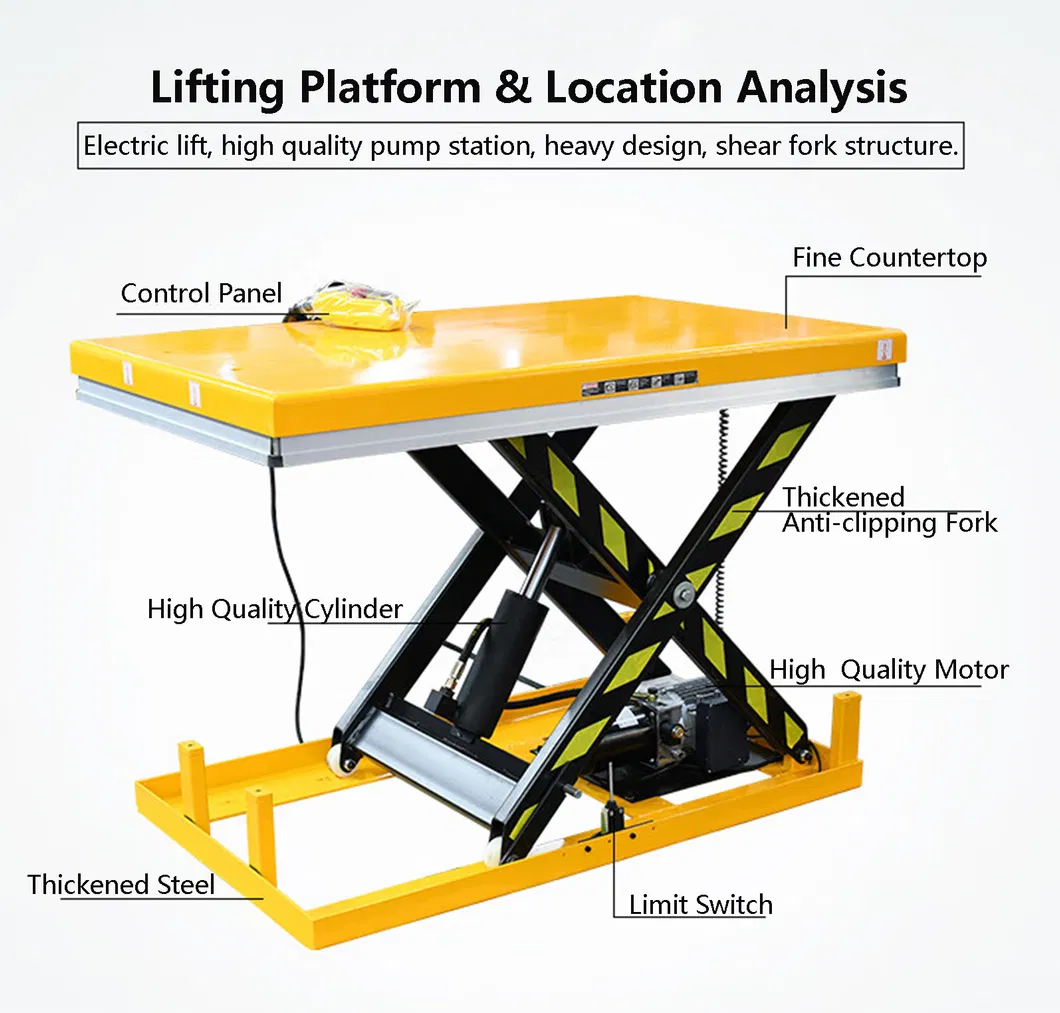

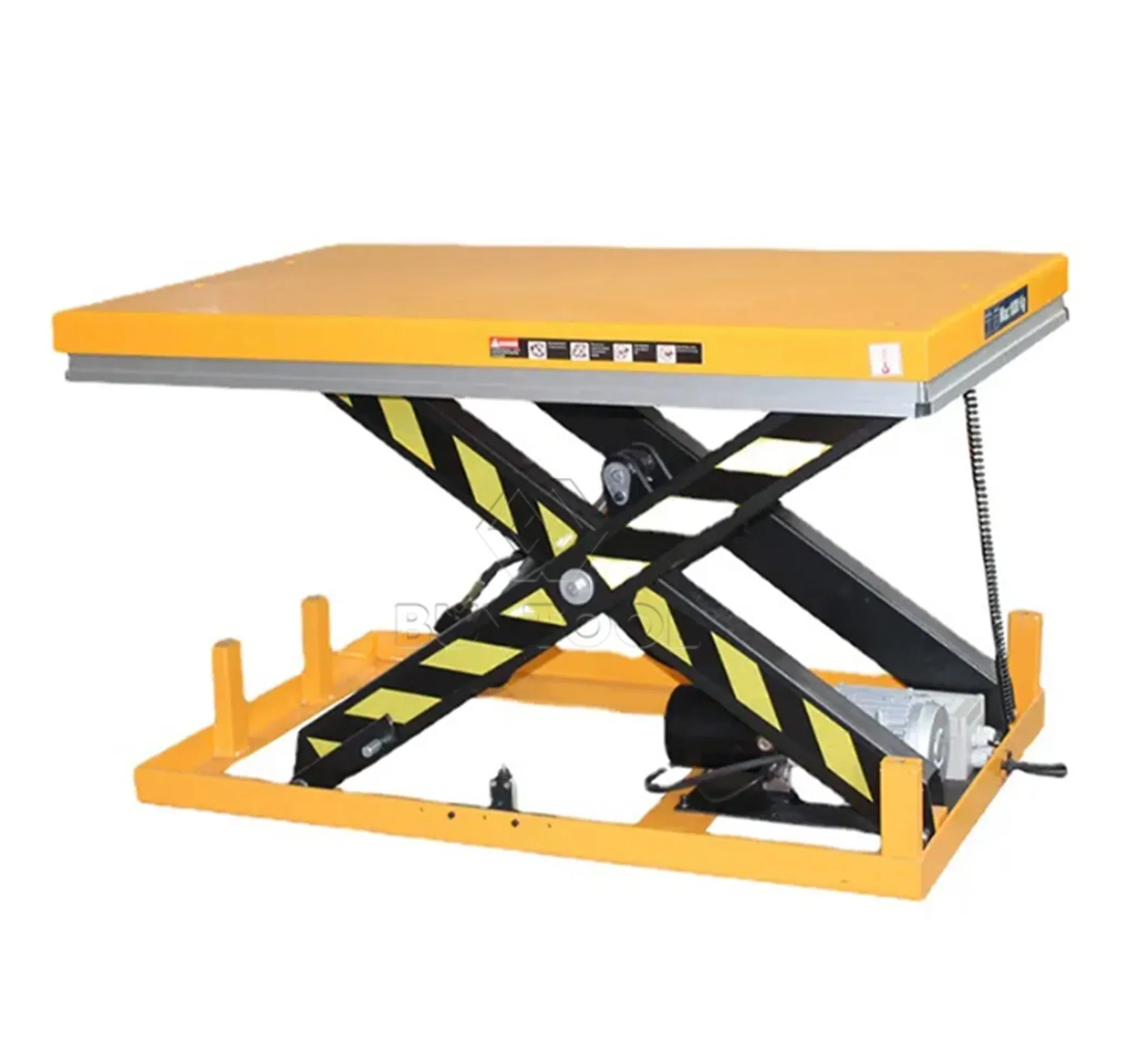

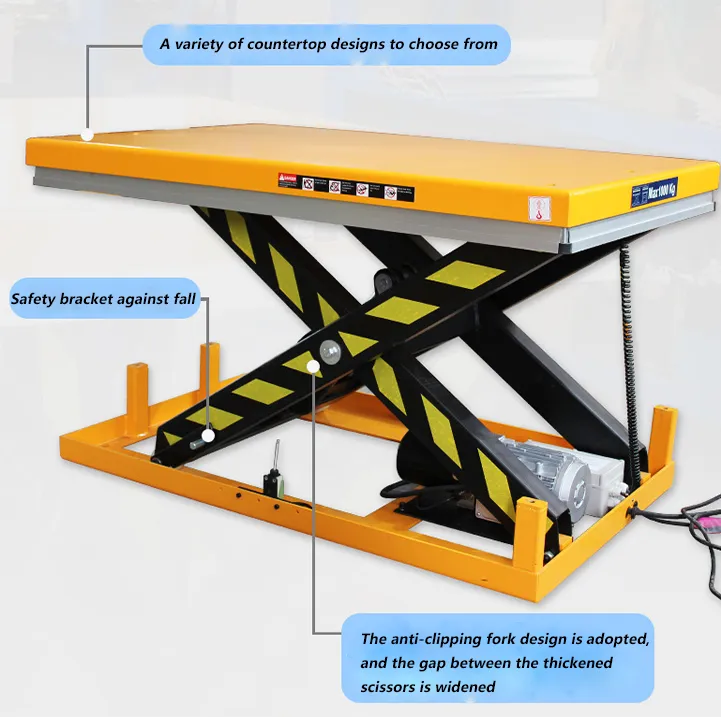

Detailed Photos

Customization Support

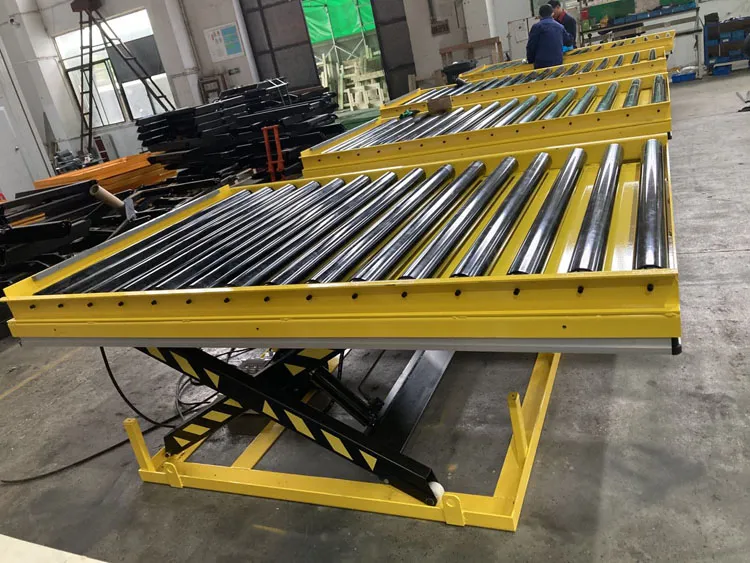

Lift Tables With Rollers

Mobile convenience: The roller design allows the platform to move easily between positions, improving transportation efficiency and operational flexibility in warehouses or factories.

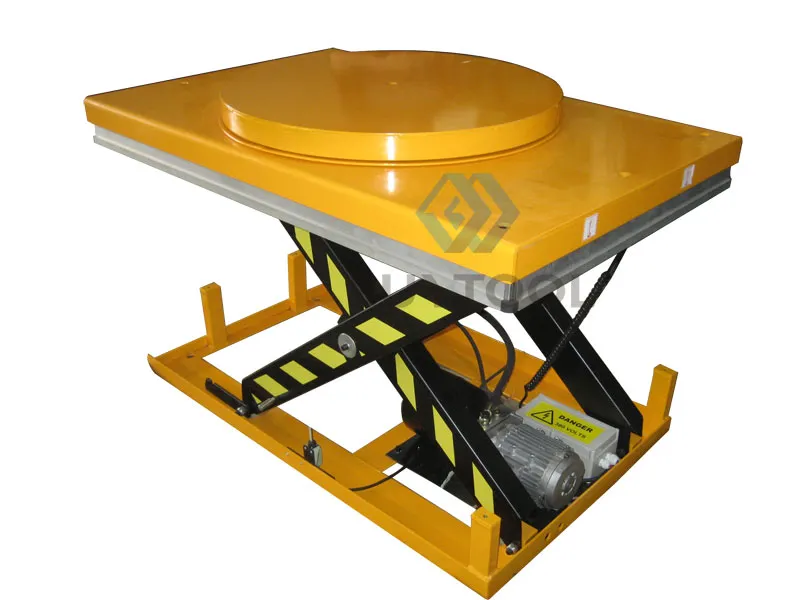

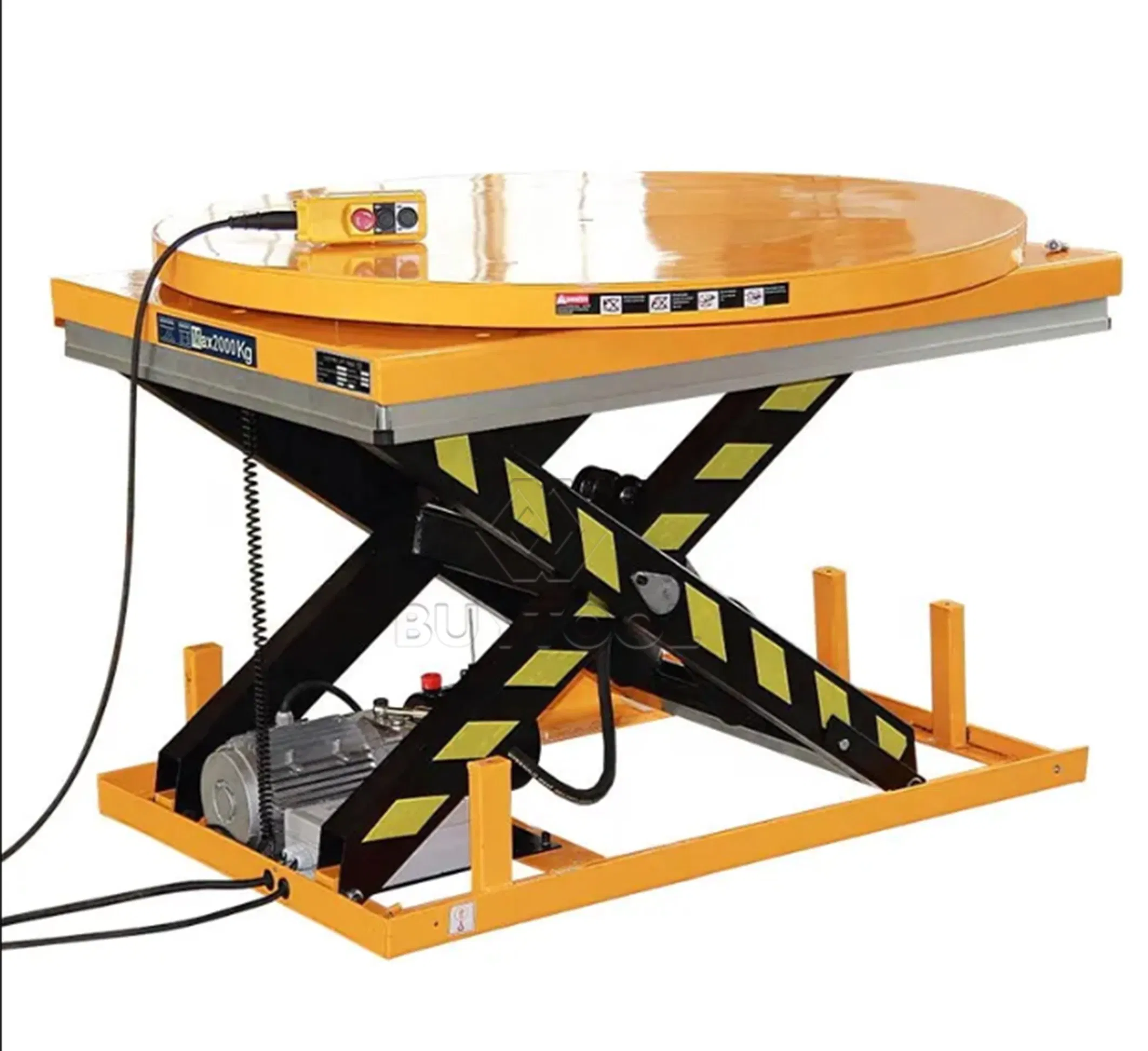

Turnable Top Platform

Increased flexibility: Allows operators to work in multiple directions without moving the entire lift. Ideal for space-limited environments requiring multiple angles.

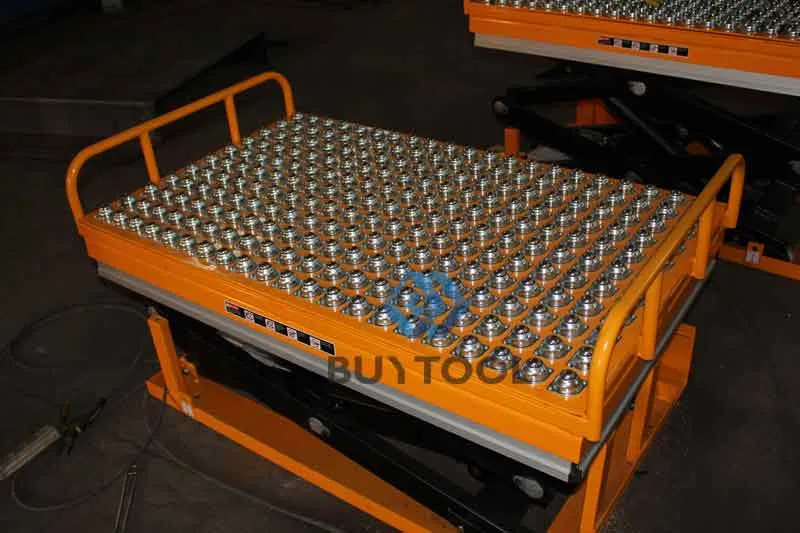

Ball Transfer Table

Reduce friction: Spherical alloy steel balls allow goods to move smoothly in any direction, saving energy and reducing labor intensity during material transfer.

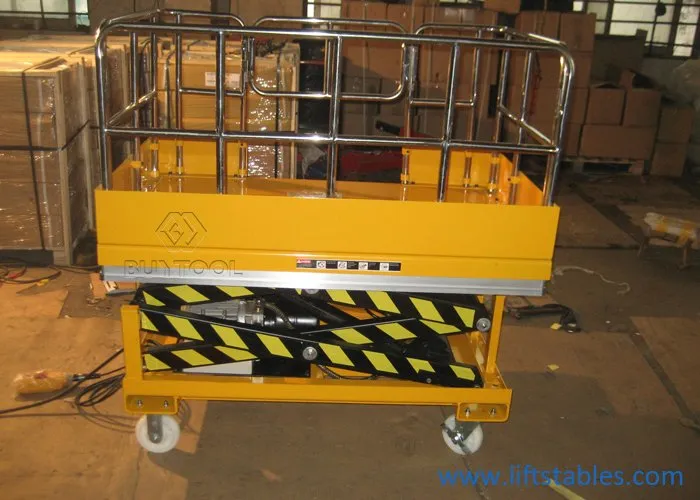

Safety Guardrails

Fall Protection: High-strength guardrails ensure personal safety for workers and prevent accidental falls during high-altitude operations.

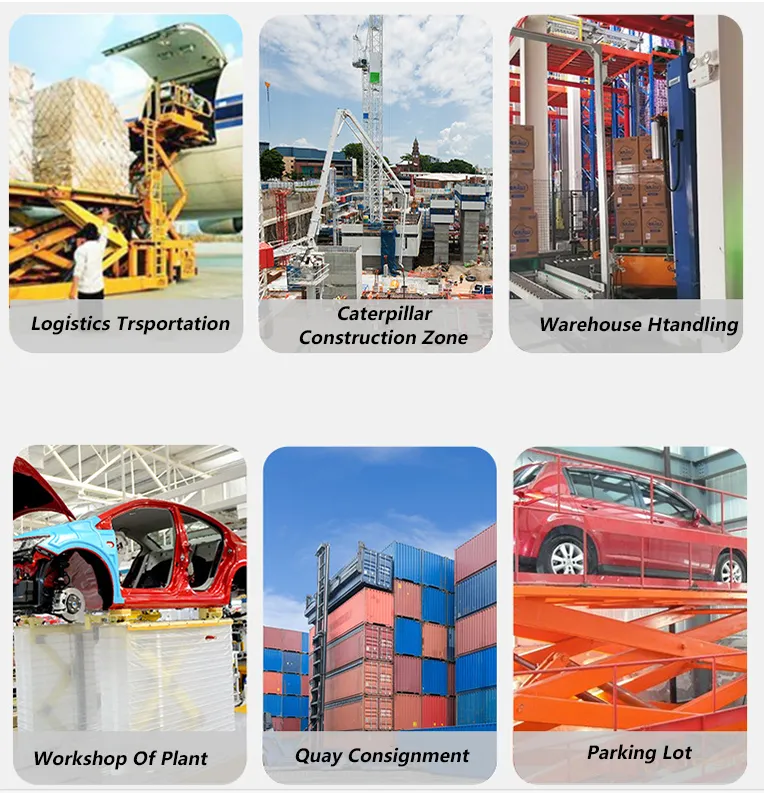

Range of Application

Frequently Asked Questions

What quality standards do your lift tables meet?

Our lift tables are CE approved and undergo a 5-step inspection process, including raw material checks (ISO9001), production monitoring, and 100% load limit testing before shipment.

How long is the warranty period?

All of our hydraulic lift tables carry a comprehensive one-year quality guarantee.

What is the typical lead time for an order?

Normally, the lead time is 30 days. For single-item container orders, it can be as fast as 20 days, while mixed container orders may take up to 45 days.

Can the platform size be customized?

Yes, we accept special requirements for platform dimensions, lifting heights, and additional features like rollers or turnable tops.

What power supply is required for the HW series?

The standard power supply is 380V/50Hz AC, but other specifications can be discussed based on your local power grid requirements.

Are the lift tables suitable for pit installation?

Absolutely. These models are designed for both above-floor use and in-floor pit applications to provide a flush working surface.
