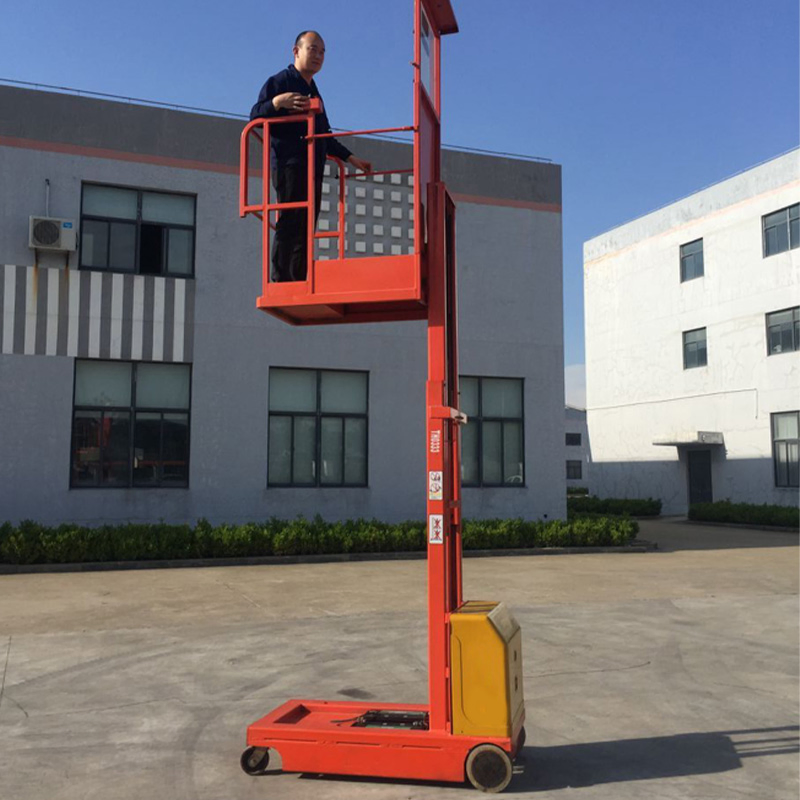

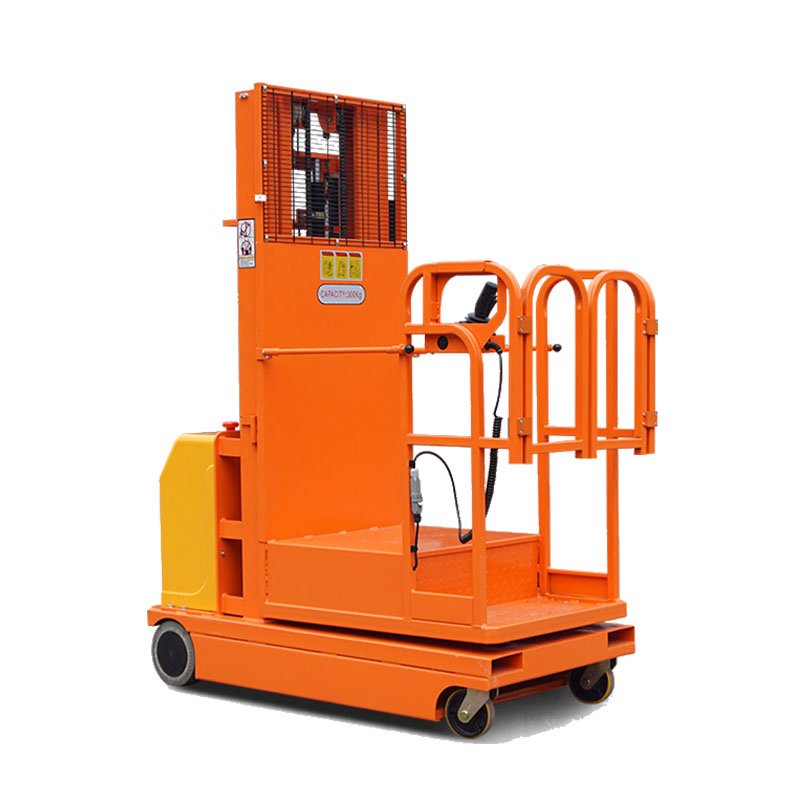

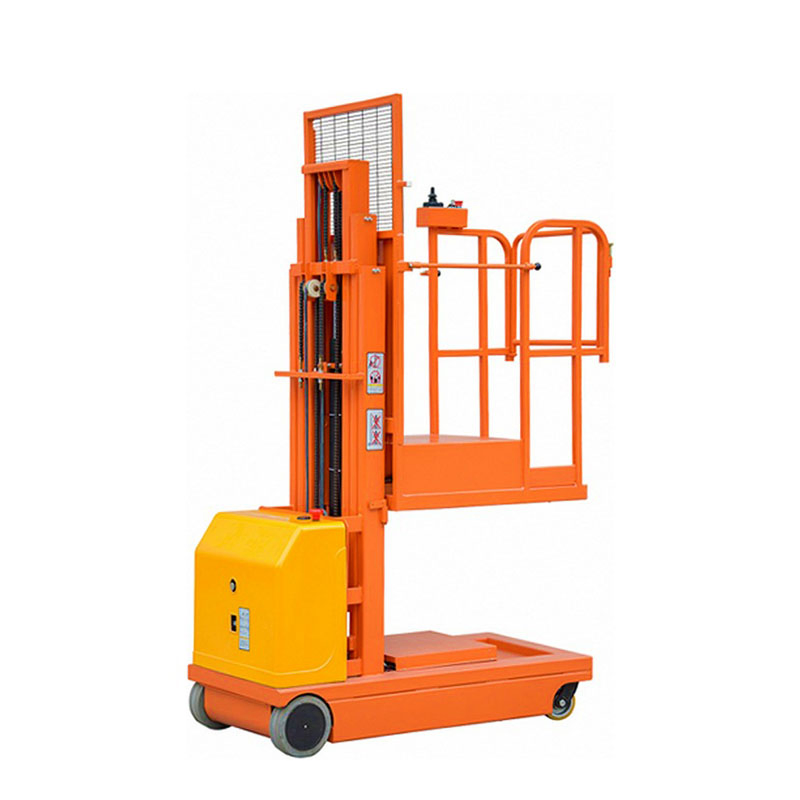

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

1 / 5

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Heavy-Duty 300kgs Truck Mounted Order Picker From China

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.OP0.2-3

Transport PackageWooden Box

SpecificationCustomized

OriginChina

Technical Data Sheet

Model	Unit	EOP3-2.7	EOP3-3.3	EOP3-4.0	EOP3-4.5
Max Platform height (H)	mm	2700	3300	4000	4500
Max Machine height (H1)	mm	4120	5000	5400	6000
Load capacity	kg	300	300	300	300
Platform size	mm	600x640	600x640	600x640	600x640
Max driving speed (lower)	km/h	4	4	4	4
Max driving speed (raised)	km/h	1.6	1.6	1.6	1.6
Min turning radius	mm	1600	1600	1600	1600
Max climbing ability	%	15~20	15~20	15~20	15~20
Drive wheel size	mm	Φ 230x80	Φ 230x80	Φ 230x80	Φ 230x80
Motor	v/kw	2x24/0.4	2x24/0.4	2x24/0.4	2x24/0.4
Lift motor	v/kw	24/1.6	24/1.6	24/1.6	24/1.6
Battery (Maintenance Free)	v/Ah	2x12/150	2x12/150	2x12/150	2x12/150
Charger	v/A	24/15	24/15	24/15	24/15
Overall size (AxBxC)	mm	1530x700x1830	1530x700x2130	1620x700x1840	1620x700x2000
Net weight	kg	430	450	660	680

Product Presentation

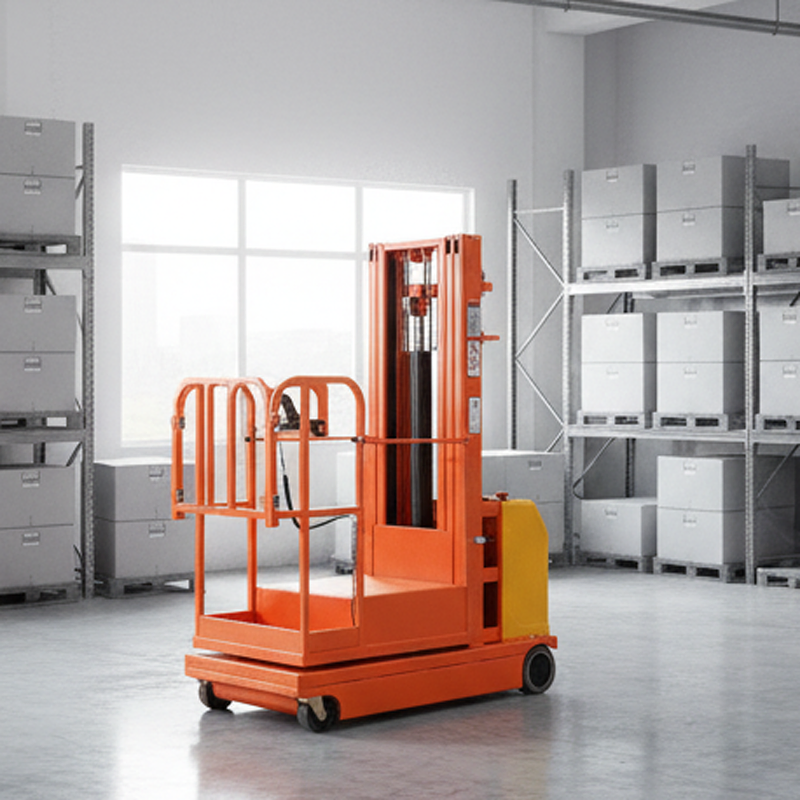

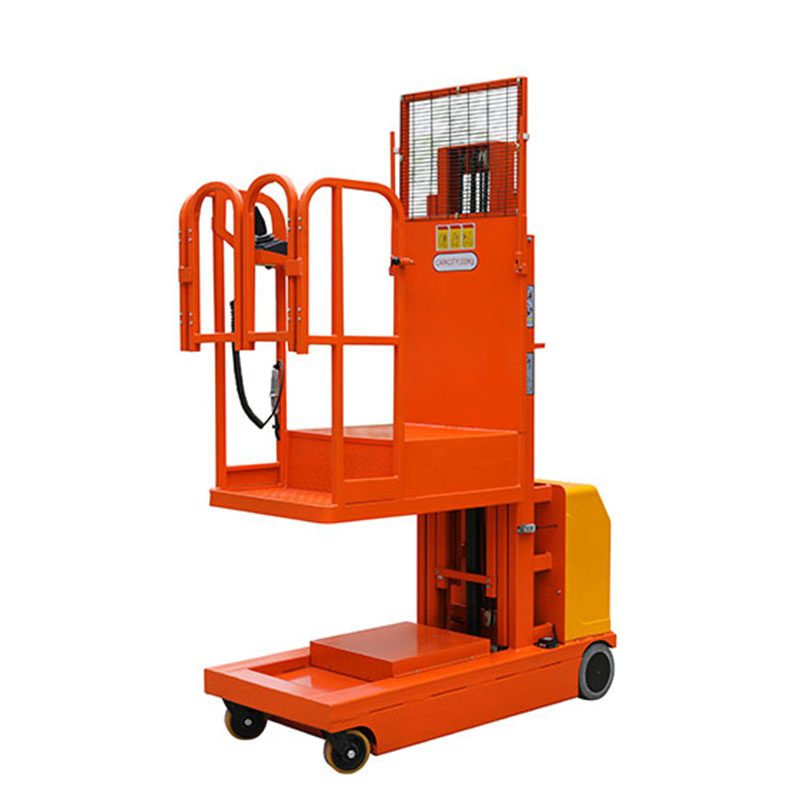

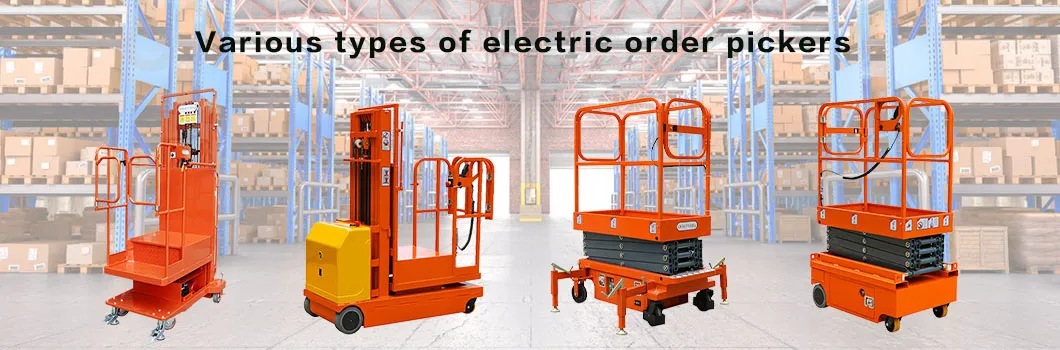

Order Picker Overview

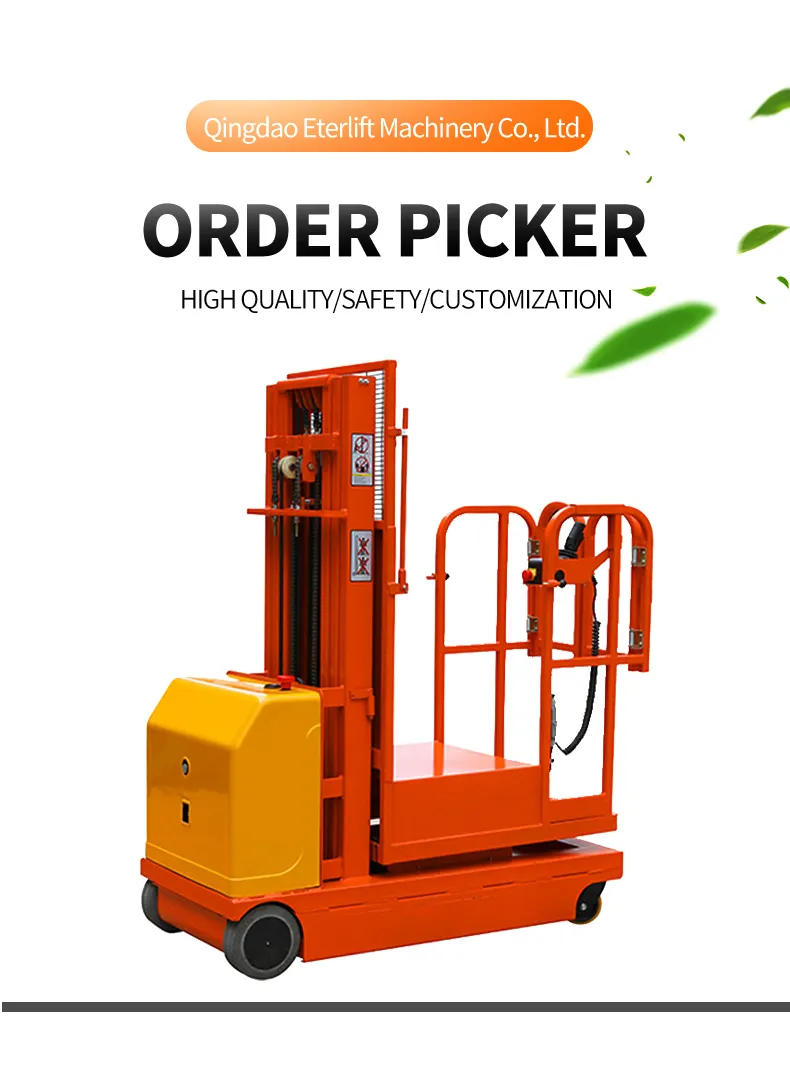

Order Picker Detail 1

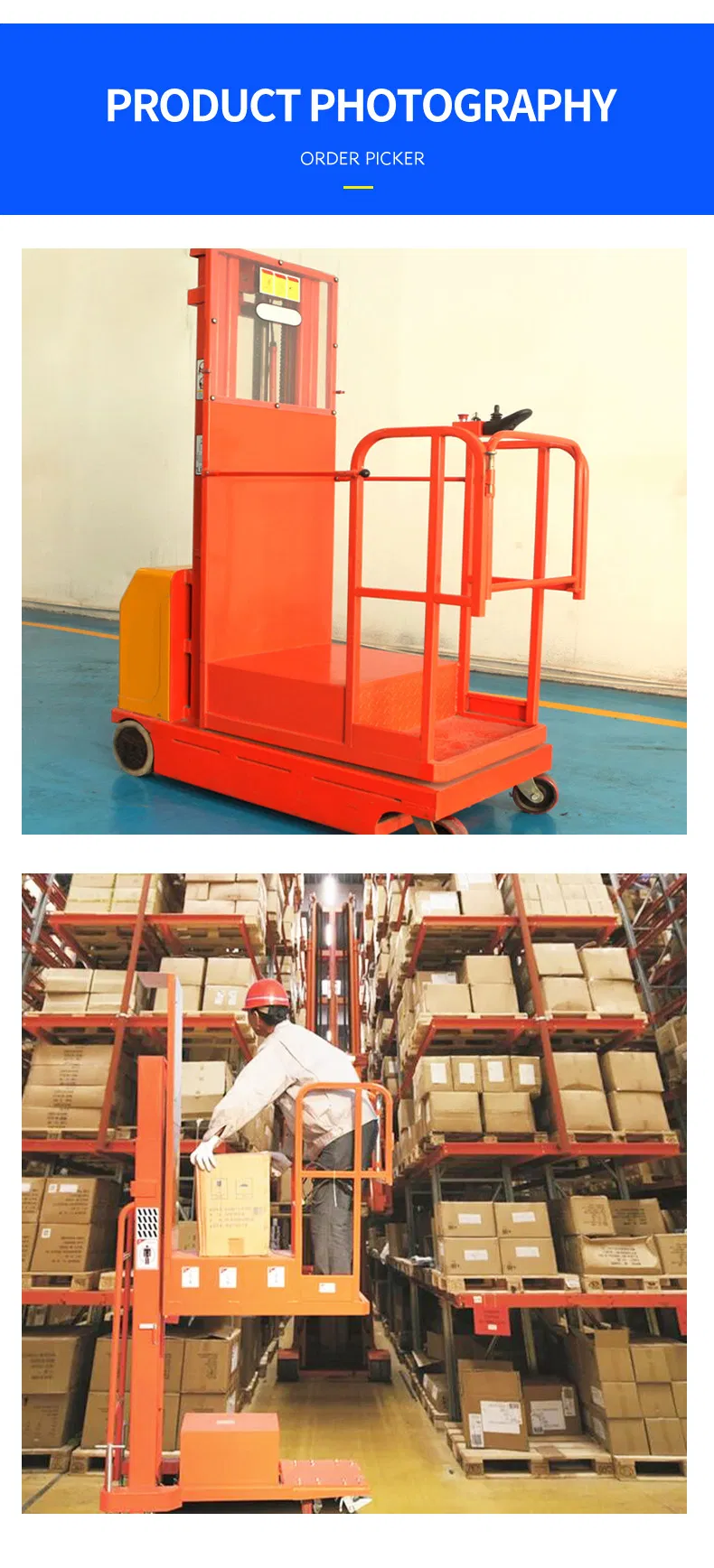

Order Picker Detail 2

Order Picker Detail 3

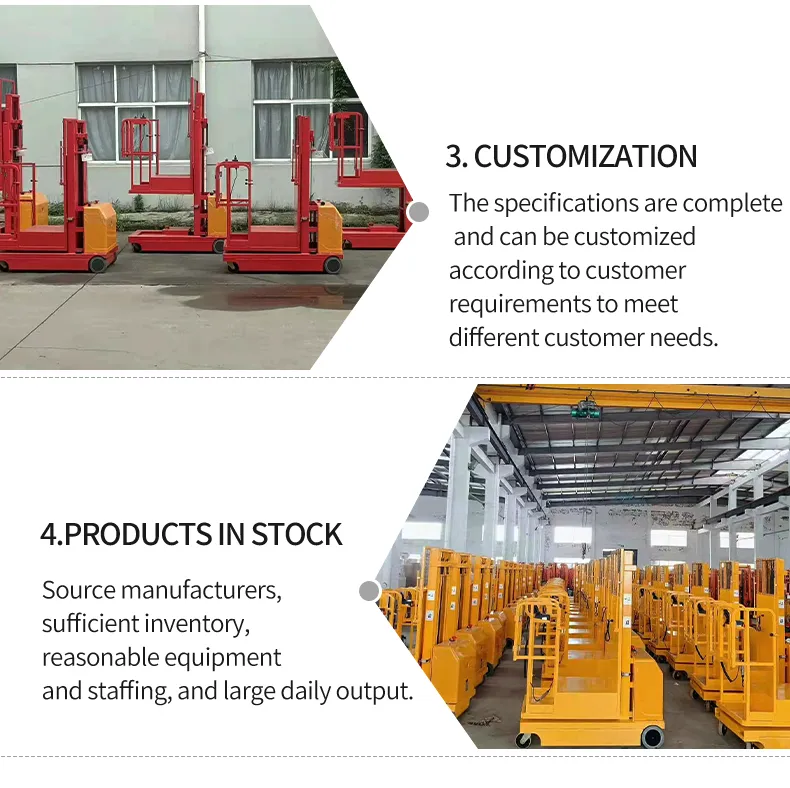

Order Picker Detail 4

Order Picker Detail 5

Order Picker Detail 6

Order Picker Detail 7

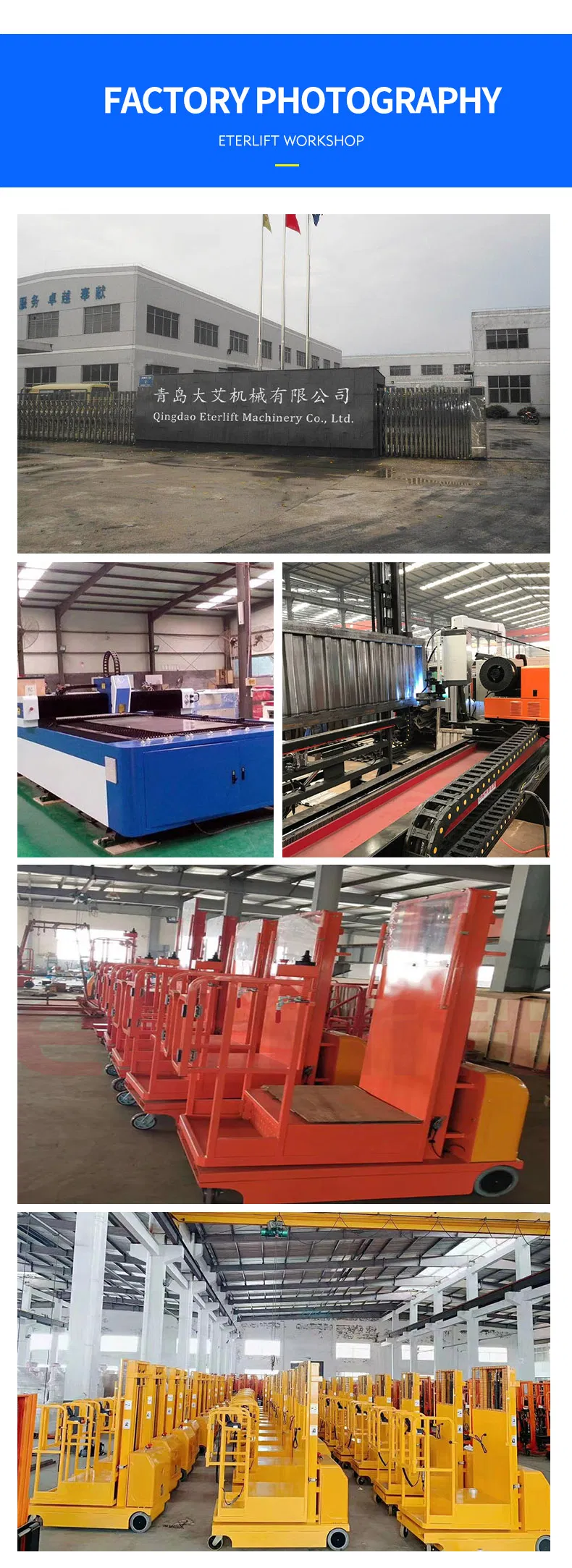

Order Picker Detail 8

Order Picker Detail 9

Order Picker Detail 10

Frequently Asked Questions

What is the maximum load capacity of these order pickers?

All models in this series feature a heavy-duty load capacity of 300kg, suitable for various warehouse picking tasks.

What platform heights are available?

We offer four standard models with maximum platform heights of 2700mm, 3300mm, 4000mm, and 4500mm.

Does the machine require high maintenance for the battery?

No, the machine is equipped with 2x12V/150Ah maintenance-free batteries, ensuring reliable power with minimal upkeep.

Can the specifications be modified for specific needs?

Yes, the specifications for these order pickers can be customized to meet your specific operational requirements.

What is the driving speed of the unit?

The unit travels at a maximum speed of 4km/h when the platform is lowered and 1.6km/h when the platform is raised for safety.

Is the order picker suitable for narrow aisles?

With a minimum turning radius of only 1600mm and a compact width of 700mm, it is highly maneuverable in tight warehouse spaces.
