High Level Order Picker Truck

Customization:	Available
After-sales Service:	Lifetime
Warranty:	15months

Send Inquiry

Product Description

Basic Information

Model NO.:MHA13

Type:Order Picker

Power:AC Motor

Load Capacity:1-1.5 tons

Fuel:Electric

Lift height:6095mm

Battery:24V 400ah / 48V 450Ah

Condition:New

Product Description

Electric Standing High Level Order Picker MHA

Compact Design: Medium duty operation with load capacity of 1000-1600kg. Stable and economic, designed for confined spaces like retail stores and small warehouses.
Ergonomic Handler: Designed for ease of operation from either side, reducing operator fatigue.
Turtle Speed Function: Enables slow movement for precise stacking in narrow spaces (as narrow as 1150mm).
AC Driving Motor: Provides excellent acceleration, superior gradeability, and low heat. Maintenance-free with no carbon brushes.
Advanced Battery System: 7.9" American style battery cover; comes with a maintenance-free 400AH battery for demanding applications.
Safety Features: Includes battery indicator, key switch, emergency off button, and optional foldable armrests for additional comfort.

Detailed Photos

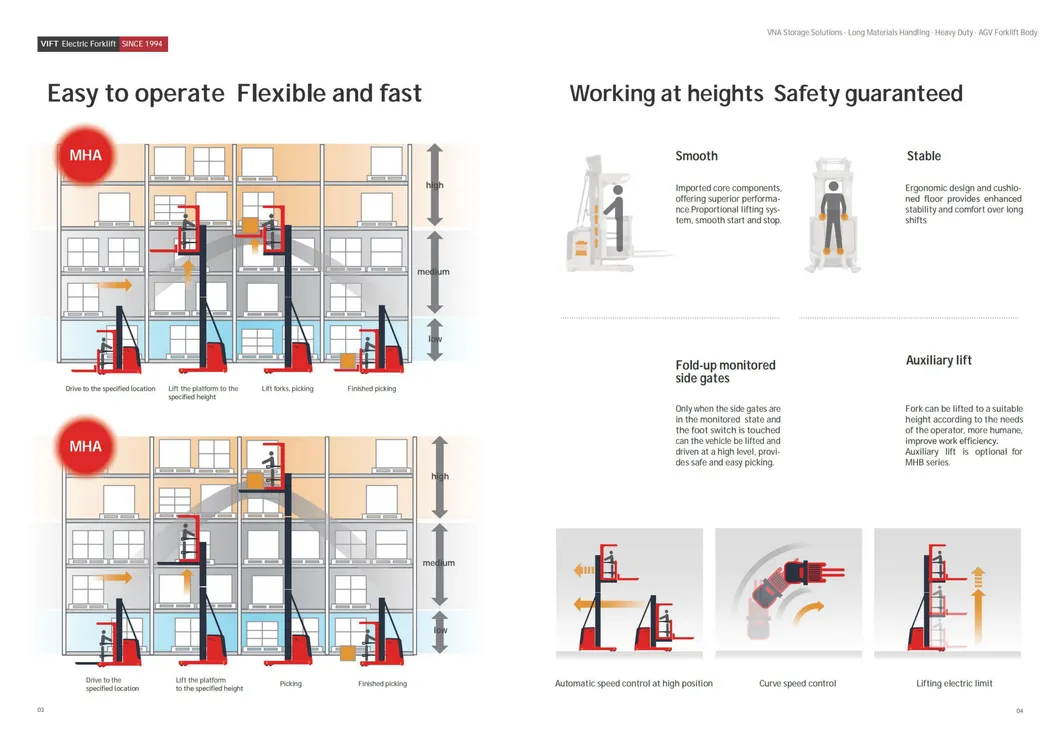

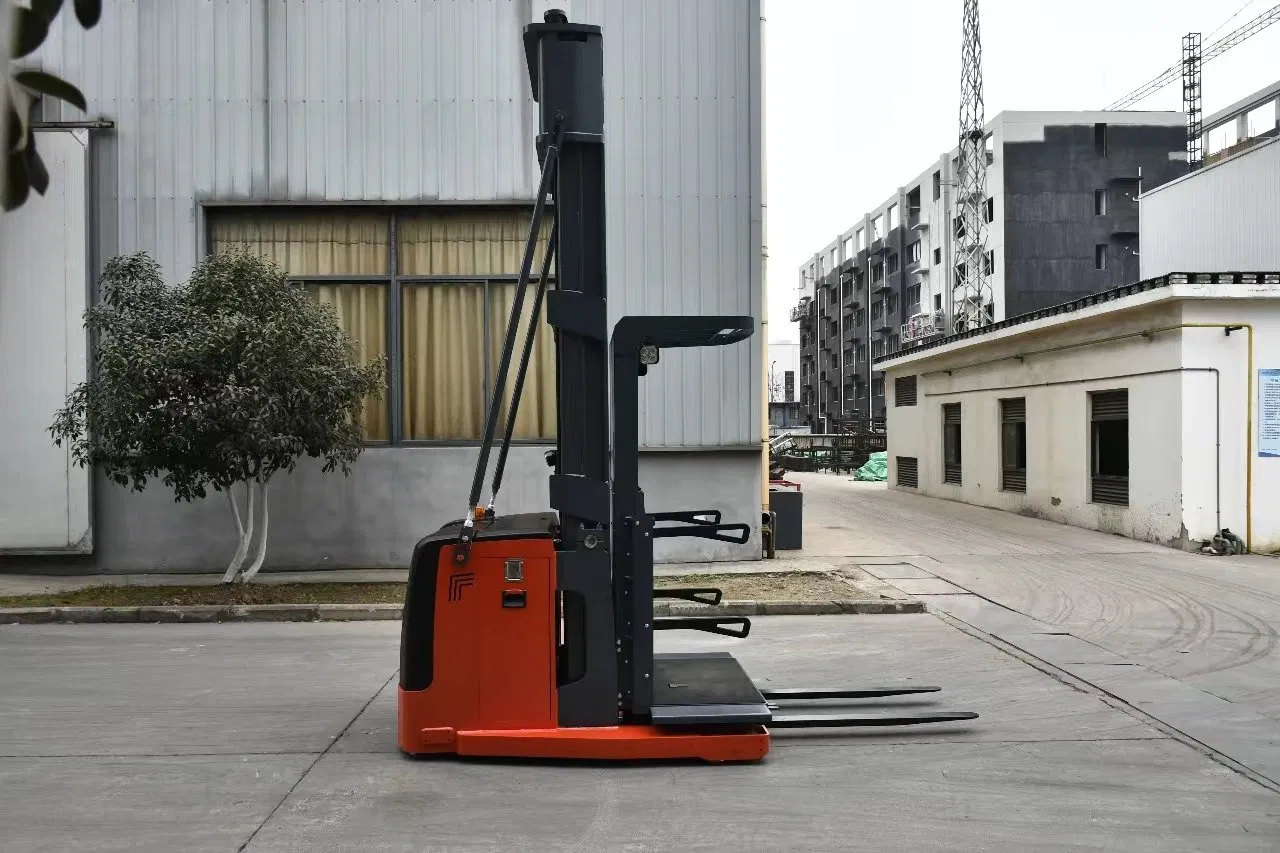

High Level Order Picker Truck Operation View

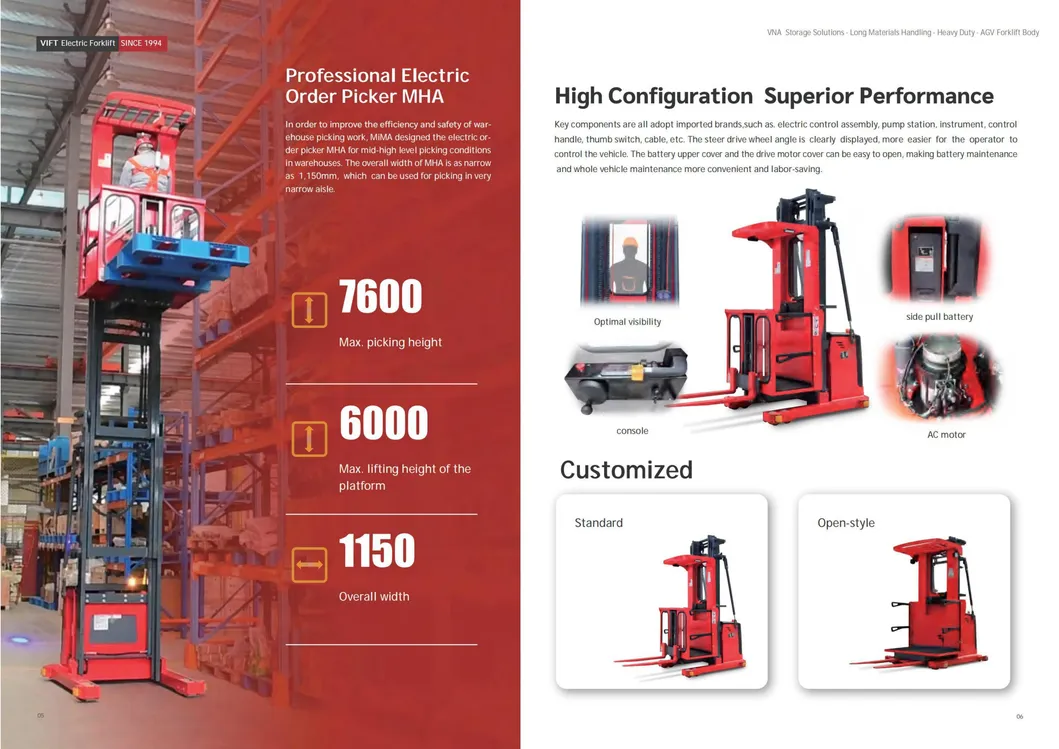

High Level Order Picker Truck Front View

Technical Specifications

Model Specification		Unit	MHA13-60	MHA13-95
1.3	Power Type	-	Battery	Battery
1.5	Rated Capacity	kg	1360	1360
1.6	Load Center	mm	600	600
Performance & Weight
2.1	Service Weight (incl. battery)	kg	4700	4800
4.4	Lift Height	mm	5780	9280
4.14.1	Picking Height	mm	7600	11100
5.1	Driving Speed (load/unload)	km/h	10/10	10/10
Drive & Battery
6.1	Driving Motor (S2-60min)	kw	6.5	6.5
6.4	Battery Voltage/Capacity	V/Ah	48/450	48/450
8.6	Steering System	-	Electric Power Steering	Electric Power Steering

Mast & Features

Standard Equipment		Optional Equipment
EPS	LCD display with hour meter	Auxiliary lifting	Lithium battery 48V300AH
Full AC Curtis system	Regenerative braking	Overload warning	Customized cargo platform
Chain anti-loose function	Toughened glass panel	Guide wheel / Magnetic guide	Working lamp & Fan

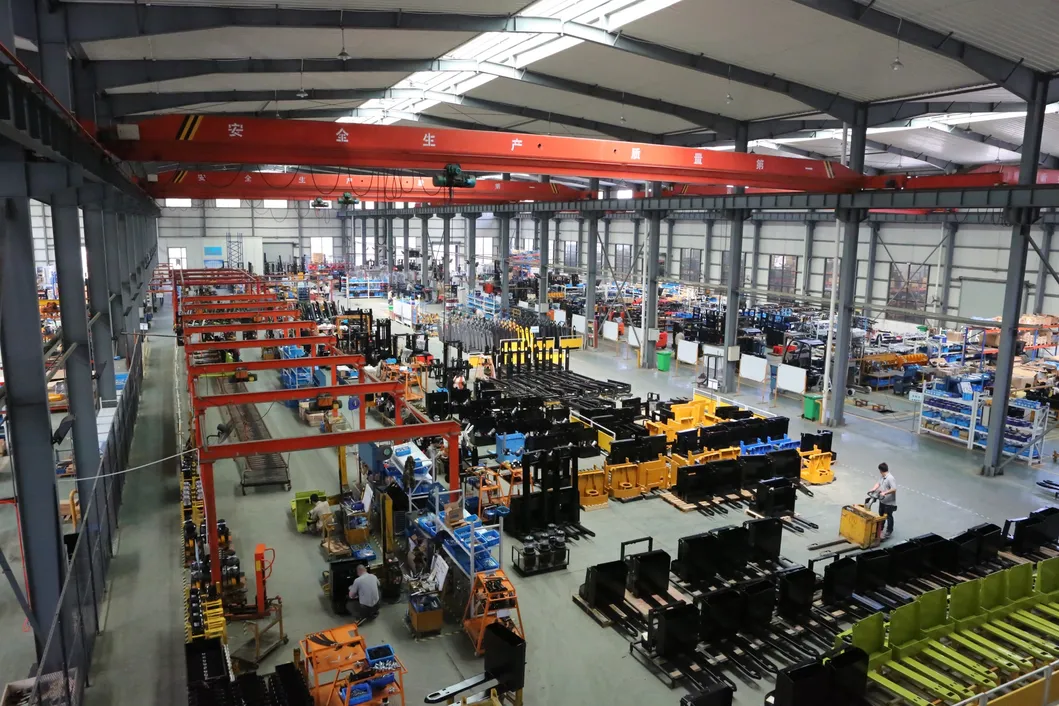

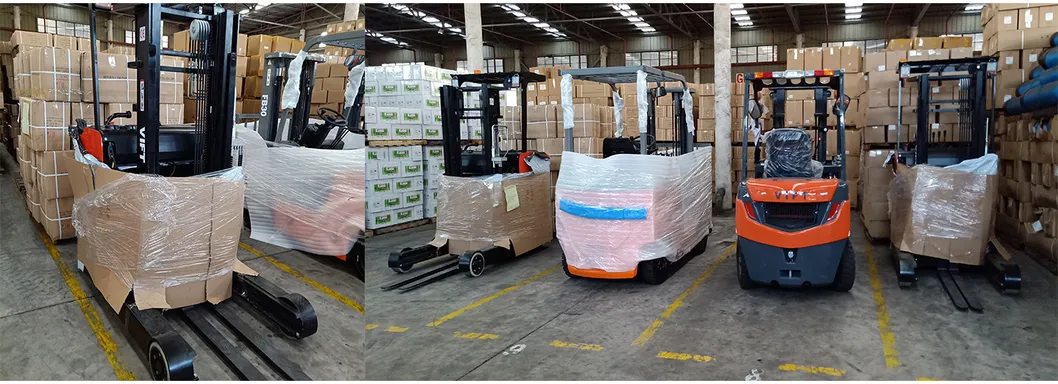

Factory and Delivery

Frequently Asked Questions

Q1: What is the standard warranty for the Electric Order Picker? The product comes with a warranty of 12 months or 1000 working hours for the whole machine, starting from the on-board time.

Q2: What is the typical delivery time for standard models? Usually, the production time is 15-20 days after receiving the advanced payment. We may have standard models in stock for immediate delivery.

Q3: Can the order picker be customized with specific colors or OEM branding? Yes, we provide fully customized products including specific RAL color codes and OEM/ODM manufacturing based on your requirements.

Q4: Is it suitable for high-level picking in narrow aisles? Absolutely. The MHA13 is designed for high-level picking with a lift height of up to 9280mm and features a turtle speed function for maneuvering in spaces as narrow as 1150mm.

Q5: What are the advantages of the AC driving motor used in this model? The AC motor offers excellent acceleration, better gradeability, lower heat generation, and is completely maintenance-free due to the absence of carbon brushes.

Q6: What battery options are available? The standard model uses a high-capacity lead-acid battery (48V/450Ah), while a 48V/300Ah Lithium battery is available as an optional upgrade for faster charging and longer life cycles.
