Progan Lift
1 / 5
| Model NO. | CL0.5-1 |
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism | Lift Chain |
| Carrying Capacity | Special Weight Level (300kg to 10t) |
| Lifting Height | From 1m to 10m |
| Platform Size | 4000*4000 (Customized) |
| Driven Type | AC / Hydraulic |
| Lifting Speed | 4-6m/Min |
| Feature | Explosion-Proof, Stationary |
| Certification | GS, CE, RoHS, ISO 9001 |
| Transport Package | Wooden Box |
| Origin | China |

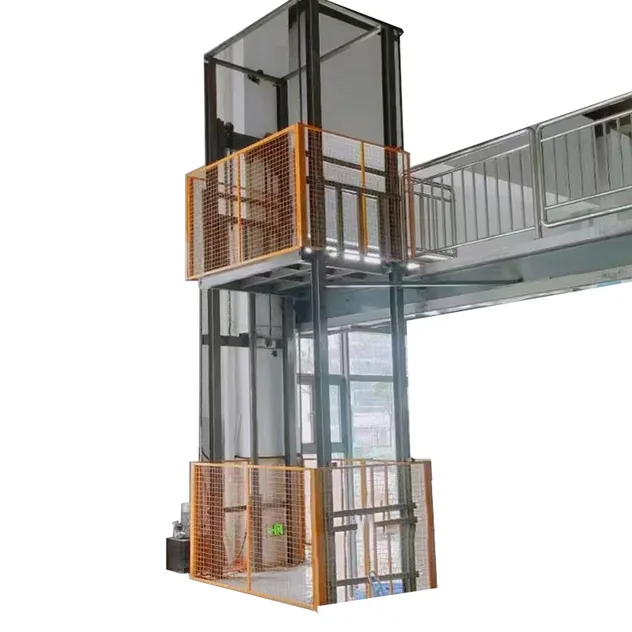

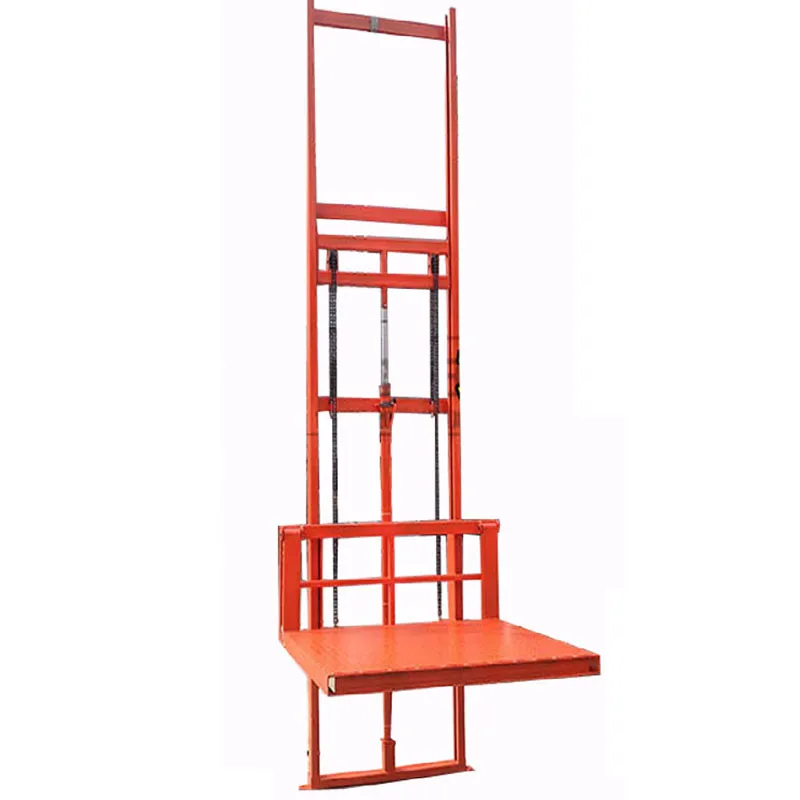

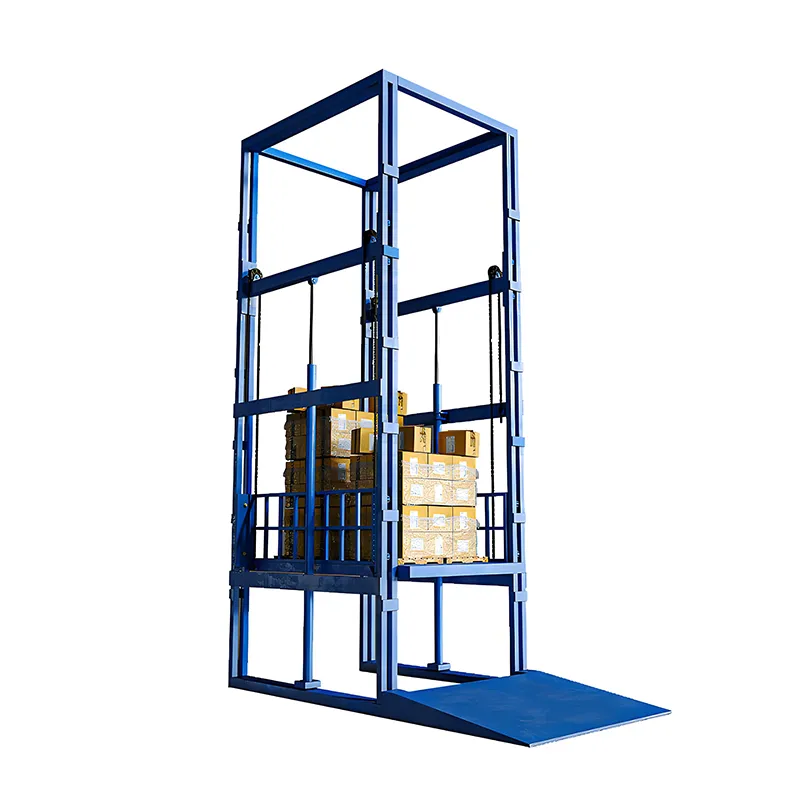

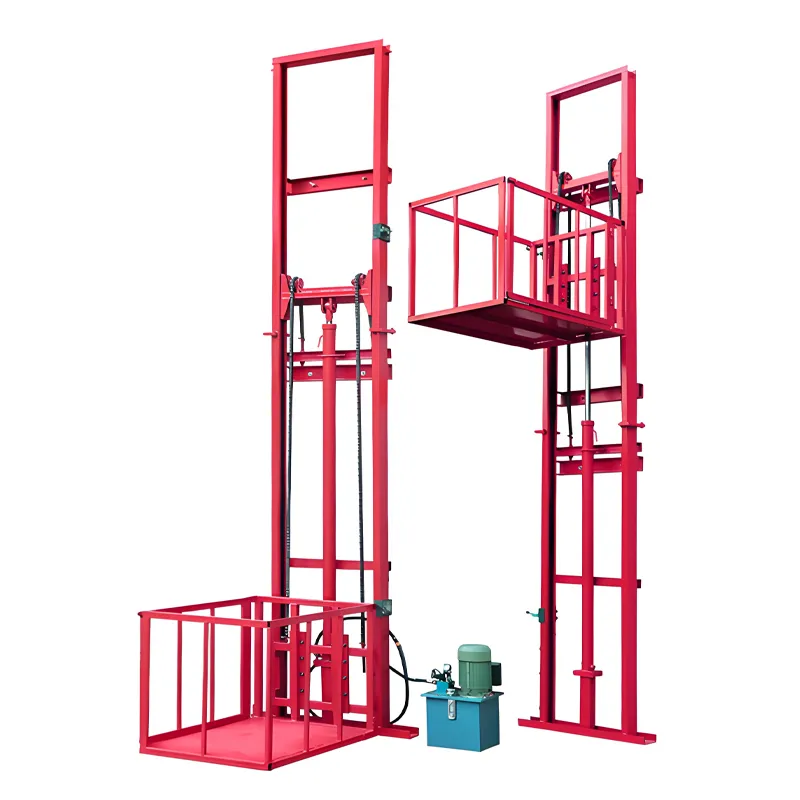

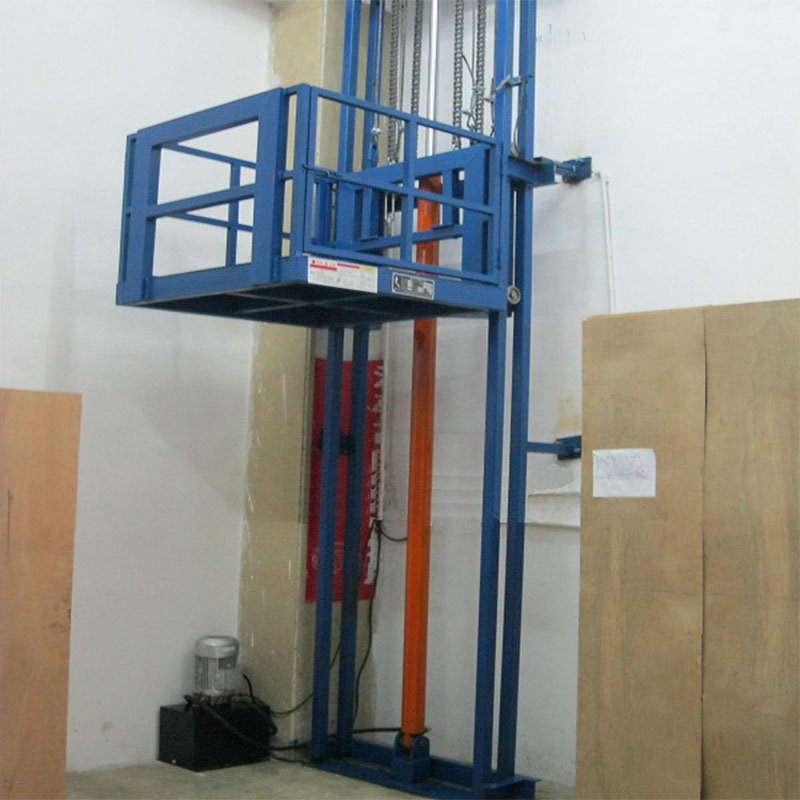

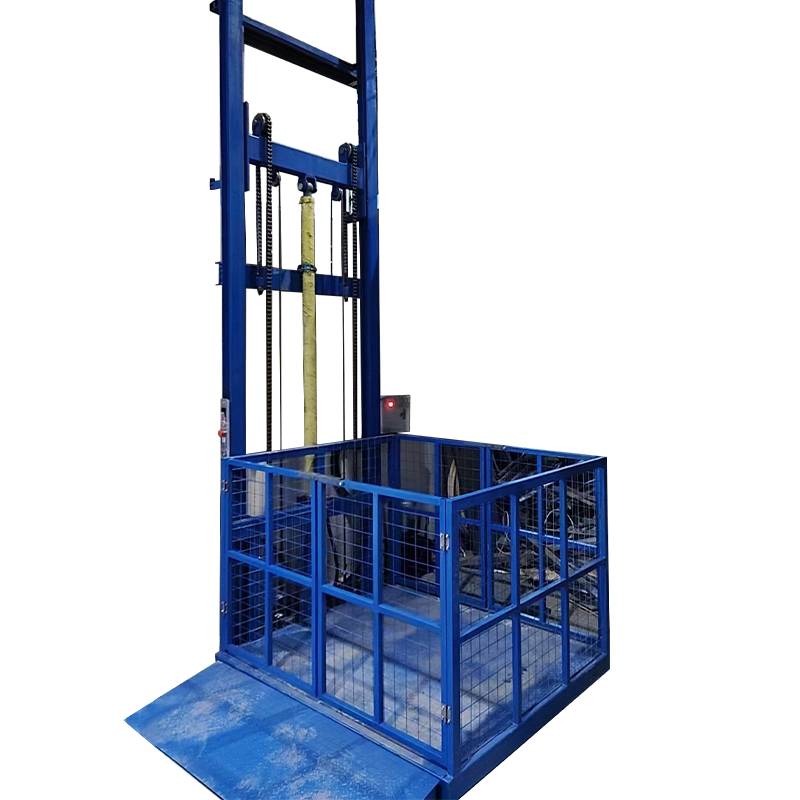

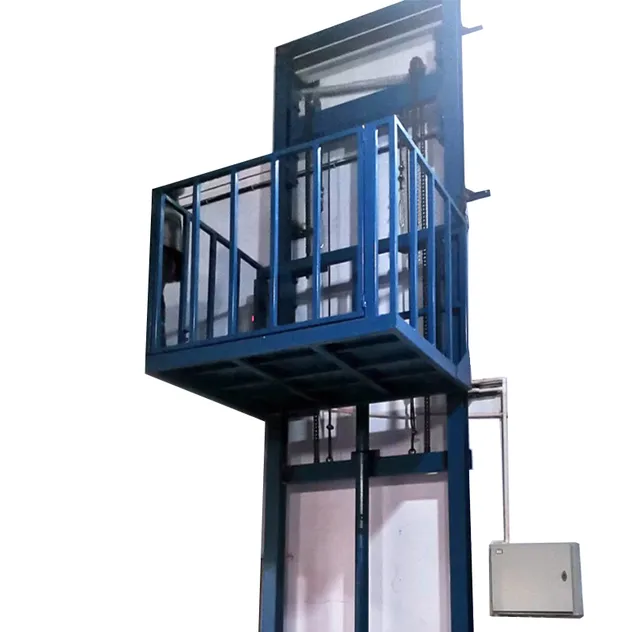

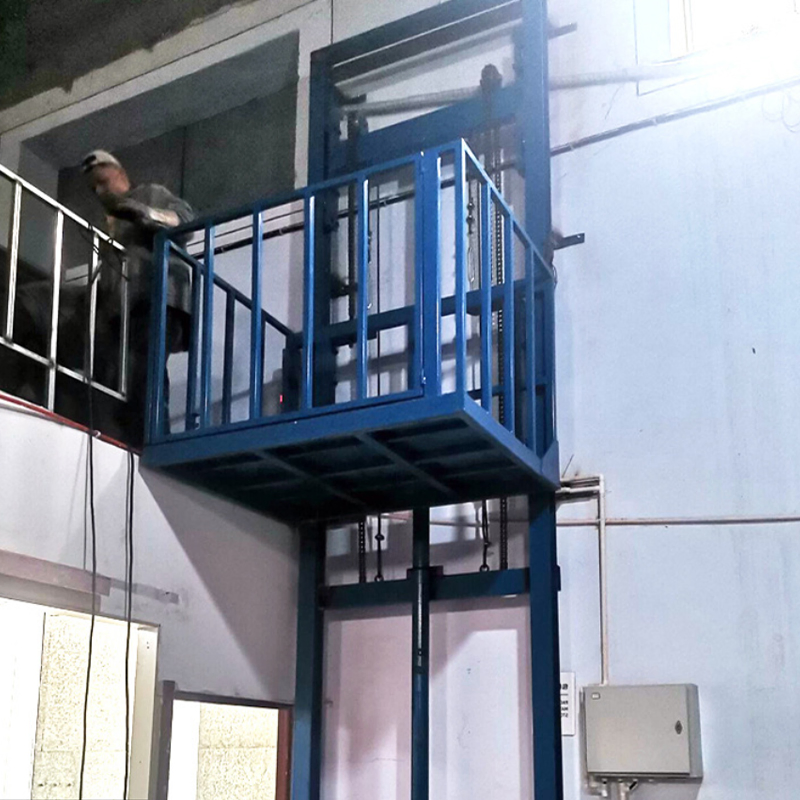

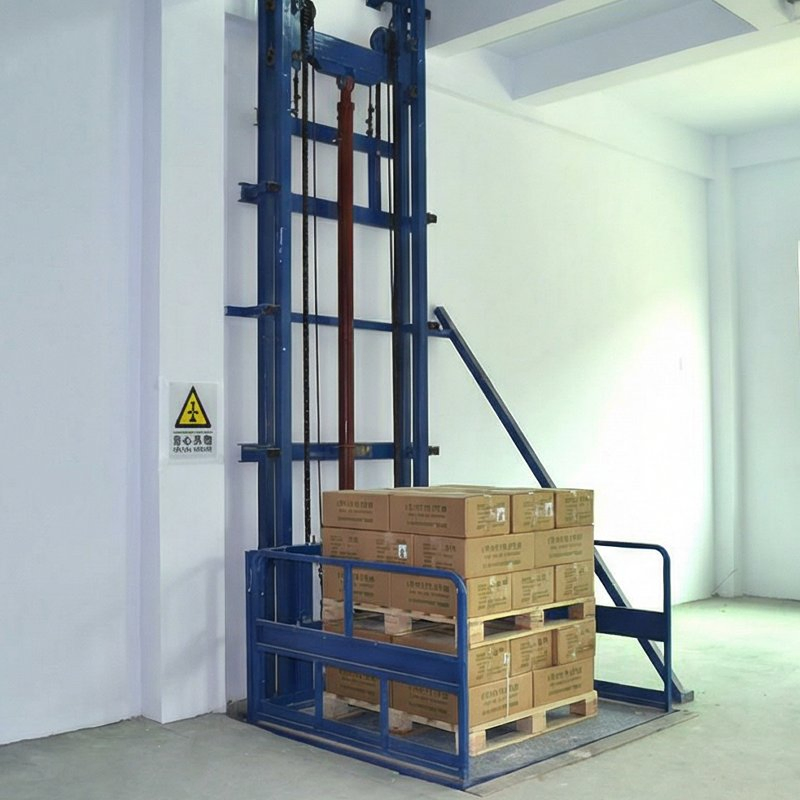

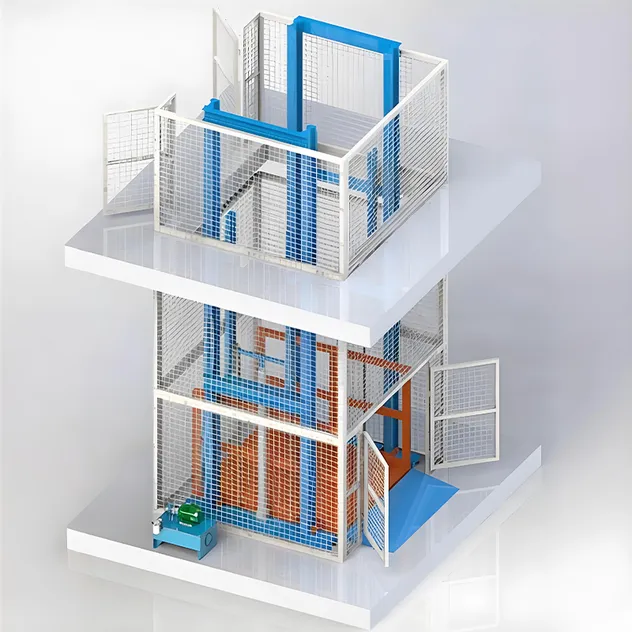

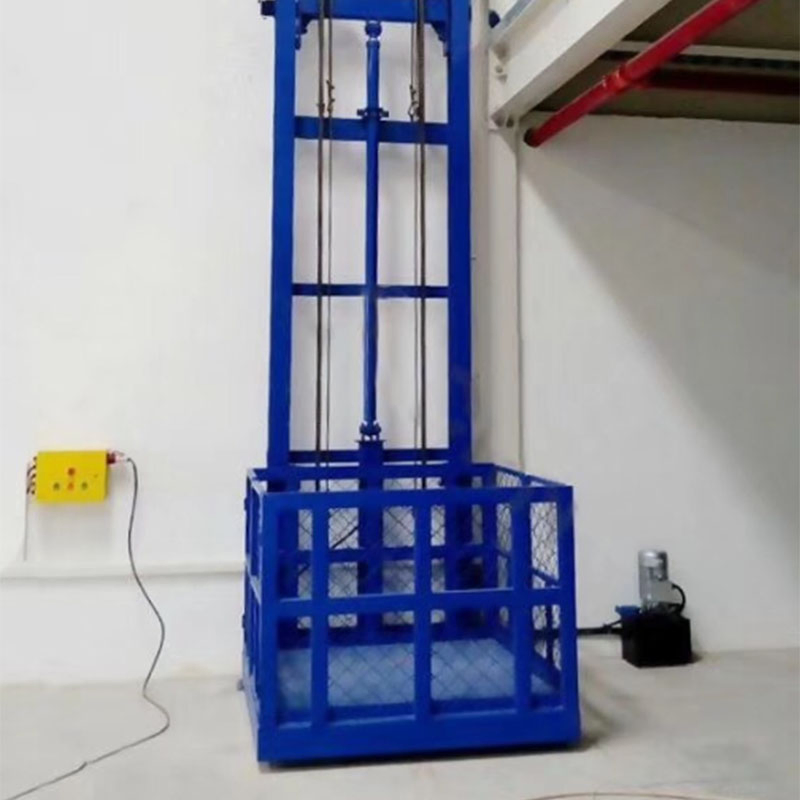

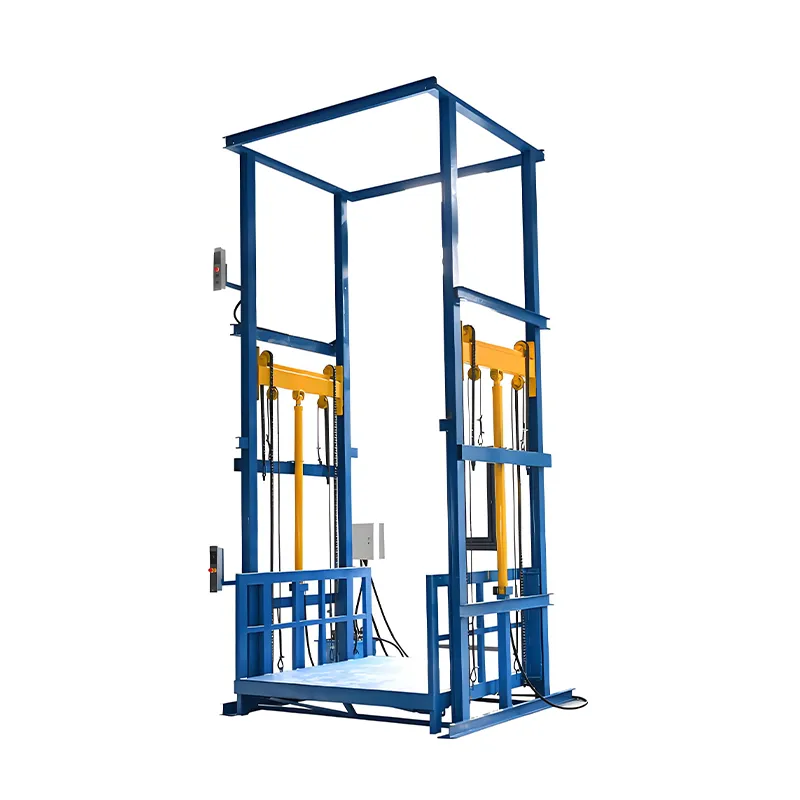

Freight elevators (also known as cargo lifts) are heavy-duty lifting equipment designed for the vertical transport of materials, goods, or equipment between different floors in warehouses, factories, commercial buildings, and storage facilities. Built specifically for material handling, they feature a robust structure and high load-bearing capacity.
| Model | CL0.5-220 |
| Platform Material | 100*50*4mm rectangular tube + 5mm checkered plate Q345B |
| Self Height | ≤120mm |
| Guide Rails Material | 100*100*7H (customized) |
| Hydraulic Cylinders | Diameter 70mm*1 |
| Pump Motor | 2.2kw-5.5kw |
| Lifting Chains | 16A |
| Safety Rope | Diameter 10mm |
